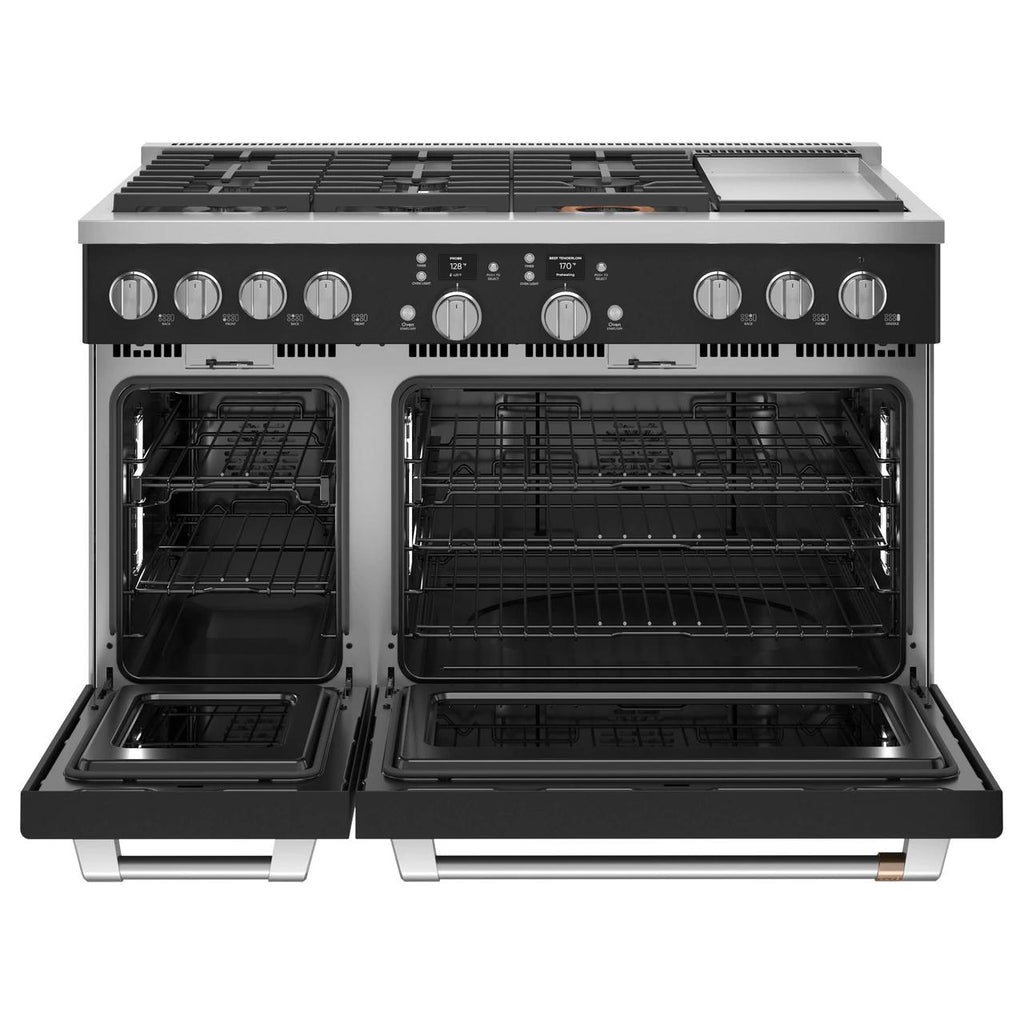

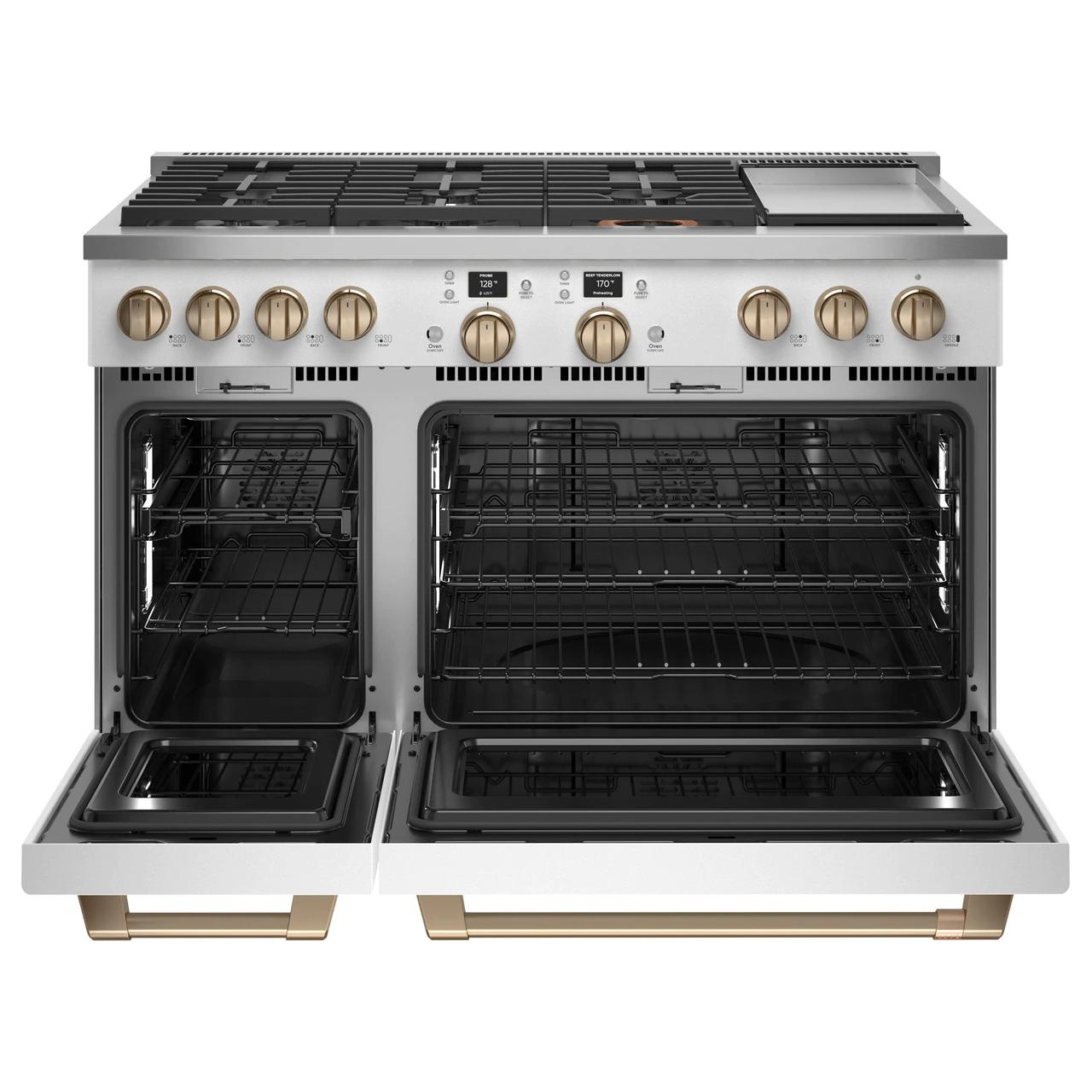

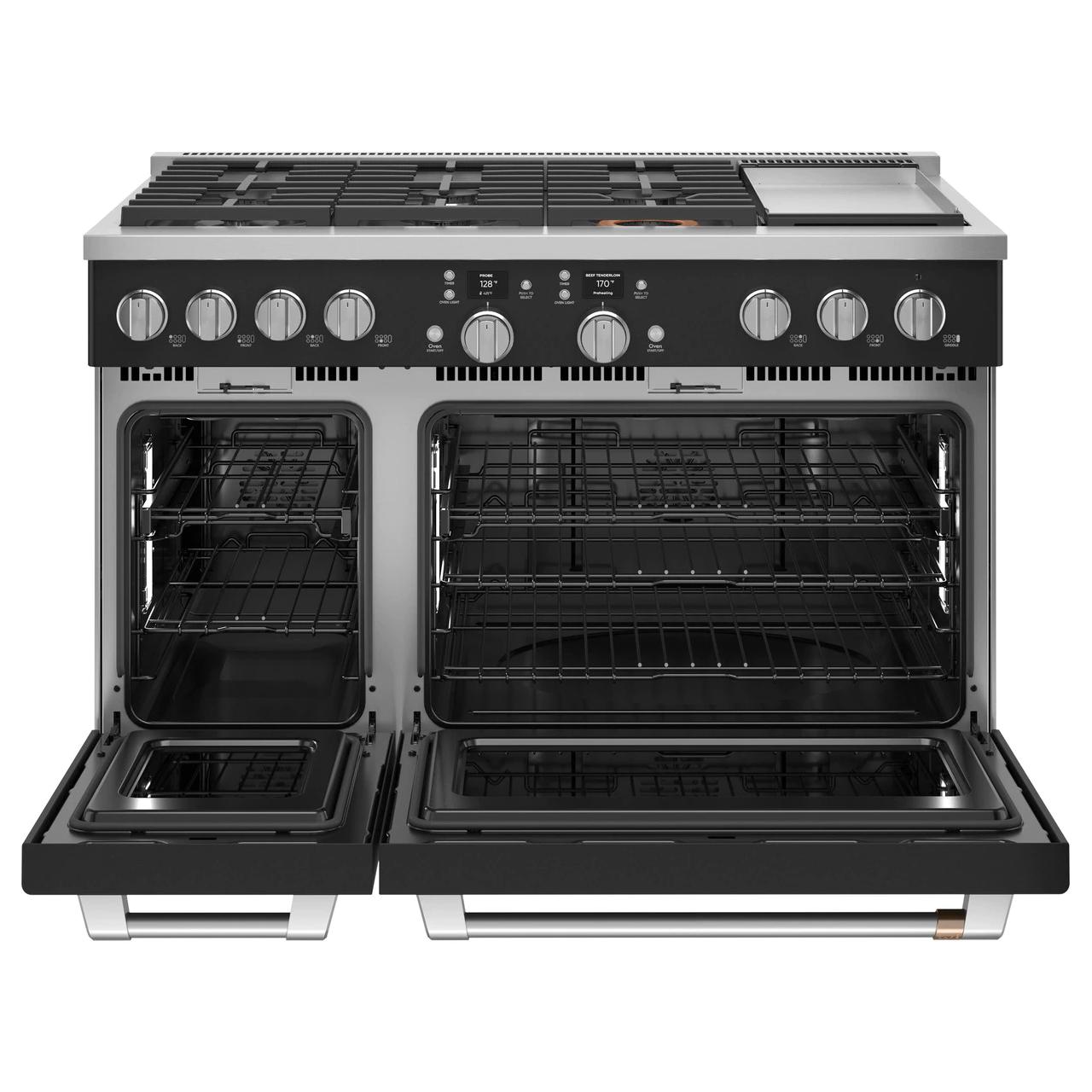

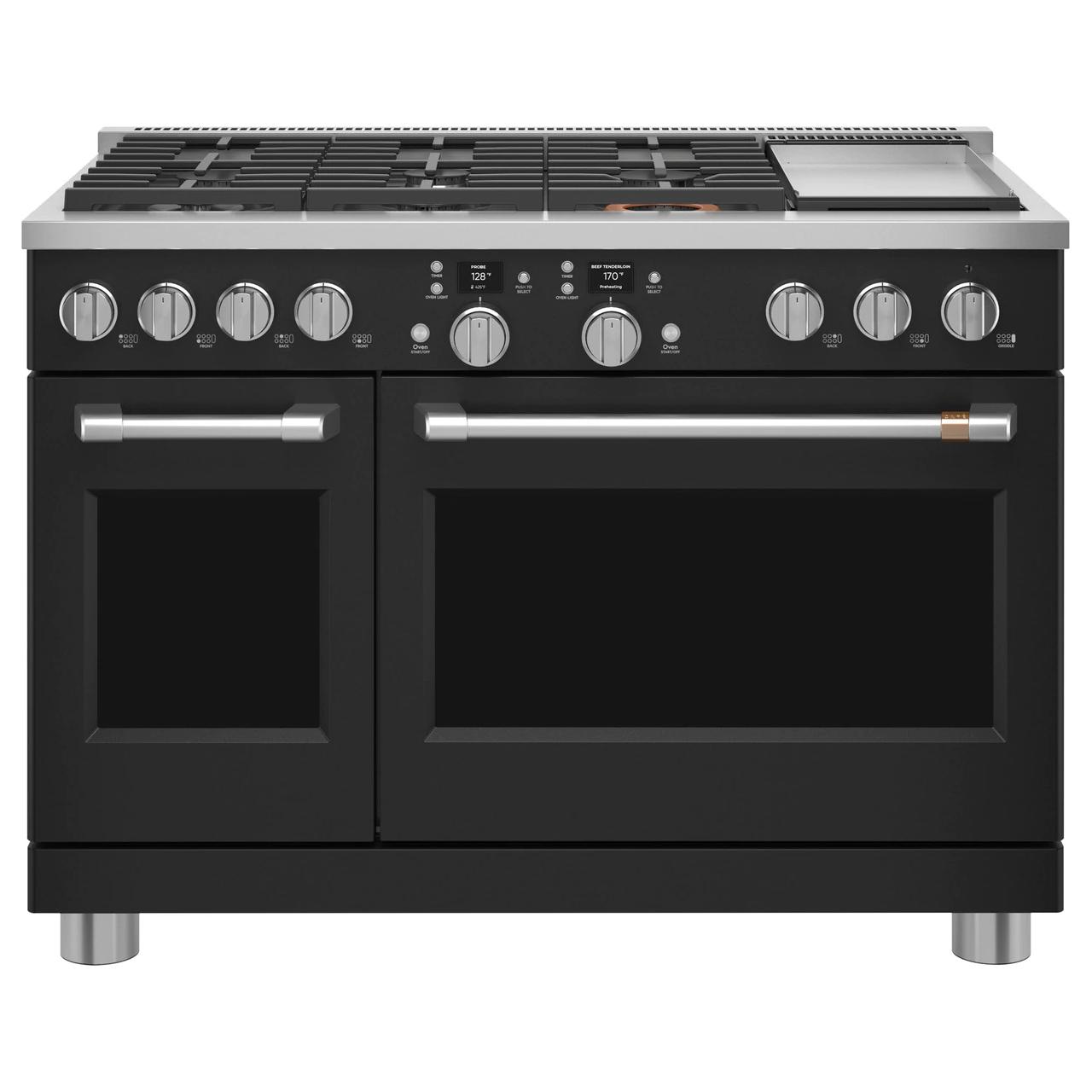

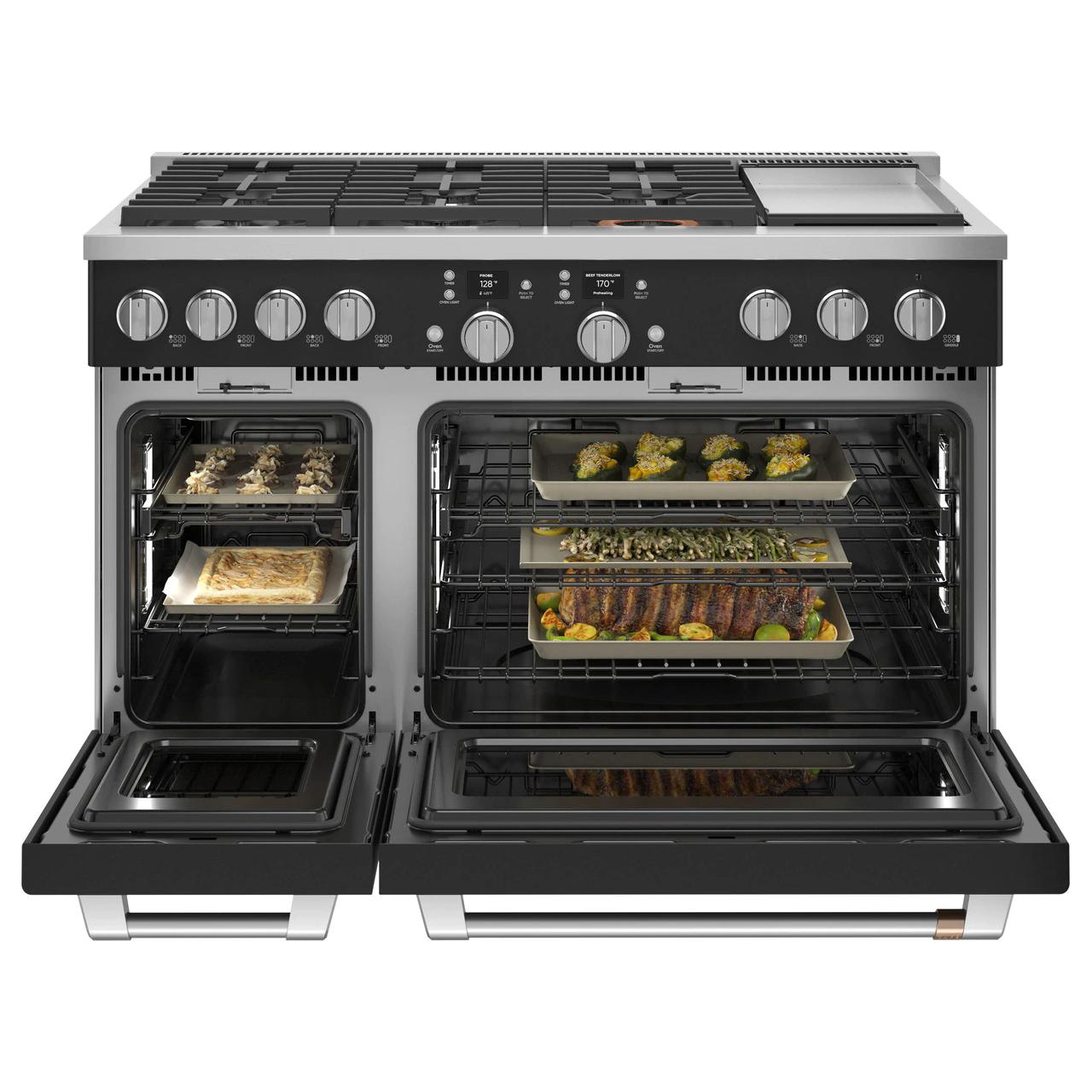

×Café™ 48" Smart Dual-Fuel Commercial-Style Range with 6 Burners and Griddle (Natural Gas). Expand your culinary horizons with the commercial-style range from Café. It has a cooktop with four different types of burners for total versatility, plus two separate ovens that let you cook multiple dishes at once. The Caterer’s Oven has the capacity to fit a full-size catering pan, and the features to guarantee better results. The Everyday Oven is big enough for three 9” x 13” casserole dishes and includes two enamel racks.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
Commercial-Style
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Black
Manufacturer Color
Matte Black
Appliance Care
• Auto Self Clean
• Delay Clean Option
• Self-Clean Cool Down Time Display
• Self-Clean with Steam Clean Option (Both Ovens)
• Variable with Delay Clean Option
• Automatic Self-Clean Oven Door Lock
• Dishwasher Safe Knobs
• Delay Clean Option
• Self-Clean Cool Down Time Display
• Self-Clean with Steam Clean Option (Both Ovens)
• Variable with Delay Clean Option
• Automatic Self-Clean Oven Door Lock
• Dishwasher Safe Knobs

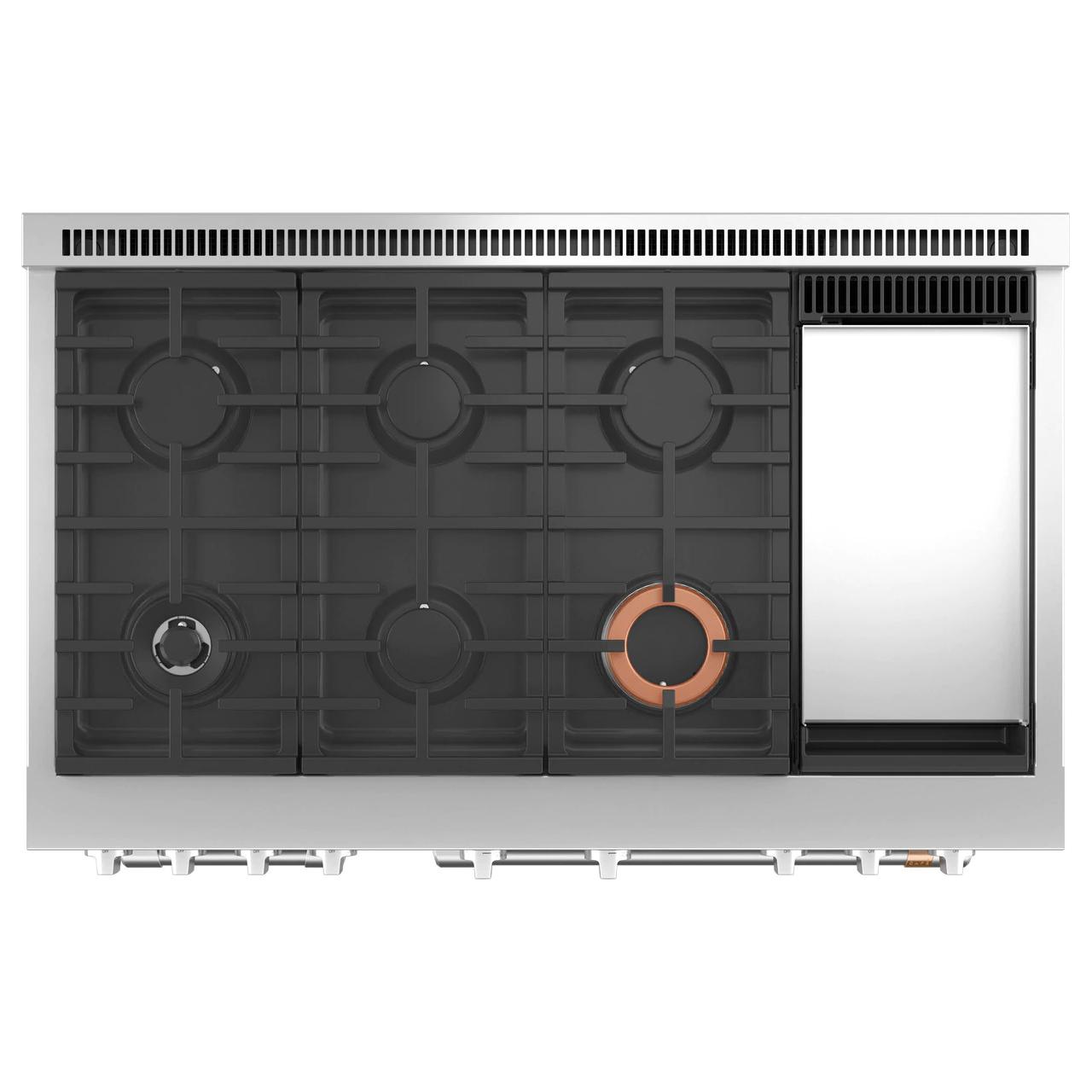

Cooktop
Burners/Elements
6
Burners/Elements Output

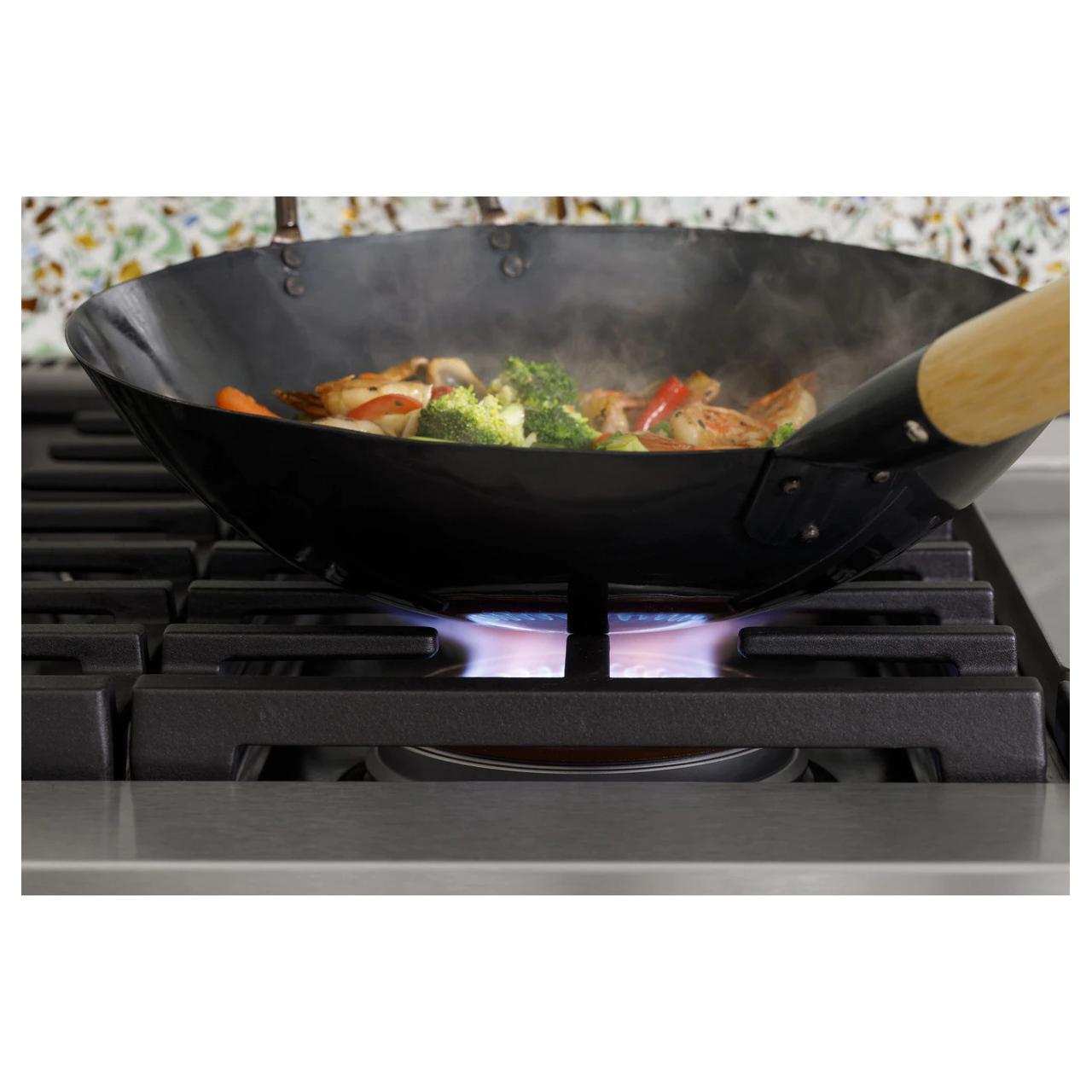

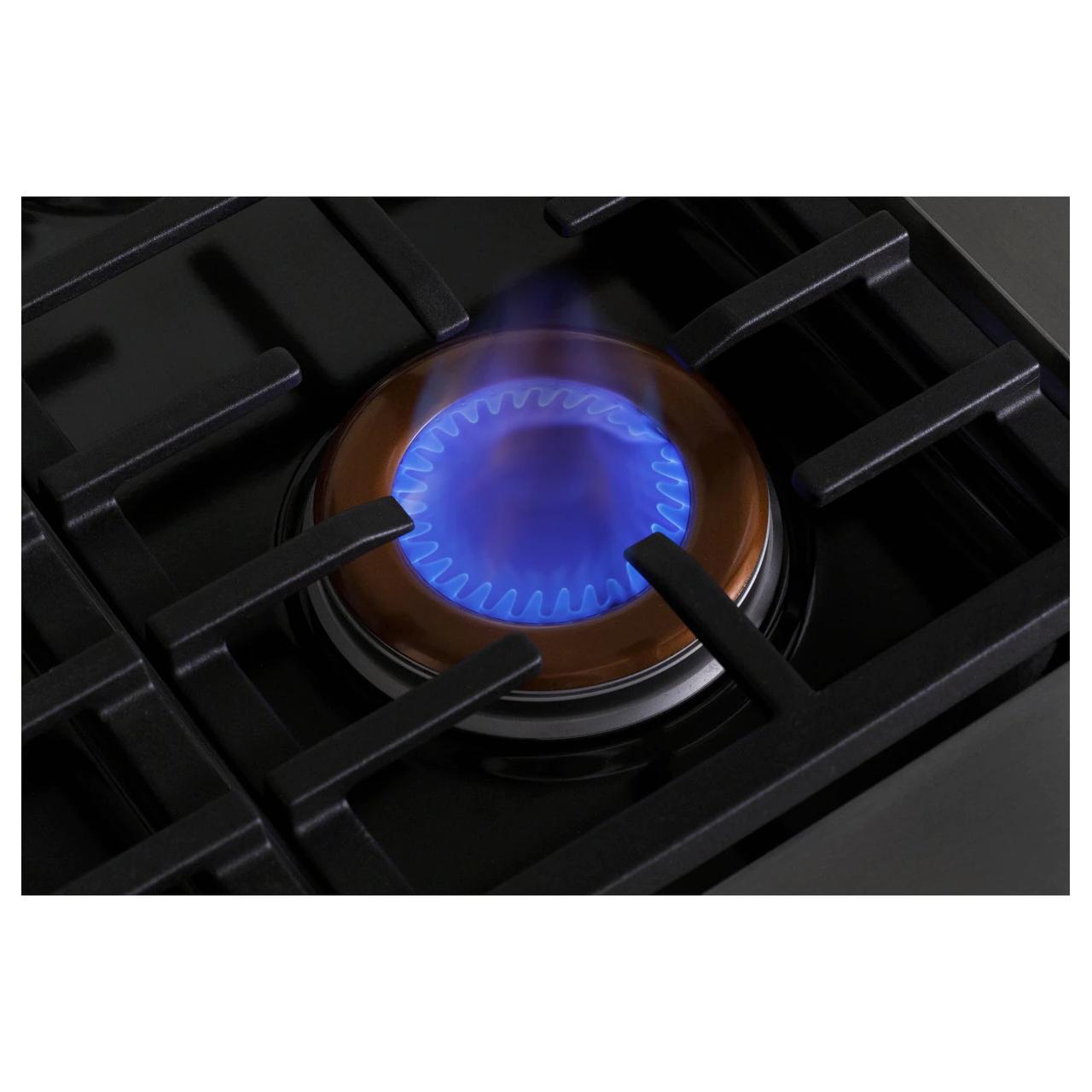

• Burner - Left Front: 21,000 BTU Multi-ring Burner
• Burner - Left Rear: 18,000 BTU
• Burner - Right Front: 10,000 BTU
• Burner - Right Rear: 18,000 BTU
• Burner - Center Front: 12,000 BTU
• Burner - Center Rear: 12,000 BTU
• Griddle: 18,000 BTU
• Burner - Left Rear: 18,000 BTU
• Burner - Right Front: 10,000 BTU
• Burner - Right Rear: 18,000 BTU
• Burner - Center Front: 12,000 BTU
• Burner - Center Rear: 12,000 BTU
• Griddle: 18,000 BTU
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
• Total: 8.25 cu. ft.
• Large Oven: 5.75 cu. ft.
• Small Oven: 2.5 cu. ft.
• Large Oven: 5.75 cu. ft.
• Small Oven: 2.5 cu. ft.
Number of Ovens
Double
Programs
• Bake
• Broil
• Convection Bake
• Convection Broil
• Convection Roast
• Proof
• Oven Temperature Probe
• Warming
• Broil
• Convection Bake
• Convection Broil
• Convection Roast
• Proof
• Oven Temperature Probe
• Warming
Features
Technologies
• Chef Connect
• True European Convection Reverse Air Convection
• True Temp System
• Built-in WiFi Connection with the SmartHQ™ app
• Connected Integrations: Amazon Alexa, DiGiorno, Drop, IFTTT, Innit, Sonos, The Google Assistant
• WiFi Enabled Features Remote Oven Control: Remote Notifications, Clock Sync, Scan-to-Cook, Voice Control, Precision Cooking Modes, No Preheat Air Fry, Meat Probe (App-Based func), Clock Set
• True European Convection Reverse Air Convection
• True Temp System
• Built-in WiFi Connection with the SmartHQ™ app
• Connected Integrations: Amazon Alexa, DiGiorno, Drop, IFTTT, Innit, Sonos, The Google Assistant
• WiFi Enabled Features Remote Oven Control: Remote Notifications, Clock Sync, Scan-to-Cook, Voice Control, Precision Cooking Modes, No Preheat Air Fry, Meat Probe (App-Based func), Clock Set

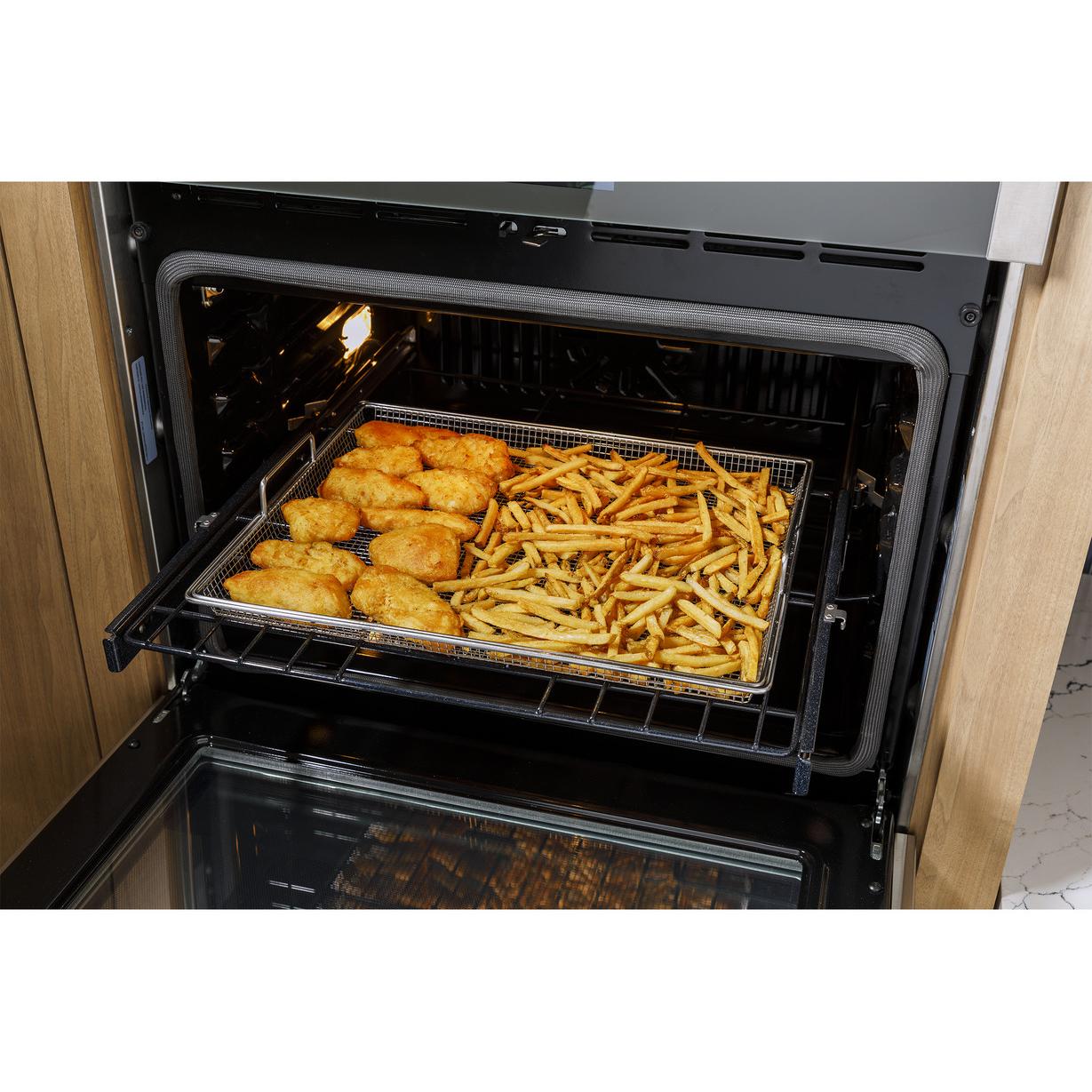

Air Fry
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Heavy Cast Edge-to-Edge Continuous Grates
• Ignition System: Electronic with Auto Reignition
• Big Clear View Oven Window

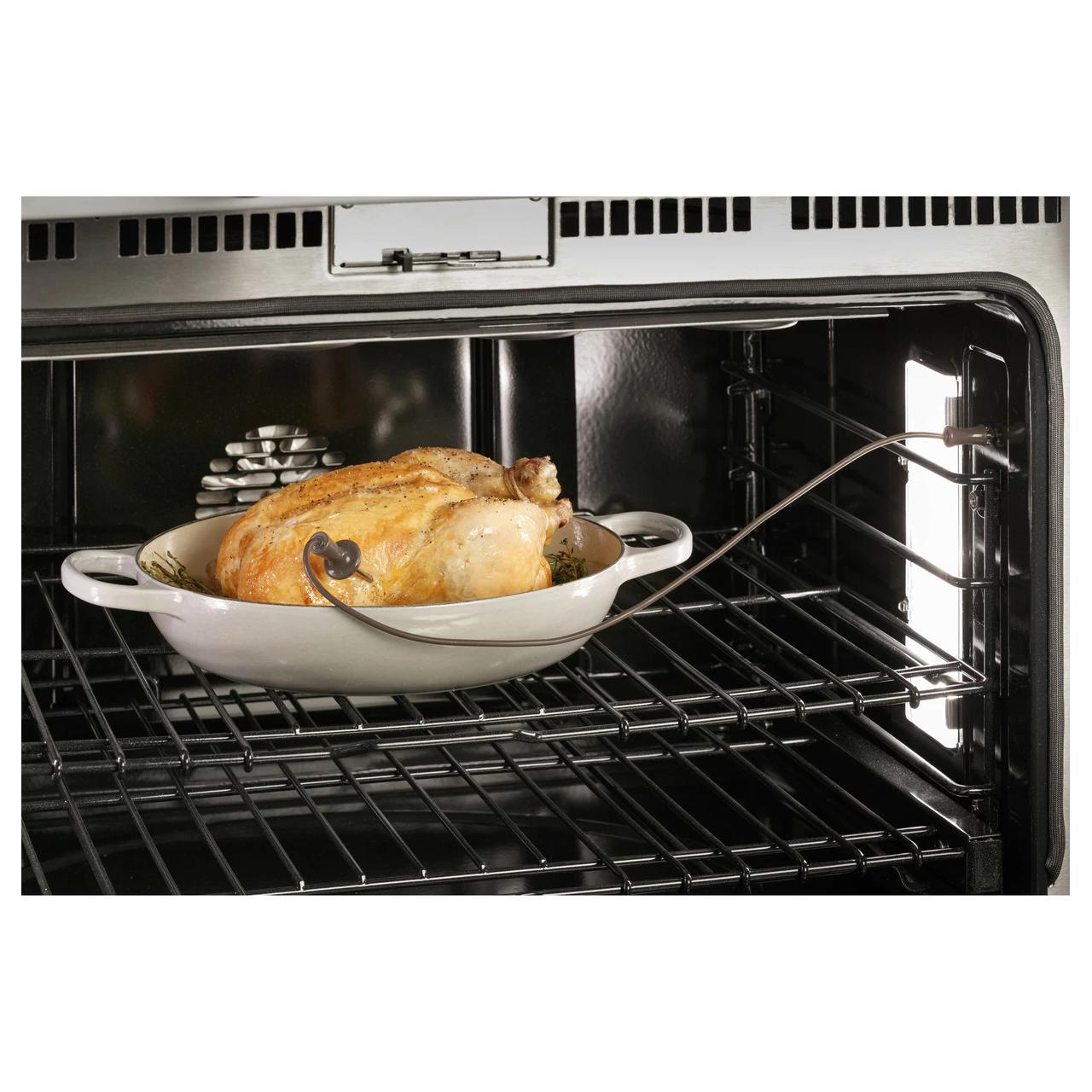

• Temperature Probe
• In-Oven Broiling
• Electronic Timer
• Auto Oven Shut-Off
• Audible Preheat Signal
• Cooktop Surface: Porcelain-Enamel

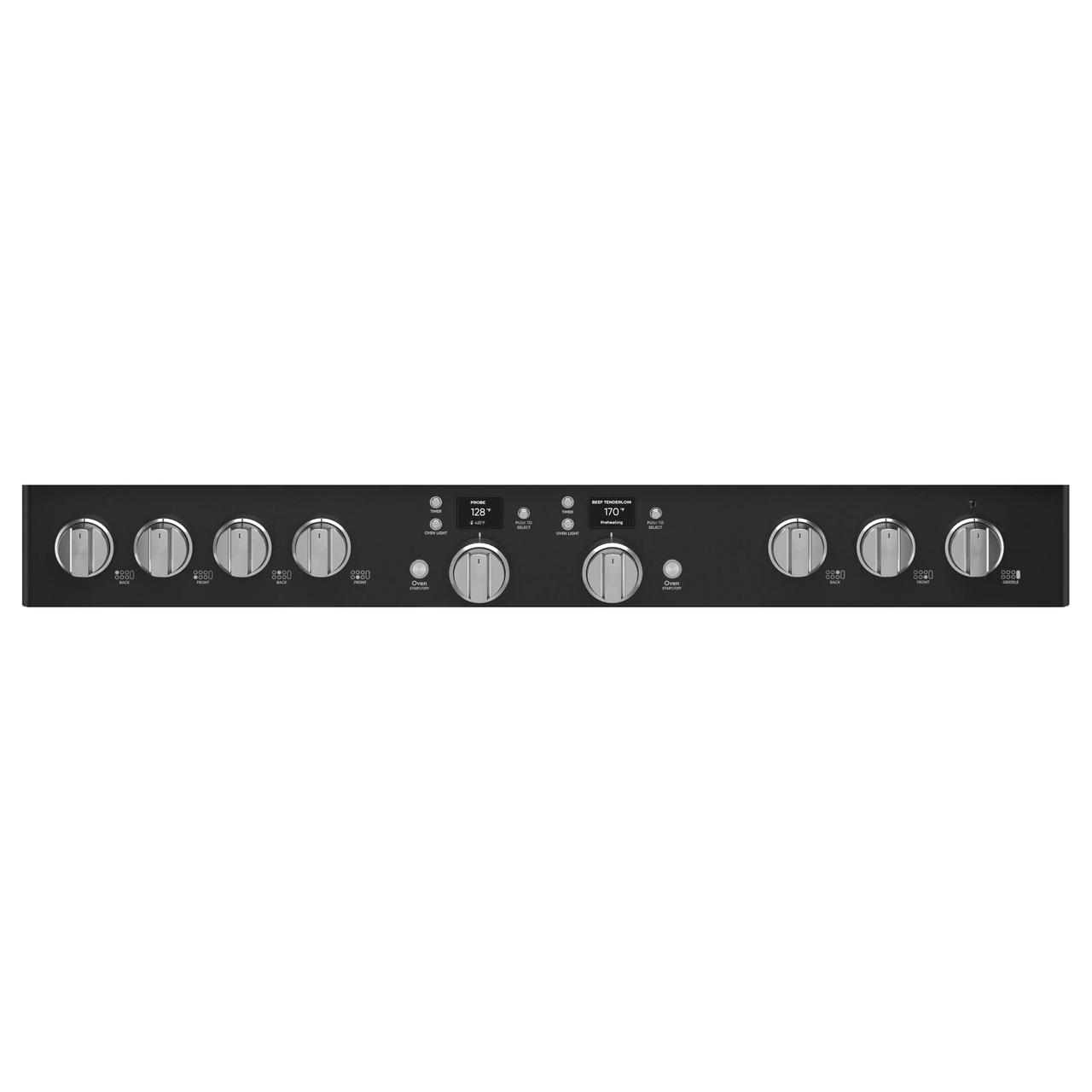

• Control Location: Front controls
• Interior Halogen Light: 6 (Large Oven), 3 (Lower Oven)
• Rack Positions: 5 (Large Oven), 4 (Lower Oven)
• Self-Clean Flat Oven Racks: 2 (Large Oven), 1 (Lower Oven)
• Self-Clean Extension Rack: 1 (in each)
• 4 Leveling Legs
• Ignition System: Electronic with Auto Reignition
• Big Clear View Oven Window
• Temperature Probe
• In-Oven Broiling
• Electronic Timer
• Auto Oven Shut-Off
• Audible Preheat Signal
• Cooktop Surface: Porcelain-Enamel
• Control Location: Front controls
• Interior Halogen Light: 6 (Large Oven), 3 (Lower Oven)
• Rack Positions: 5 (Large Oven), 4 (Lower Oven)
• Self-Clean Flat Oven Racks: 2 (Large Oven), 1 (Lower Oven)
• Self-Clean Extension Rack: 1 (in each)
• 4 Leveling Legs
Electrical Information
Information
• Volts/Hertz/Amps: 240V; 60Hz: 50A
• Bake/Broil Wattage - Main Oven: 2700/4000W
• Convection Wattage: 2500W
• Bake/Broil Wattage - Main Oven: 2700/4000W
• Convection Wattage: 2500W
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included

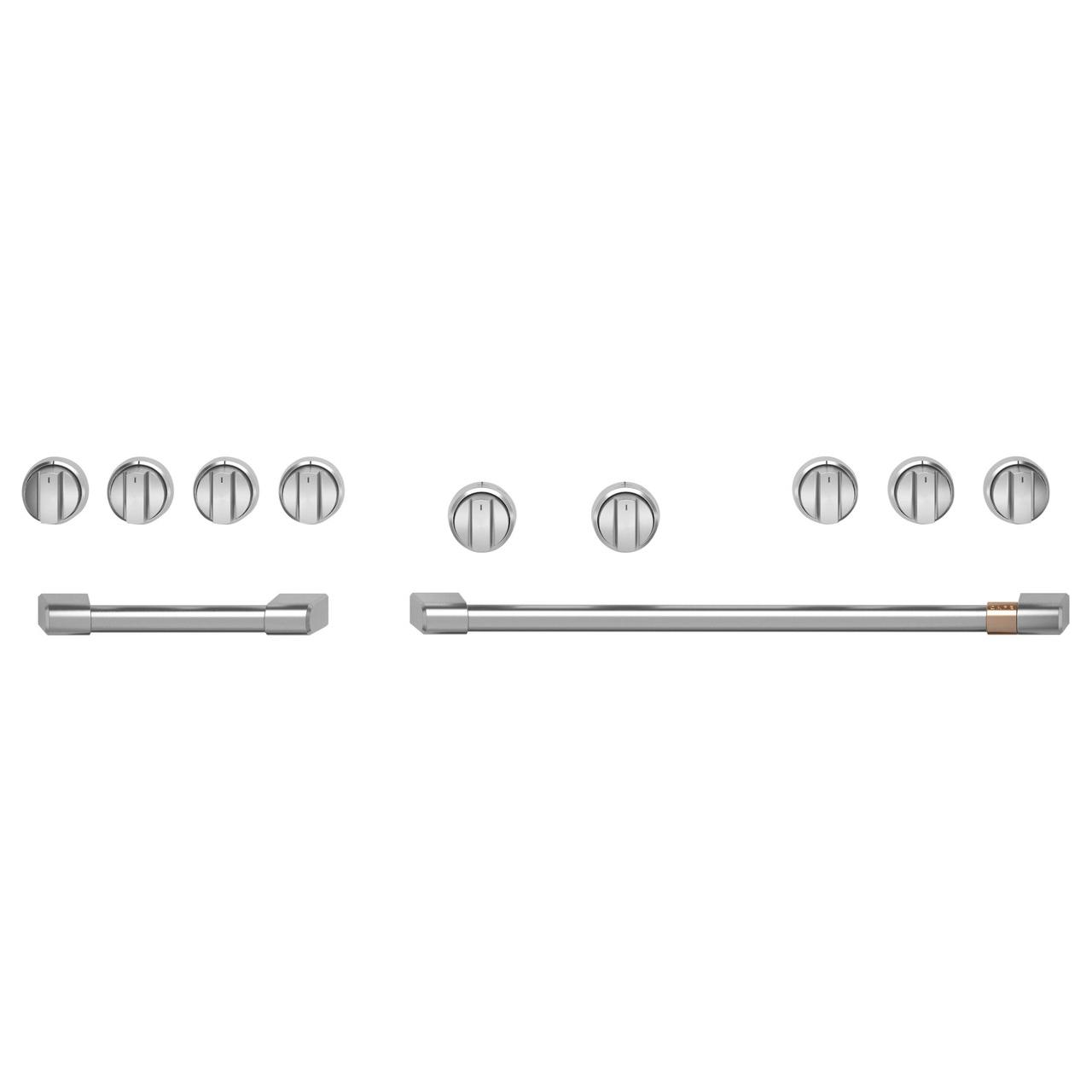

• CXPR8HKPTSS: Brushed Stainless Steel Kit - 2 handle, 9 knobs
• LP Conversion Kit
• Power Cord
• LP Conversion Kit
• Power Cord
Optional

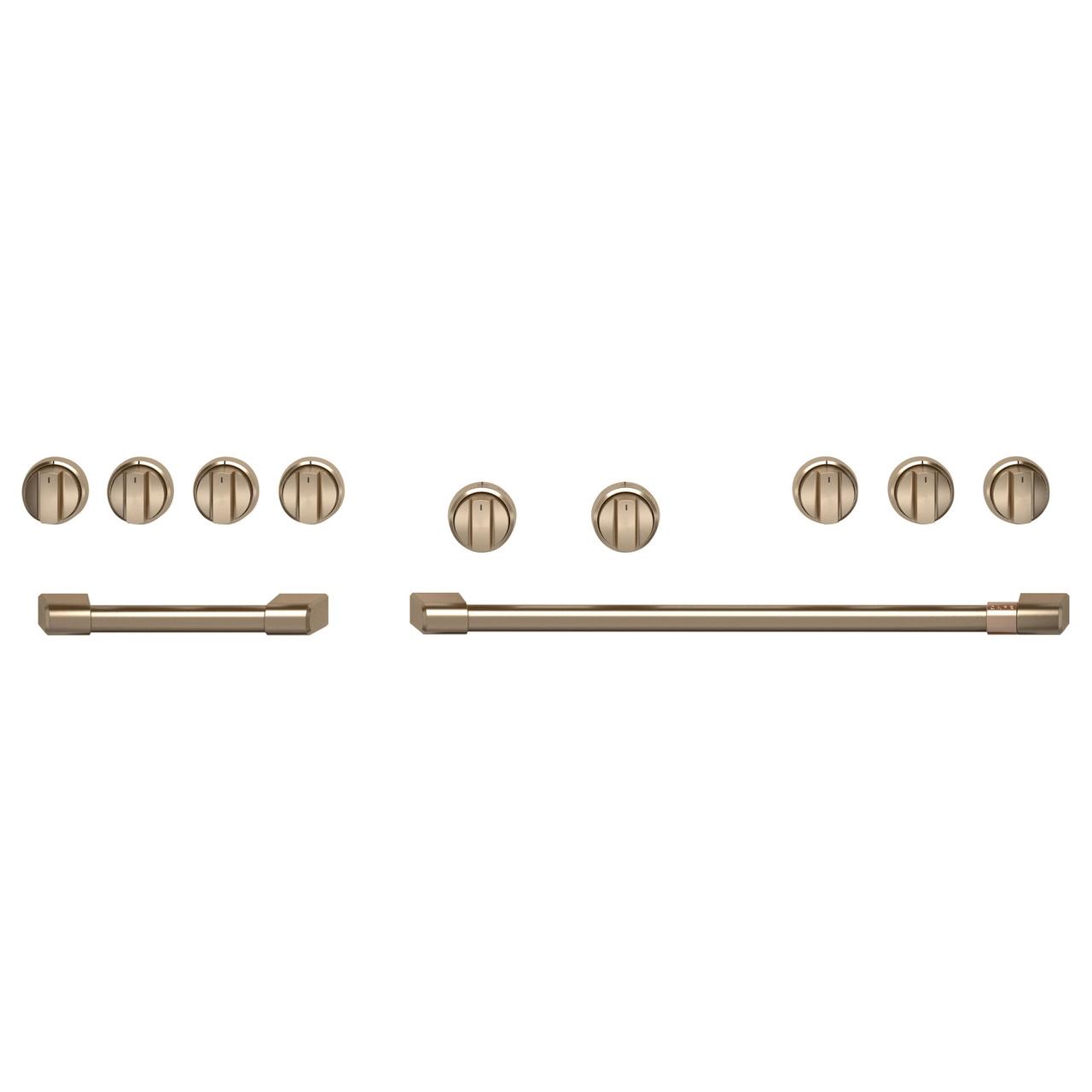

• CXPR8HKPTBZ: Brushed Bronze Kit - 2 handle, 9 knobs
• CXPR8HKPTBT: Brushed Black Kit - 2 handle, 9 knobs

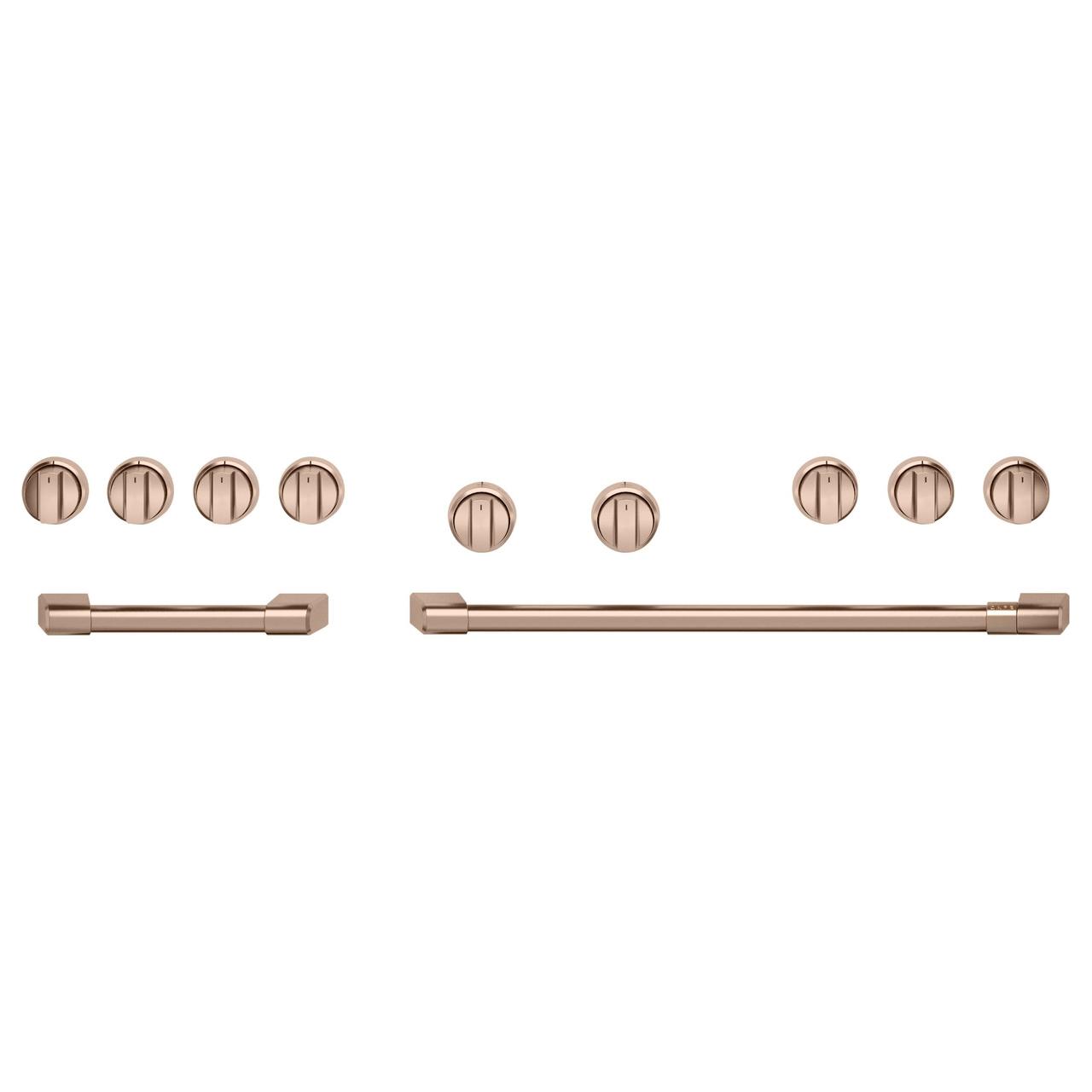

• CXPR8HKPTCU: Brushed Copper Kit - 2 handle, 9 knobs

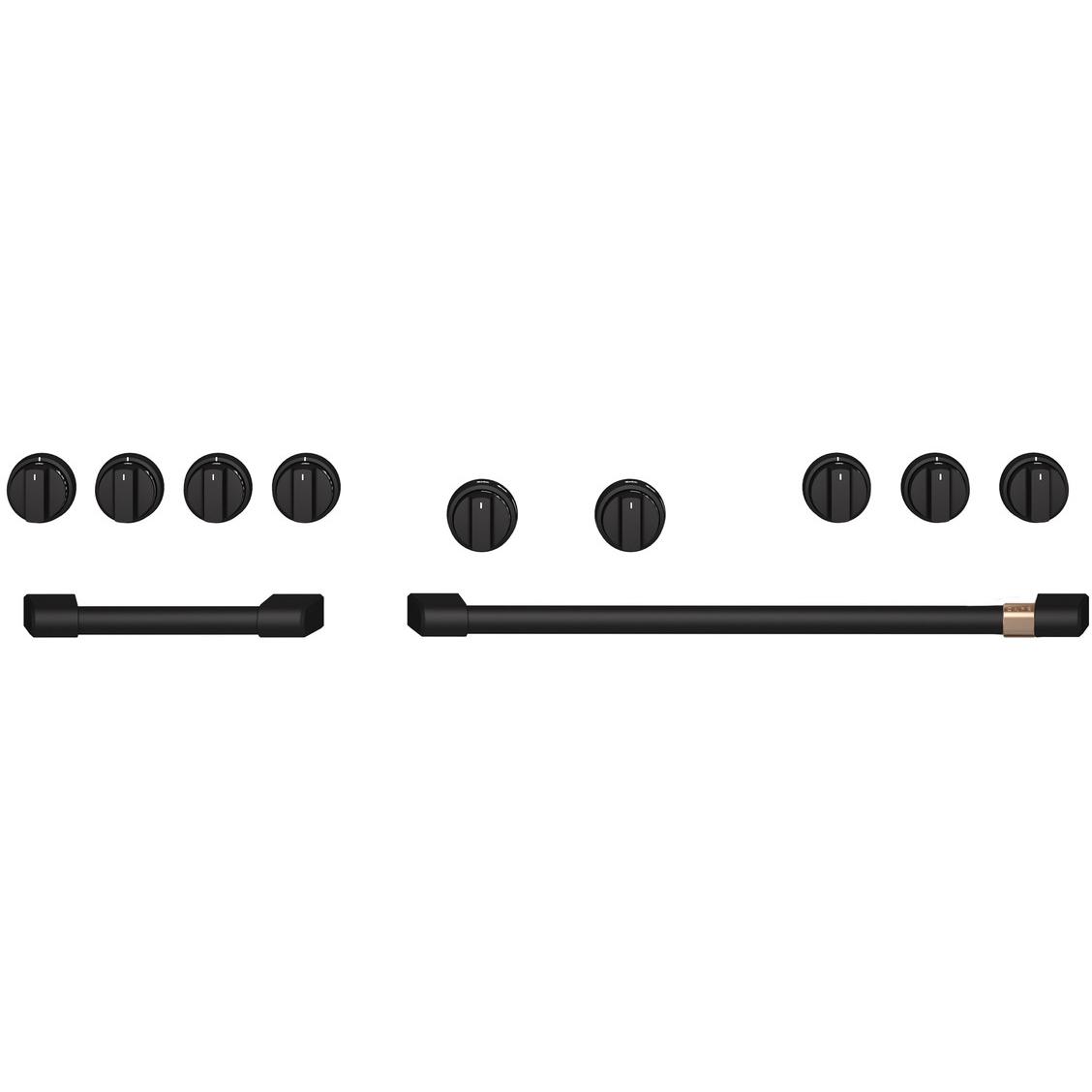

• CXPR8HKPTFB: Flat Black Kit - 2 handle, 9 knobs
• CXLB3H3PMCG: Brushed Brass Kit - 3 handles
• CXPR8HKPTBT: Brushed Black Kit - 2 handle, 9 knobs
• CXPR8HKPTCU: Brushed Copper Kit - 2 handle, 9 knobs
• CXPR8HKPTFB: Flat Black Kit - 2 handle, 9 knobs
• CXLB3H3PMCG: Brushed Brass Kit - 3 handles
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.60 cm
Height
35.25 inch(es) / 89.54 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
28.25 inch(es) / 71.76 cm
Weight
576 lb(s) / 261.27 kg
Additional Dimensions
• Depth with Door Open: 43 7/8"
• Height to Cooking Surface: 35-1/4" - 36-3/4"
• Large Oven Interior Dimensions (W x H x D): 28-1/4" x 14" x 20-3/8"
• Small Oven Interior Dimensions (W x H x D): 12-1/4" x 16-3/8" x 21-3/8"
• Height to Cooking Surface: 35-1/4" - 36-3/4"
• Large Oven Interior Dimensions (W x H x D): 28-1/4" x 14" x 20-3/8"
• Small Oven Interior Dimensions (W x H x D): 12-1/4" x 16-3/8" x 21-3/8"
Shipping Dimensions
Width
50.5 inch(es) / 128.27 cm
Height
47 inch(es) / 119.38 cm
Depth
34.7 inch(es) / 88.14 cm
Weight
671.99 lb(s) / 304.81 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
084691851417
