DESCRIPTION

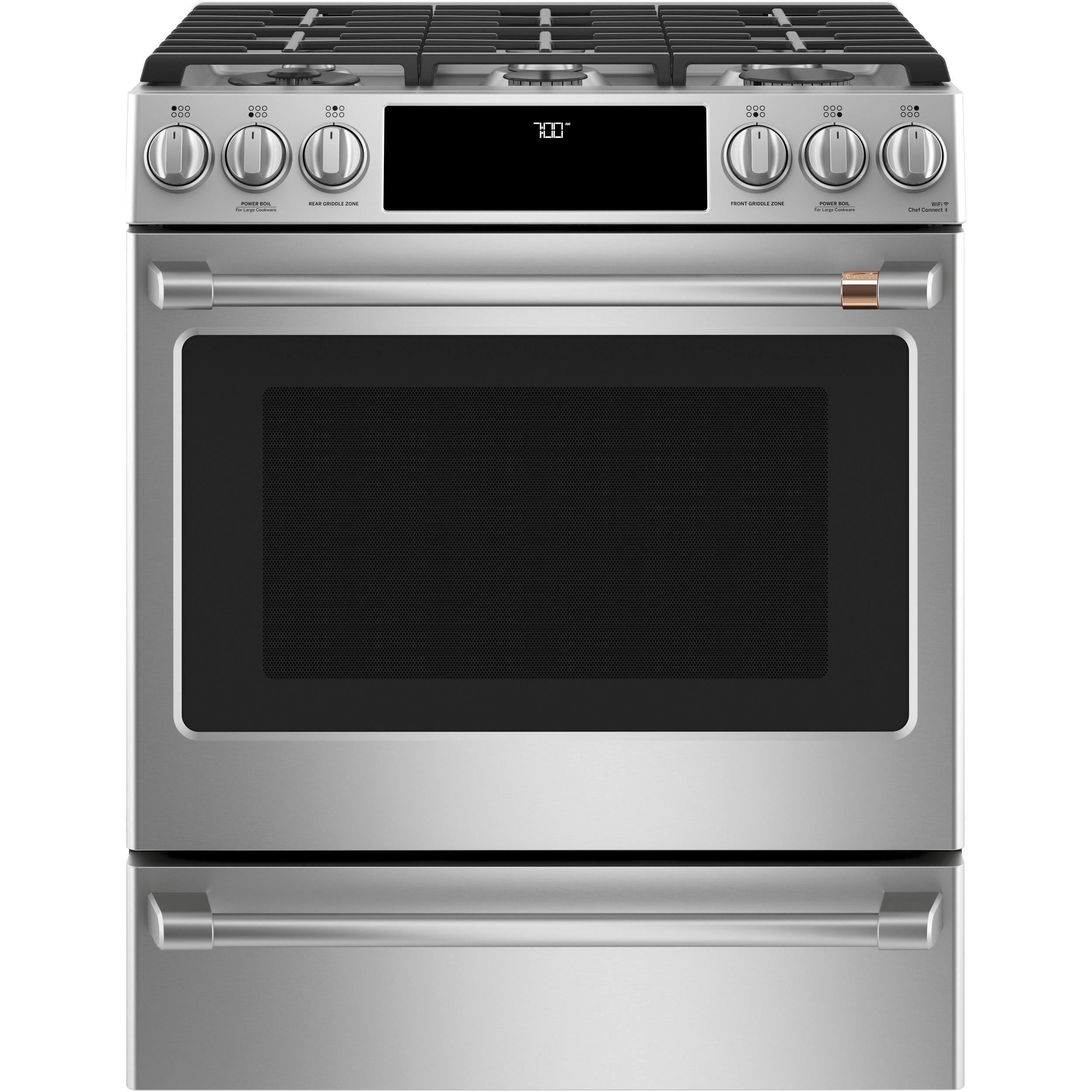

×This Café® 30-inch gas, slide-in range features true European convection with Precise Air and auto self clean. This is a slide-in range for those who love to cook. The edge-to-edge cooktop with six versatile burners also includes an integrated griddle to easily handle large meals and family favorites. An integrated temperature probe ensures that meats are prepared to the perfect doneness.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean with Steam Clean Option

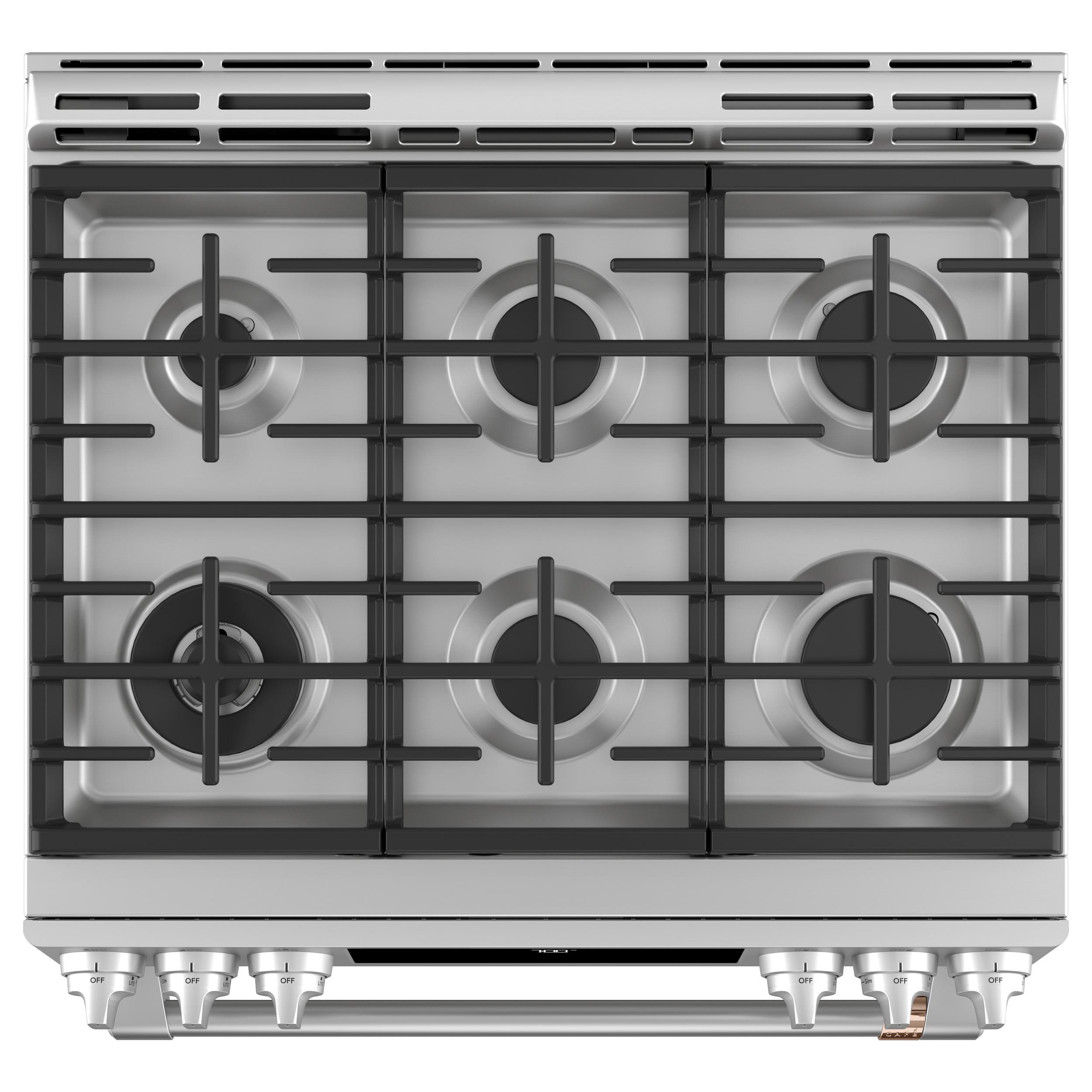

Cooktop
Burners/Elements
6
Burners/Elements Output
• Left Front Burner: 21,000 BTU Tri-ring Burner
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Burner: 9,500 BTU Front / 9,500 BTU Rear
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Burner: 9,500 BTU Front / 9,500 BTU Rear
Elements
Smoothtop
Other

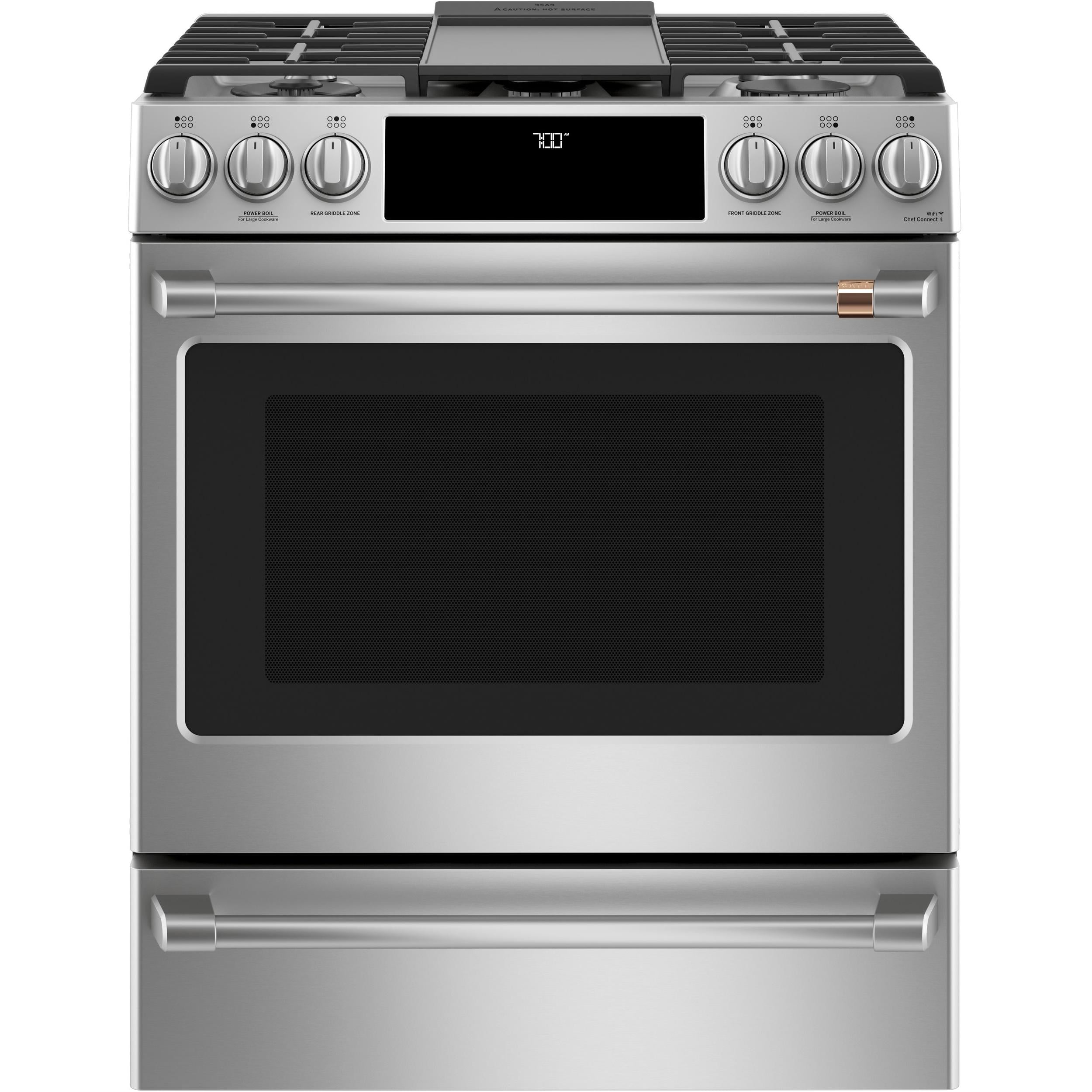

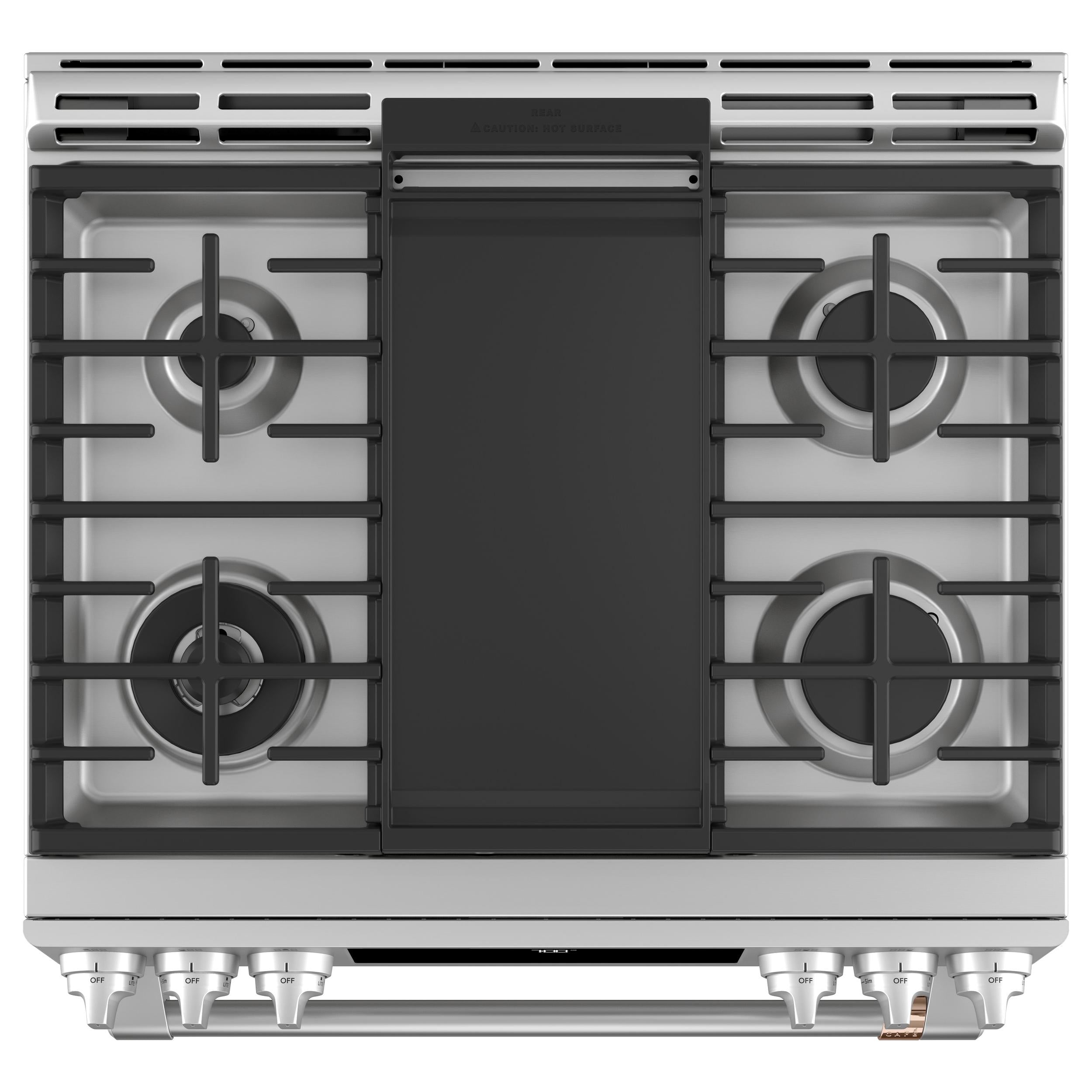

Griddle

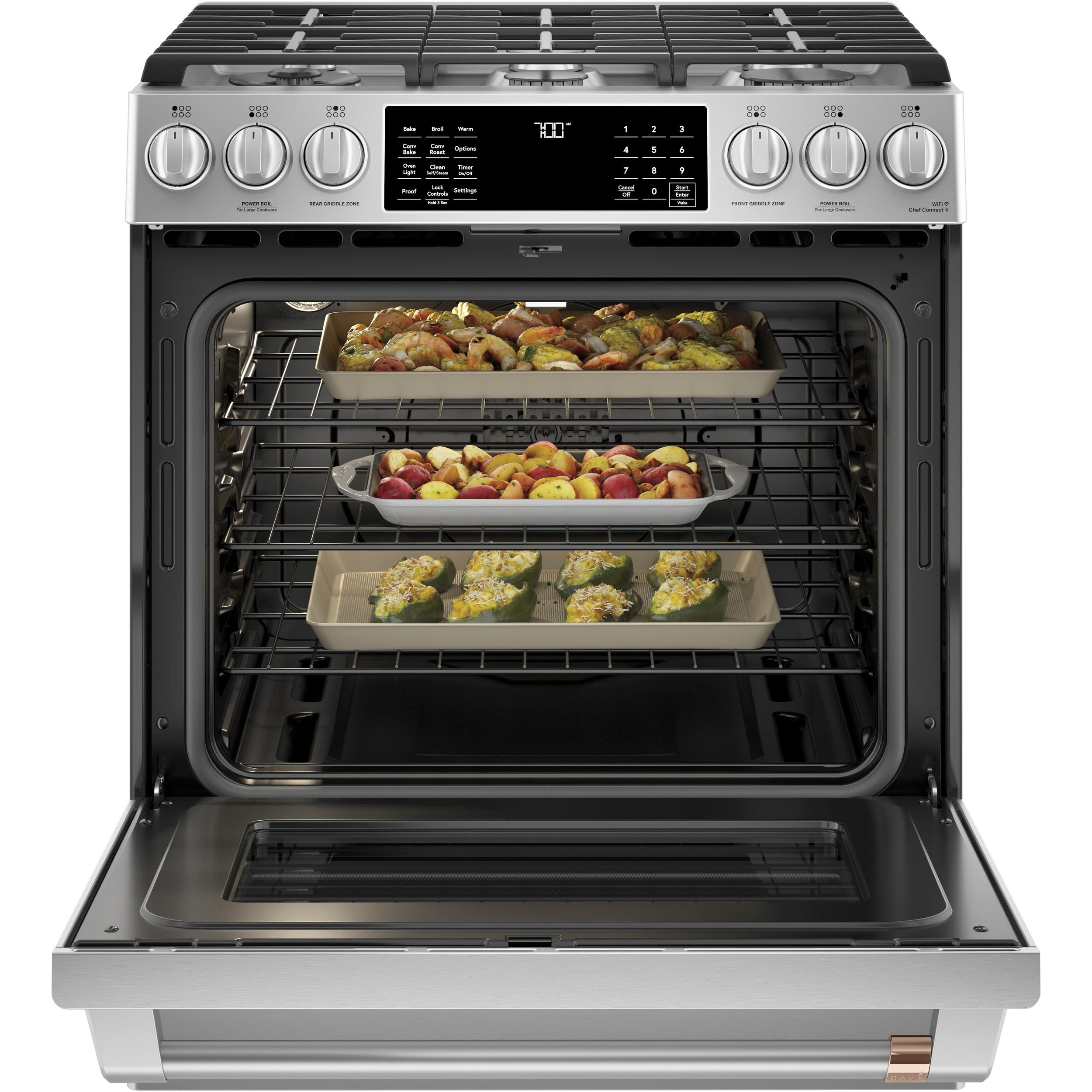

Oven
Capacity (cu. ft.)
5.6 cu.ft.
Number of Ovens
Single
Programs
• Convection 1200W
• Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 13.5 Broiler
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 16.0 Bake / 16.5 Broiler
• Bake/Broiler BTU Rating - LP (000's BTU's) 16.0 Bake / 13.5 Broiler
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) 16.0 Bake / 16.5 Broiler
Features
Technologies
• True European Convection with Precise Air
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Deep Recessed; Porcelain-Enamel; Gray Cookop
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Clean Option

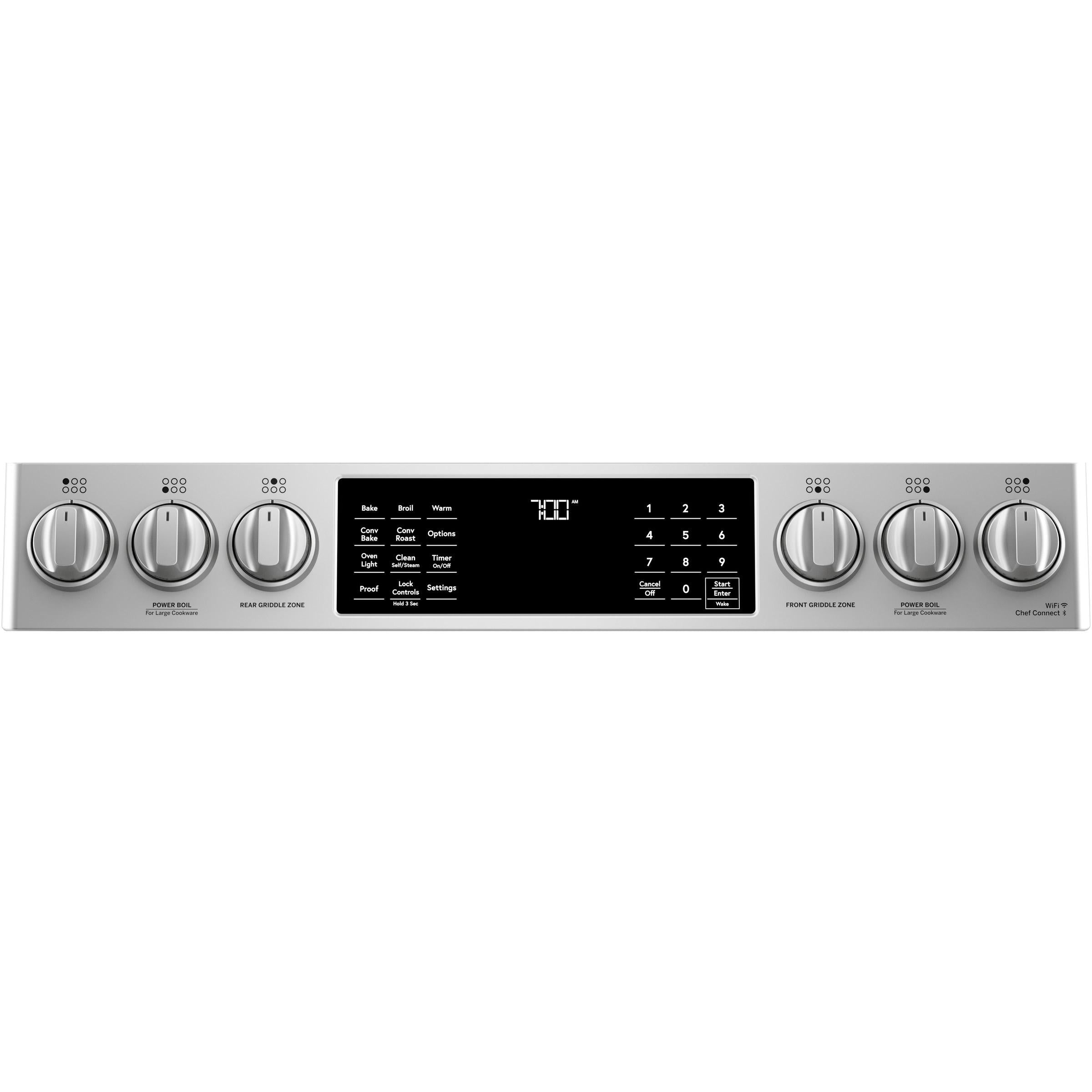

• Digipad Numeric Entry
• Electronic Clock and Timer

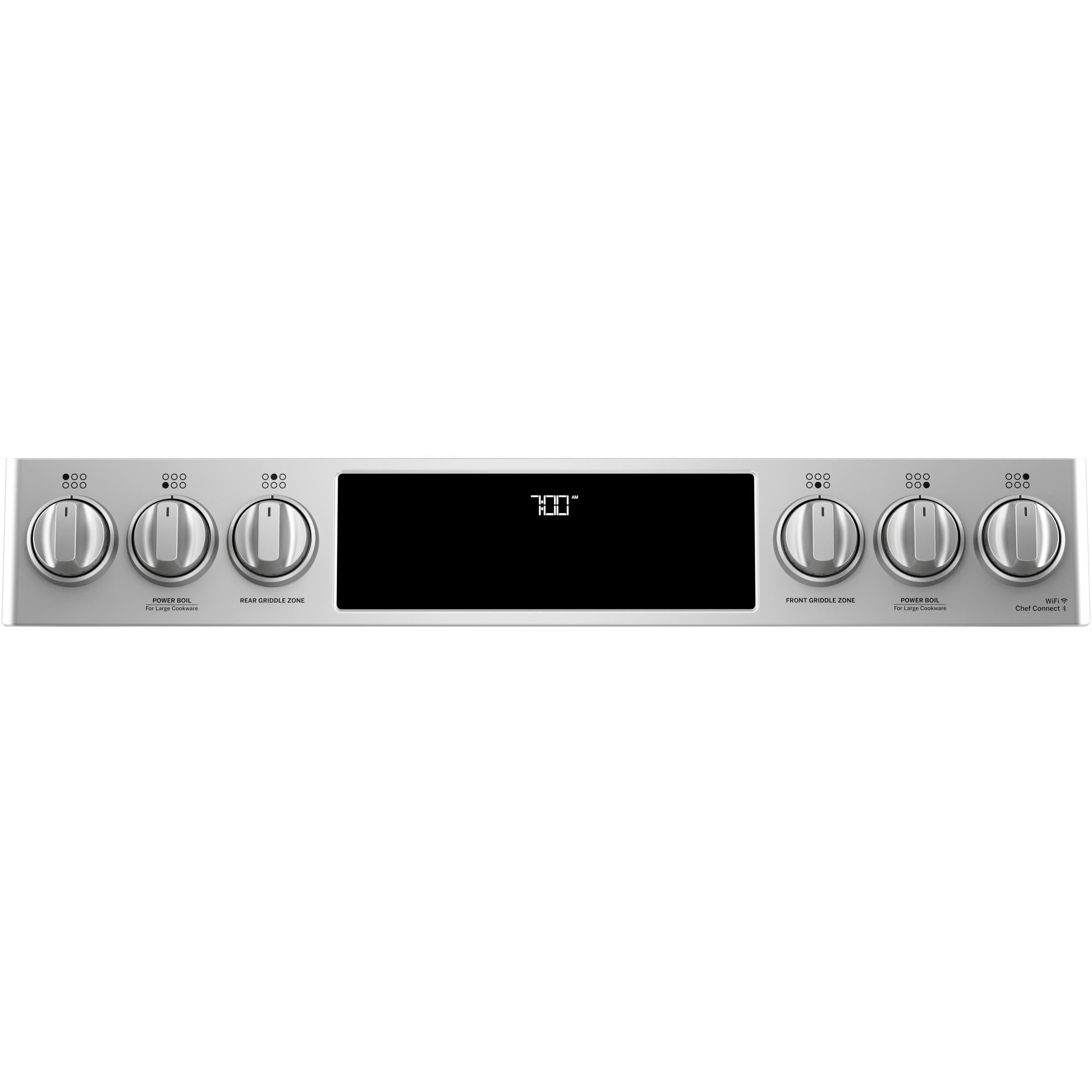

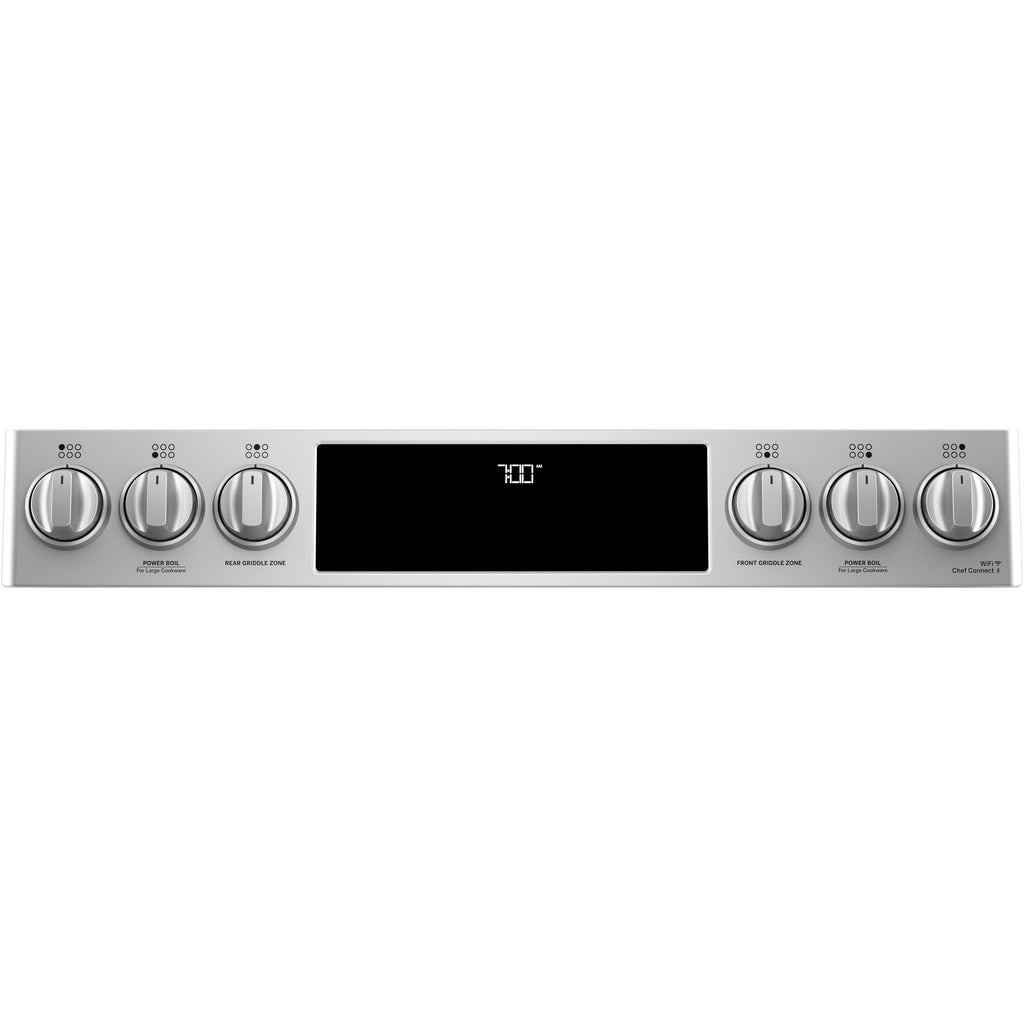

• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down Time Display
• Variable with Delay Clean Option

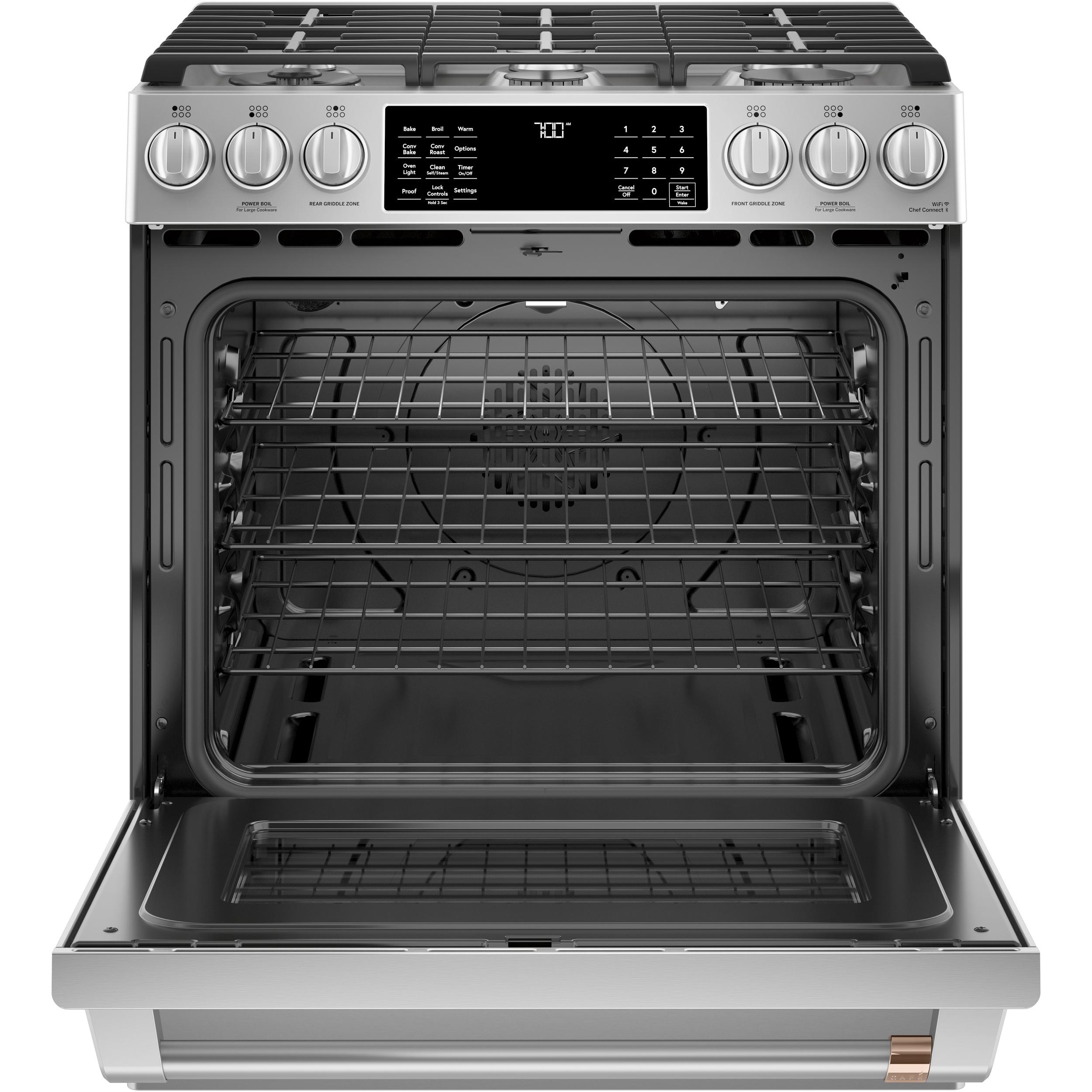

• 3 Self-Clean Oven Racks
• 6 Rack Positions
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Clean Option
• Digipad Numeric Entry
• Electronic Clock and Timer
• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down Time Display
• Variable with Delay Clean Option
• 3 Self-Clean Oven Racks
• 6 Rack Positions
Drawer Features
Storage
Yes
Electrical Information
Information
• 120 V
• 15 A
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
LP Conversion Kit
Optional
• Integrated Cast Iron JXCGRILL1
• Trim Kit JXFILLR1DD
• Trim Kit JXFILLR1DD
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36.25 inch(es) / 92.08 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.37 inch(es) / 74.61 cm
Weight
223.99 lb(s) / 101.6 kg
Additional Dimensions
• Depth with Door Open: 47-1/2"
• Height to Top of Rear Vent Trim: 37-3/8 in
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Overall Depth: 29-1/2"
• Oven Interior Dimensions (W x H x D): 24" x 19-1/2" x 20-5/8"
• Height to Top of Rear Vent Trim: 37-3/8 in
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Overall Depth: 29-1/2"
• Oven Interior Dimensions (W x H x D): 24" x 19-1/2" x 20-5/8"
Shipping Dimensions
Weight
244.01 lb(s) / 110.68 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
