DESCRIPTION

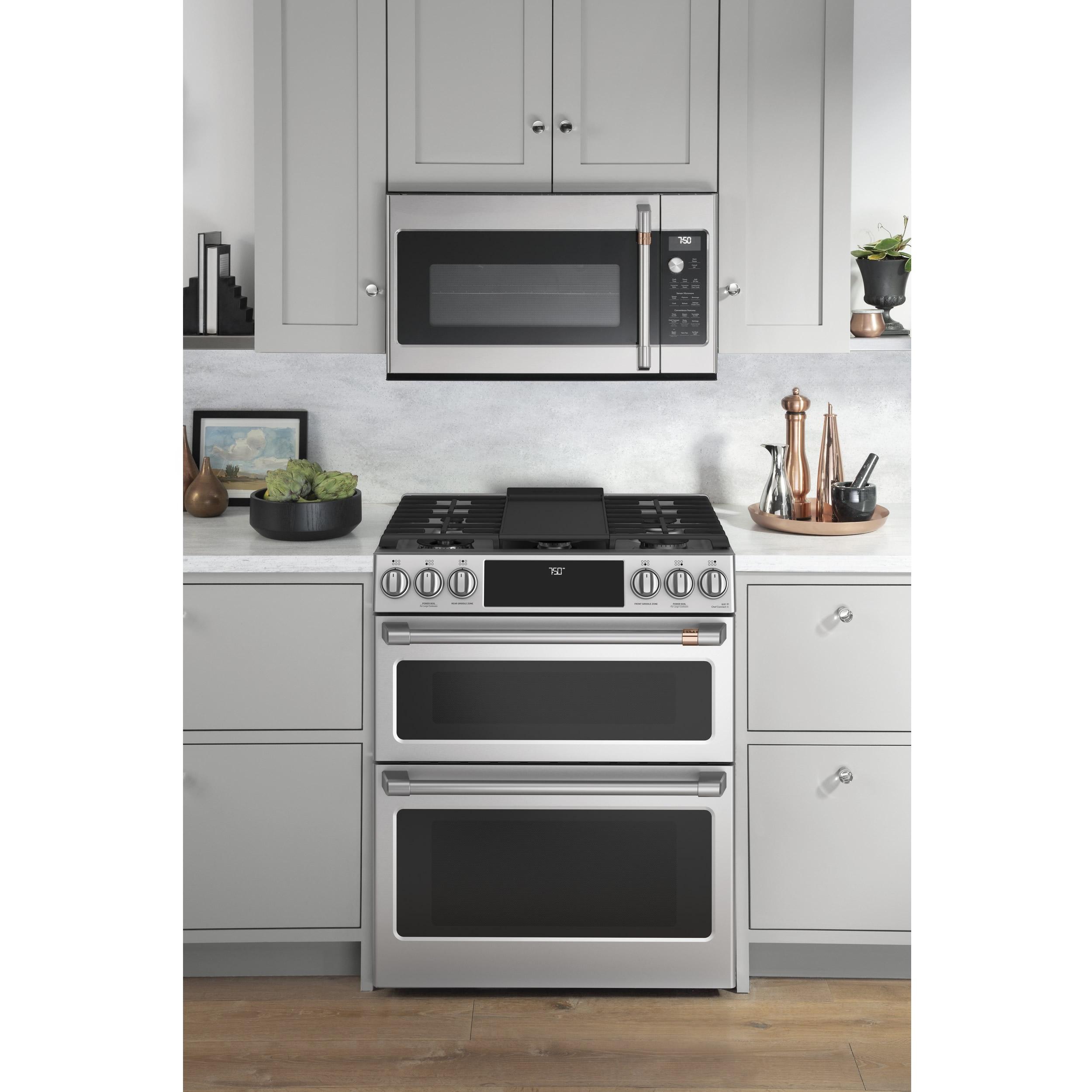

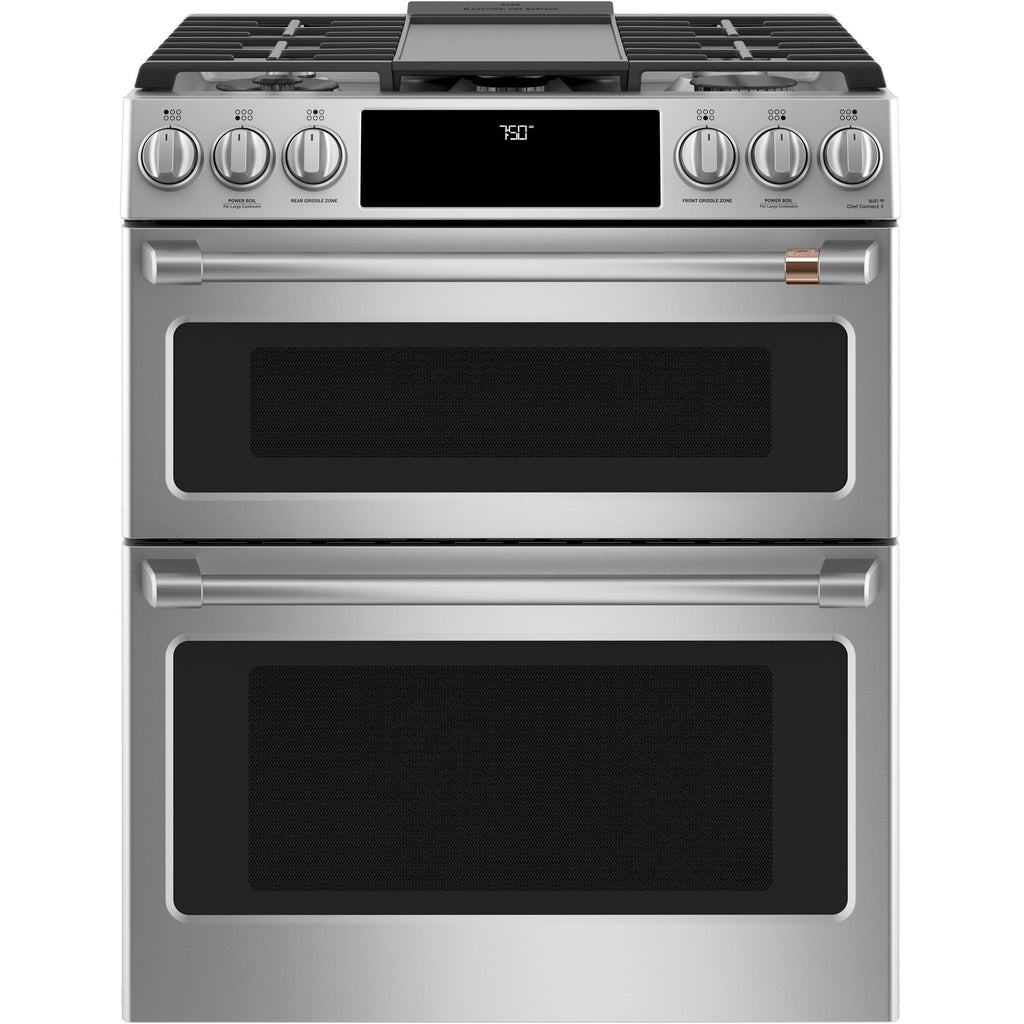

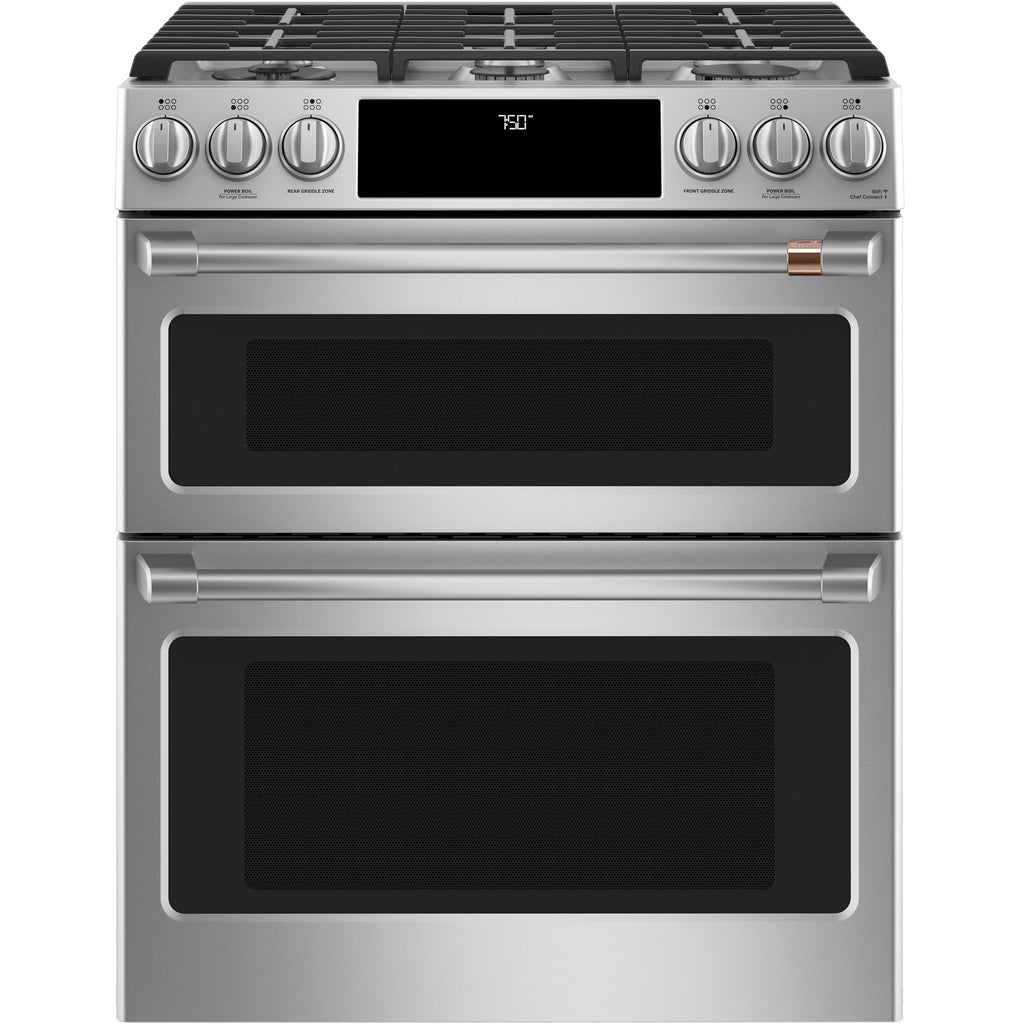

×This 30-inch Café™ double oven gas range features true European convection, Wi-Fi connect and LED control panel. The edge-to-edge cooktop with six versatile burners also includes an integrated griddle to easily handle large meals and family favorites. An integrated temperature probe ensures that meats are prepared to the perfect doneness.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean with Steam Clean Option

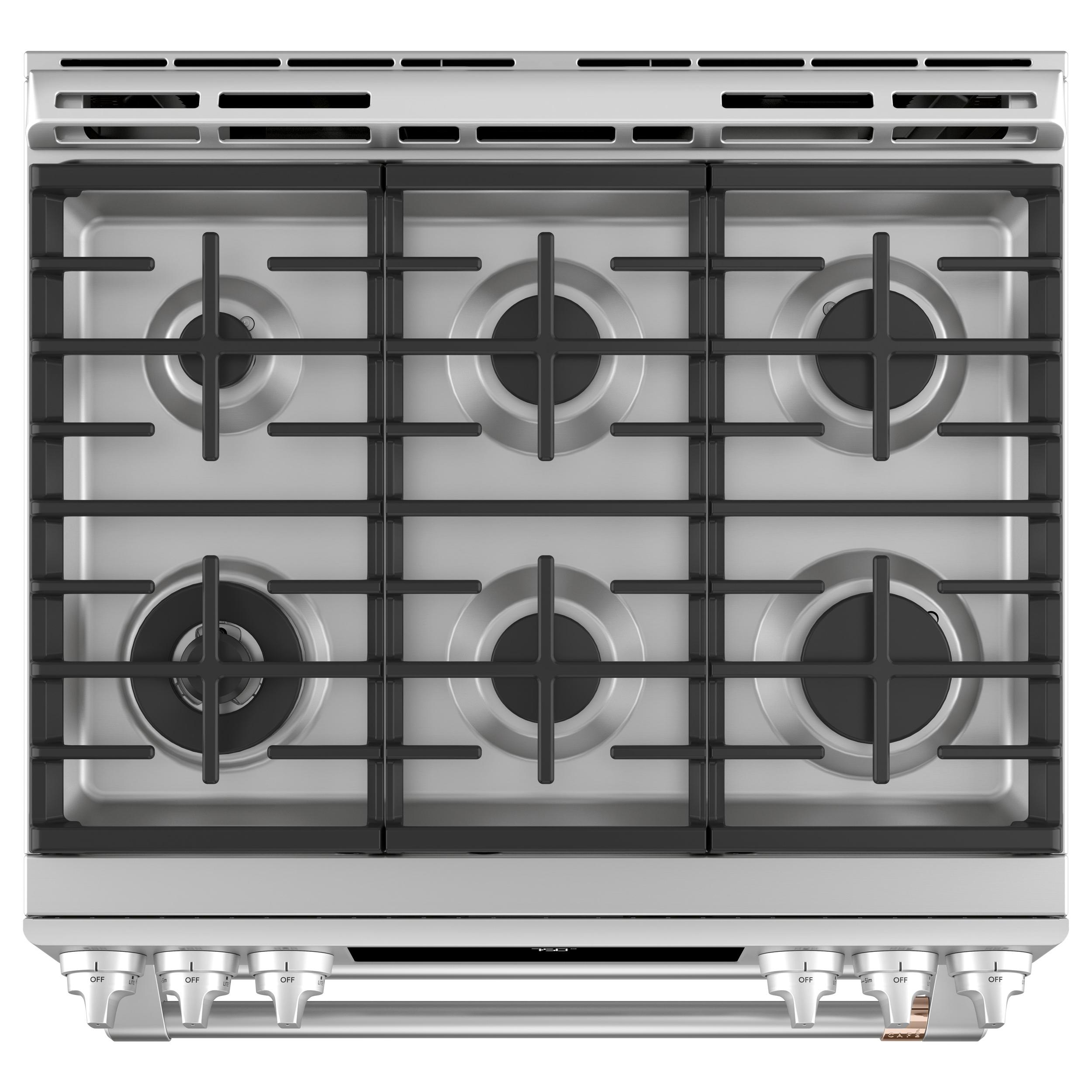

Cooktop
Burners/Elements
6
Burners/Elements Output
• Left Front Burner: 21,000 BTU Tri-Ring Burner
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Front Burner: 9,500 BTU
• Center Rear Burner: 9,500 BTU
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right Front Burner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Front Burner: 9,500 BTU
• Center Rear Burner: 9,500 BTU
Burners
Sealed
Other

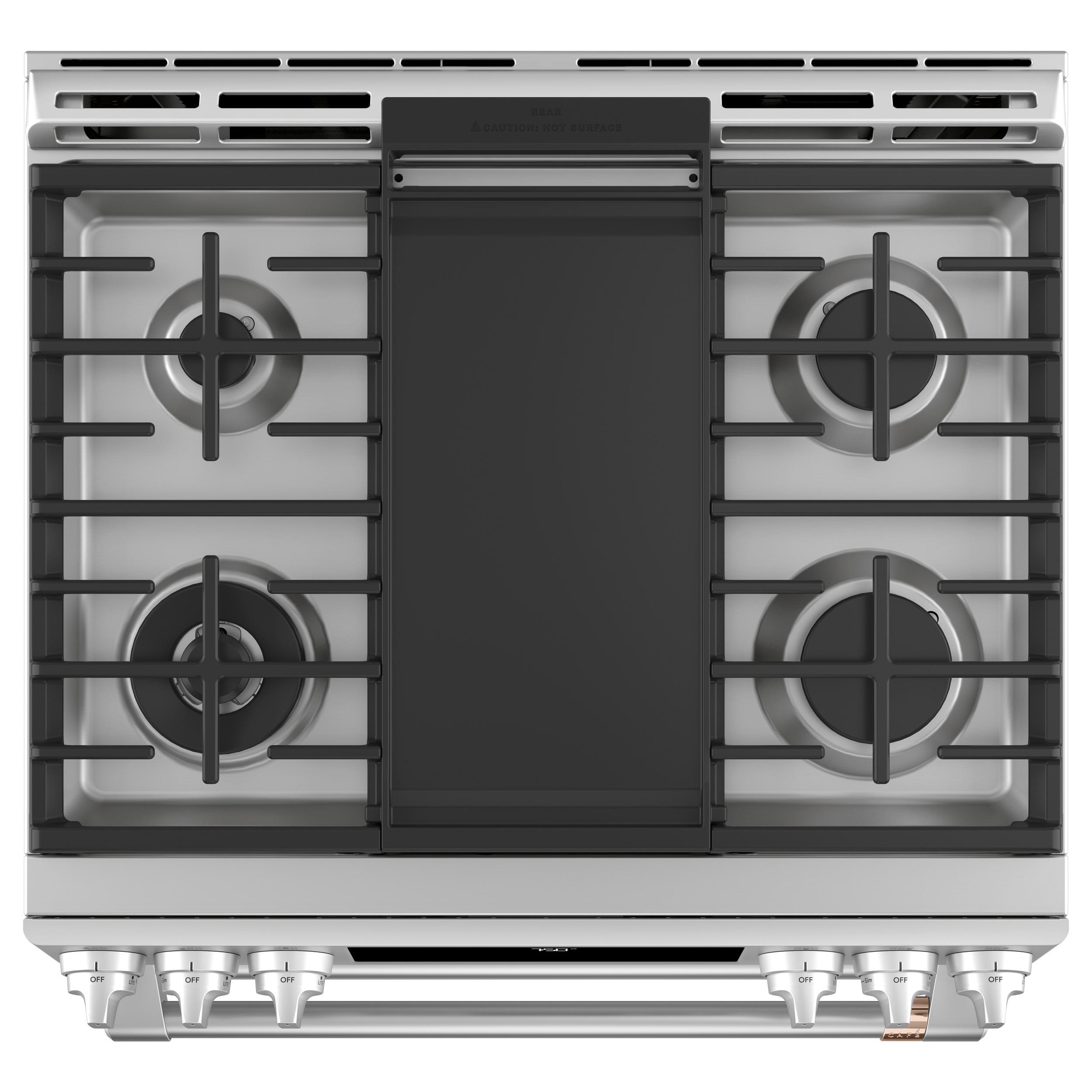

Griddle

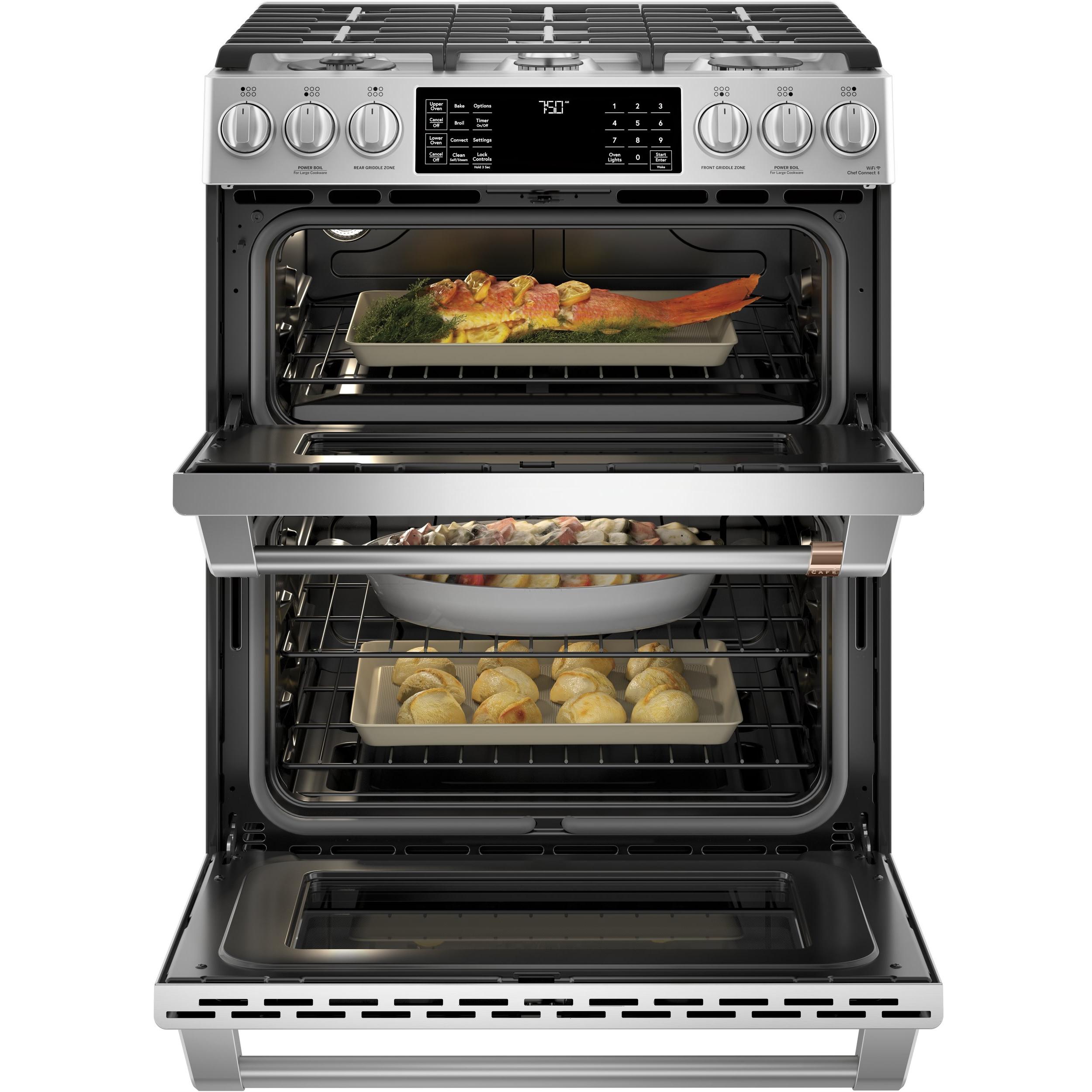

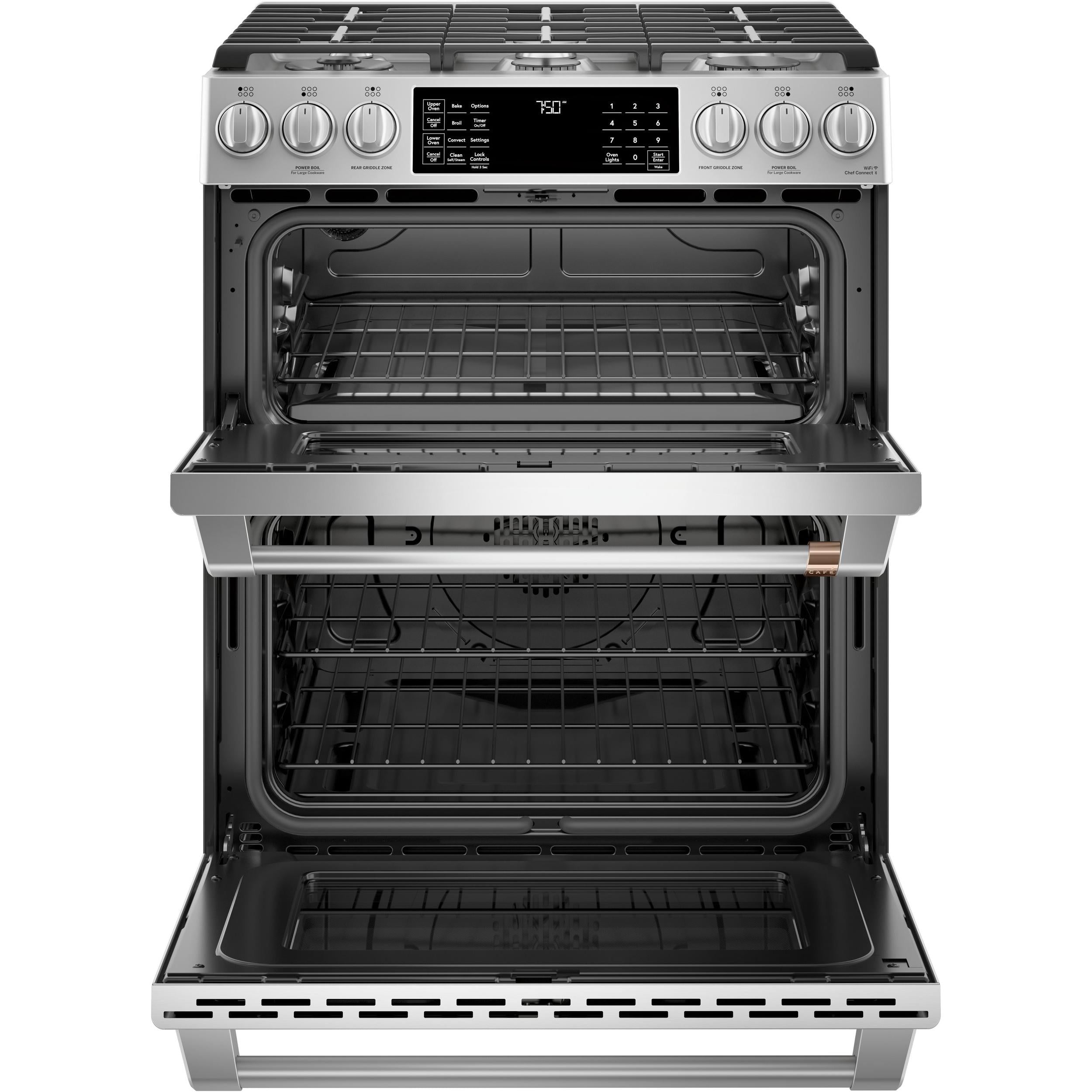

Oven
Capacity (cu. ft.)
• Total Capacity: 6.7 cu.ft.
• Upper Oven: 2.4 cu.ft.
• Lower Oven: 4.3 cu.ft.
• Upper Oven: 2.4 cu.ft.
• Lower Oven: 4.3 cu.ft.
Number of Ovens
Double
Programs
• Convection Bake
• Convection Roast
• Convection Roast
Features
Technologies
• True European Convection with Precise Air
• Traditional Upper; Convection Lower Cooking Technology
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
• Traditional Upper; Convection Lower Cooking Technology
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Heavy-Cast Edge-to-Edge Grates
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Bake Option (Time Bake)
• Delay Clean Option

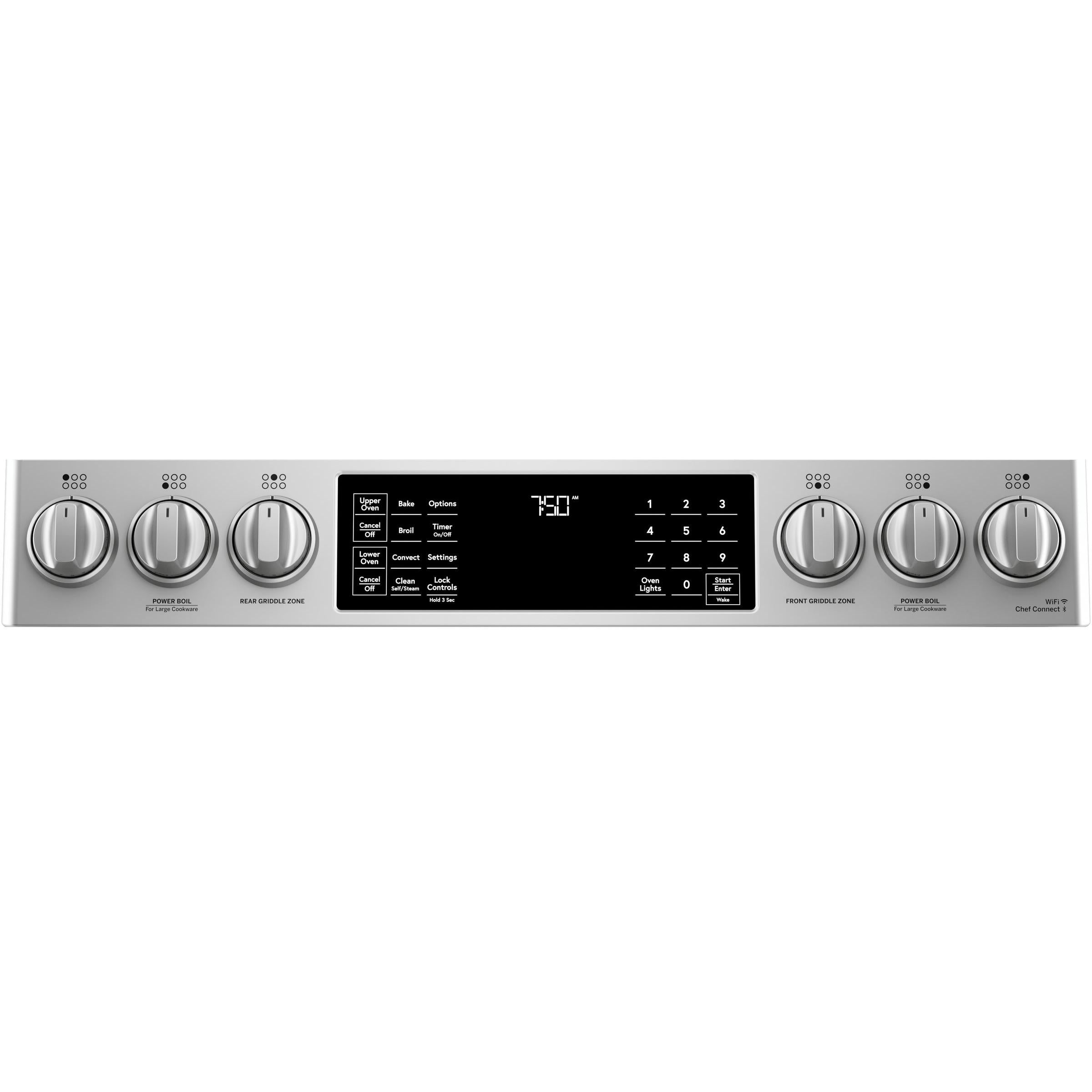

• Digipad Numeric Entry
• Electronic Clock And Timer

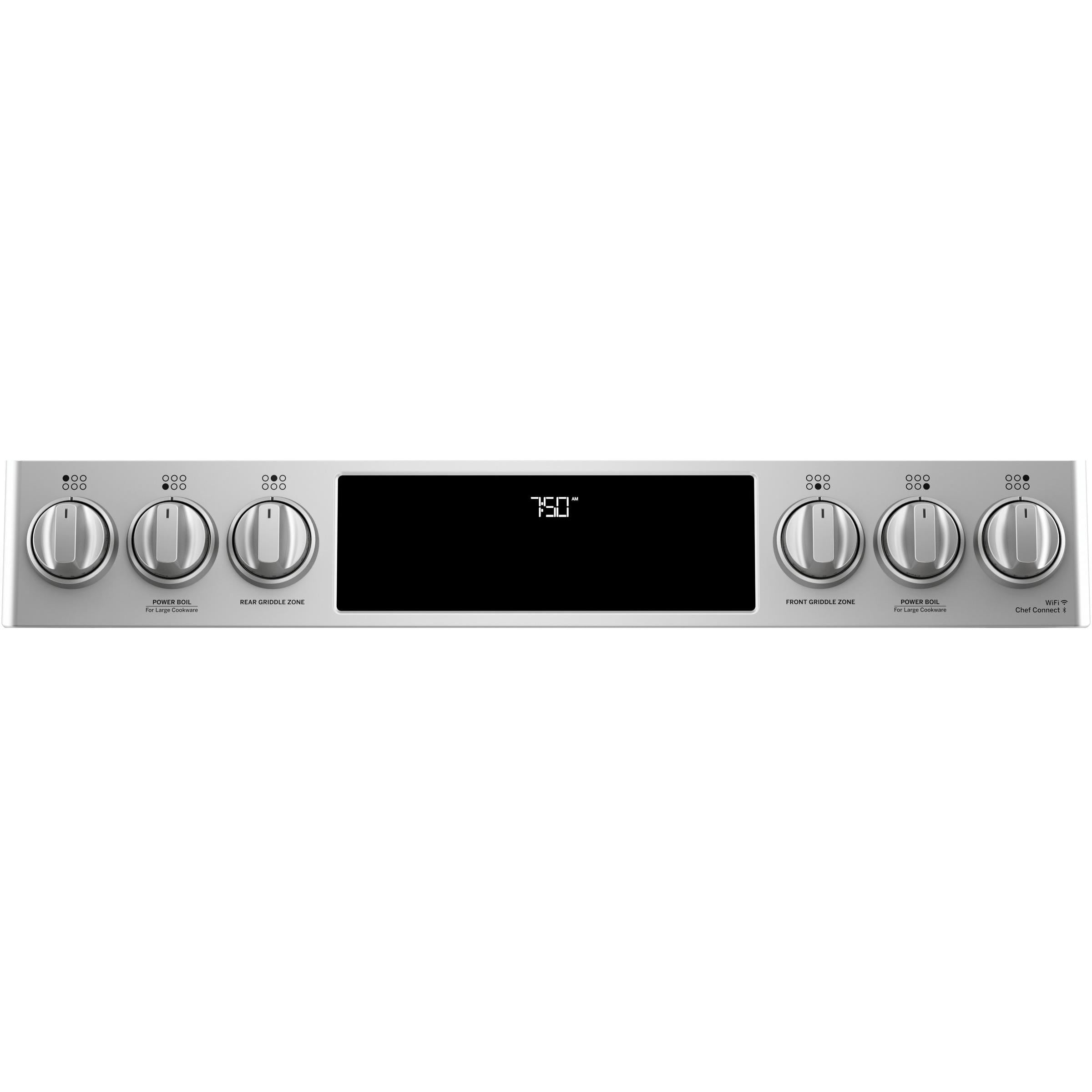

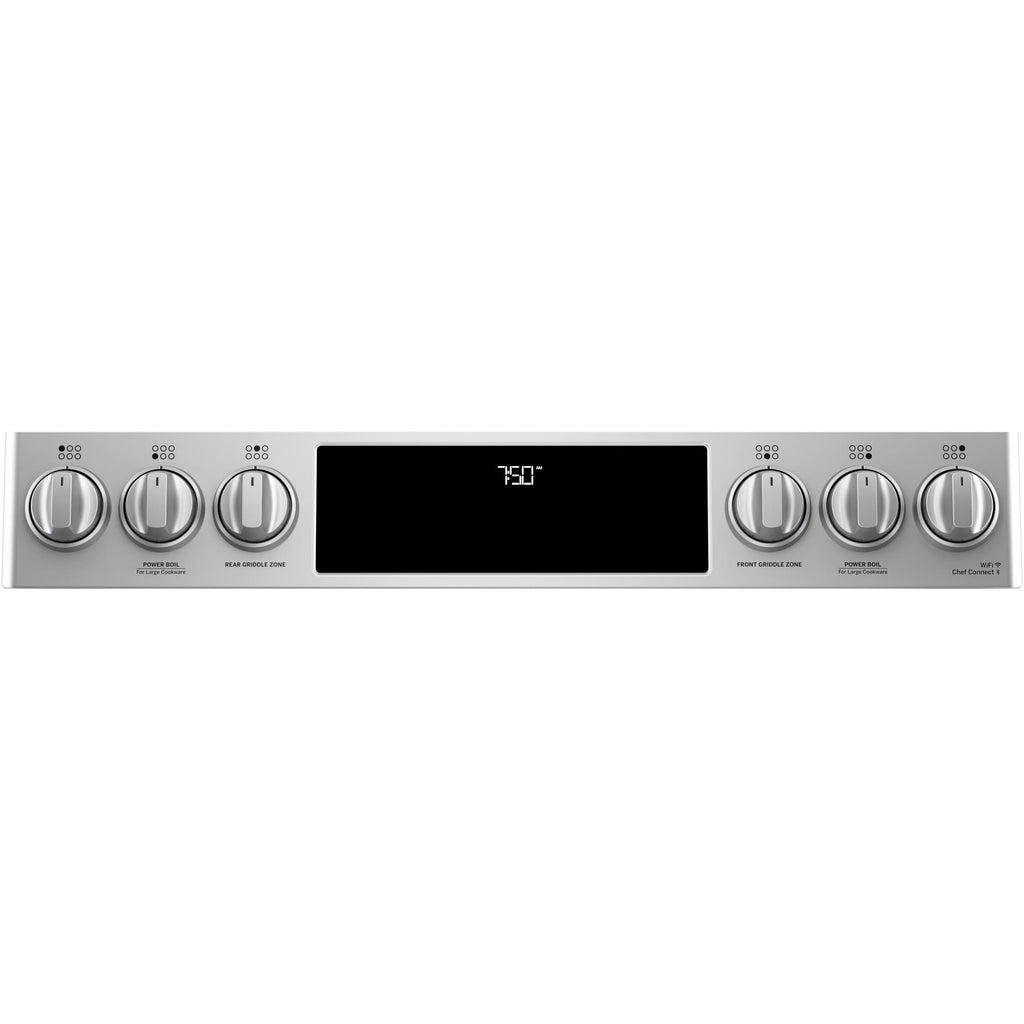

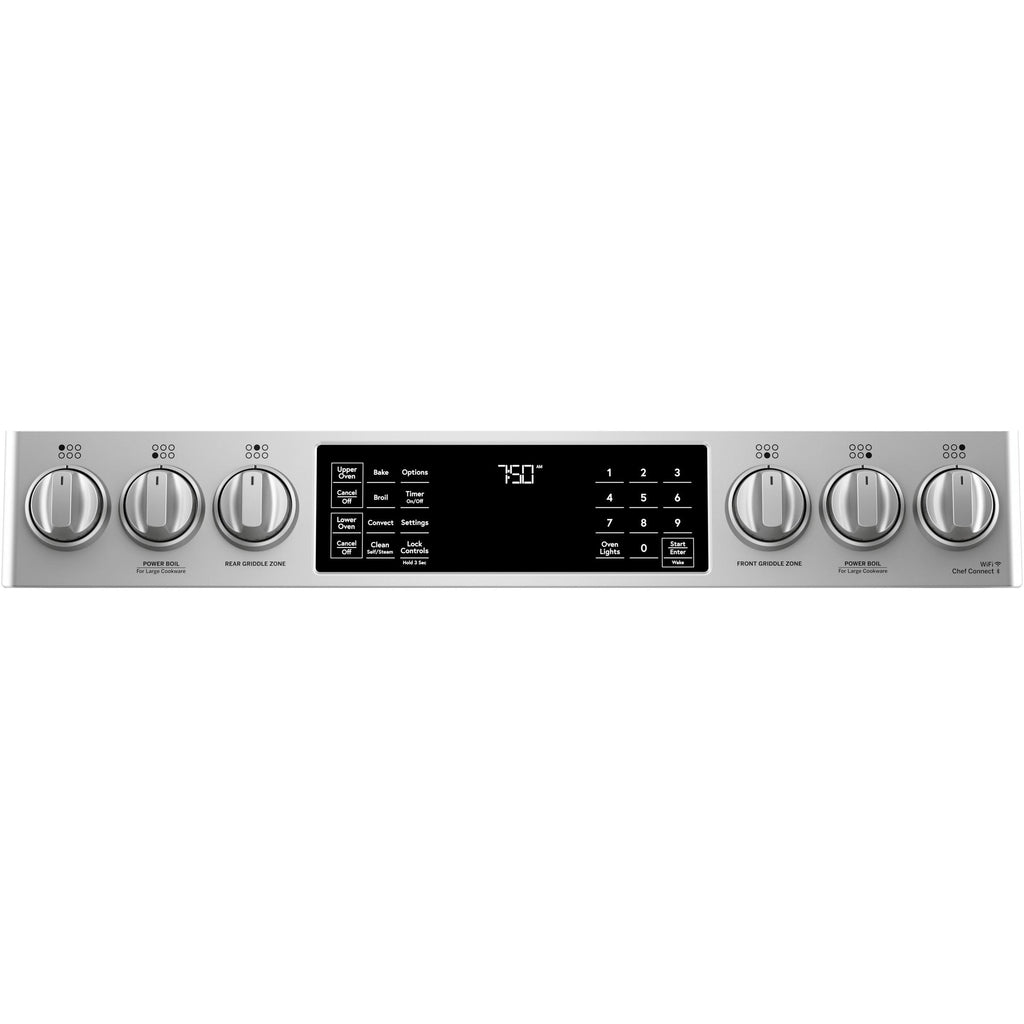

• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down
• Time Display
• Dishwasher Safe Knobs
• 3 Heavy duty self clean oven racks
• 6 Rack Positions
• Electronic Ignition System
• 4 Leveling Legs
• Big Clear View Oven Window
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Digipad Numeric Entry
• Electronic Clock And Timer
• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down
• Time Display
• Dishwasher Safe Knobs
• 3 Heavy duty self clean oven racks
• 6 Rack Positions
• Electronic Ignition System
• 4 Leveling Legs
• Big Clear View Oven Window
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
• LP conversion Kit
• Integrated Cast Iron Griddle
• Integrated Cast Iron Griddle
Optional
• Integrated Cast Iron Grill: JXCGRILL1
• Trim Kit: JXFILLR1DD
• Brushed Bronze; 2 Handles, 6 Knobs: CXFCGHKPMBZ
• Brushed Black; 2 Handles, 6 Knobs: CXFCGHKPMBT
• Brushed Copper; 2 Handles, 6 Knobs: CXFCGHKPMCU
• Trim Kit: JXFILLR1DD
• Brushed Bronze; 2 Handles, 6 Knobs: CXFCGHKPMBZ
• Brushed Black; 2 Handles, 6 Knobs: CXFCGHKPMBT
• Brushed Copper; 2 Handles, 6 Knobs: CXFCGHKPMCU
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36.25 inch(es) / 92.08 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Weight
270.99 lb(s) / 122.92 kg
Additional Dimensions
• Depth with Door Open: 43-7/8"
• Height to Top of Rear Vent Trim: 37-3/8"
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Upper Oven Interior Dimensions (W x H x D): 24" x 9-1/8" x 19-1/8"
• Lower Oven Interior Dimensions (W x H x D): 24" x 15" x 20-5/8"
• Height to Top of Rear Vent Trim: 37-3/8"
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Upper Oven Interior Dimensions (W x H x D): 24" x 9-1/8" x 19-1/8"
• Lower Oven Interior Dimensions (W x H x D): 24" x 15" x 20-5/8"
Shipping Dimensions
Weight
291.01 lb(s) / 132 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
