DESCRIPTION

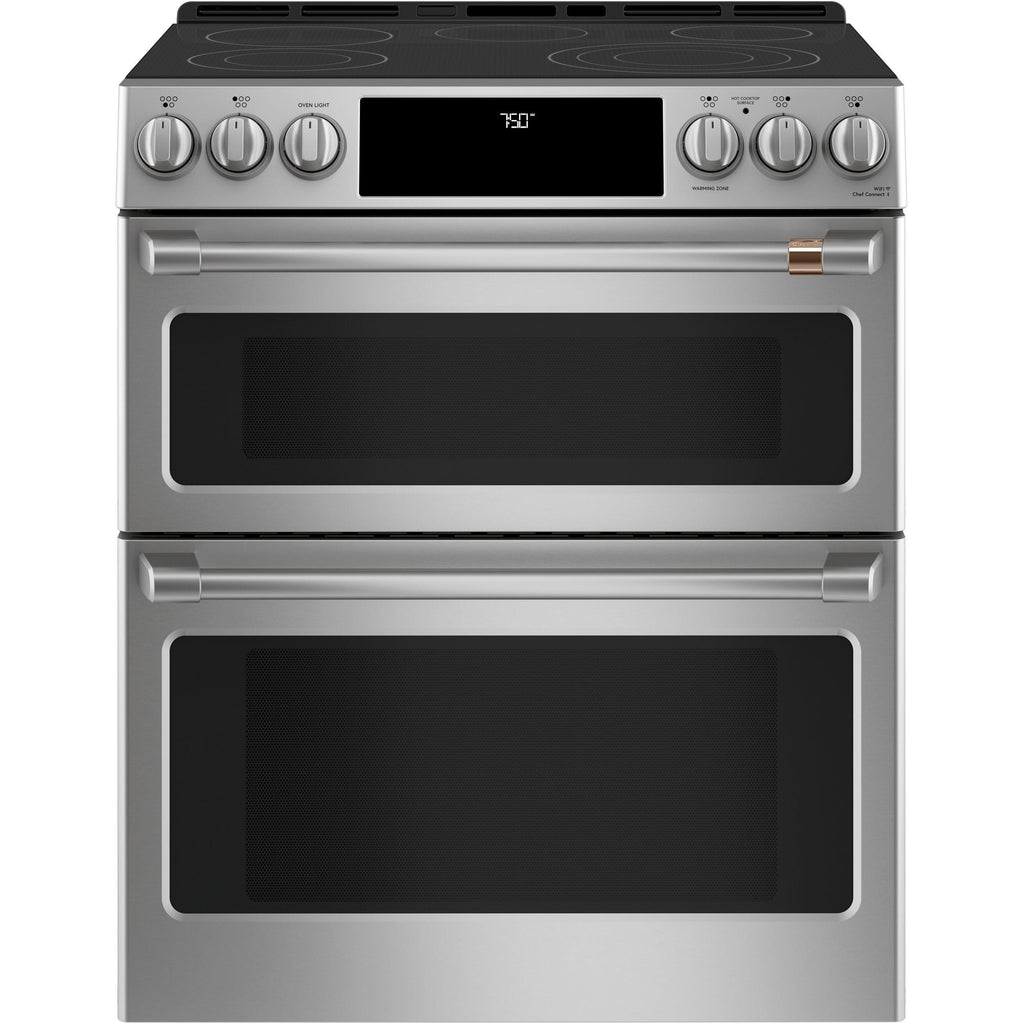

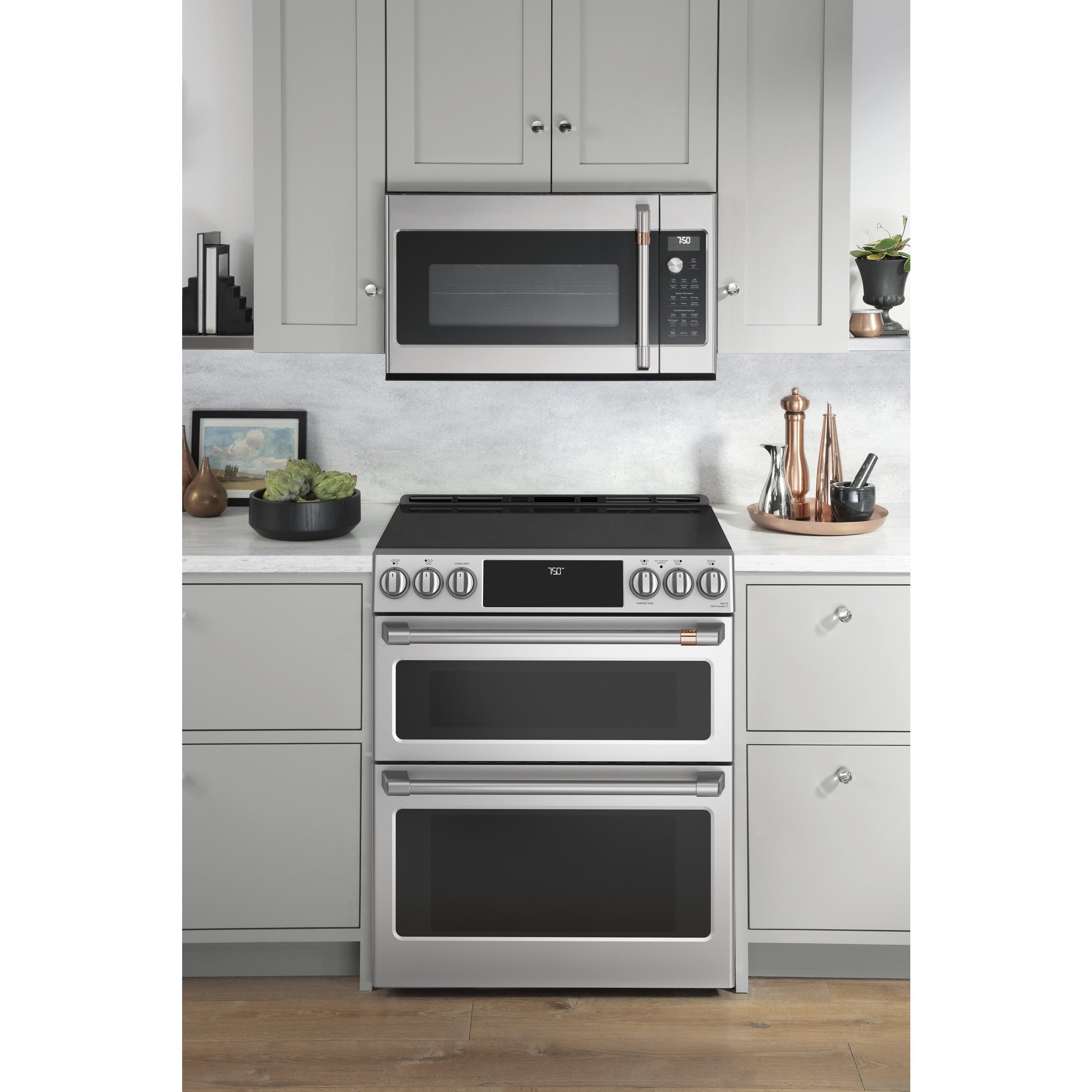

×Café 30-inch slide-in electric range features 5 cooktop elements, built-in Wi-Fi and a total oven capacity of 6.7 cu. ft.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Cleaning Type: Self Clean with Steam Clean
• Self-Clean Cool Down Time Display
• Delay Clean Option
• Self-Clean Cool Down Time Display
• Delay Clean Option

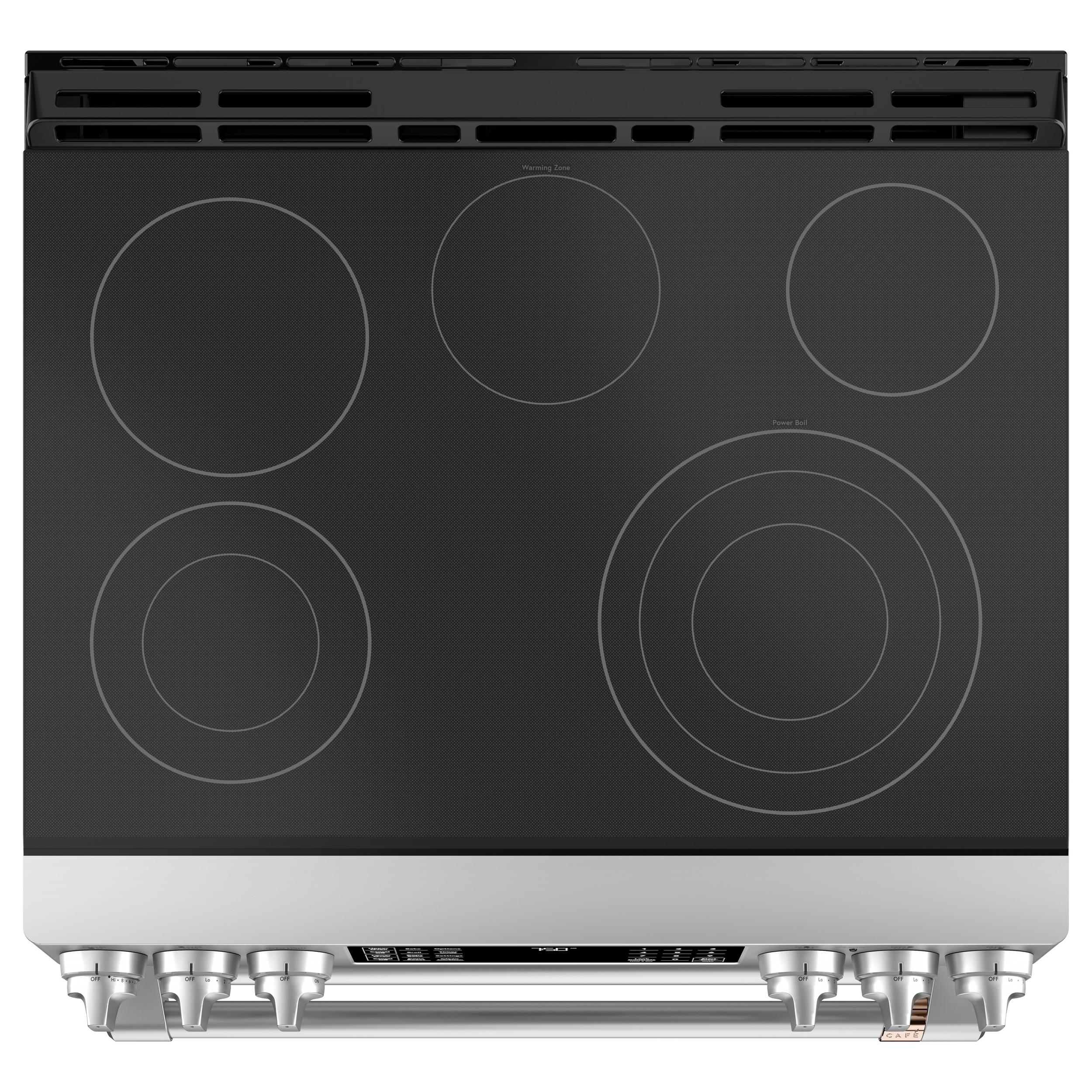

Cooktop
Burners/Elements
5
Burners/Elements Output
• Element – Front Left: 8"/5" 1900W
• Element – Front Right: 12"/9"/6" 3600W Power Boil
• Element – Rear Left: 8" 2000W
• Element – Rear Right: 6" 1500W
• Element - Centre: 6" 80W Warming Zone
• Element – Front Right: 12"/9"/6" 3600W Power Boil
• Element – Rear Left: 8" 2000W
• Element – Rear Right: 6" 1500W
• Element - Centre: 6" 80W Warming Zone
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.7 cu. ft.

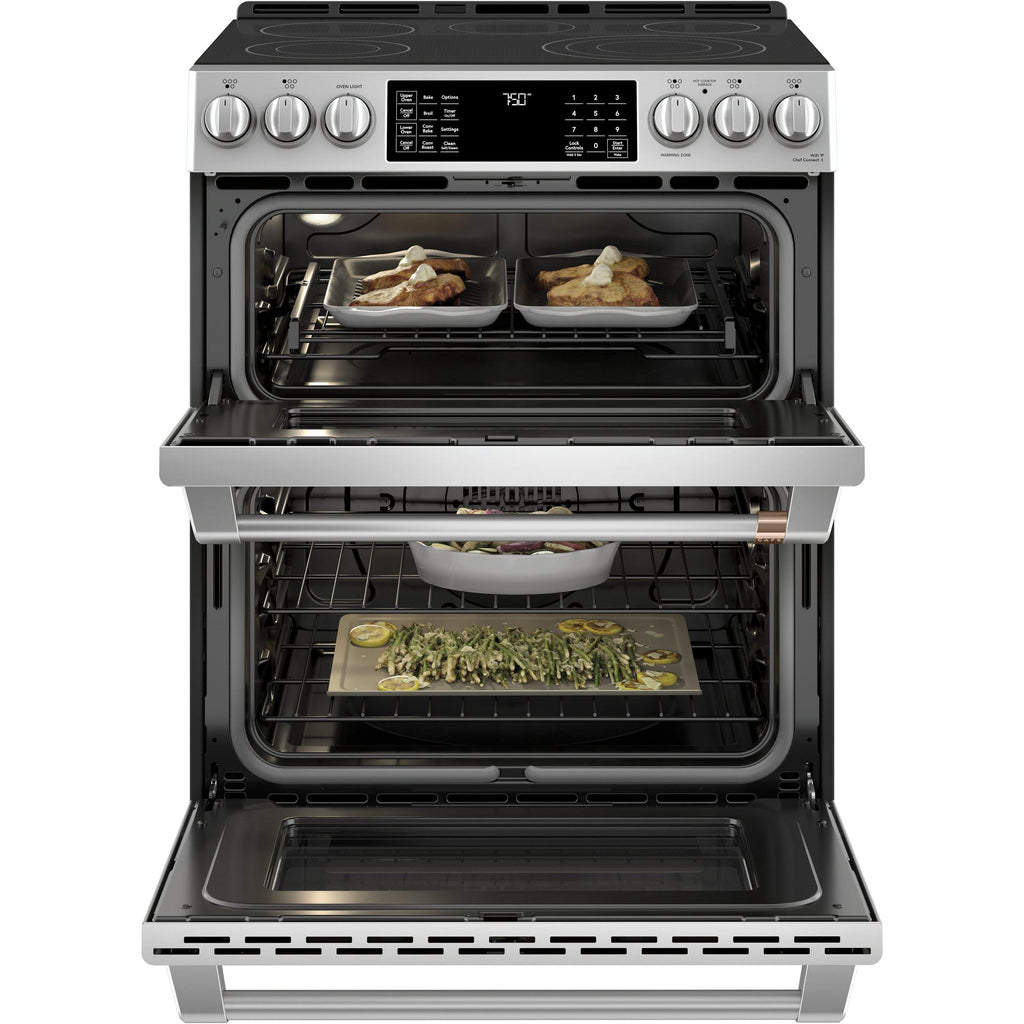

Number of Ovens
Double
Features
Technologies
Chef Connect
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Audible Preheat Signal
• Bake Wattage: 2650W Upper / 2650W Lower
• Broil Element: 6-Pass Upper / 8-Pass Lower
• Broil Wattage: 3000W Upper / 3600W Lower

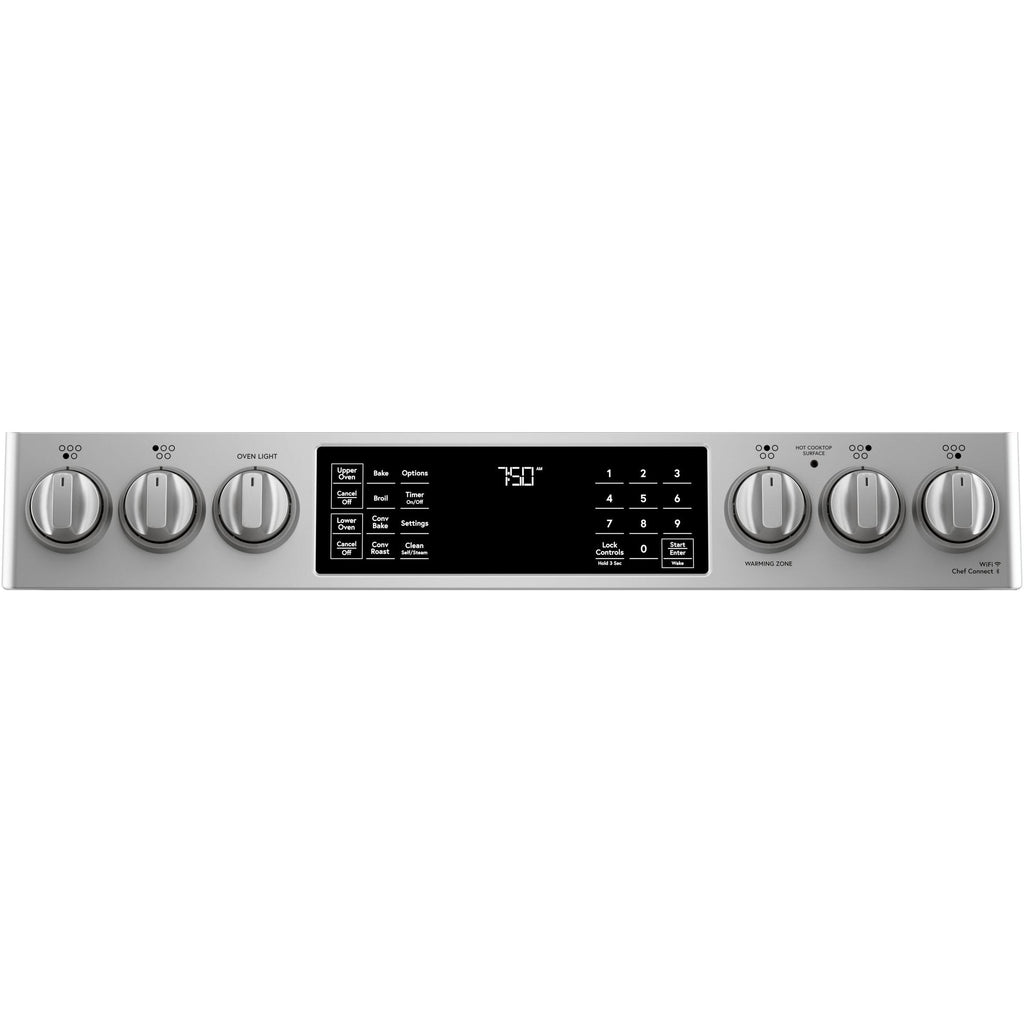

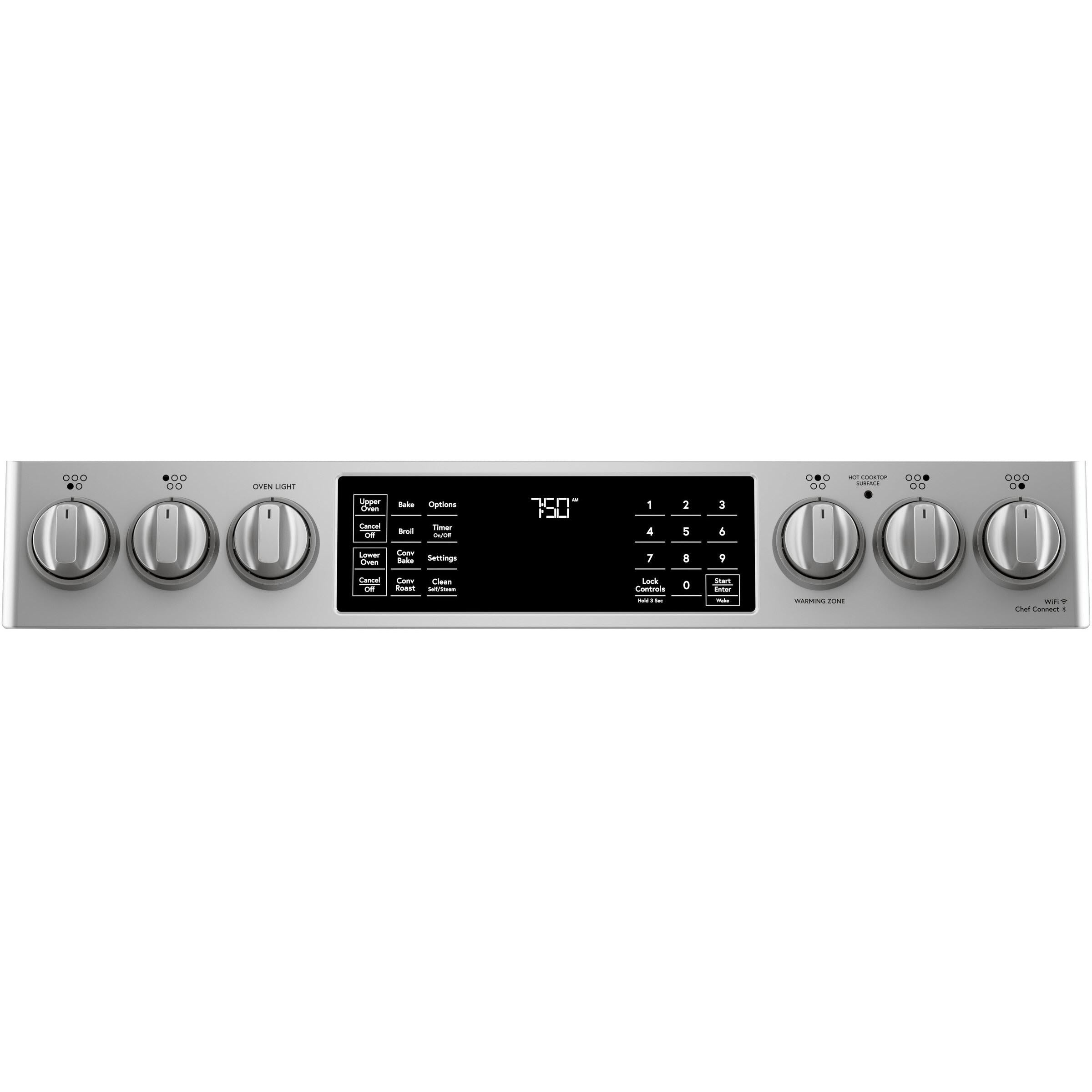

• Control Location: Front
Convection:
• True European Convection with Precise Air
• Convection Bake and Roast
• Convection Roast
• Convection Wattage: 2500W
• Cooktop Type: Smoothtop Radiant
• Cooktop Surface: Black Ceramic Glass
• Digital Display
• Edge-to-Edge Cooktop
• Proof Mode

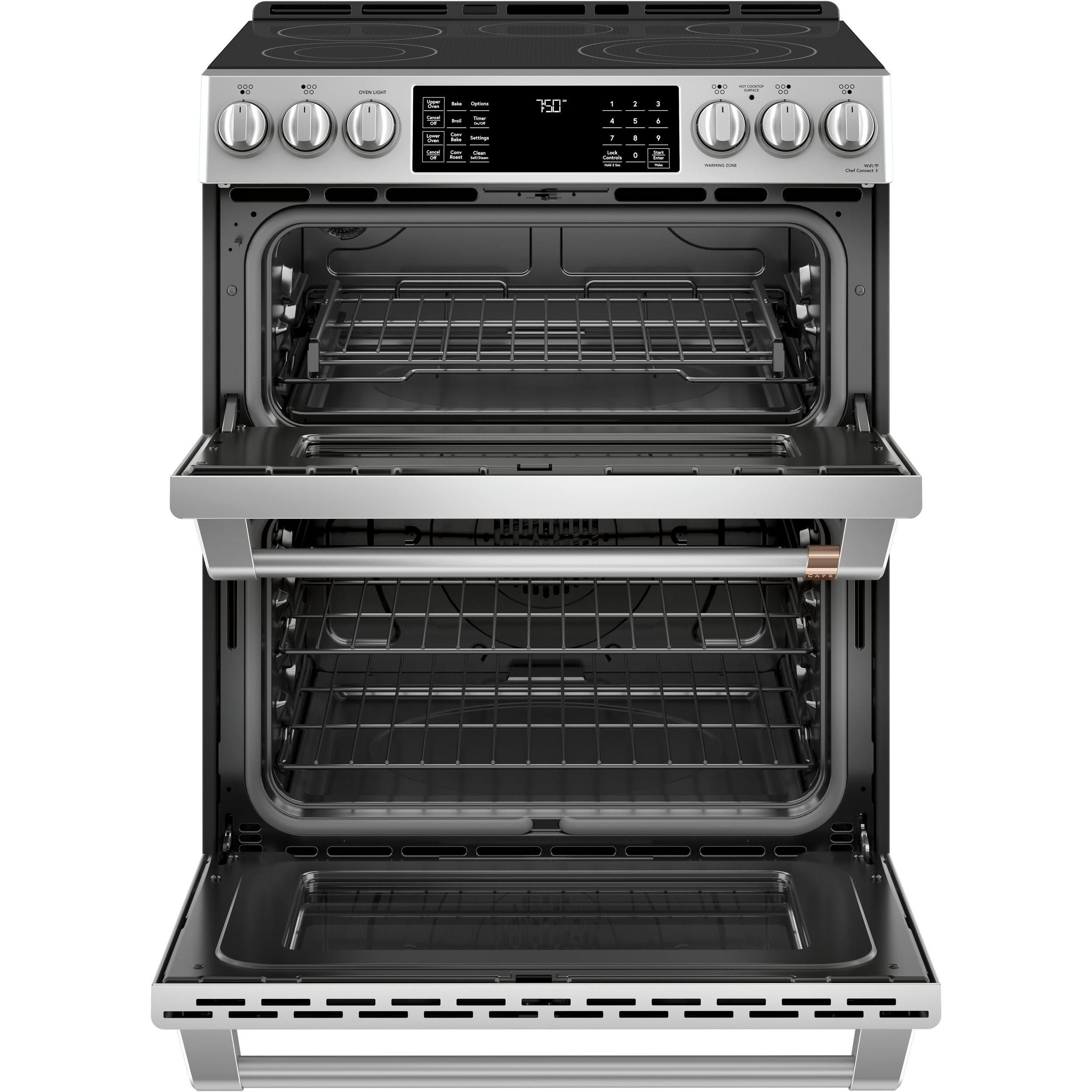

• Rack Positions: 6
• Oven "ON" Light
• Oven Racks: 2 Self Clean, 1 Roller Rack

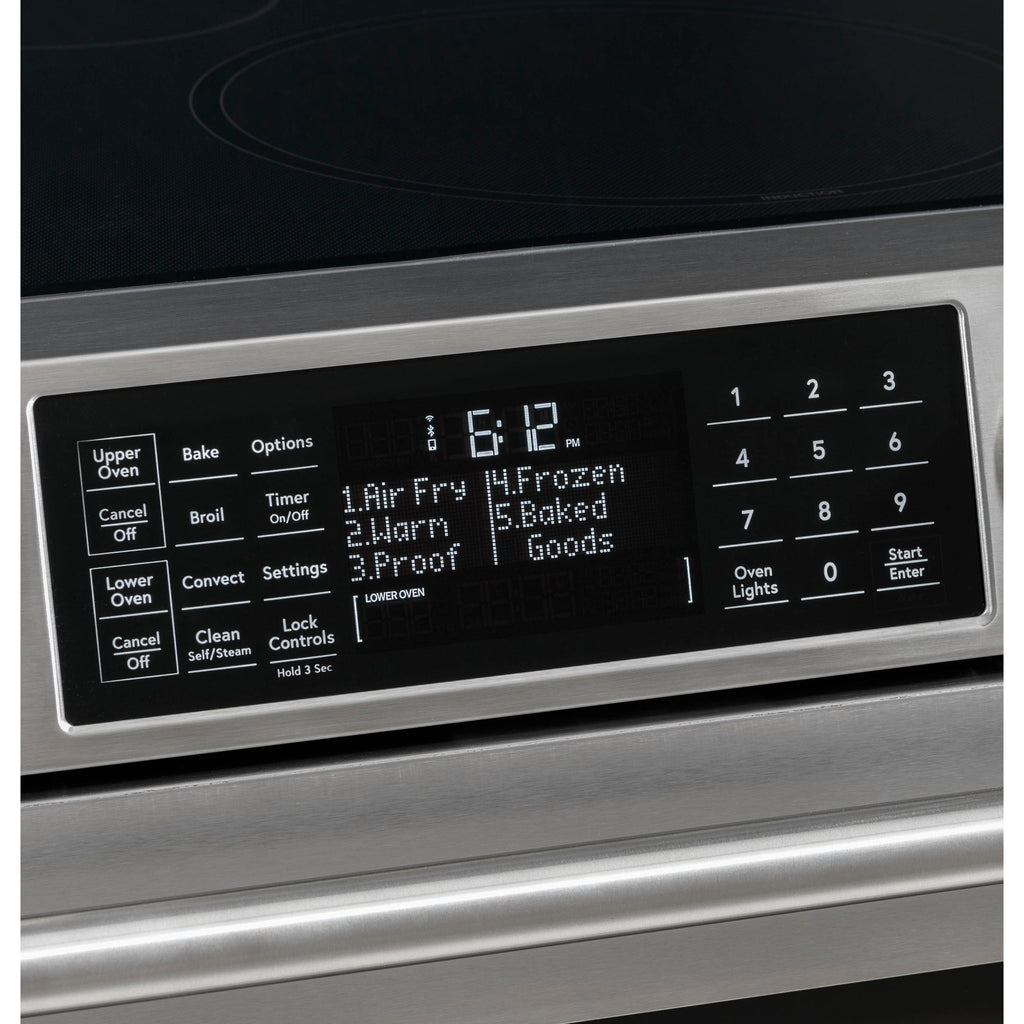

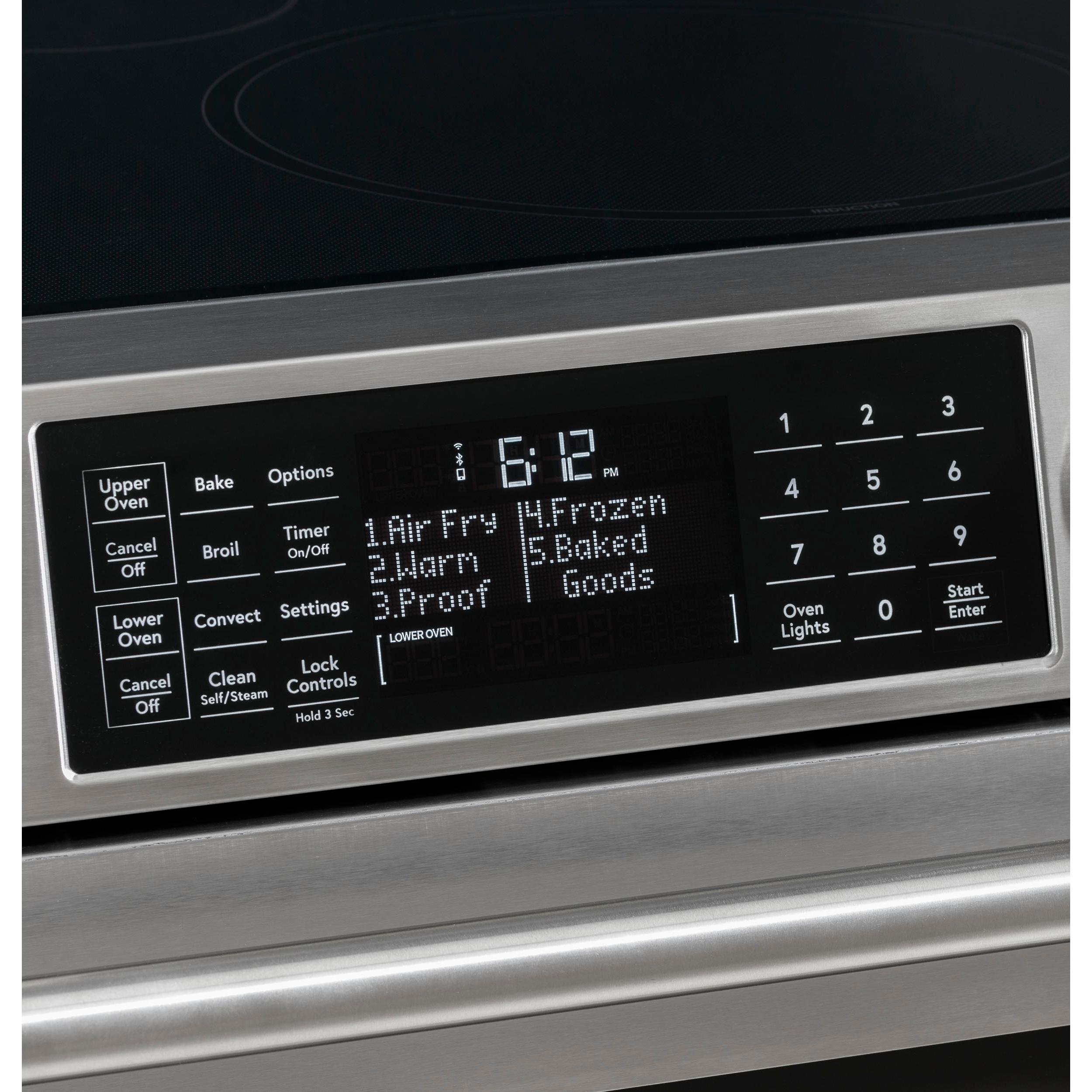

• Control Type: Glass Touch and Knobs
• No Preheat Air Fry
• Warm Mode

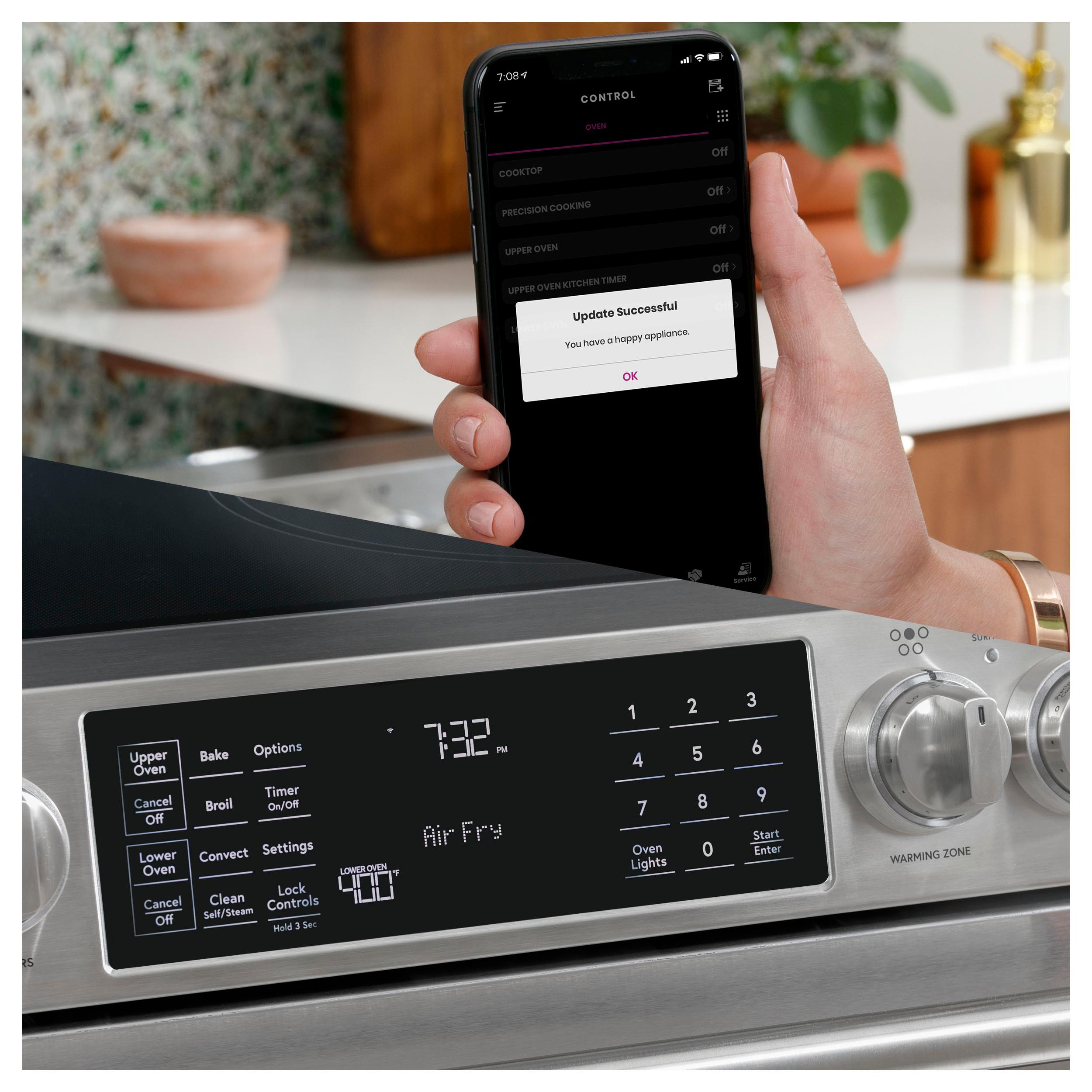

• Oven Cooking Modes: *Some features require connection to the SmartHQ app
Range Control Features:
• Temperature Probe
• Auto Oven Shut-off with Override
• Auto Recipe Conversion
• C° or F° Programmable
• Delay Bake Option (Time Cook)
• Electronic Clock & Kitchen Timer
• Fast Preheat
• Hi/Low Broil
• Hot Surface Indicator Lights: 1
• Heating Element "ON" Indicator Light: 1
• Infinite Heat Controls
• Bake Wattage: 2650W Upper / 2650W Lower
• Broil Element: 6-Pass Upper / 8-Pass Lower
• Broil Wattage: 3000W Upper / 3600W Lower
• Control Location: Front
Convection:
• True European Convection with Precise Air
• Convection Bake and Roast
• Convection Roast
• Convection Wattage: 2500W
• Cooktop Type: Smoothtop Radiant
• Cooktop Surface: Black Ceramic Glass
• Digital Display
• Edge-to-Edge Cooktop
• Proof Mode
• Rack Positions: 6
• Oven "ON" Light
• Oven Racks: 2 Self Clean, 1 Roller Rack
• Control Type: Glass Touch and Knobs
• No Preheat Air Fry
• Warm Mode
• Oven Cooking Modes: *Some features require connection to the SmartHQ app
Range Control Features:
• Temperature Probe
• Auto Oven Shut-off with Override
• Auto Recipe Conversion
• C° or F° Programmable
• Delay Bake Option (Time Cook)
• Electronic Clock & Kitchen Timer
• Fast Preheat
• Hi/Low Broil
• Hot Surface Indicator Lights: 1
• Heating Element "ON" Indicator Light: 1
• Infinite Heat Controls
Electrical Information
Information
Volts / Hertz / Amps: 208/240V; 60Hz; 40A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
CXFCEHKPMSS Brushed Stainless Kit
Optional
• CXFCEHKPMBT Brushed Black Kit
• CXFCEHKPMBZ Brushed Bronze Kit
• CXFCEHKPMCU Brushed Copper Kit
• CXFCEHKPMCG Brushed Brass Kit
• CXFCEHKPMFB Flat Black Kit
• Trim Kit JXFILLR1SS
• CXFCEHKPMBZ Brushed Bronze Kit
• CXFCEHKPMCU Brushed Copper Kit
• CXFCEHKPMCG Brushed Brass Kit
• CXFCEHKPMFB Flat Black Kit
• Trim Kit JXFILLR1SS
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
37.38 inch(es) / 94.95 cm
Depth (Without Handles)
26.87 inch(es) / 68.25 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Additional Dimensions
• Depth with Open Doors: 43.87"
• Oven Interior Dimensions (W × H × D) (in.): 24 × 15 × 20-5/8 – Lower / 24 × 10-1/8 × 19-1/8 – Upper
• Oven Interior Dimensions (W × H × D) (in.): 24 × 15 × 20-5/8 – Lower / 24 × 10-1/8 × 19-1/8 – Upper
Warranty
Warranty
1 Year Limited Parts & Labour
