DESCRIPTION

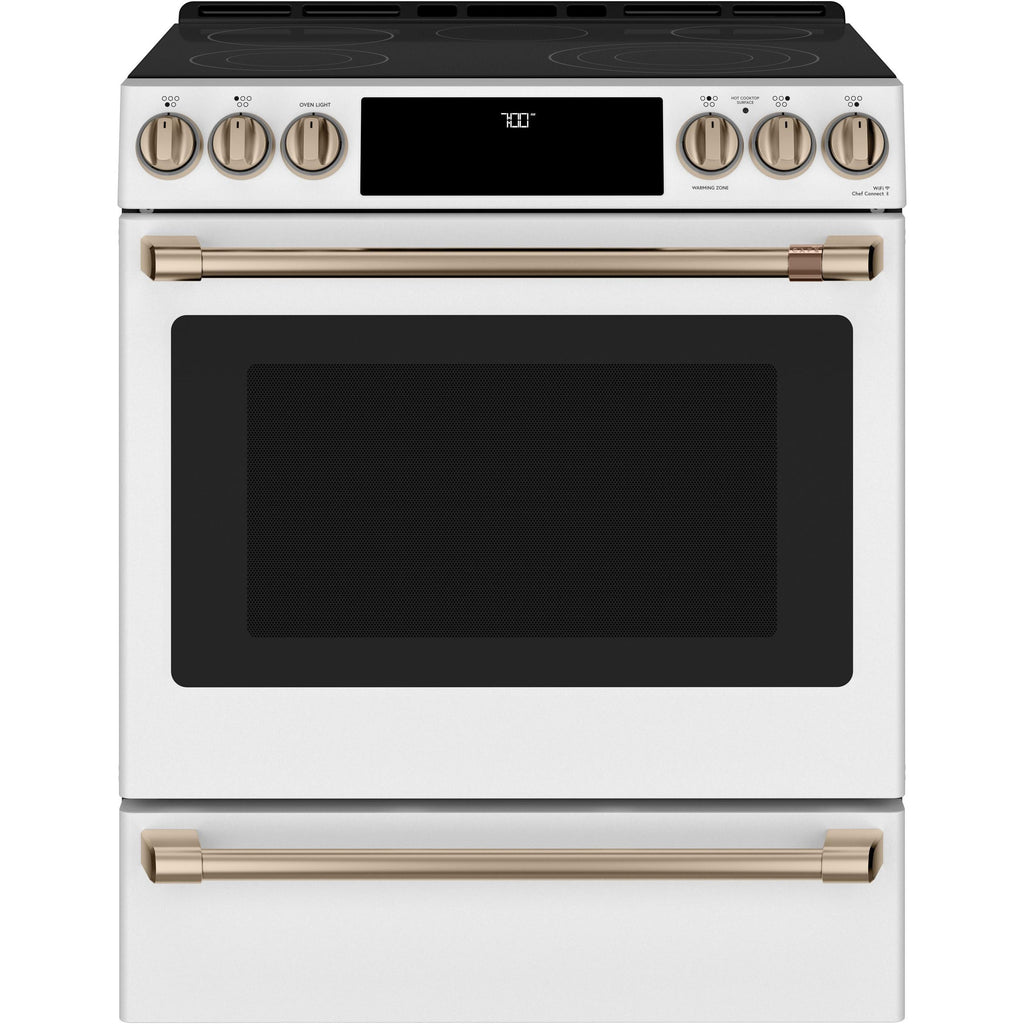

×This 30-inch Café™ slide-in electric range features True European Convection with precise air, temperature probe, Wi-Fi Connect and a 5.7 cu.ft. oven capacity.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
White
Manufacturer Color
Matte White
Appliance Care
• Auto Self Clean
• Delay Clean Option
• Steam Clean
• Delay Clean Option
• Steam Clean

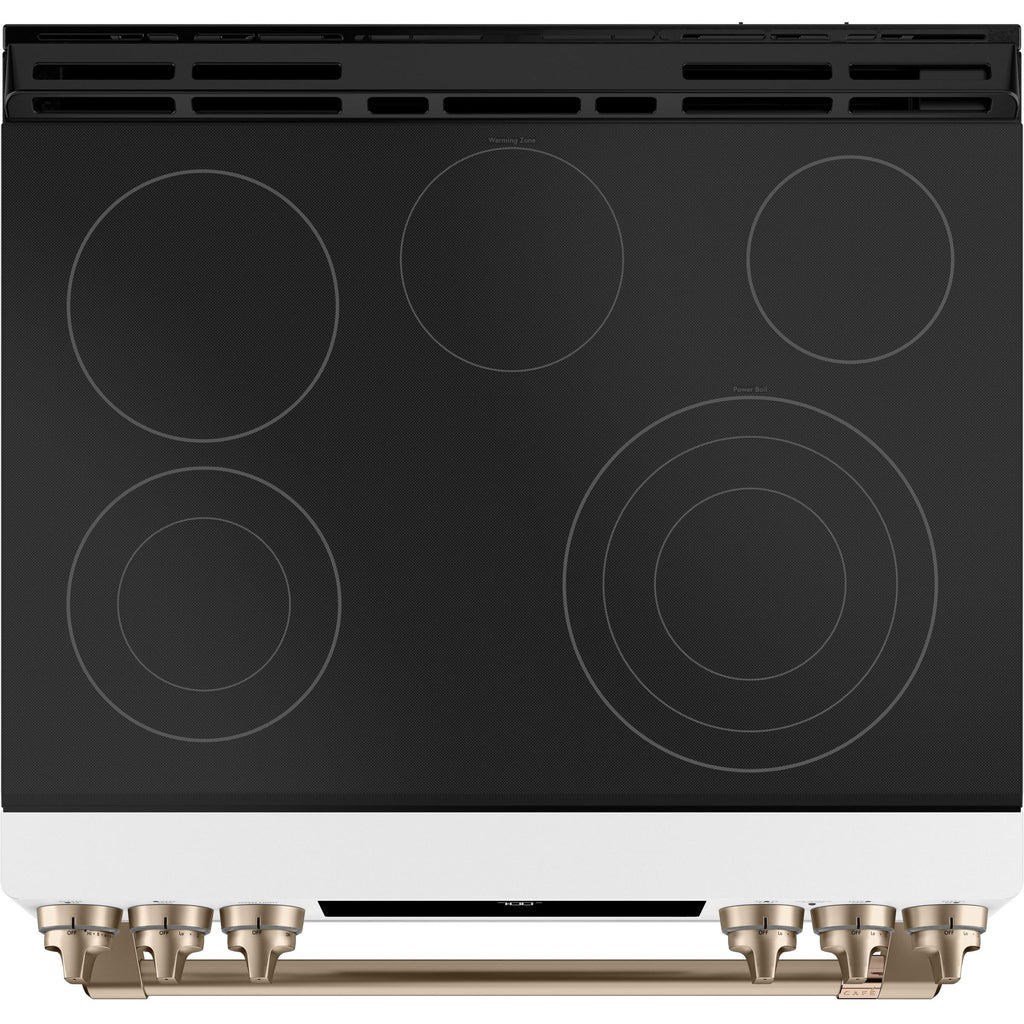

Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front Element: 1,900 W
• Left Rear Element: 2,000 W
• Right Front Element: 3,600 W Power Boil
• Right Rear Element: 1,200 W
• Center Element: 80 W Warming Zone
• Left Rear Element: 2,000 W
• Right Front Element: 3,600 W Power Boil
• Right Rear Element: 1,200 W
• Center Element: 80 W Warming Zone
Burner/Element Size
• Left Front Element: 8"/5"
• Left Rear Element: 8"
• Right Front Element: 12"/9"/6"
• Right Rear Element: 6"
• Center Element: 6"
• Left Rear Element: 8"
• Right Front Element: 12"/9"/6"
• Right Rear Element: 6"
• Center Element: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.7 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake
• Convection Roast
• Convection Roast
Features
Technologies
• Chef Connect
• True European Convection with Precise Air
• Amazon Alexa
• DiGiorno
• Drop
• IFTTT
• Innit
• Nest
• The Google Assistant
• True European Convection with Precise Air
• Amazon Alexa
• DiGiorno
• Drop
• IFTTT
• Innit
• Nest
• The Google Assistant
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Audible Preheat Signal
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• C° or F° Programmable
• Delay Bake Option (Time Bake)
• Electronic Clock and Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• Oven "ON" Light
• Self-Clean Cool Down Time Display
• Temperature Probe
• Warm Mode
• Bake Wattage: 2850W
• Broiler Wattage: 4000W
• Convection Wattage: 2500W
• Big View Oven Window
• Auto Oven Shut-Off with Override
• Auto Recipe Conversion
• C° or F° Programmable
• Delay Bake Option (Time Bake)
• Electronic Clock and Kitchen Timer
• Fast Preheat
• Hi / Low Broil
• Oven "ON" Light
• Self-Clean Cool Down Time Display
• Temperature Probe
• Warm Mode
• Bake Wattage: 2850W
• Broiler Wattage: 4000W
• Convection Wattage: 2500W
• Big View Oven Window
Drawer Features
Warming
Yes
Electrical Information
Information
• 208 V / 240 V
• 40 A
• 40 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
CXFCEHKPMBZ Brushed Bronze Kit
Optional
• CXFCEHKPMBT Brushed Black Kit
• CXFCEHKPMCU Brushed Copper Kit
• CXFCEHKPMSS Brushed Stainless Kit
• CXFCEHKPMCG Brushed Brass Kit
• CXFCEHKPMFB Flat Black Kit
• Trim Kit JXFILLR1SS
• CXFCEHKPMCU Brushed Copper Kit
• CXFCEHKPMSS Brushed Stainless Kit
• CXFCEHKPMCG Brushed Brass Kit
• CXFCEHKPMFB Flat Black Kit
• Trim Kit JXFILLR1SS
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
37.37 inch(es) / 94.93 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.5 inch(es) / 74.93 cm
Weight
206 lb(s) / 93.44 kg
Additional Dimensions
• Oven Interior Dimensions (W x H x D): 24" x 19-7/8" x 20-5/8"
• Depth with Door Open 47-1/2"
• Depth with Door Open 47-1/2"
Shipping Dimensions
Weight
226 lb(s) / 102.51 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
