DESCRIPTION

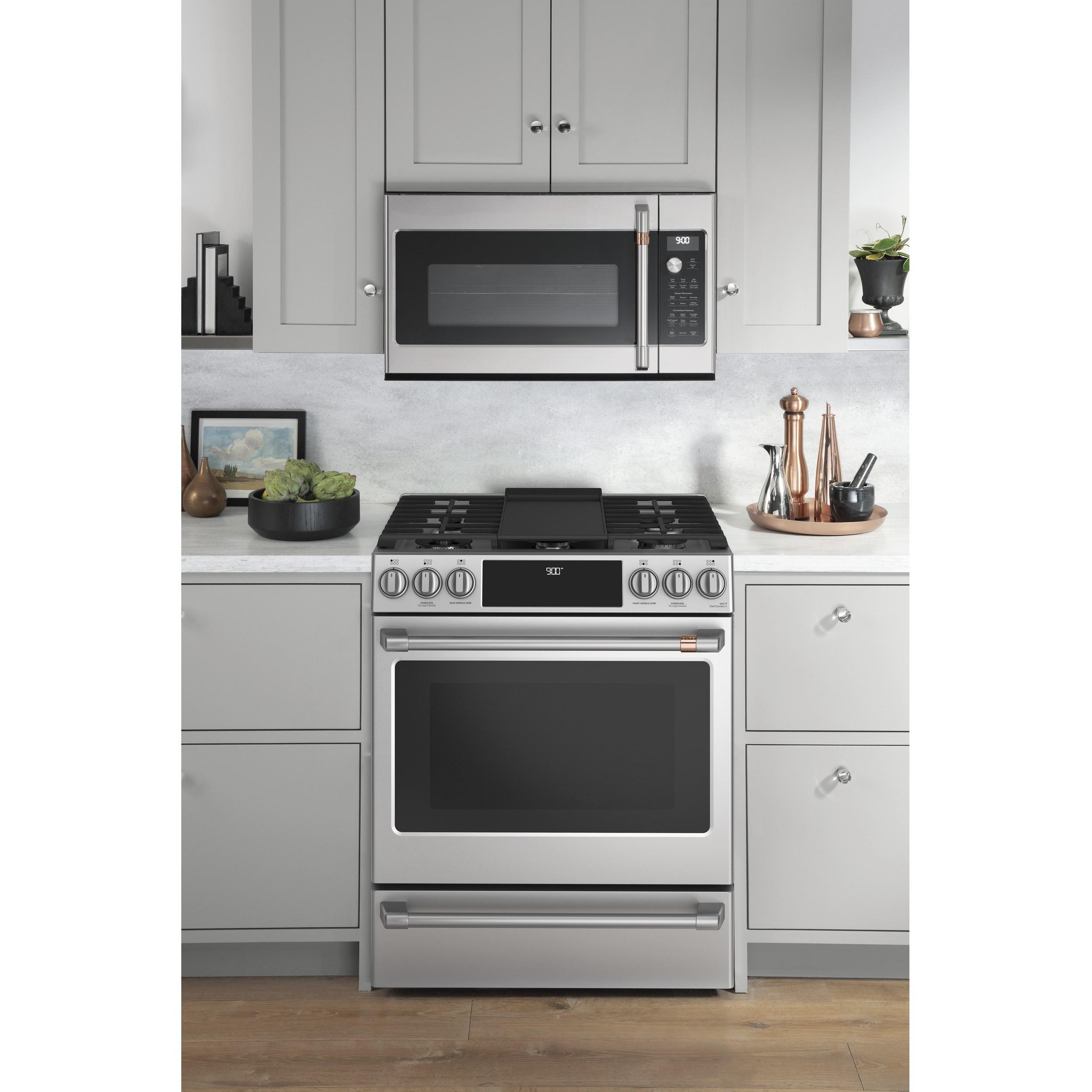

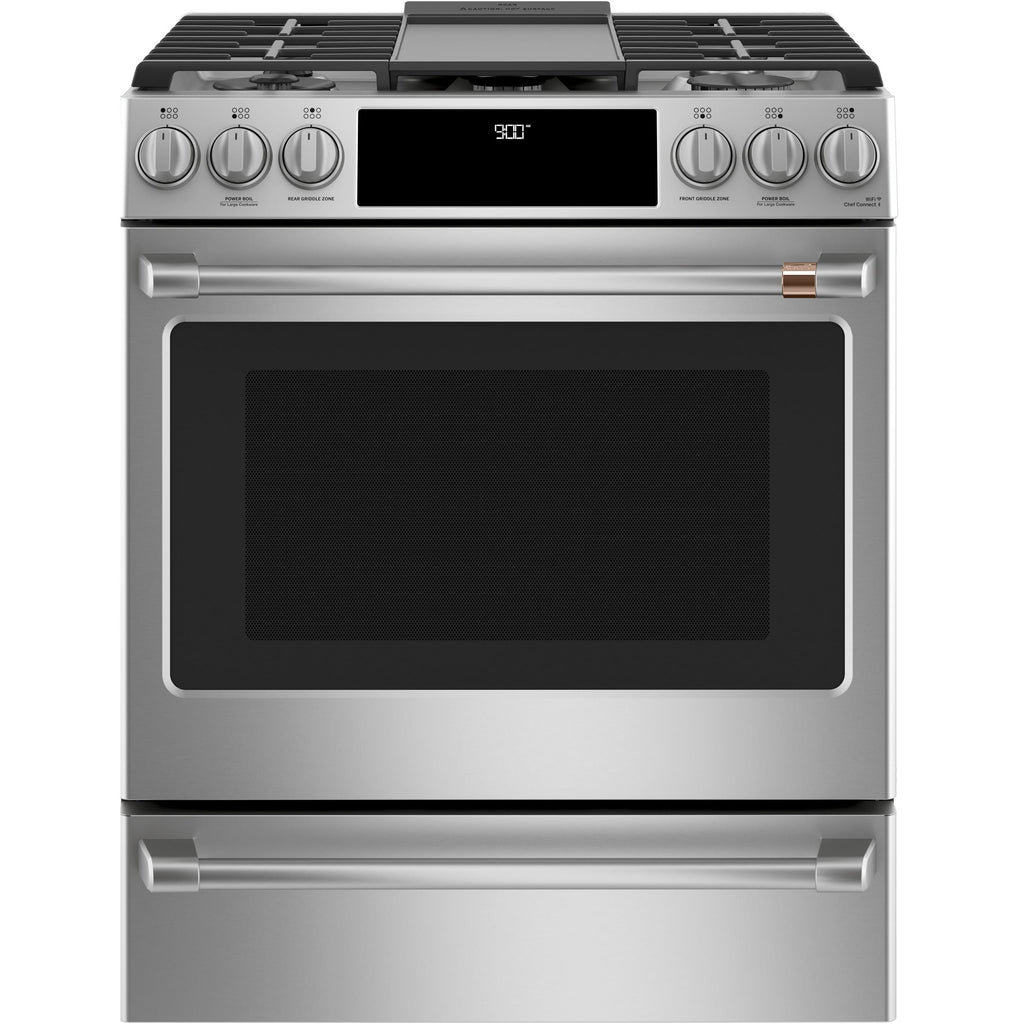

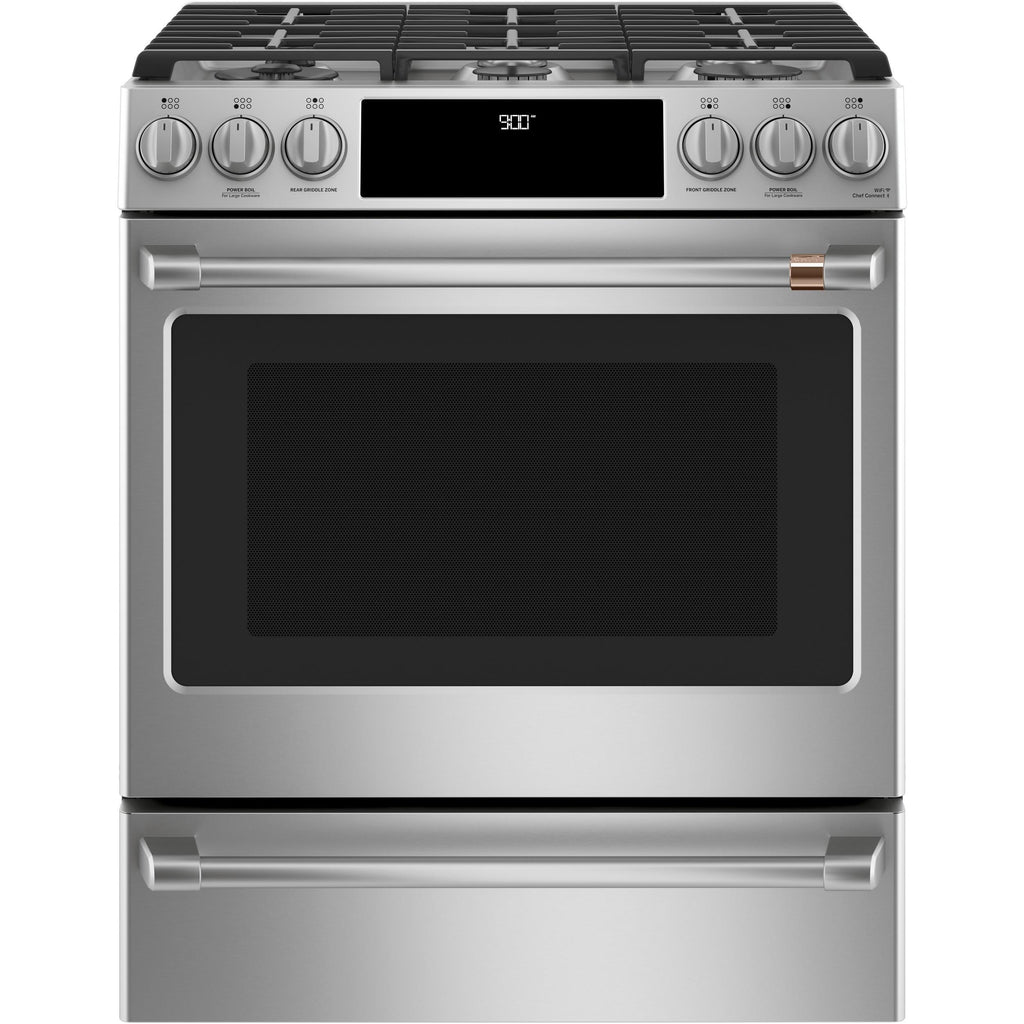

×This 30-inch Café™ dual fuel slide-in range unites the power of a gas cooktop with the precision of an electric oven. The edge-to-edge cooktop with six versatile burners also includes an integrated griddle to easily handle large meals and family favorites. And true European convection creates even baking and roasting results every time.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean with Steam Clean Option
Cooktop

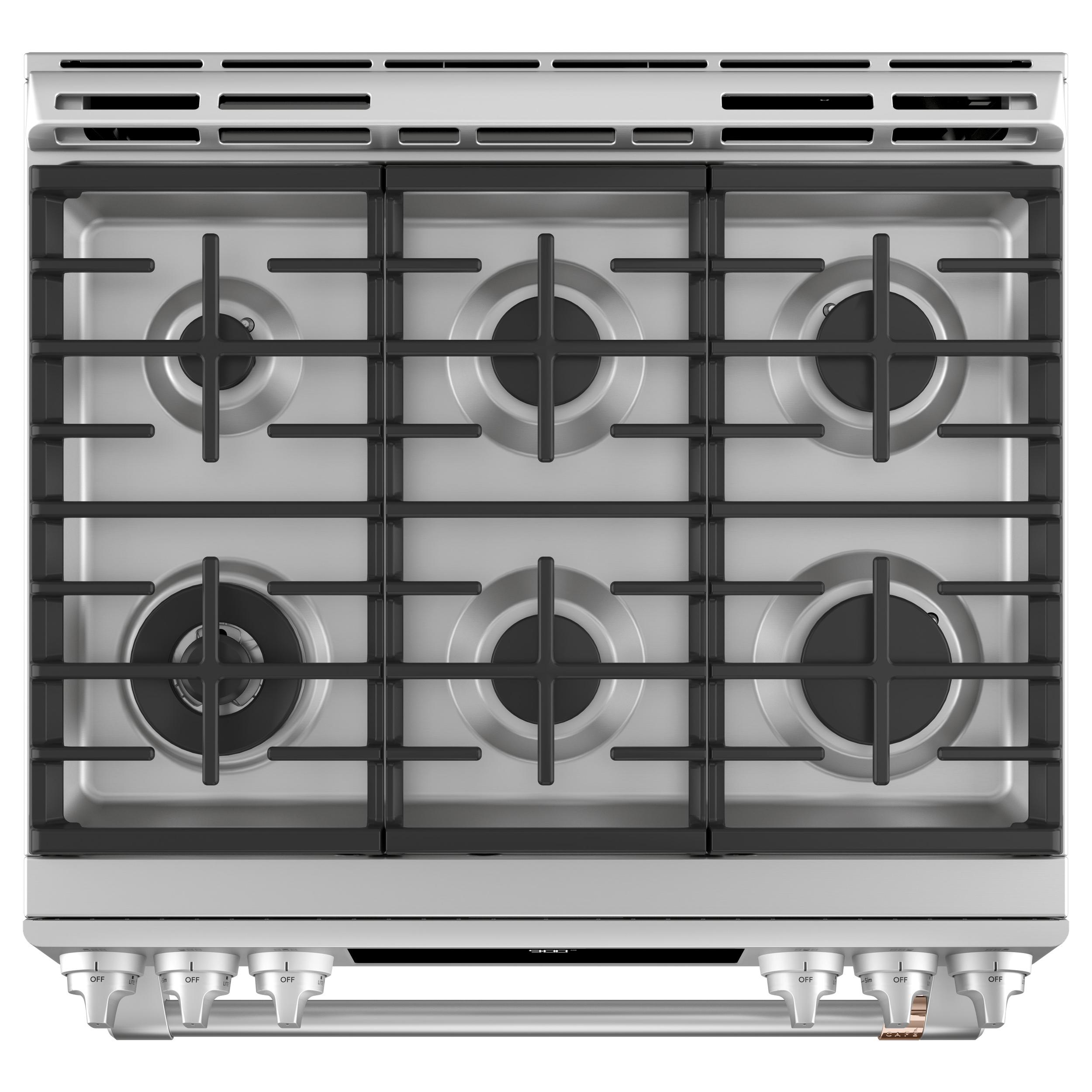

Burners/Elements
5
Burners/Elements Output
• Left Front Burner: 21,000 BTU Tri-ring
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right FrontBurner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Burner: 9,500 BTU Front / 9,500 BTU Rear
• Left Rear Burner: 5,000 BTU Precise Simmer
• Right FrontBurner: 15,000 BTU
• Right Rear Burner: 12,000 BTU
• Center Burner: 9,500 BTU Front / 9,500 BTU Rear
Burners
Sealed
Other

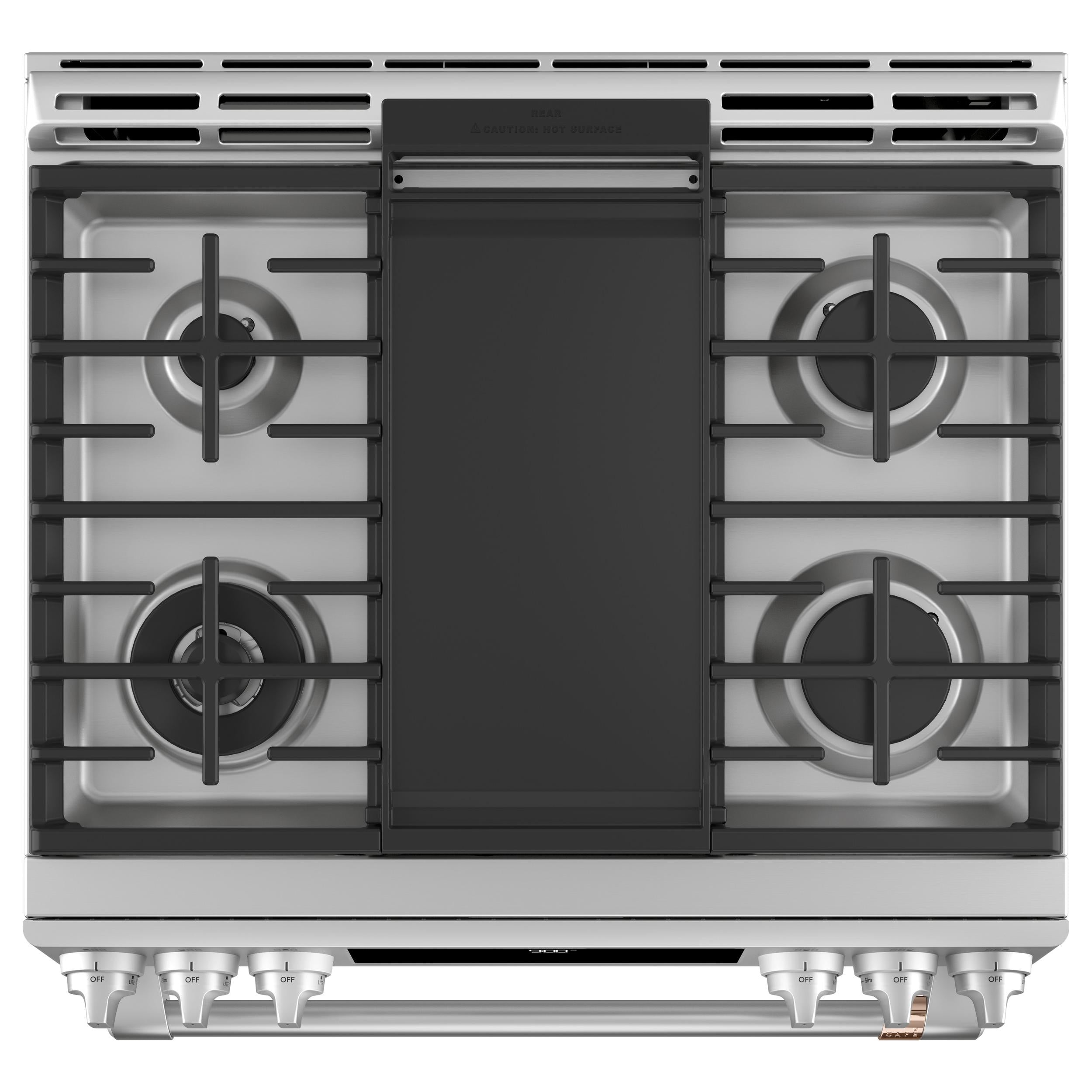

Griddle
Oven
Capacity (cu. ft.)
5.7 cu.ft.
Number of Ovens
Single
Programs
• Convection Bake
• Convection Roast
• Bake/Broil: 2850/4000W
• Convection: 2500W
• Convection Roast
• Bake/Broil: 2850/4000W
• Convection: 2500W
Features
Technologies
• True European Convection with Precise Air
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
• Chef Connect
• Amazon Alexa
• The Google Assistant
• Hestan Cue
• IFTTT
• Nest
• Drop
• Innit
• DiGiorno
• WiFi Connect
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Cooktop Surface: Deep Recessed; Porcelain-Enamel; Gray
• Dishwasher Safe Knobs
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Digipad Numeric Entry
• Electronic Clock and Timer

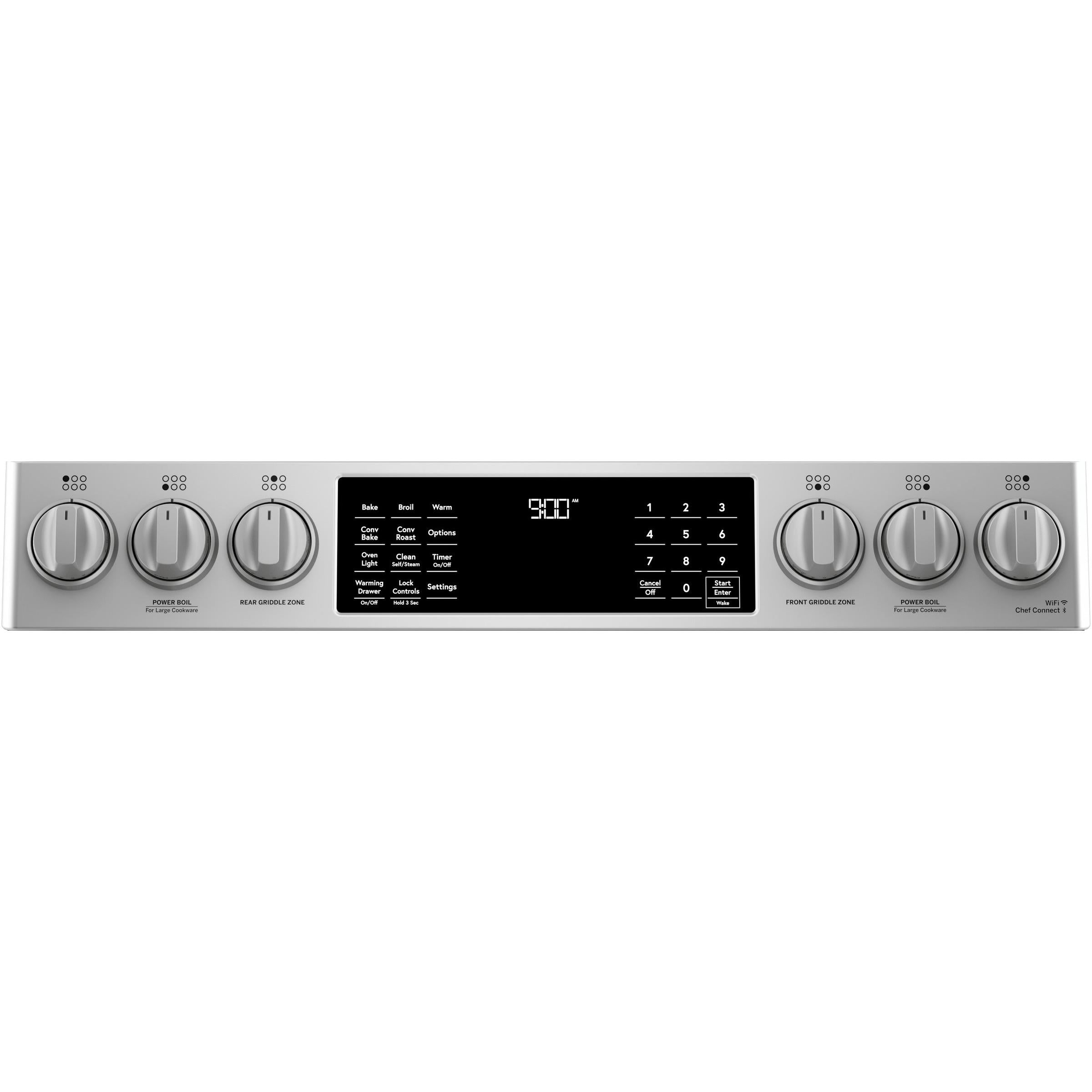

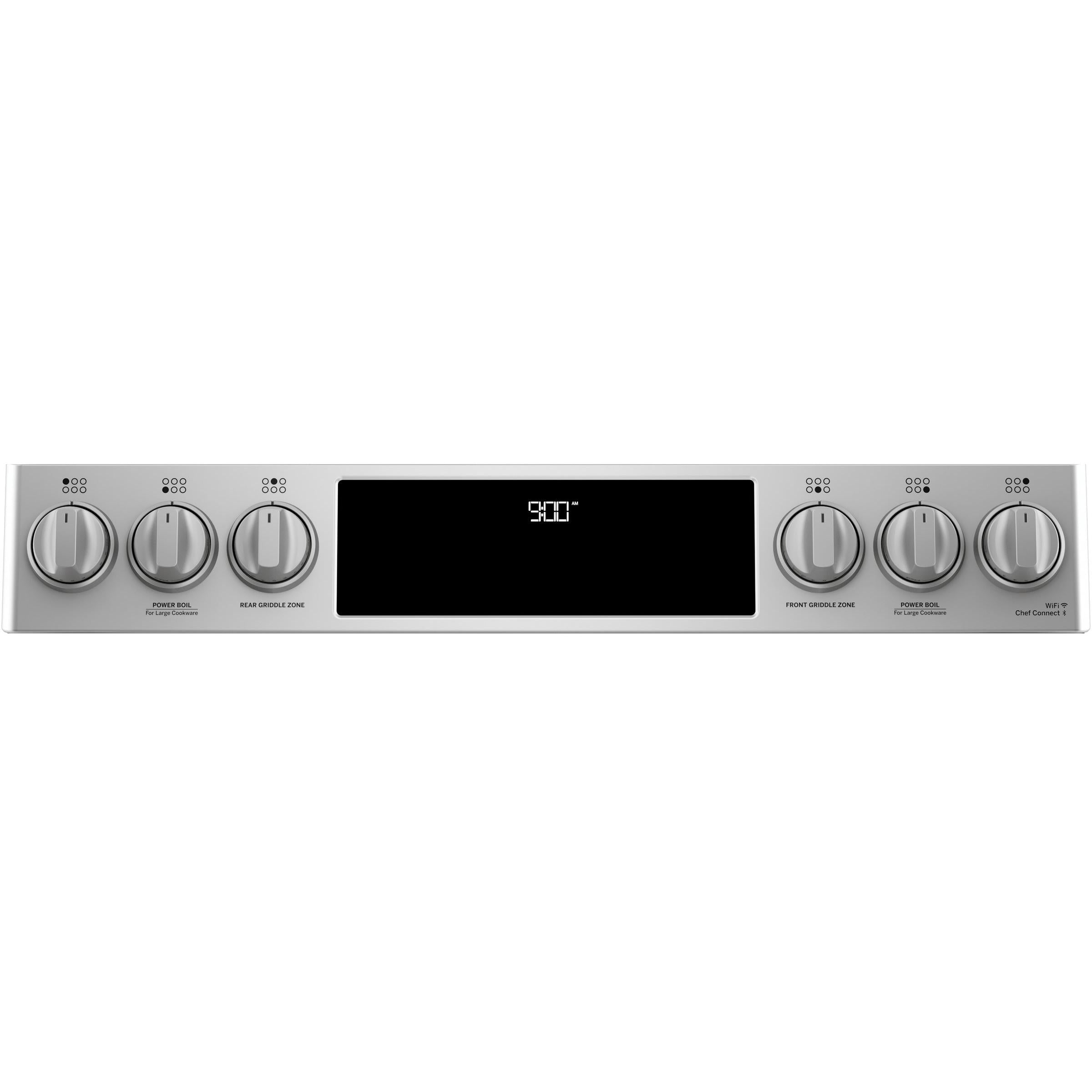

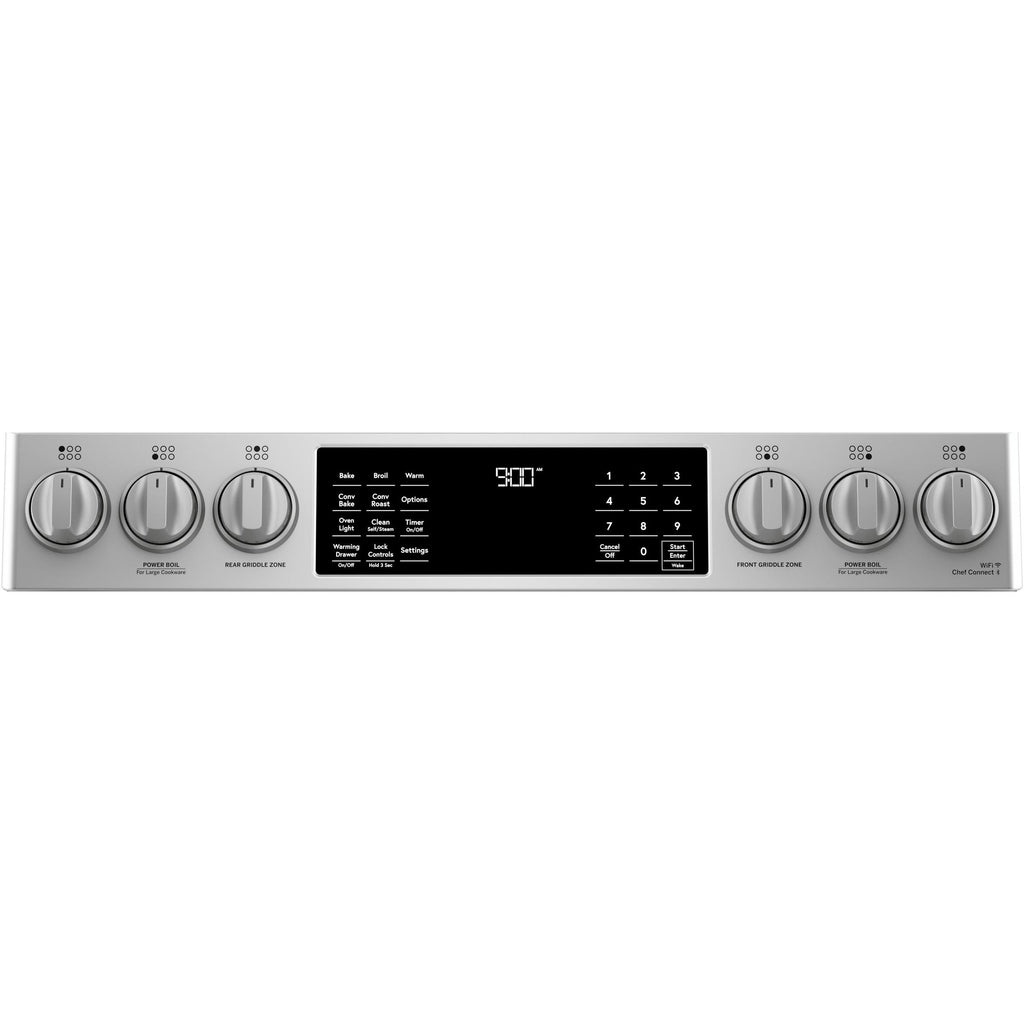

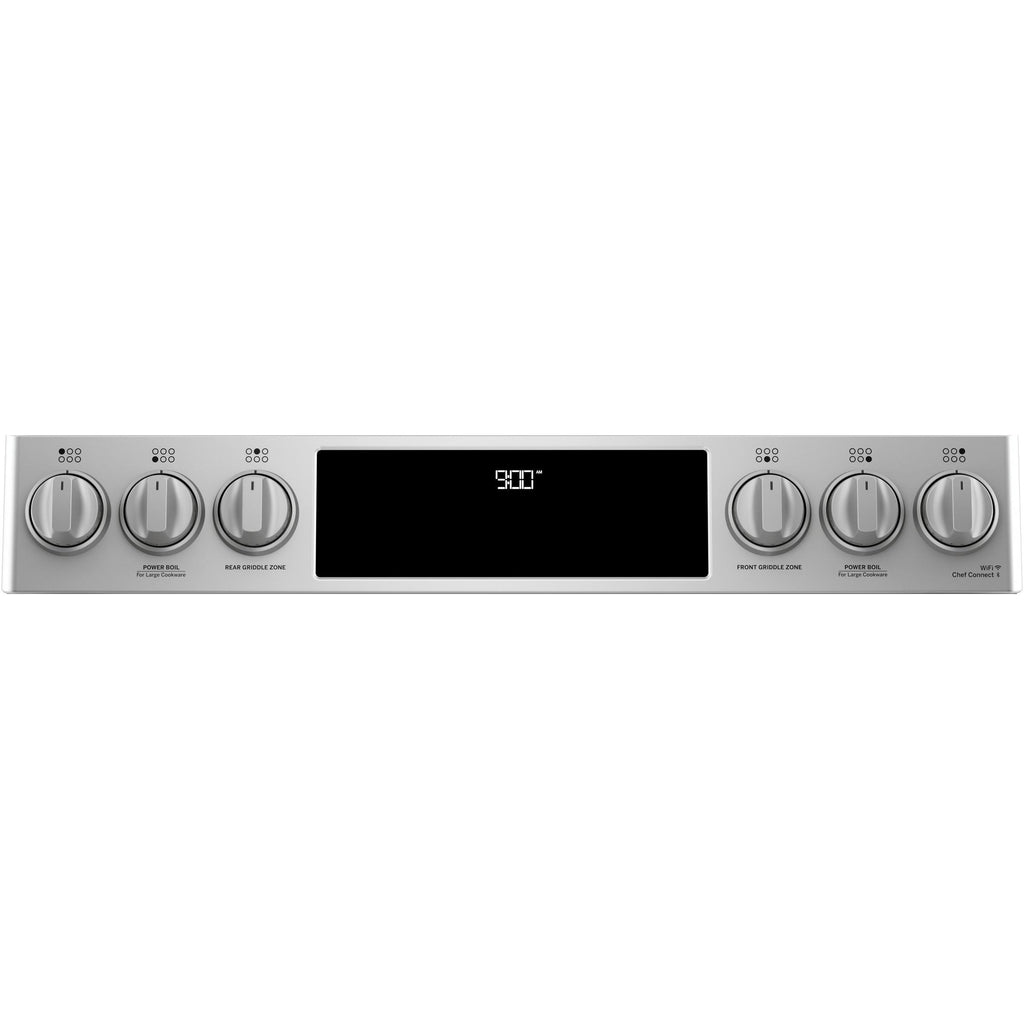

• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down Time Display
• Heavy-Cast Edge-to-Edge Grates
• Variable with Delay Clean Option

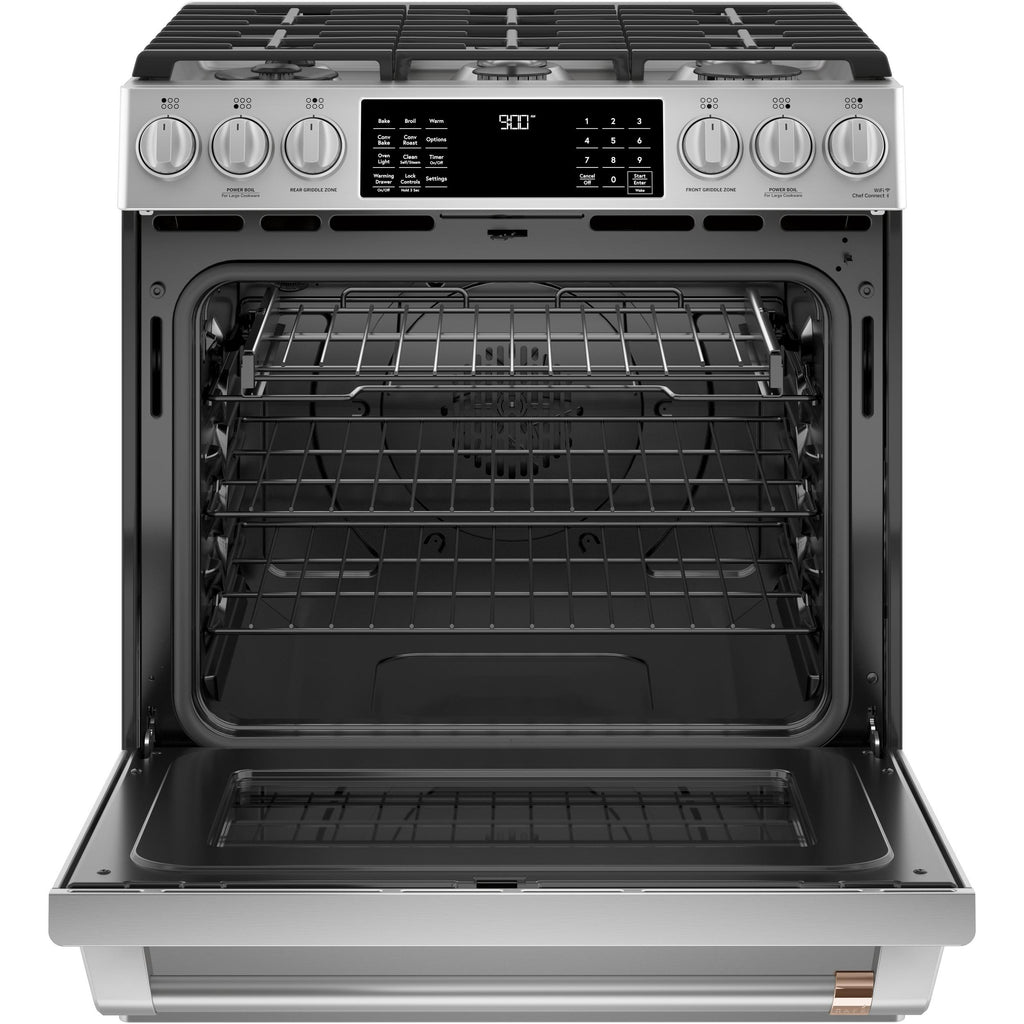

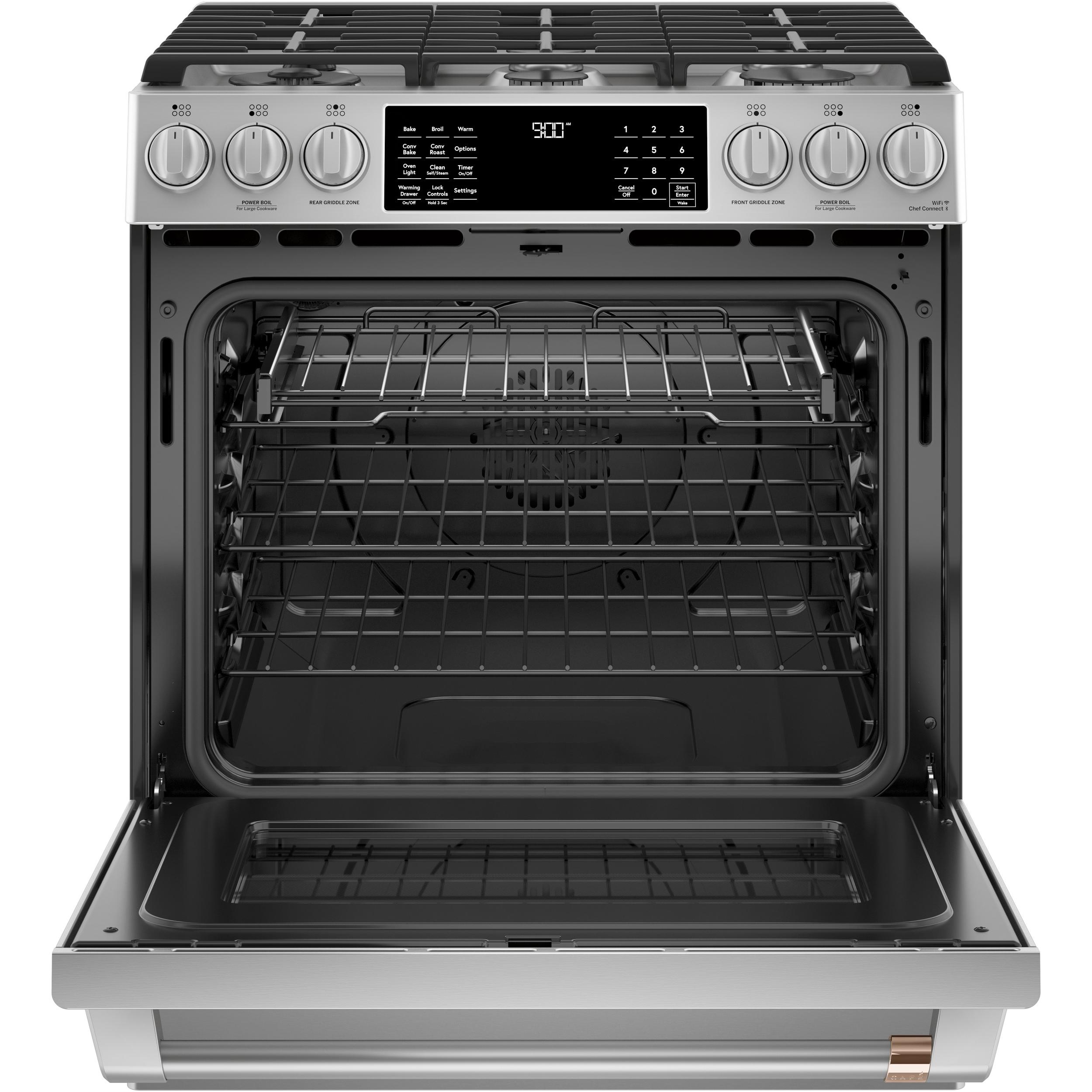

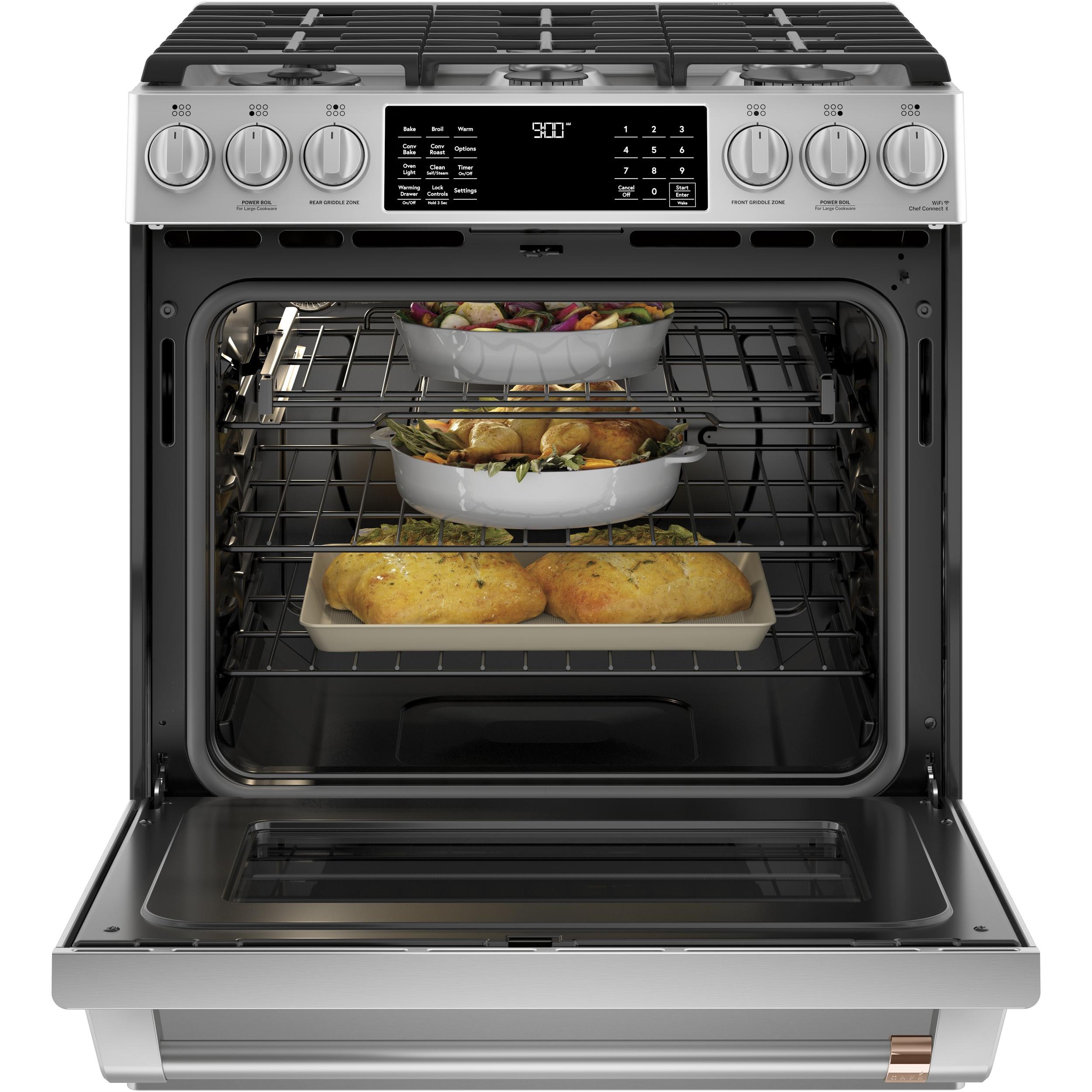

• 2 Self-Clean Oven Racks
• 1 Roller Rack
• 6 Rack Positions
• Dishwasher Safe Knobs
• Audible Preheat Signal
• Automatic Oven Timer (Time Bake)
• Auto Oven Shut-Off
• Delay Bake Option (Time Bake)
• Delay Clean Option
• Digipad Numeric Entry
• Electronic Clock and Timer
• Front Controls
• In-Oven Broiling
• Temperature Probe
• Self-Clean Cool Down Time Display
• Heavy-Cast Edge-to-Edge Grates
• Variable with Delay Clean Option
• 2 Self-Clean Oven Racks
• 1 Roller Rack
• 6 Rack Positions
Drawer Features
Warming
Yes
Electrical Information
Information
• 208 V /240 V
• 30 A
• 30 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Accessories
Included
LP Conversion Kit
Optional
• Trim Kit JXFILLR1DD
• Kit 2 handles; 6 knobs:
• CXFCGHKPMBT Brushed Black
• CXFCGHKPMBZ Brushed Bronze
• CXFCGHKPMCU Brushed Copper
• CXFCGHKPMCG Brushed Brass
• CXFCGHKPMFB Flat Black
• Kit 2 handles; 6 knobs:
• CXFCGHKPMBT Brushed Black
• CXFCGHKPMBZ Brushed Bronze
• CXFCGHKPMCU Brushed Copper
• CXFCGHKPMCG Brushed Brass
• CXFCGHKPMFB Flat Black
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36.25 inch(es) / 92.08 cm
Depth (Without Handles)
26.87 inch(es) / 68.26 cm
Depth (Including Handles)
29.37 inch(es) / 74.61 cm
Weight
223.99 lb(s) / 101.6 kg
Additional Dimensions
• Cabinet Opening: 30"
• Height to Top of Rear Vent Trim: 37-3/8"
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 19-7/8" x 20-5/8"
• Height to Top of Rear Vent Trim: 37-3/8"
• Height to Cooking Surface: 36-1/4" +/- 1/4"
• Oven Interior Dimensions (W x H x D): 24" x 19-7/8" x 20-5/8"
Shipping Dimensions
Weight
244.01 lb(s) / 110.68 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
