DESCRIPTION

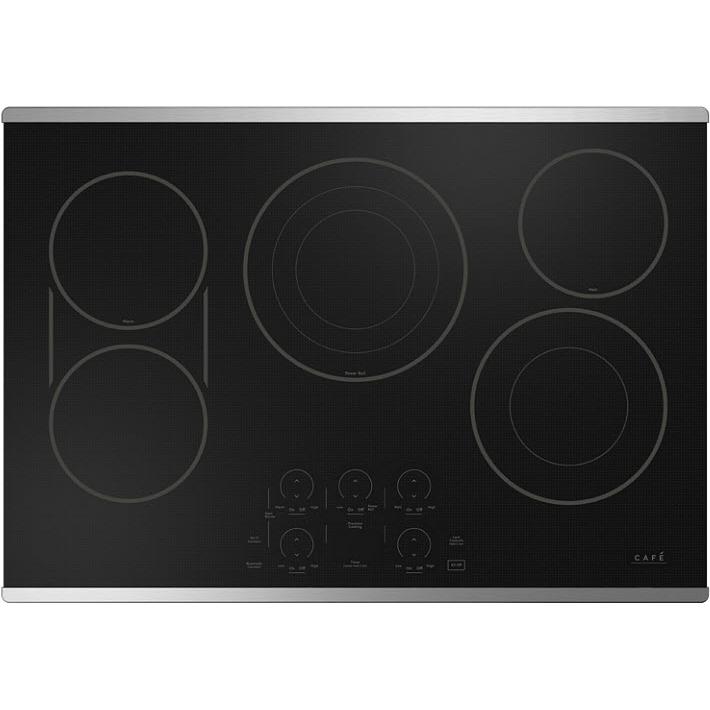

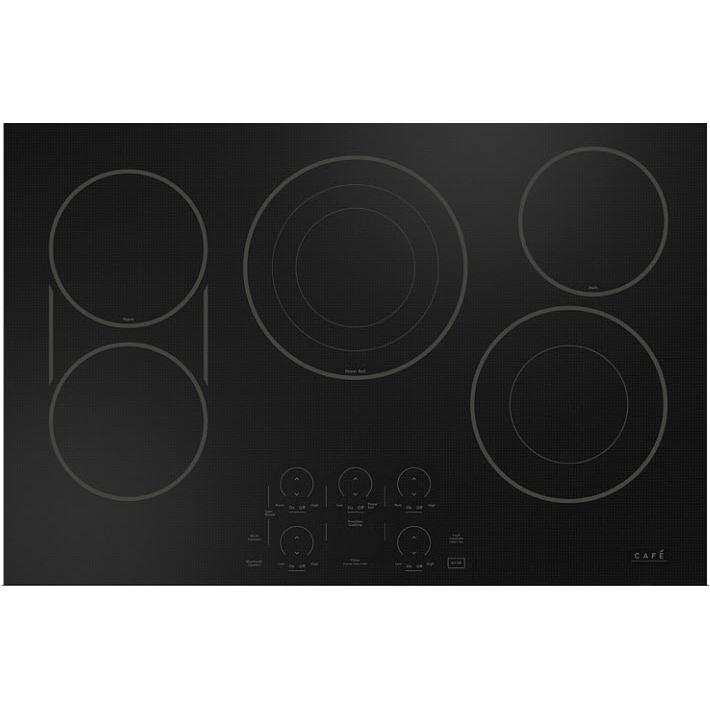

×Café™ 30-inch electric cooktop features glide touch controls, Chef Connect, 5 cooktop elements and control lock.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left Front Element: 1500W
• Left Rear Element: 1500W
• Right Front Element: 2200W Dual
• Right Rear Element: 1200W
• Center Element: 3000W Power Boil
• Left Rear Element: 1500W
• Right Front Element: 2200W Dual
• Right Rear Element: 1200W
• Center Element: 3000W Power Boil
Burner/Element Size
• Left Front Element: 7"
• Left Rear Element: 7"
• Right Front Element: 8"/5" Dual
• Right Rear Element: 6"
• Center Element: 9"/7"/5" Power Boil
• Left Rear Element: 7"
• Right Front Element: 8"/5" Dual
• Right Rear Element: 6"
• Center Element: 9"/7"/5" Power Boil
Elements
Smoothtop
Features
Technologies
• Power Boil Tri- and Dual-Ring Element
• Precision Temperature Control
• Synchronized Elements
• Chef Connect
• Built-in WiFi
• Smart Cookware Rebate
• Precision Temperature Control
• Synchronized Elements
• Chef Connect
• Built-in WiFi
• Smart Cookware Rebate
Wi-Fi
Yes
Control Lock
Yes
Digital Display
Yes
Additional Information
• Cooktop Control Features: Control Lock Capability, Keep-Warm Setting, Sync-Burners Capability, Melt Setting
• 5 Hot Surface, Surface Element "ON" Red
• Glass Touch controls
• 5 Hot Surface, Surface Element "ON" Red
• Glass Touch controls
Certifications and Approvals
ADA Compliant
Yes
Information
UL
Accessories
Optional
• Stainless Steel Clad Aluminum Griddle JXGRIDL1
• Filler trim kit JXTR32B
• Smart Cookware With rebate
• Filler trim kit JXTR32B
• Smart Cookware With rebate
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
3.37 inch(es) / 8.57 cm
Depth
21.5 inch(es) / 54.61 cm
Weight
34 lb(s) / 15.42 kg
Additional Dimensions
Cutout Dimensions (Width x Depth) (In.): 28-1/2 x 19-5/8
Shipping Dimensions
Width
27.8 inch(es) / 70.61 cm
Height
10.5 inch(es) / 26.67 cm
Depth
33.8 inch(es) / 85.85 cm
Weight
39.99 lb(s) / 18.14 kg
Warranty
Warranty
• Limited 1-year entire appliance 90 days post-install on cooktop glass (Parts)
• Limited 1-year entire appliance (Labor)
• Limited 1-year entire appliance (Labor)
UPC
UPC#
084691897668
