DESCRIPTION

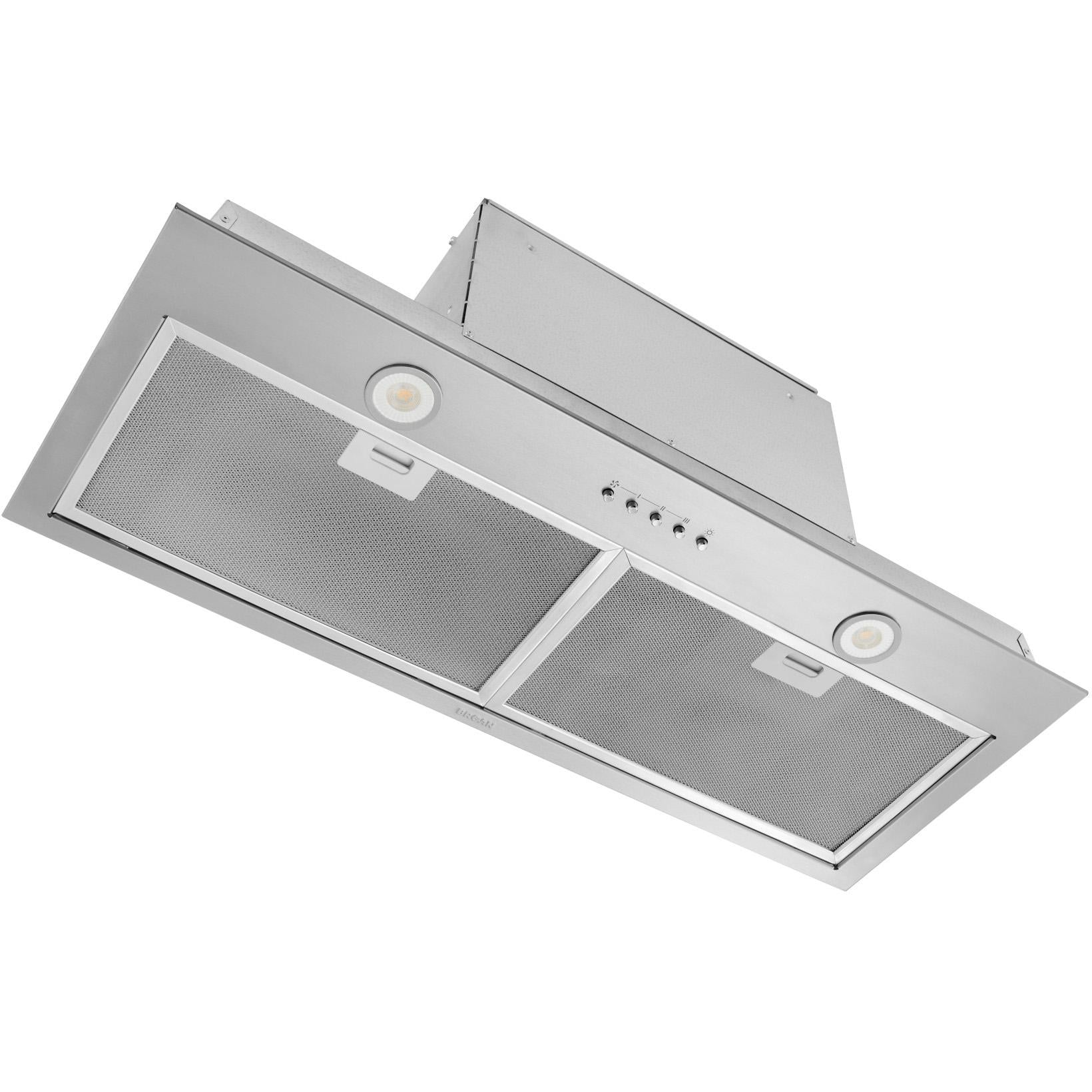

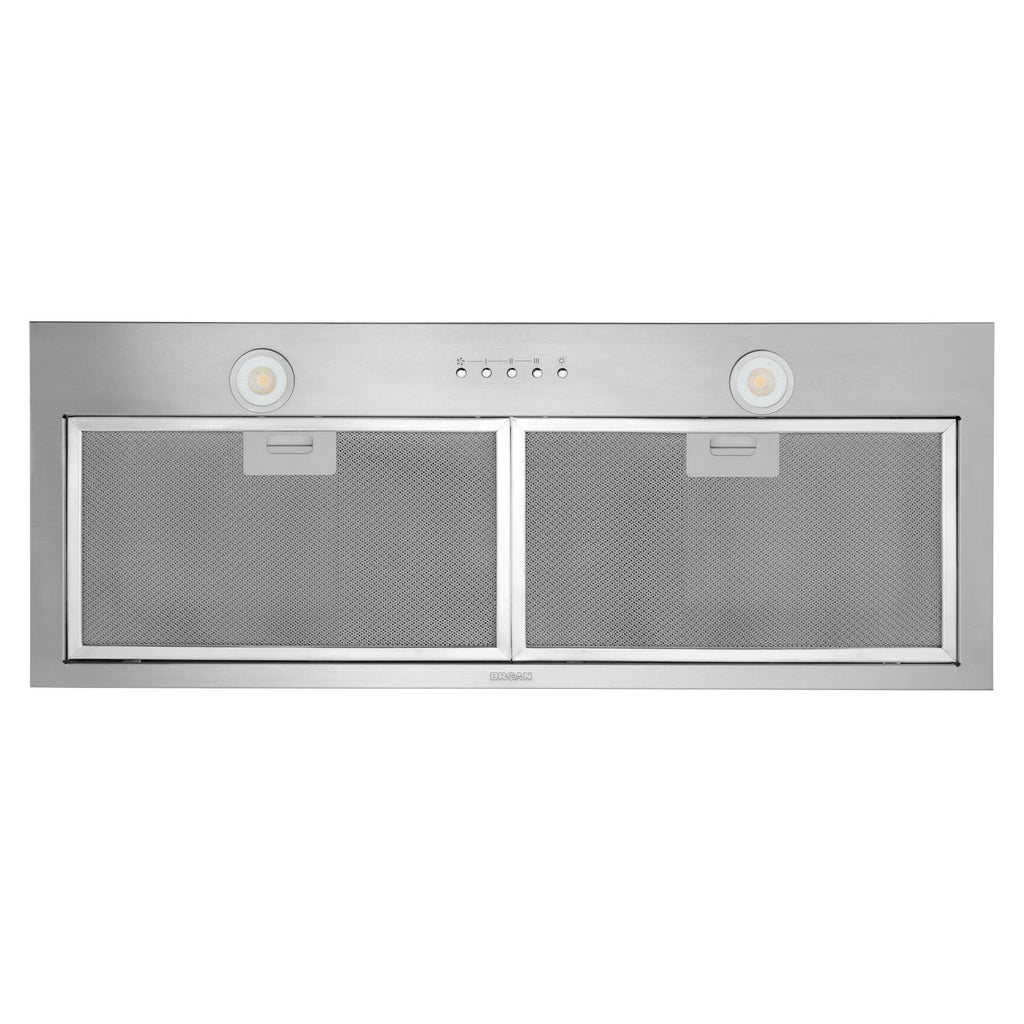

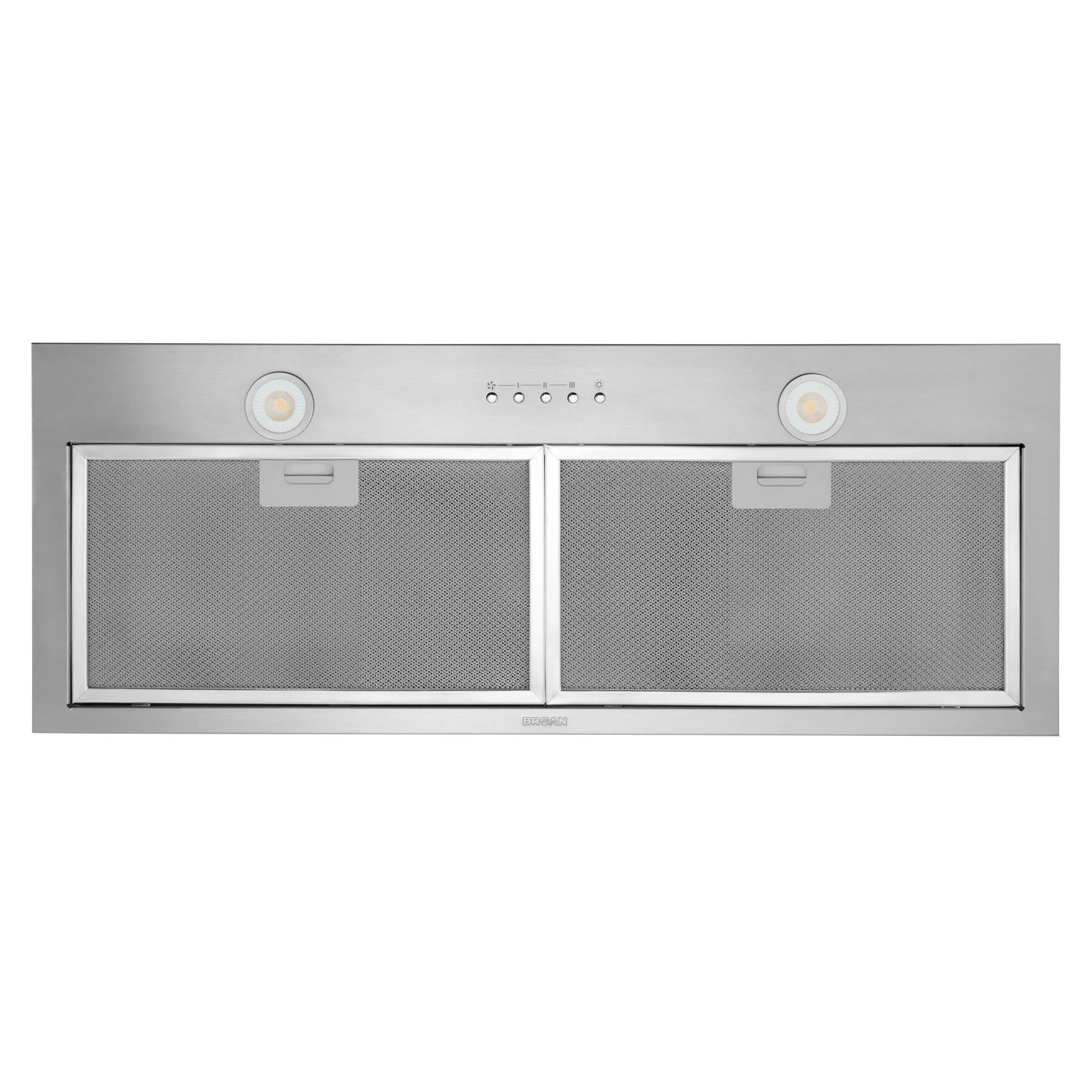

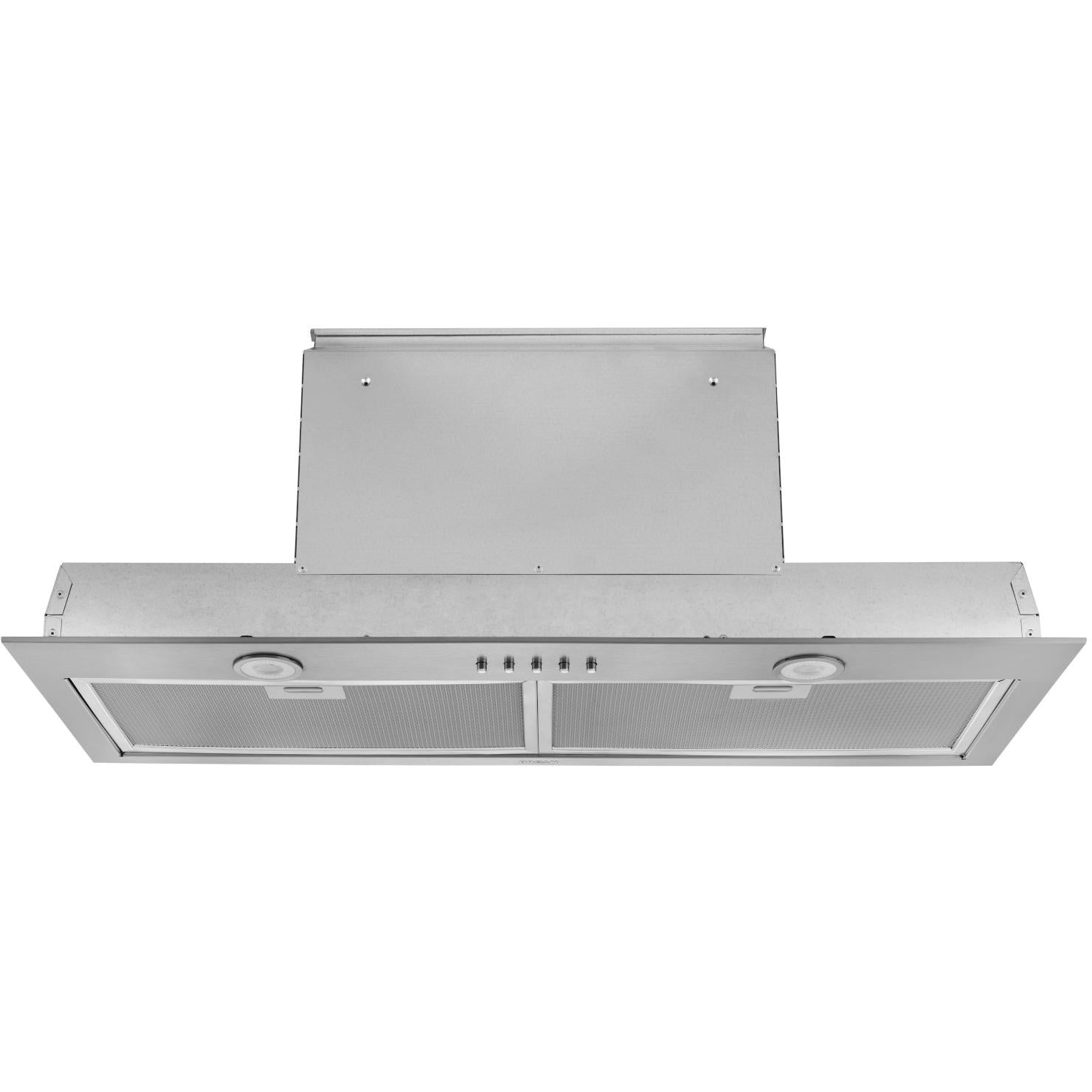

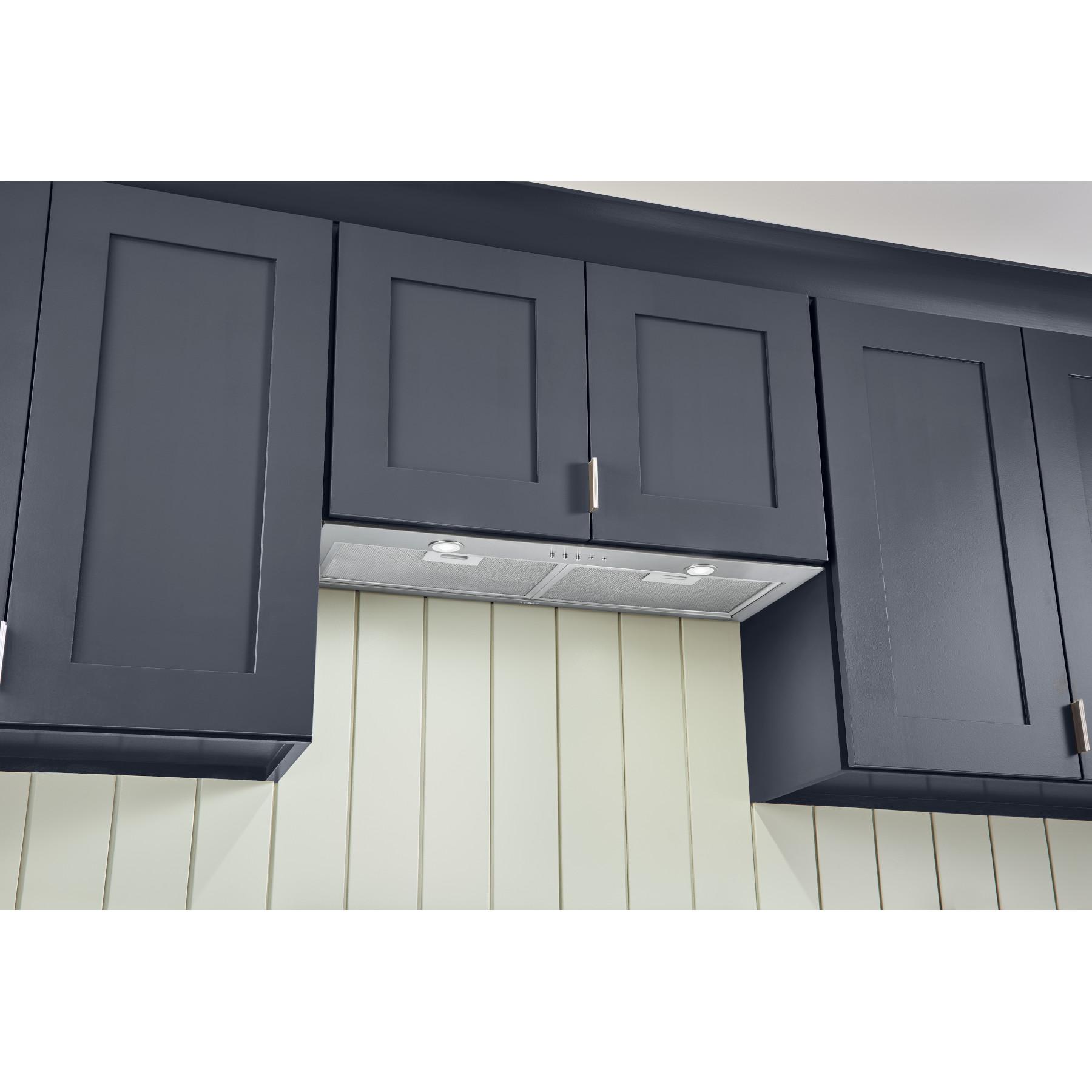

×The Broan® BBN2 powerpack insert series is ideal for cabinet installations. The integrated one-piece design protects the full bottom of your cabinetry with a flush appearance and depth adjustability. Bright LED lighting enhances your cooking experience, while the 3-speed push button control makes operation easy.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
BBN2
Blower Included
Yes
Airflow
350 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Technologies
Heat Sentry™
Ducting Information
• 3 1/4" x 10" Rectangular - Horizontal or Vertical
• 7" Round - Vertical
• 7" Round - Vertical
Speeds
3-Speed push button control for easy operation
Additional Information
• Powerful 350 Max Blower CFM operates at 1 sone at normal speed
• Bright 1-level, heat resistant LED modules enhance your cooking experience
• EZ1 clips make it easy for single-person installation
• Dishwasher-safe aluminum mesh filters feature quick-release latch for easy removal
• Bright 1-level, heat resistant LED modules enhance your cooking experience
• EZ1 clips make it easy for single-person installation
• Dishwasher-safe aluminum mesh filters feature quick-release latch for easy removal
Electrical Information
Information
120V, 60 Hz - 2.3 AMPS
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
Yes
Information
UL listed
Accessories
Optional
• Optional non-duct recirculation kit and filters available for indoor exhaust recirculation to suit your needs
• Stainless liner extension accommodates up to 13" deep cabinets. Extensions available to accommodate cabinets up to 15" deep
• Works with optional universal make-up air dampers
• Stainless liner extension accommodates up to 13" deep cabinets. Extensions available to accommodate cabinets up to 15" deep
• Works with optional universal make-up air dampers
Dimensions
Class Width
24"
Width
23.87 inch(es) / 60.64 cm
Height
10.56 inch(es) / 26.83 cm
Depth
11.44 inch(es) / 29.05 cm
Warranty
Warranty
1-Year parts and labor
DOCUMENTS
×
