DESCRIPTION

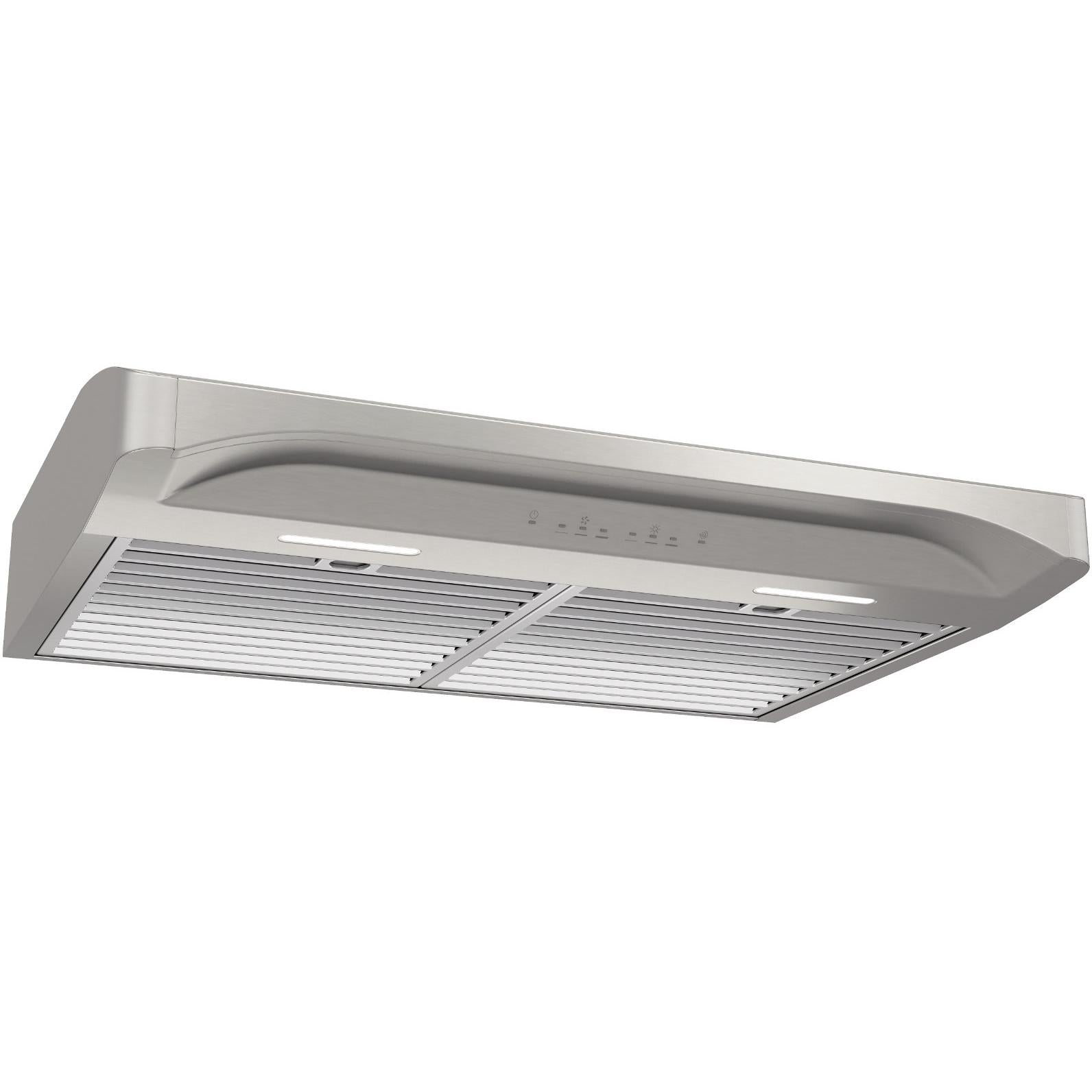

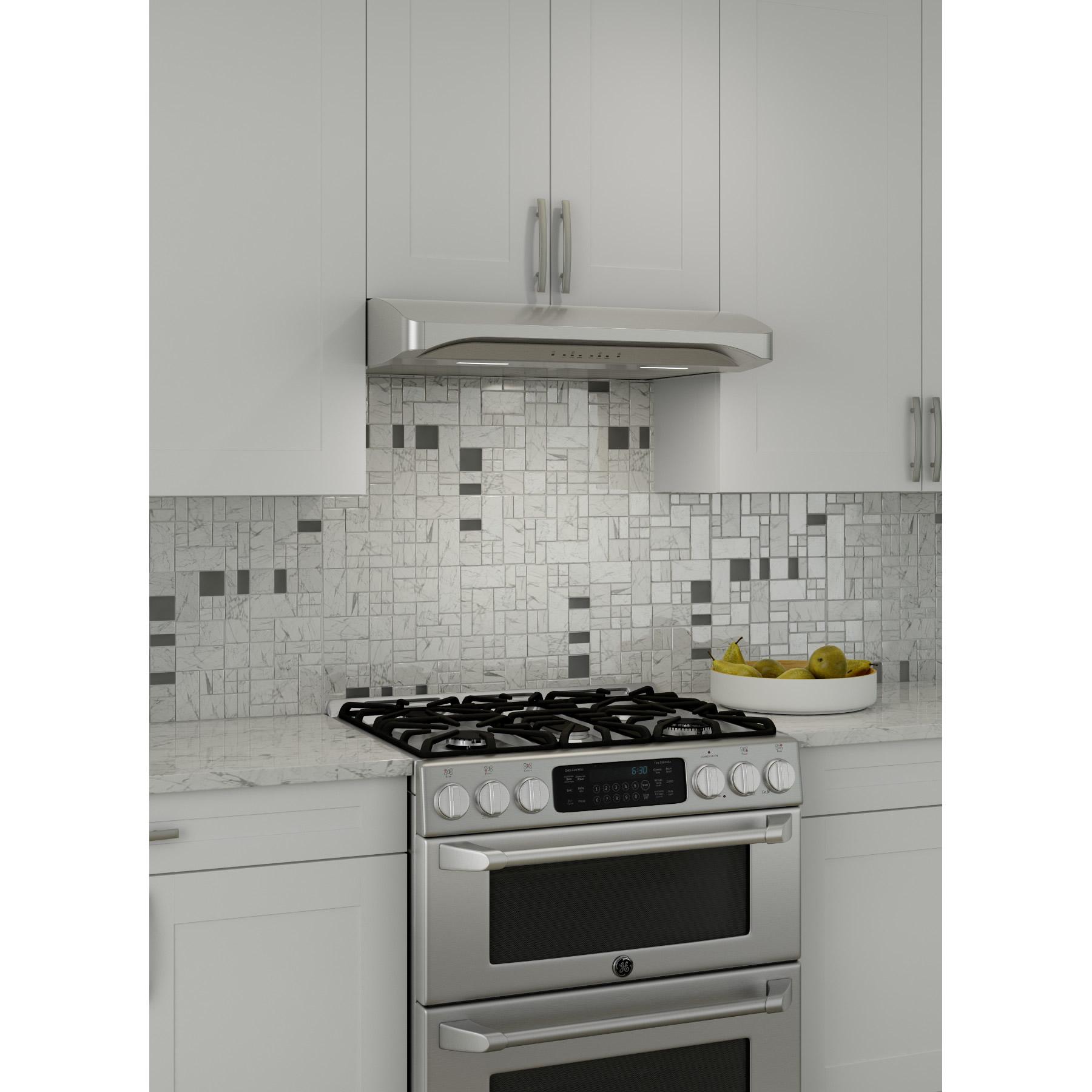

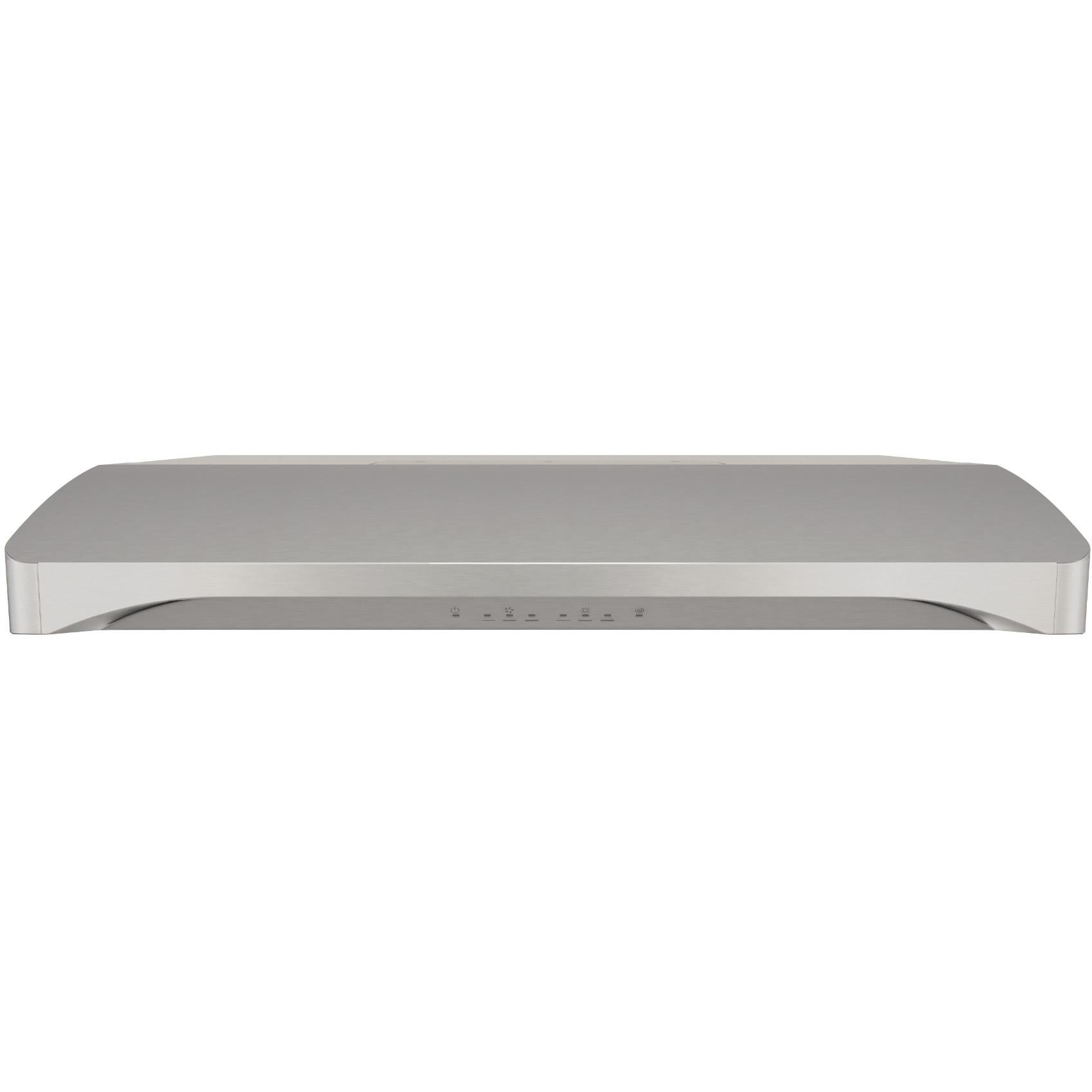

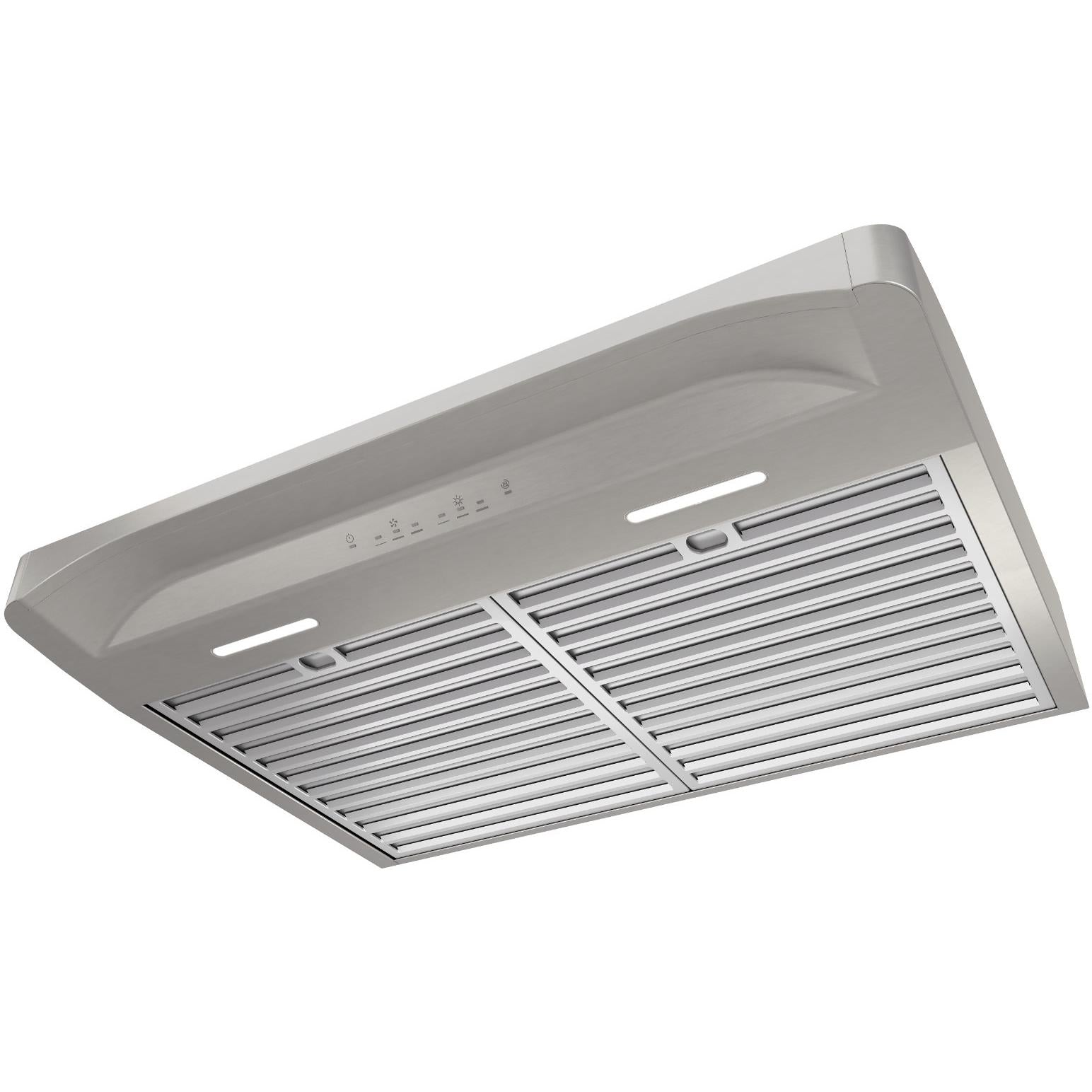

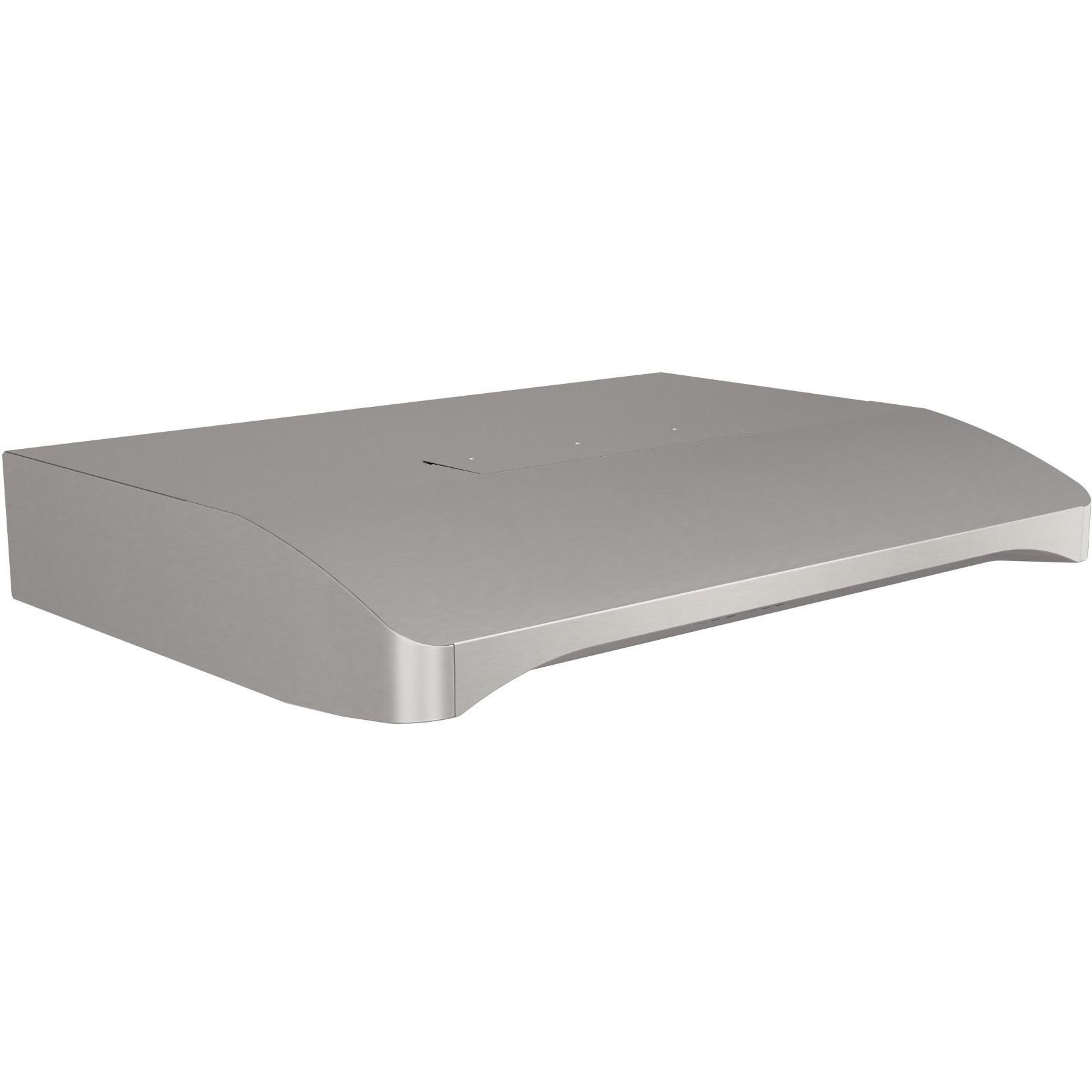

×Broan® Elite Atla 3 Series 30" convertible under-cabinet range hood with a 450 CFM three-speed blower. The Captur™ system's advanced blower design features a forward-positioned centric inlet to remove smoke and odor faster. The sculpted lines of Alta™ bring an exciting choice to typical range hood shapes.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
• Broan® Elite
• Atla 3
• Atla 3
Blower Included
Yes
Airflow
450 CFM
Style
Standard
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Under-Cabinet
Features
Wi-Fi
No
Dishwasher-Proof Filters
Yes
Technologies
• Heat Sentry™ temperature sensor
• Captur™ system
• EZ1 brackets
• Captur™ system
• EZ1 brackets
Ducting Information
• 7" Round - Vertical
• 3 1/4" x 10" - Horizontal/Vertical
• 3 1/4" x 10" - Horizontal/Vertical
Speeds
3
Additional Information
• Infrared control type
• Smooth, easy-to-clean surface
• Non-ducted recirculation capable
• Delay off
• Integrated LED Module lighting
• Light levels: 3
• Smooth-flow blower wheel design
• Hybrid Baffle filters
• Filter clean reminder
• Sones: 6.0
• UL Listed
• ADA Capable
• Smooth, easy-to-clean surface
• Non-ducted recirculation capable
• Delay off
• Integrated LED Module lighting
• Light levels: 3
• Smooth-flow blower wheel design
• Hybrid Baffle filters
• Filter clean reminder
• Sones: 6.0
• UL Listed
• ADA Capable
Electrical Information
Information
• 120V
• 60Hz
• Rated amps: 1.4
• Wattage: 168
• 60Hz
• Rated amps: 1.4
• Wattage: 168
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
No
Accessories
Included
Light bulbs
Optional
• Replacement grease filter: HPFA430 (Type "C5")
• Non-duct filter: HPF30 (Type "Xc")
• 7" Round damper: BP87Q
• ADA wiring kit: HAWRK3
• Make-up air dampers: MD6TU, MD8TU, MD10TU
• Handheld remote control: HCR3
• Non-duct filter: HPF30 (Type "Xc")
• 7" Round damper: BP87Q
• ADA wiring kit: HAWRK3
• Make-up air dampers: MD6TU, MD8TU, MD10TU
• Handheld remote control: HCR3
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
5 inch(es) / 12.7 cm
Depth
22 inch(es) / 55.88 cm
Additional Dimensions
Mounting height: 18" to 30" from cooktop to bottom of hood
Warranty
Warranty
• 1-Year on parts and labor
• 3-Year limited for LED modules
• 3-Year limited for LED modules
