DESCRIPTION

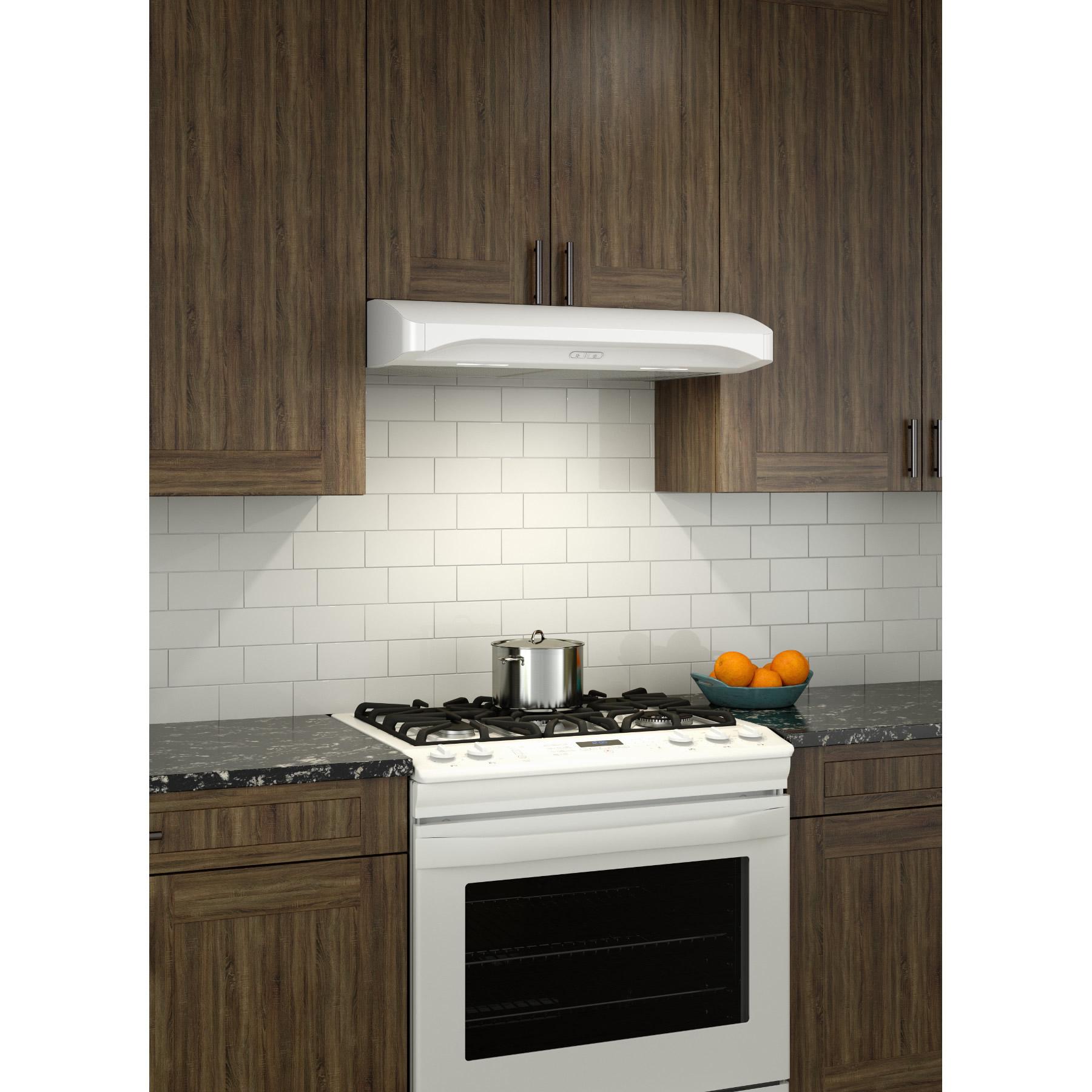

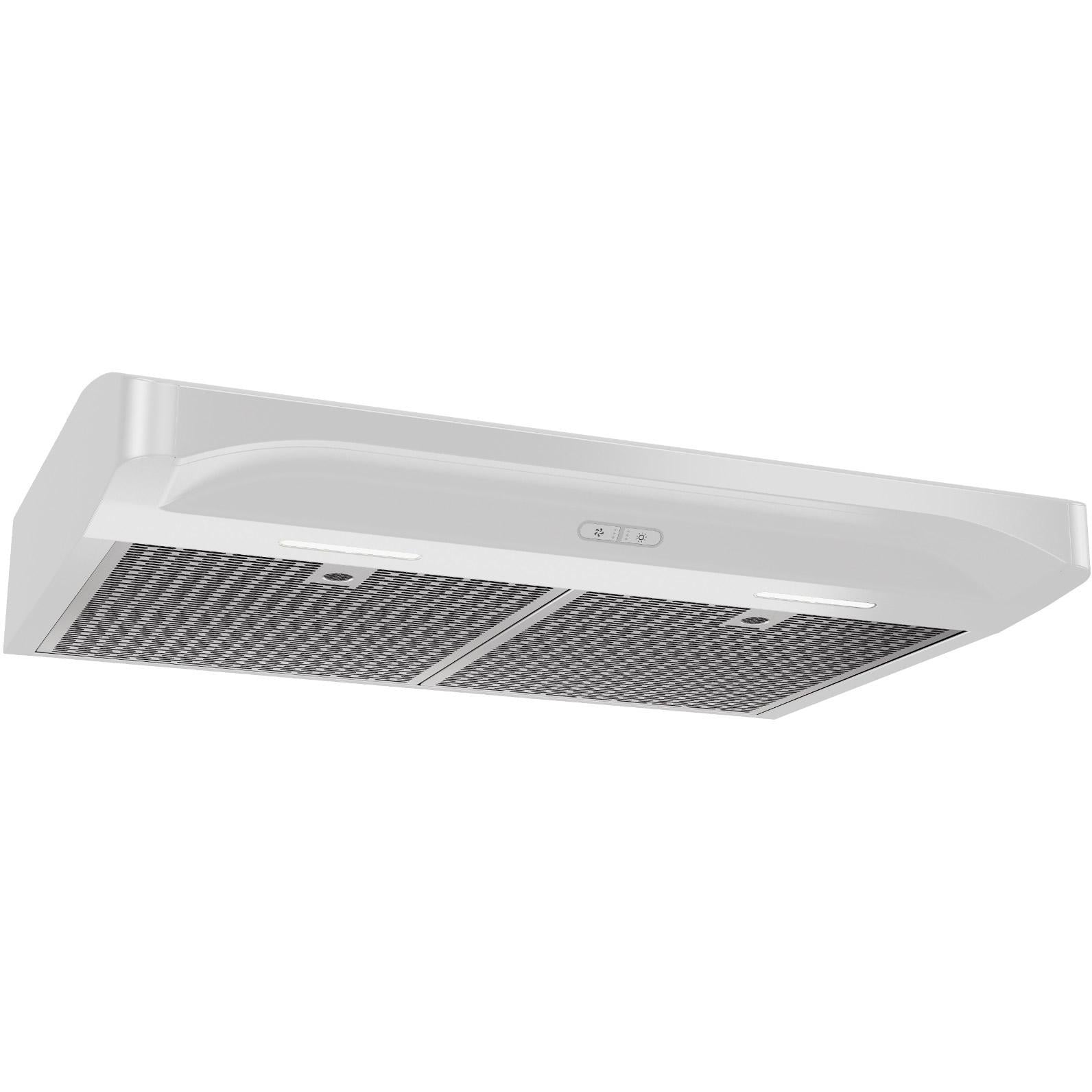

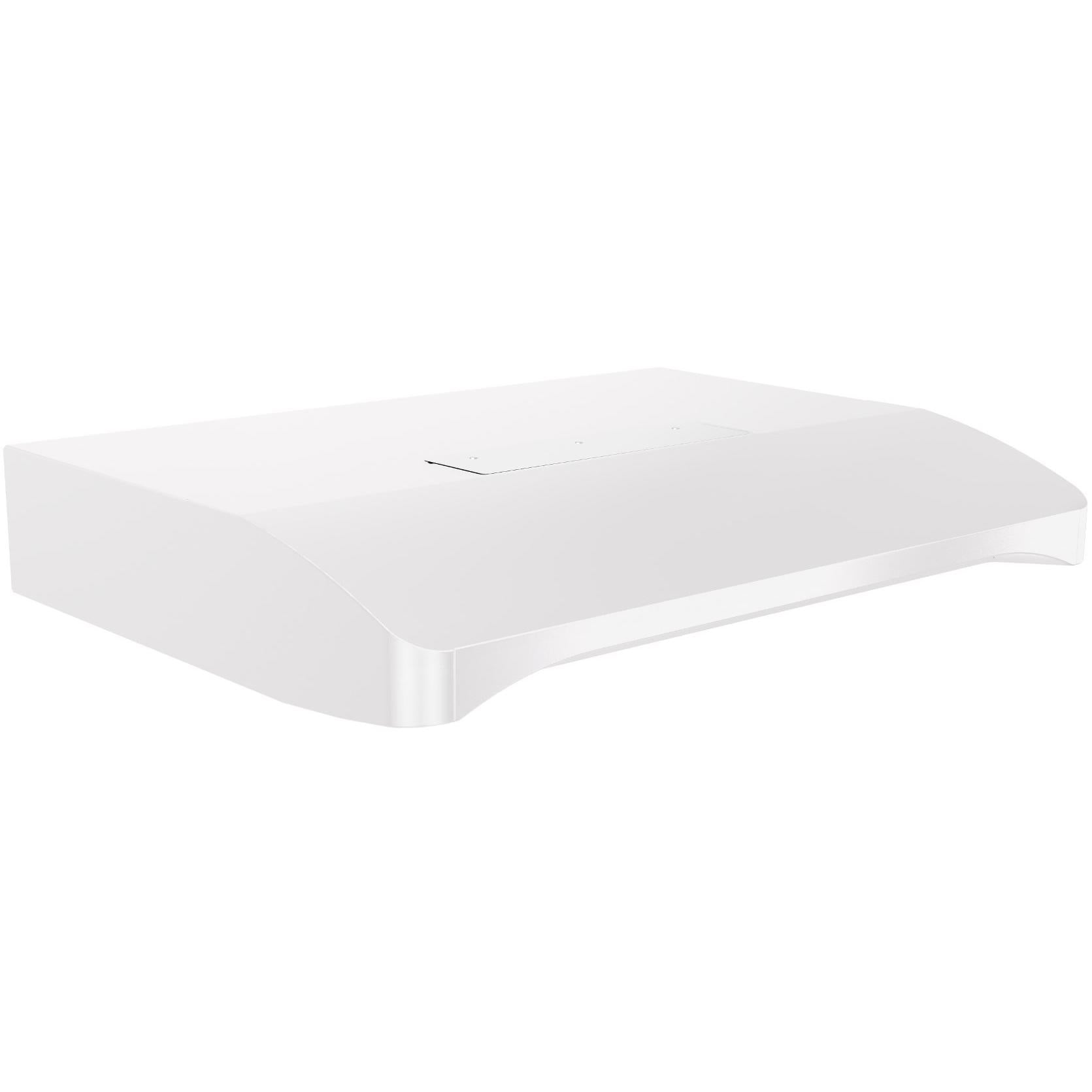

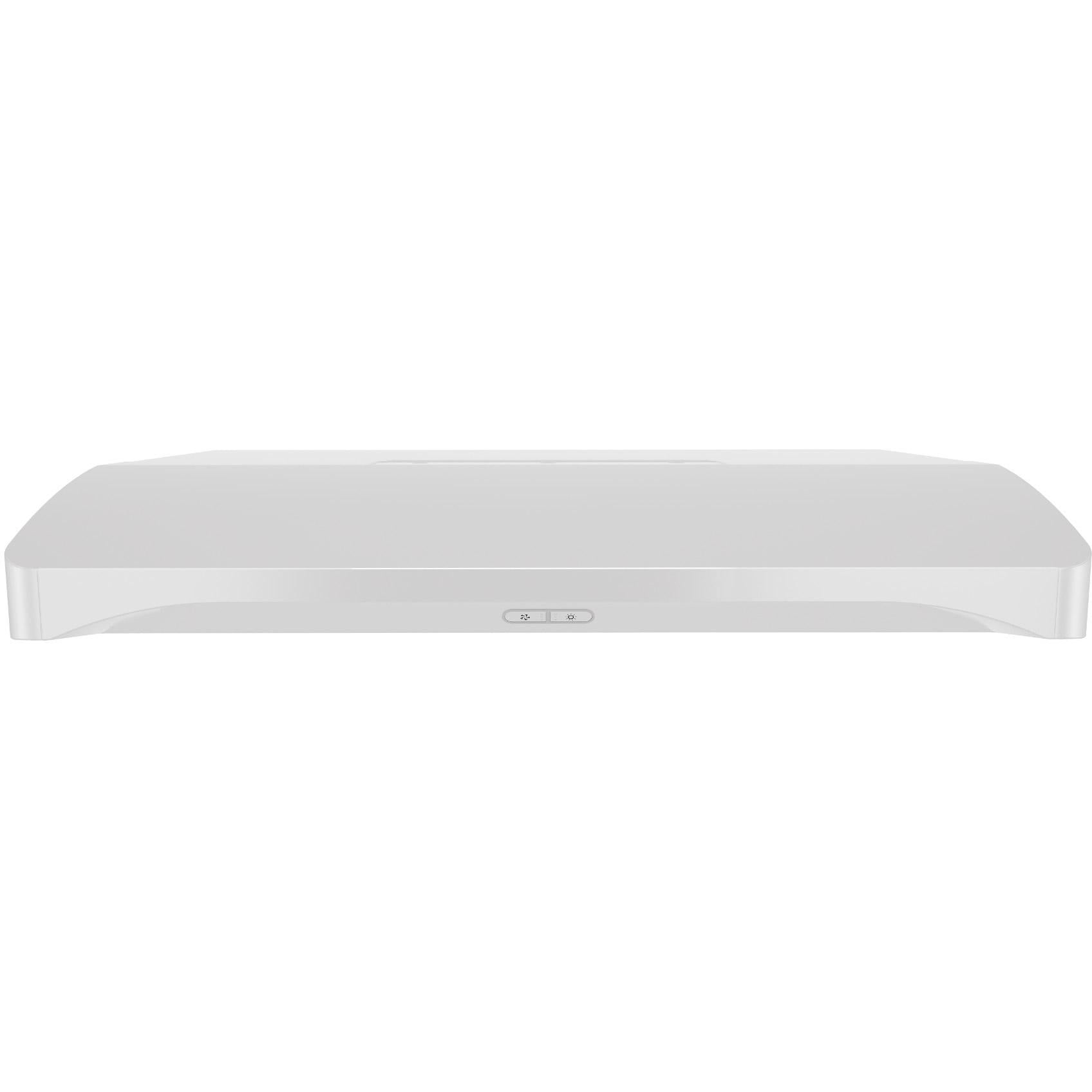

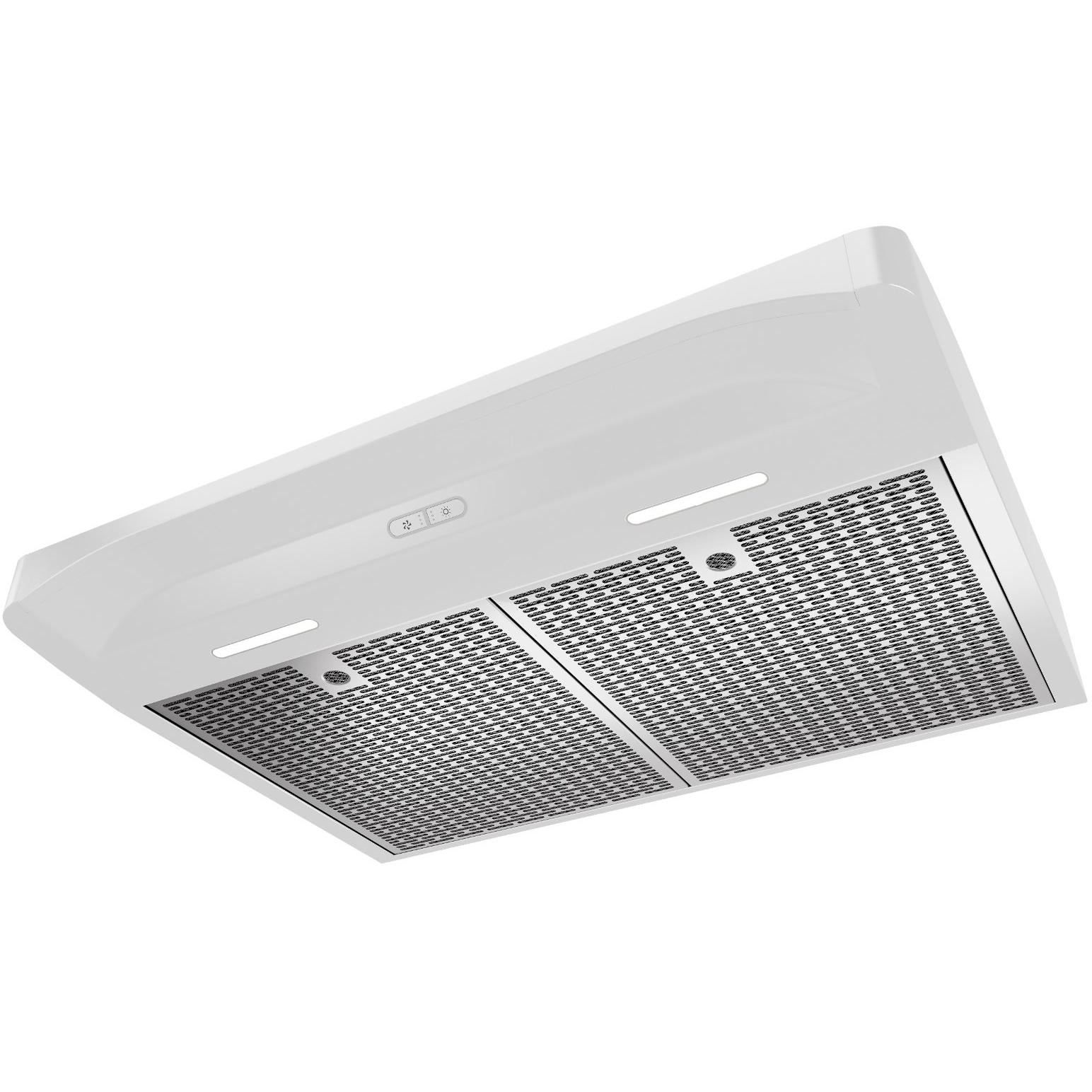

×Broan® Elite Atla 2 Series 30" convertible under-cabinet range hood with a 300 CFM three-speed blower. The Captur™ system's advanced blower design features a forward-positioned centric inlet to remove smoke and odor faster. The sculpted lines of Alta™ bring an exciting choice to typical range hood shapes. Wide curves, tap-touch capacitive controls and LED lighting present a clean, striking design.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
• Broan® Elite
• Atla 2
• Atla 2
Blower Included
Yes
Airflow
300 CFM
Style
Standard
Color
White
Manufacturer Color
White
Installation
Under-Cabinet
Features
Wi-Fi
No
Dishwasher-Proof Filters
Yes
Technologies
• Captur™ system
• EZ1 brackets
• EZ1 brackets
Ducting Information
• 7" Round - Vertical
• 3 1/4" x 10" - Horizontal/Vertical
• 3 1/4" x 10" - Horizontal/Vertical
Speeds
3
Additional Information
• Capacitive touch control type
• Smooth, easy-to-clean surface
• Non-ducted recirculation capable
• Capture efficiency: 98.1
• Integrated LED Module lighting
• Light levels: 2
• Smooth-flow blower wheel design
• High flow deluxe micro-mesh filters
• Filter clean reminder
• Sones: 1.2
• UL Listed
• ADA Capable
• Smooth, easy-to-clean surface
• Non-ducted recirculation capable
• Capture efficiency: 98.1
• Integrated LED Module lighting
• Light levels: 2
• Smooth-flow blower wheel design
• High flow deluxe micro-mesh filters
• Filter clean reminder
• Sones: 1.2
• UL Listed
• ADA Capable
Electrical Information
Information
• 120V
• 60Hz
• Rated amps: 0.65
• Wattage: 78
• 60Hz
• Rated amps: 0.65
• Wattage: 78
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
No
Accessories
Included
Light bulbs
Optional
• Replacement grease filter: HPFA3A30 (Type "C3")
• Non-duct filter: HPF30 (Type "Xc")
• 7" Round damper: BP87Q
• ADA wiring kit: HAWRK3
• Make-up air dampers: MD6TU, MD8TU and MD10TU
• Non-duct filter: HPF30 (Type "Xc")
• 7" Round damper: BP87Q
• ADA wiring kit: HAWRK3
• Make-up air dampers: MD6TU, MD8TU and MD10TU
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
5 inch(es) / 12.7 cm
Depth
22 inch(es) / 55.88 cm
Additional Dimensions
Mounting height: 18" to 24" from cooktop to bottom of hood
Warranty
Warranty
• 1-Year on parts and labor
• 3-Year limited for LED modules
• 3-Year limited for LED modules
