DESCRIPTION

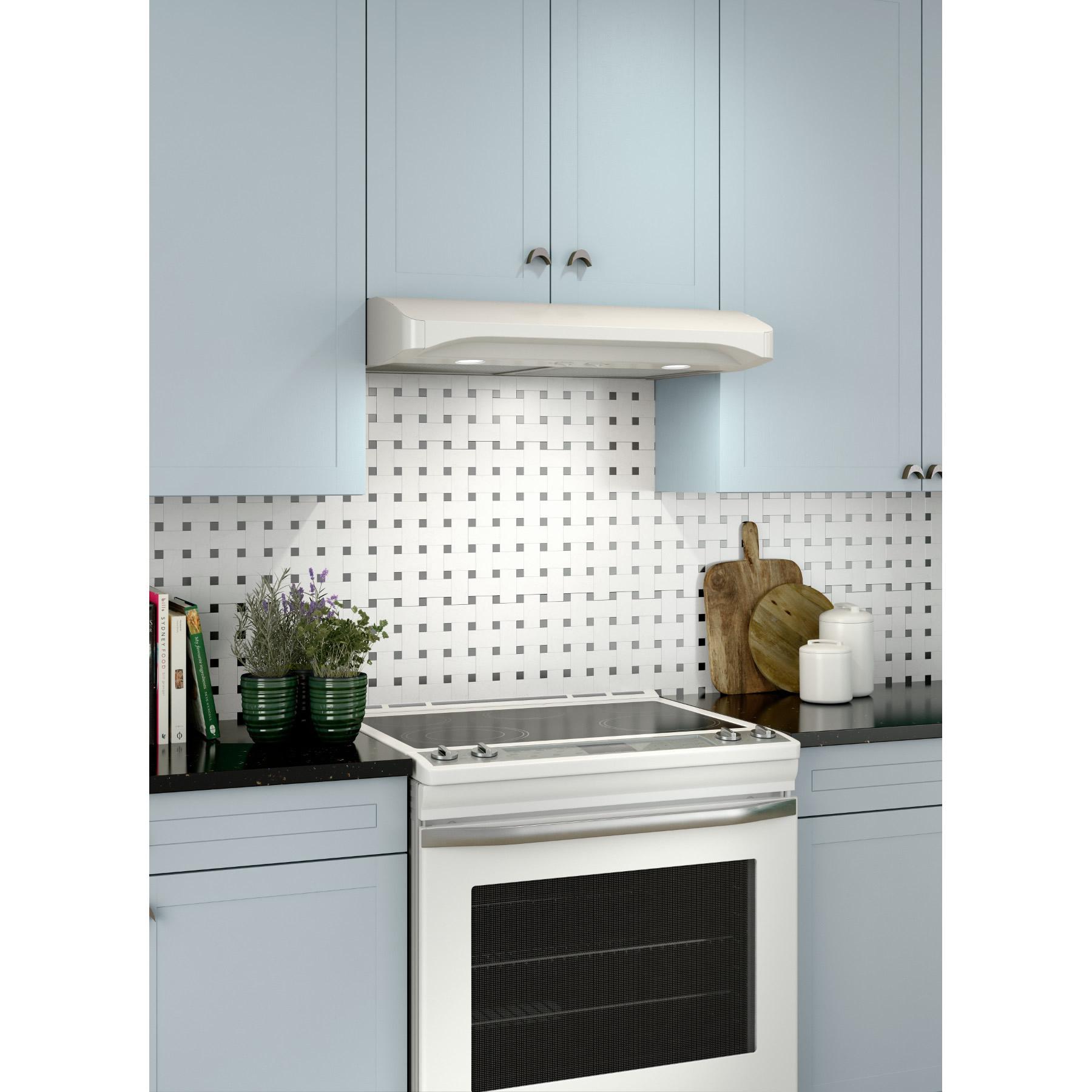

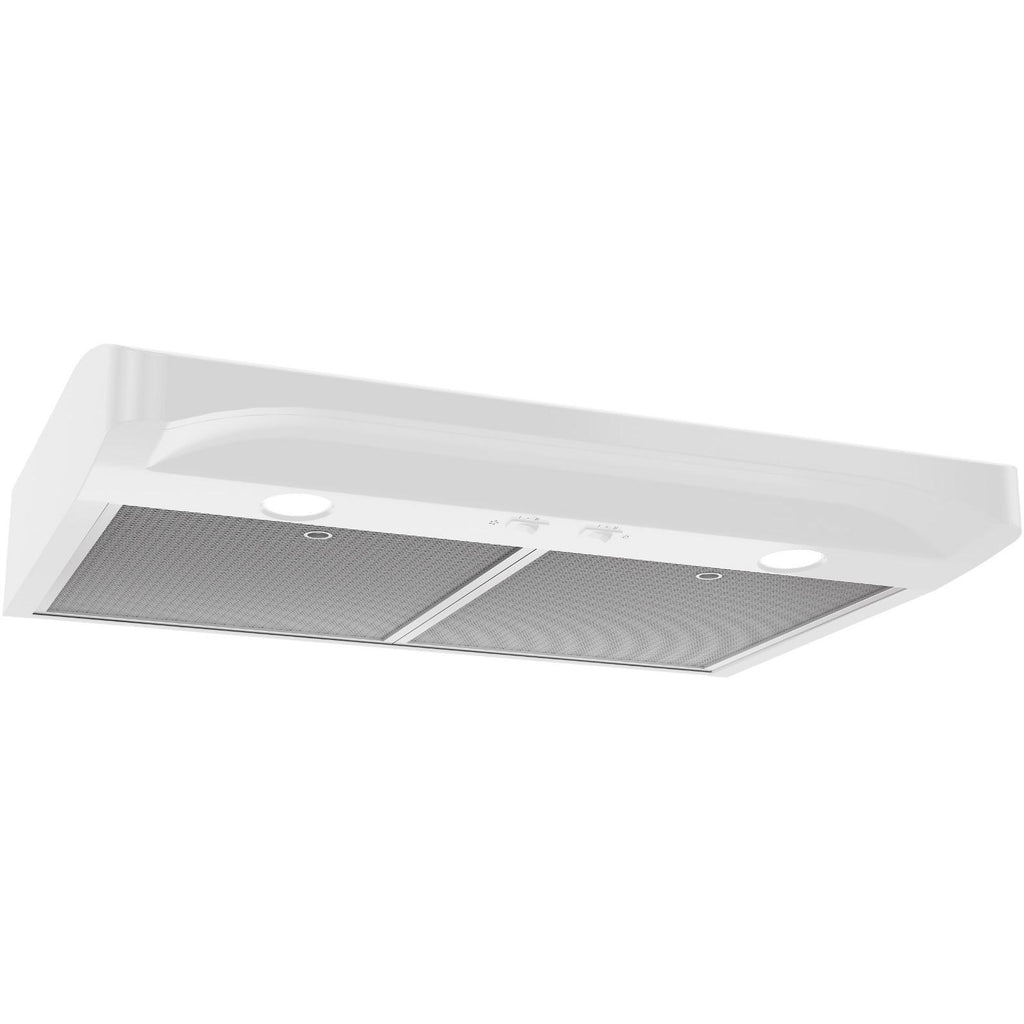

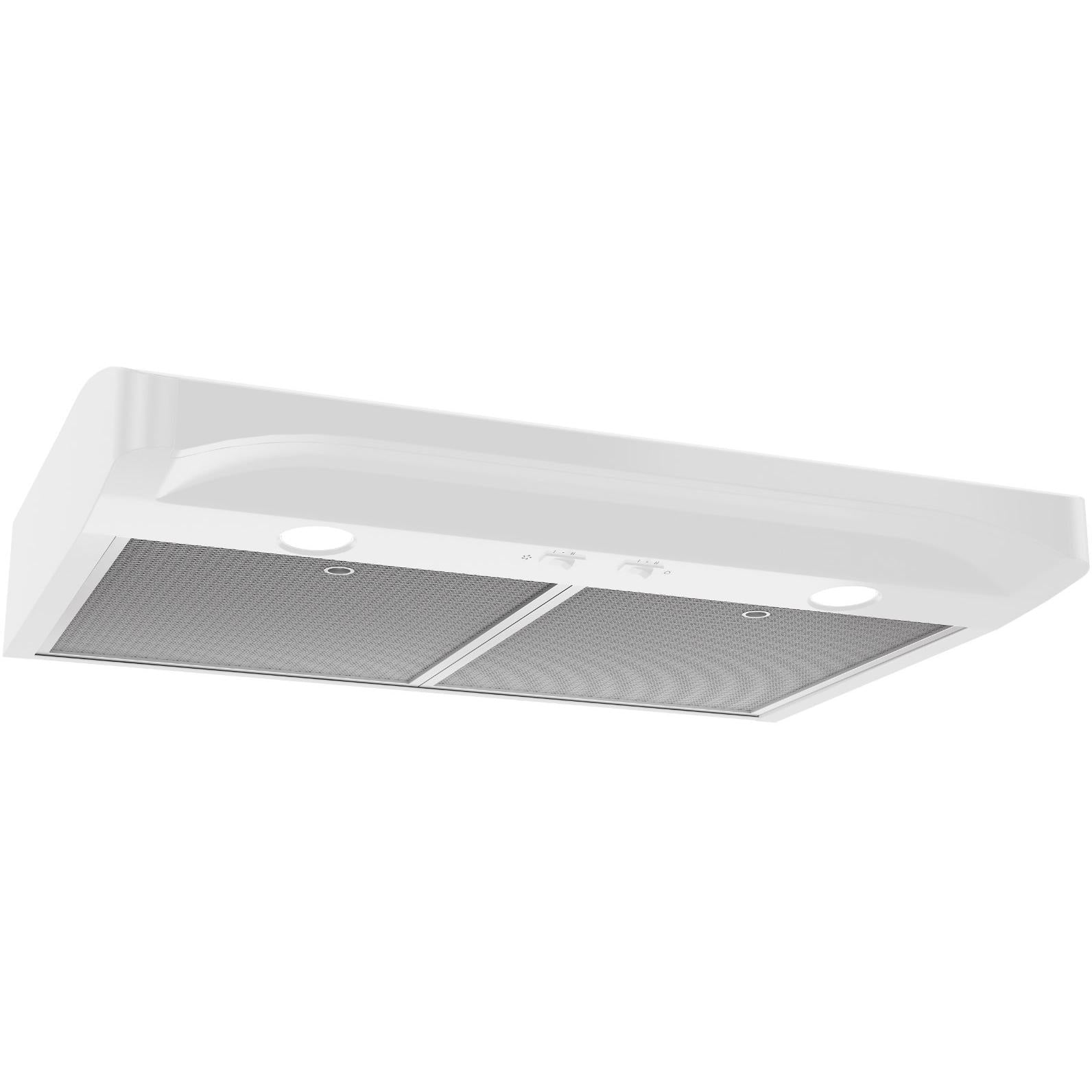

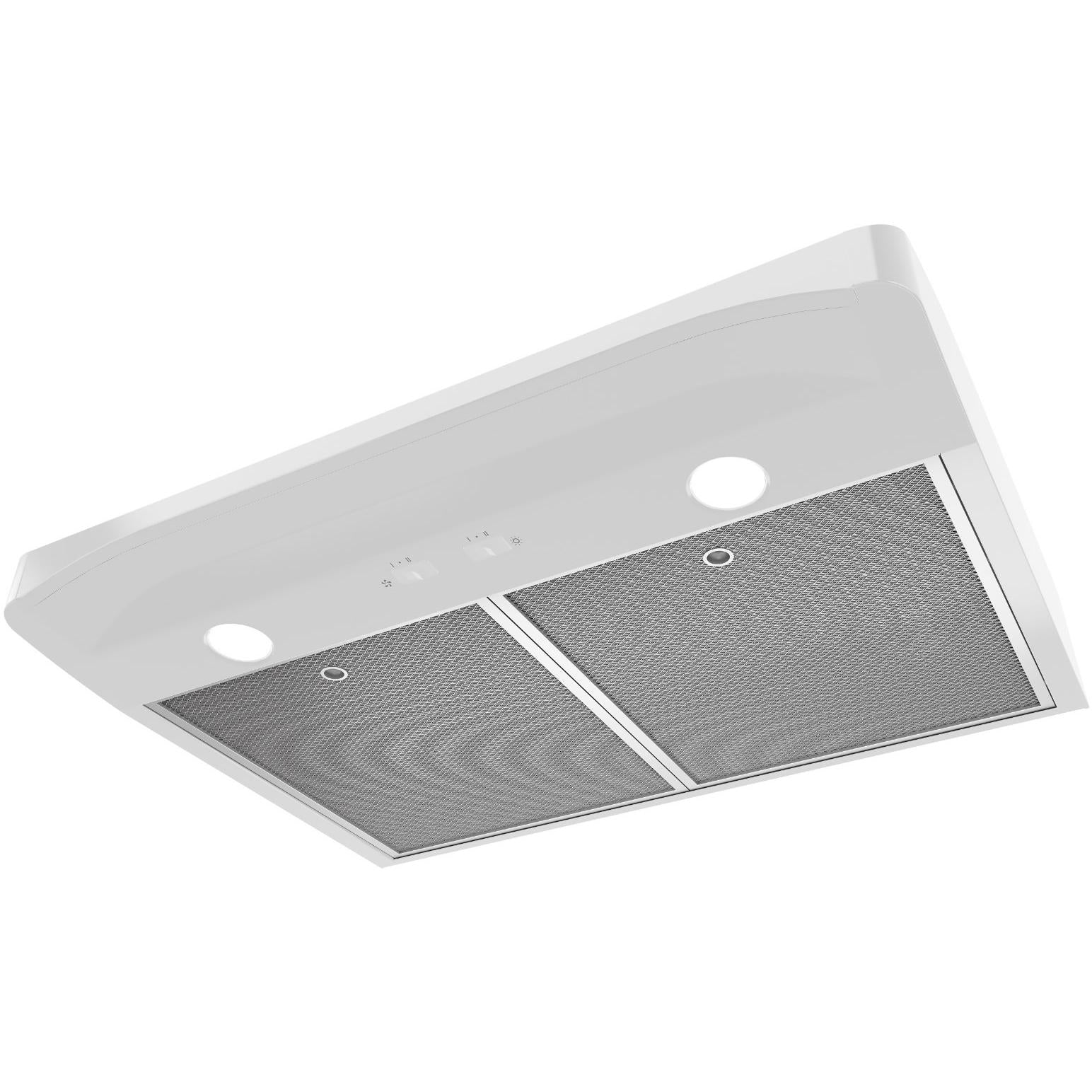

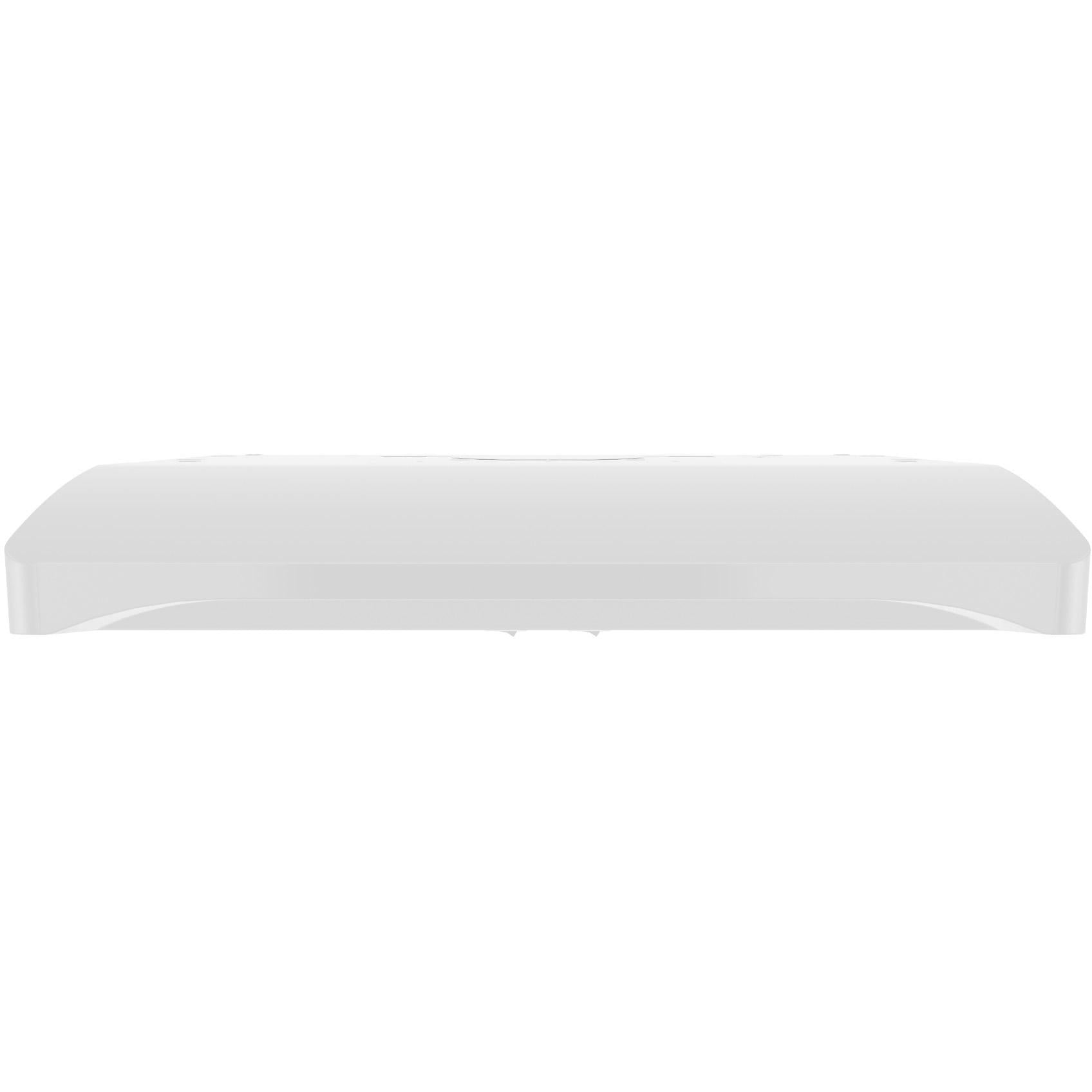

×Broan® Elite Atla 1 Series 30" under-cabinet range hood with a 250 CFM blower. The Captur™ system's advanced blower design features a forward-positioned centric inlet to remove smoke and odor faster. The sculpted lines of Alta™ bring an exciting choice to typical range hood shapes. Sophisticated curves and hidden controls offer a beautiful alternative to traditional designs.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
• Broan® Elite
• Atla 1
• Atla 1
Blower Included
Yes
Airflow
250 CFM
Style
Standard
Color
White
Manufacturer Color
White
Installation
Under-Cabinet
Features
Wi-Fi
No
Dishwasher-Proof Filters
Yes
Technologies
• Captur™ system's advanced blower/wheel design features a centric inlet to remove smoke and odor faster
• EZ1 brackets enable single-person installation in less than half the time of traditional methods
• EZ1 brackets enable single-person installation in less than half the time of traditional methods
Ducting Information
• 7" Round - Vertical
• 3 1/4" x 10" - Horizontal/Vertical
• 3 1/4" x 10" - Horizontal/Vertical
Speeds
2
Additional Information
• Rocker switch control type
• Non-ducted recirculation capable
• Halogen lighting (2 x 50W GU10 Bulbs)
• 2 Micro-mesh filters
• Filter clean reminder
• Sones: 1.5
• UL Listed
• ADA Capable
• Non-ducted recirculation capable
• Halogen lighting (2 x 50W GU10 Bulbs)
• 2 Micro-mesh filters
• Filter clean reminder
• Sones: 1.5
• UL Listed
• ADA Capable
Electrical Information
Information
• 120V
• 60Hz
• Rated amps: 1.4
• Wattage: 168
• 60Hz
• Rated amps: 1.4
• Wattage: 168
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
No
Accessories
Included
• Light bulbs
• Damper
• Damper
Optional
• Replacement grease filter: HPFAMM30 (Type "C1" / "C2")
• Non-duct filter: HPF30 (Type "Xc")
• 7" Round damper: BP87Q
• Make-up air dampers: MD6TU, MD8TU and MD10TU
• Non-duct filter: HPF30 (Type "Xc")
• 7" Round damper: BP87Q
• Make-up air dampers: MD6TU, MD8TU and MD10TU
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
5 inch(es) / 12.7 cm
Depth
22 inch(es) / 55.88 cm
Additional Dimensions
18" to 24" from cooktop to bottom of hood
Warranty
Warranty
1-Year on parts and labor
