DESCRIPTION

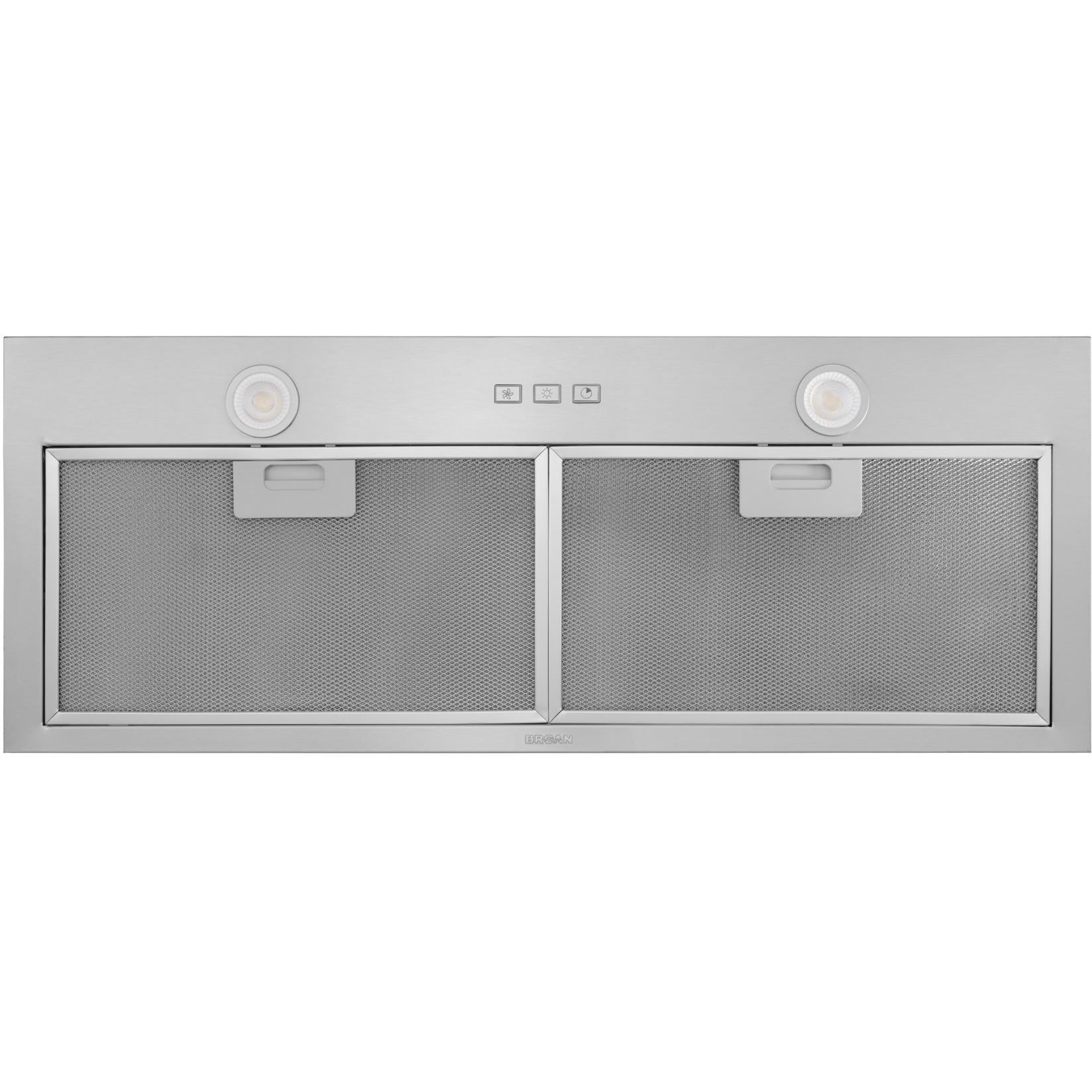

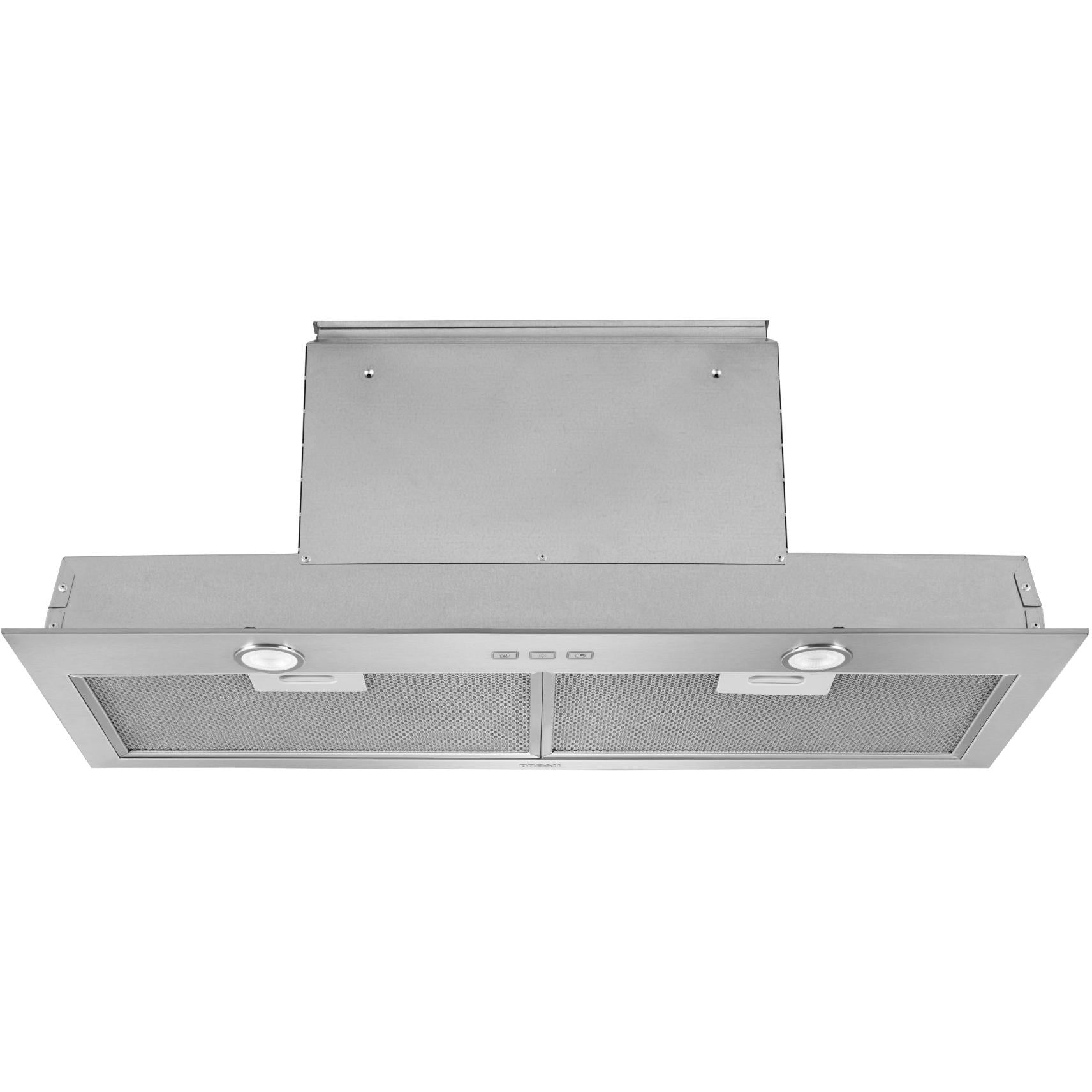

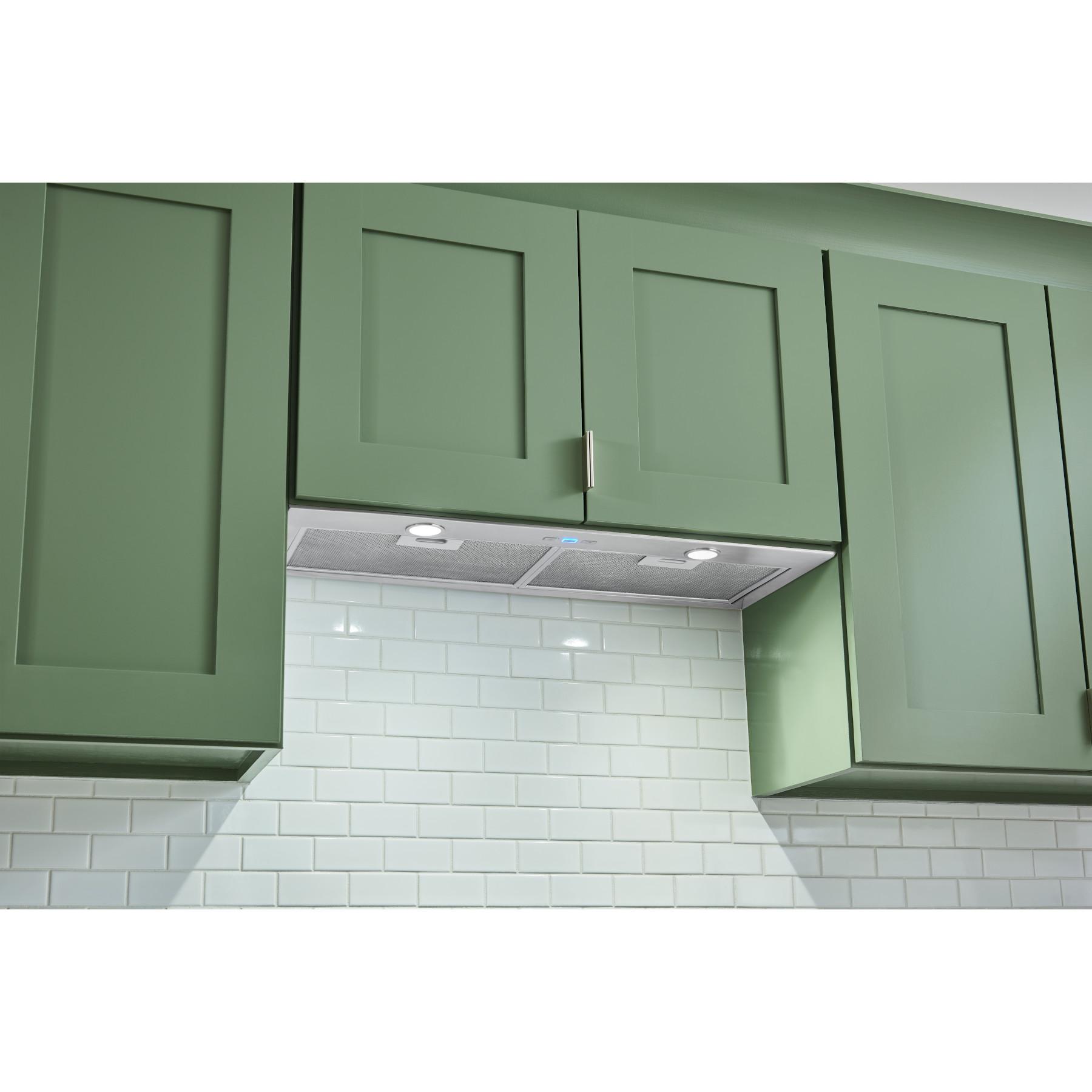

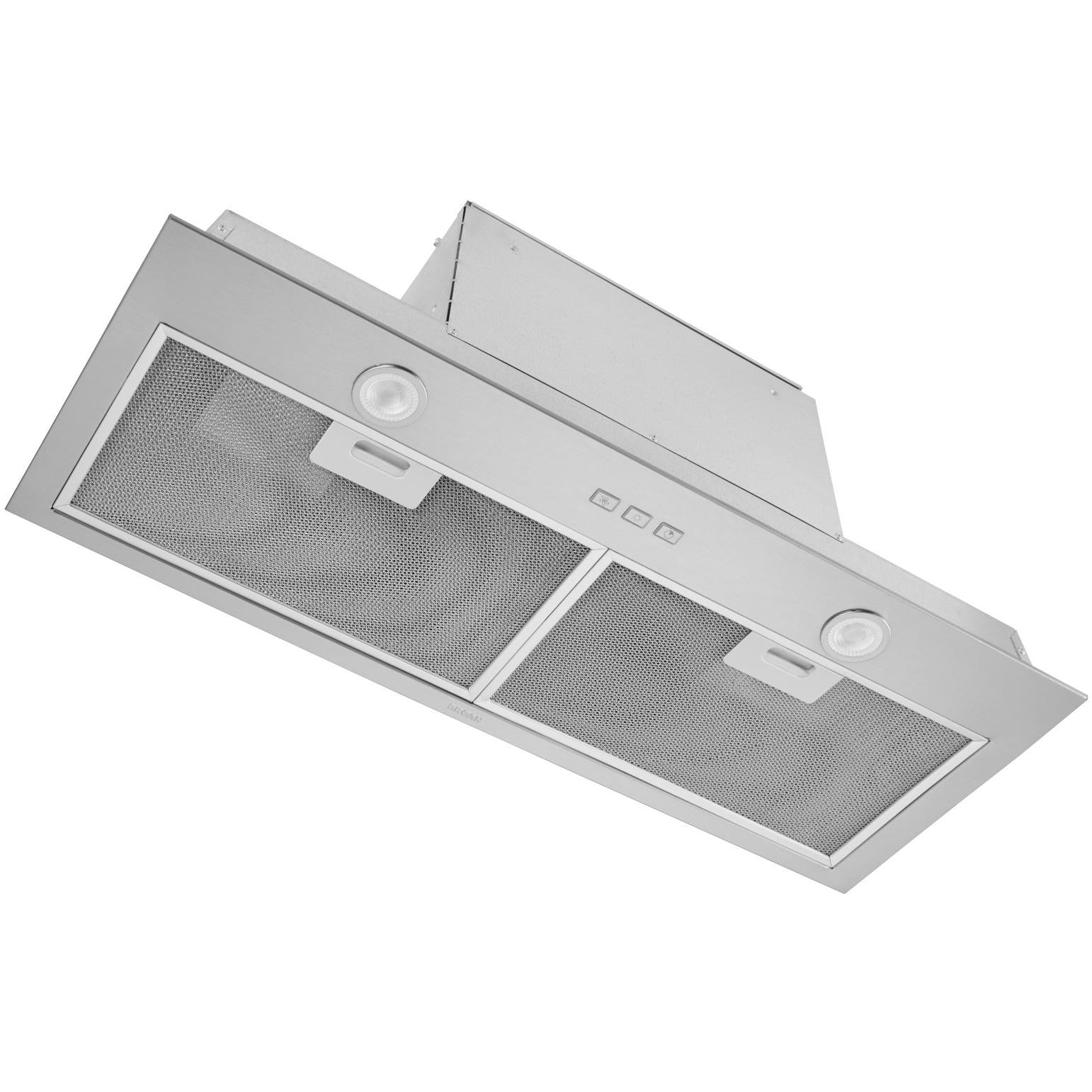

×The Broan® BBN3 powerpack insert series is ideal for cabinet installations. The integrated one-piece design protects the full bottom of your cabinetry with a flush appearance and depth adjustability. Bright LED lighting enhances your cooking experience, while the 4-speed back-lit soft touch control makes operation easy.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
• BBN3
• Powerpack insert series
• Powerpack insert series
Blower Included
Yes
Airflow
650 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Technologies
Code Ready Technology adjusts CFM down to 300 or 400 to meet make-up air codes
Ducting Information
• Horizontal or Vertical: 3 1/4 in x 10 in rectangle
• Vertical: 7 in round
• Vertical: 7 in round
Speeds
• 4-speed
• Sound Level (Sones): 0.5
• Sound Level (Sones): 0.5
Additional Information
• Back-lit soft touch control for easy operation
• Switch Control Type: Tap-Touch Control
• Filter Type: Micro Mesh with quick-release latch for easy removal
• Ductless Recirculation Capable
• Bright 2-level LED modules enhance your cooking experience
• EZ1 clips make it easy for single-person installation
• 10 minute delay off function keeps hood running after cooking to ensure smoke and odors have cleared the environment
• Stainless liner extension included to accommodates up to 13" deep cabinets with optional extensions available to accommodate cabinets up to 15" deep
• Works with optional universal make-up air dampers
• Switch Control Type: Tap-Touch Control
• Filter Type: Micro Mesh with quick-release latch for easy removal
• Ductless Recirculation Capable
• Bright 2-level LED modules enhance your cooking experience
• EZ1 clips make it easy for single-person installation
• 10 minute delay off function keeps hood running after cooking to ensure smoke and odors have cleared the environment
• Stainless liner extension included to accommodates up to 13" deep cabinets with optional extensions available to accommodate cabinets up to 15" deep
• Works with optional universal make-up air dampers
Electrical Information
Information
120 V, 60 Hz - 4.0 AMPS
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
No
Information
UL Listed
Accessories
Included
Light Bulbs
Optional
• HPFBN30: Hybrid Baffle Filter 30"
• S99010400-130: Replacement Aluminum Filter, 30"
• HARKBN30: Non-duct Kit, 30"
• S99010464-130: Non-duct Charcoal Filter, 30"
• HADTBN30: Liner Extensions (4), 30"
• HAWRK5: ADA Adapter Kit
• MD6TU: 6" Make-up Air Damper
• S99010400-130: Replacement Aluminum Filter, 30"
• HARKBN30: Non-duct Kit, 30"
• S99010464-130: Non-duct Charcoal Filter, 30"
• HADTBN30: Liner Extensions (4), 30"
• HAWRK5: ADA Adapter Kit
• MD6TU: 6" Make-up Air Damper
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.87 cm
Height
10.56 inch(es) / 26.82 cm
Depth
11.43 inch(es) / 29.03 cm
Additional Dimensions
Mounting Height: 24 in. to 30 in. from cooktop to bottom of hood
Warranty
Warranty
1-Year parts and labor
