DESCRIPTION

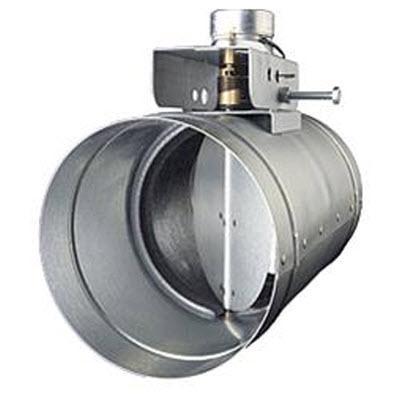

×Broan's automatic make-up air dampers provide an interlocked damper operation so outside air is only allowed to enter the house when a connected fan or hood is operating.
SPECIFICATIONS
×
Specifications
General
Information
• 24 Volts, 60 Hz AC motor;
• Available sizes: 6" round (MD6T) and 8" round (MD8T);
• Designed for devices with a switched 120 VAC output or dry contact;
• Normally closed damper;
• Automatically opens when exhaust fans are activated;
• Foam seals minimize air leakage;
• 24 gauge galvanized steel construction;
• Damper adjustment screw for balancing adjustments;
• Compatible with select Broan range hoods;
• Use with Fresh Air Inlet Model 641FA for 6" dampers or Fresh Air Inlet Model 643FA for 8" dampers (sold separately);
• Includes 24 VAC transformer
• Product Dimension 1 X 1 X 1 inches.
• Available sizes: 6" round (MD6T) and 8" round (MD8T);
• Designed for devices with a switched 120 VAC output or dry contact;
• Normally closed damper;
• Automatically opens when exhaust fans are activated;
• Foam seals minimize air leakage;
• 24 gauge galvanized steel construction;
• Damper adjustment screw for balancing adjustments;
• Compatible with select Broan range hoods;
• Use with Fresh Air Inlet Model 641FA for 6" dampers or Fresh Air Inlet Model 643FA for 8" dampers (sold separately);
• Includes 24 VAC transformer
• Product Dimension 1 X 1 X 1 inches.
Compatibility
• Range Hoods: Broan Elite E60000;
• Broan Elite E64000;
• QP3;
• EW58;
• EI59
• Broan Elite E64000;
• QP3;
• EW58;
• EI59
Dimensions
Weight
2.01 lb(s) / 0.91 kg
UPC
UPC#
26715192038
