DESCRIPTION

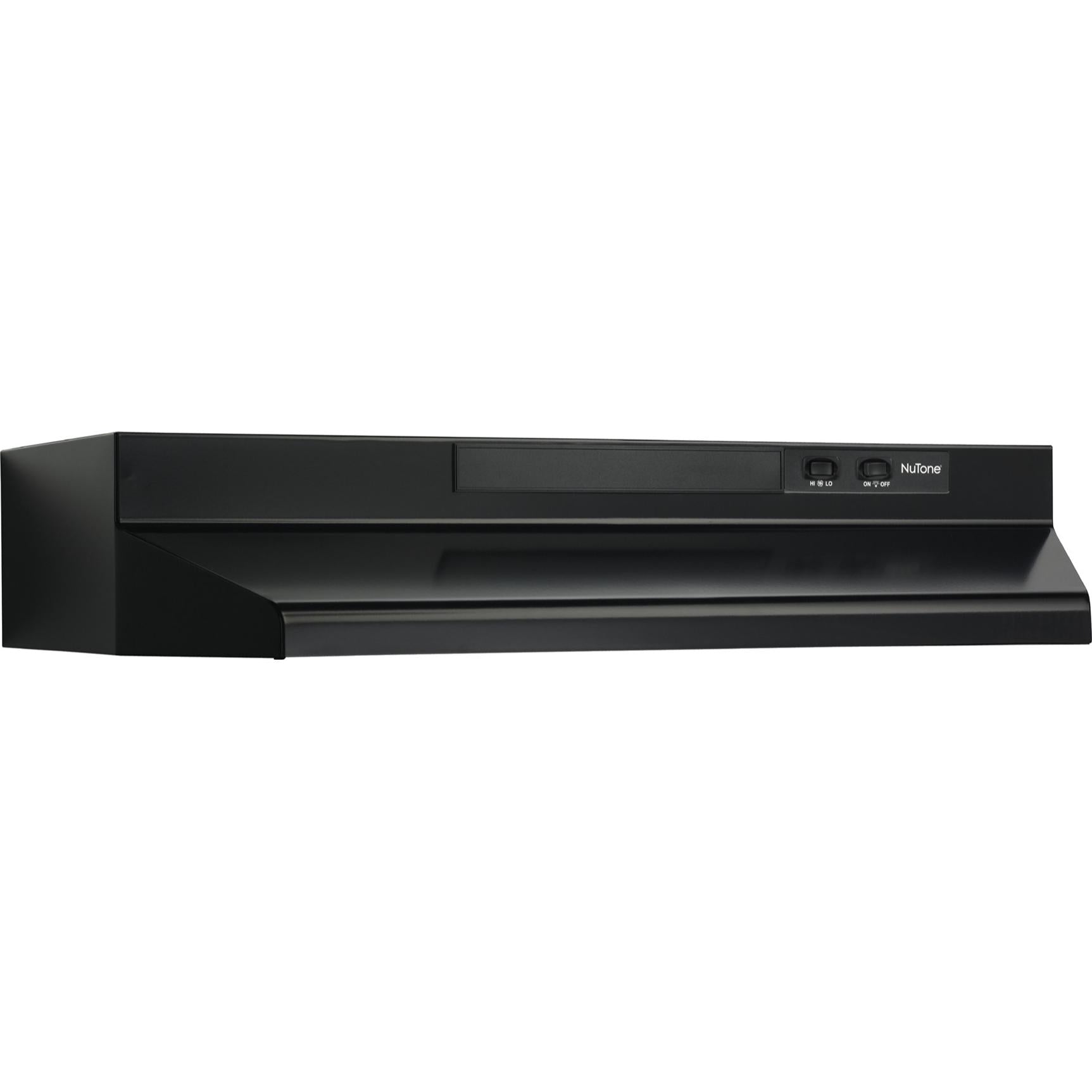

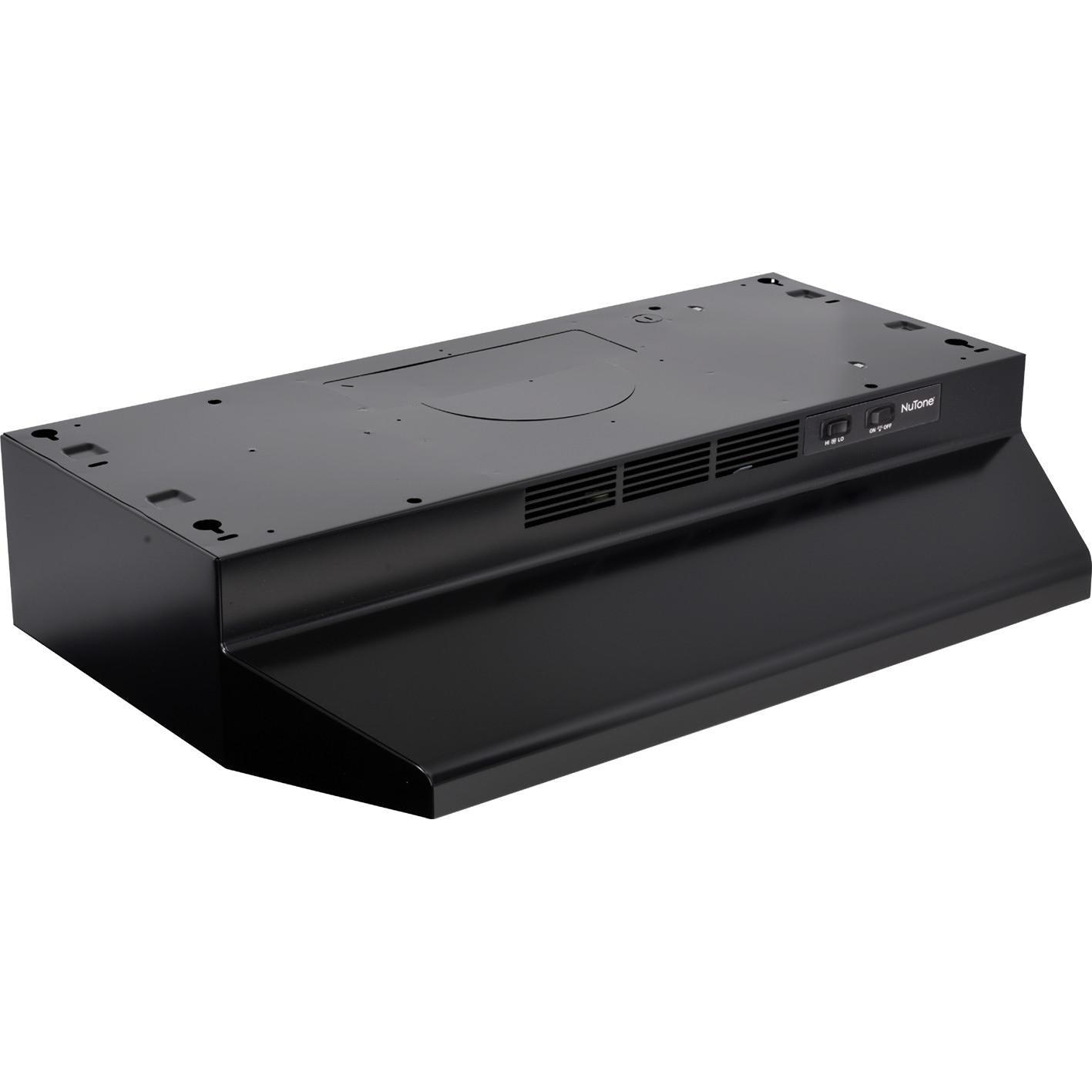

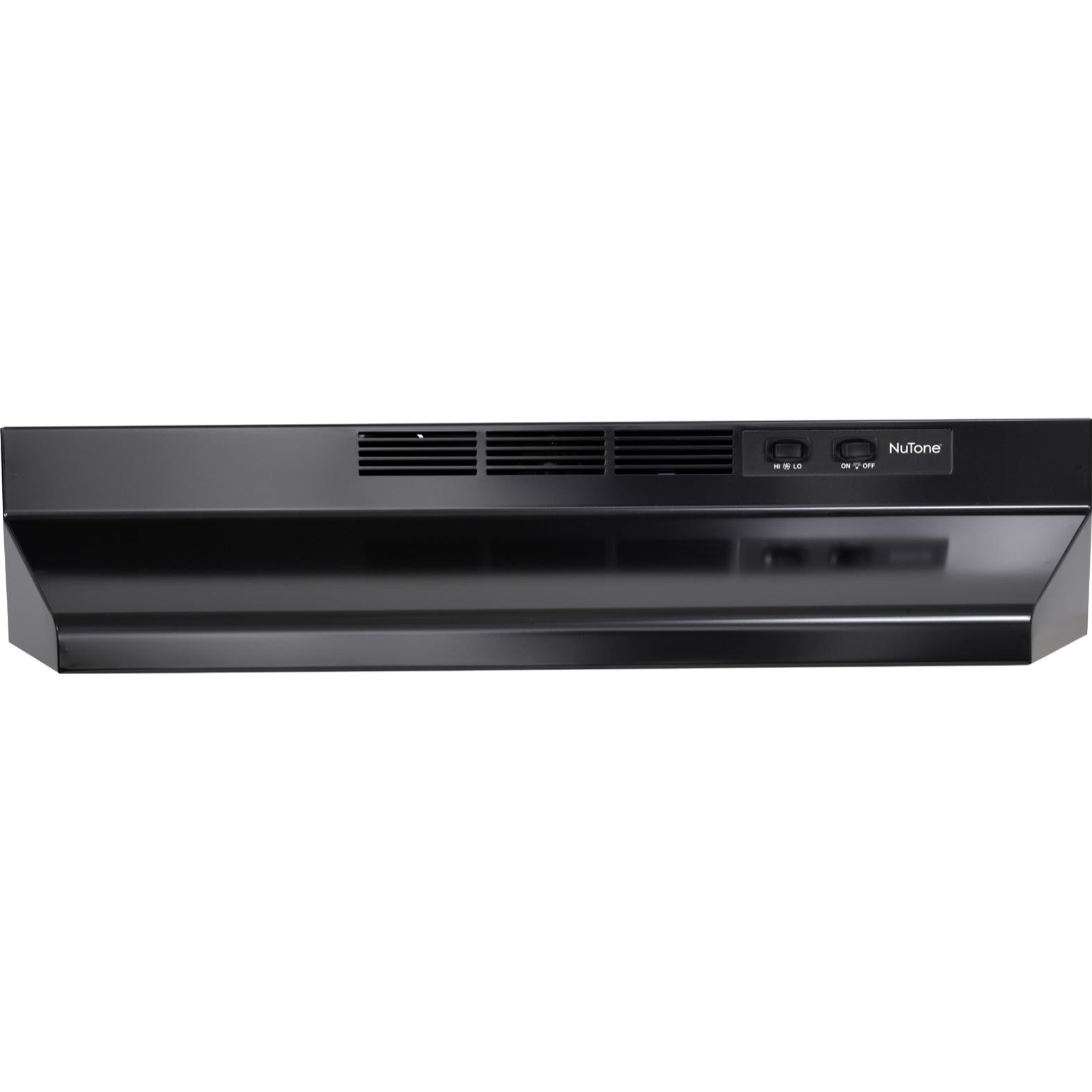

×NuTone® 230 Max Blower CFM 3.5 Sones 30" Black Under-Cabinet Range Hood. Well-made, efficient products designed to simplify the lives of today's families on the go. NuTone range hoods set the standard for user-friendliness without compromising on performance. Designed with simplicity in mind, the NU2 range hood models are made to exacting standards and offer the most for the money.
SPECIFICATIONS
×
Specifications
General
Series Name
NuTone® NU2 Series
Blower Included
Yes
Airflow
230 CFM
Style
Standard
Color
Black
Manufacturer Color
Black
Installation

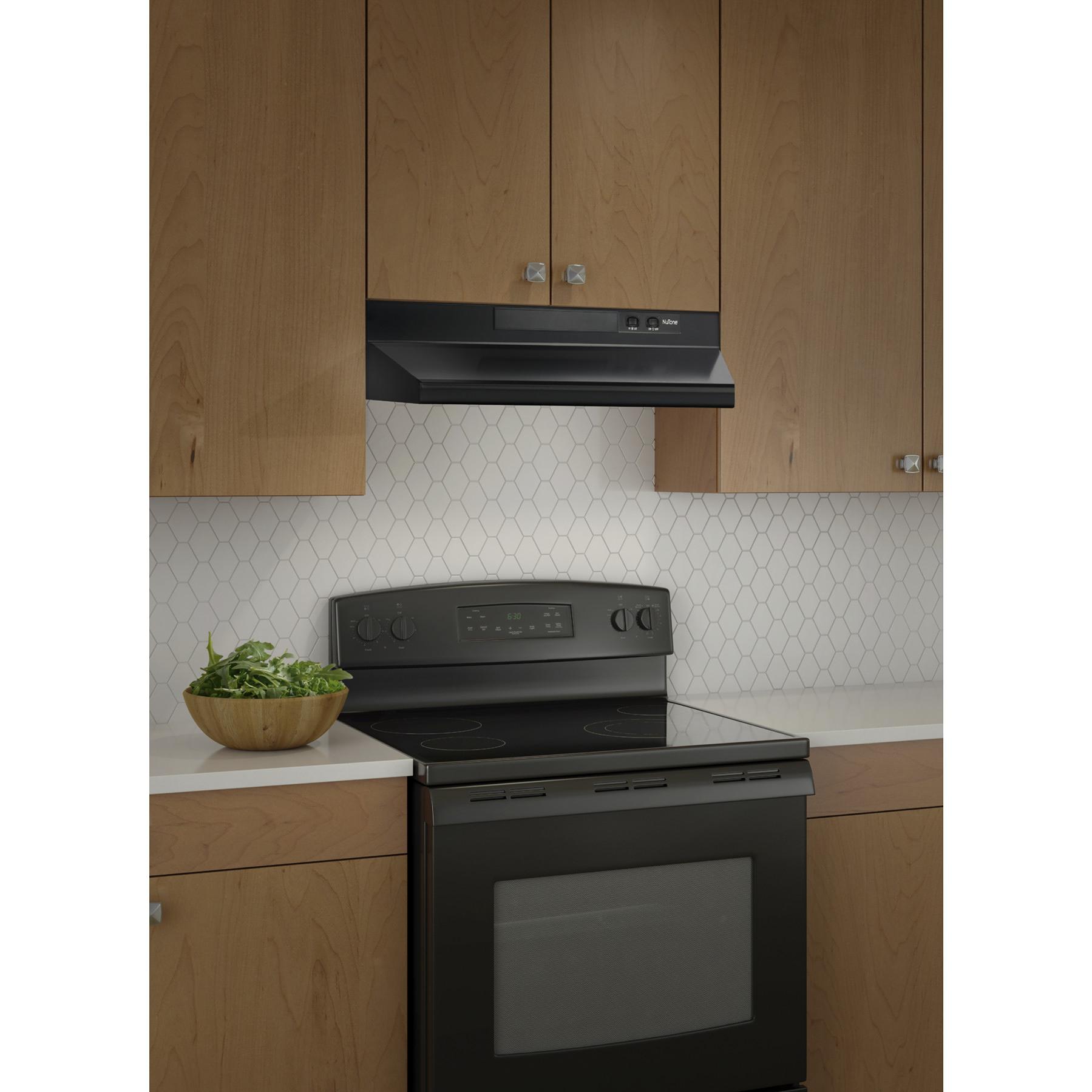

Under-Cabinet
Features
Ducting Information
• Four-way convertible range hood: horizontal, vertical, round and non-ducted
• 3 1/4" X 10" (H-V) 7" Round
• 3 1/4" X 10" (H-V) 7" Round
Speeds

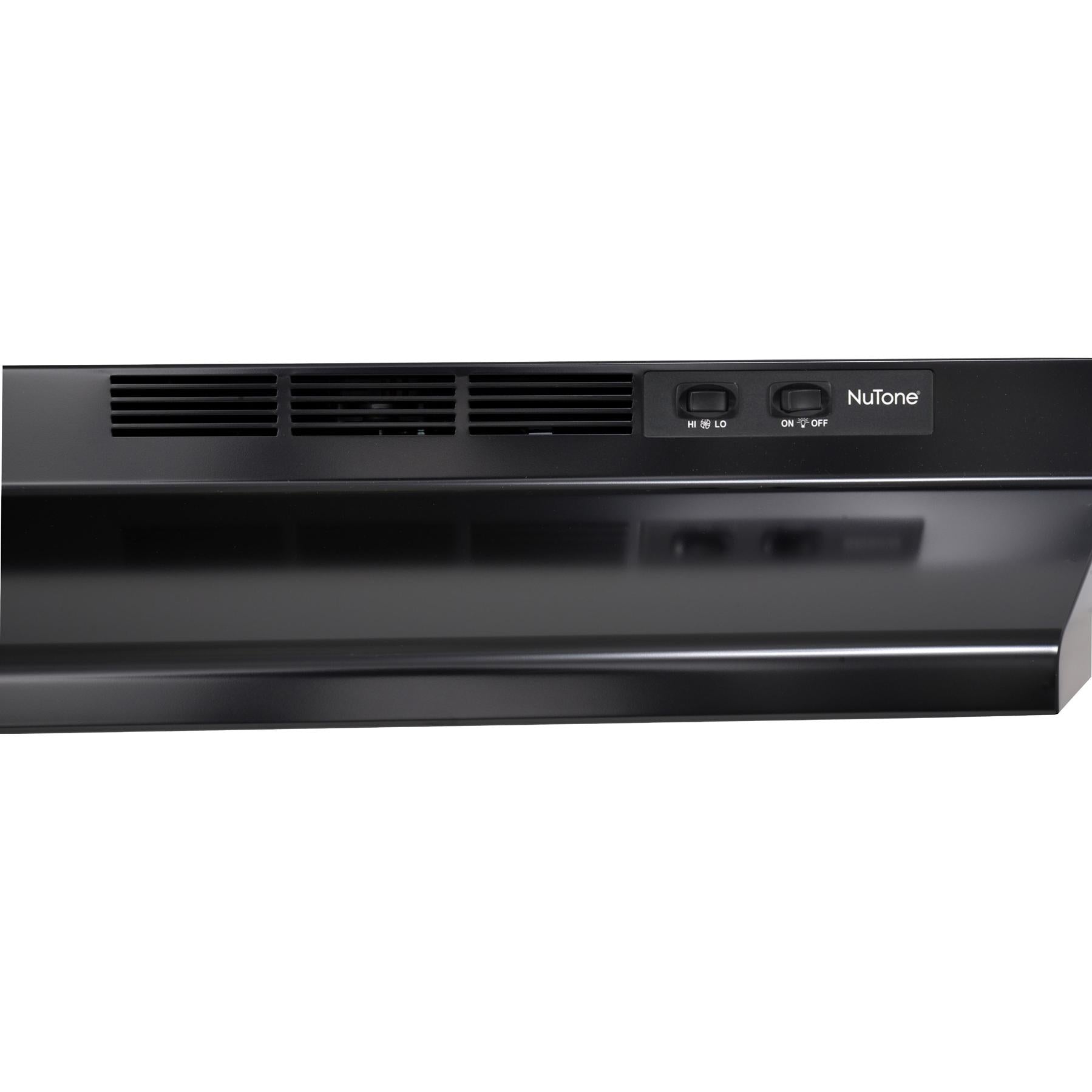

2-speed rocker control makes operation easy
Additional Information
• 230 Max Blower CFM remove smoke and odors from air in the kitchen
• Designed for LED, 75w max, not included. If using incandescent bulb, purchase light guard # S99110437 separately.

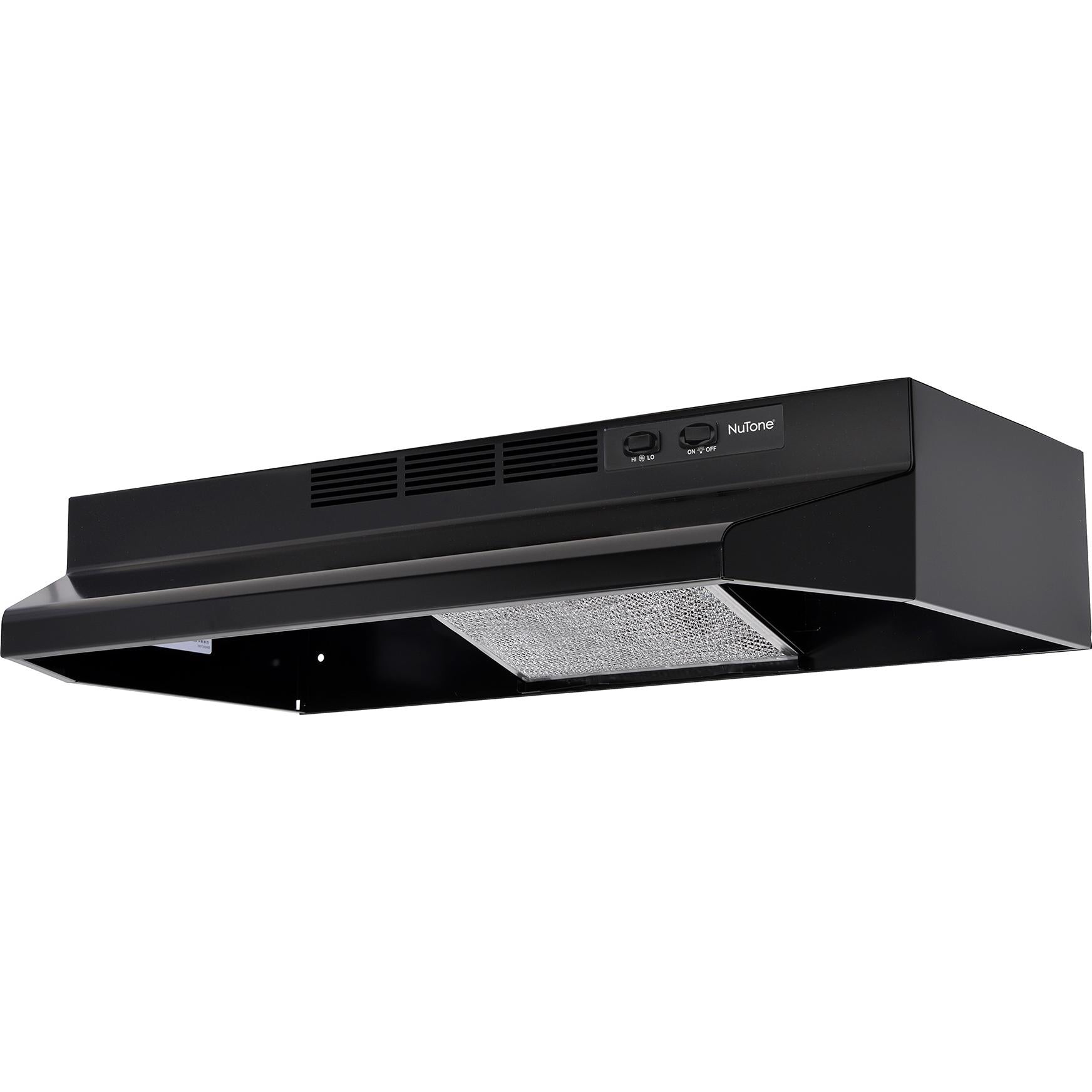

• One easy to clean aluminum filter
• Use charcoal filter 41F for a non-ducted installation (sold separately)
• Lighting Type: LED
• Light Levels: 1
• Sound Level (Sones): 3.5
• Remote Operation Capable
• Switch Control Type: Rocker
• Designed for LED, 75w max, not included. If using incandescent bulb, purchase light guard # S99110437 separately.
• One easy to clean aluminum filter
• Use charcoal filter 41F for a non-ducted installation (sold separately)
• Lighting Type: LED
• Light Levels: 1
• Sound Level (Sones): 3.5
• Remote Operation Capable
• Switch Control Type: Rocker
Electrical Information
Information
• Rated Voltage: 120
• Rated Amps: 2.5
• Wattage: 240
• Rated Amps: 2.5
• Wattage: 240
Certifications and Approvals
Hvi Certified
Yes
Information
ADA Compliance
Accessories
Optional
• BP29 Aluminum replacement filter
• 41F Charcoal replacement filter
• 41F Charcoal replacement filter
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
6 inch(es) / 15.24 cm
Depth
17.5 inch(es) / 44.45 cm
Additional Dimensions
Minimum Height Above Cook Top: 18"
Warranty
Warranty
1 Year
