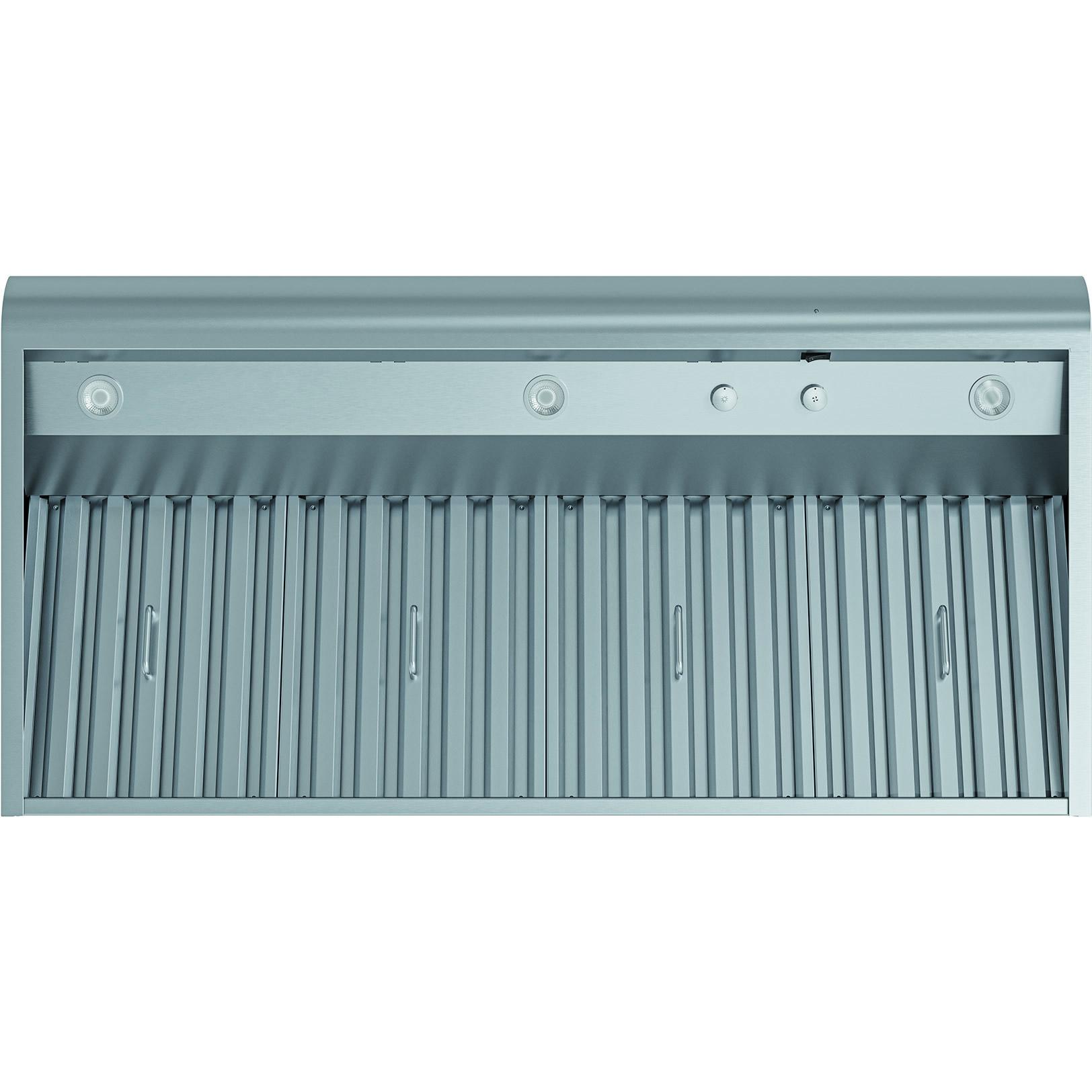

×Broan's Pro-Style range hood series provides a sophisticated design without sacrifice. Built to withstand commercial style ranges and cooking habits, the stainless steel wall mount hood is a seamless fit for both your space and the way you cook. These models come equipped with powerful, integrated internal blowers and embody professional features such as baffle filters, brilliant LED lighting, and 4-speed controls.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
ELITE E60000
Blower Included
Yes
Airflow
1260 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Technologies
Heat Sentry™
Ducting Information
• Duct Direction: Horizontal/Vertical
• Duct Size: (Dual Blower) Adaptor 4-1/2" x 18-1/2" (included)
• Duct Size: (Dual Blower) Adaptor 4-1/2" x 18-1/2" (included)
Speeds
4
Additional Information
• Lighting Type: LED
• Sound Level (Sones): 0.4
• Bulb (Recommended Type): MR16 / GU10
• Sound Level (Sones): 0.4
• Bulb (Recommended Type): MR16 / GU10
Electrical Information
Information
120 V, 60 Hz - 6.5 AMPS (Dual Blower)
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
Yes
Accessories
Optional
• Power Cord Kit: HCK44
• Transition (4-1/2" x 18-1/2" to 10" round, 6" high - lateral): Model 427
• Transition (4-1/2" x 18-1/2" to 10" round - vertical): Model 423
• Make-up Air: Dampers MD6TU, MD8TU and MD10TU
• Transition (4-1/2" x 18-1/2" to 10" round, 6" high - lateral): Model 427
• Transition (4-1/2" x 18-1/2" to 10" round - vertical): Model 423
• Make-up Air: Dampers MD6TU, MD8TU and MD10TU
Dimensions
Class Width
42"
Width
42 inch(es) / 106.68 cm
Height
18 inch(es) / 45.72 cm
Depth
24 inch(es) / 60.96 cm
Warranty
Warranty
1-year
