DESCRIPTION

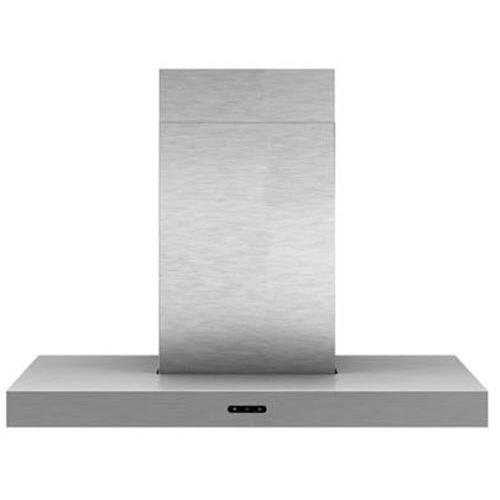

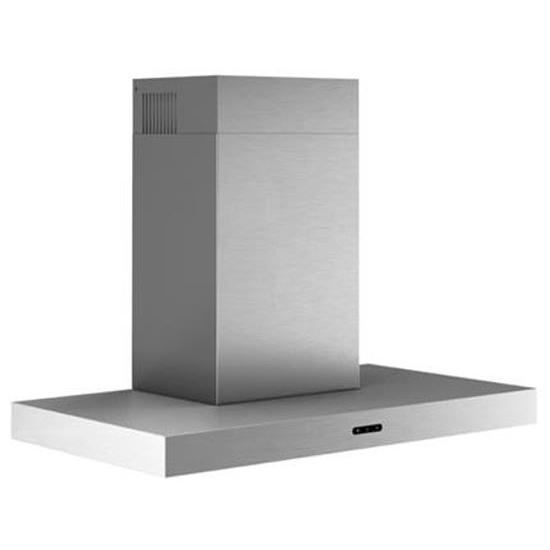

×Broan Elite 36-inch chimney hood. Elegant clean lines form to create a sophisticated contemporary design that’s perfect for today’s modern kitchens. Quiet operation and bright LED lighting enhances your cooking experience, while the sleek 3-speed capacitive touch control makes operation and clean up easy
SPECIFICATIONS
×
Specifications
General
Series Name
Elite EW43
Blower Included
Yes
Airflow
400 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Ducting Information
Round Vertical 6"
Speeds

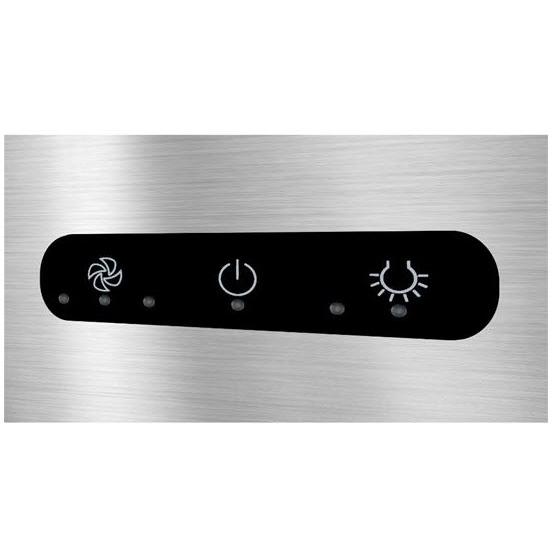

3-Speed Capacitive Touch
Additional Information

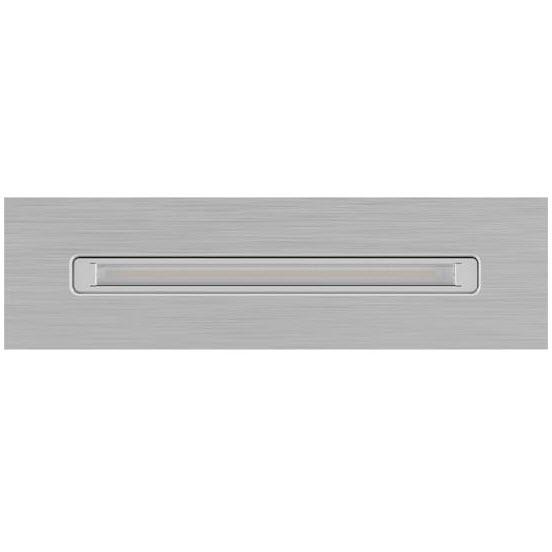

• 2-Level LED Lighting
• 2 Aluminum Filters
• 2 Aluminum Filters
Electrical Information
Information
• 120 V
• 60 Hz
• 1.6 A
• 60 Hz
• 1.6 A
Certifications and Approvals
Hvi Certified
Yes
Accessories
Included
• Installation Hardware
• Damper
• Damper
Optional
• Flue Extension for 9 to 10-ft Ceilings AEEW43SS (Stainless Steel), AEEW43BLS (Black Stainless Steel)
• Non-Duct Kit ARKEW43
• ARP64 Airflow Reducer (< 300 CFM)
• Non-Duct Kit ARKEW43
• ARP64 Airflow Reducer (< 300 CFM)
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
27.18 inch(es) / 69.05 cm
Depth
19.68 inch(es) / 50.0 cm
Warranty
Warranty
1 Year Parts and Labor
