DESCRIPTION

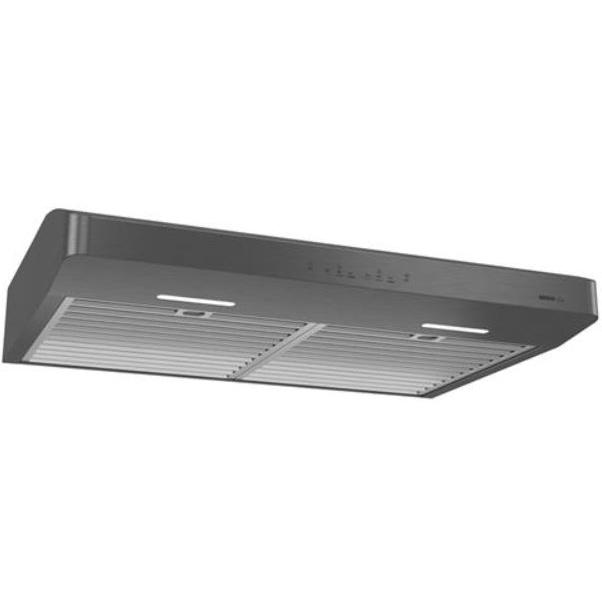

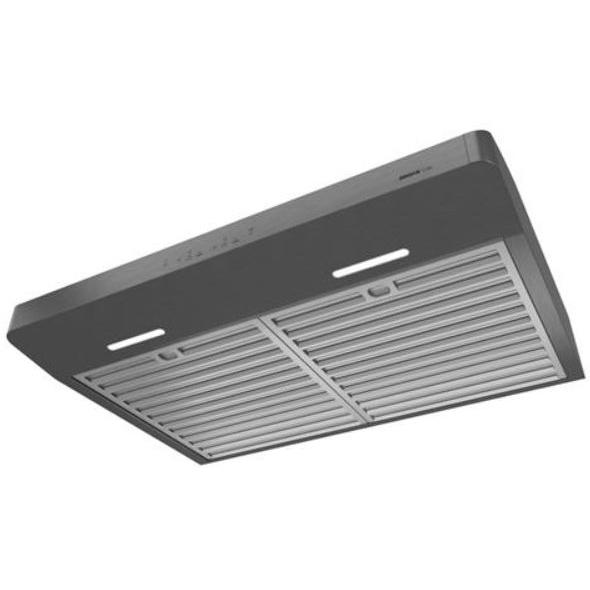

×This 36-inch Broan under cabinet range hood features the exclusive Captur™ system that provides faster smoke and odor removal. It also offers an automatic heat sensor function and two ultra-efficiency hybrid baffle filters that are easy to clean.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
Corteo
Blower Included
Yes
Airflow
600 CFM
Style
Standard
Color
Black Stainless
Manufacturer Color
Black Stainless
Installation
Under-Cabinet
Features
Technologies
• Heat Sentry™ Automatic Heat Sensor
• Captur™ System
• Captur™ System
Ducting Information
Ducting Size: 3-1/4 in X 14 in (H-V) or 7 in Round
Speeds

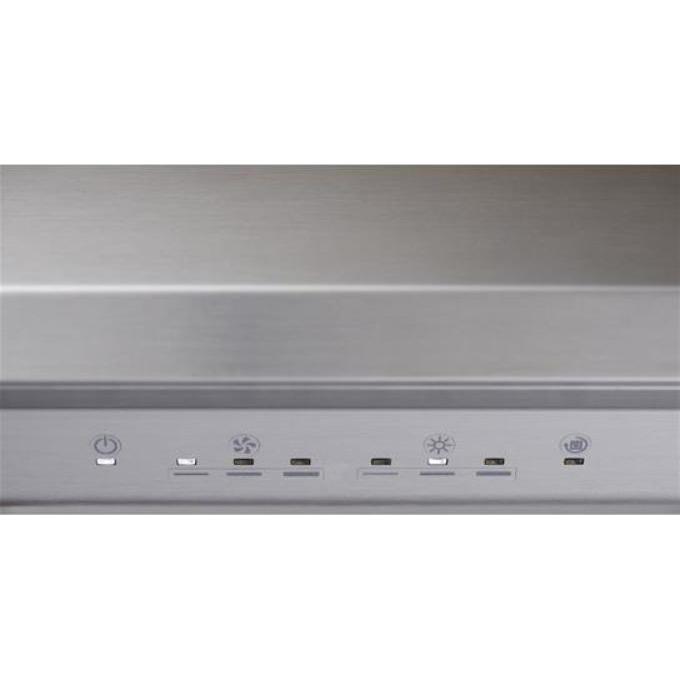

3-Speed, Whisper Touch Infrared Control
Additional Information
• Ultra Efficiency Hybrid Baffle Filters
• 3 Lighting Intensity
• Two Built-in LED Modules
• Non-Ducted Re-circulation Capable
• 3 Lighting Intensity
• Two Built-in LED Modules
• Non-Ducted Re-circulation Capable
Electrical Information
Information
• 120 V
• 1.9 A
• 1.9 A
Accessories
Optional
• HPFA436 Replacement Filters
• HPF36 Charcoal Replacement Filters
• HAWRK3 ADA Wiring Kit
• HPF36 Charcoal Replacement Filters
• HAWRK3 ADA Wiring Kit
Dimensions
Class Width
36"
Width
35.88 inch(es) / 91.14 cm
Height
5 inch(es) / 12.7 cm
Depth
21 inch(es) / 53.34 cm
Warranty
Warranty
• 1 Year Parts and Labor
• 3 Years on LED modules
• 3 Years on LED modules
UPC
UPC#
26715253586
