DESCRIPTION
×From the leader in residential indoor air quality, this Broan® wall mount chimney range hood is the perfect solution for superior kitchen ventilation with 650 Max Blower CFM and Code Ready™ Technology (CRT) to meet local Make Up Air code installation requirements. Proudly manufactured in Canada, the sleek low-profile design creates a signature look and focal point in the kitchen while ventilating the most polluted room in the home. The quiet operation at working speed is 1.4 sones, equivalent to a refrigerator running, and wont impact daily activities. At Broan-NuTone we believe that better quality of air means better quality of life.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
EWS
Blower Included
Yes
Airflow
650 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Dishwasher-Proof Filters
Yes
Technologies
Code Ready™ Technology (CRT)
Ducting Information
• Duct Direction: Horizontal/Vertical
• 3.25 x 10-inch or 6-inch round
• Ductless Recirculation Capable
• 3.25 x 10-inch or 6-inch round
• Ductless Recirculation Capable
Speeds
Speed Levels: 3
Additional Information
• Seamless low-profile design
• Hidden controls offers a sleek appearance that is easy to clean
• Lighting Type: LED
• Light Levels: 2
• Accommodates Ceiling Height: 9
• Minimum Height Above Cooktop: 24
• Convertible with Kit
• 2 High efficiency micro filters to trap grease and cooking pollutants, easy to clean and dishwasher safe
• Low volume of 1.4 Sones
• Hidden controls offers a sleek appearance that is easy to clean
• Lighting Type: LED
• Light Levels: 2
• Accommodates Ceiling Height: 9
• Minimum Height Above Cooktop: 24
• Convertible with Kit
• 2 High efficiency micro filters to trap grease and cooking pollutants, easy to clean and dishwasher safe
• Low volume of 1.4 Sones
Electrical Information
Information
• Rated Voltage: 120
• 60 Hz
• 3.4 AMPS
• 60 Hz
• 3.4 AMPS
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
No
Information
• cULus
• ADA Capable (kit sold separately)
• ADA Capable (kit sold separately)
Accessories
Optional
• Non-Duct Kit: ANKWCPST1
• Flue Extension (9' to 11' ceiling height): AEWCST1SS
• Make-up Air Dampers: MD6TU, MD8TU and MD10TU
• ADA Kit: HAWSK3
• Flue Extension (9' to 11' ceiling height): AEWCST1SS
• Make-up Air Dampers: MD6TU, MD8TU and MD10TU
• ADA Kit: HAWSK3

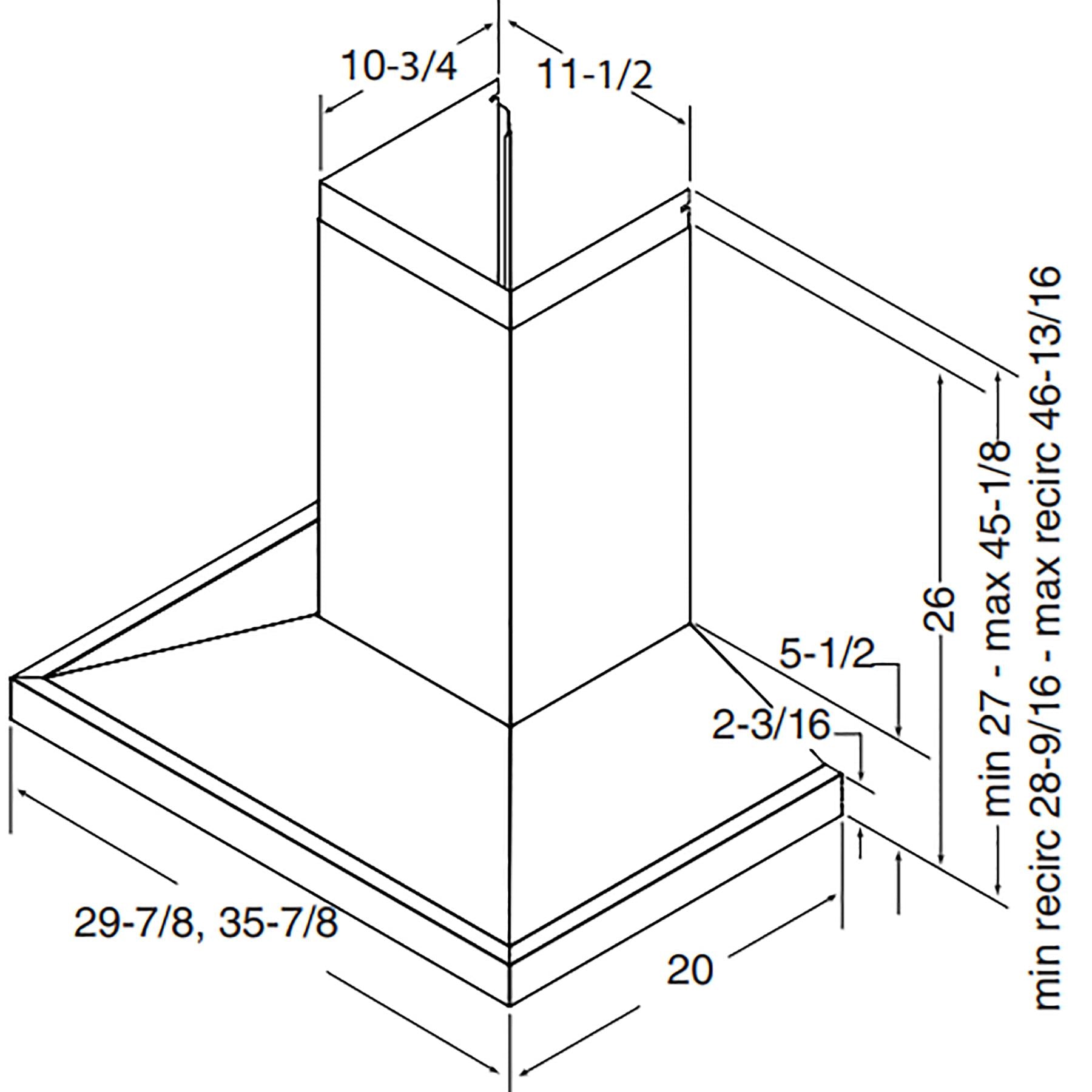

Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
27 inch(es) / 68.58 cm
Depth
20 inch(es) / 50.8 cm
Warranty
Warranty
1 Year limited warranty
