DESCRIPTION

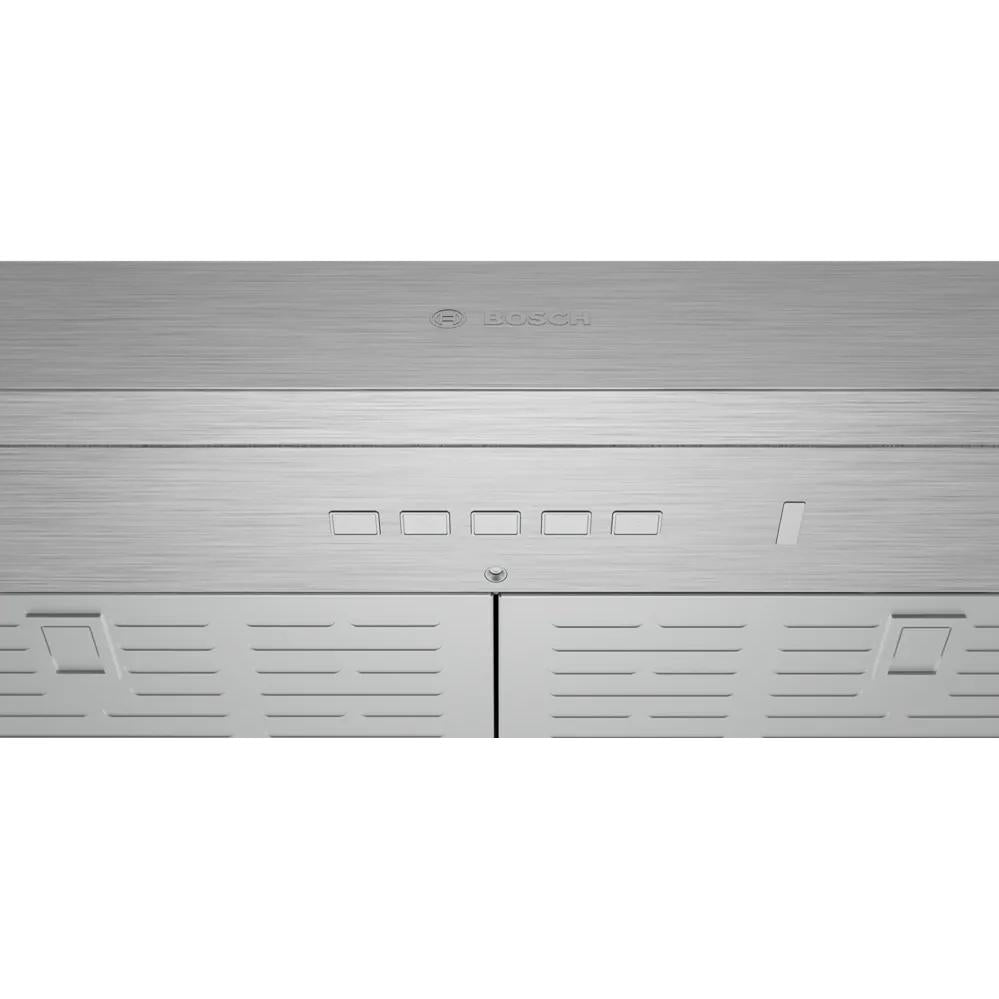

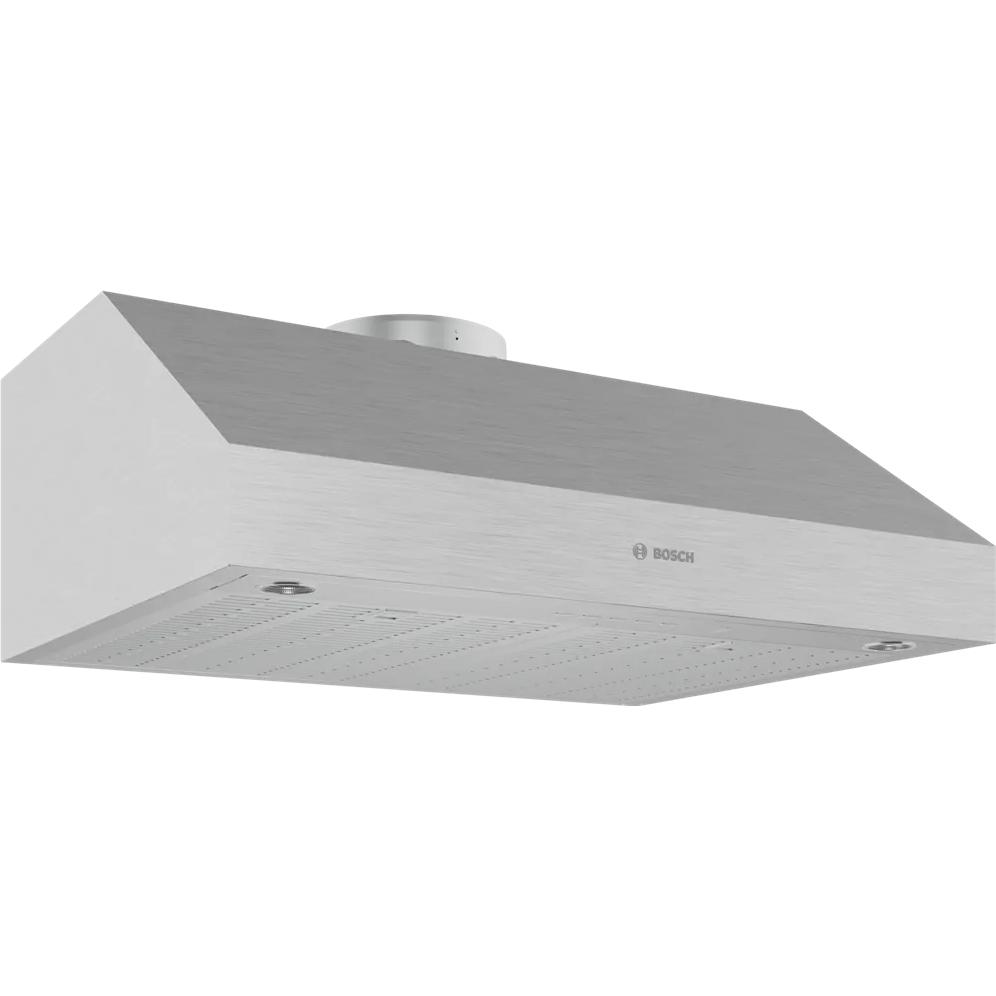

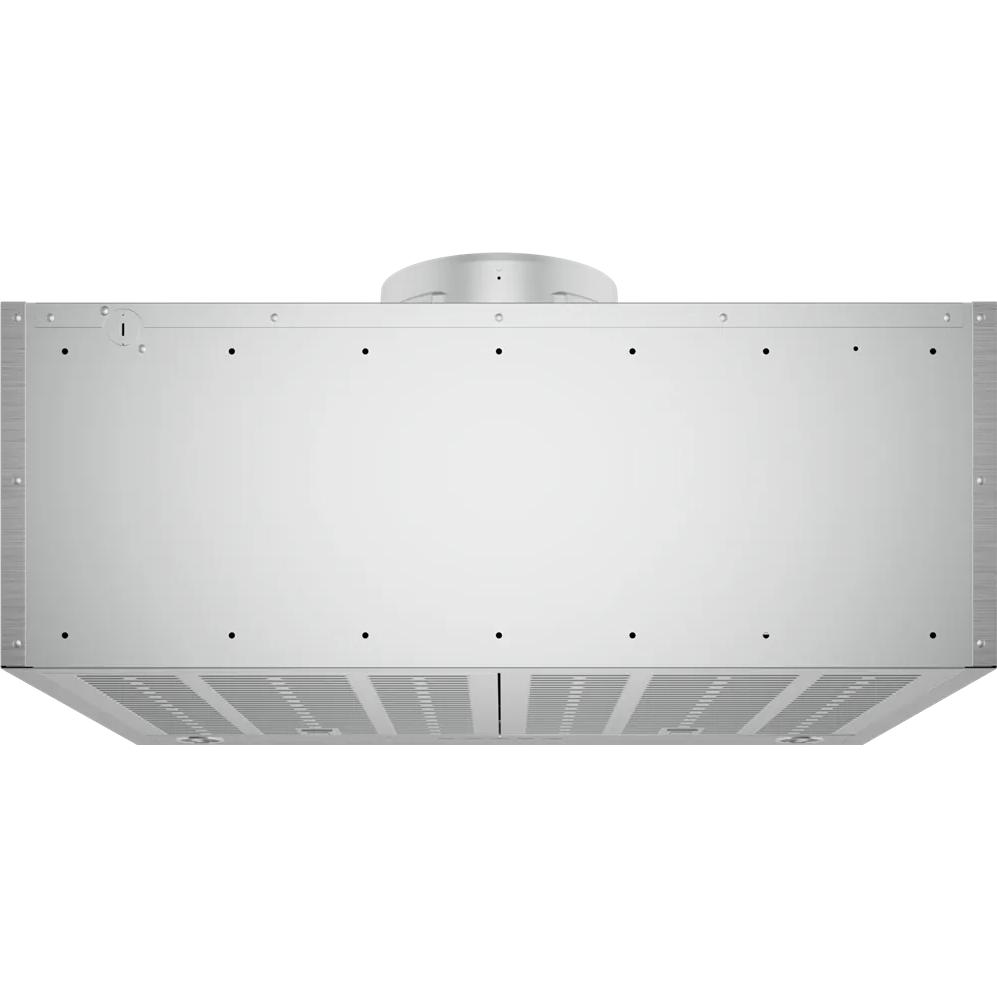

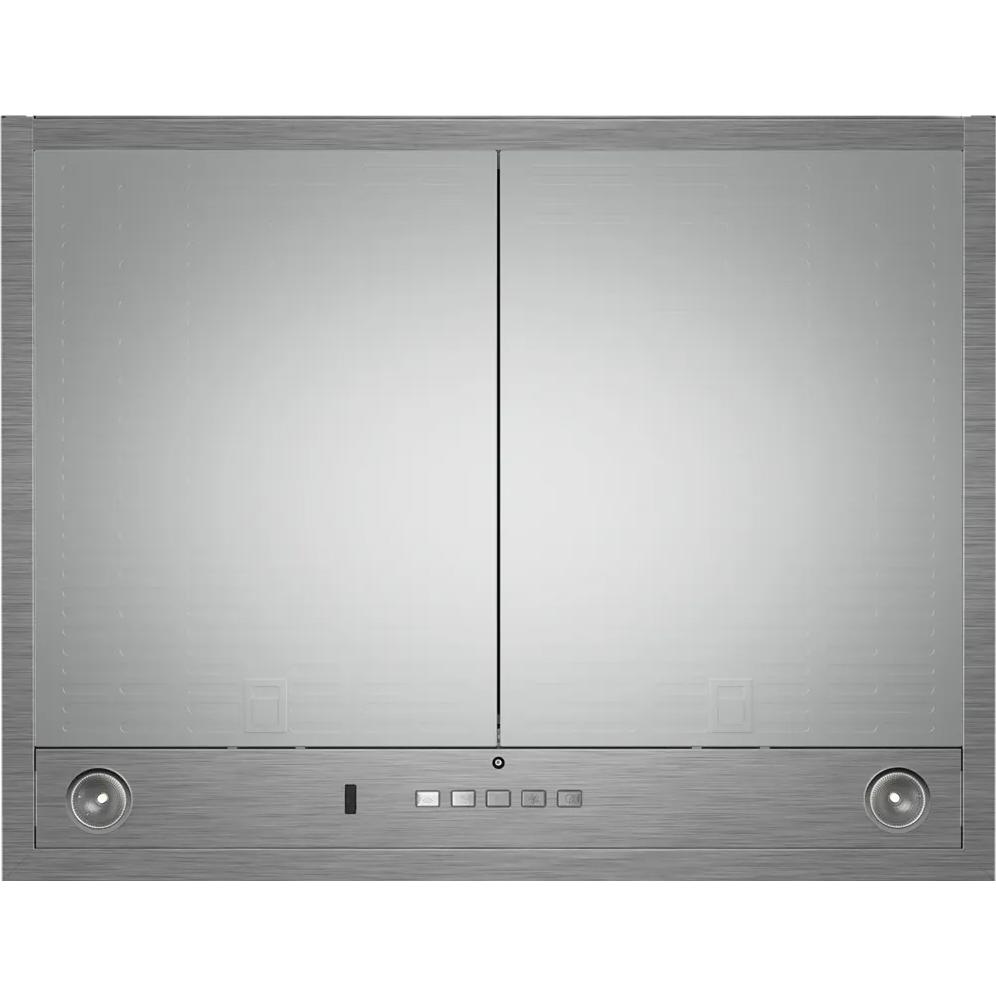

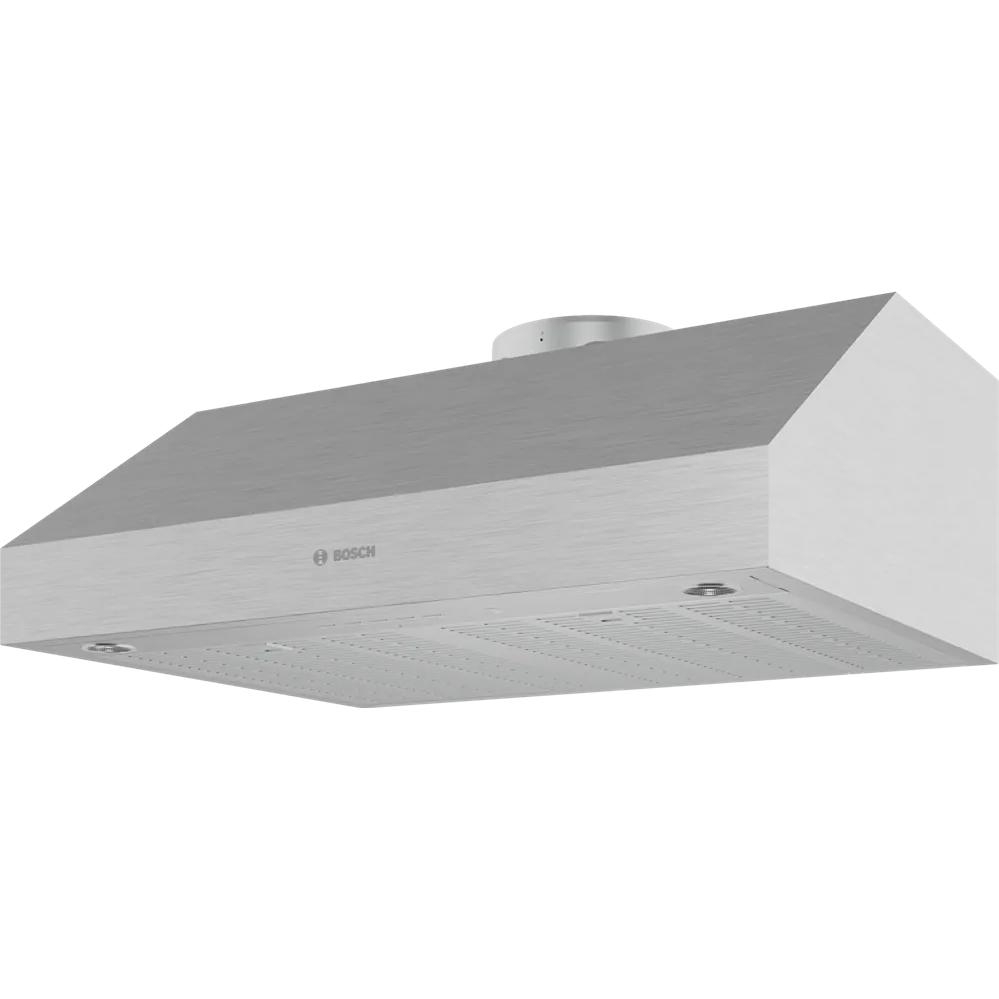

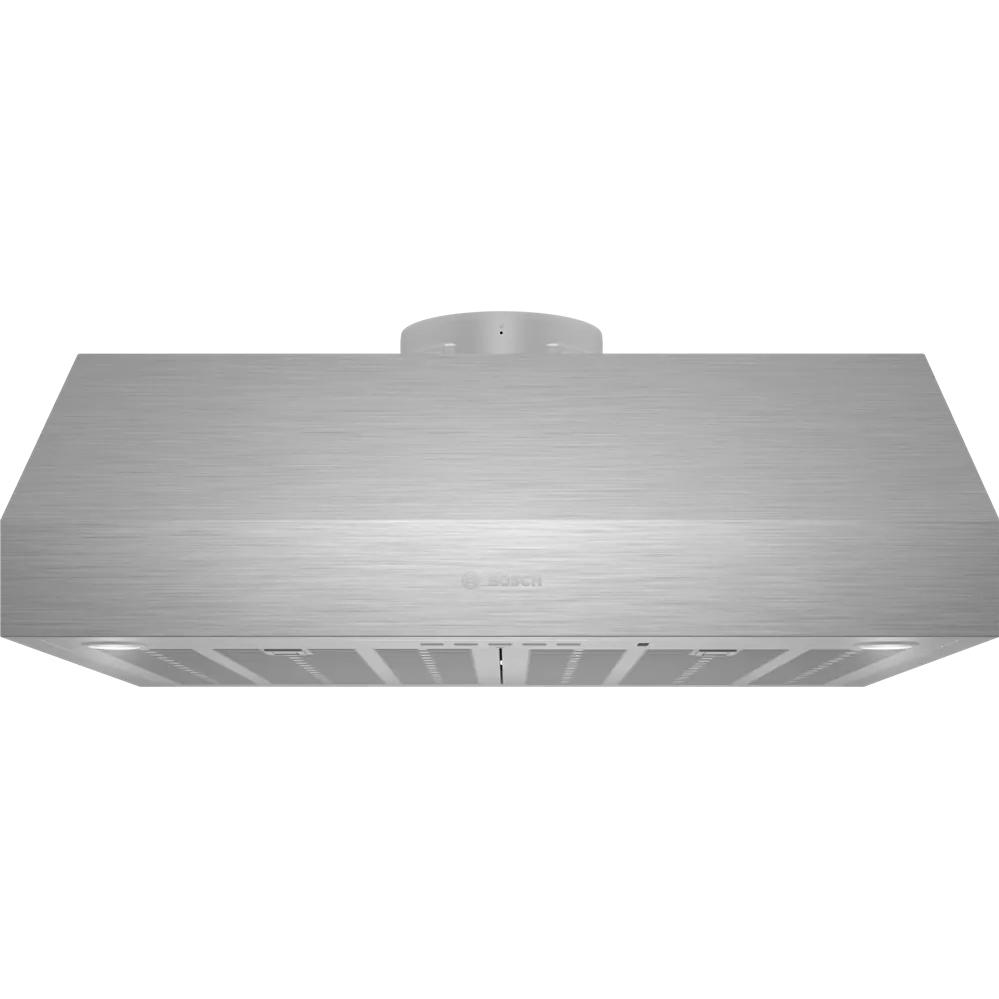

×Bosch 800 Series under-cabinet hoods are the perfect option for smaller kitchens and limited spaces. 30" wall installation, typically under cabinets.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800 Series
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Wi-Fi
Yes
Dishwasher-Proof Filters
Yes
Technologies
Home Connect® (Wi-Fi enabled)
Ducting Information
Diameter of air duct top: 8"
Speeds
4 Speeds
Additional Information
• Operating mode Convertible: ducted / recirculating
• Motor location Integrated motor: in hood body
• Number of lights: 2
• Bulb type: LED
• Light lumens: 300
• Light color: 3500 K
• Total power of the lamps: 3.2 W
• Damper included
• Grease filter material: Aluminum
• Grease filter type Multilayer: cassette
• Motor location Integrated motor: in hood body
• Number of lights: 2
• Bulb type: LED
• Light lumens: 300
• Light color: 3500 K
• Total power of the lamps: 3.2 W
• Damper included
• Grease filter material: Aluminum
• Grease filter type Multilayer: cassette
Electrical Information
Information
• 480 W
• 120 V
• 60 Hz
• 120 V
• 60 Hz
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
11 inch(es) / 27.94 cm
Depth
23 inch(es) / 58.42 cm
Weight
34 lb(s) / 15.42 kg
Additional Dimensions
Minimum distance above cooktop / range cooking surface: Min. 24" Electric / Min. 30" Gas
