DESCRIPTION

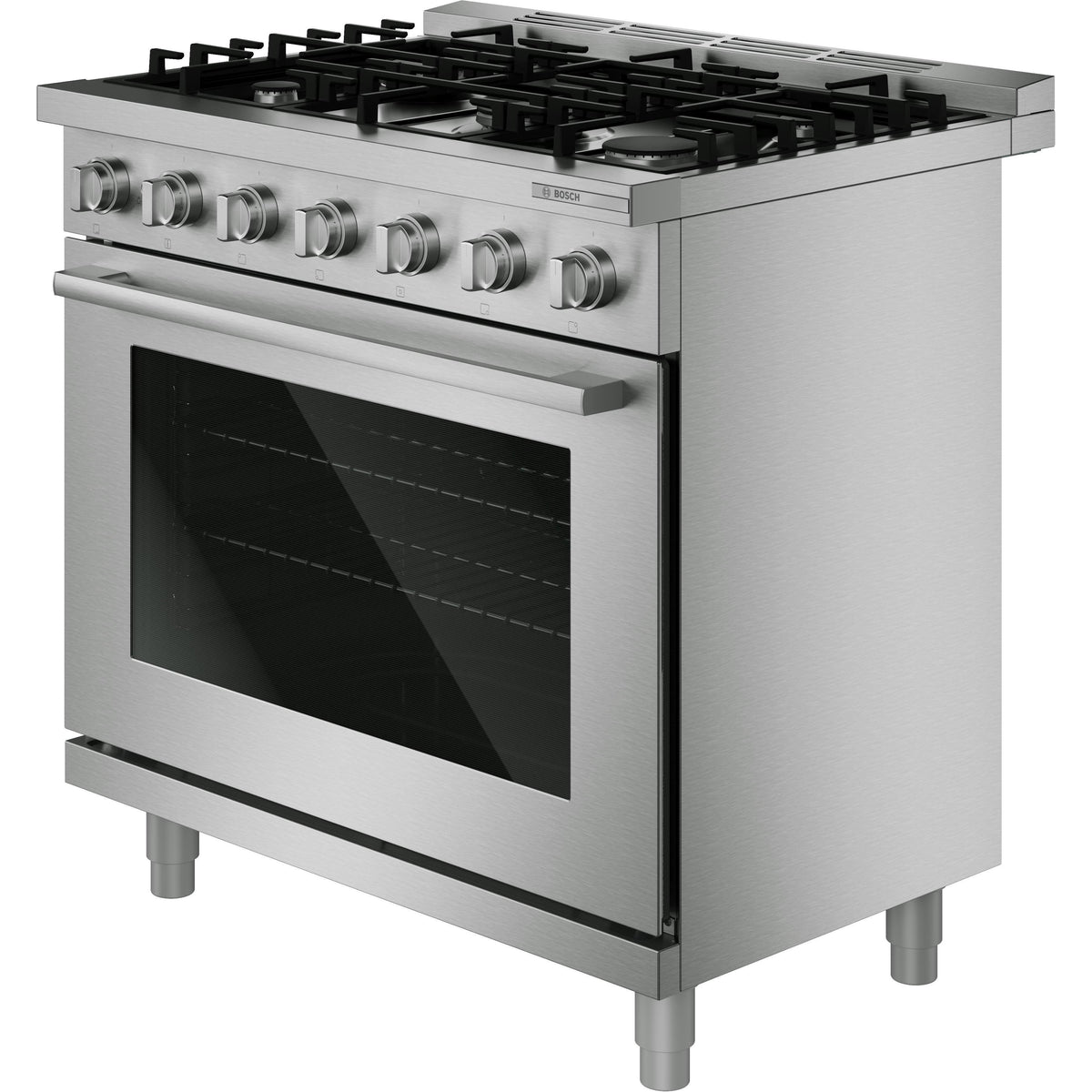

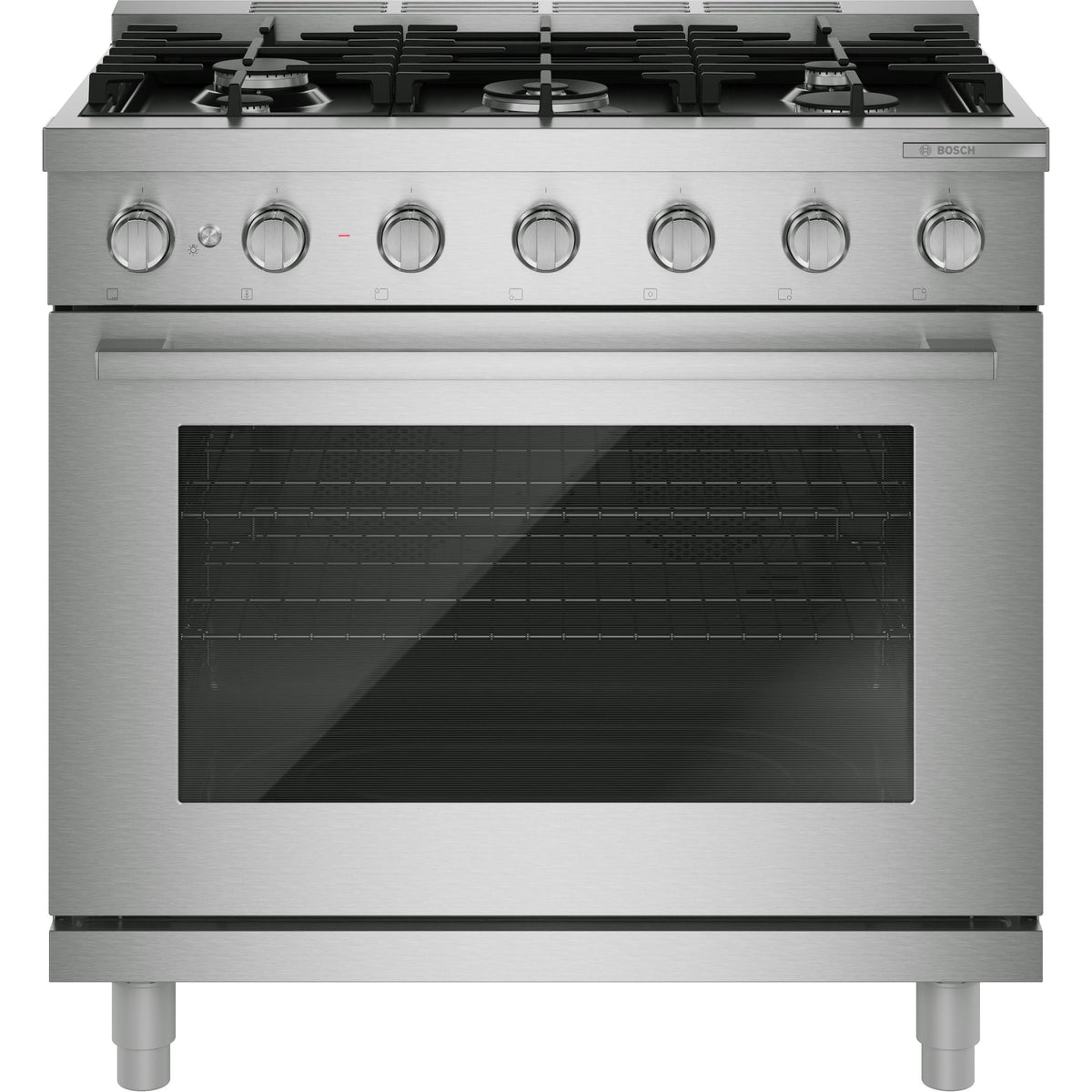

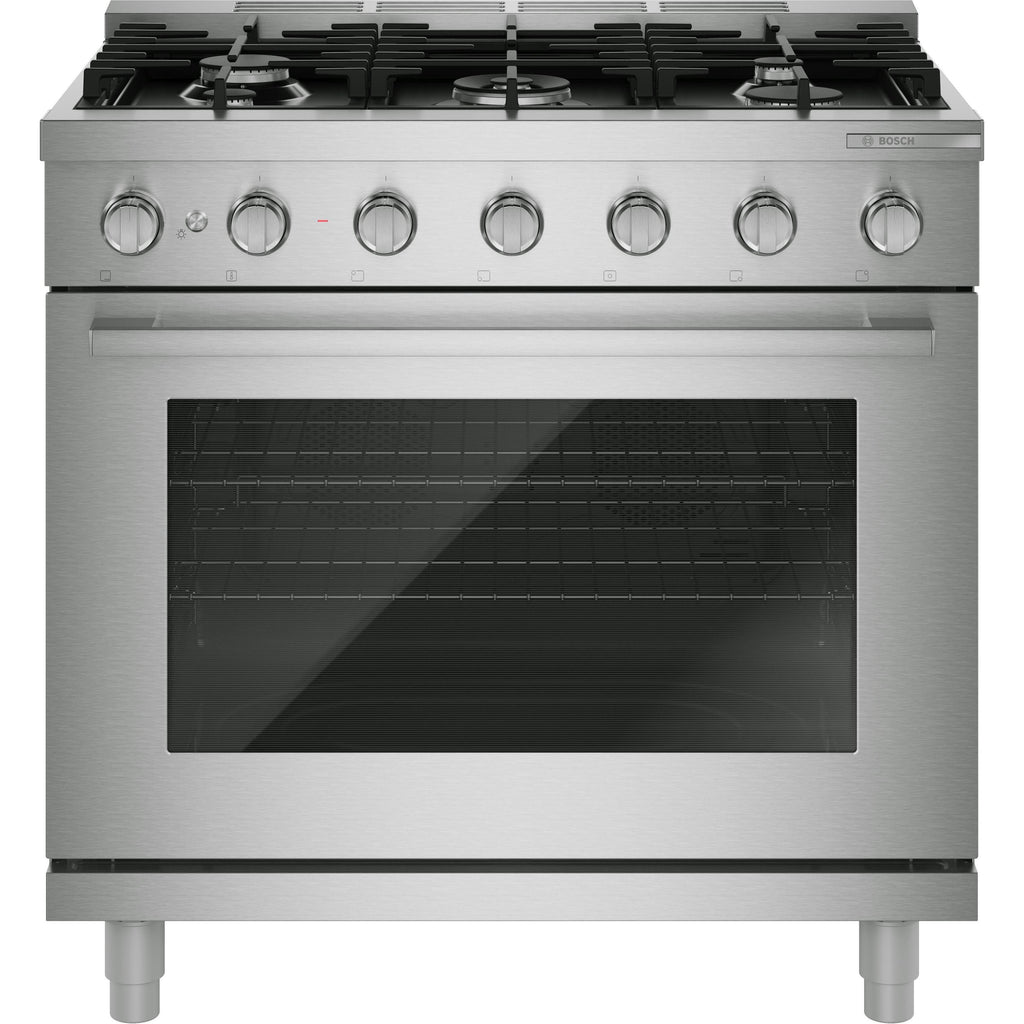

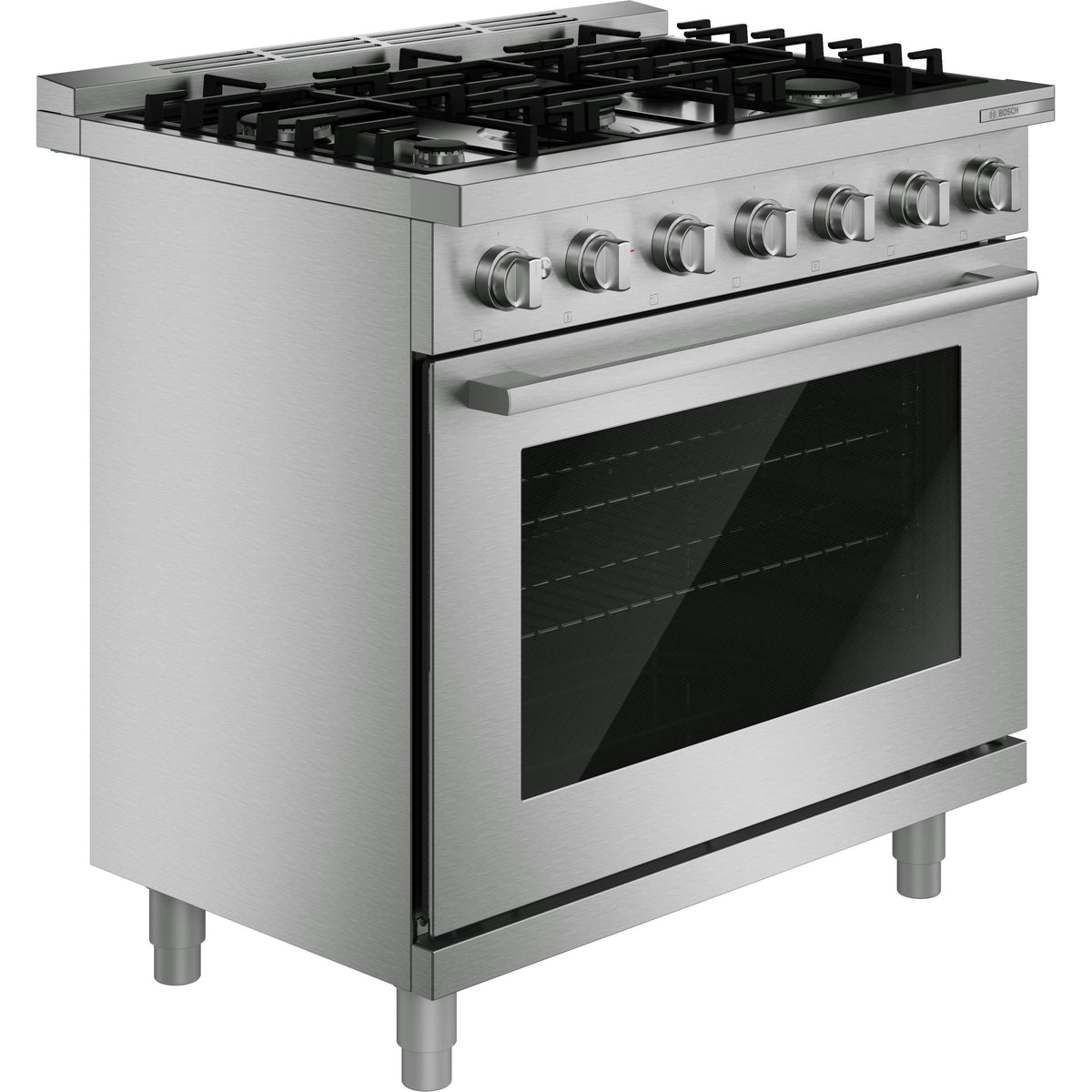

×The Bosch 500 Series HGS5657UC 36-inch Freestanding Gas Range features five burners and a spacious design for versatile everyday cooking, offering flexible heat control for preparing a variety of dishes.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
500 Series
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Manual Clean

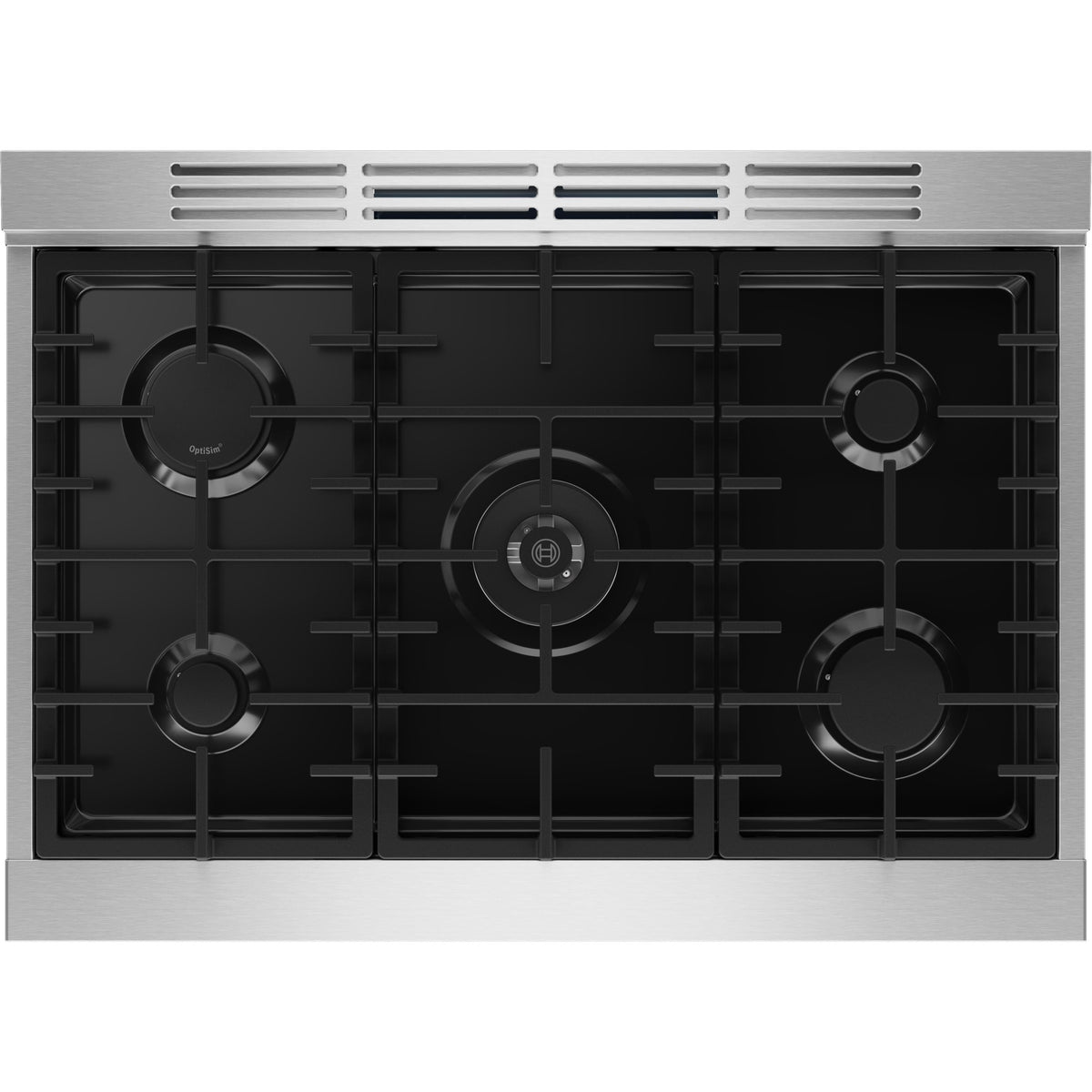

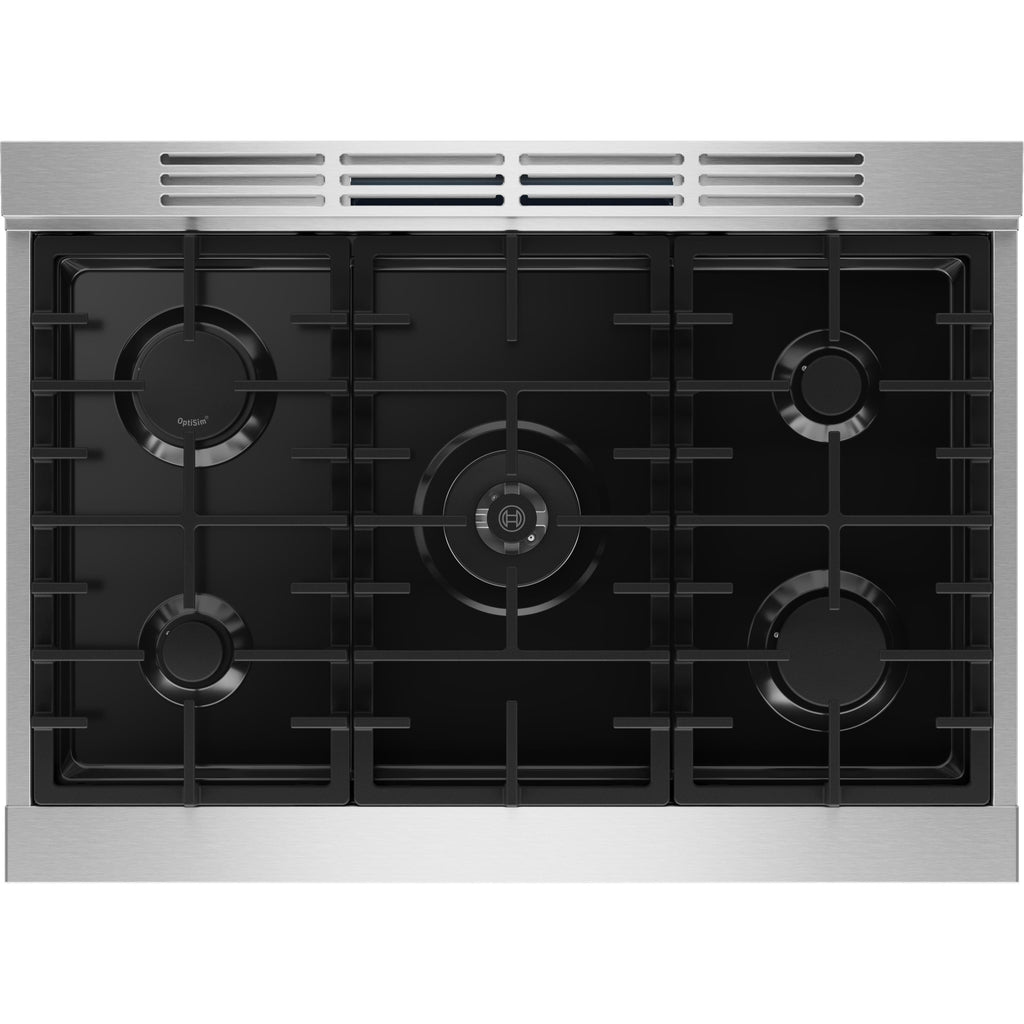

Cooktop
Burners/Elements
5
Burners/Elements Output
• Total Cooktop Power (NG / LP): 54,000 / 52,000 BTU
• Front Left Burner Power (NG / LP): 5,000 / 5,000 BTU
• Back Left Burner Power (NG / LP): 12,000 / 12,000 BTU
• Center Burner Power (NG / LP): 20,000 / 18,000 BTU
• Back Right Burner Power (NG / LP): 5,000 / 5,000 BTU
• Front Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Left Burner Power (NG / LP): 5,000 / 5,000 BTU
• Back Left Burner Power (NG / LP): 12,000 / 12,000 BTU
• Center Burner Power (NG / LP): 20,000 / 18,000 BTU
• Back Right Burner Power (NG / LP): 5,000 / 5,000 BTU
• Front Right Burner Power (NG / LP): 12,000 / 12,000 BTU
Burners
Sealed

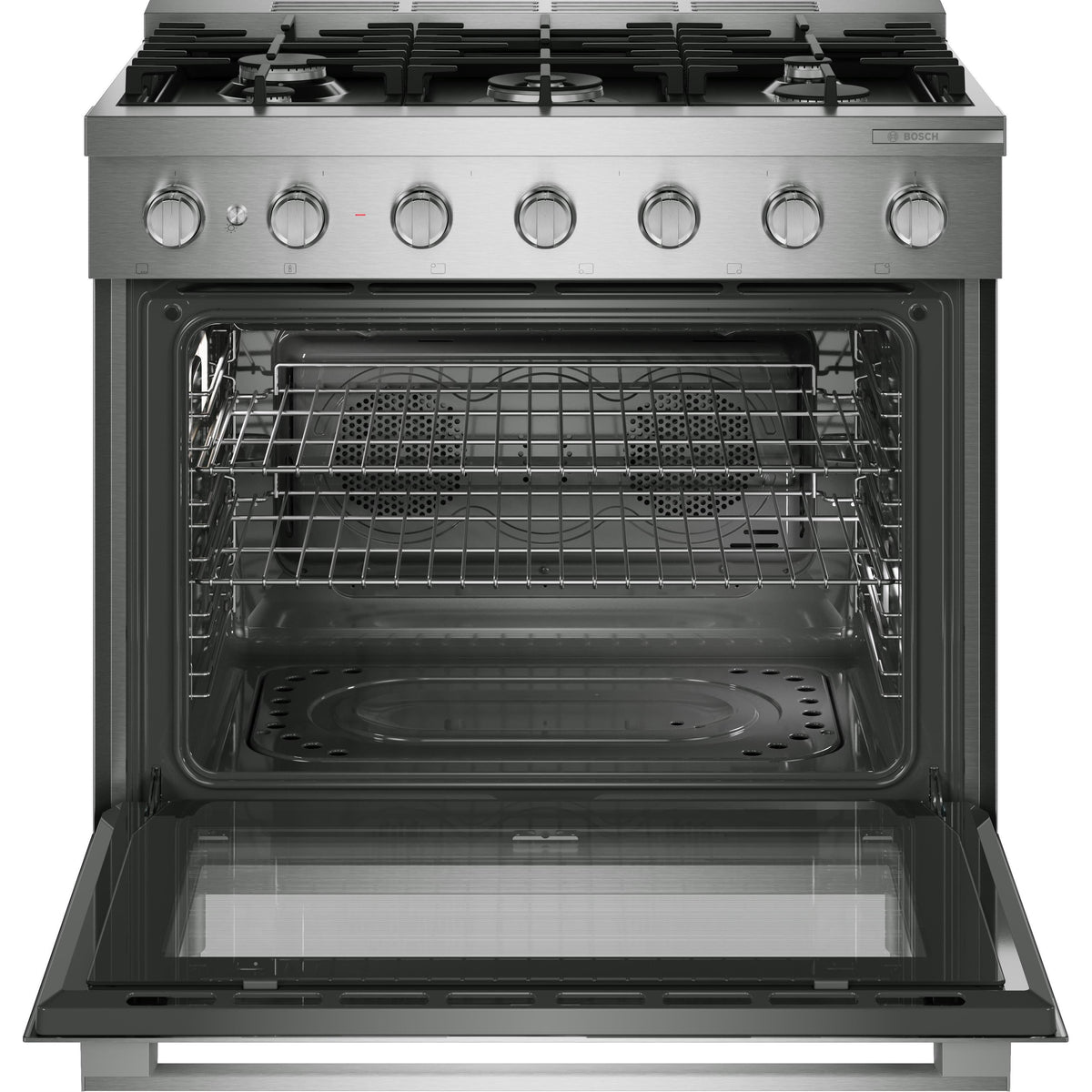

Oven
Capacity (cu. ft.)
5.6 cu. ft.
Number of Ovens
Single
Programs
• Broil
• Keep Warm
• Slow Cook
• Proof
• Convection Bake
• Bake
• Keep Warm
• Slow Cook
• Proof
• Convection Bake
• Bake
Features
Technologies
Convection Technology
Convection
Yes
Oven Light
Yes
Additional Information
• Soft-close oven door
• Bake / Broil Burner Power: 17,000 / 14,000 BTU
• Cast iron grates with rubber feet
• Porcelain and steel cooktop surface materials
• Bake / Broil Burner Power: 17,000 / 14,000 BTU
• Cast iron grates with rubber feet
• Porcelain and steel cooktop surface materials
Electrical Information
Information
• Circuit Breaker: 15 A
• Volts: 120 V
• Frequency: 60 Hz
• Plug Type: US 3-prong
• Cord Length: 60" with plug
• Volts: 120 V
• Frequency: 60 Hz
• Plug Type: US 3-prong
• Cord Length: 60" with plug
Accessories
Included
• LP conversion kit
• 2 standard oven racks
• Anti-tip protection kit
• 2 standard oven racks
• Anti-tip protection kit
Optional
• HEZ90T36UC — 36" Range Toe Kick, Stainless Steel
• HEZ90H36UC — 36" Rear Vent Trim Extension, Stainless Steel
• HEZ90K36UC — 36" Low Backguard, Stainless Steel
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Steel
• HEZ90H36UC — 36" Rear Vent Trim Extension, Stainless Steel
• HEZ90K36UC — 36" Low Backguard, Stainless Steel
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Steel
Dimensions
Class Width
36"
Width
35.91 inch(es) / 91.2 cm
Height
35.55 inch(es) / 90.3 cm
Depth (Without Handles)
24.76 inch(es) / 62.9 cm
Depth (Including Handles)
26.89 inch(es) / 68.3 cm
Weight
206.99 lb(s) / 93.89 kg
Additional Dimensions
• Overall Appliance Dimensions (H × W × D): 36" x 35 15/16" x 24 49/64" (w/ bull nose 26 17/64")
• Required Cutout Size (H × W × D): 36" x 36" x 25"
• Adjustable Range Height: 35 9/16" Min. – 36 5/8" Max.
• Overall Oven Interior Dimensions (H × W × D): 15.04" x 28.46" x 17.72"
• Usable Oven Interior Dimensions (H × W × D): 14.57" x 26.97" x 16.14"
• Required Cutout Size (H × W × D): 36" x 36" x 25"
• Adjustable Range Height: 35 9/16" Min. – 36 5/8" Max.
• Overall Oven Interior Dimensions (H × W × D): 15.04" x 28.46" x 17.72"
• Usable Oven Interior Dimensions (H × W × D): 14.57" x 26.97" x 16.14"
Shipping Dimensions
Width
38.75 inch(es) / 98.43 cm
Height
34.02 inch(es) / 86.41 cm
Depth
28 inch(es) / 71.12 cm
Warranty
Warranty
1-year (365-day) limited warranty against defects in materials and workmanship from the date of original delivery, plus a separate 30-day limited warranty against cosmetic defects (finish blemishes, scratches, dents). Repair or replacement at Bosch's option.
UPC
UPC#
4242005510603
