DESCRIPTION
×The Bosch 500 Series 30-inch Freestanding Gas Range combines versatile cooking performance with a powerful Double Ring Burner, providing flexible heat control for a variety of cooking needs.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
500 Series
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Manual Clean
Cooktop

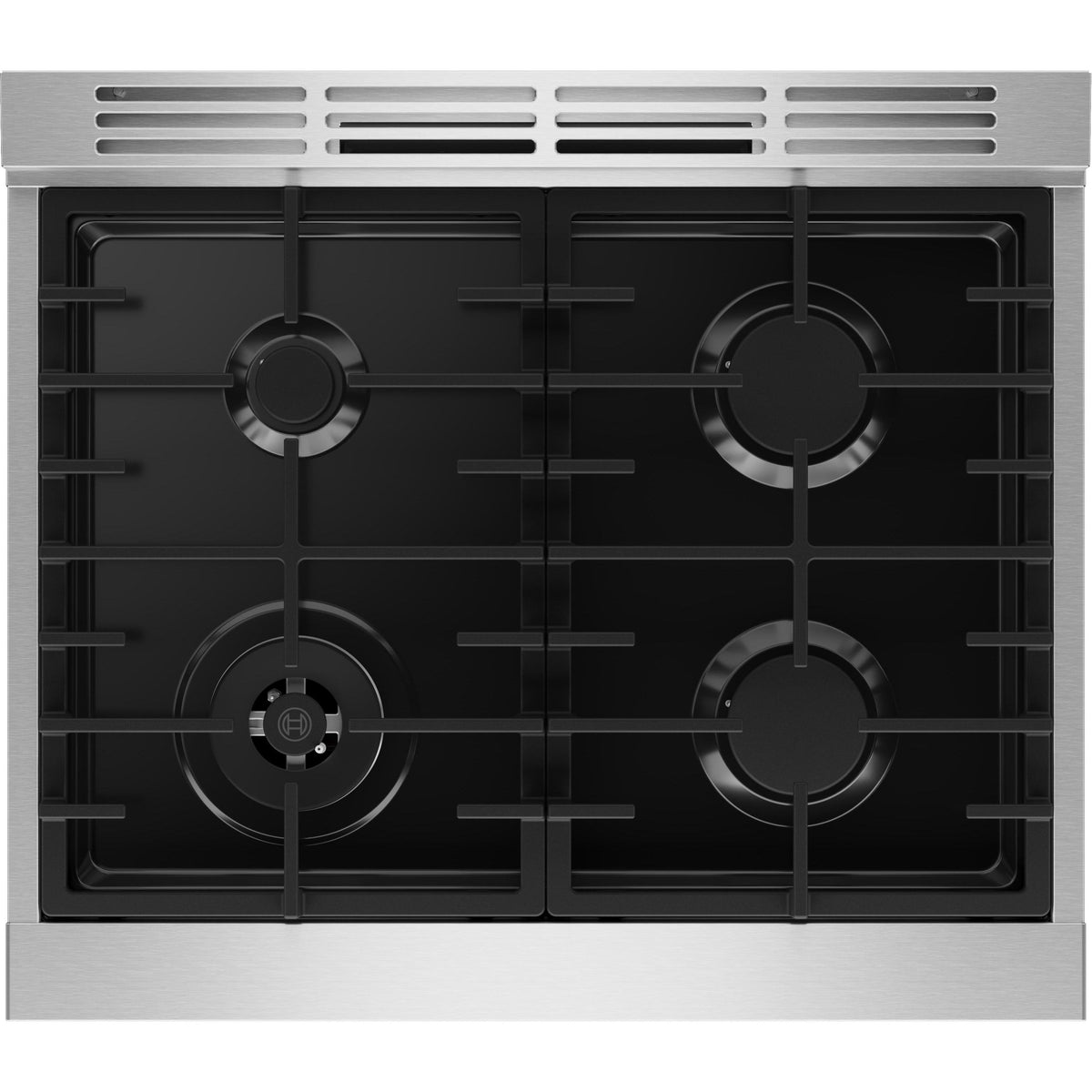

Burners/Elements
4
Burners/Elements Output
• Total Cooktop Power (NG / LP): 49,000 / 47,000 BTU
• Front Left Burner Power (NG / LP): 20,000 / 18,000 BTU
• Back Left Burner Power (NG / LP): 5,000 / 5,000 BTU
• Back Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Left Burner Power (NG / LP): 20,000 / 18,000 BTU
• Back Left Burner Power (NG / LP): 5,000 / 5,000 BTU
• Back Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Right Burner Power (NG / LP): 12,000 / 12,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
4.9 cu. ft.
Number of Ovens
Single
Programs
• Broil
• Keep Warm
• Slow Cook
• Proof
• Convection Bake
• Bake
• Keep Warm
• Slow Cook
• Proof
• Convection Bake
• Bake
Features
Technologies
Convection Technology
Convection
Yes
Oven Light
Yes
Additional Information
• Soft-close oven door
• Cast iron grates with rubber feet
• Porcelain and steel cooktop surface materials
• Cast iron grates with rubber feet
• Porcelain and steel cooktop surface materials
Electrical Information
Information
• 120 V
• 15 A circuit breaker
• 60 Hz
• US 3-prong plug
• 60" cord length (with plug)
• 15 A circuit breaker
• 60 Hz
• US 3-prong plug
• 60" cord length (with plug)
Accessories
Included
• LP conversion kit
• 2 standard oven racks
• Anti-tip protection kit
• 2 standard oven racks
• Anti-tip protection kit
Optional
• HEZ9TK30UC — 30" Range Toe Kick, Stainless Steel
• HEZ90H30UC — 30" Rear Vent Trim Extension, Stainless Steel
• HEZ90K30UC — 30" Low Backguard, Stainless Steel
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Steel
• HEZ90H30UC — 30" Rear Vent Trim Extension, Stainless Steel
• HEZ90K30UC — 30" Low Backguard, Stainless Steel
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Steel
Dimensions
Class Width
30"
Width
29.92 inch(es) / 76.0 cm
Height
35.35 inch(es) / 89.8 cm
Depth (Without Handles)
24.65 inch(es) / 62.6 cm
Depth (Including Handles)
26.81 inch(es) / 68.1 cm
Weight
192.99 lb(s) / 87.54 kg
Warranty
Warranty
1-year (365-day) limited warranty against defects in materials and workmanship from the date of original delivery, plus a separate 30-day limited warranty against cosmetic defects (finish blemishes, scratches, dents). Repair or replacement at Bosch's option.
