DESCRIPTION

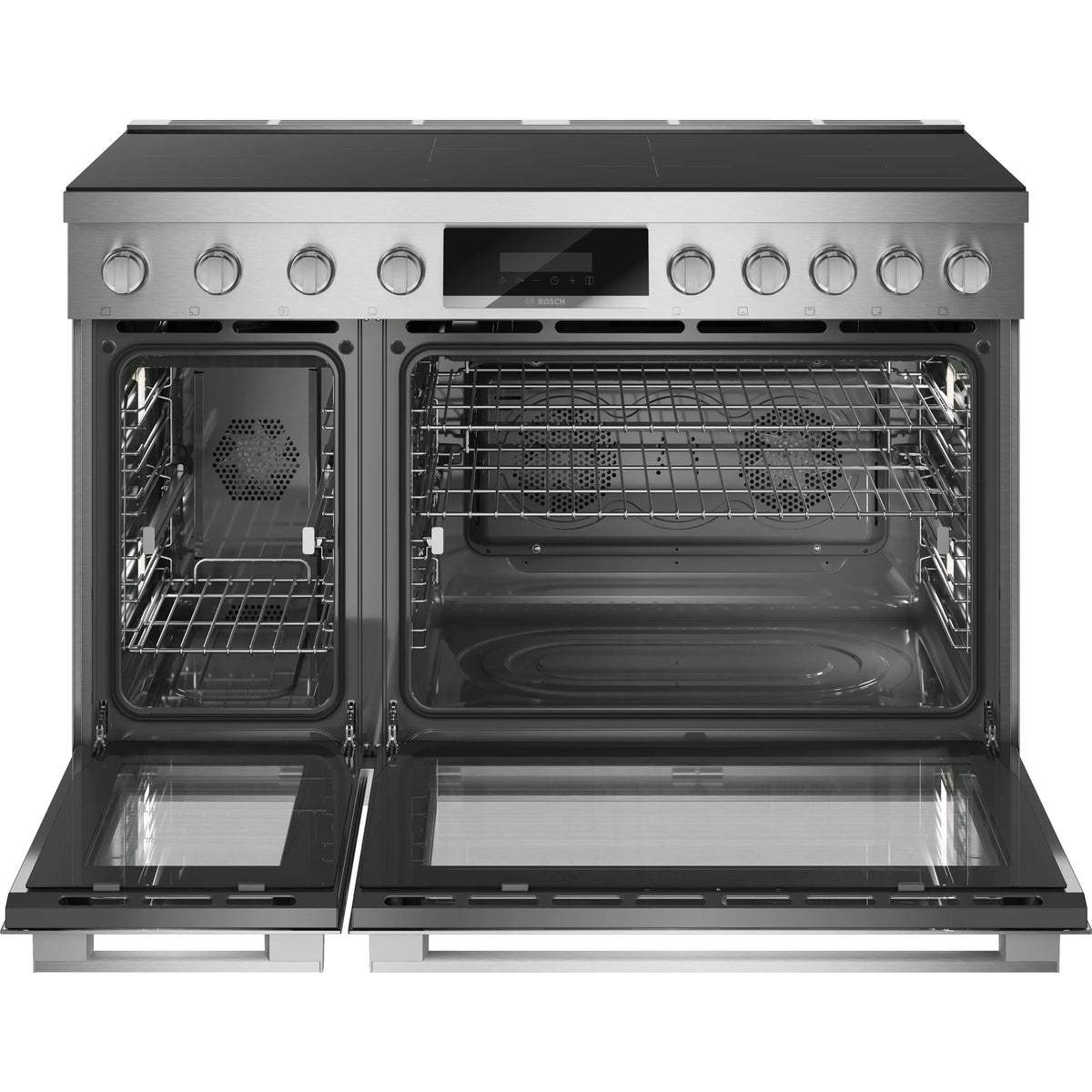

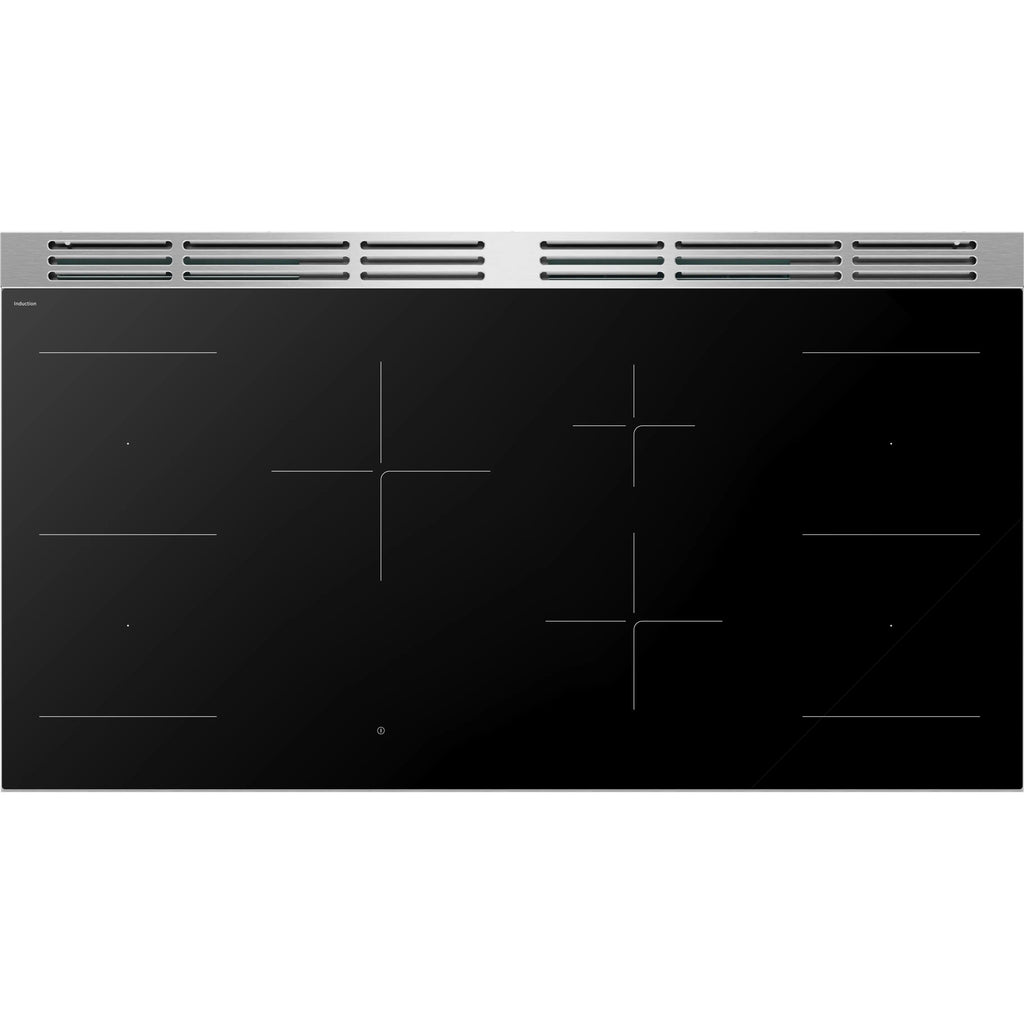

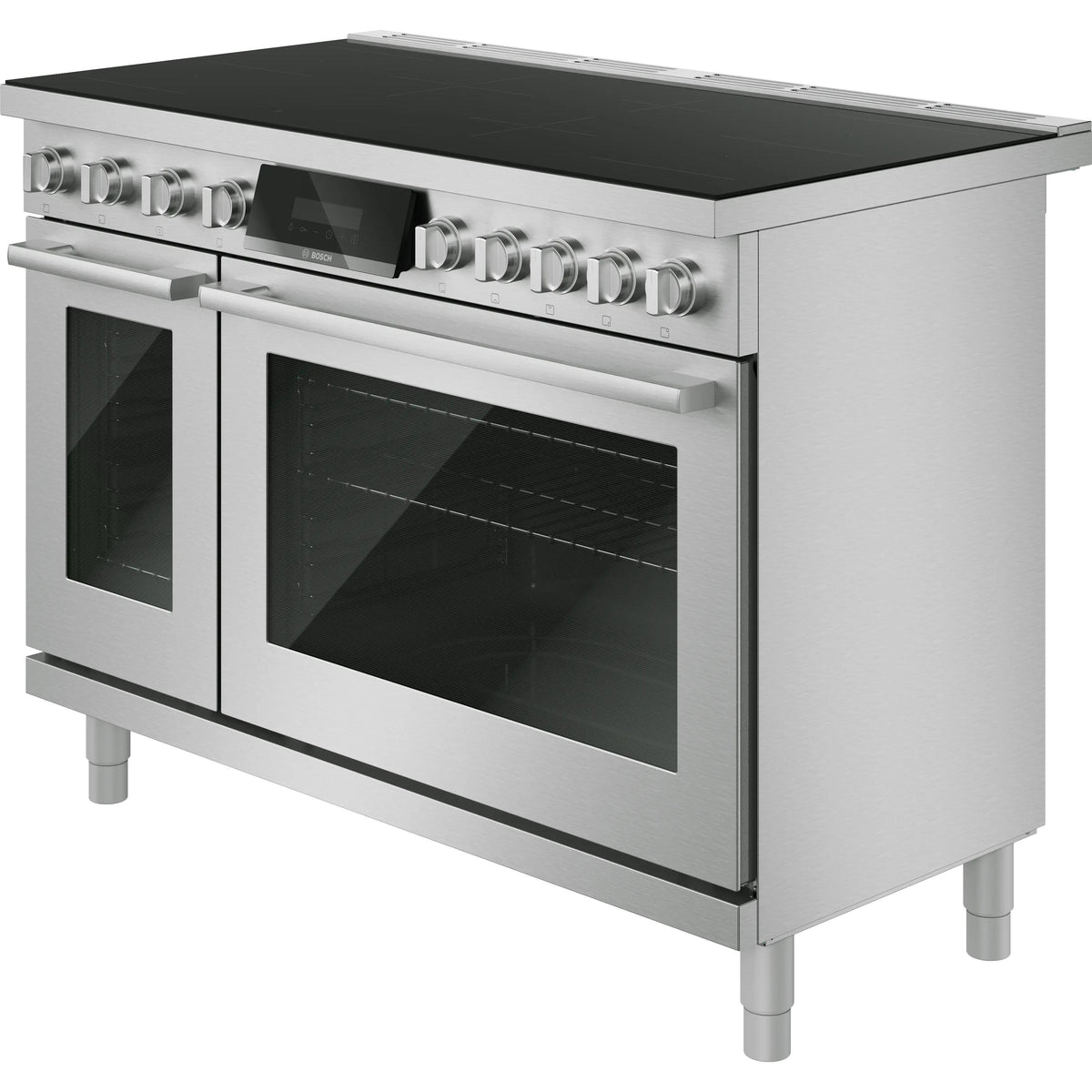

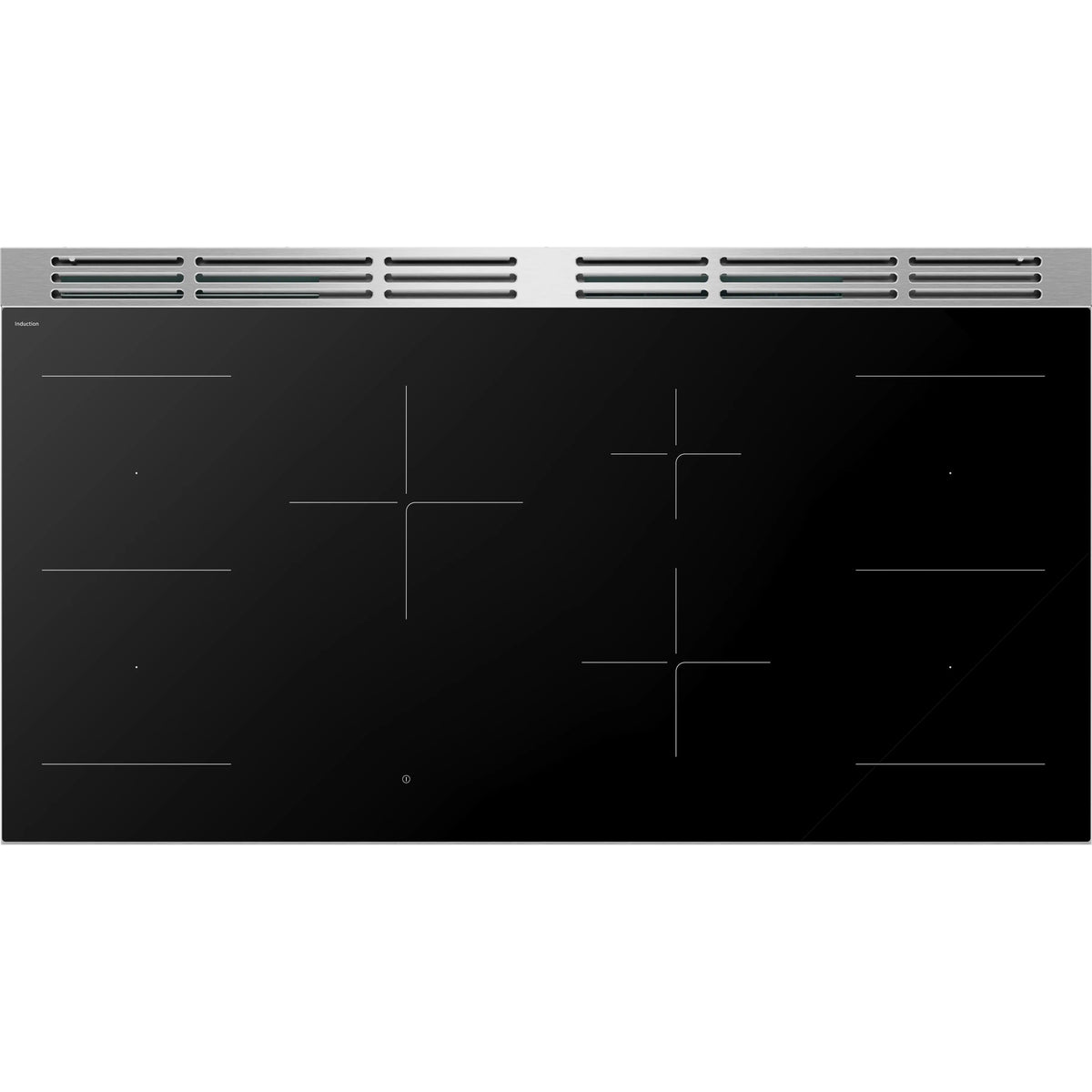

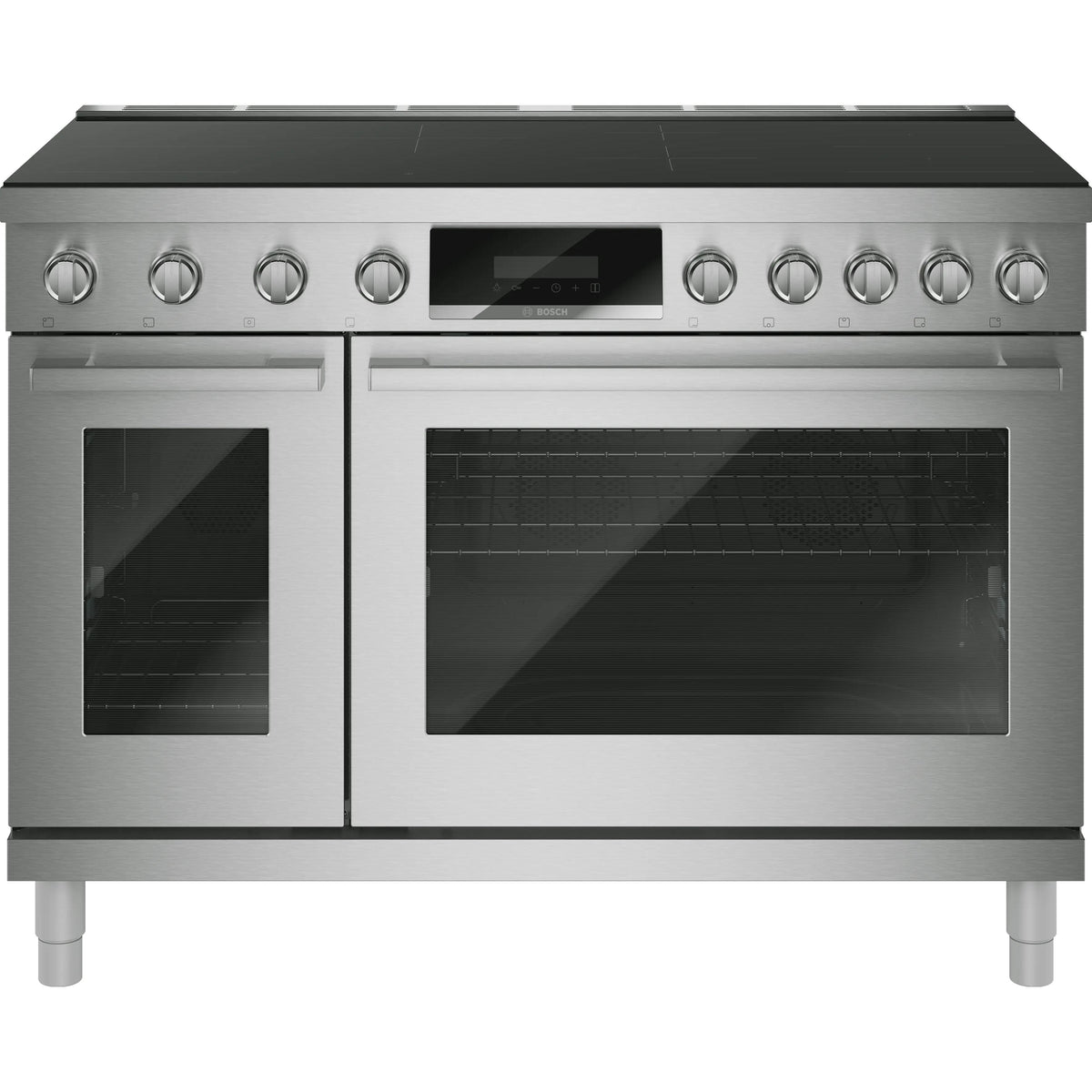

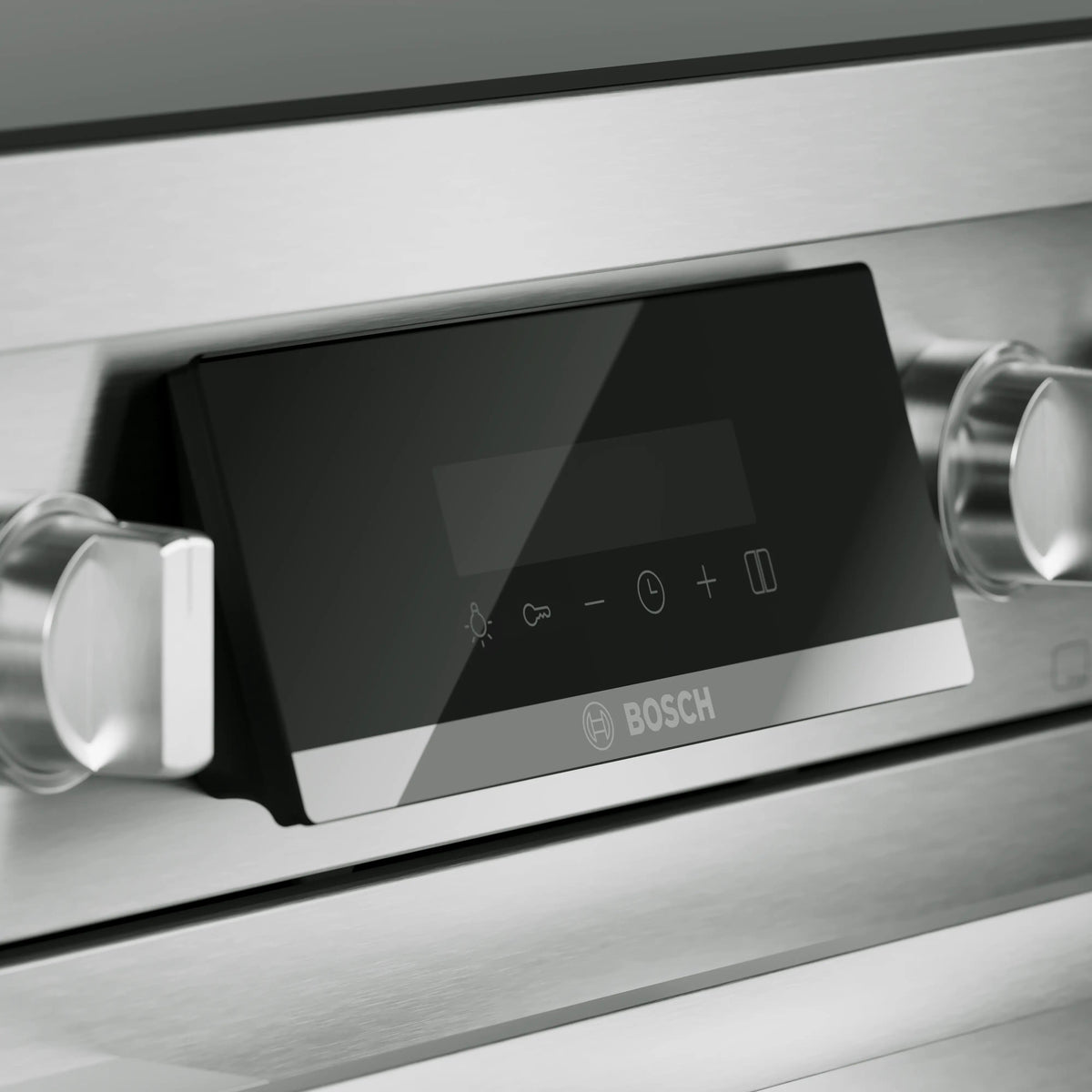

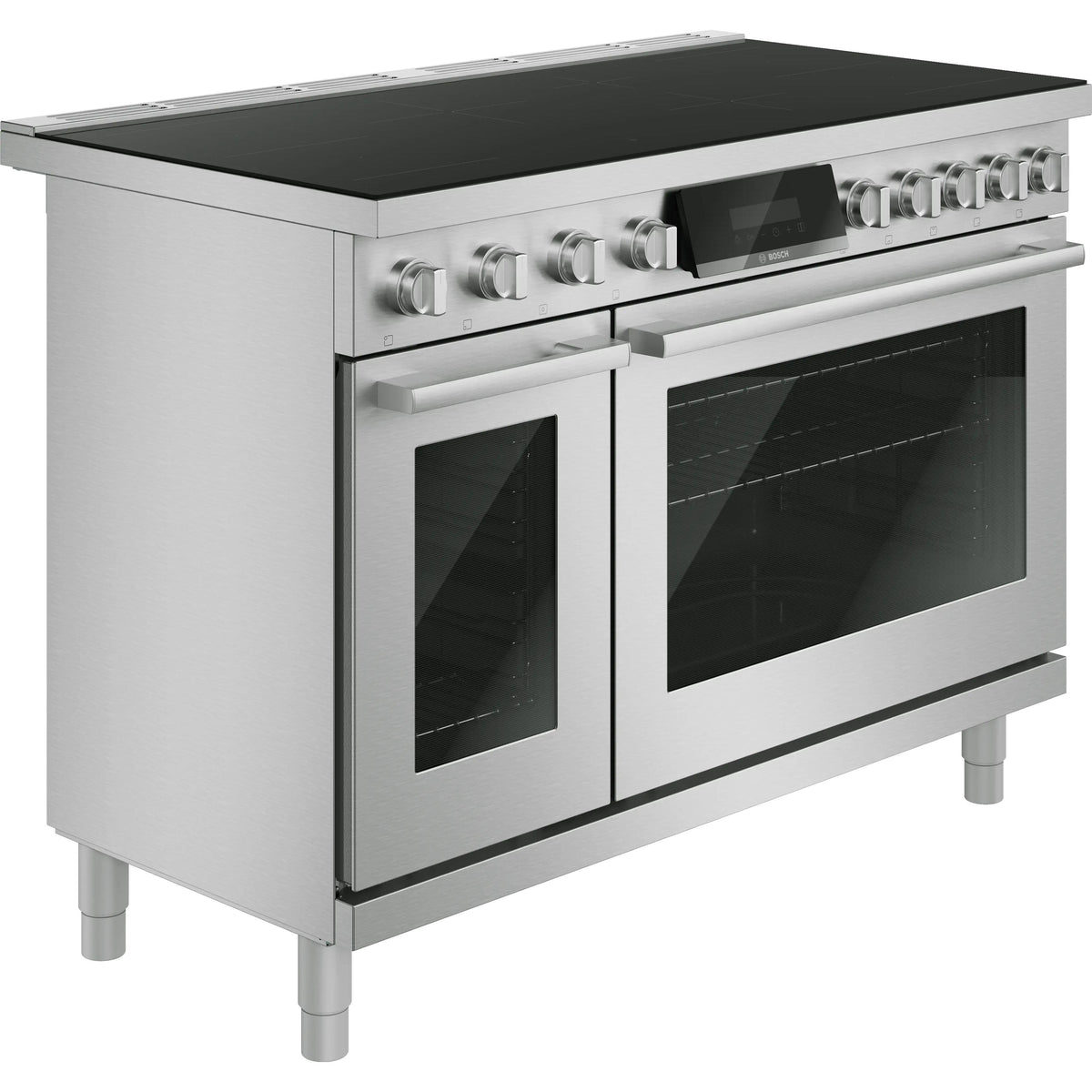

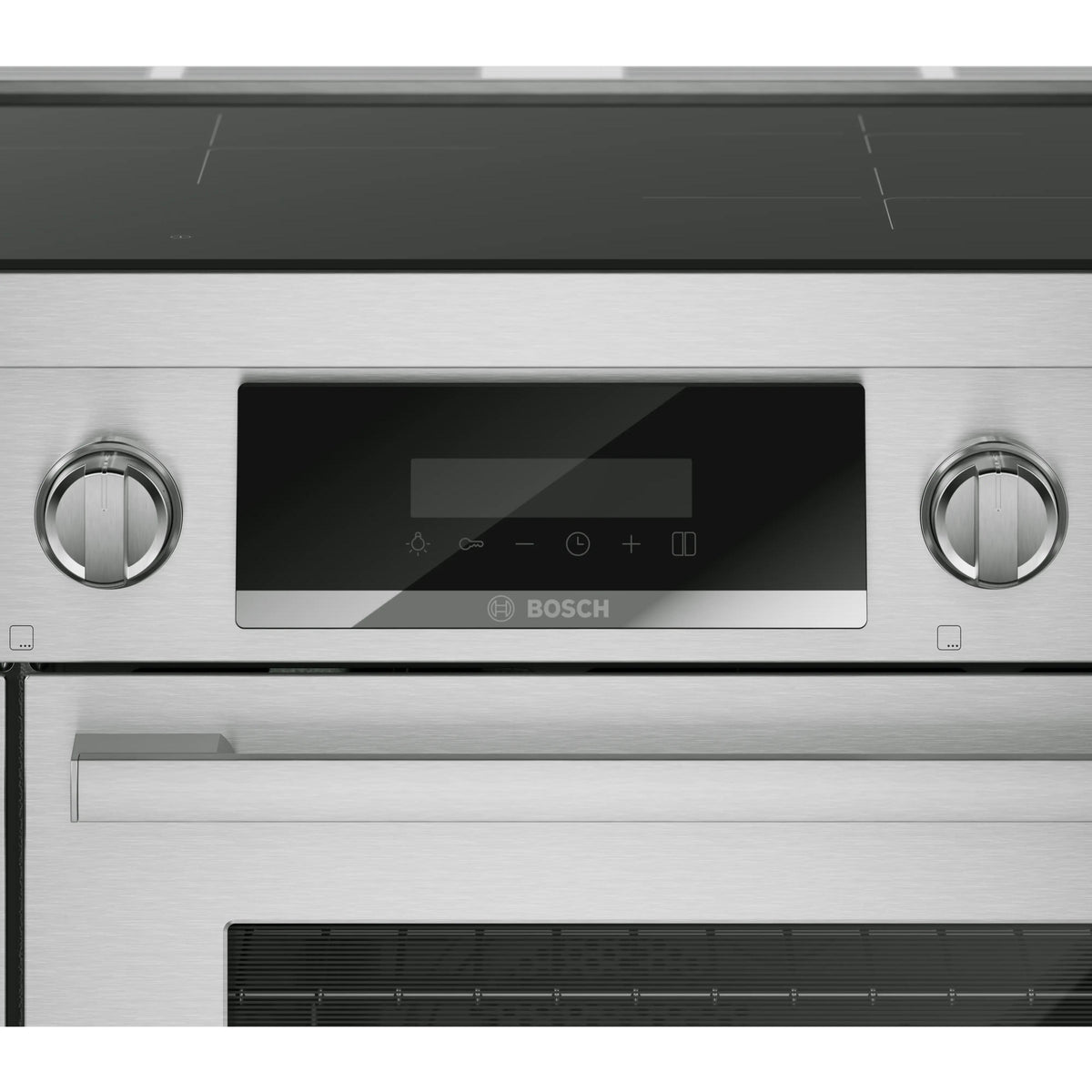

×This Bosch 48-inch 800 Series induction range pairs a 7-element induction cooktop, including a best-in-class 5.5 kW element and two CombiZone-capable elements, with a dual-oven cavity for extra cooking flexibility. The 5.4 cu. ft. main oven offers 9 cooking modes, including Air Fry, Convection Multi-Rack, Pizza, and true Convection Bake with a third heating element and rear fan, while a 2 cu. ft. auxiliary oven adds a second cavity for smaller dishes or simultaneous cooking. The frameless, edge-to-edge glass cooktop wipes clean easily and heats cookware directly, cooking faster than gas or electric while staying cool to the touch. Catalytic and steam-assisted cleaning keep both oven cavities easier to maintain, and full-extension telescopic racks in the main oven give smooth access to heavy dishes. The QuietClose door closes gently instead of slamming, and an ergonomic tilted display keeps the controls easy to read while cooking.
FEATURES
×SPECIFICATIONS
ו Steam Assist
• Front Left Element Power: 1,850 W (3,000 W with Boost)
• Front Right Element Power: 1,850 W (3,000 W with Boost)
• Back Right Element Power: 1,850 W (3,000 W with Boost)
• Center Element Power – Left (1 Generator): 1,850 / 2,600 W (3,000 / 5,500 W with Boost)
• Center Element Power – Front Right (Both Generators): 2,300 W (3,700 W with Boost)
• Center Element Power – Back Right (Both Generators): 1,400 W (2,200 W with Boost)
• Large Oven: 5.4 cu. ft.
• Small Oven: 2.0 cu. ft.
• Air Fry
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multi-Rack
• Convection Bake
• Bake
• Air Fry Technology
• CombiZone™ — combines 2 cooking zones into 1 large zone for more flexibility and larger pans/griddles.

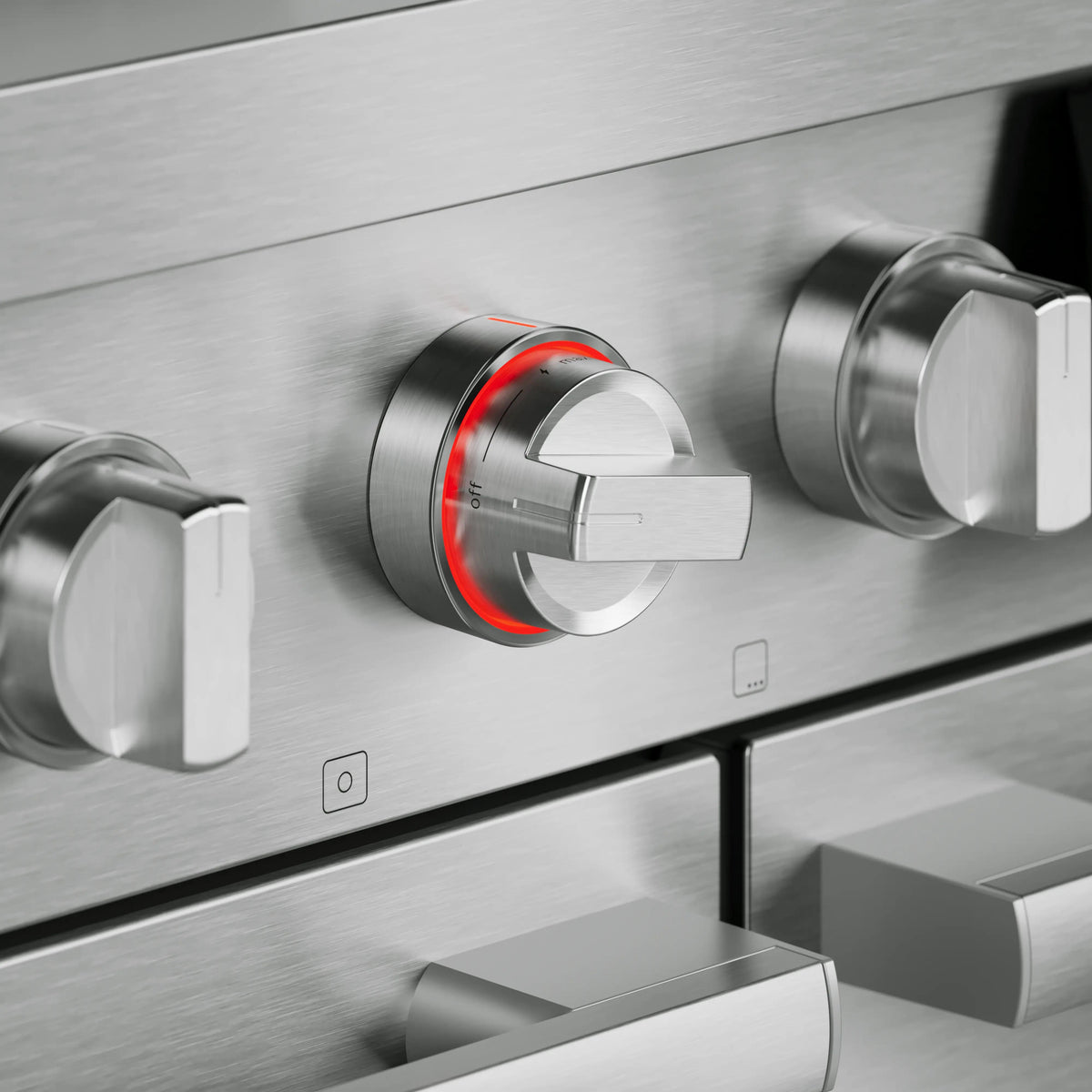

• Knob Material: Plastic
• Interior Light: Main oven: 2 / Small oven: 2
• Kitchen Timer
• Bake / Broil Element Watts: Main oven: 1,700 / 1,700 W; Aux oven: 750 / 1,400 W
• Convection Element Watts: Main oven: 2 x 1,500 W; Aux oven: 1,550 W
• Circuit Breaker: 50 A
• Volts: 208 V / 240 V
• Frequency: 60 Hz
• Plug Type / Cord Length: NEMA 14-50 / 60" with plug
• 2 Telescopic Racks (Main)
• 1 Standard Rack (Aux)
• Anti-Tip Protection Kit
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Steel
• Required Cutout Size (H × W × D): 36" x 48" x 25"
• Adjustable Range Height: 35 1/16" Min. – 37" Max.
• Overall Oven Interior Dimensions (H × W × D): Main oven: 15.04" x 28.46" x 17.72"; Aux oven: 17.80" x 10.75" x 16.54"
• Usable Oven Interior Dimensions (H × W × D): Main oven: 14.57" x 26.97" x 16.14"; Aux oven: 9.33" x 13.94" x 14.76"
