DESCRIPTION

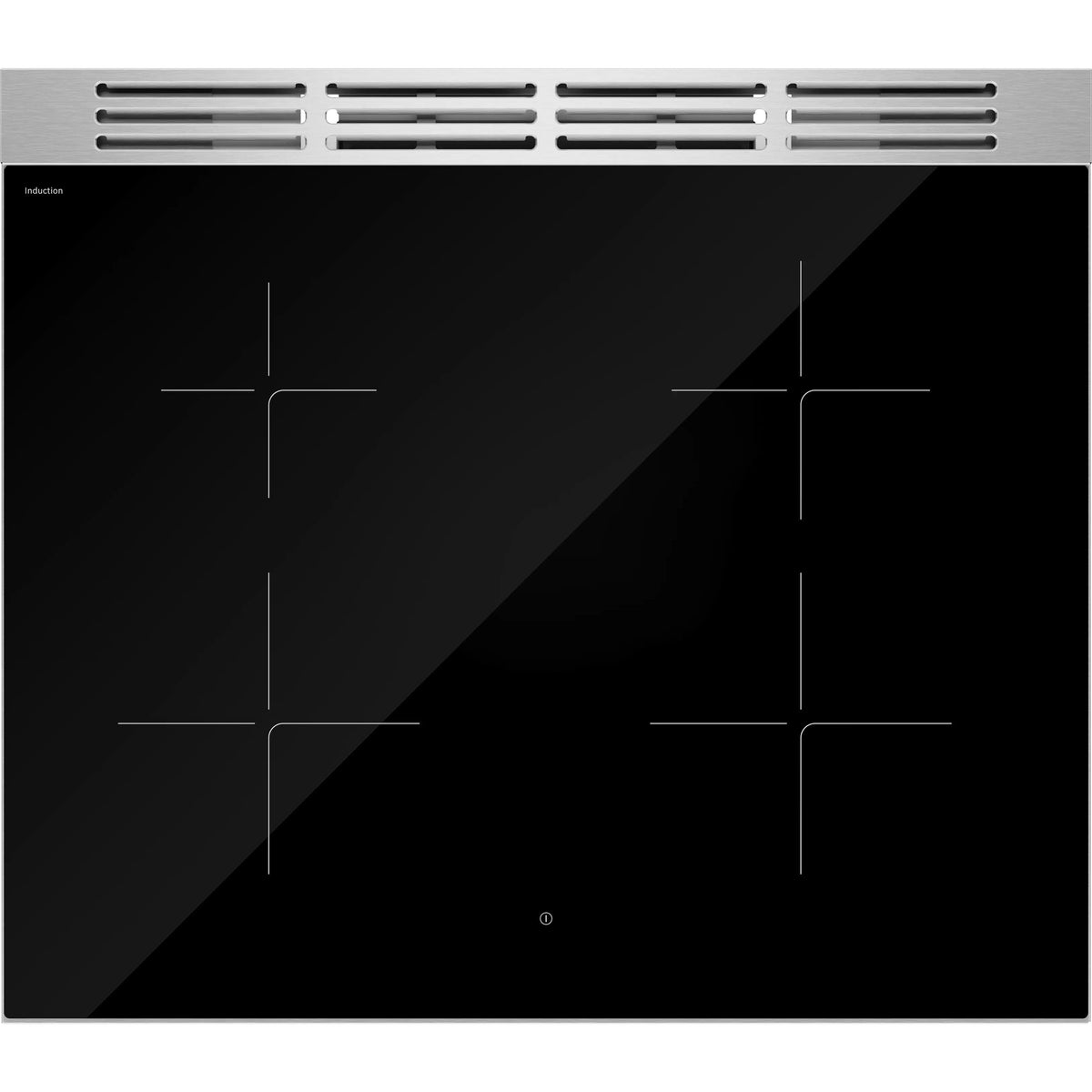

×This Bosch 30-inch 500 Series induction range brings 4 induction elements to the cooktop, with two 2,300 W power elements up front for fast, efficient heating. The frameless, edge-to-edge glass cooktop heats cookware directly, cooking faster than gas or electric while staying cool to the touch and wiping clean with a simple wipe. The 4.7 cu. ft. oven offers 9 cooking modes, including Air Fry, Convection Multi-Rack, Pizza, and true Convection Bake with a third heating element and rear fan for even, golden results no matter where the pan sits. Broil mode uses intense heat from the upper element for a proper char and sear, and a steam-assisted cleaning cycle helps keep the oven cavity easier to maintain.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
500 Series
Fuel Type
Electric - Induction
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Steam assist
Cooktop
Burners/Elements
4
Burners/Elements Output
• Back Left Element Power: 1,400 W (1,850 W with Boost)
• Front Left Element Power: 2,300 W (3,000 W with Boost)
• Front Right Element Power: 2,300 W (3,000 W with Boost)
• Back Right Element Power: 1,400 W (2,100 W with Boost)
• Front Left Element Power: 2,300 W (3,000 W with Boost)
• Front Right Element Power: 2,300 W (3,000 W with Boost)
• Back Right Element Power: 1,400 W (2,100 W with Boost)
Elements
Smoothtop
Oven
Capacity (cu. ft.)
4.7 cu. ft.
Number of Ovens
Single
Programs
• Broil
• Air Fry
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multi-Rack
• Convection Bake
• Bake
• Air Fry
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multi-Rack
• Convection Bake
• Bake
Features
Technologies
• Convection Technology
• Air Fry Technology
• Air Fry Technology
Air Fry
Yes
Convection
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Type of Surface: Ceramic glass
• Interior Light: 1
• Bake / Broil Element Watts: 1,700 / 1,700 W
• Convection Element Watts: 2,700 W
• Interior Light: 1
• Bake / Broil Element Watts: 1,700 / 1,700 W
• Convection Element Watts: 2,700 W
Electrical Information
Information
• Watts: 8,000 W
• Circuit Breaker: 40 A
• Volts: 208 V / 240 V
• Frequency: 60 Hz
• Power Cord Length: 1.5 meter
• Plug Type: 208/240 V – 4 prong
• Circuit Breaker: 40 A
• Volts: 208 V / 240 V
• Frequency: 60 Hz
• Power Cord Length: 1.5 meter
• Plug Type: 208/240 V – 4 prong
Accessories
Included
• 2 Standard Racks
• Anti-Tip Protection Kit
• Anti-Tip Protection Kit
Optional
• HEZ9TK30UC — 30" Range Toe Kick, Stainless Steel
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Stee
• HEZ9LMUC — Metal Pedestal Feet, Set of 4, Stainless Stee
Dimensions
Class Width
30"
Width
29.92 inch(es) / 76.0 cm
Height
35.55 inch(es) / 90.3 cm
Depth (Without Handles)
24.68 inch(es) / 62.7 cm
Depth (Including Handles)
26.85 inch(es) / 68.2 cm
Additional Dimensions
• Overall Appliance Dimensions (H × W × D): 36" x 29 15/16" x 24 11/16" (w/ bull nose 26 19/64")
• Required Cutout Size (H × W × D): 36" x 30" x 25"
• Adjustable Range Height: 35 9/16" Min. – 36 13/16" Max.
• Overall Oven Interior Dimensions (H × W × D): 17.40" x 24.33" x 18.42"
• Usable Oven Interior Dimensions (H × W × D): 17.32" x 22.83" x 17.13"
• Required Cutout Size (H × W × D): 36" x 30" x 25"
• Adjustable Range Height: 35 9/16" Min. – 36 13/16" Max.
• Overall Oven Interior Dimensions (H × W × D): 17.40" x 24.33" x 18.42"
• Usable Oven Interior Dimensions (H × W × D): 17.32" x 22.83" x 17.13"
Warranty
Warranty
1-year (365-day) limited warranty against defects in materials and workmanship from the date of original delivery, plus a separate 30-day limited warranty against cosmetic defects (finish blemishes, scratches, dents). Repair or replacement at Bosch's option.
UPC
UPC#
825225975403
