DESCRIPTION

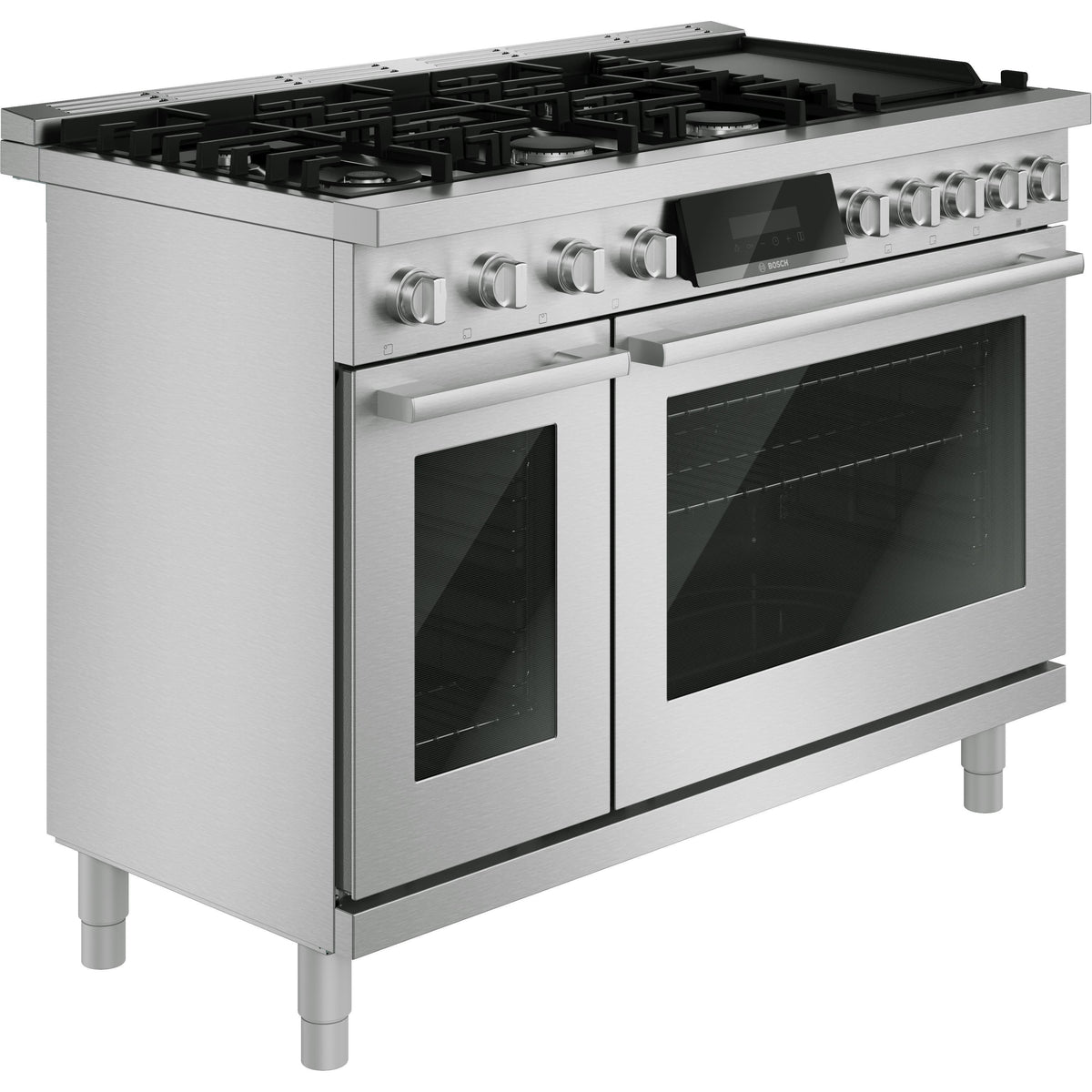

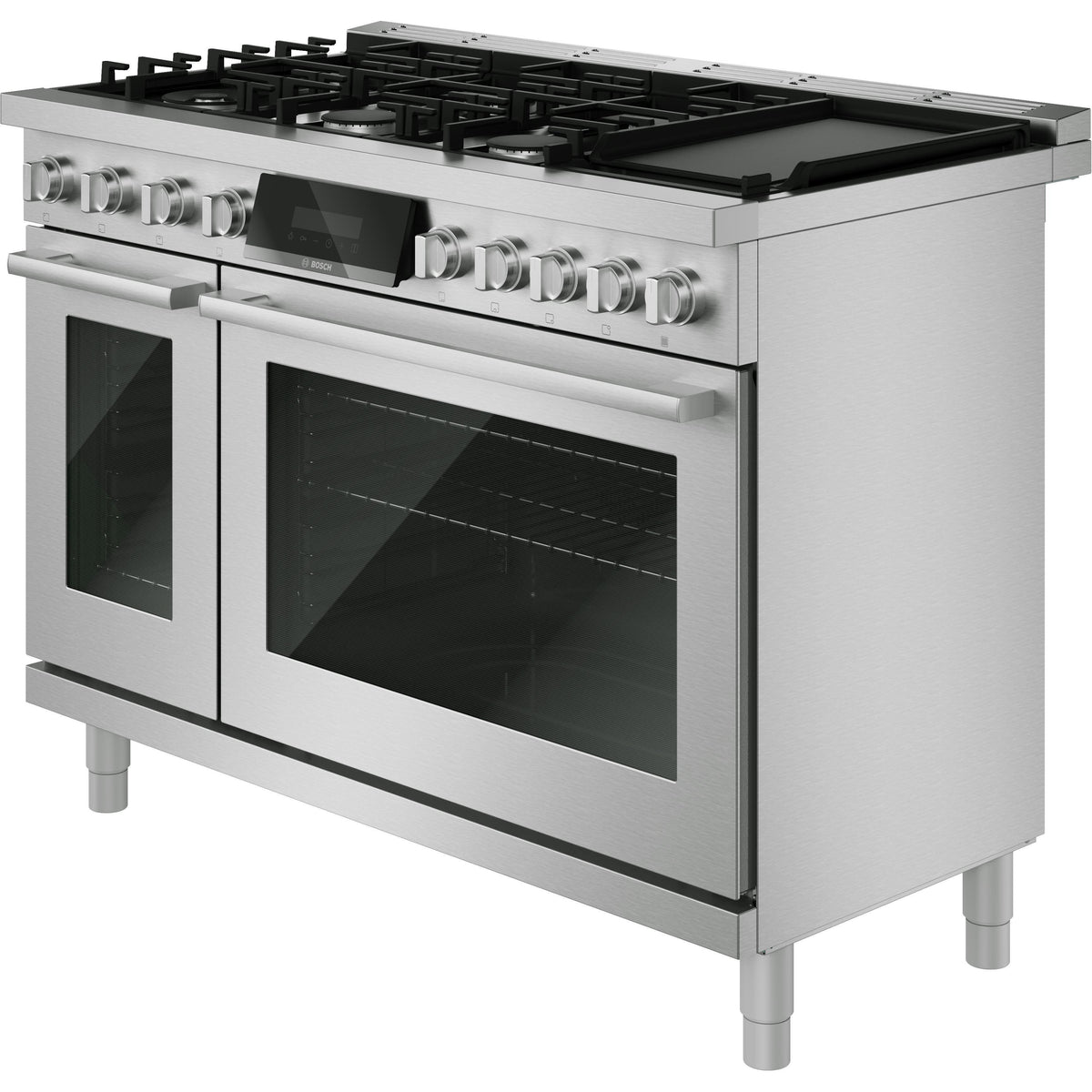

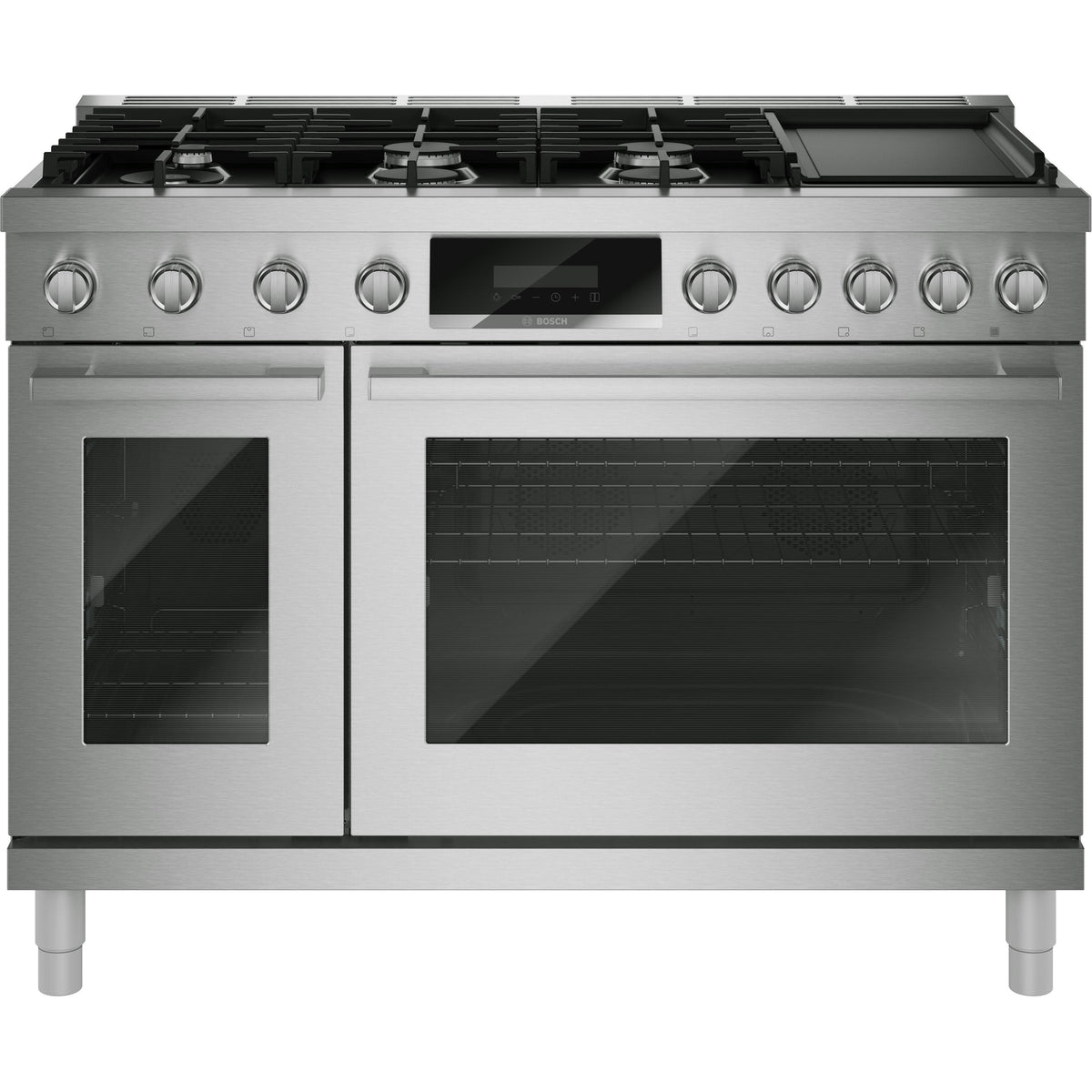

×The Bosch 800 Series 48-inch Dual Fuel Freestanding Range combines six gas burners with a versatile dual-fuel design and Air Fry functionality, providing powerful and flexible cooking performance for a wide range of meals.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800 Series
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• Catalytic Clean
• Steam Assist
• Steam Assist

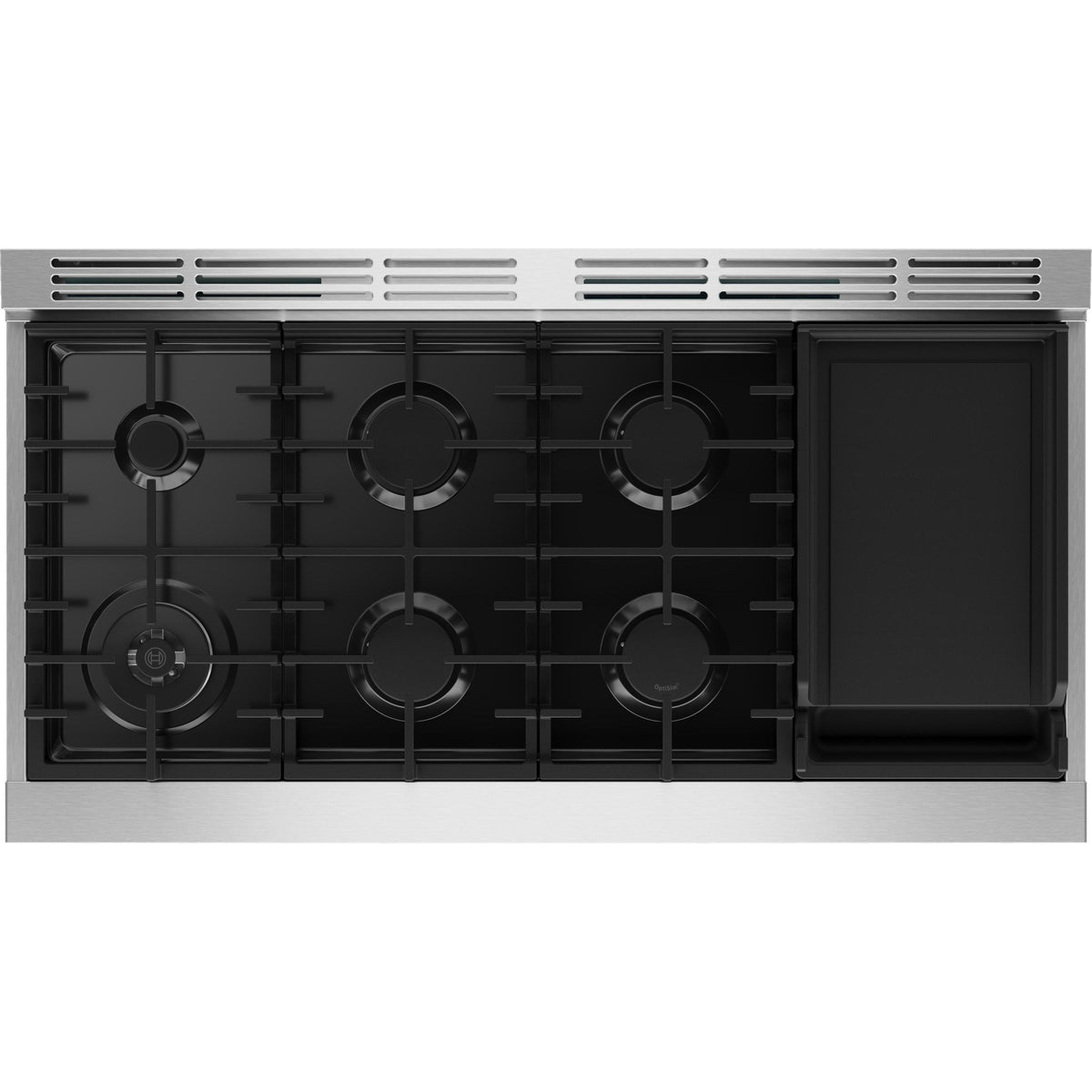

Cooktop
Burners/Elements
6
Burners/Elements Output
• Total Cooktop Power (NG / LP): 73,000 / 71,000 BTU
• Front Left Burner Power (NG / LP): 20,000 / 18,000 BTU
• Back Left Burner Power (NG / LP): 5,000 / 5,000 BTU (OptiSim)
• Back Center Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Center Burner Power (NG / LP): 12,000 / 12,000 BTU
• Back Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Electric Griddle: 1,600 W
• Front Left Burner Power (NG / LP): 20,000 / 18,000 BTU
• Back Left Burner Power (NG / LP): 5,000 / 5,000 BTU (OptiSim)
• Back Center Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Center Burner Power (NG / LP): 12,000 / 12,000 BTU
• Back Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Front Right Burner Power (NG / LP): 12,000 / 12,000 BTU
• Electric Griddle: 1,600 W
Burners
Sealed
Other
Griddle

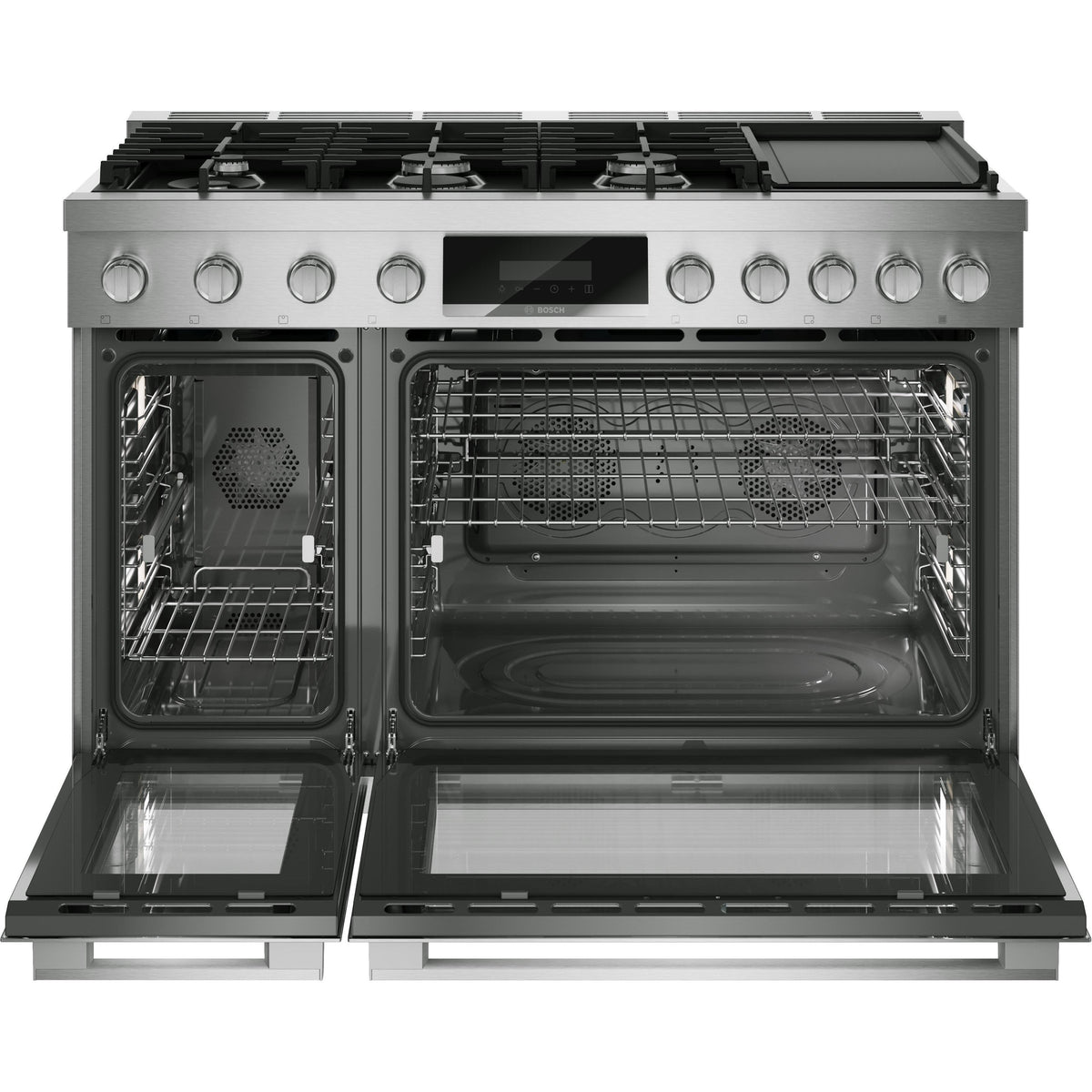

Oven
Capacity (cu. ft.)
• Total Capacity: 7.4 cu. ft.
• Large Oven: 5.4 cu. ft.
• Small Oven: 2.0 cu. ft.
• Large Oven: 5.4 cu. ft.
• Small Oven: 2.0 cu. ft.
Number of Ovens
Double
Programs
• Broil
• Air Fry
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multi-Rack
• Convection Bake
• Bake
• Air Fry
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multi-Rack
• Convection Bake
• Bake
Features
Air Fry
Yes
Convection
Yes
Oven Light
Yes
Additional Information
• Grate Type: Cast iron
• Interior Light: 2 Main / 2 Aux
• Kitchen Timer
• Bake / Broil Element Watts: 1,700 / 1,700 W (Main), 750 / 1,400 W (Aux)
• Convection Element Watts: 2 x 1,500 W (Main), 1,550 W (Aux)
• Interior Light: 2 Main / 2 Aux
• Kitchen Timer
• Bake / Broil Element Watts: 1,700 / 1,700 W (Main), 750 / 1,400 W (Aux)
• Convection Element Watts: 2 x 1,500 W (Main), 1,550 W (Aux)
Electrical Information
Information
• Circuit Breaker: 40 A
• Volts: 208 V / 240 V
• Frequency: 60 Hz
• Plug Type / Cord Length: US 4-prong / 60" with plug
• NEMA: 14-50
• Volts: 208 V / 240 V
• Frequency: 60 Hz
• Plug Type / Cord Length: US 4-prong / 60" with plug
• NEMA: 14-50
Accessories
Included
• Temperature Probe
• LP Conversion Kit
• 2 Telescopic Racks
• Auxiliary Oven: 1 standard rack
• Anti-Tip Protection Kit
• LP Conversion Kit
• 2 Telescopic Racks
• Auxiliary Oven: 1 standard rack
• Anti-Tip Protection Kit
Dimensions
Class Width
48"
Width
47.91 inch(es) / 121.7 cm
Height
34.84 inch(es) / 88.5 cm
Depth (Without Handles)
24.76 inch(es) / 62.9 cm
Depth (Including Handles)
26.89 inch(es) / 68.3 cm
Weight
291.01 lb(s) / 132 kg
Additional Dimensions
• Required Cutout Size (H × W × D): 36" x 48" x 25"
• Adjustable Range Height: 34 13/16" Min. – 36 13/16" Max.
• Overall Oven Interior Dimensions (H × W × D) – Main Oven: 15.04" x 28.46" x 17.72"
• Overall Oven Interior Dimensions (H × W × D) – Auxiliary Oven: 17.80" x 10.75" x 16.54"
• Usable Oven Interior Dimensions (H × W × D) – Main Oven: 14.57" x 26.97" x 16.14"
• Usable Oven Interior Dimensions (H × W × D) – Auxiliary Oven: 13.94" x 9.33" x 14.76"<
• Adjustable Range Height: 34 13/16" Min. – 36 13/16" Max.
• Overall Oven Interior Dimensions (H × W × D) – Main Oven: 15.04" x 28.46" x 17.72"
• Overall Oven Interior Dimensions (H × W × D) – Auxiliary Oven: 17.80" x 10.75" x 16.54"
• Usable Oven Interior Dimensions (H × W × D) – Main Oven: 14.57" x 26.97" x 16.14"
• Usable Oven Interior Dimensions (H × W × D) – Auxiliary Oven: 13.94" x 9.33" x 14.76"<
