DESCRIPTION

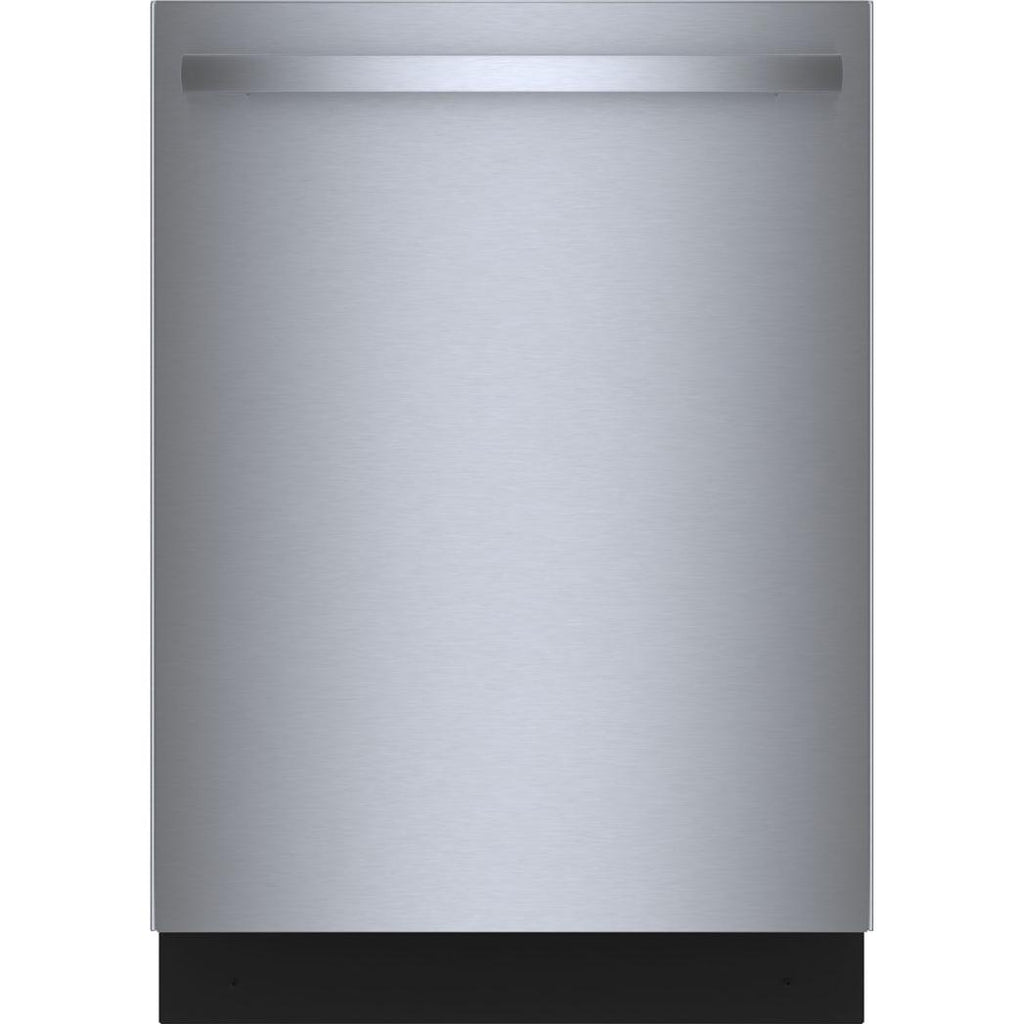

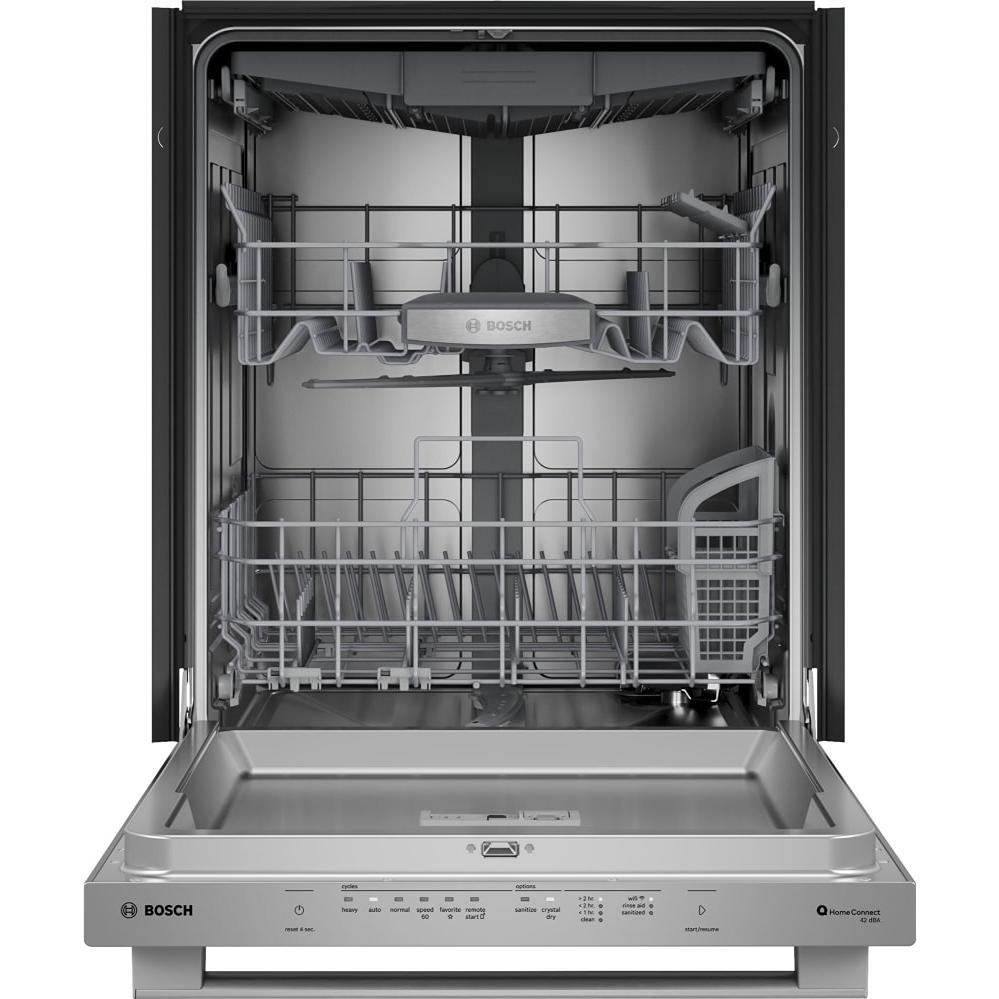

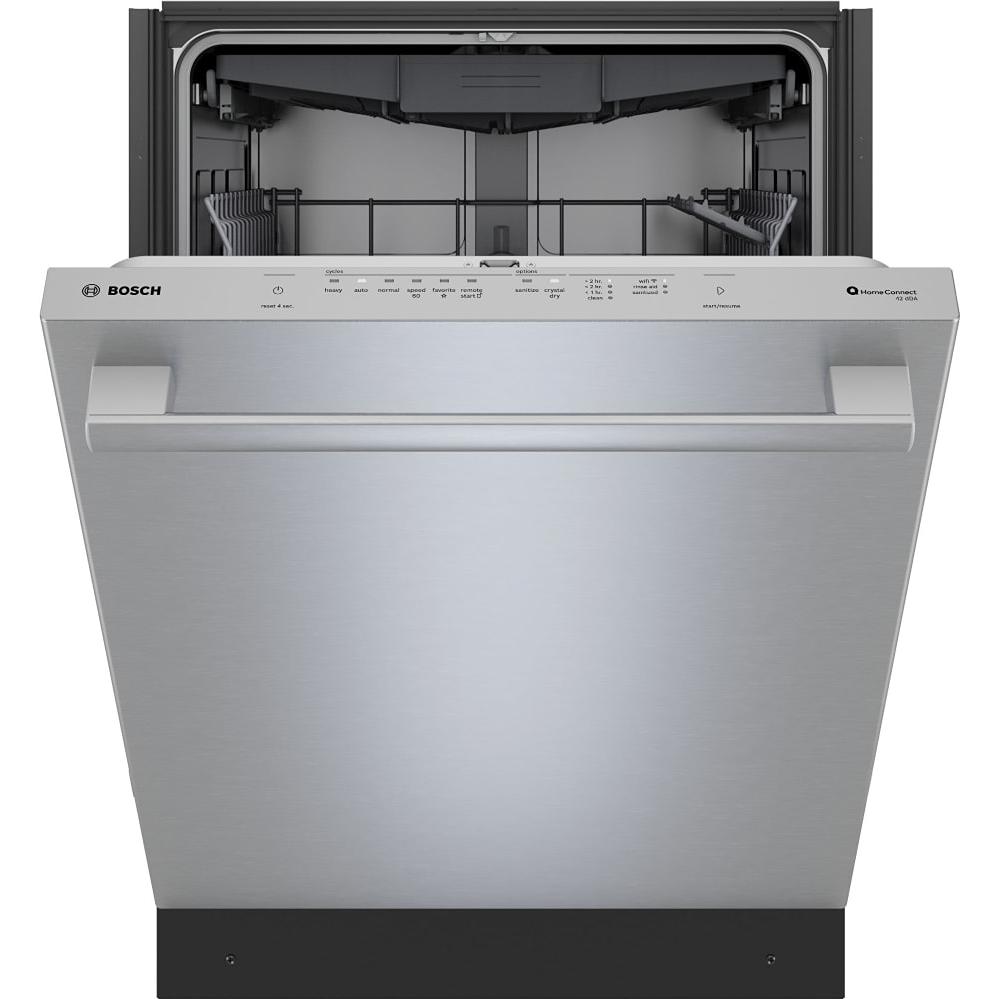

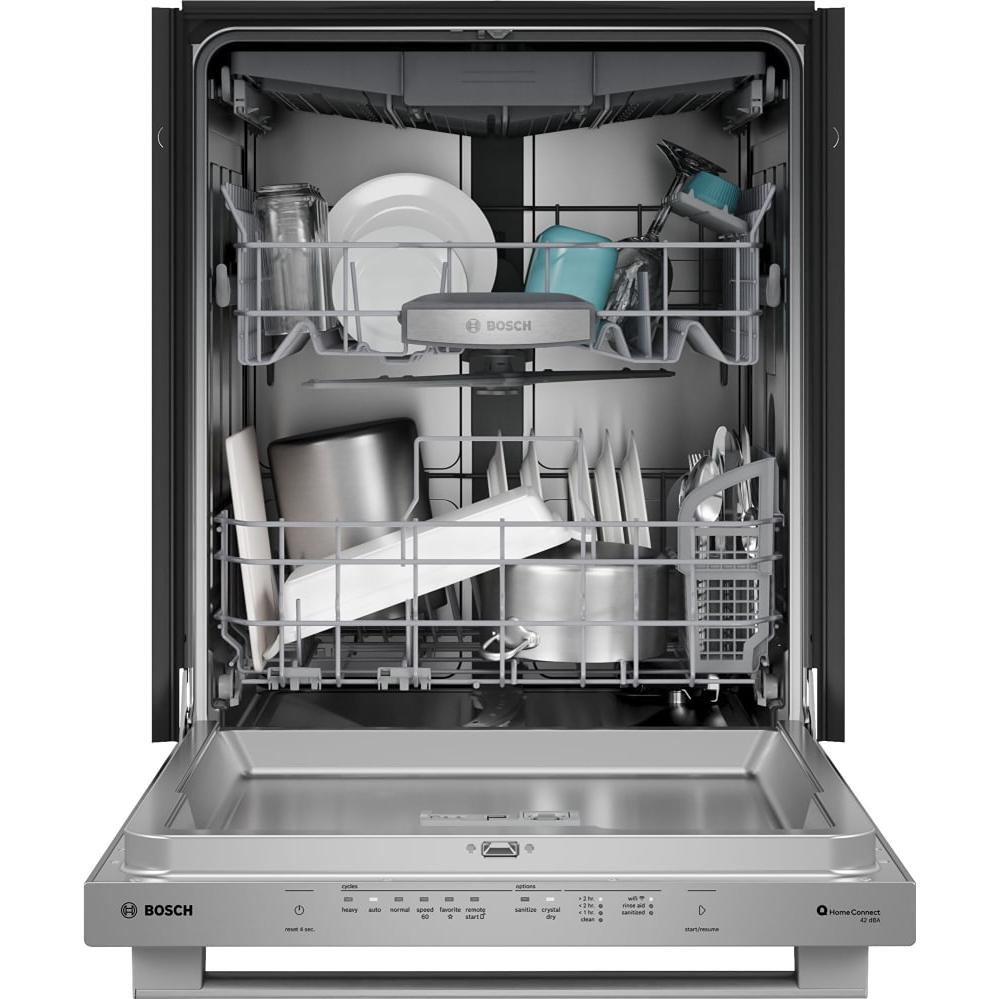

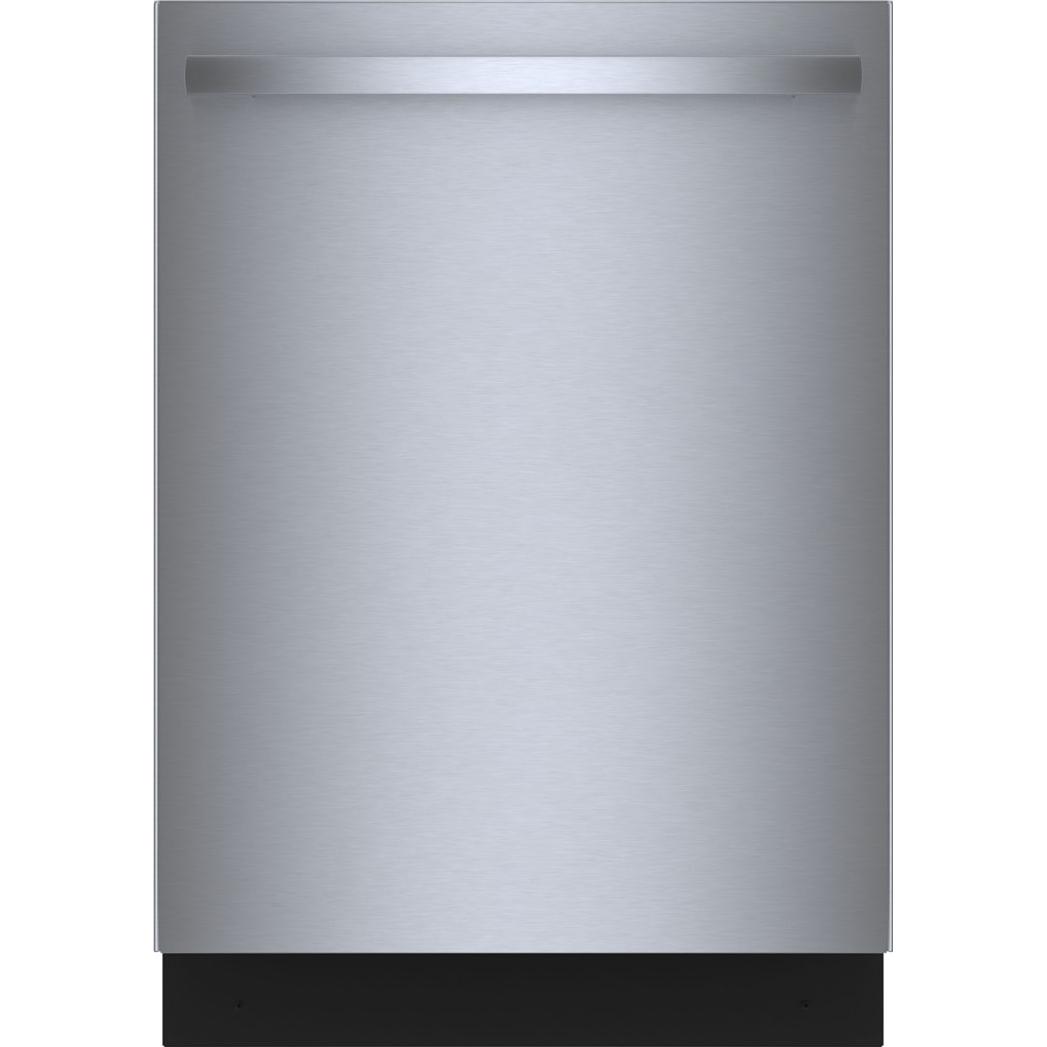

×The Bosch 800 Series 24-inch Top Control Dishwasher with bar handle delivers exceptional cleaning and drying performance with Patented CrystalDry™ technology, ensuring spotless, moisture-free dishes. With a 16 place setting capacity, it accommodates large loads effortlessly. Stay connected and in control with Wi-Fi-enabled Home Connect®, allowing remote monitoring and operation for ultimate convenience.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
8
Wash Cycles
• Wash cycles (control panel): 5 (Heavy, Auto, Normal, Speed60 (1hr Wash), Favorite)
• Additional wash cycles (in Home Connect®): 3 (Delicate, Rinse, MachineCare)
• Additional wash cycles (in Home Connect®): 3 (Delicate, Rinse, MachineCare)
Options
• Options (control panel): 3 (Sanitize, Remote Start, Crystal Dry)
• Additional options (in Home Connect®): 2 (Half Load, Eco)
• Additional options (in Home Connect®): 2 (Half Load, Eco)
Features
Technologies
• PrecisionWash® System
• CrystalDry™ System
• RackMatic®
• Leak protection system: 24/7 AquaStop®
• Home Connect® (Wi-Fi enabled)
• InfoLight®
• CrystalDry™ System
• RackMatic®
• Leak protection system: 24/7 AquaStop®
• Home Connect® (Wi-Fi enabled)
• InfoLight®
3rd Rack System
Yes
Wi-Fi
Yes
Additional Information
• Concealed water heating element
• Five-level wash
• Water usage per cycle: 3.2 gal
• Five-level wash
• Water usage per cycle: 3.2 gal
Electrical Information
Information
• Total annual energy consumption: 240 kWh
• 1440 W
• 12 A
• 120 V
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 45", Right – 56"
• 1440 W
• 12 A
• 120 V
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 45", Right – 56"
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Optional
• Junction Box SMZPCJB1UC
• Junction Box + Supply Hose Kit SMZ3IN1UC
• Supply Hose Kit with Elbow SMZSH1ABUC
• Drain Hose Extension Kit SGZ1010UC
• Dishwasher Accessory Kit SMZ5000
• Flexible Silverware Basket SMZ4000UC
• Anti-Tarnish Silverware Cassette SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
• Junction Box + Supply Hose Kit SMZ3IN1UC
• Supply Hose Kit with Elbow SMZSH1ABUC
• Drain Hose Extension Kit SGZ1010UC
• Dishwasher Accessory Kit SMZ5000
• Flexible Silverware Basket SMZ4000UC
• Anti-Tarnish Silverware Cassette SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.54 inch(es) / 59.8 cm
Height (Min.)
33.86 inch(es) / 86.0 cm
Depth (Without Handle)
23.7 inch(es) / 60.2 cm
Weight
95.99 lb(s) / 43.54 kg
Additional Dimensions
Required cutout size (HxWxD): 33 7/8" x 24" x 24"
