DESCRIPTION

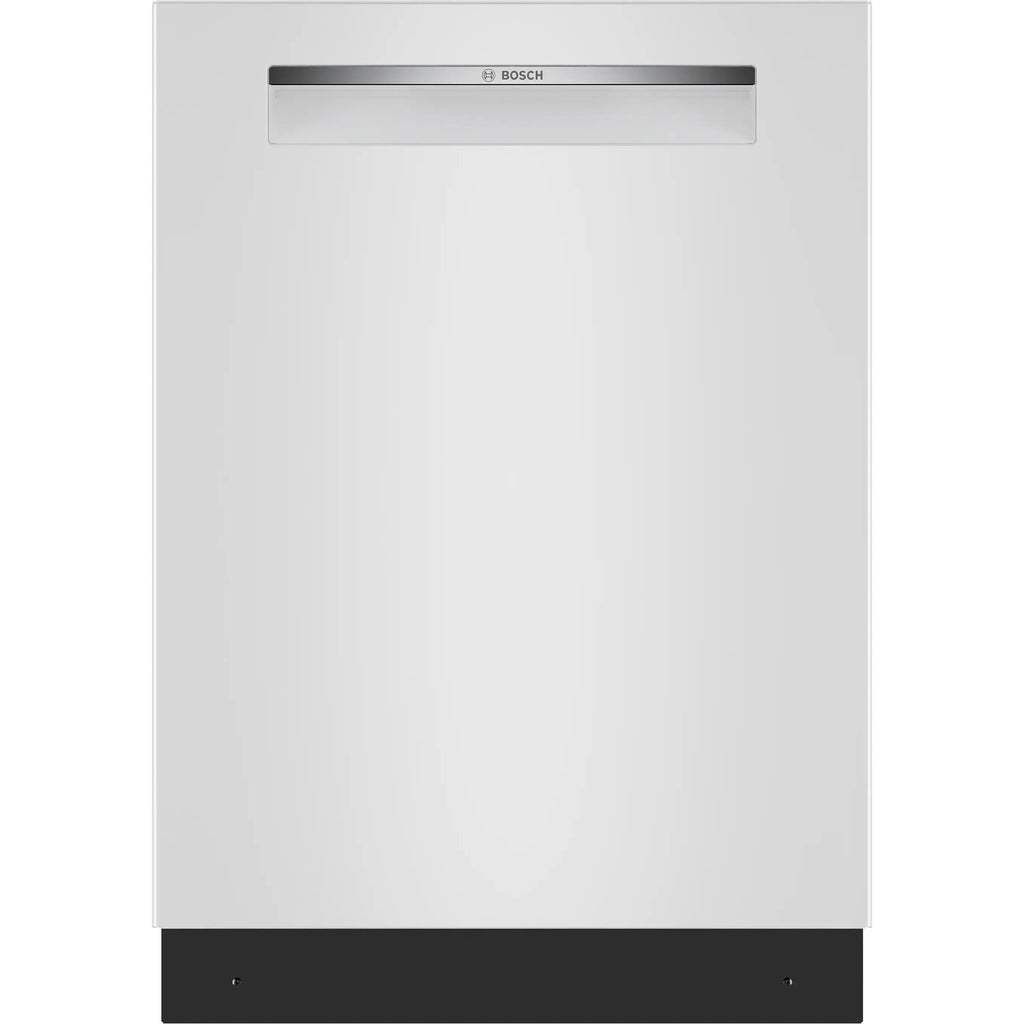

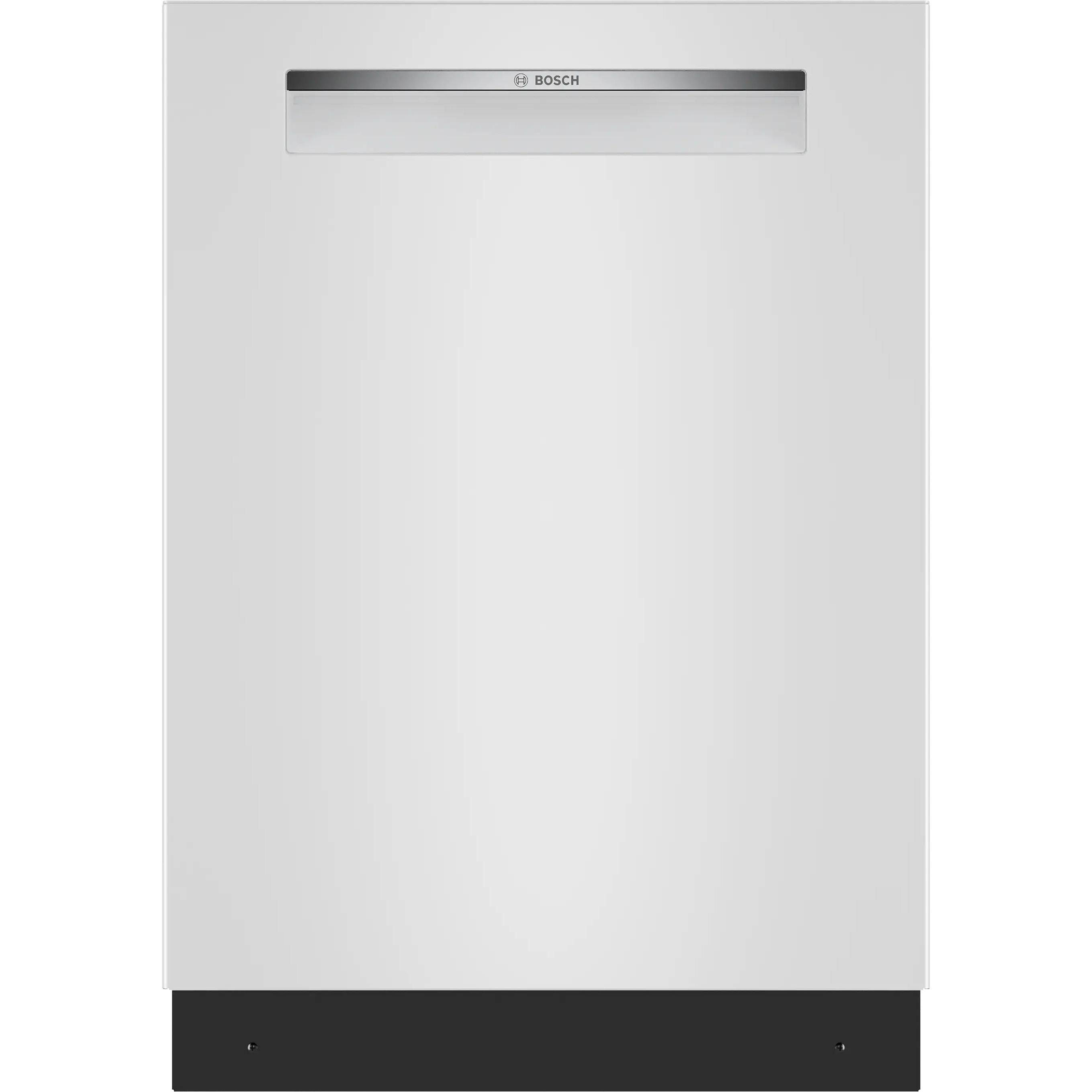

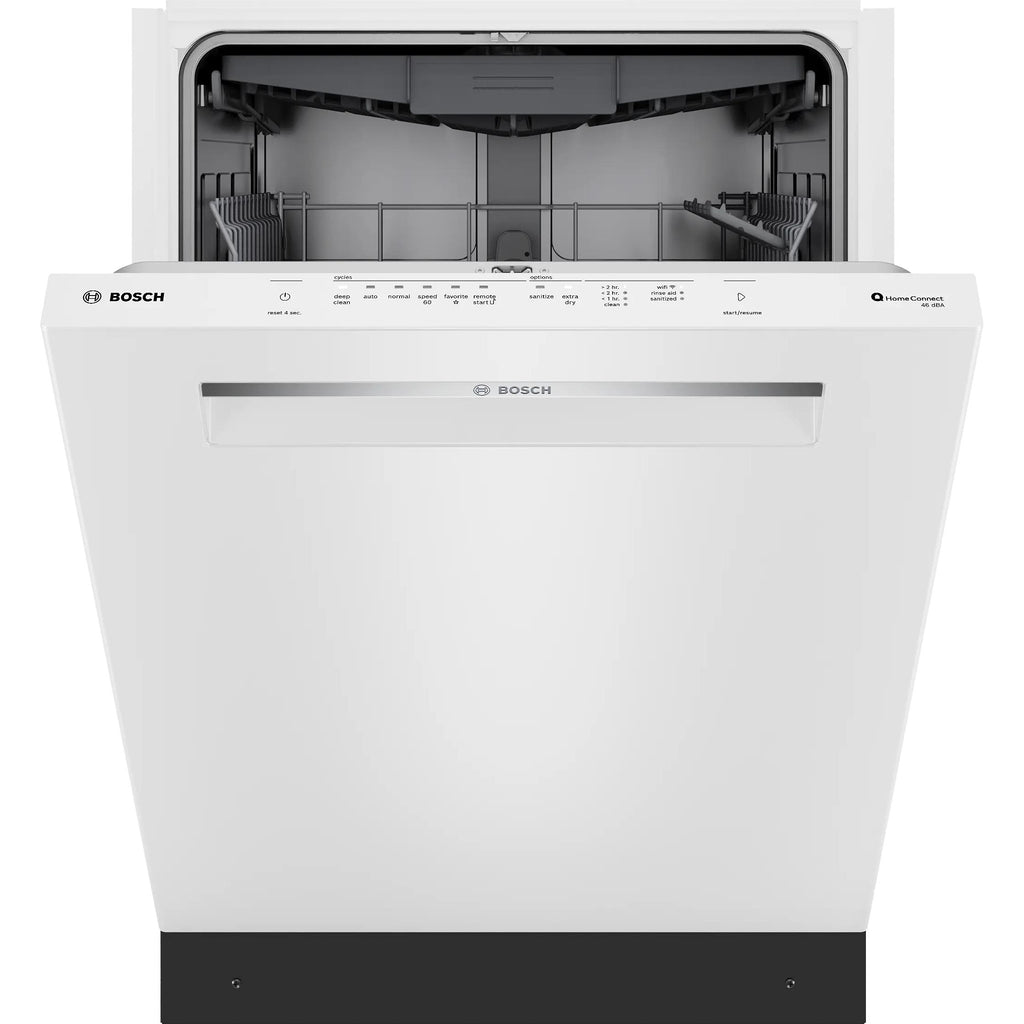

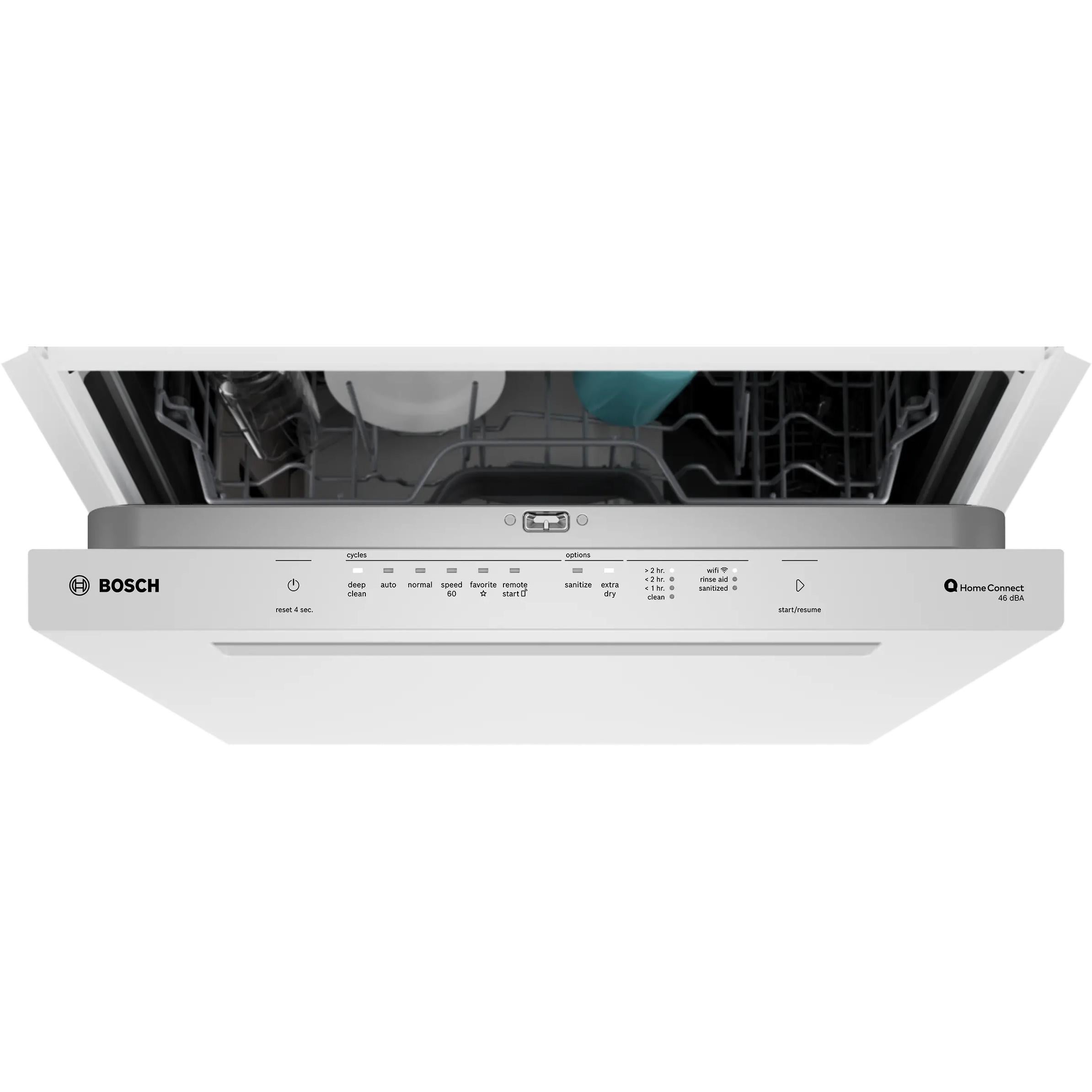

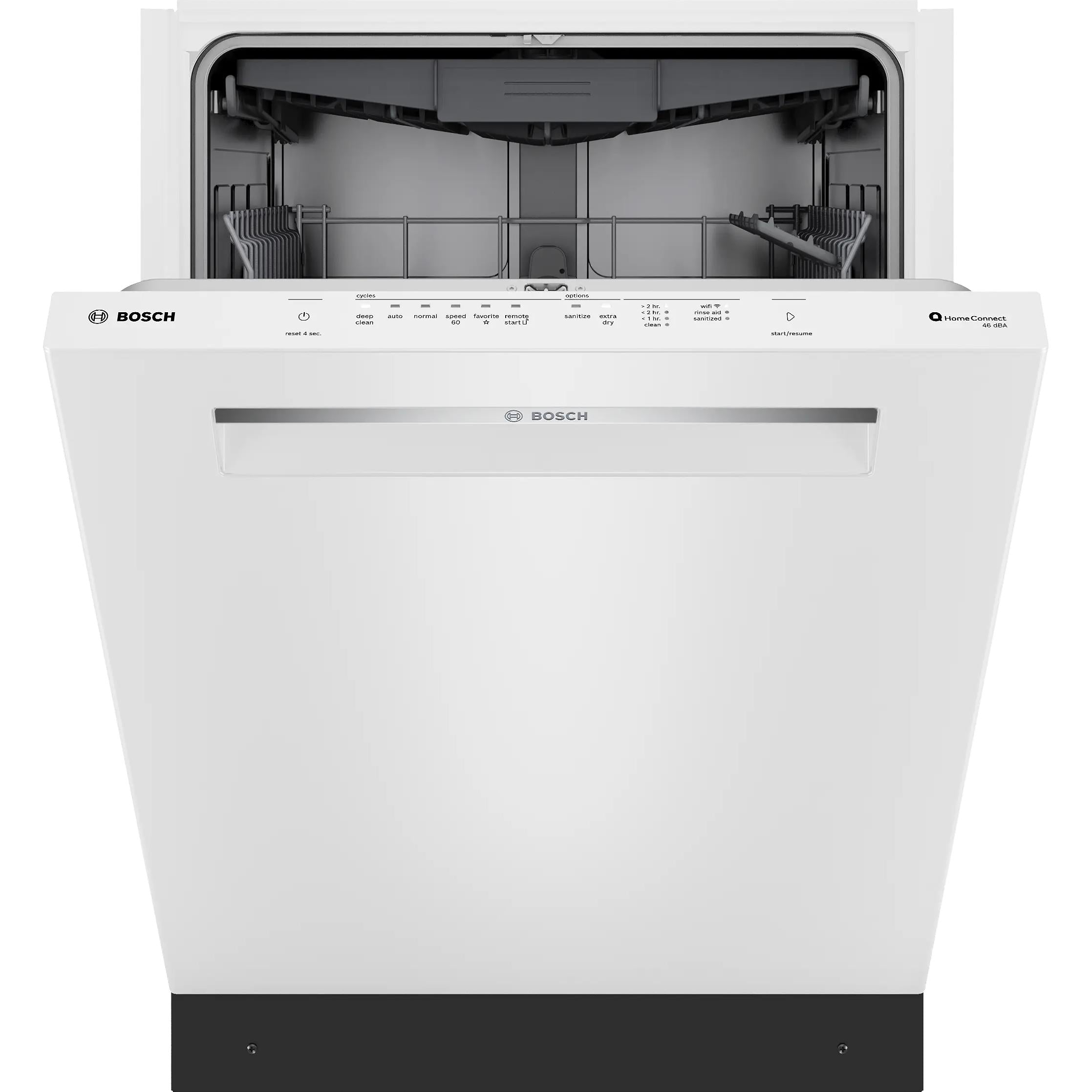

×Bosch built-in top control dishwasher features a standard 3rd rack, Home Connect® and can accommodate up to 15 place settings.
SPECIFICATIONS
×
Specifications
General
Series Name
300 Series
Type
Built-In
Color
White
Manufacturer Color
White
Place Settings
15
Tub Material
Stainless Steel
Silence Rating
46 dB
Cycle Information
Number of Cycles
8
Wash Cycles
• Wash cycles (control panel): 5 (Deep Clean, Auto, Normal, Speed60 – 1-hour wash, Favorite)
• Additional wash cycles (in Home Connect®): 3 (Delicate, Rinse, MachineCare)
• Additional wash cycles (in Home Connect®): 3 (Delicate, Rinse, MachineCare)
Options
• Options (control panel): 3 (Sanitize, Remote Start, ExtraDry)
• Additional options (in Home Connect®): 3 (Half Load, Eco, Zone Wash)
• Additional options (in Home Connect®): 3 (Half Load, Eco, Zone Wash)
Features
Technologies
• PureDry®
• Wi-Fi
• 24/7 AquaStop®

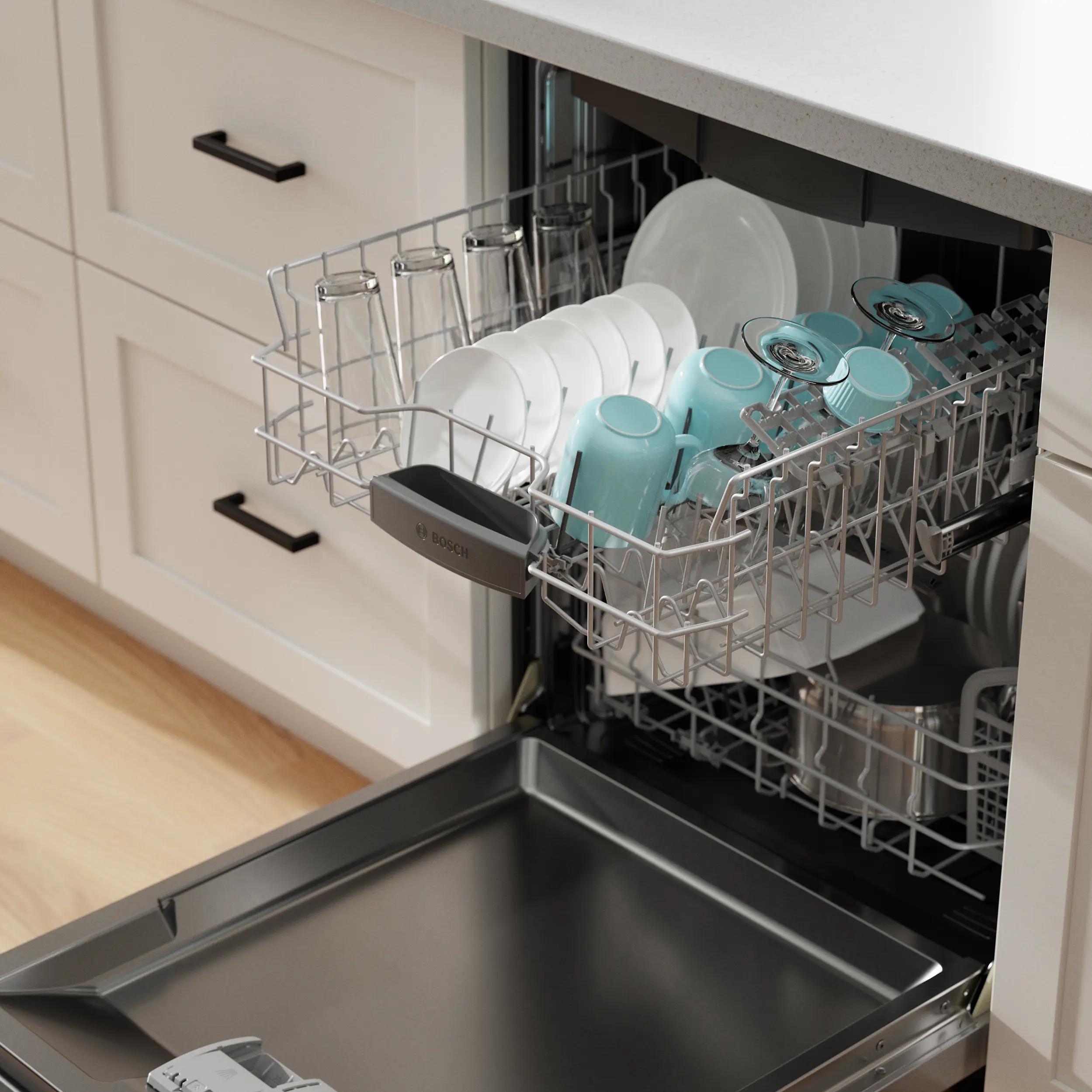

• Rackmatic®
• InfoLight®
• Home Connect®
• Wi-Fi
• 24/7 AquaStop®
• Rackmatic®
• InfoLight®
• Home Connect®

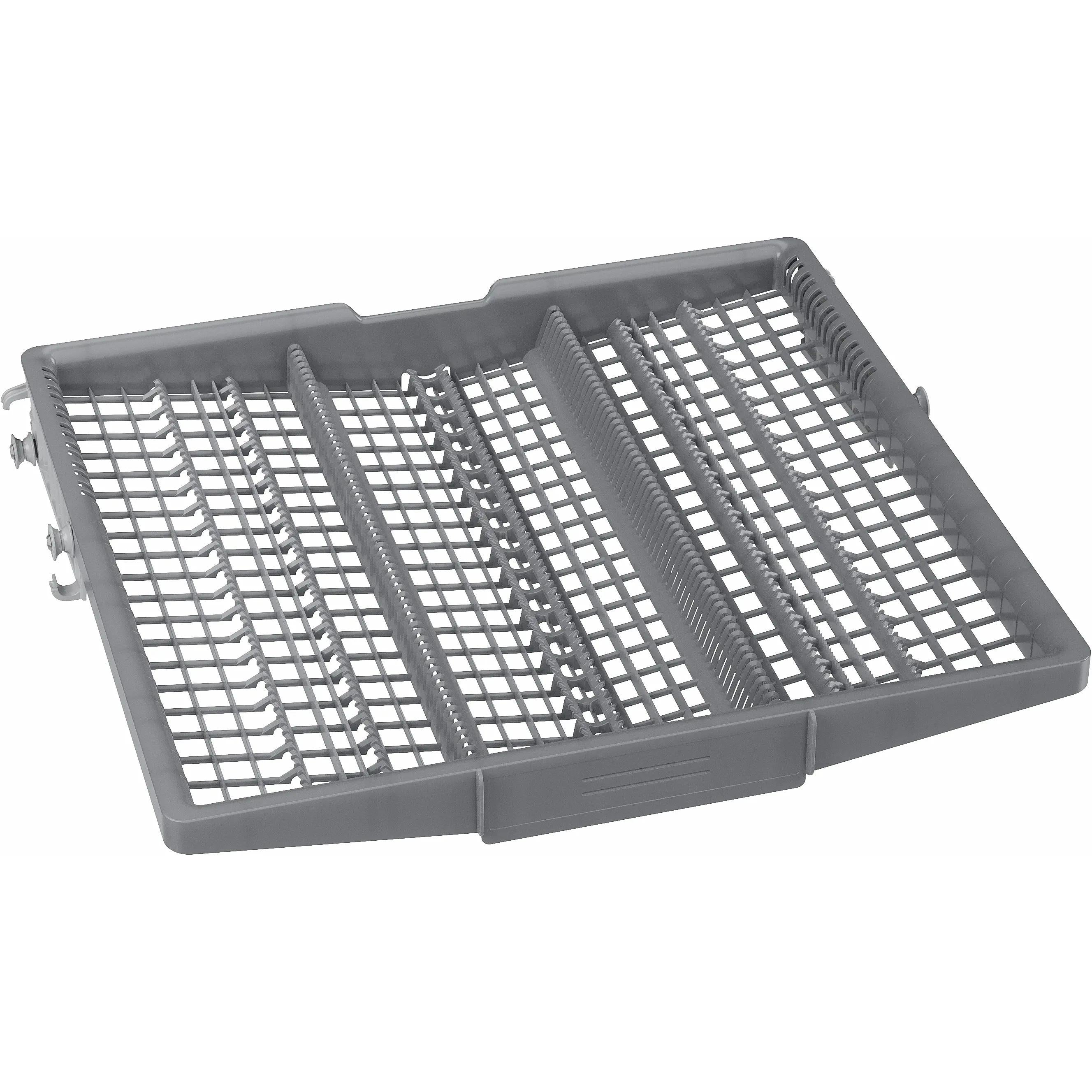

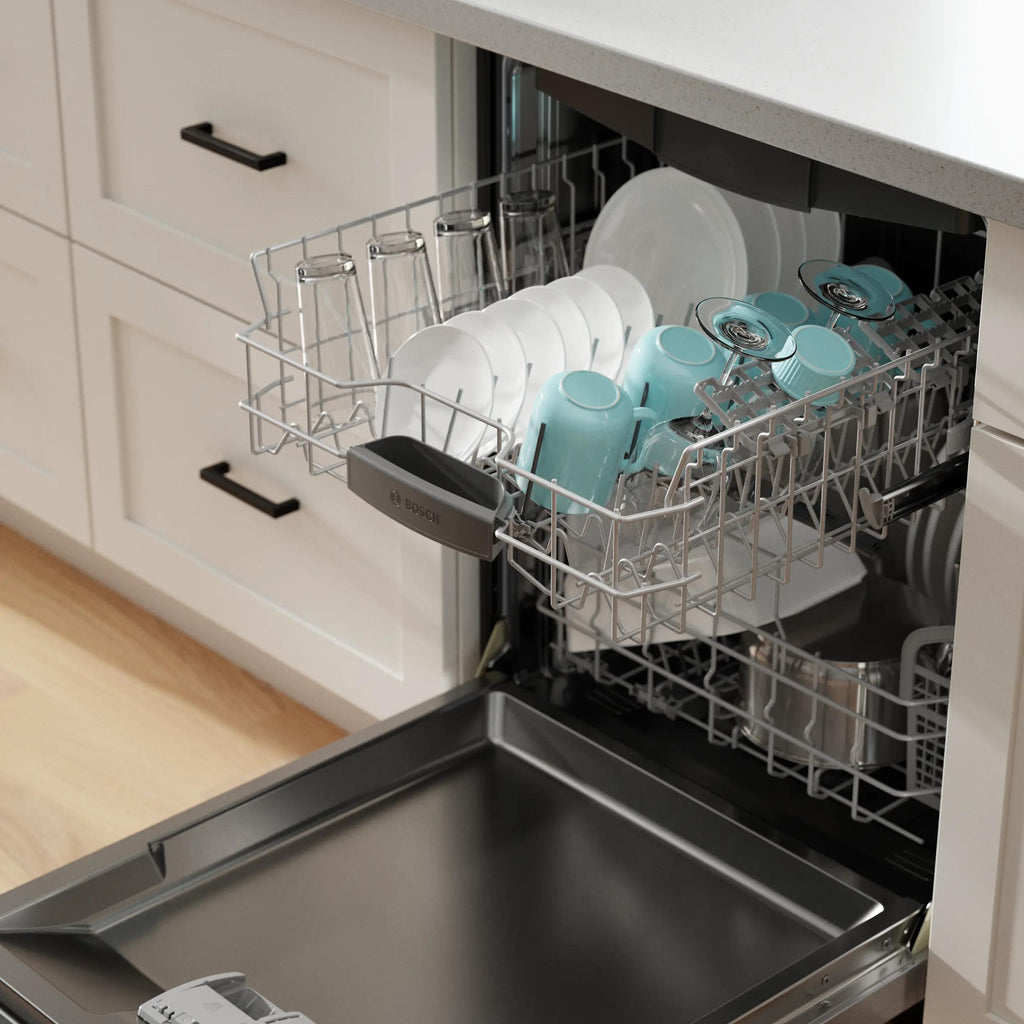

3rd Rack System
Yes
Filtration System
Yes

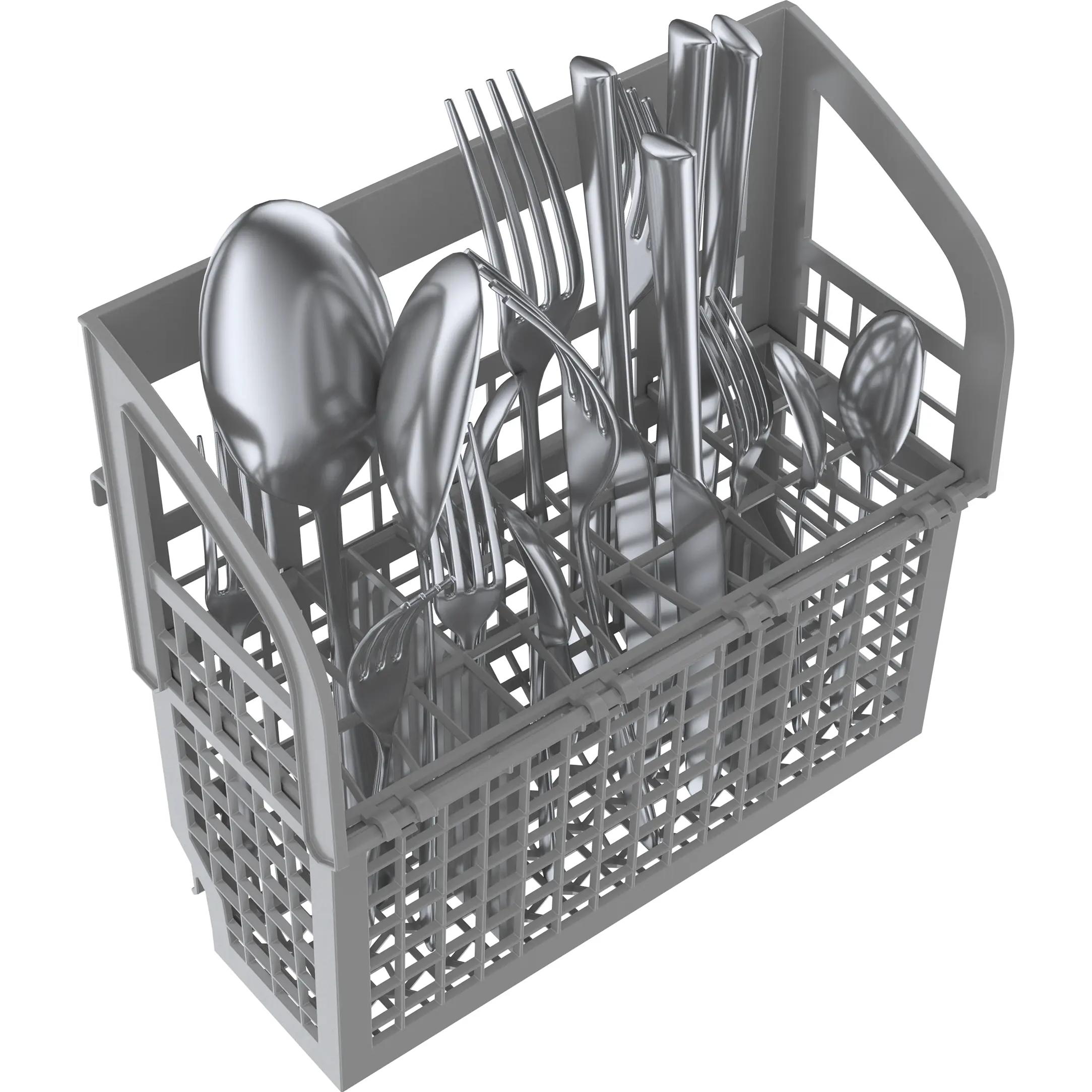

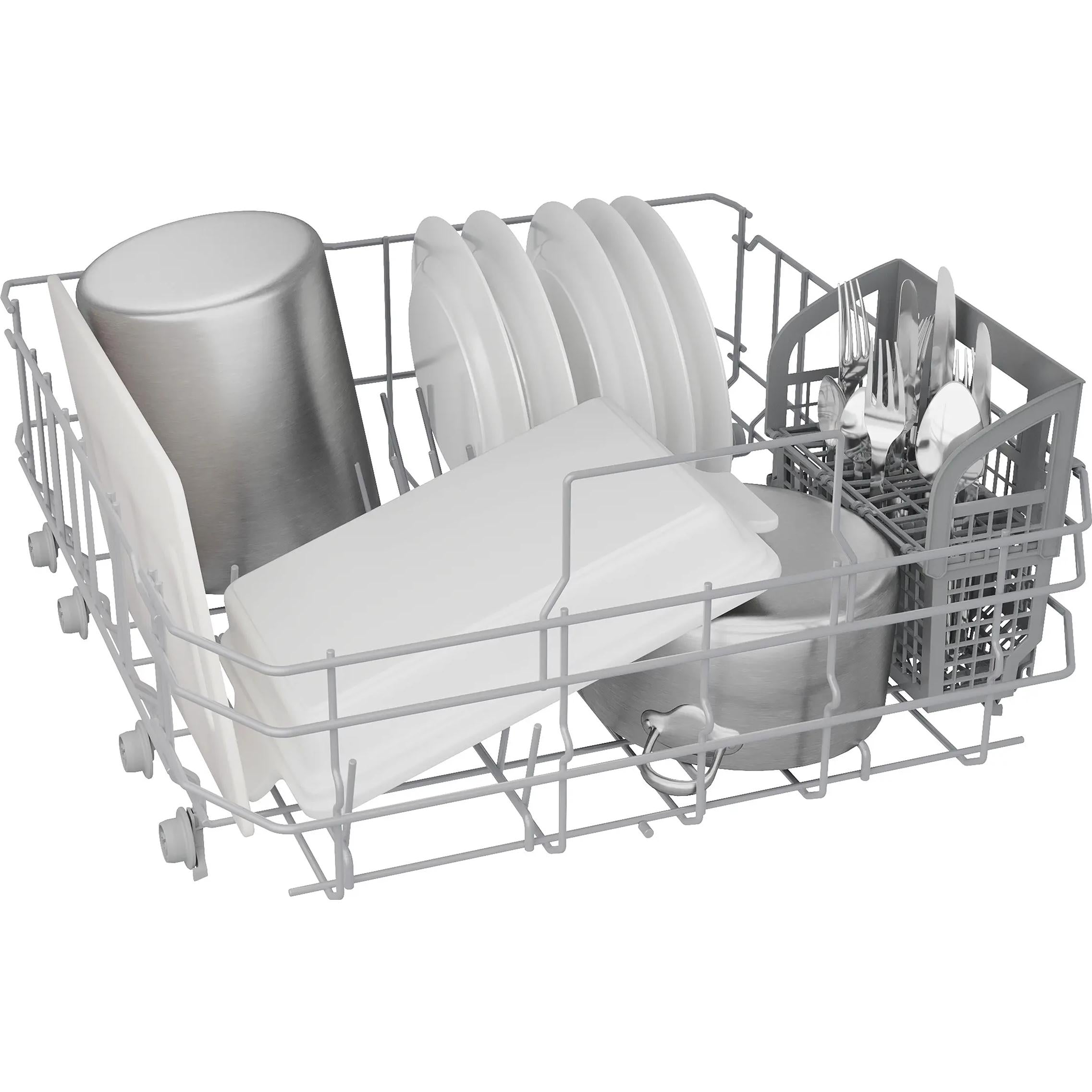

Silverware Basket
Yes
Wi-Fi
Yes
Additional Information

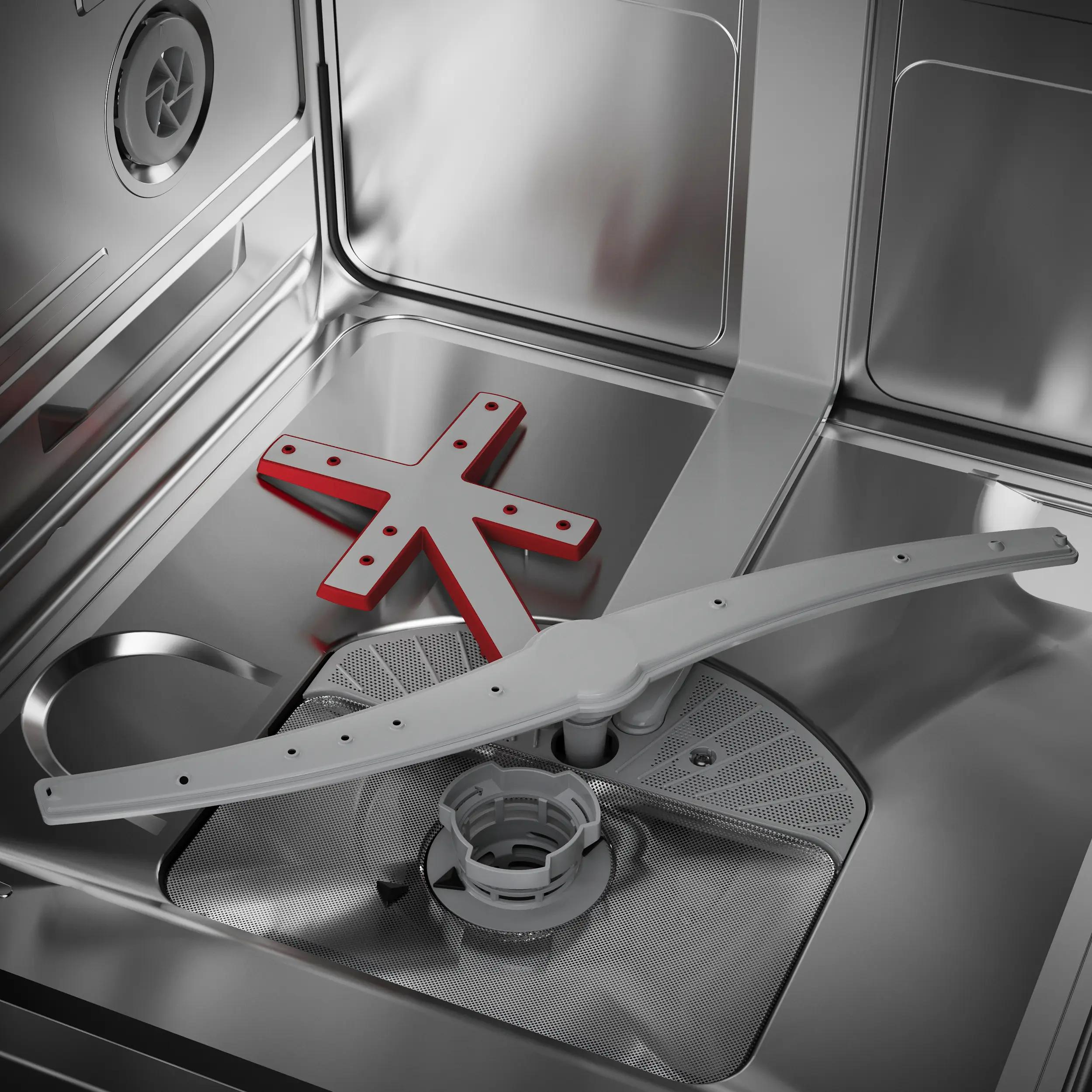

• Wash system: Zone Wash

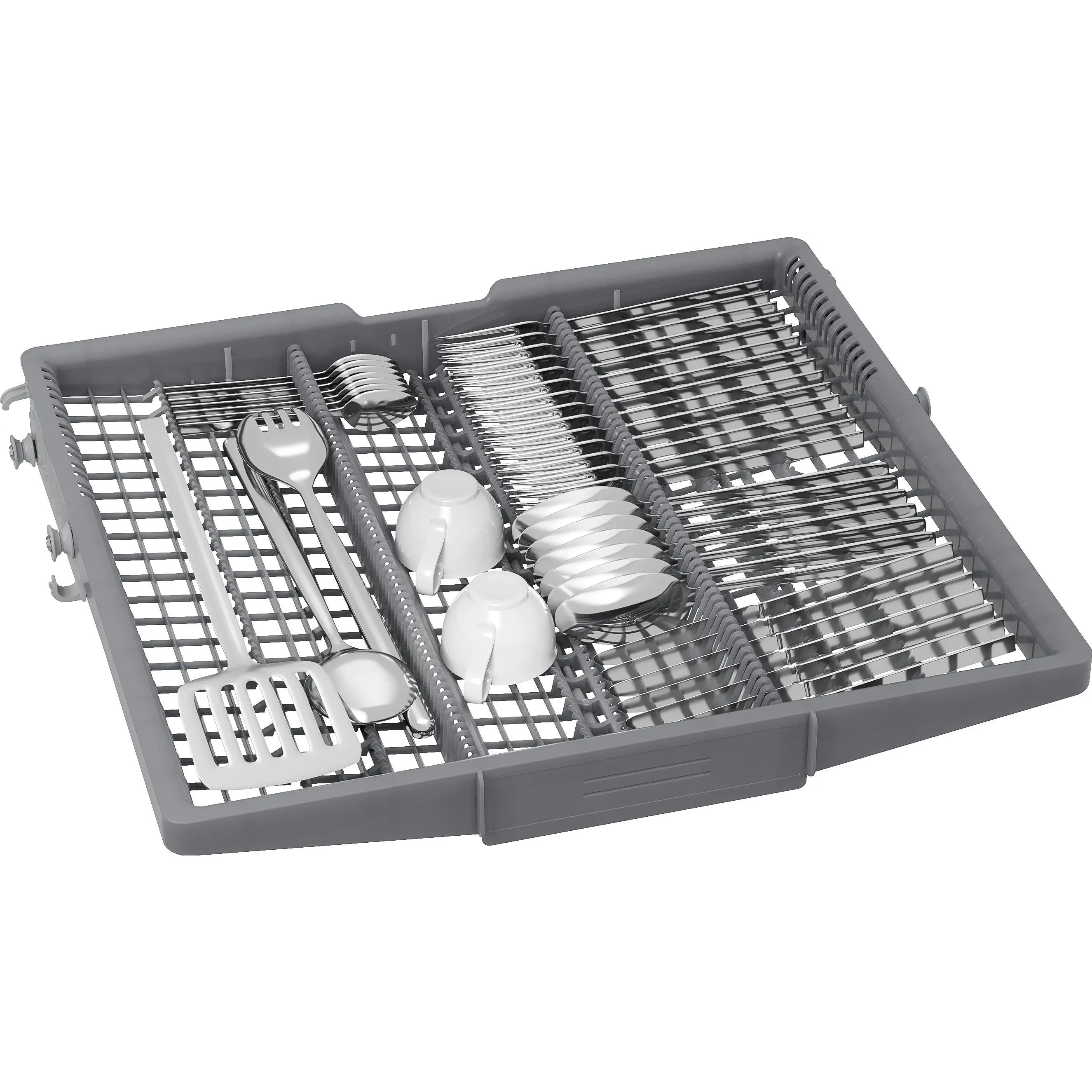

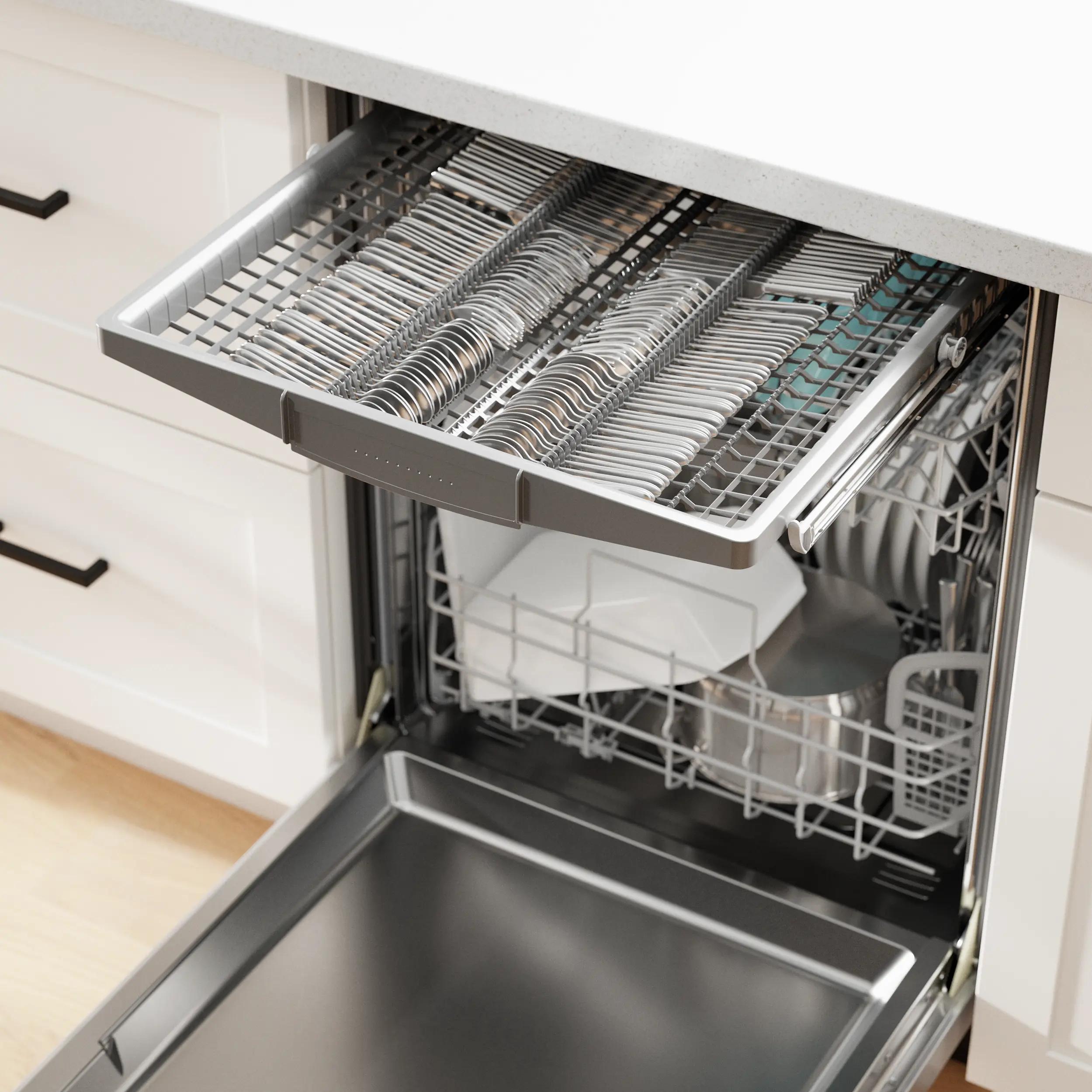

• Third rack: Standard 3rd Rack
• Concealed water heating element
• Five-level wash
• Water usage per cycle: 3.2 gal
• Third rack: Standard 3rd Rack
• Concealed water heating element
• Five-level wash
• Water usage per cycle: 3.2 gal
Electrical Information
Information
• Total annual energy consumption: 240 kWh
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Power cord full length: 67"
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Power cord full length: 67"
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Optional
• Junction Box: SMZPCJB1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.43 inch(es) / 59.5 cm
Height (Min.)
33.86 inch(es) / 86.0 cm
Depth (Without Handle)
23.7 inch(es) / 60.2 cm
