DESCRIPTION

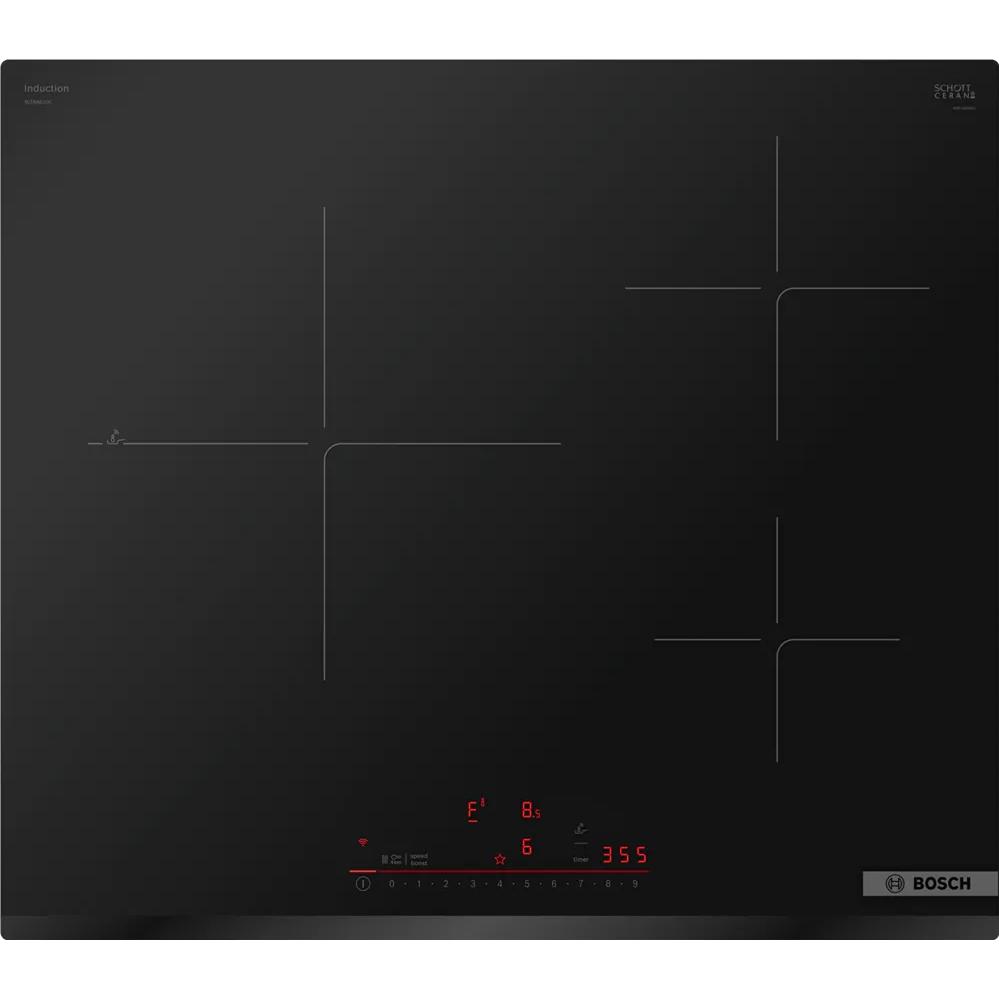

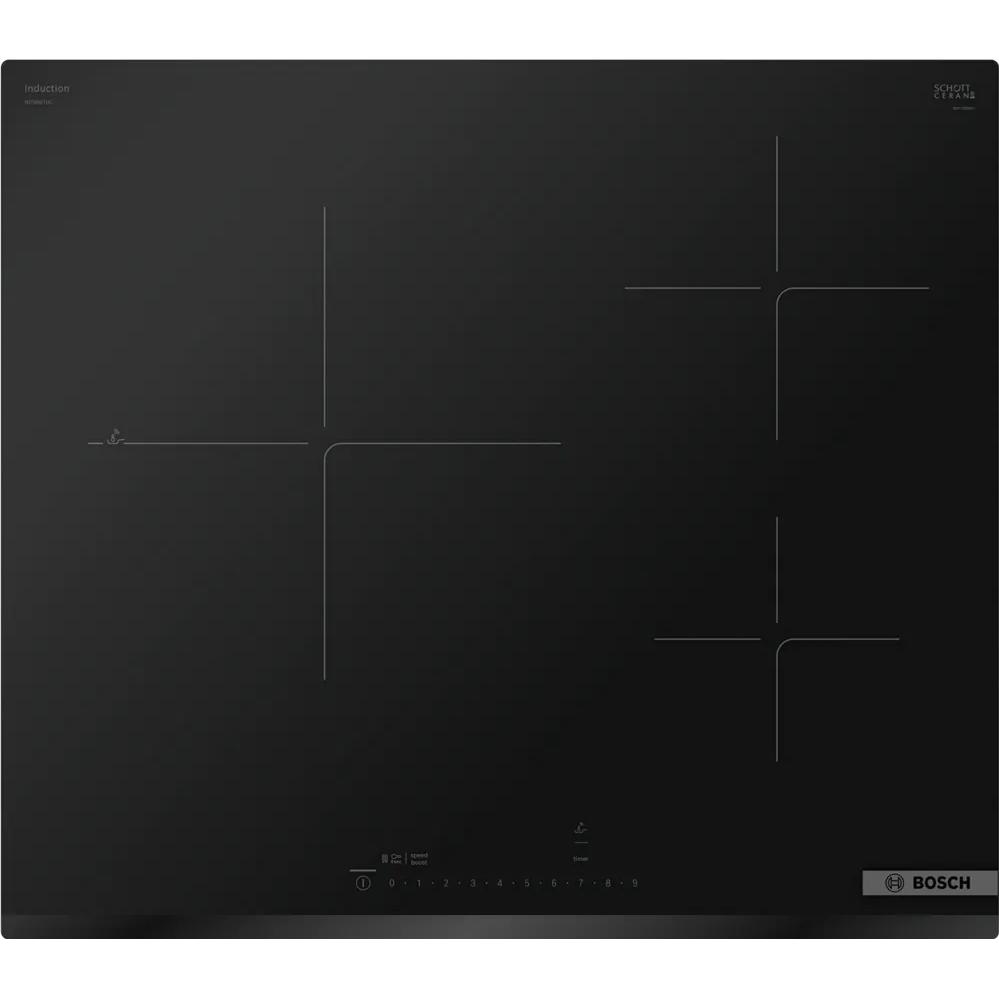

×Bosch 800 Series 24-inch induction cooktop transfers energy to heat your pan directly, making cooking faster and more energy efficient.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800 Series
Color
Black
Manufacturer Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
3
Power Output
• Power Of Back Left Heating Element: 2,600 W
• Power Of Back Left Heating Element (In Boost): 3,600 W
• Power Of Back Right Heating Element: 1,800 W
• Power Of Back Right Heating Element (In Boost): 3,100 W
• Power Of Front Right Heating Element: 1,400 W
• Power Of Front Right Heating Element (In Boost): 2,200 W
• Power Of Back Left Heating Element (In Boost): 3,600 W
• Power Of Back Right Heating Element: 1,800 W
• Power Of Back Right Heating Element (In Boost): 3,100 W
• Power Of Front Right Heating Element: 1,400 W
• Power Of Front Right Heating Element (In Boost): 2,200 W
Burner/Element Size
• Dimension Of Back Left Heating Element: 11"
• Dimension Of Back Right Heating Element: 7"
• Dimension Of Front Right Heating Element: 6"
• Dimension Of Back Right Heating Element: 7"
• Dimension Of Front Right Heating Element: 6"
Elements
Smoothtop
Features
Technologies
• AutoChef®
• Home Connect
• Induction Technology
• Home Connect
• Induction Technology
Wi-Fi
Yes
Digital Display
Yes
Electrical Information
Information
• 6,240 / 7,200 W
• 30 A
• 208 / 240 V
• 60 Hz
• Power Cord Length: 37"
• 30 A
• 208 / 240 V
• 60 Hz
• Power Cord Length: 37"
Certifications and Approvals
ADA Compliant
Yes
Dimensions
Class Width
24"
Width
23.31 inch(es) / 59.2 cm
Height
4.13 inch(es) / 10.5 cm
Depth
20.55 inch(es) / 52.2 cm
Weight
31 lb(s) / 14.06 kg
Additional Dimensions
• Required Cutout Size (HxWxD): 4 1/8" x 22" x 19 1/4"
• Minimum Distance From Counter Front: 2 1/4"
• Minimum Distance From Rear Wall: 2"
• Minimum Distance From Counter Front: 2 1/4"
• Minimum Distance From Rear Wall: 2"
