DESCRIPTION

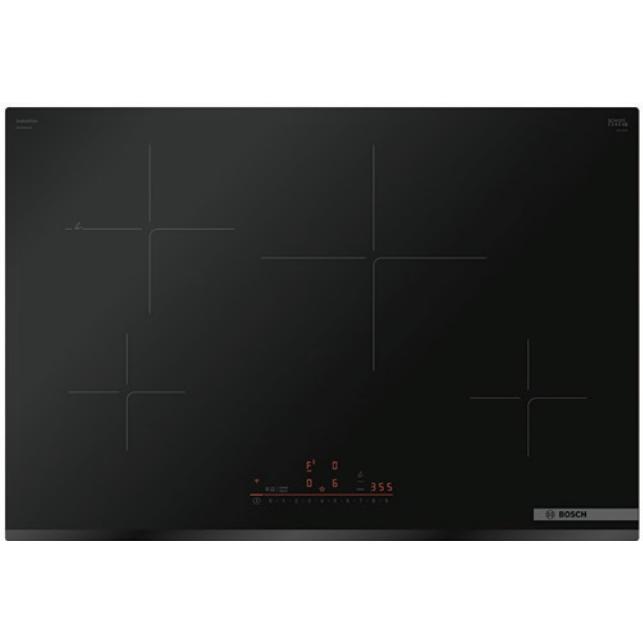

×Bosch 800 Series 30-inch induction cooktop transfers energy to heat your pan directly, making cooking faster and more energy efficient.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800 Series
Color
Black
Manufacturer Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Power Of Front Left Heating Element: 1,400 W
• Power Of Front Left Heating Element (In Boost): 2,200 W
• Power Of Back Left Heating Element: 2,200 W
• Power Of Back Left Heating Element (In Boost): 3,600 W
• Power Of Back Right Heating Element: 2,600 W
• Power Of Back Right Heating Element (In Boost): 3,600 W
• Power Of Front Right Heating Element: 1,400 W
• Power Of Front Right Heating Element (In Boost): 2,200 W
• Power Of Front Left Heating Element (In Boost): 2,200 W
• Power Of Back Left Heating Element: 2,200 W
• Power Of Back Left Heating Element (In Boost): 3,600 W
• Power Of Back Right Heating Element: 2,600 W
• Power Of Back Right Heating Element (In Boost): 3,600 W
• Power Of Front Right Heating Element: 1,400 W
• Power Of Front Right Heating Element (In Boost): 2,200 W
Burner/Element Size
• Dimension Of Front Left Heating Element: 6"
• Dimension Of Back Left Heating Element: 9"
• Dimension Of Back Right Heating Element: 11"
• Dimension Of Front Right Heating Element: 6"
• Dimension Of Back Left Heating Element: 9"
• Dimension Of Back Right Heating Element: 11"
• Dimension Of Front Right Heating Element: 6"
Elements
Smoothtop
Features
Technologies
• AutoChef®
• Home Connect
• Induction Technology
• Home Connect
• Induction Technology
Wi-Fi
Yes
Digital Display
Yes
Electrical Information
Information
• 6,240 / 7,200 W
• 30 A
• 208 / 240 V
• 60 Hz
• Power Cord Length: 37"
• 30 A
• 208 / 240 V
• 60 Hz
• Power Cord Length: 37"
Certifications and Approvals
ADA Compliant
Yes
Dimensions
Class Width
30"
Width
31.02 inch(es) / 78.8 cm
Height
4.13 inch(es) / 10.5 cm
Depth
21.26 inch(es) / 54.0 cm
Weight
36.99 lb(s) / 16.78 kg
Additional Dimensions
• Required Cutout Size (HxWxD): 4 1/8" X 28 7/8" X 20"
• Minimum Distance From Counter Front: 2 1/4"
• Minimum Distance From Rear Wall: 2"
• Minimum Distance From Counter Front: 2 1/4"
• Minimum Distance From Rear Wall: 2"
