DESCRIPTION

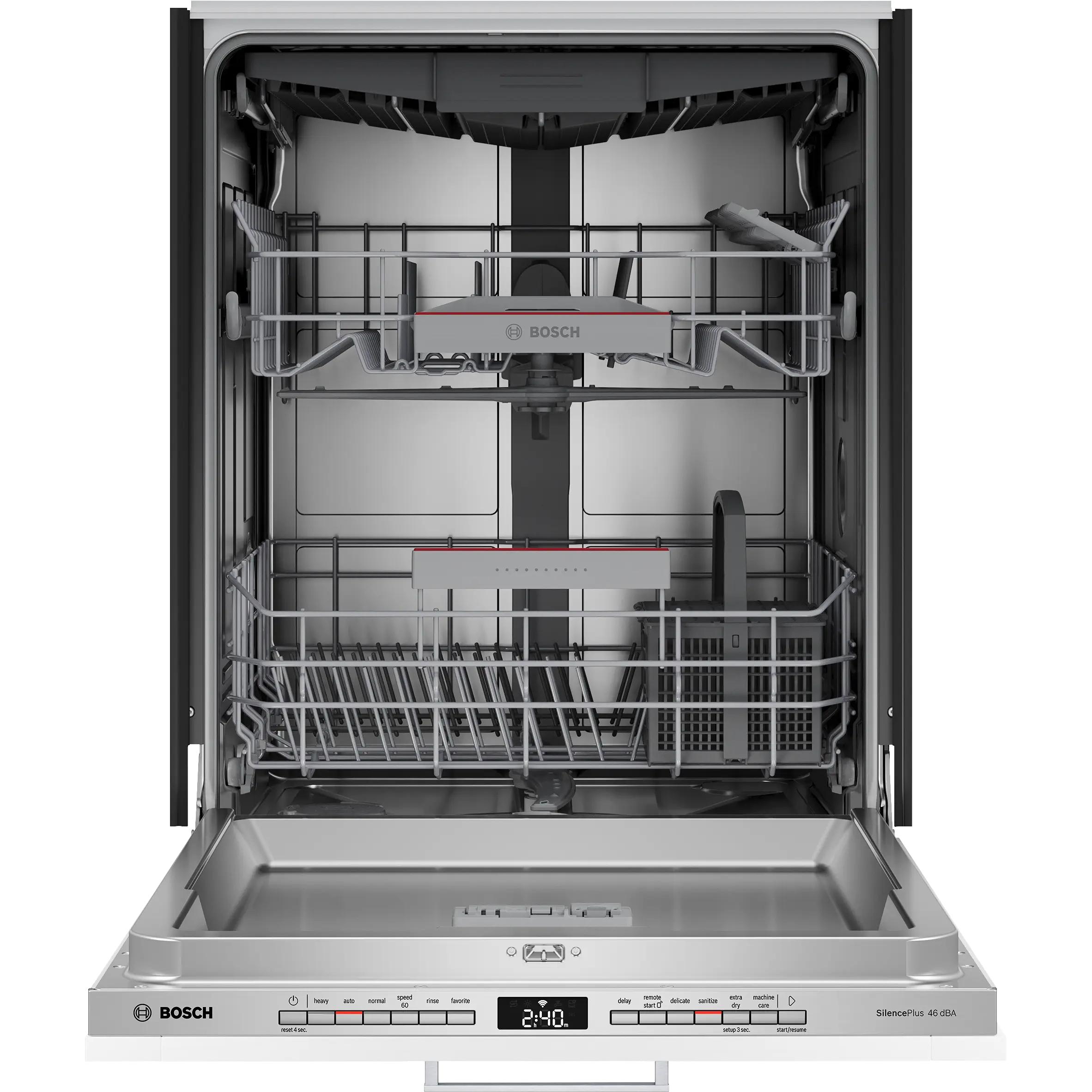

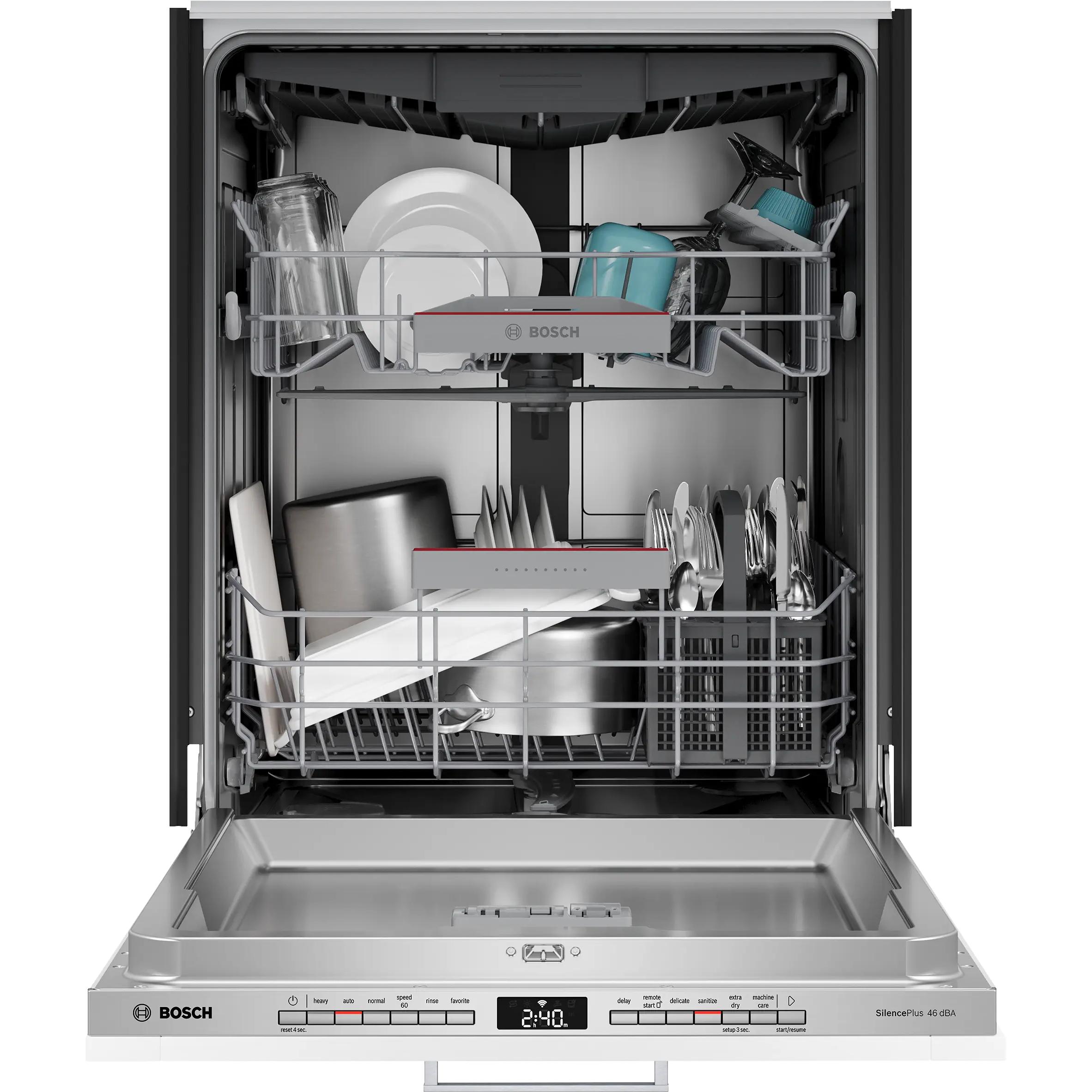

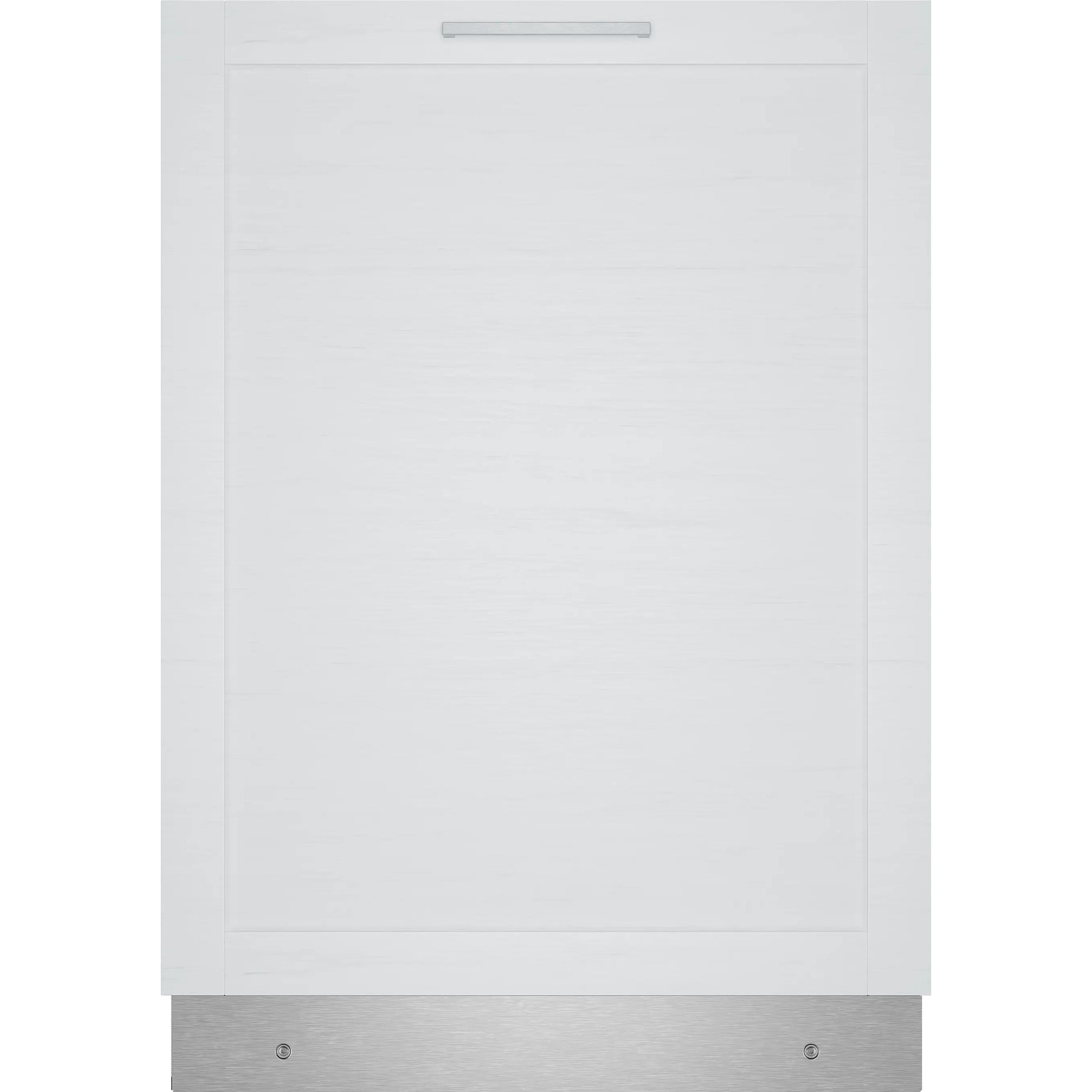

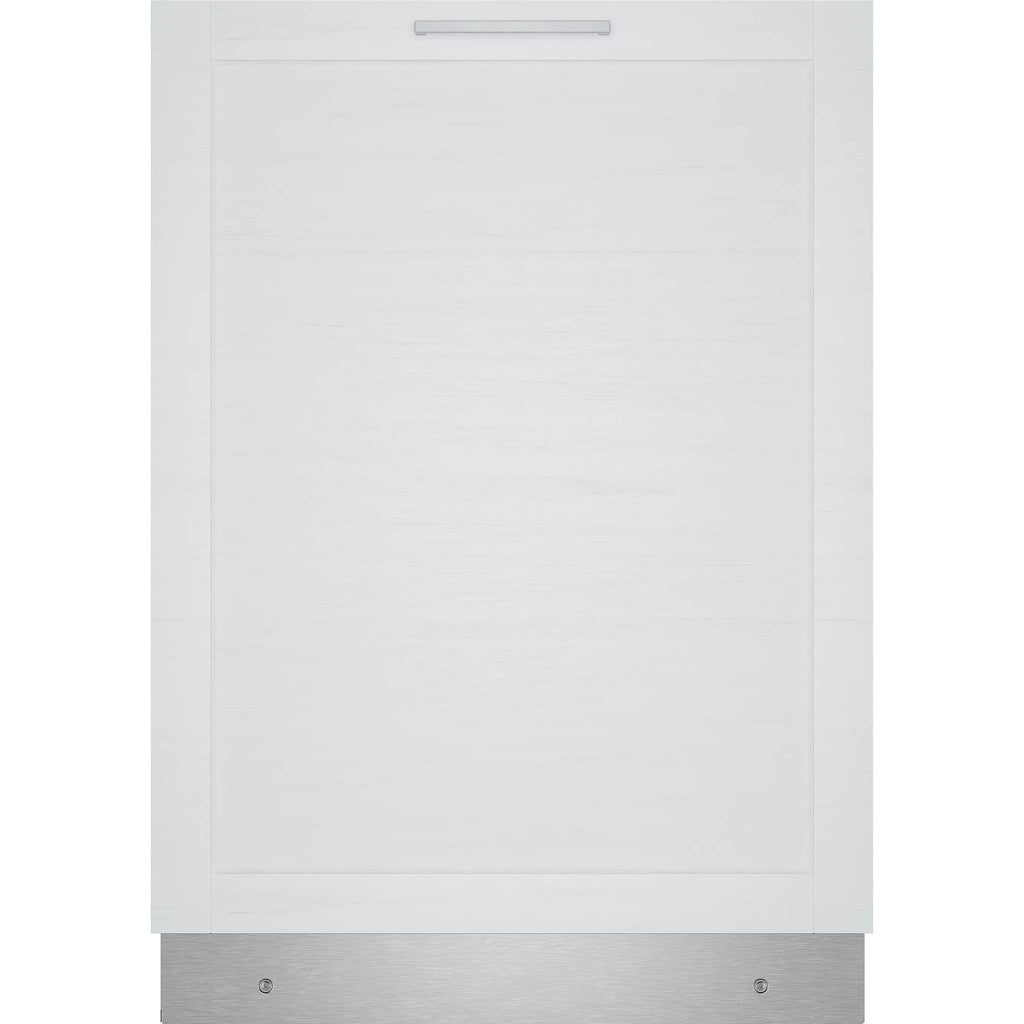

×This Bosch 24-inch top control dishwasher features PrecisionWash®, PureDry®, Rackmatic®, and can accommodate up to 15 place settings. (Panel Sold Separately)
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
300 Series
Type
Built-In
Color

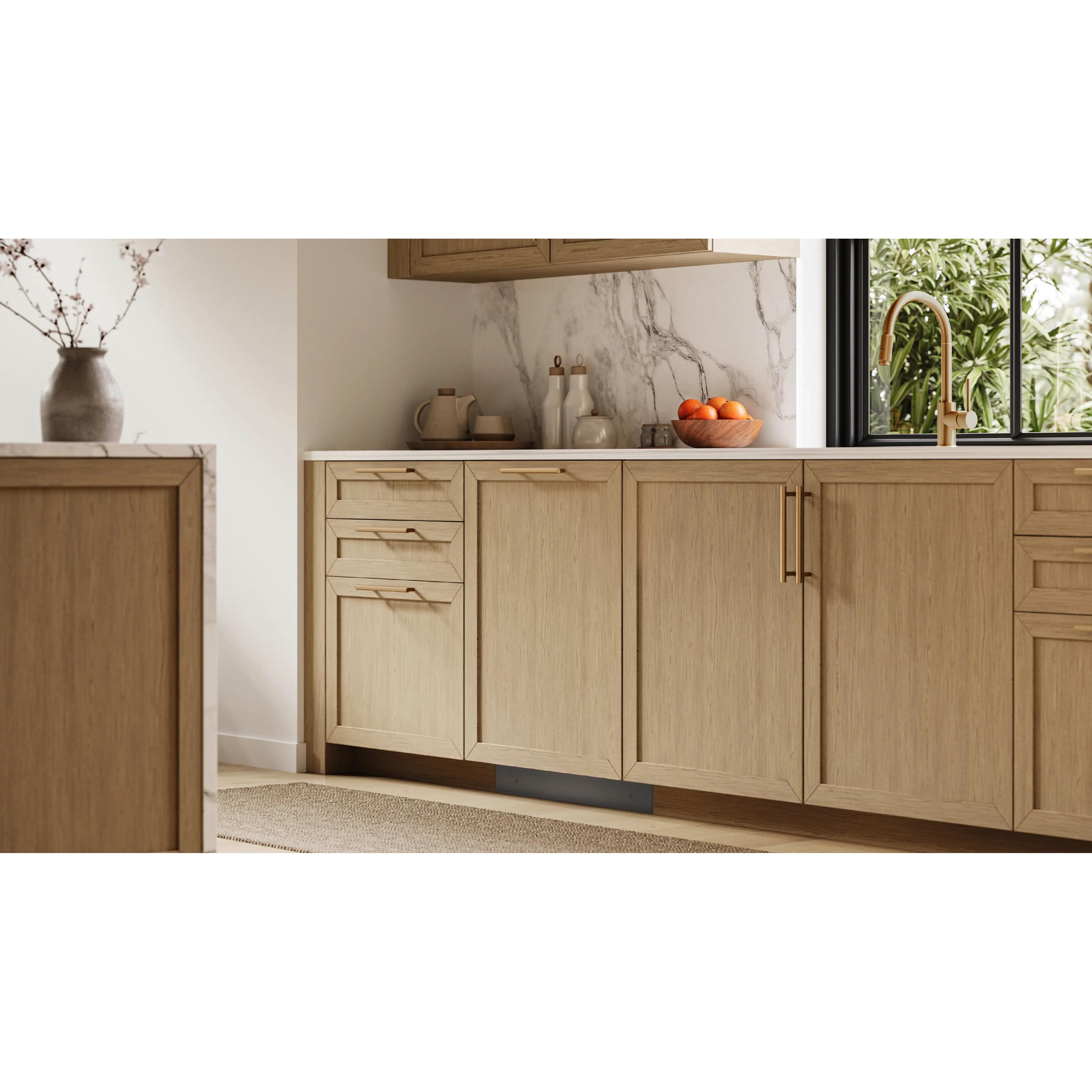

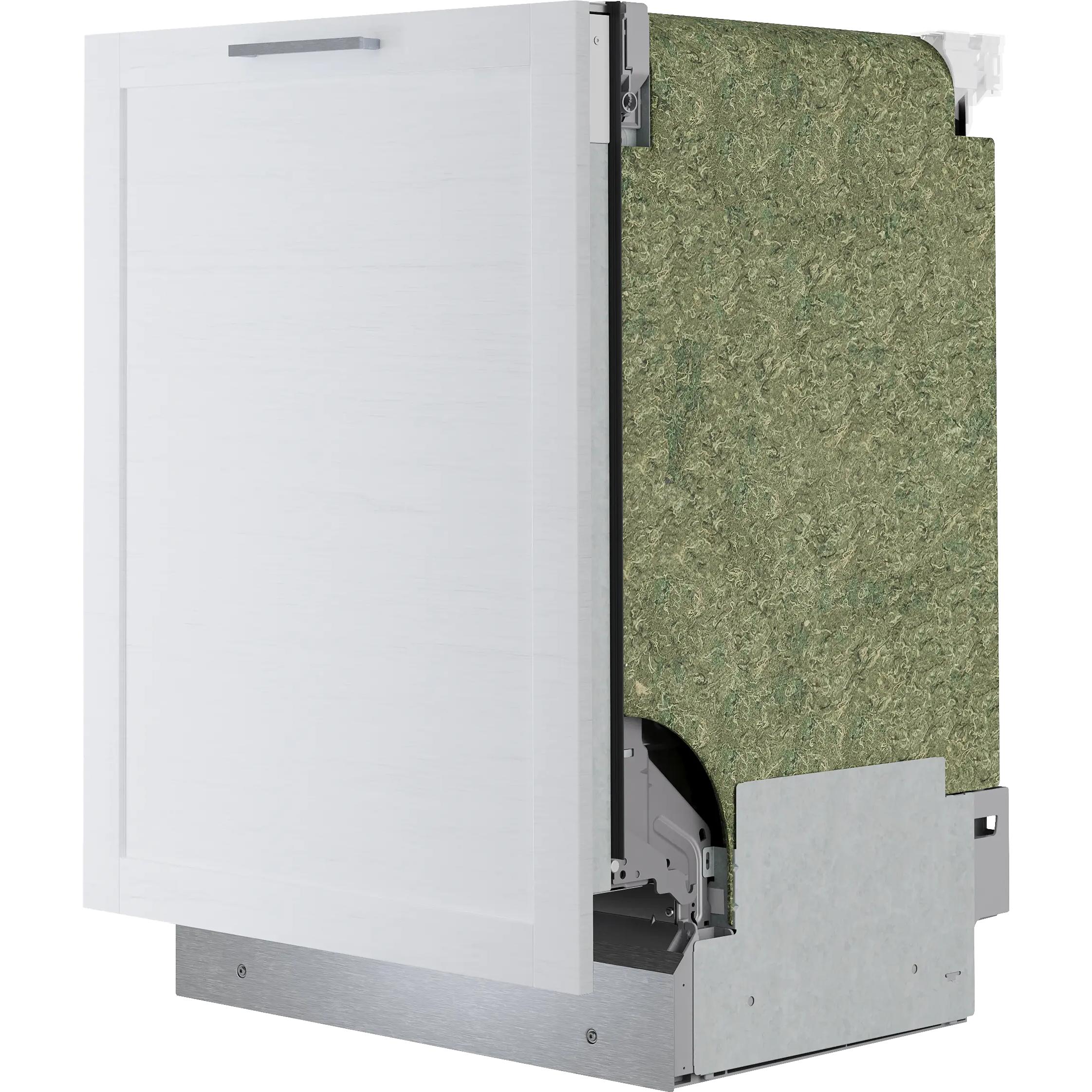

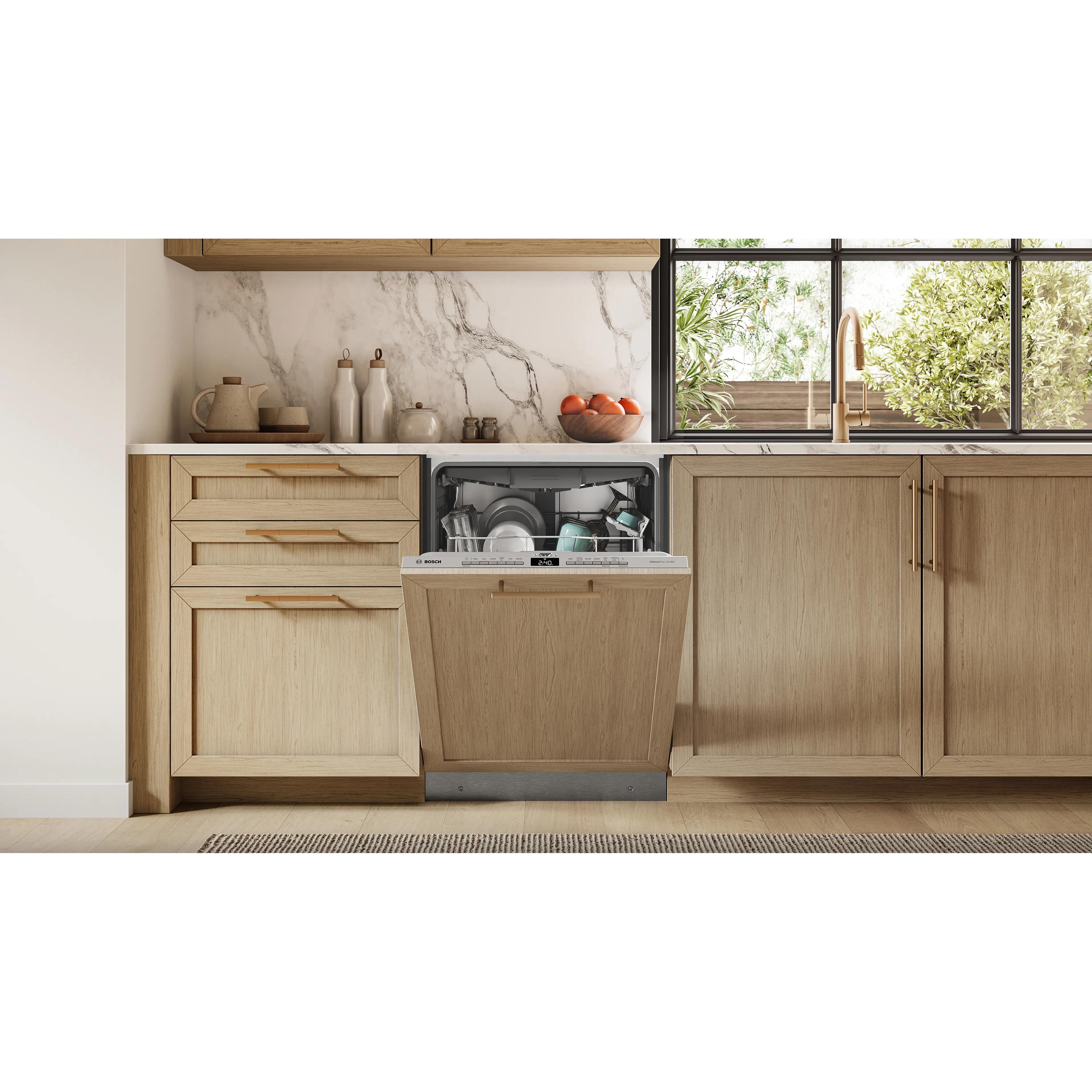

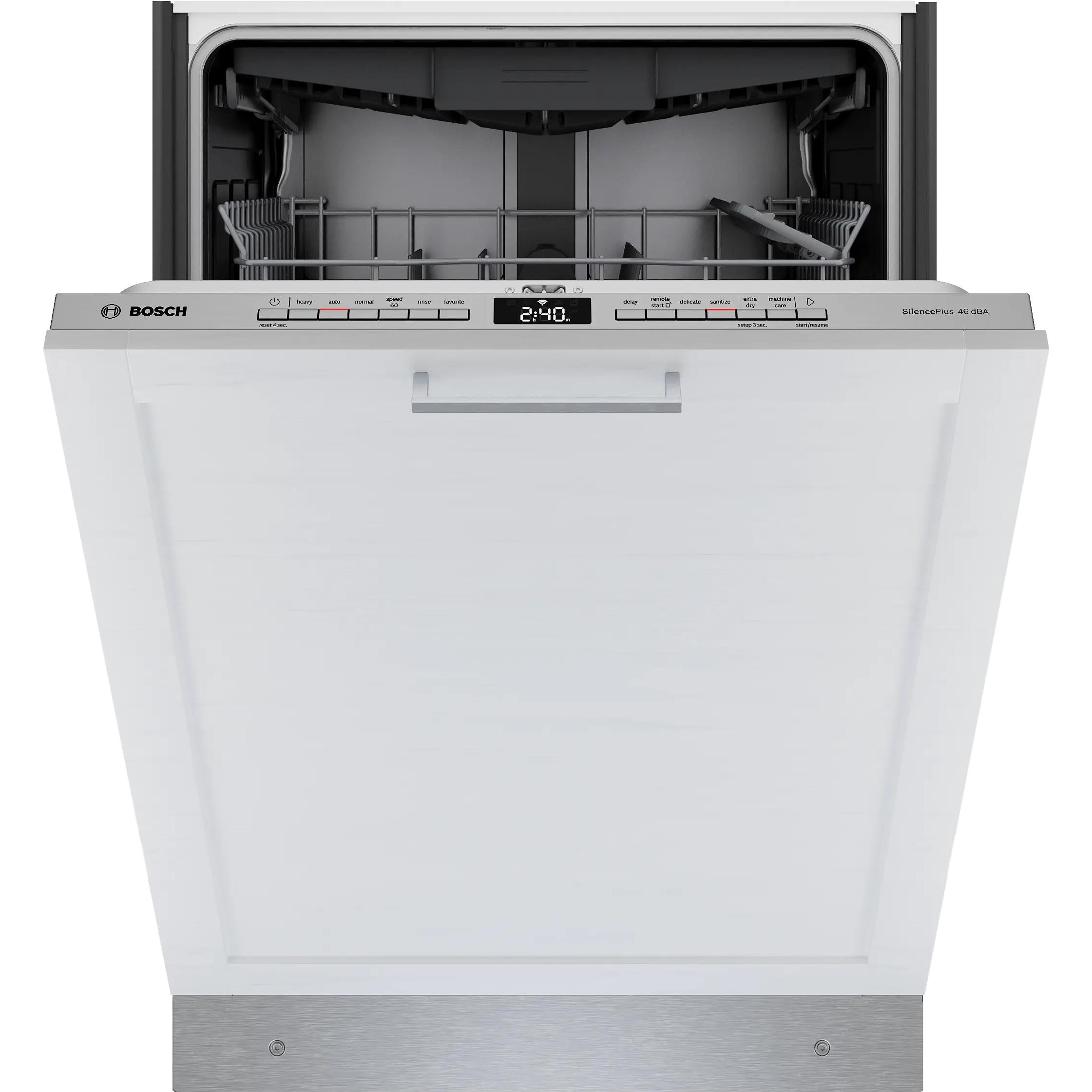

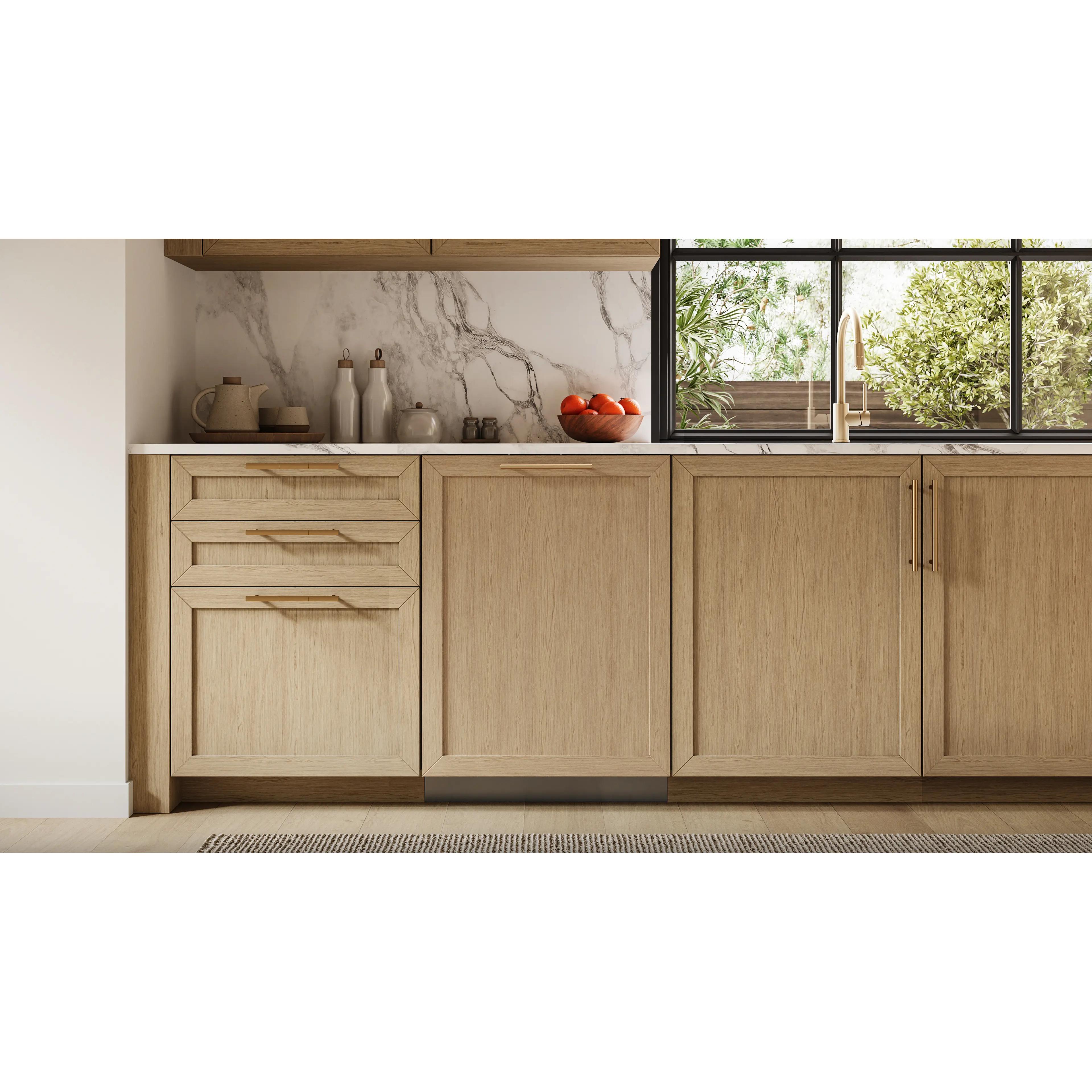

Panel Ready
Manufacturer Color
Panel Ready
Place Settings
15
Tub Material
Stainless Steel
Silence Rating
46 dB

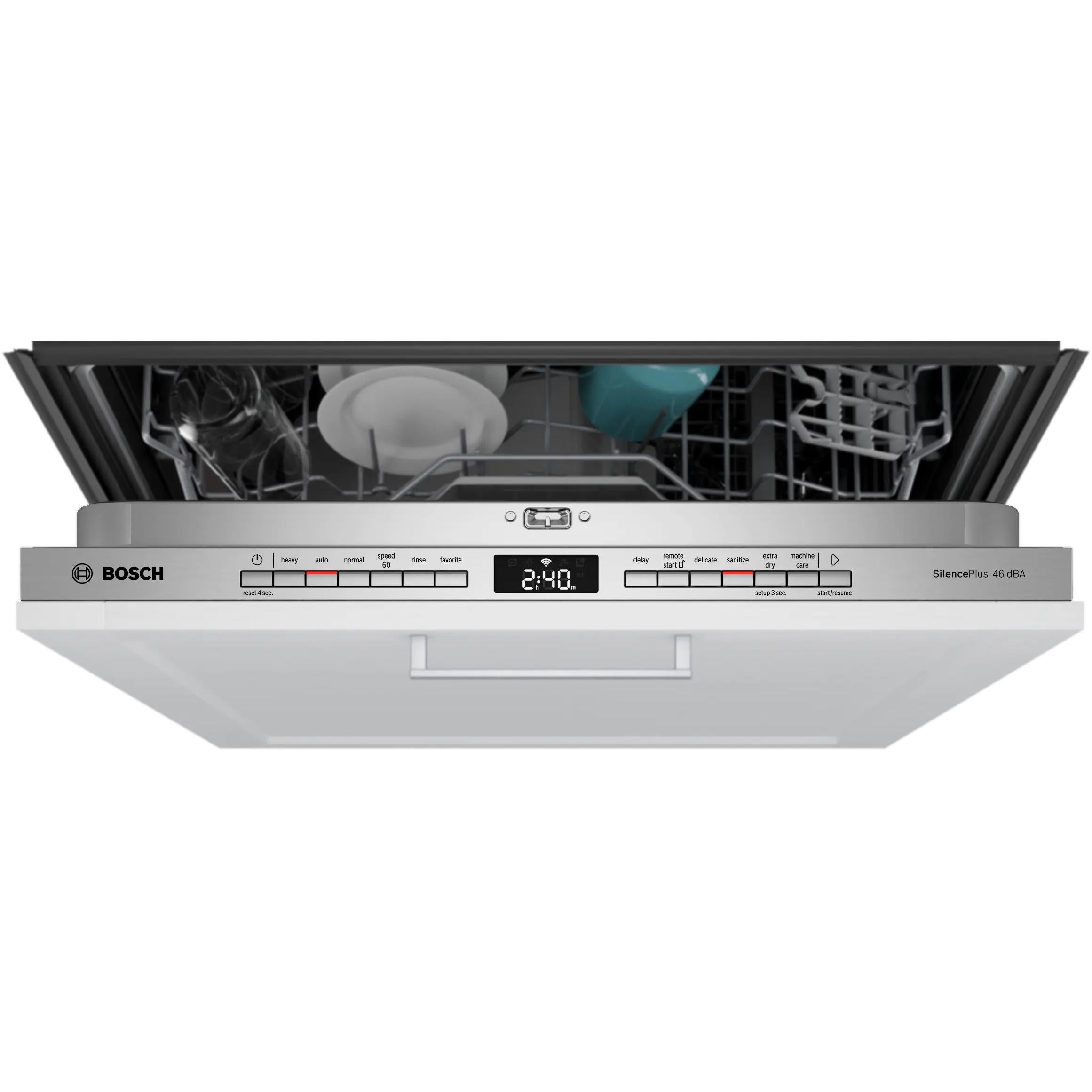

Cycle Information
Number of Cycles
7
Wash Cycles
• Heavy
• Auto
• Normal
• Speed60 (1 hr Wash)
• Favorite
• Rinse
• MachineCare
• Auto
• Normal
• Speed60 (1 hr Wash)
• Favorite
• Rinse
• MachineCare
Options
• Sanitize
• Remote Start
• ExtraDry
• Delay Start
• Delicate
Additional options (in Home Connect®): • Half Load
• Eco
• Remote Start
• ExtraDry
• Delay Start
• Delicate
Additional options (in Home Connect®): • Half Load
• Eco
Features
Delay Start
Yes
3rd Rack System
Yes
Control Lock
No
Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Wash system: PrecisionWash®
• Drying system: PureDry®

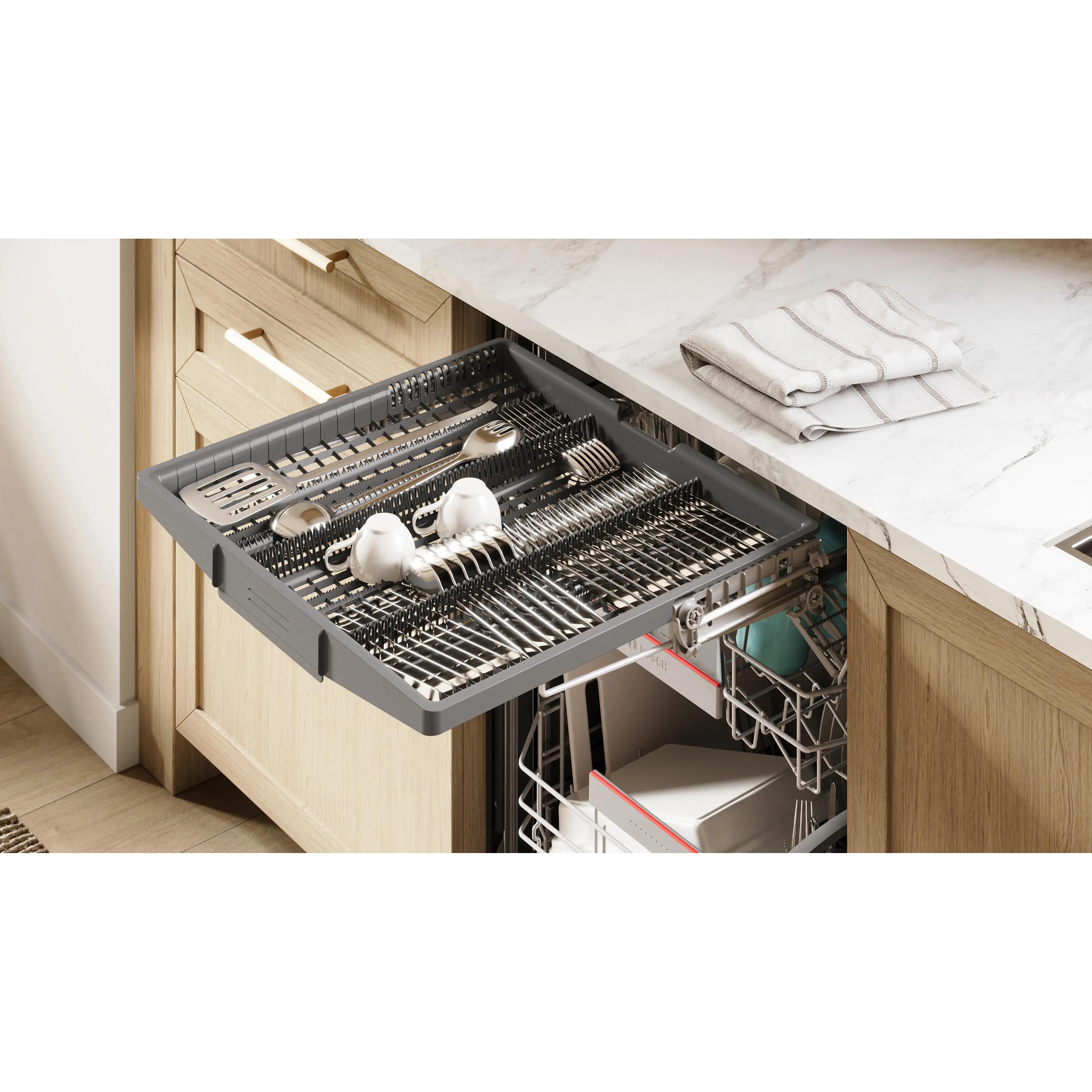

• Third rack: Standard 3rd Rack

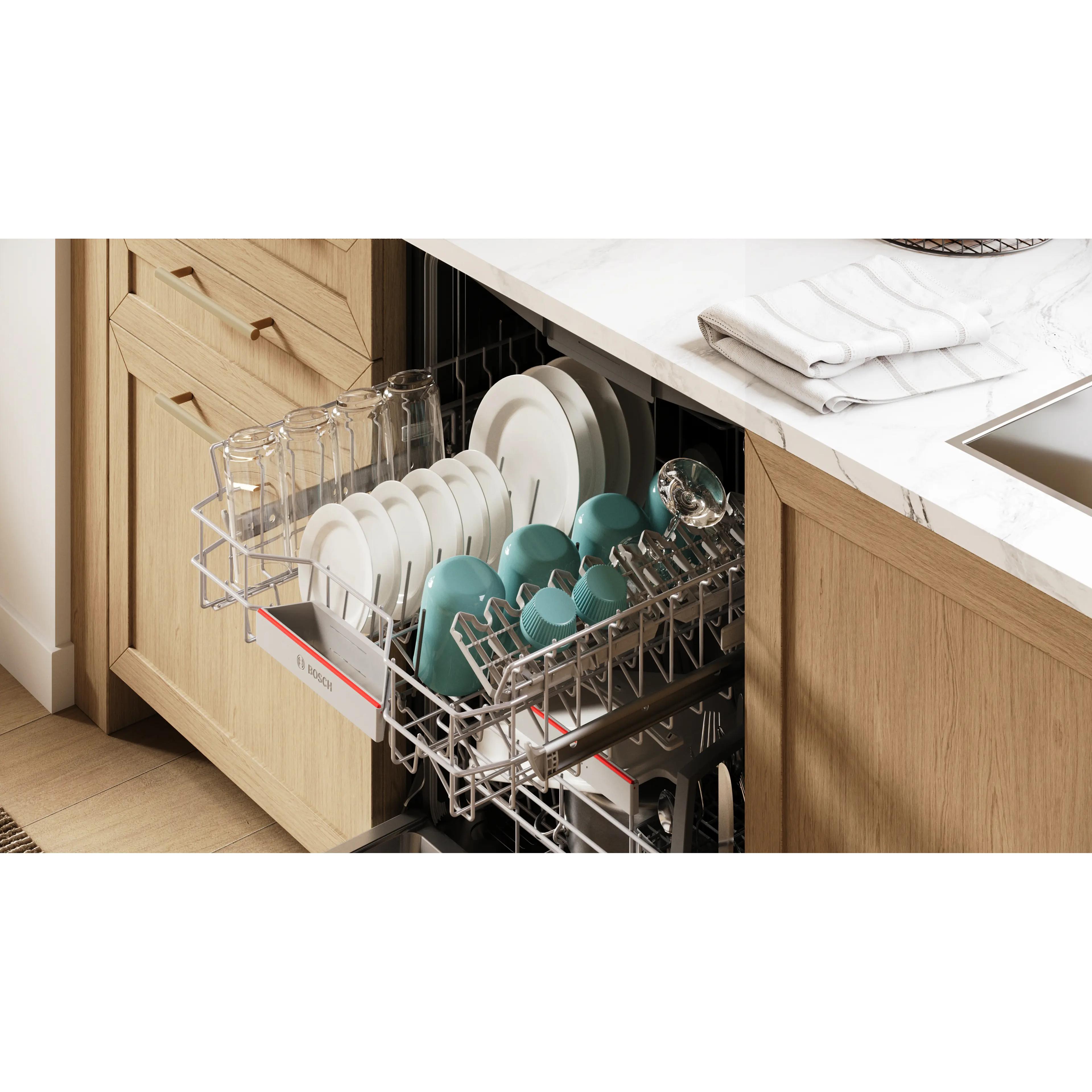

• Rack adjustability: RackMatic®
• Concealed water heating element: Yes
• Leak protection system: 24/7 AquaStop® Overflow
• Home Connect® (Wi-Fi enabled): Yes
• NSF®-certified sanitize option: No
• Water softener: Yes
• Five-level wash: Yes
• Child Lock button suspension: No
• Anti-Fingerprint Finish: No

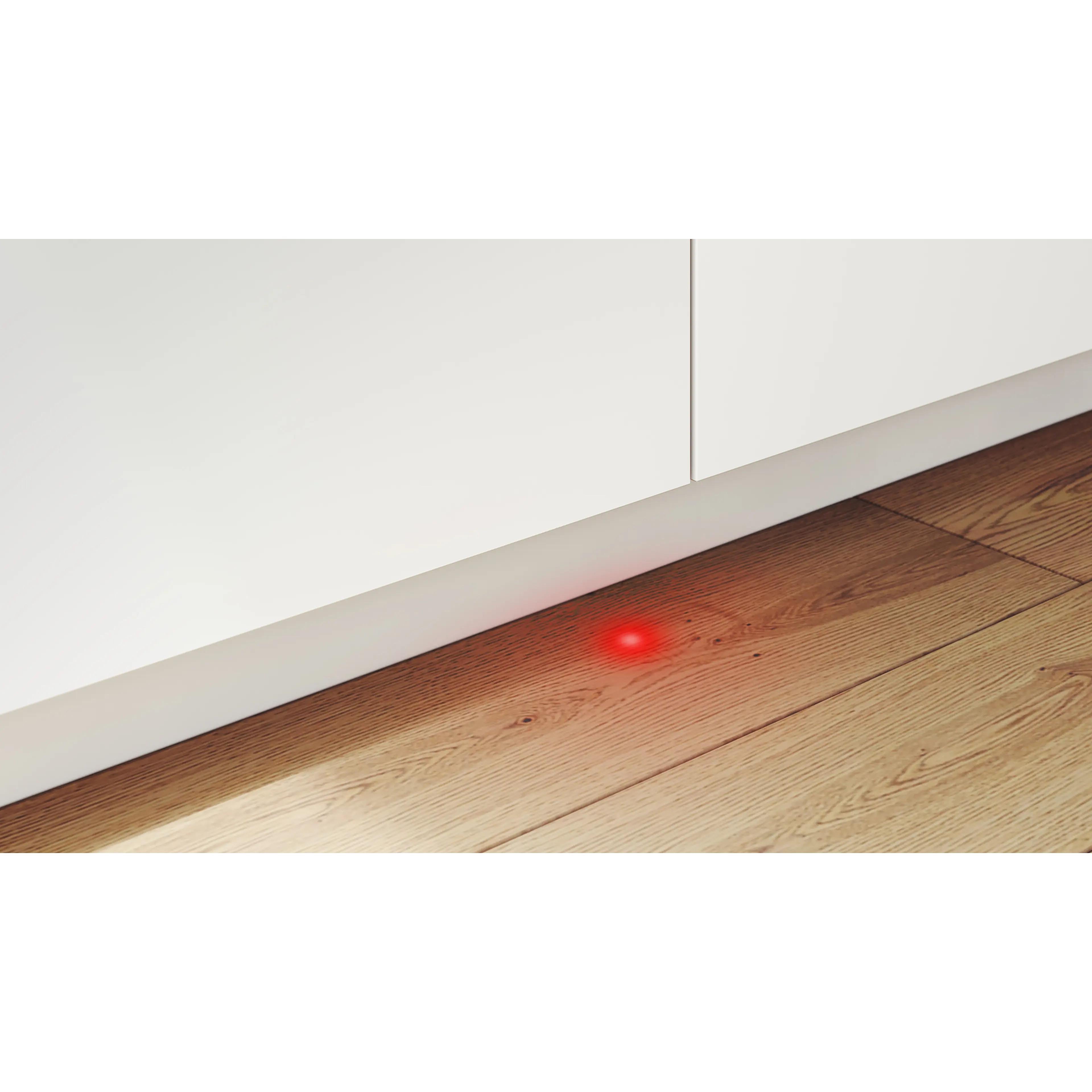

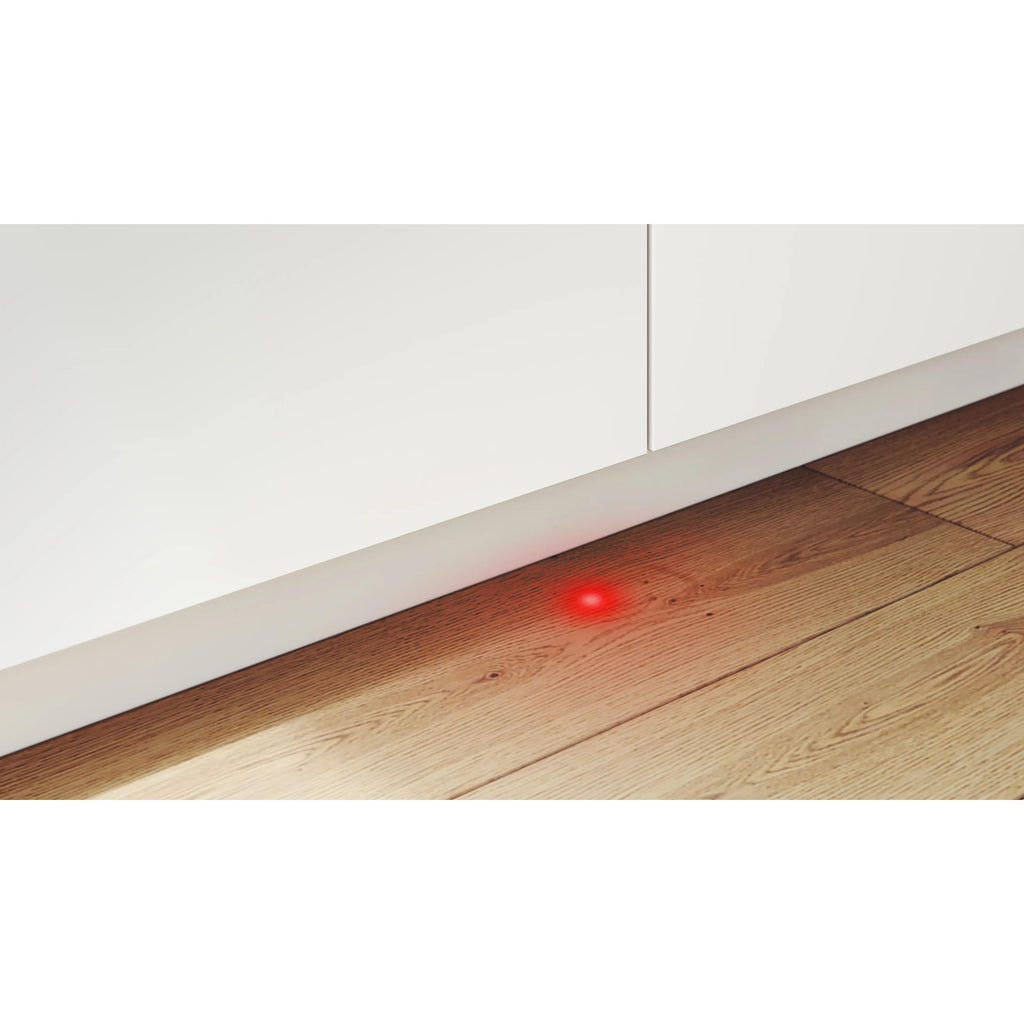

• Special features: InfoLight®
• Water usage per cycle: 3.2 gal
• Adjustable feet: Yes
• Drying system: PureDry®
• Third rack: Standard 3rd Rack
• Rack adjustability: RackMatic®
• Concealed water heating element: Yes
• Leak protection system: 24/7 AquaStop® Overflow
• Home Connect® (Wi-Fi enabled): Yes
• NSF®-certified sanitize option: No
• Water softener: Yes
• Five-level wash: Yes
• Child Lock button suspension: No
• Anti-Fingerprint Finish: No
• Special features: InfoLight®
• Water usage per cycle: 3.2 gal
• Adjustable feet: Yes
Certifications and Approvals
Energy Star Certified
No
Information
• Total annual energy consumption: 269 kWh
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 47 1/4", Right – 47 1/4"
• Minimum water pressure: 14 lb/sin

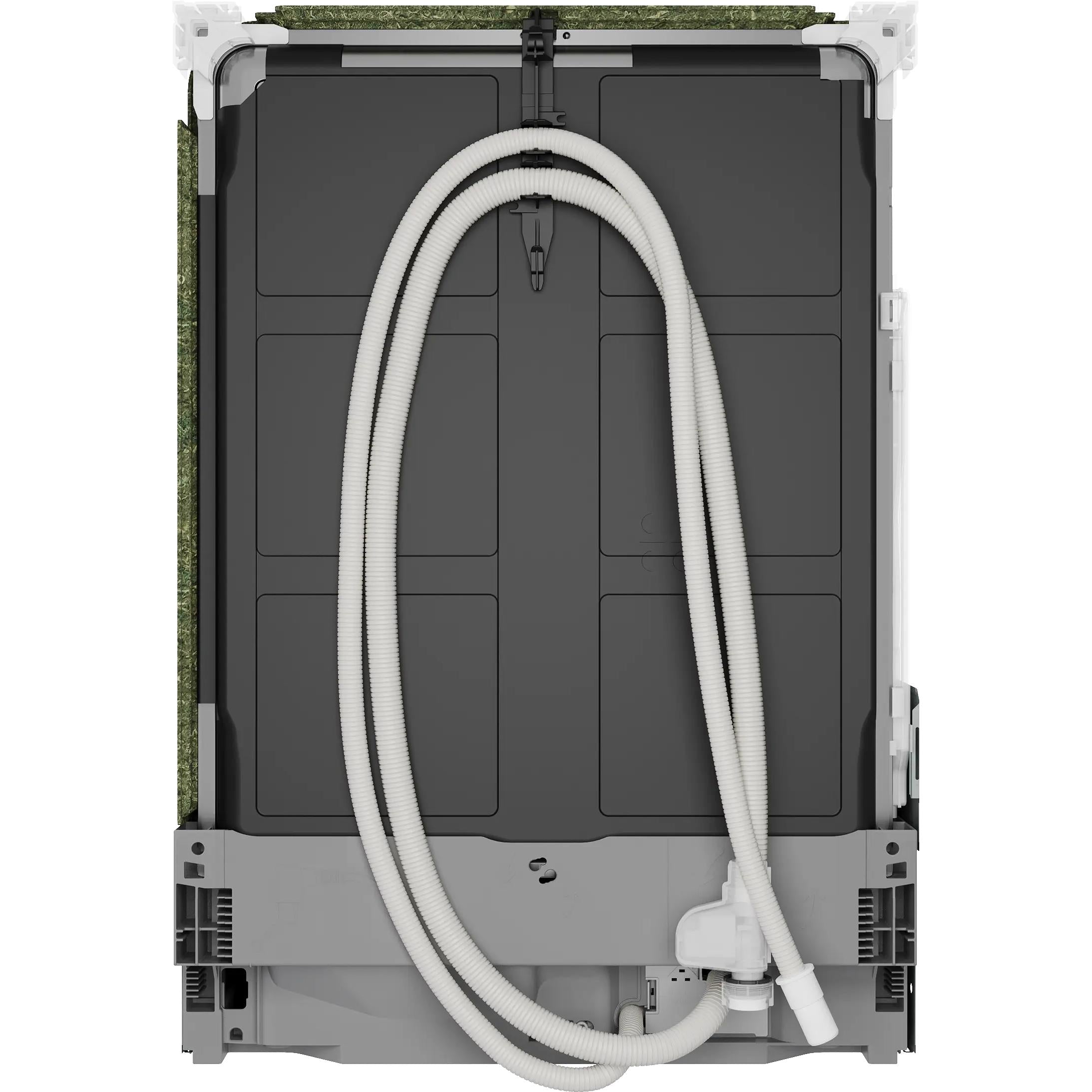

• Length outlet hose: 74 3/4"
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 47 1/4", Right – 47 1/4"
• Minimum water pressure: 14 lb/sin
• Length outlet hose: 74 3/4"
Accessories
Optional
• Junction Box: SMZPCJB1UC
• Drain Hose Extension Kit: SGZ1010UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Stainless Steel Straight Bosch Bar Handle: SMZ1008UC
• Drain Hose Extension Kit: SGZ1010UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Stainless Steel Straight Bosch Bar Handle: SMZ1008UC
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.84 cm
Weight
105.01 lb(s) / 47.63 kg
Additional Dimensions
• Overall: 34.06"H x 21.63"D
• Required cutout size (HxWxD): 34 1/8" x 24" x 24"
• Required cutout size (HxWxD): 34 1/8" x 24" x 24"
