DESCRIPTION

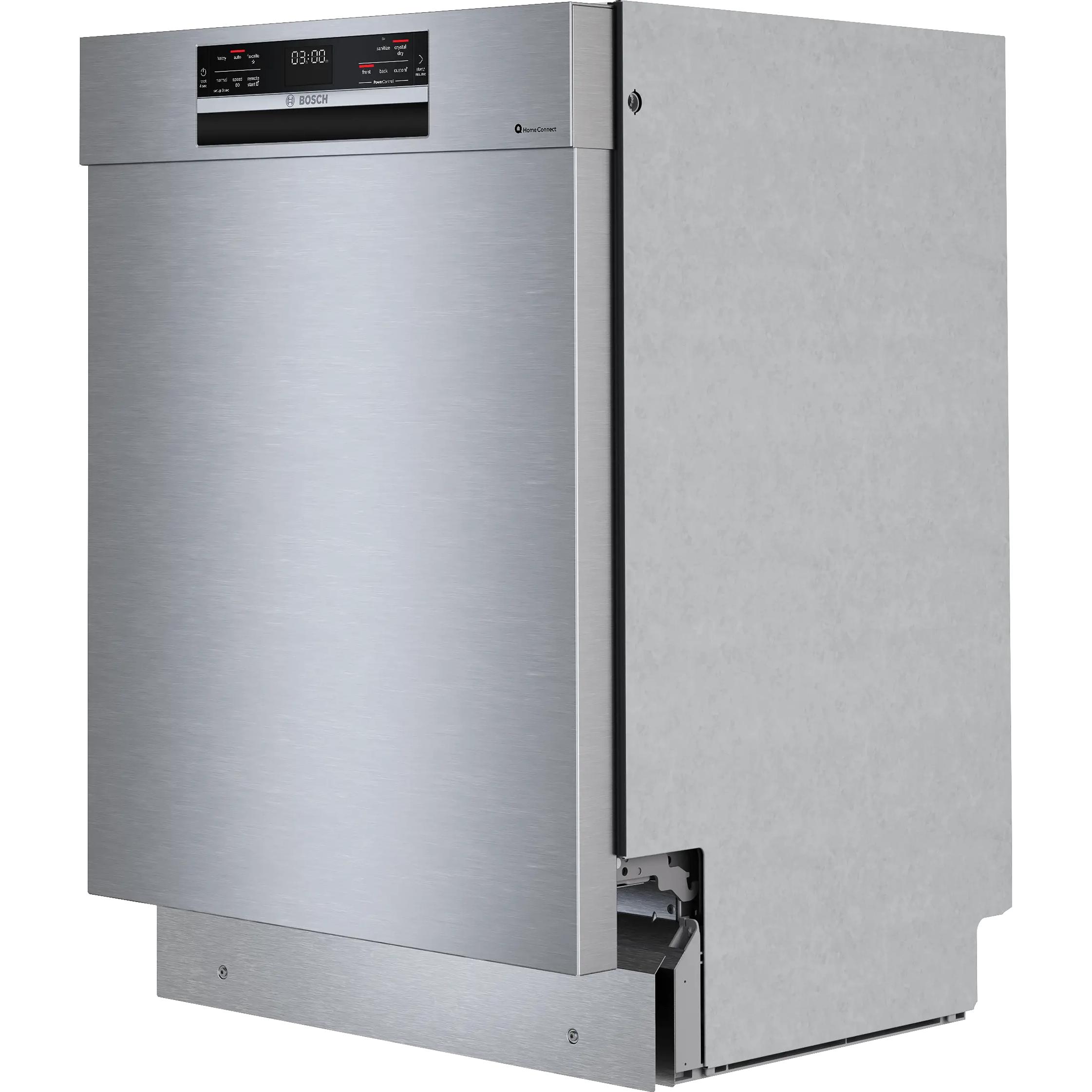

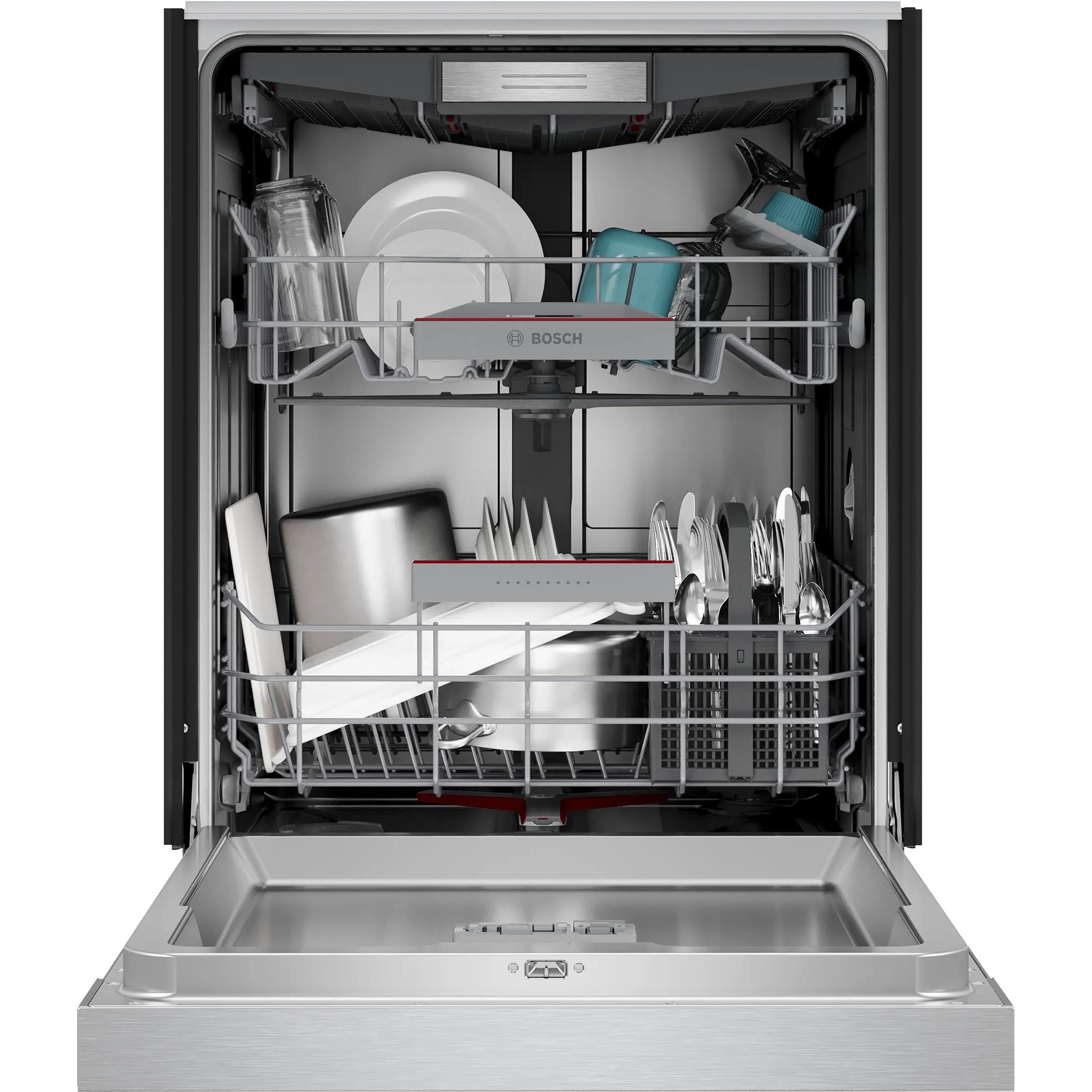

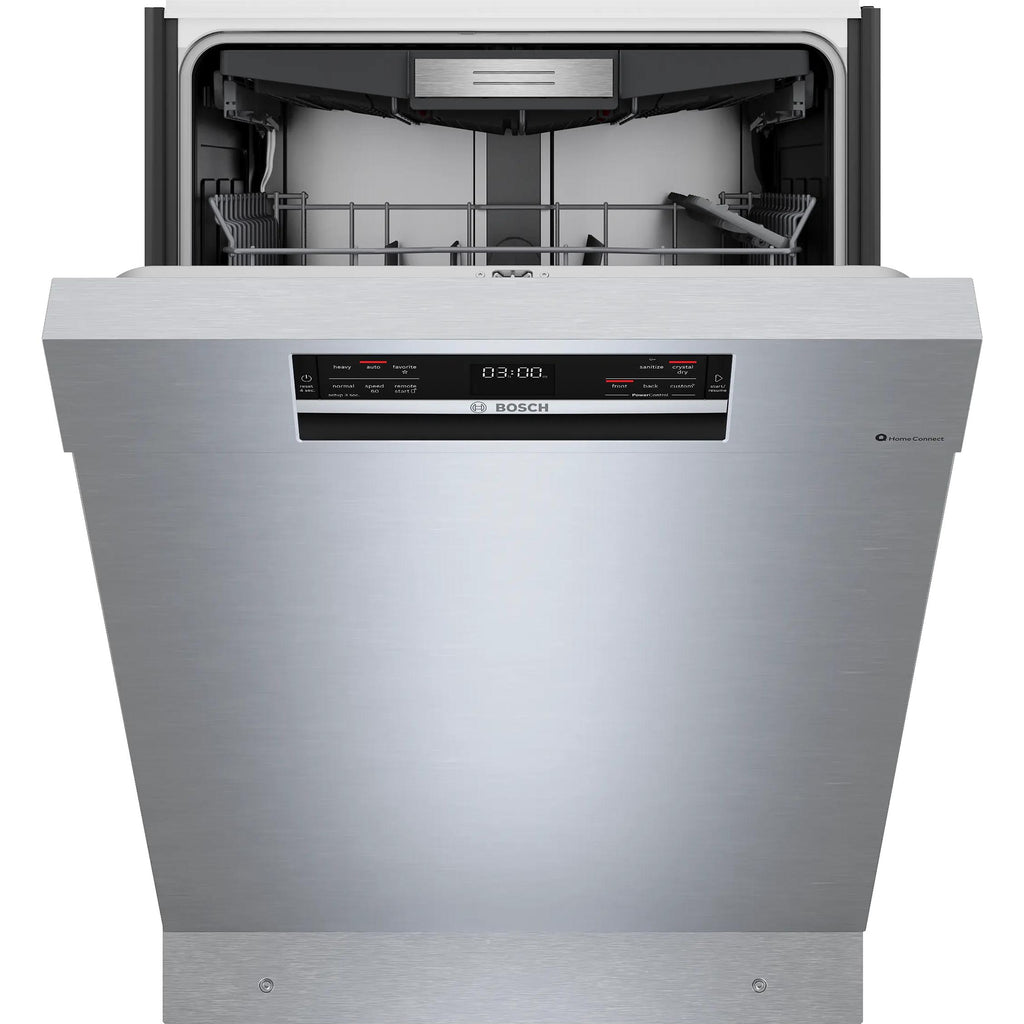

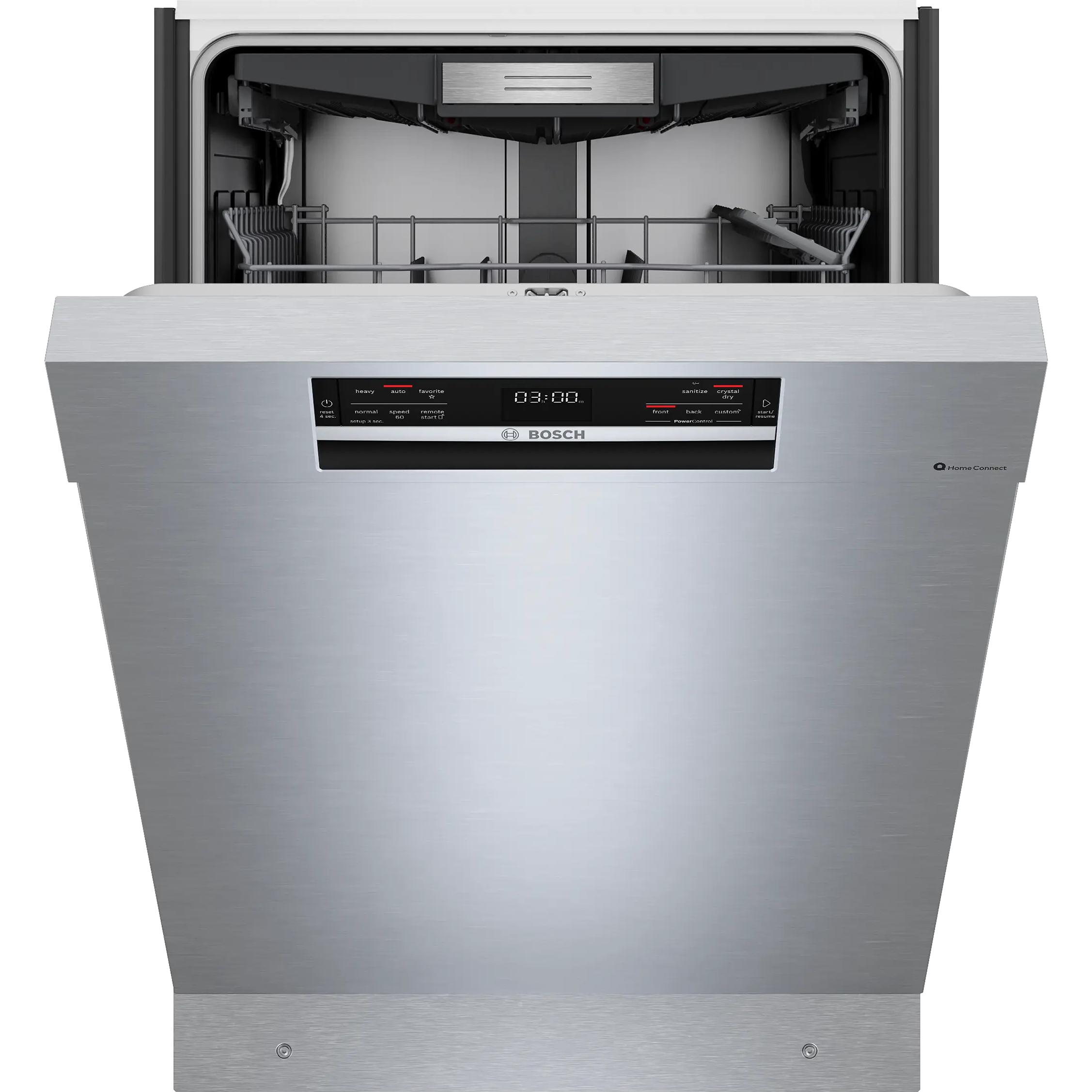

×This 800 Series dishwasher features the patented CrystalDry™ technology, PowerControl™ spray
arm, Flexible 3rd Rack, and the AquaStop® leak protection system.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
15
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
5
Wash Cycles
• Heavy
• Auto
• Normal
• Speed60 (1 hr Wash)
• Favorite
Additional wash cycles (in Home Connect®):
• Rinse
• MachineCare
• Delicate
• Auto
• Normal
• Speed60 (1 hr Wash)
• Favorite
Additional wash cycles (in Home Connect®):
• Rinse
• MachineCare
• Delicate
Options
• Sanitize
• Remote Start
• Crystal Dry
• PowerControl Options
Additional options (in Home Connect®):
• Half Load
• Eco
• Remote Start
• Crystal Dry
• PowerControl Options
Additional options (in Home Connect®):
• Half Load
• Eco
Features

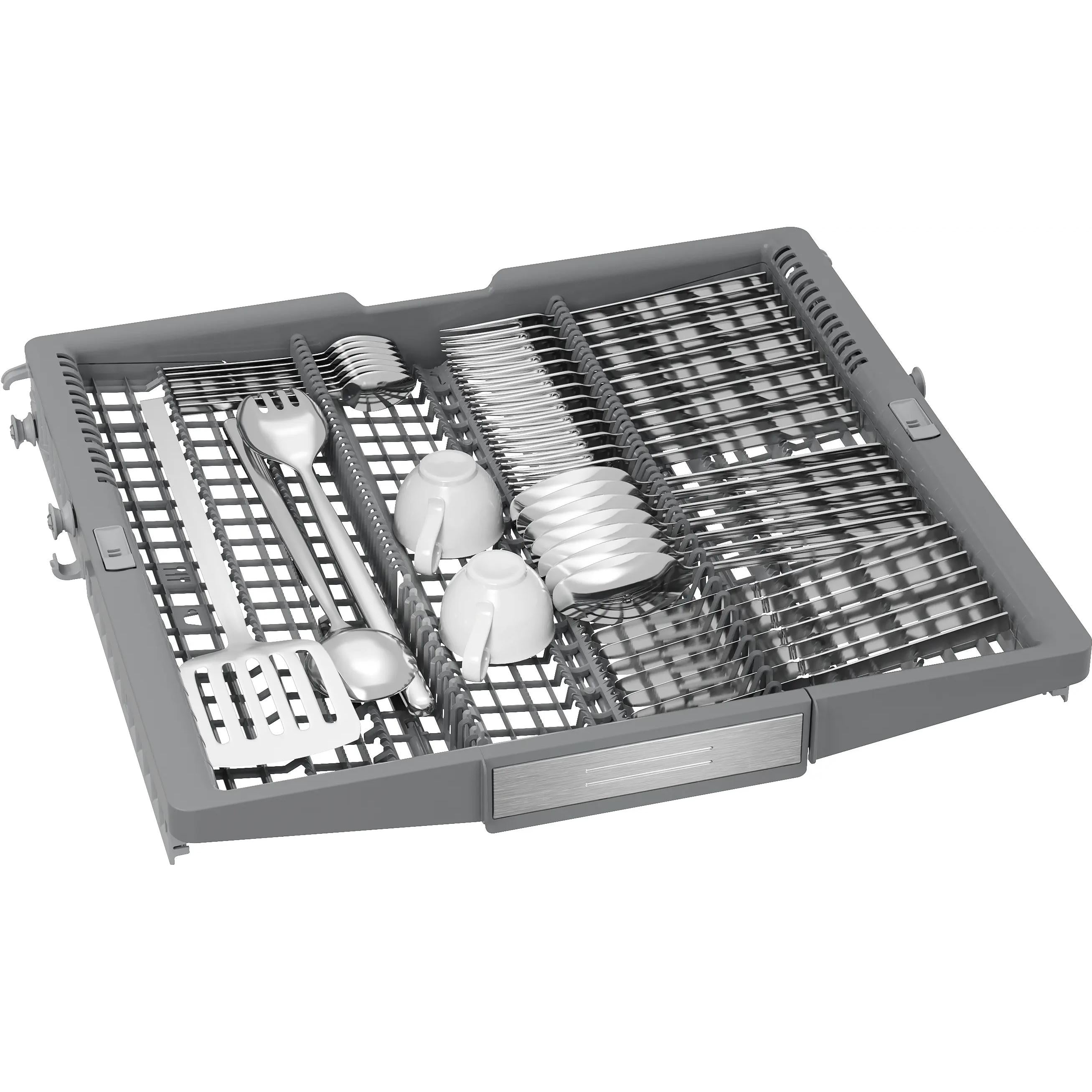

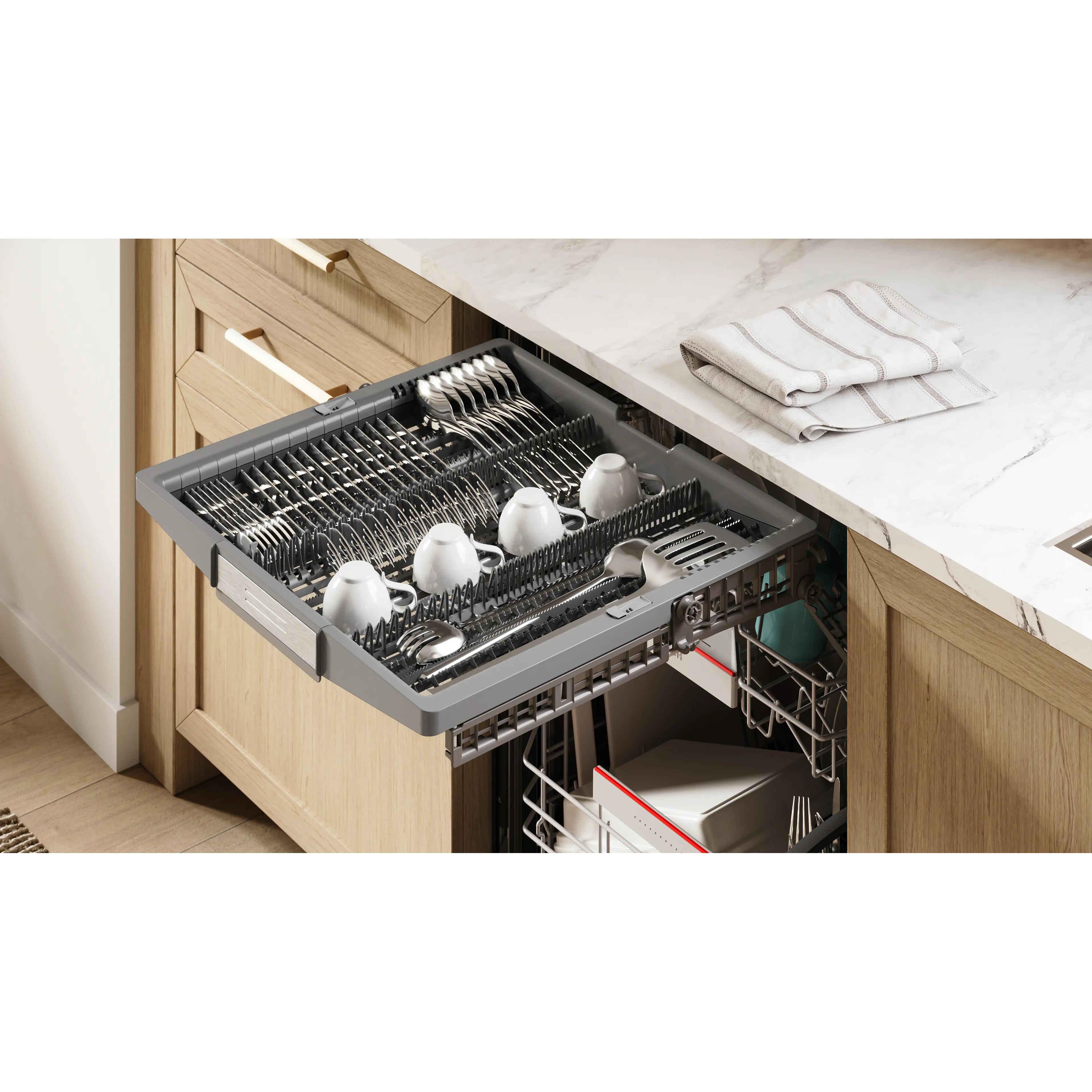

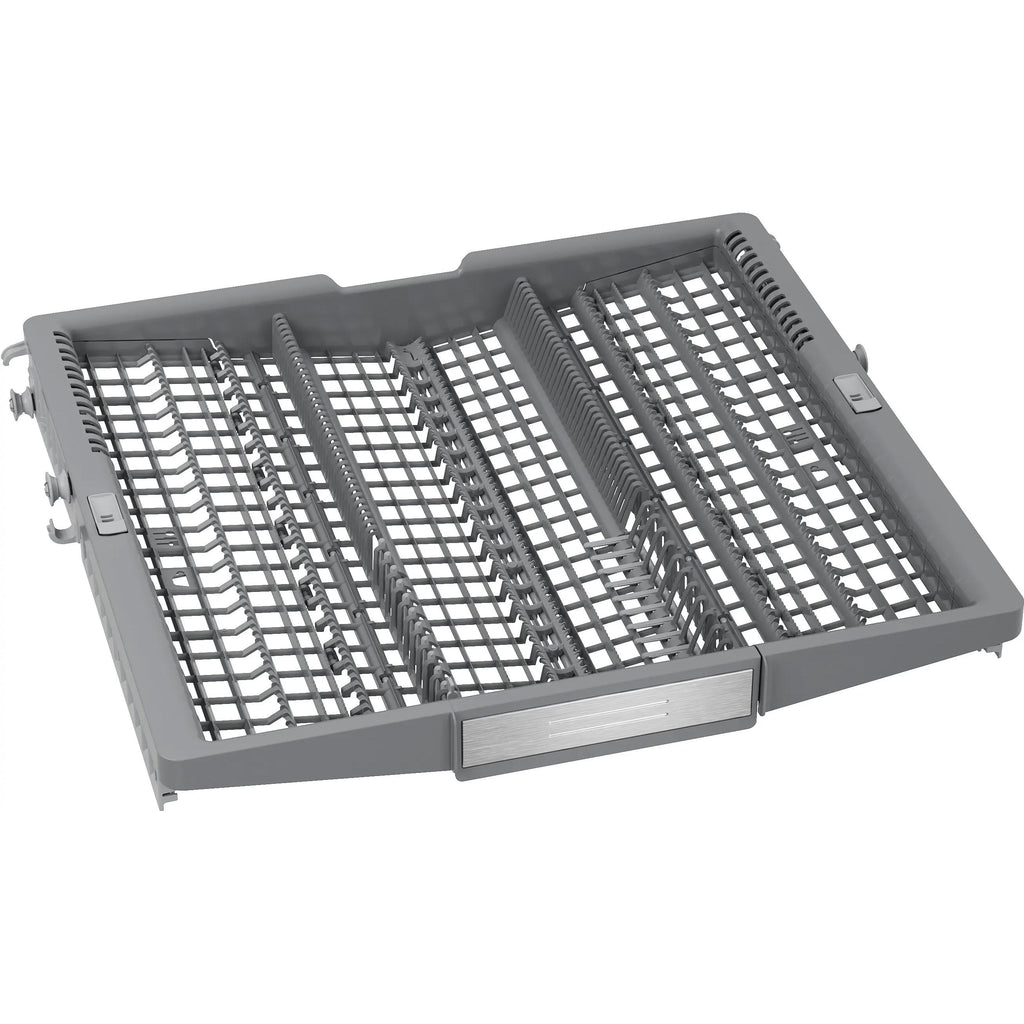

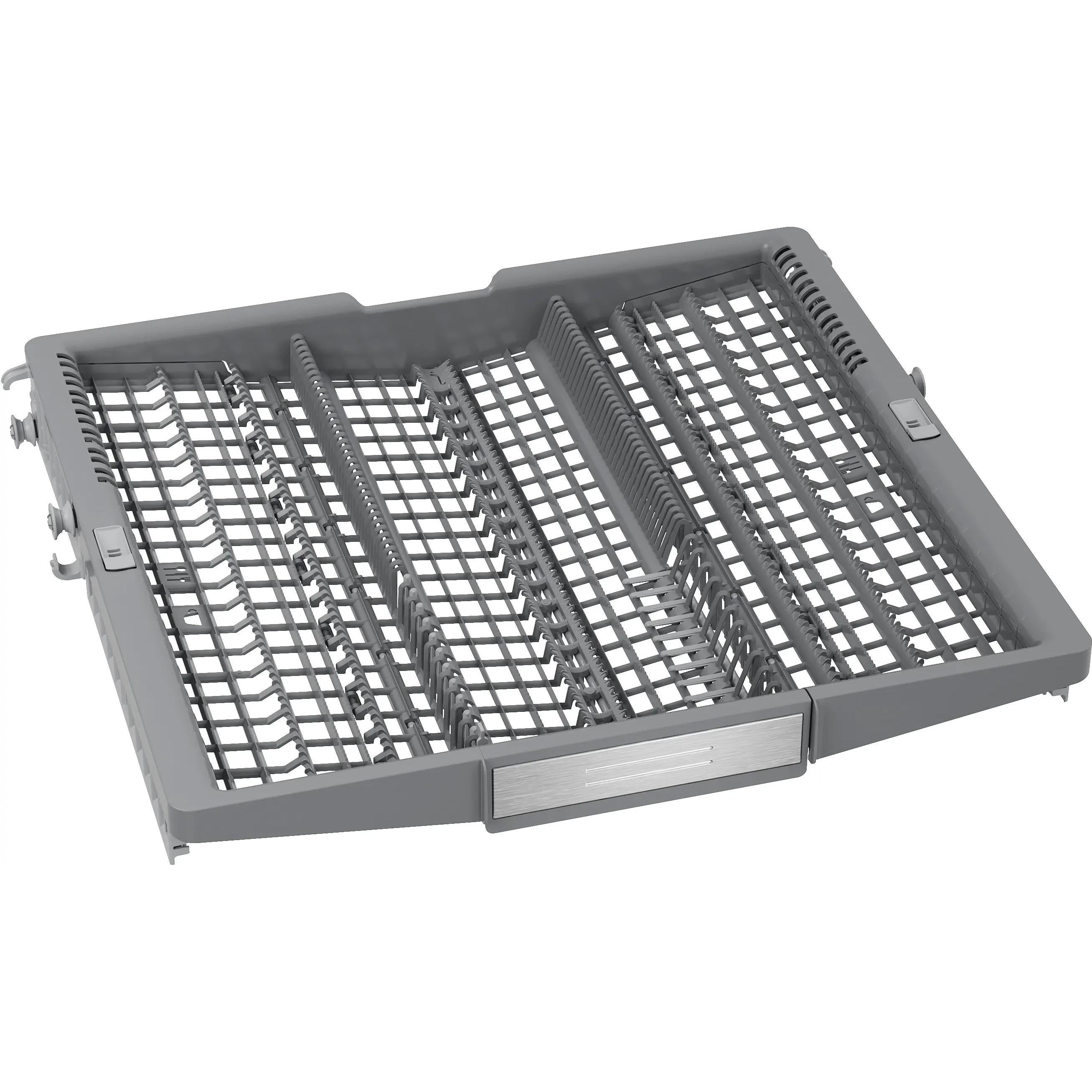

3rd Rack System
Yes
Control Lock
Yes

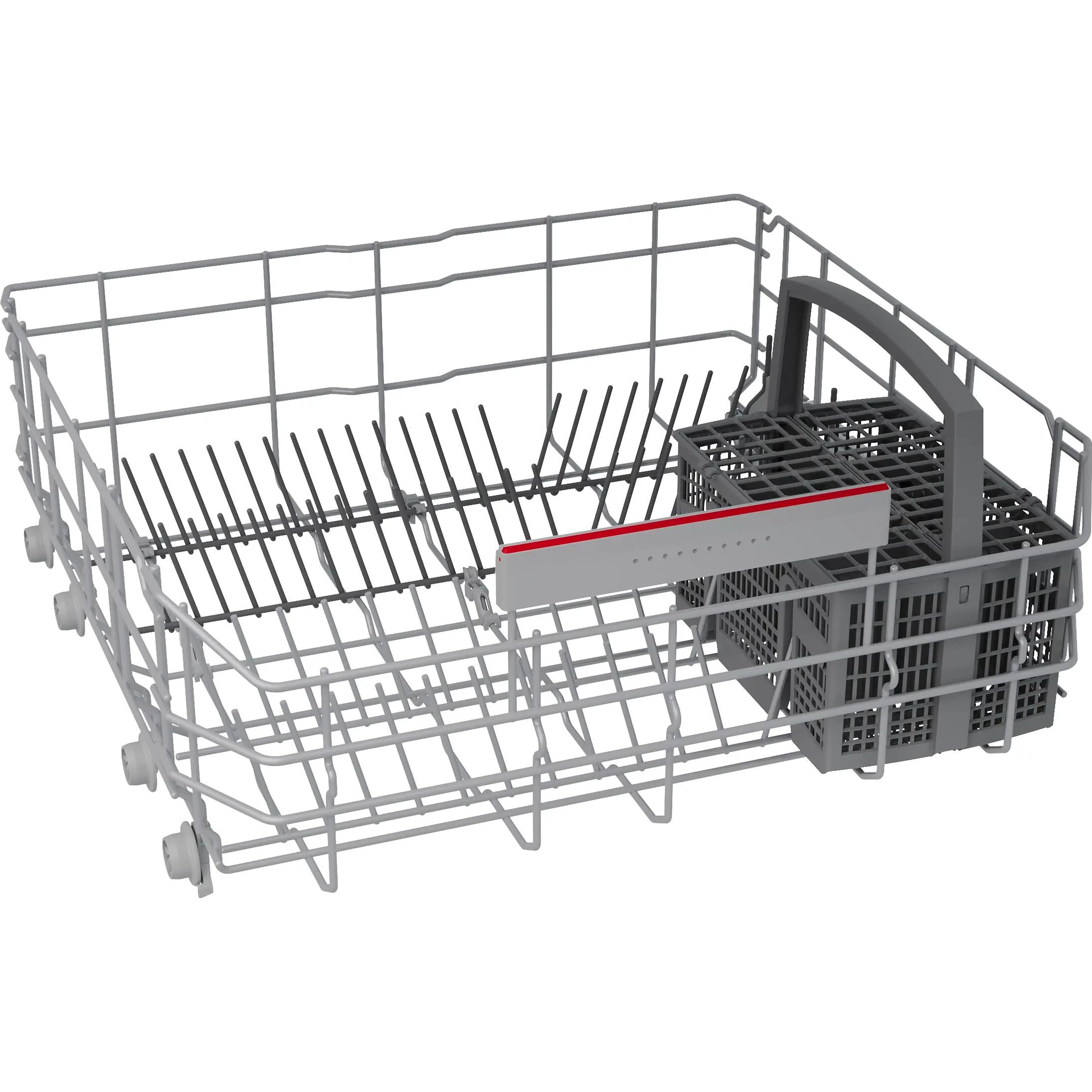

Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Wash system: PrecisionWash® with PowerControl®
• Drying system: CrystalDry™

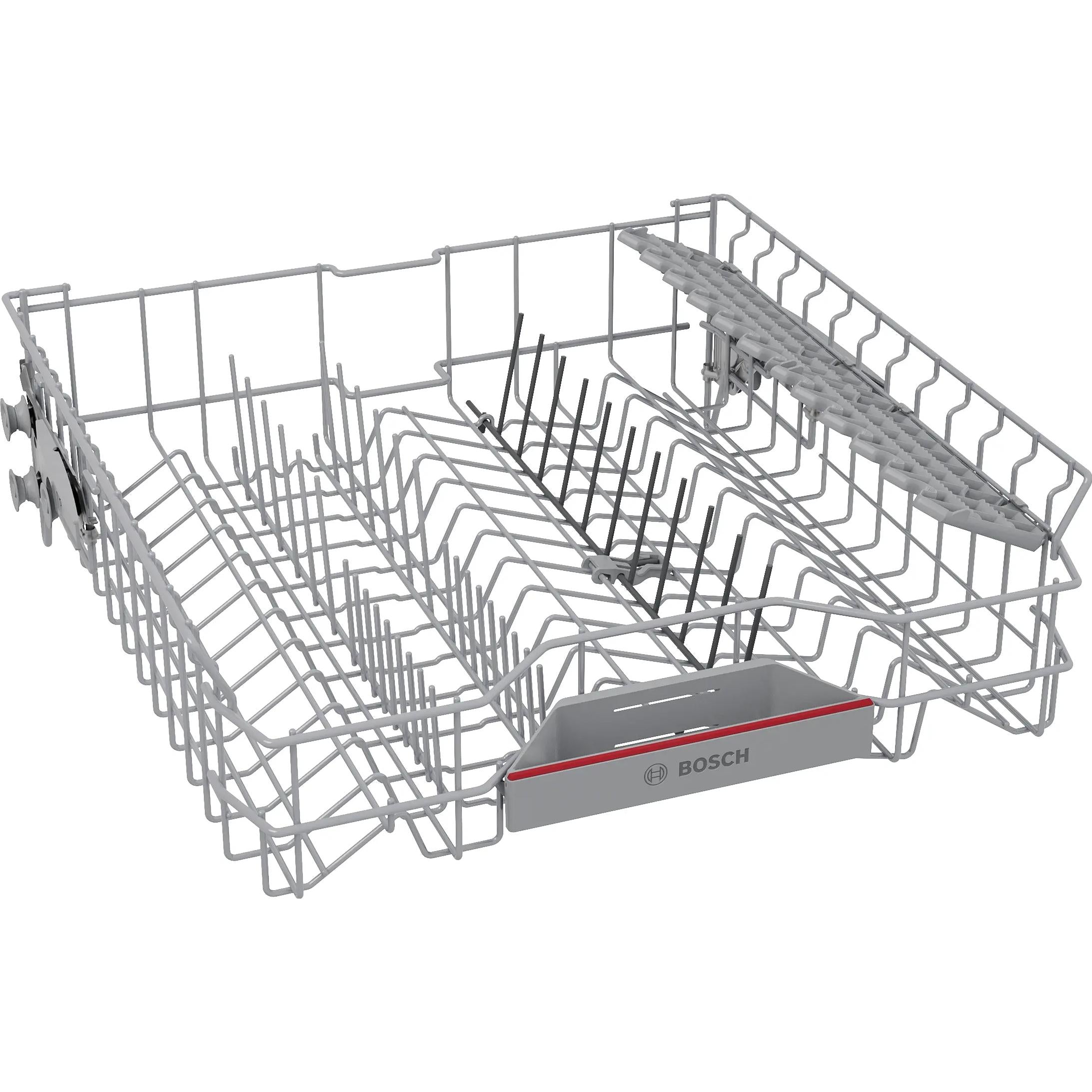

• Rack adjustability: RackMatic®
• Concealed water heating element
• Leak protection system: 24/7 AquaStop® Plus
• Home Connect® (Wi-Fi enabled)
• NSF®-certified** sanitize option: No
• Water softener
• Five-level wash
• Anti-Fingerprint Finish: No
• Special features: CrystalDry™ Option, InfoLight®
• Adjustable feet
• Water usage per cycle: 2.6 gal
• Drying system: CrystalDry™
• Rack adjustability: RackMatic®
• Concealed water heating element
• Leak protection system: 24/7 AquaStop® Plus
• Home Connect® (Wi-Fi enabled)
• NSF®-certified** sanitize option: No
• Water softener
• Five-level wash
• Anti-Fingerprint Finish: No
• Special features: CrystalDry™ Option, InfoLight®
• Adjustable feet
• Water usage per cycle: 2.6 gal
Electrical Information
Information
• ENERGY STAR® Certified
• Total annual energy consumption: 240 kWh
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 47 1/4", Right – 47 1/4"
• Minimum water pressure: 7.25 lb/sin
• Length outlet hose: 74 3/4"
• Total annual energy consumption: 240 kWh
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 47 1/4", Right – 47 1/4"
• Minimum water pressure: 7.25 lb/sin
• Length outlet hose: 74 3/4"
Certifications and Approvals
Energy Star Certified
Yes
Accessories
Optional
• Junction Box: SMZPCJB1UC
• Drain Hose Extension Kit: SGZ1010UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Drain Hose Extension Kit: SGZ1010UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.85 cm
Weight
116.01 lb(s) / 52.62 kg
Additional Dimensions
• Overall: 34 1/16"H x 22 9/16"D
• Required cutout size (HxWxD): 34 1/8" x 24" x 24"
• Required cutout size (HxWxD): 34 1/8" x 24" x 24"
