DESCRIPTION

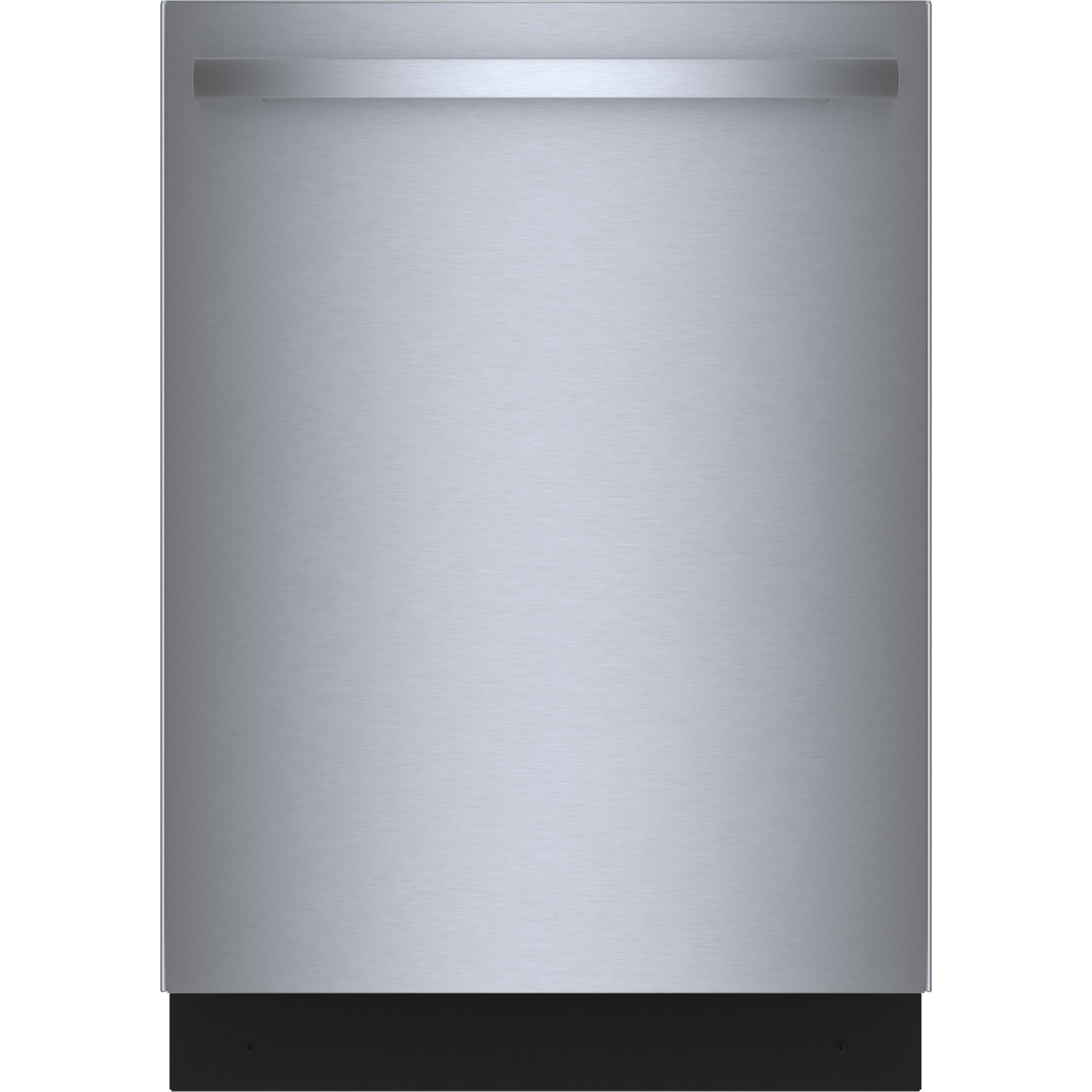

×Bosch 800 Series 24" Bar Handle Dishwasher. The PowerControl™ spray arm targets your dirtiest dishes with a deeper clean, no matter where you load them on the bottom rack. Enhance your cleaning experience with Wi-Fi enabled Home Connect®. Access additional wash cycles and options or choose the right one for your needs using Smart Cycle.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
16
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
8
Wash Cycles
5 + 3 additional in Home Connect®
Options
4 + 2 additional in Home Connect®
Features
Technologies
• Wash system PowerControl™ with PrecisionWash®

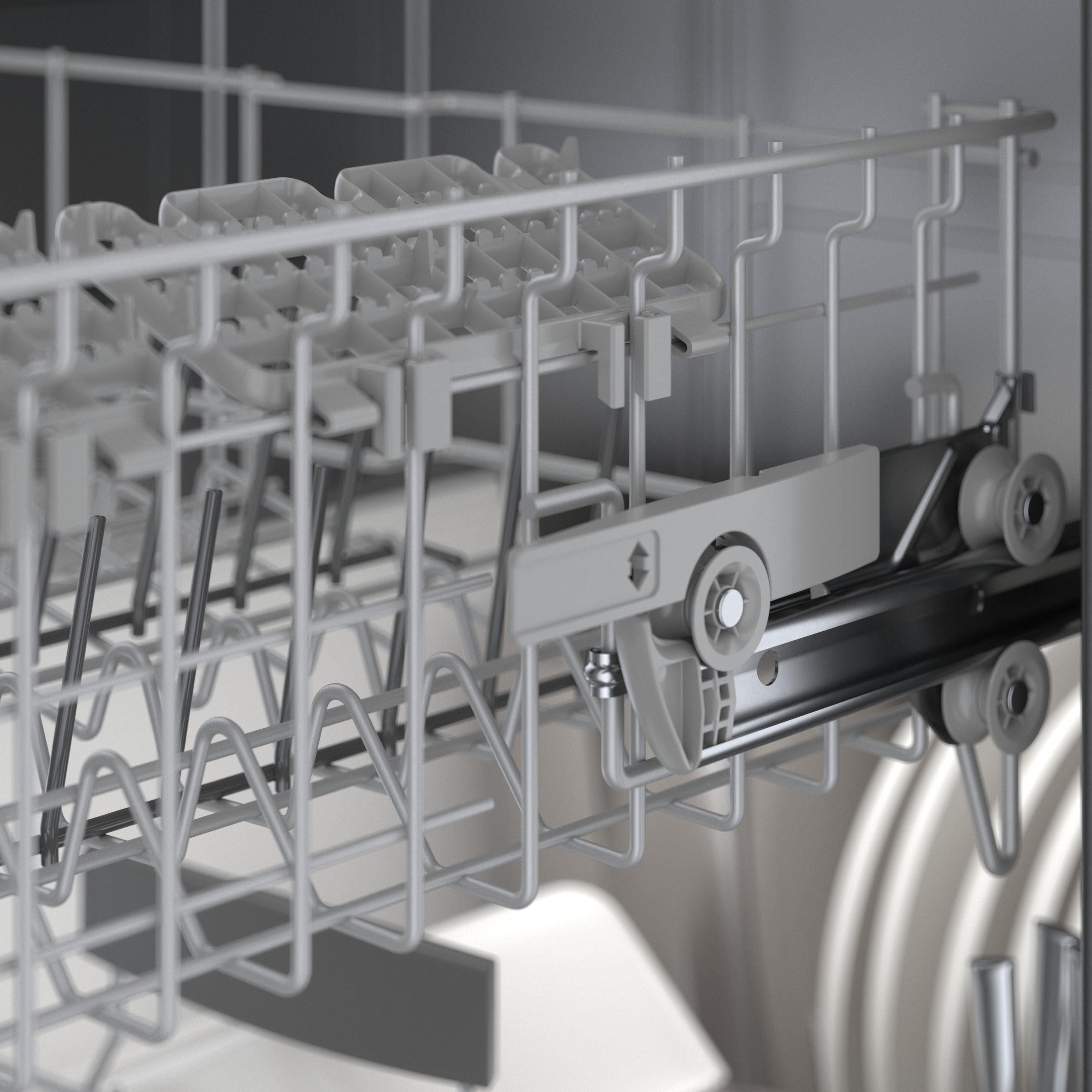

• Rack adjustability: Rackmatic®
• Drying system: CrystalDry™
• InfoLight®
• Leak protection system: 24/7 AquaStop®
• Rack adjustability: Rackmatic®
• Drying system: CrystalDry™
• InfoLight®
• Leak protection system: 24/7 AquaStop®

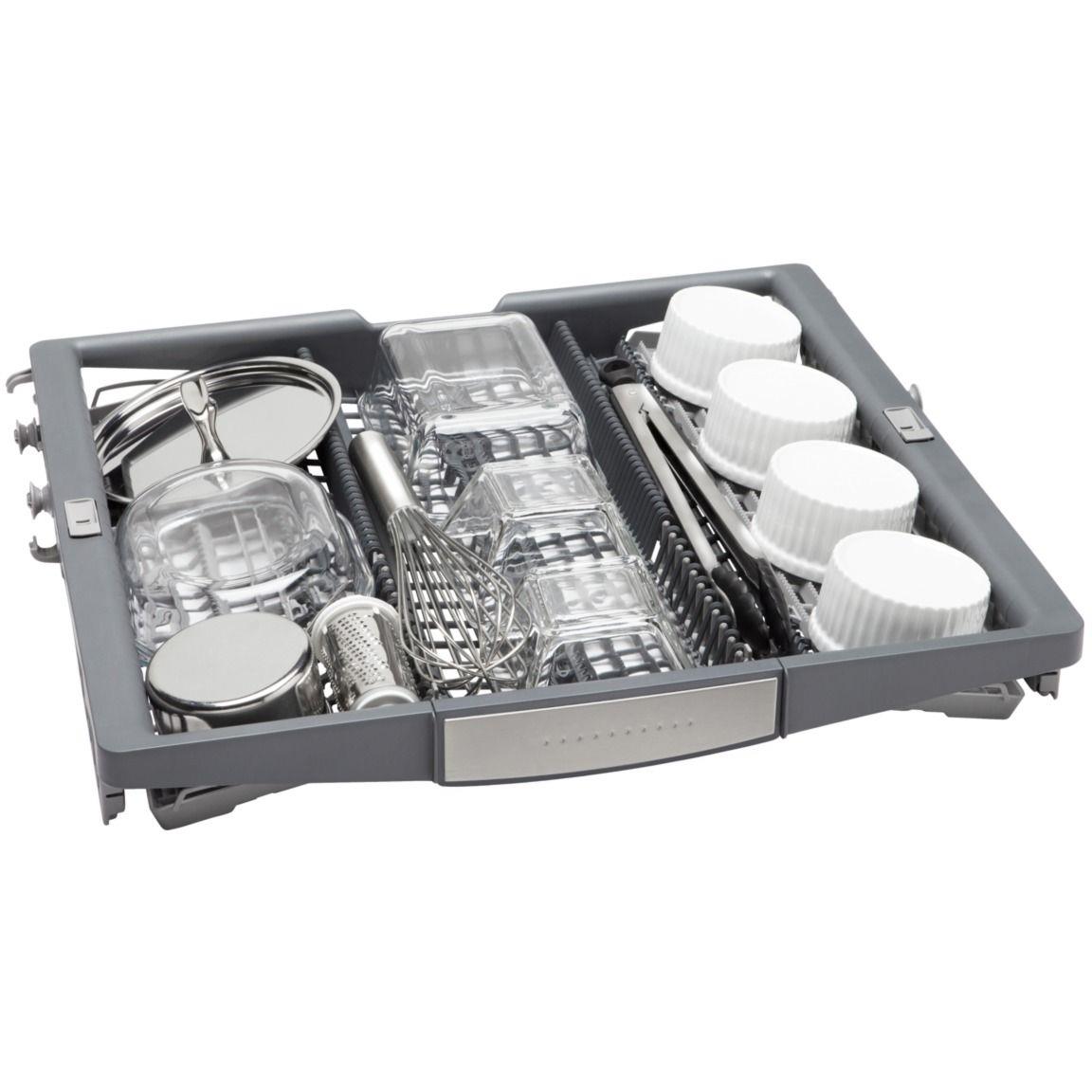

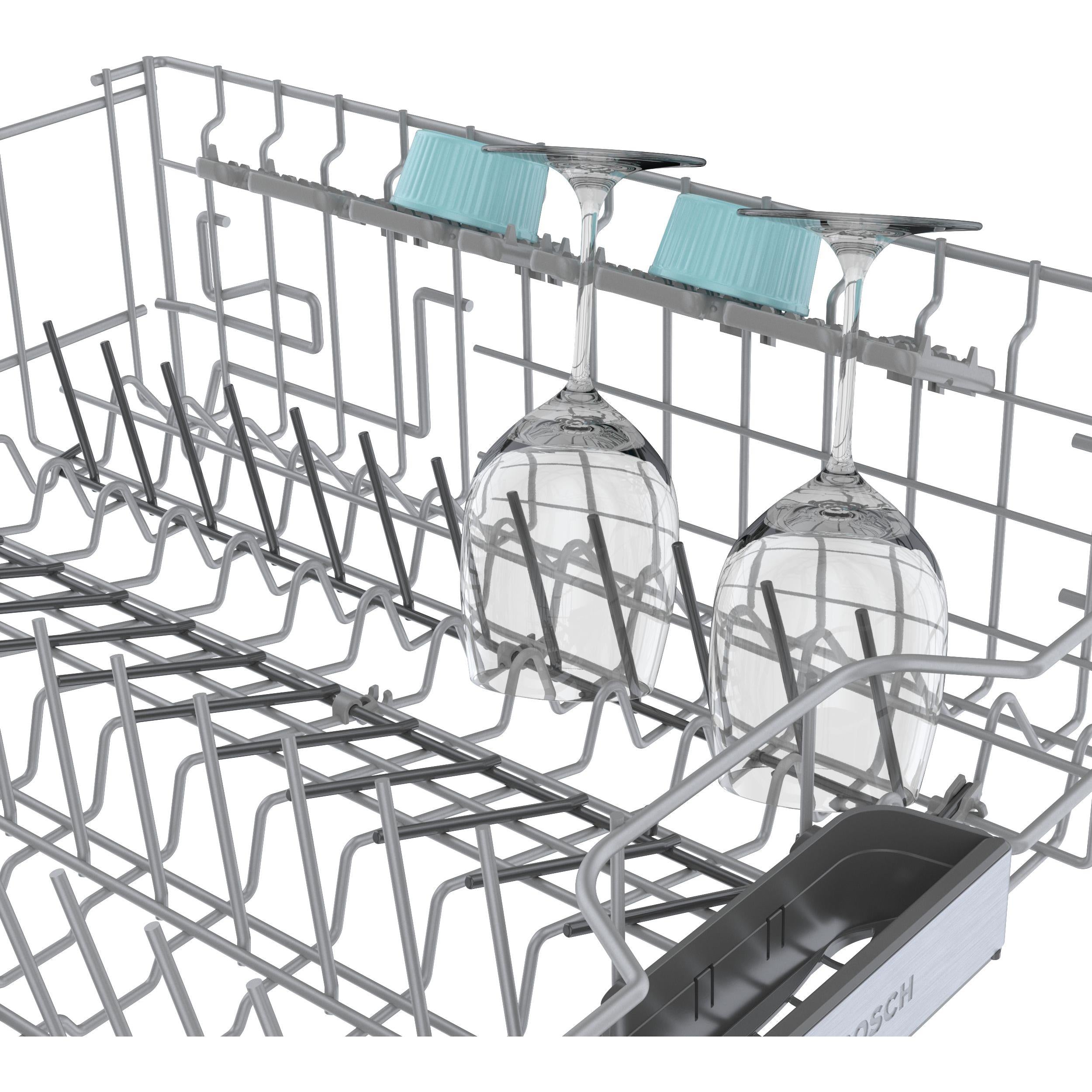

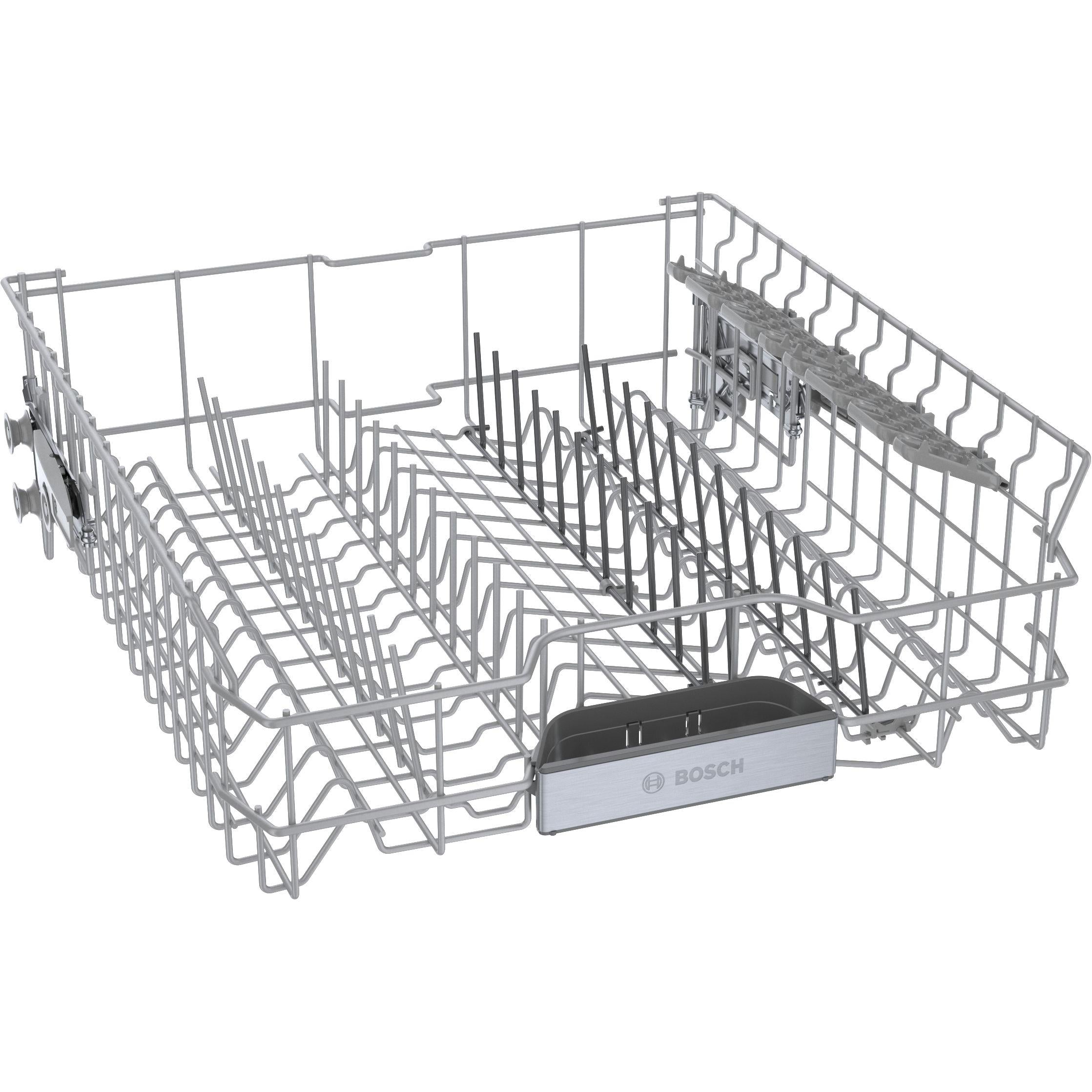

3rd Rack System
Yes
Wi-Fi
Yes
Additional Information

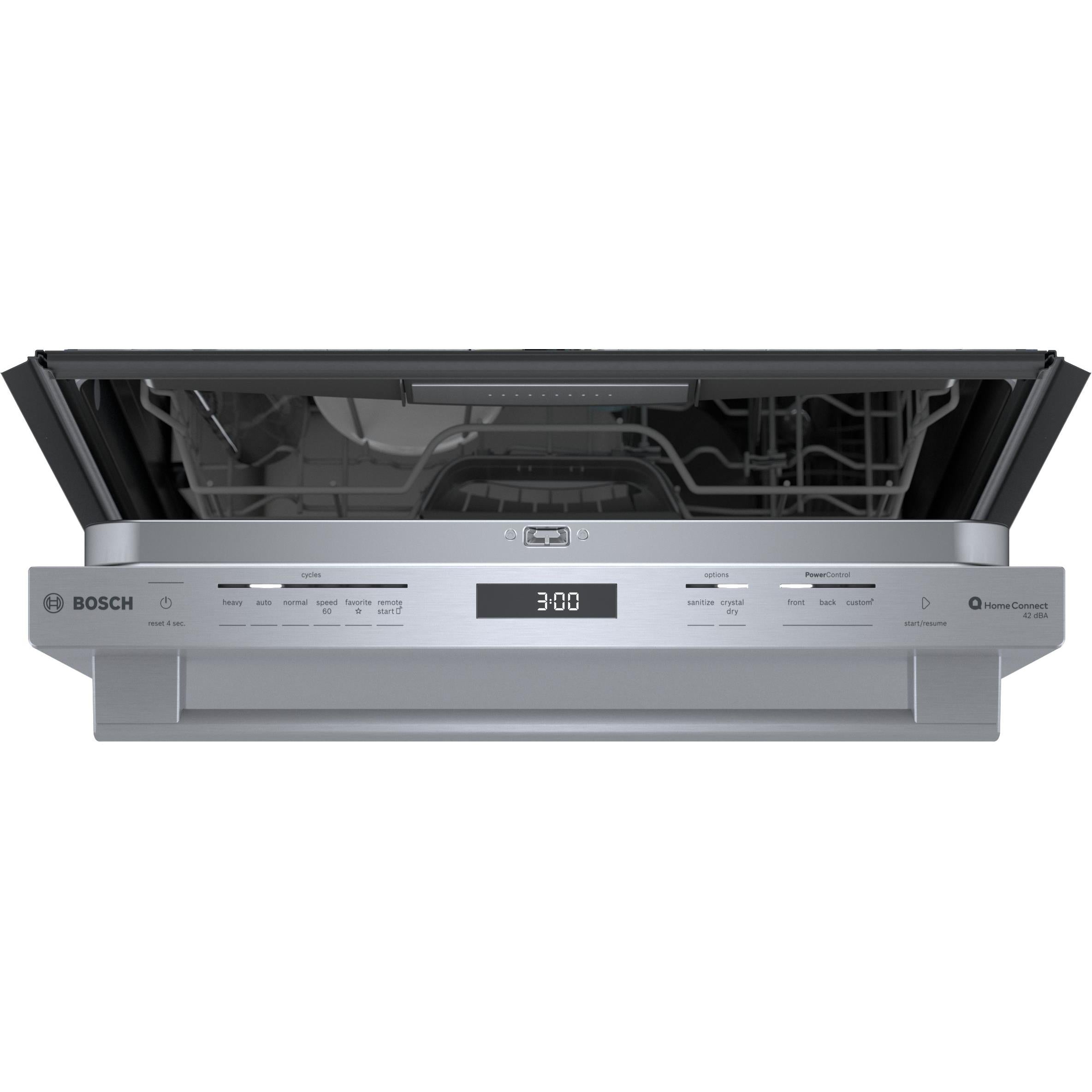

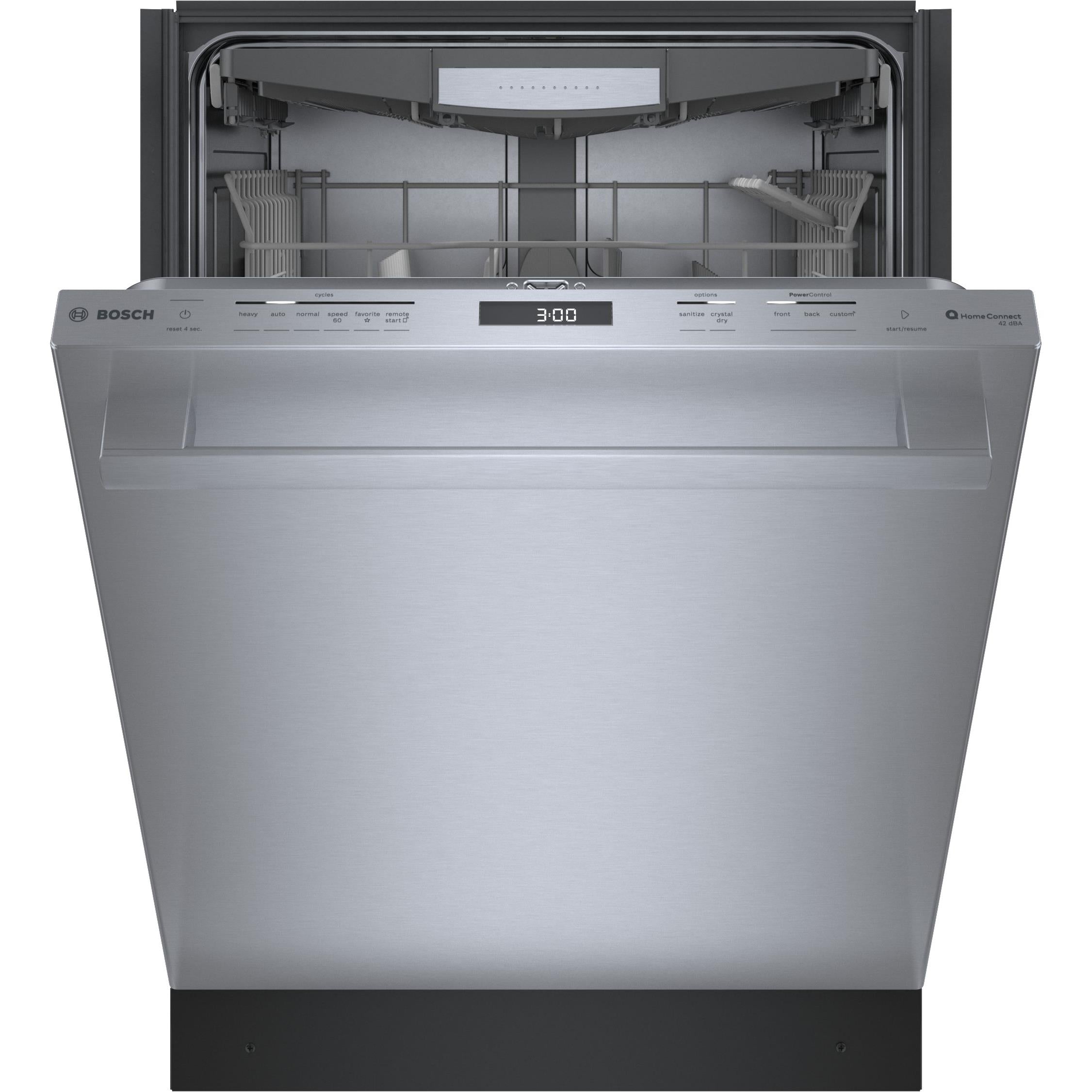

• Control type: Touch Controls
• Concealed water heating element
• Five-level wash
• Anti-Fingerprint Finish
• Adjustable feet
• Water usage per cycle 3.2
• Total annual energy consumption: 239 kWh
• Concealed water heating element
• Five-level wash
• Anti-Fingerprint Finish
• Adjustable feet
• Water usage per cycle 3.2
• Total annual energy consumption: 239 kWh
Electrical Information
Information
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Optional
• Junction Box: SMZPCJB1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH002UC
• Drain Hose Extension Kit: SGZ1010UC
• Dishwasher Accessory Kit: SMZ5000
• Anti-Tarnish Silverware Cassette: SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH002UC
• Drain Hose Extension Kit: SGZ1010UC
• Dishwasher Accessory Kit: SMZ5000
• Anti-Tarnish Silverware Cassette: SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.85 cm
Height (Min.)
33.87 inch(es) / 86.04 cm
Depth (Without Handle)
23.75 inch(es) / 60.33 cm
Weight
95.99 lb(s) / 43.54 kg
Additional Dimensions
• Required cutout size (HxWxD): 33 7/8" x 24" x 24"
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 45", Right – 56"
• Length outlet hose 79"
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 45", Right – 56"
• Length outlet hose 79"
Warranty
Warranty
1-Year Parts and Labor
UPC
UPC#
825225965985
