DESCRIPTION

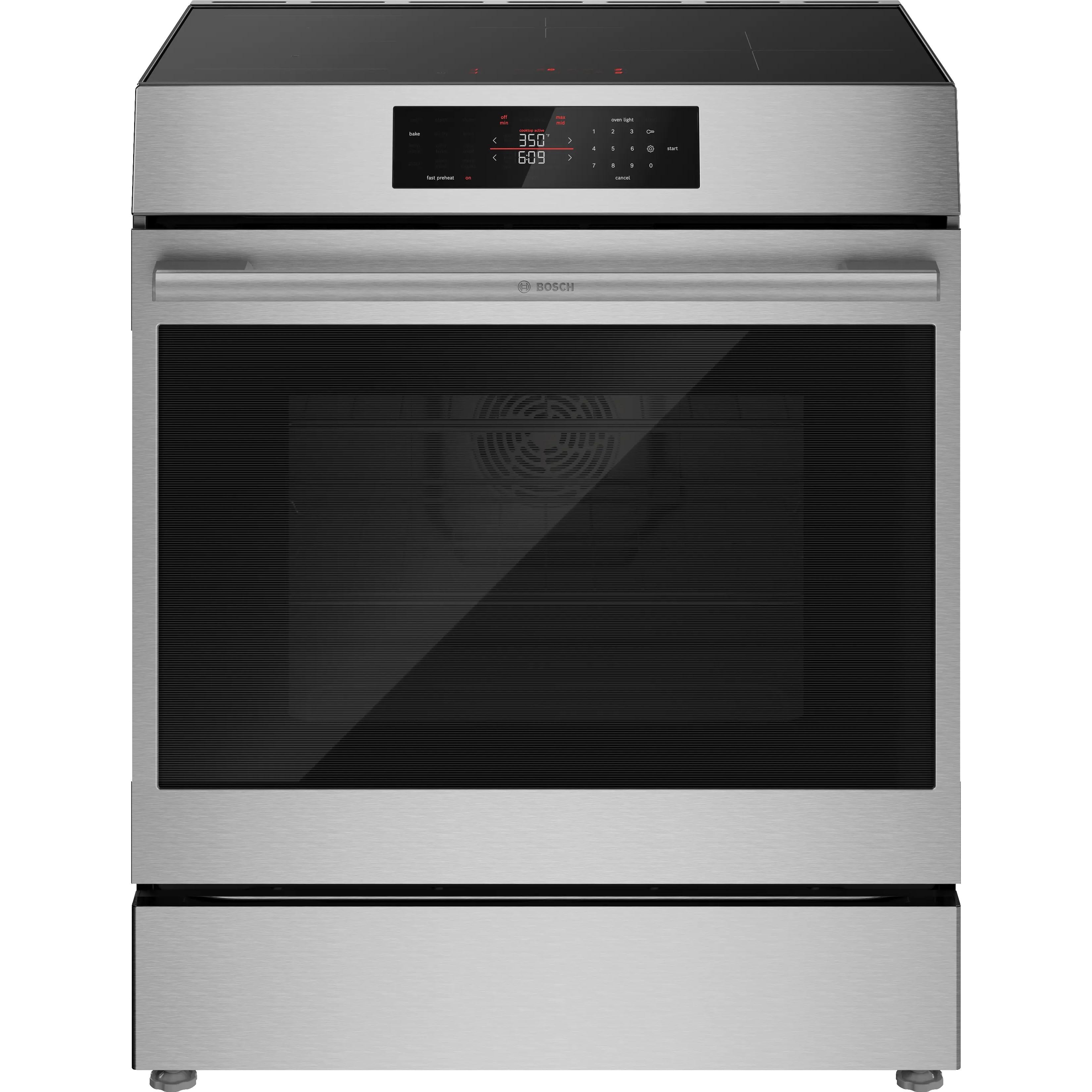

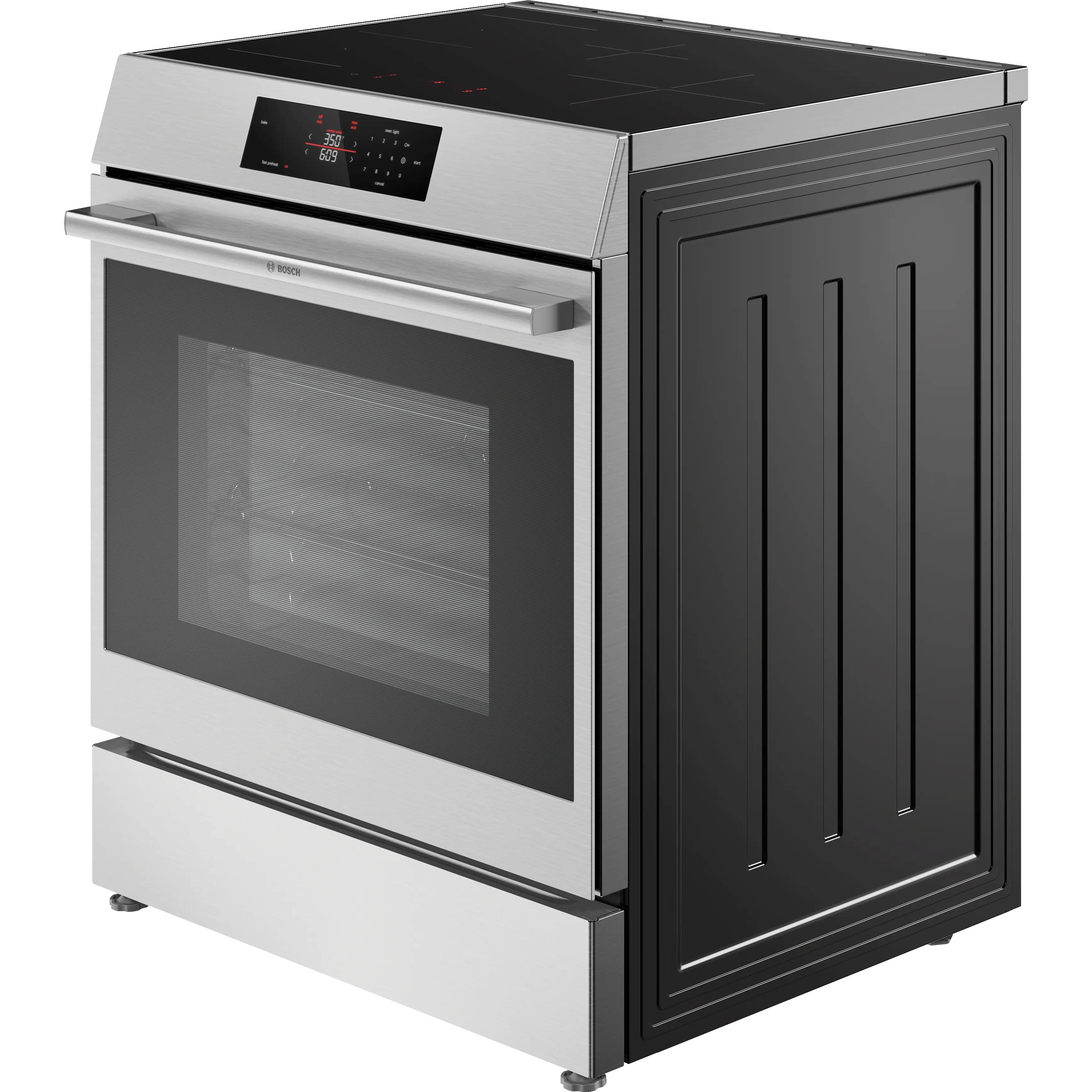

×Experience culinary precision with the Bosch 500 Series induction slide-in range which seamlessly blends cutting edge performance and timeless design for any budget, all with Bosch quality.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
500 Series
Fuel Type
Electric - Induction
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean (2h, 3h, 5h) & Steam-Assist Clean

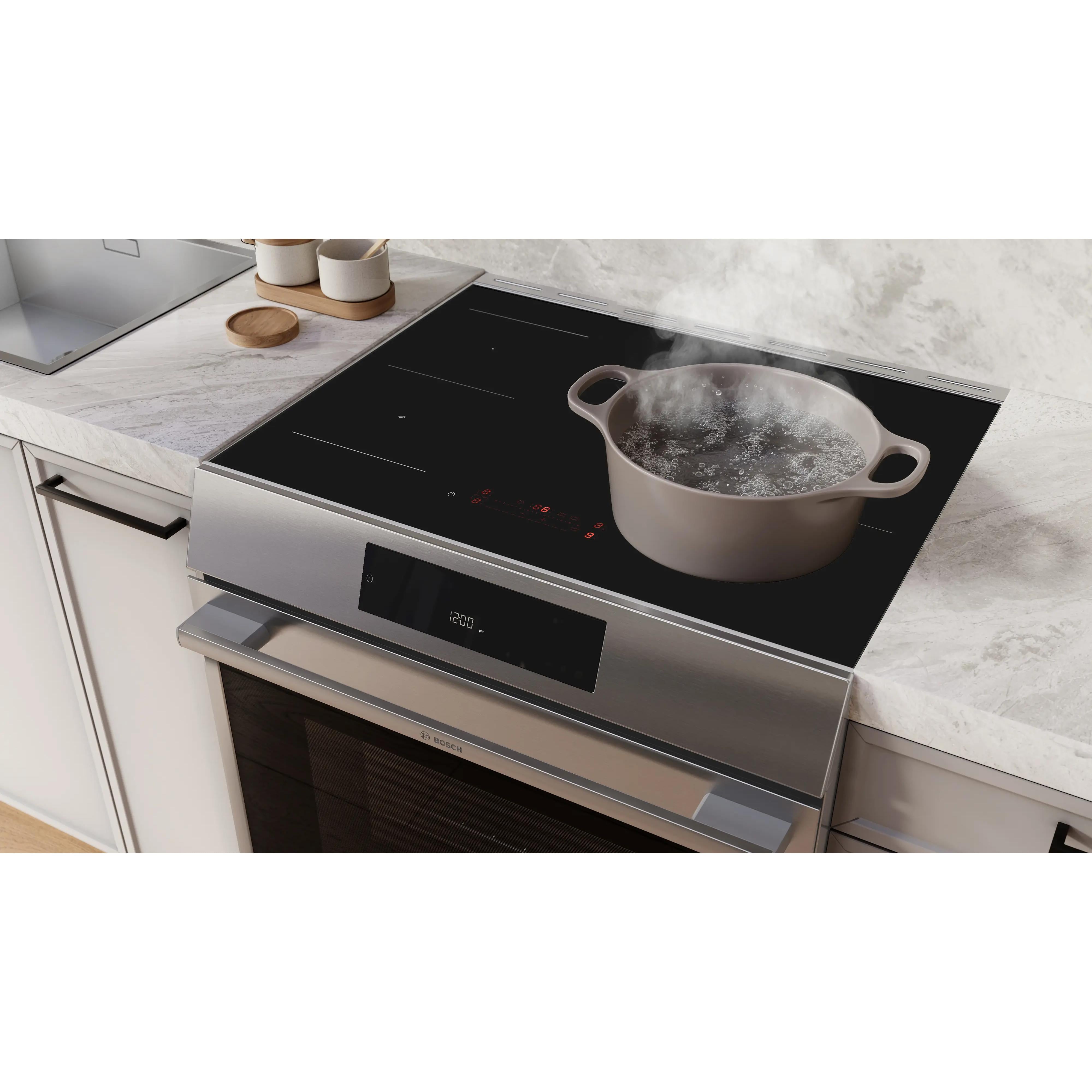

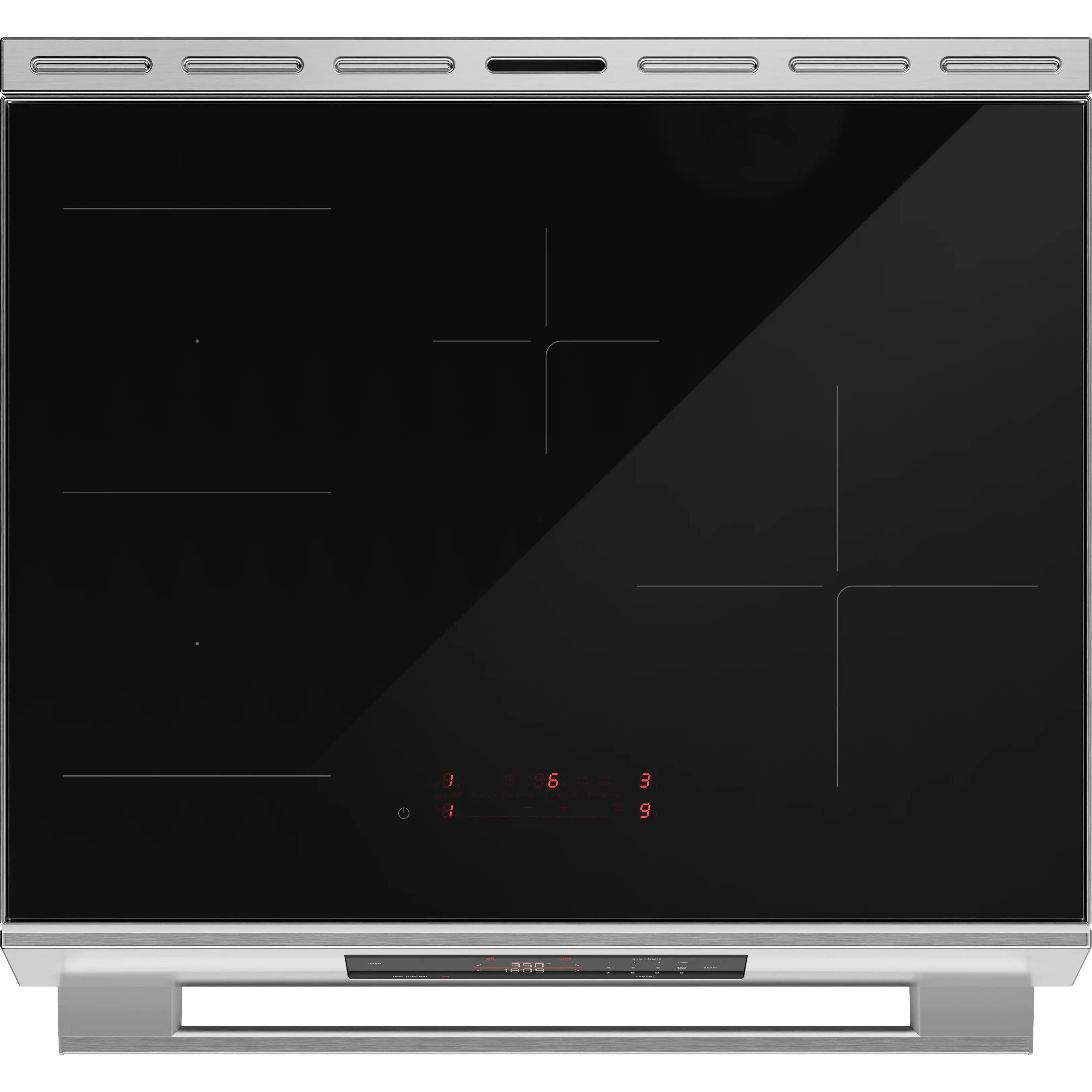

Cooktop
Burners/Elements
4
Burners/Elements Output
• Front Left Element: 2,000 W (3,000 W with Boost)
• Back Left Element: 2,000 W (3,000 W with Boost)
• Back Right Element: 1,200 W (1,800 W with Boost)
• Front Right Element: 2,100 W (3,500 W with Boost)
• Back Left Element: 2,000 W (3,000 W with Boost)
• Back Right Element: 1,200 W (1,800 W with Boost)
• Front Right Element: 2,100 W (3,500 W with Boost)
Burner/Element Size
• Front Left Heating Element: 7"
• Back Left Heating Element: 7"
• Back Right Heating Element: 6"
• Front Right Heating Element: 10"
• Back Left Heating Element: 7"
• Back Right Heating Element: 6"
• Front Right Heating Element: 10"
Elements
Smoothtop

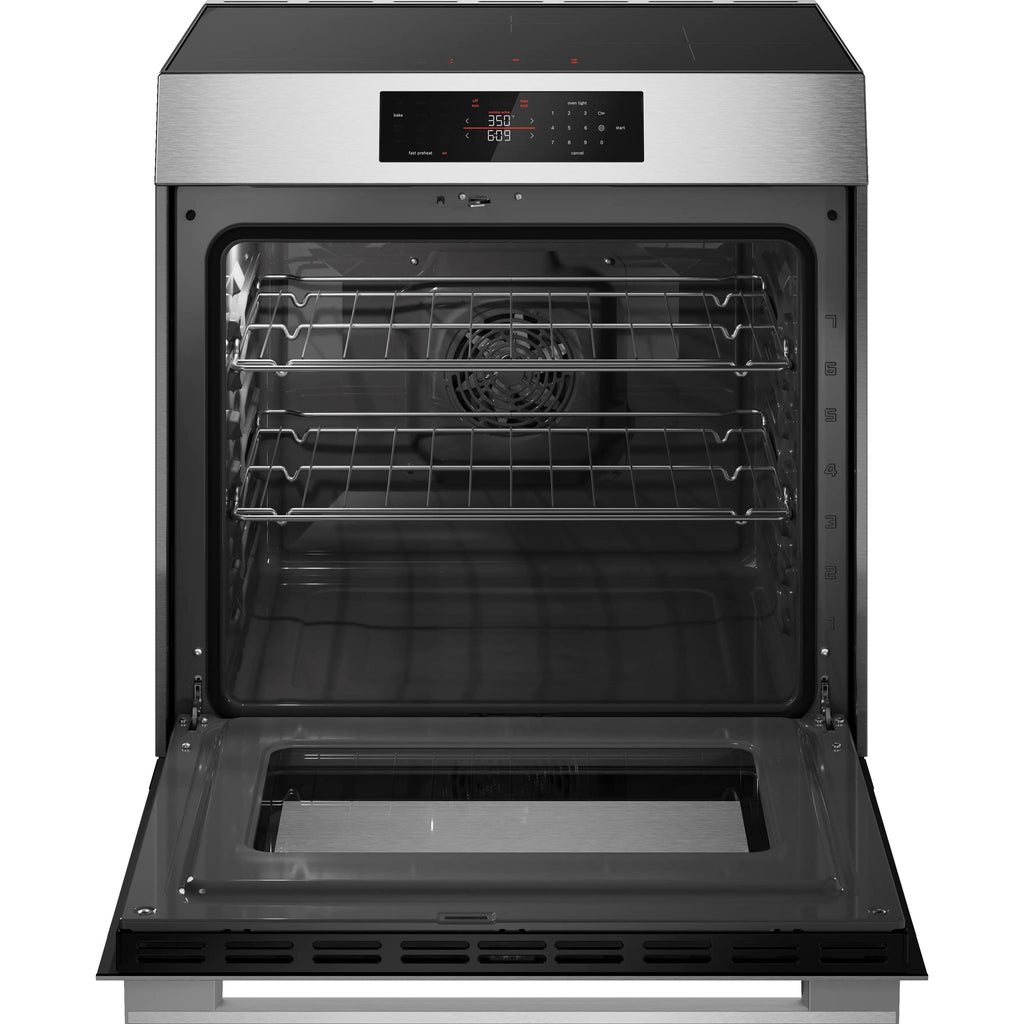

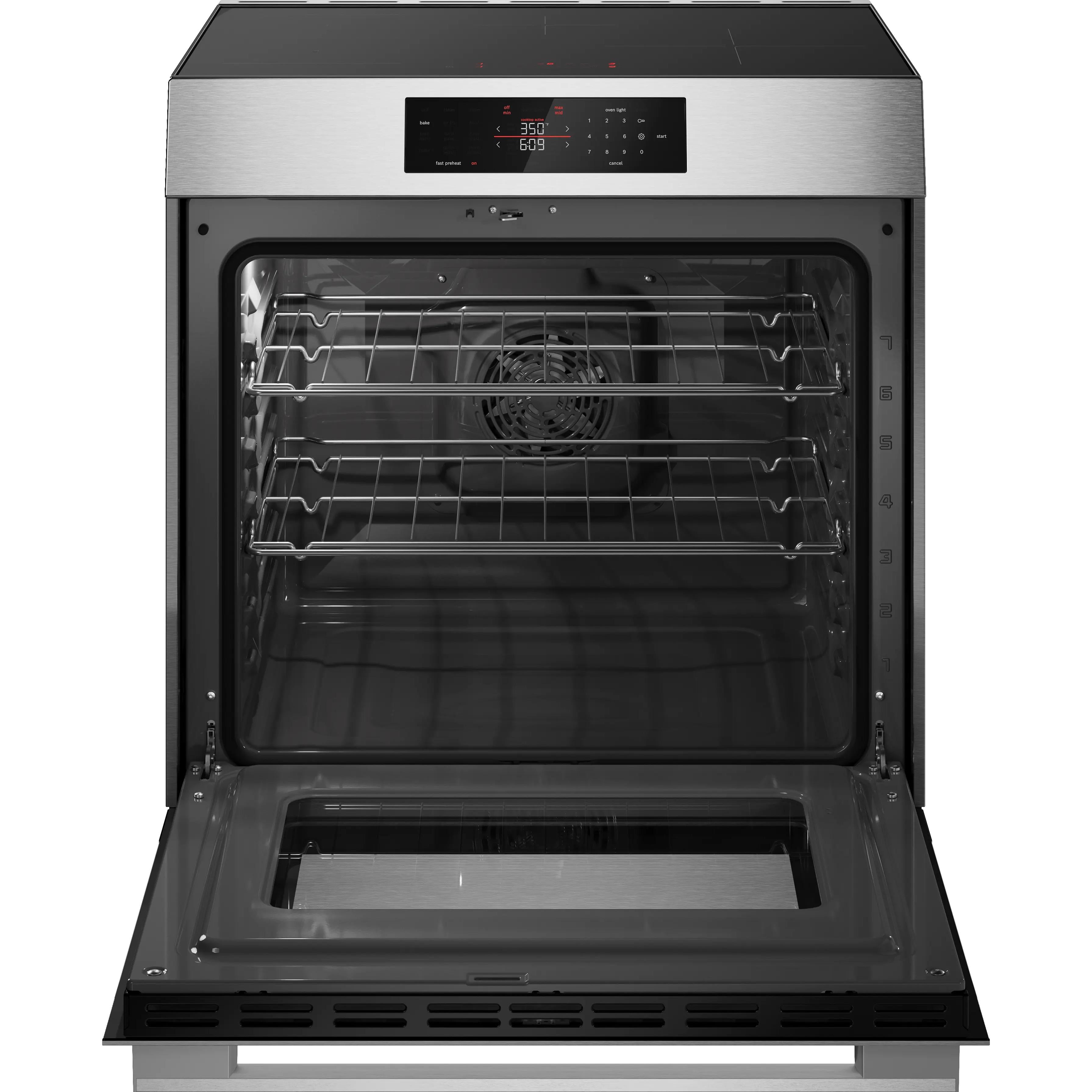

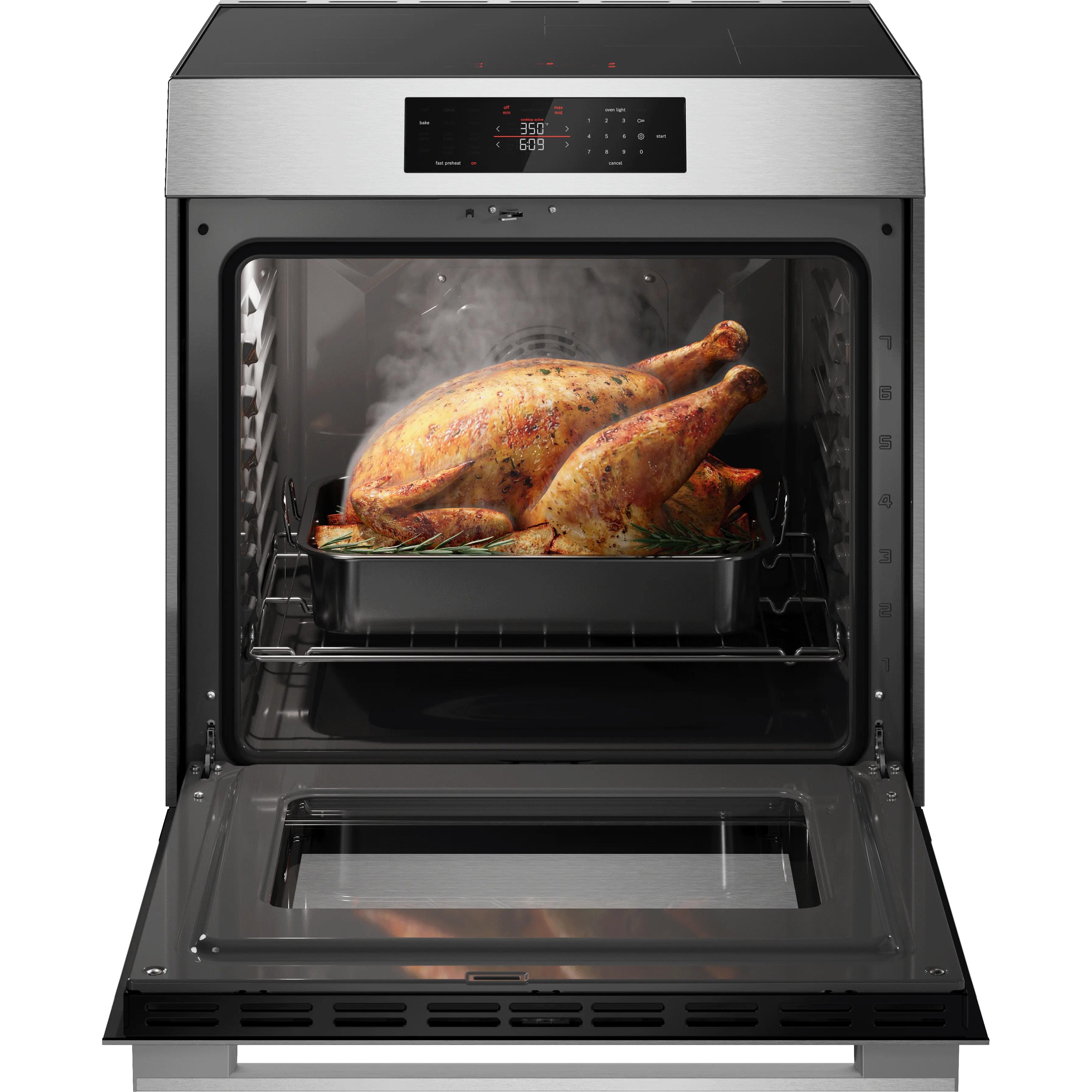

Oven
Capacity (cu. ft.)
5.8
Number of Ovens
Single
Programs
Air Fry; Bake; Broil; Roast; Convection Bake; Convection Roast; Pizza; Proof; Quick Meal; Keep Warm; Dehydrate
Features
Air Fry
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Cooktop Surface: Ceramic Glass
• Interior Light
• Kitchen Timer
• Convection Element: 1,500 W
• Bake / Broil Element: 3,000 W / 3,400 W
• Interior Light
• Kitchen Timer
• Convection Element: 1,500 W
• Bake / Broil Element: 3,000 W / 3,400 W

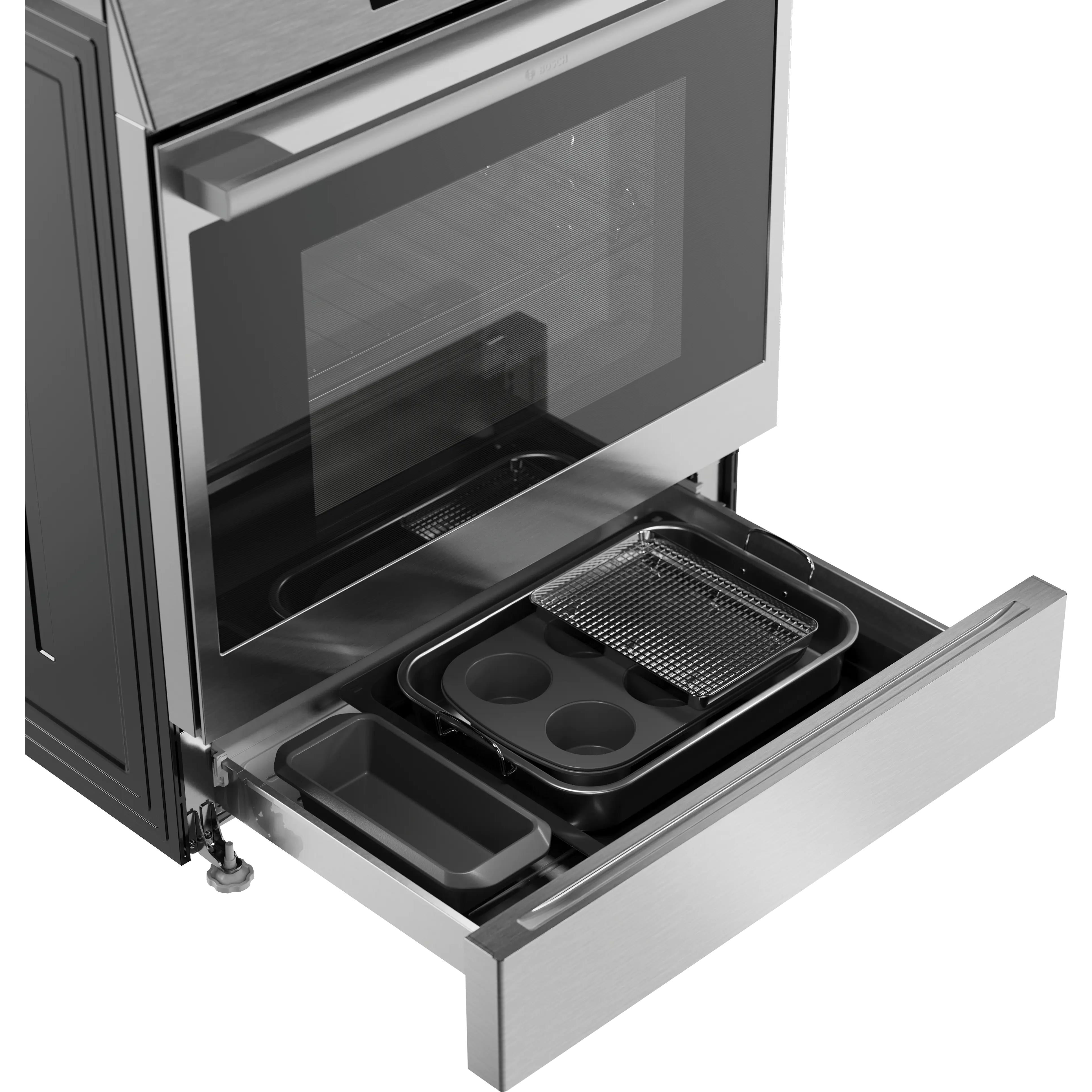

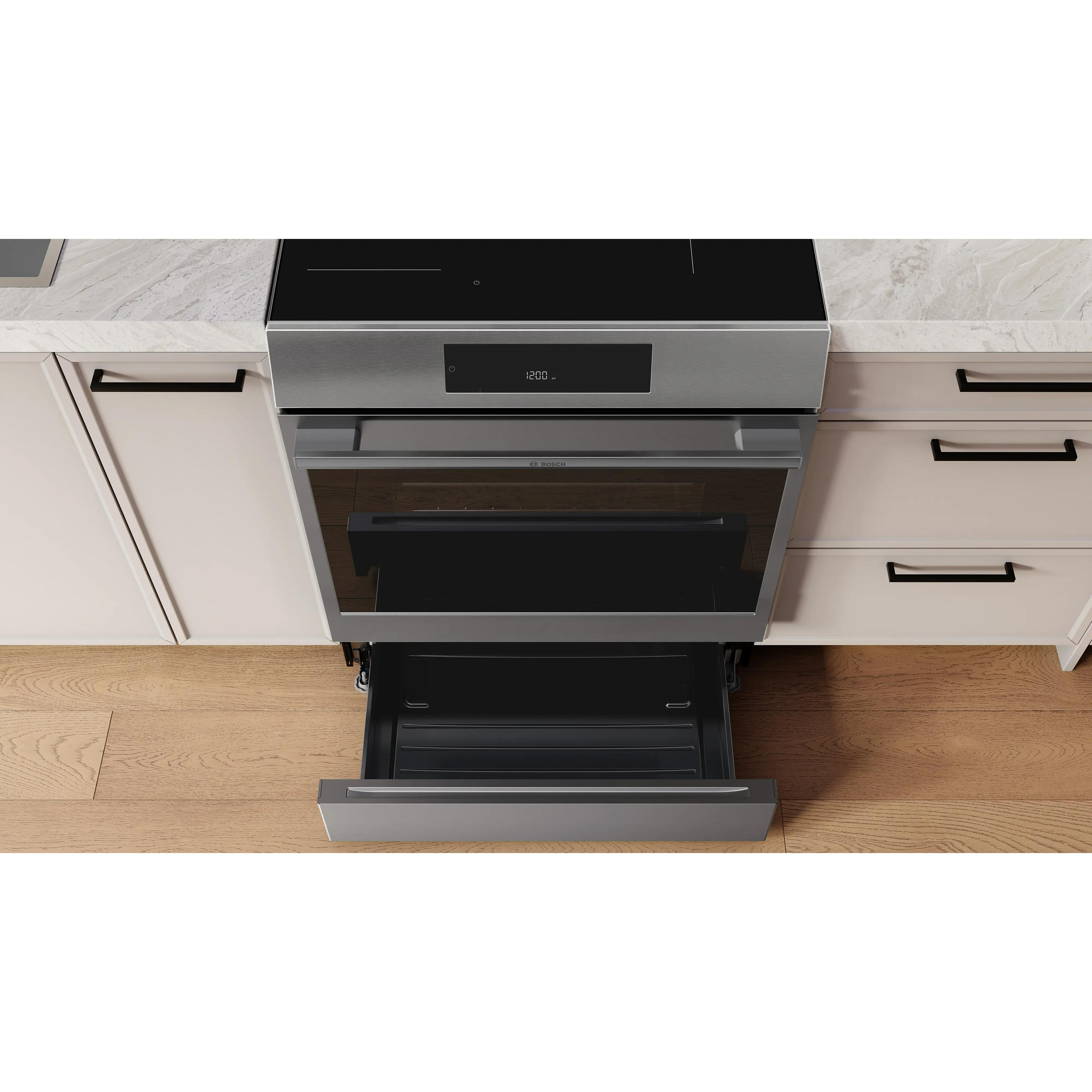

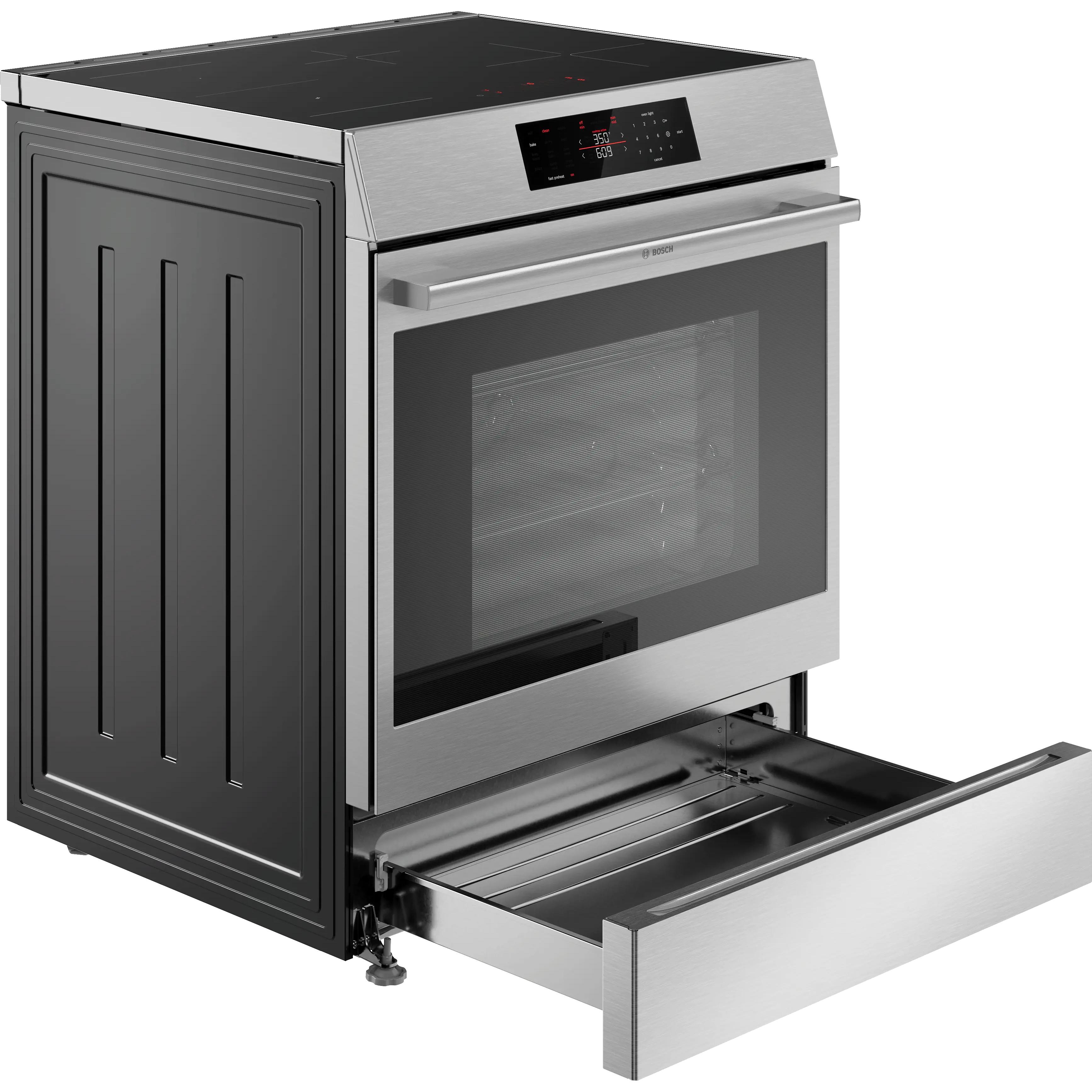

Drawer Features
Storage
Yes
Electrical Information
Information
• Total Power: 10,100 / 12,100 W
• Voltage: 208 V / 240 V
• Frequency: 60 Hz
• Circuit Breaker: 40 A

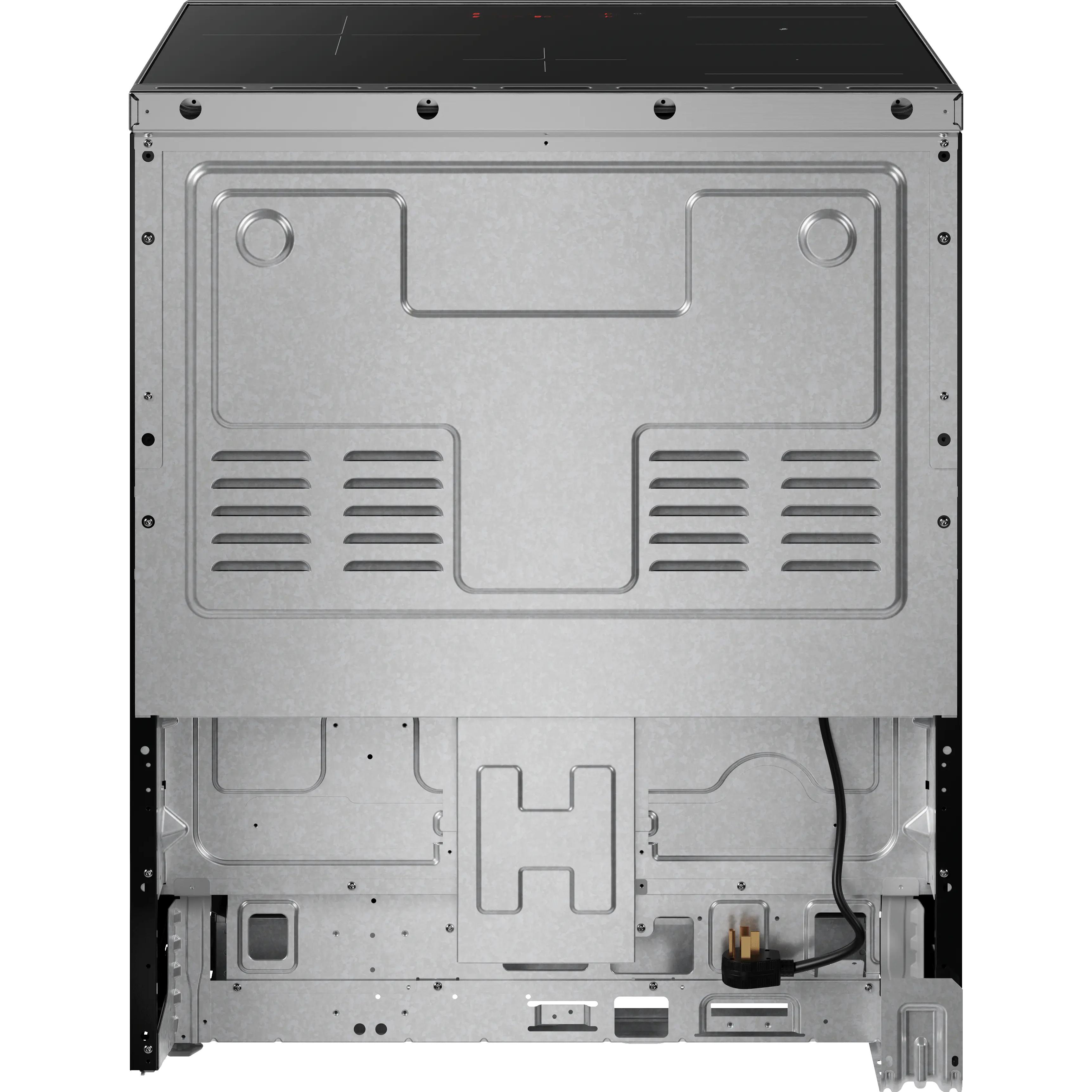

• Plug Type: 4 Prong
• Voltage: 208 V / 240 V
• Frequency: 60 Hz
• Circuit Breaker: 40 A
• Plug Type: 4 Prong
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Information
UL listed
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
26.5 inch(es) / 67.31 cm
Weight
152.3 lb(s) / 69.08 kg
Additional Dimensions
• Adjustable Height: 3/4 in
• Cutout Size (HxWxD): 36" x 30" x 25"
• Oven Interior (HxWxD): 24 3/16" x 21 1/8" x 19 13/16"
• Usable Interior (HxWxD): 23 5/8" x 20 3/16" x 18 3/8"
• Cutout Size (HxWxD): 36" x 30" x 25"
• Oven Interior (HxWxD): 24 3/16" x 21 1/8" x 19 13/16"
• Usable Interior (HxWxD): 23 5/8" x 20 3/16" x 18 3/8"
Warranty
Warranty
1-Year parts and labor
