DESCRIPTION

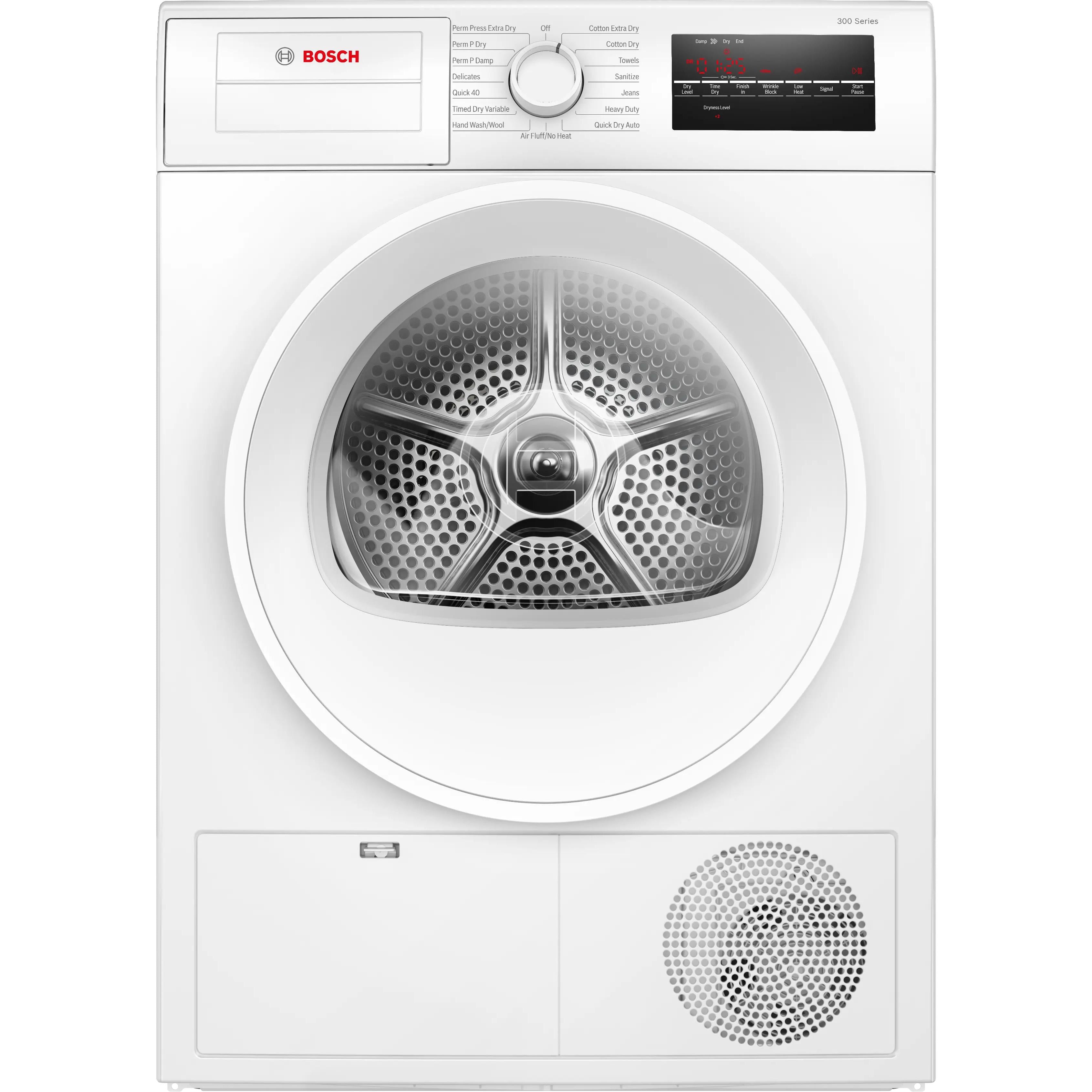

×This stackable electric dryer is ENERGY STAR® certified. The Sensor Controlled Condensation Drying system delivers high-quality fabric care and complete drying results.
SPECIFICATIONS
×
Specifications
General
Series
300 Series
Type
Ventless
Power Source
Electric
Color
White
Manufacturer Color
White
Tub Material
Stainless Steel
Capacity
Capacity
4.0 cu. ft.
Cycle Information
Number of Cycles
15
Dry Cycles
Special Programs: Jeans, Heavy Duty
Options
• Number of Options: 6
• Special Options: Dry Level, Finished In
• Special Options: Dry Level, Finished In
Features
Reversible Door
No
Stackable
Yes
Additional Information
• Dryer type: Condensing
• Silence level: 67 dBA
• Door hinge: Right Side
• Silence level: 67 dBA
• Door hinge: Right Side
Electrical Information
Information
• Energy consumption: 315 kWh/yr
• Watts: 2,520 W
• Circuit breaker: 15 A*
• Volts: 208/220-240 V
• Current: 10.5 A
• Frequency: 60 Hz
• Power Cord (included): 240V; NEMA 6-15, 3-prong
• Watts: 2,520 W
• Circuit breaker: 15 A*
• Volts: 208/220-240 V
• Current: 10.5 A
• Frequency: 60 Hz
• Power Cord (included): 240V; NEMA 6-15, 3-prong
Certifications and Approvals
Energy Star Certified
Yes
Additional Information
ADA compliance:
• Meets ADA height and access requirements when installed on a pedestal
• Meets ADA operable parts requirements for controls and lint filter
• Meets ADA height and access requirements when installed on a pedestal
• Meets ADA operable parts requirements for controls and lint filter
Accessories
Optional
• WMZ20600: Drying Rack
• WTZPW20D: Dryer Pedestal
Dryer Stacking Kits:
• WTZ11400UC: Kit w/Shelf
• WTZ20410UC: Kit w/out Shelf
• WTZSB30UC: Kit w/Brackets
Power Adapters:
• WTZPA20UC: 4-Prong
• WTZPA30US: 3-Prong
Bosch Dryers are supplied with WTZPA20UC adapter to fit a standard 4-Prong, 30A, Dryer receptacle (NEMA 14-30R) to power both Bosch Washers and Dryers.
• 3-Prong Adapter may be ordered directly from Bosch (not supplied with Washer or Dryer).
• Use of two individual NEMA 6-15R or 6-20R receptacles/circuits may be used as alternative means to power the Washer and Dryer.
• WTZPW20D: Dryer Pedestal
Dryer Stacking Kits:
• WTZ11400UC: Kit w/Shelf
• WTZ20410UC: Kit w/out Shelf
• WTZSB30UC: Kit w/Brackets
Power Adapters:
• WTZPA20UC: 4-Prong
• WTZPA30US: 3-Prong
Bosch Dryers are supplied with WTZPA20UC adapter to fit a standard 4-Prong, 30A, Dryer receptacle (NEMA 14-30R) to power both Bosch Washers and Dryers.
• 3-Prong Adapter may be ordered directly from Bosch (not supplied with Washer or Dryer).
• Use of two individual NEMA 6-15R or 6-20R receptacles/circuits may be used as alternative means to power the Washer and Dryer.
Dimensions
Class Width
25" and under
Width
23.5 inch(es) / 59.69 cm
Height
33.25 inch(es) / 84.46 cm
Depth
25 inch(es) / 63.5 cm
Weight
94.01 lb(s) / 42.64 kg
Additional Dimensions
• Minimum stack height: 67 3/4"
• Power cord length 63" (Full Length)
• Drain hose length 78" (Full Length)
• Power cord length 63" (Full Length)
• Drain hose length 78" (Full Length)
