DESCRIPTION

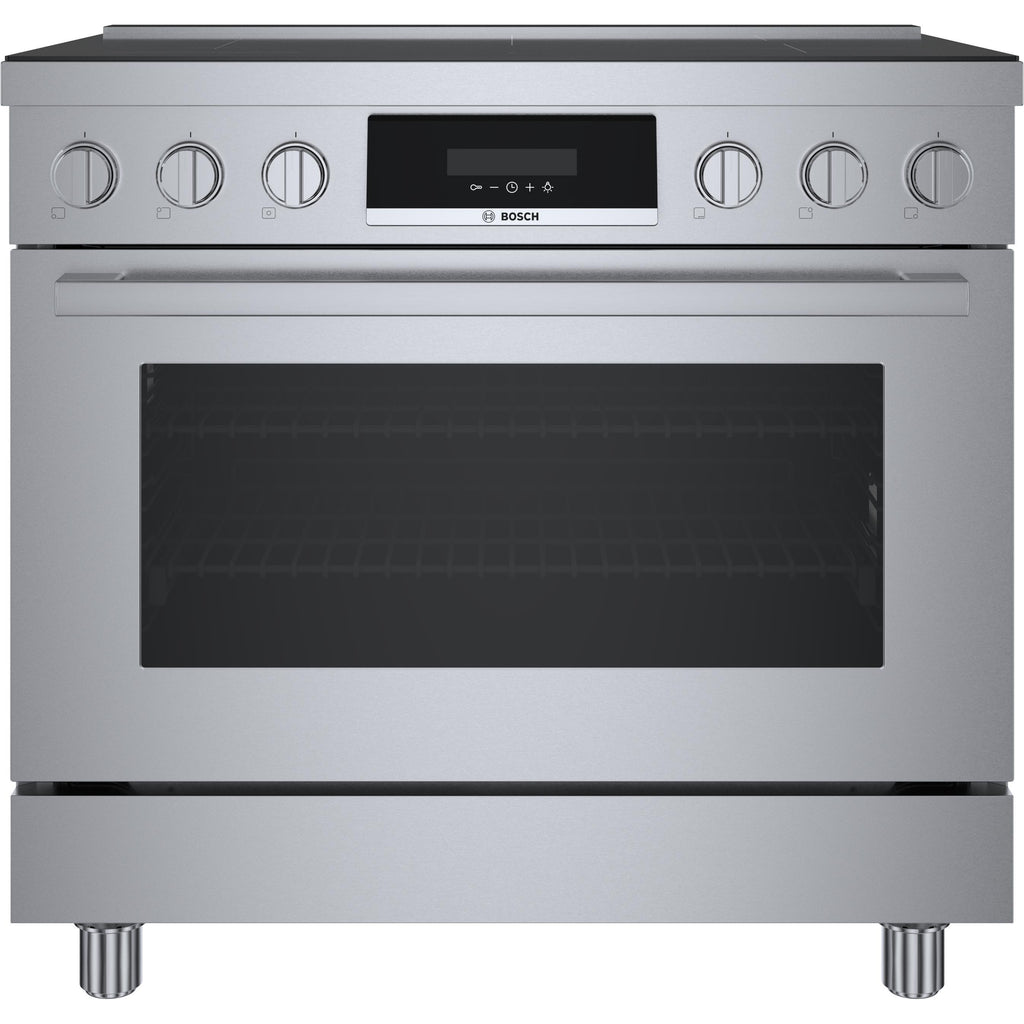

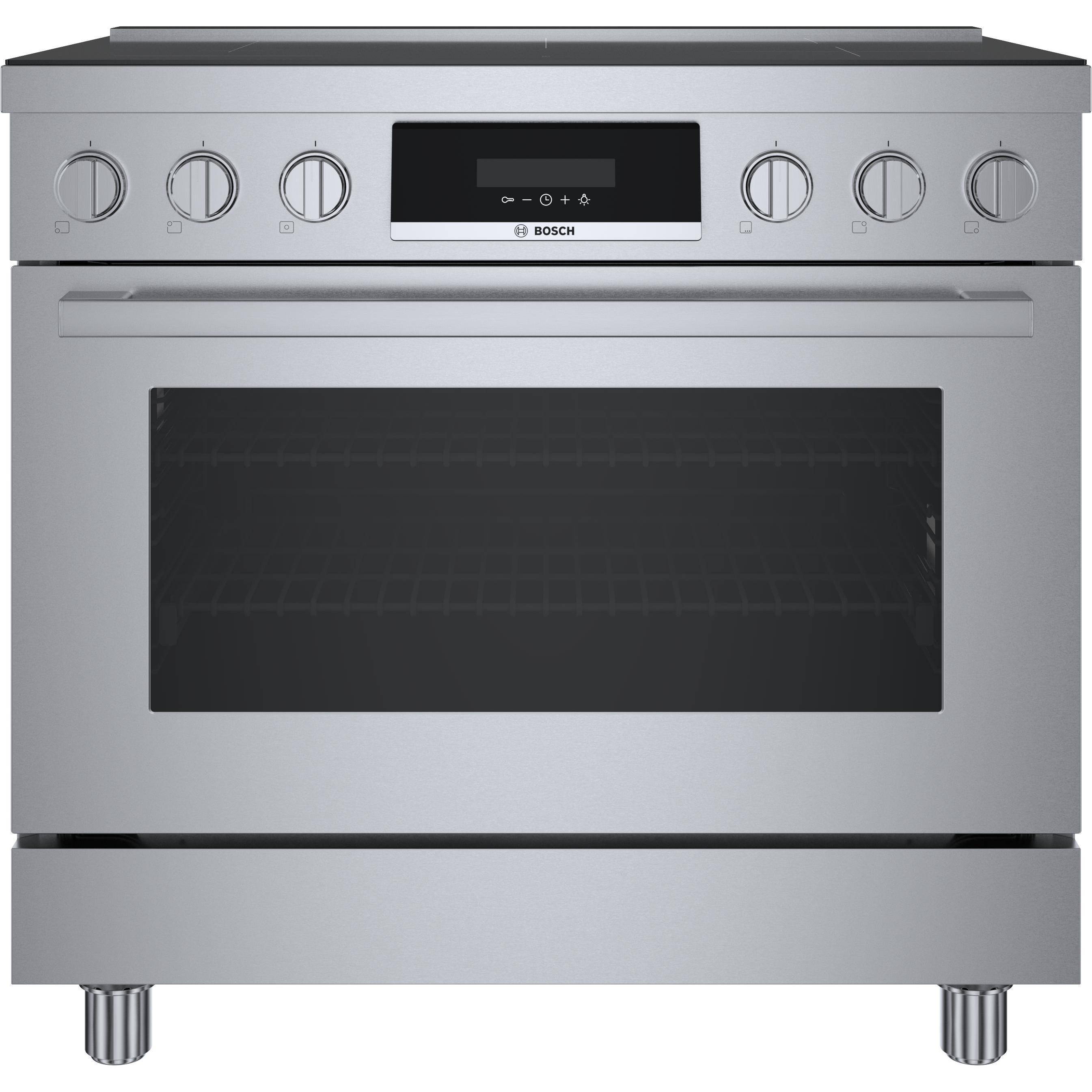

×The 36" 5 element industrial-style induction range delivers power and performance in a commercial-inspired design.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800 Series
Fuel Type
Electric - Induction
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Catalytic cleaning
Cooktop
Burners/Elements
5
Burners/Elements Output
• Power of back left element watts: 1,850 W (3,000 w/boost)
• Power of front left element: 1,850 W (3,000 w/boost)
• Power of front right element: 2,300 W (3,700 w/boost)
• Power of back rightelement watts: 1,400 W (2,200 w/boost)
• Power of center element watts (1 generator): 1,850 W (2,600 w/boost)
• Power of center element watts (both generators): 3,000 W (5,500 w/boost)
• Power of front left element: 1,850 W (3,000 w/boost)
• Power of front right element: 2,300 W (3,700 w/boost)
• Power of back rightelement watts: 1,400 W (2,200 w/boost)
• Power of center element watts (1 generator): 1,850 W (2,600 w/boost)
• Power of center element watts (both generators): 3,000 W (5,500 w/boost)
Elements
Induction
Oven
Capacity (cu. ft.)
3.7 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Convection
• Bake
• Broil
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multirack
• Temperature Probe
• Convection
• Bake
• Broil
• Convection Broil
• Convection Roast
• Pizza
• Proof
• Convection Multirack
• Temperature Probe
Features
Technologies
• CombiZone
• Convection Pro
• QuietClose door
• Convection Pro
• QuietClose door
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Full extension telescopic rack
• Easy to view, ergonomic tilted display
• Ceramic Glass surface
• Knob material: Metal
• Kitchen timer
• Easy to view, ergonomic tilted display
• Ceramic Glass surface
• Knob material: Metal
• Kitchen timer
Electrical Information
Information
• 8,400W
• 50A
• 208V/240V
• 60 Hz
• 50A
• 208V/240V
• 60 Hz
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• Temperature probe
• 1 standard rack
• 1 telescopic rack
• 1 standard rack
• 1 telescopic rack
Optional
• HEZ390230 10" AutoChef® pan for 8" and 9" elements
• HEZ9YZ04UC Side Panel Extension Kit Stainless Steel
• HEZ9TK36UC 36" Toe Kick Stainless Steel
• HEZ9LLUC Metal Pedestal Feet Stainless Steel
• HEZ390512 Teppanyaki
• HEZ9GR37UC Grill
• HEZ9YZ04UC Side Panel Extension Kit Stainless Steel
• HEZ9TK36UC 36" Toe Kick Stainless Steel
• HEZ9LLUC Metal Pedestal Feet Stainless Steel
• HEZ390512 Teppanyaki
• HEZ9GR37UC Grill
Dimensions
Class Width
36"
Width
35.94 inch(es) / 91.28 cm
Height
36 inch(es) / 91.44 cm
Depth (Including Handles)
24.94 inch(es) / 63.34 cm
Weight
214.99 lb(s) / 97.52 kg
Additional Dimensions
• Depth with bull nose: 26 1/2"
• Required cutout size (HxWxD): 36" x 36" x 25"
• Adjustable range height: 35 3/4" Min., 36 3/4" Max.
• Overall oven interior dimensions (HxWxD): 15 1/32" x 28 7/16" x 17 9/16"
• Usable oven interior dimensions (HxWxD): 14 9/16" x 26 15/16" x 16 1/8"
• Required cutout size (HxWxD): 36" x 36" x 25"
• Adjustable range height: 35 3/4" Min., 36 3/4" Max.
• Overall oven interior dimensions (HxWxD): 15 1/32" x 28 7/16" x 17 9/16"
• Usable oven interior dimensions (HxWxD): 14 9/16" x 26 15/16" x 16 1/8"
Warranty
Warranty
1-Year Parts and Labor
UPC
UPC#
825225966265
