DESCRIPTION

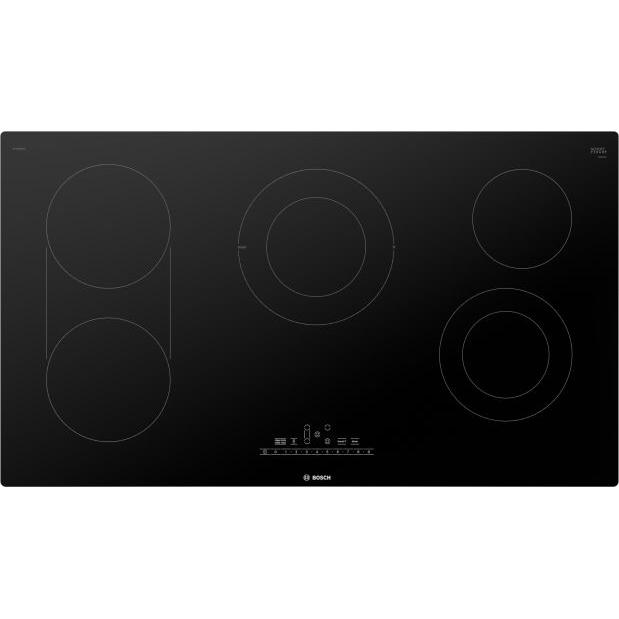

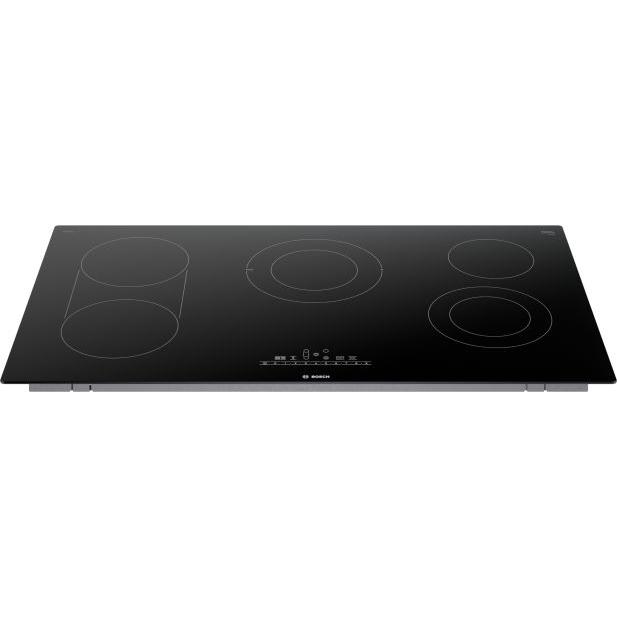

×Bosch 800 Series built-in electric cooktop features 5 cooktop elements, SpeedBoost®, PreciseSelect® and a smooth ceramic glass surface.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800 Series
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Front Left heating element: 1,800 W
• Back Left heating element: 1,800 W

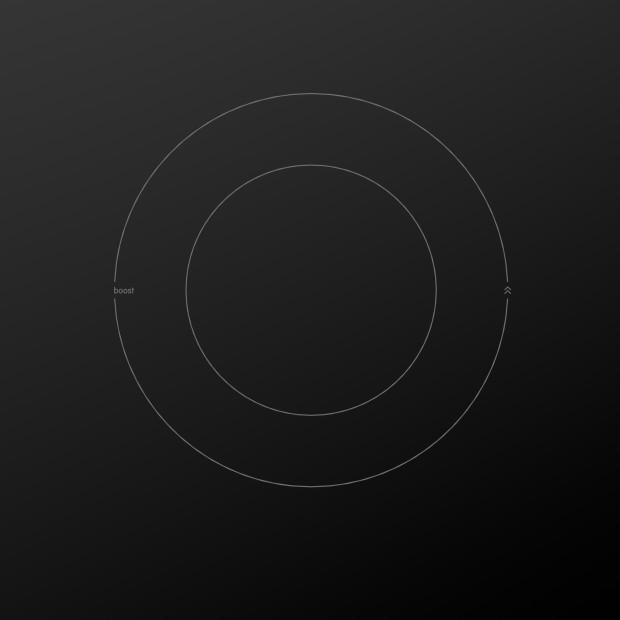

• Center heating element: 3,600 / 1,400 W
• Back Right heating element: 1,200 W
• Front Right heating element: 1,900 / 800 W
• Back Left heating element: 1,800 W
• Center heating element: 3,600 / 1,400 W
• Back Right heating element: 1,200 W
• Front Right heating element: 1,900 / 800 W
Burner/Element Size
• Front Left heating element: 7"
• Back Left heating element: 7"
• Center heating element: 9" / 6" W
• Back Right heating element: 6"
• Front Right heating element: 8" / 5"
• Back Left heating element: 7"
• Center heating element: 9" / 6" W
• Back Right heating element: 6"
• Front Right heating element: 8" / 5"
Elements
Smoothtop
Surface Features

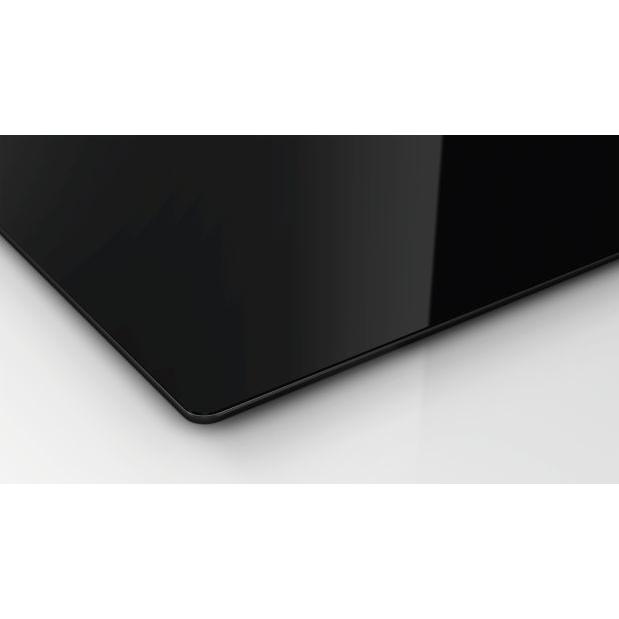

Black-glass Seemless Design
Features
Technologies
• PreciseSelect®
• SpeedBoost®
• SpeedBoost®
Control Lock
Yes
Digital Display
Yes
Additional Information
• Dual Element Offers the Capability to use Multiple Pan Sizes
• Bridge Element Accomodates Oblong Pans and Multiple Diameter Sized Cookware
• Use the Kitchen Timer to Measure Cooking Time or as a Reminder
• Clean Lock - Prevents Unwanted Changing of Settings while Cleaning Spill-Overs
• 2-Level Heat Indicator - Warns if Cooktop is Warm or Hot
• Bridge Element Accomodates Oblong Pans and Multiple Diameter Sized Cookware
• Use the Kitchen Timer to Measure Cooking Time or as a Reminder
• Clean Lock - Prevents Unwanted Changing of Settings while Cleaning Spill-Overs
• 2-Level Heat Indicator - Warns if Cooktop is Warm or Hot
Electrical Information
Information
• 10,200 W
• 50 A
• 240/208 V
• 60 Hz
• 50 A
• 240/208 V
• 60 Hz
Certifications and Approvals
ADA Compliant
Yes
Information
Dekra Mark C+US
Accessories
Optional
• HEZ390090
• HEZ390210 : System pan diameter 15 cm
• HEZ390220 : System pan diameter 19 cm
• HEZ390230 : System pan diameter 21 cm
• HEZ390210 : System pan diameter 15 cm
• HEZ390220 : System pan diameter 19 cm
• HEZ390230 : System pan diameter 21 cm
Dimensions
Class Width
36"
Width
37.01 inch(es) / 94.0 cm
Height
3.94 inch(es) / 10.0 cm
Depth
21.26 inch(es) / 54.0 cm
Weight
31 lb(s) / 14.06 kg
Additional Dimensions
Required cutout size (HxWxD): 100 x 883-886 x 505-508 mm
Shipping Dimensions
Width
43.31 inch(es) / 110.0 cm
Height
8.27 inch(es) / 21.0 cm
Depth
24.02 inch(es) / 61.0 cm
Weight
39.99 lb(s) / 18.14 kg
UPC
UPC#
825225960201
