DESCRIPTION

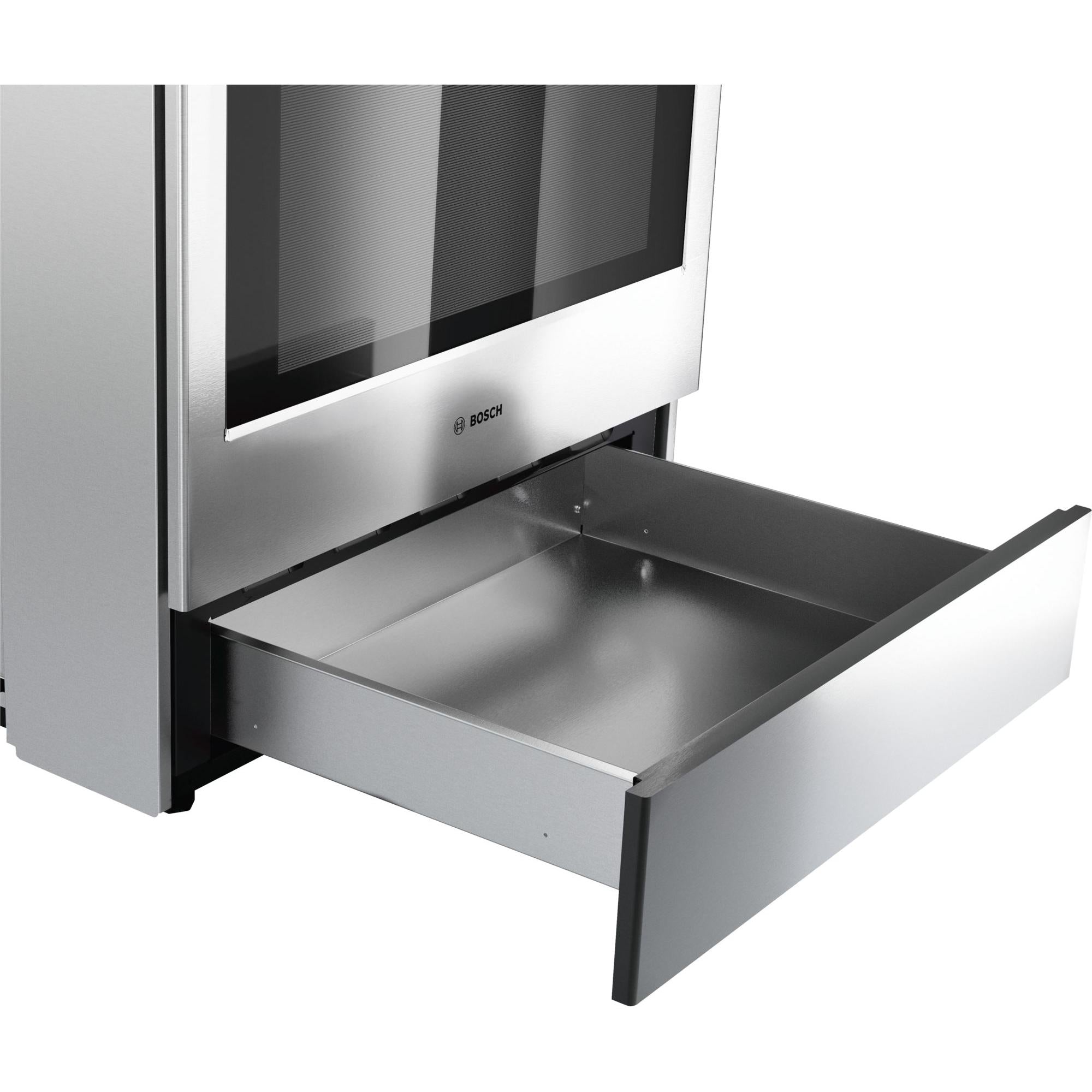

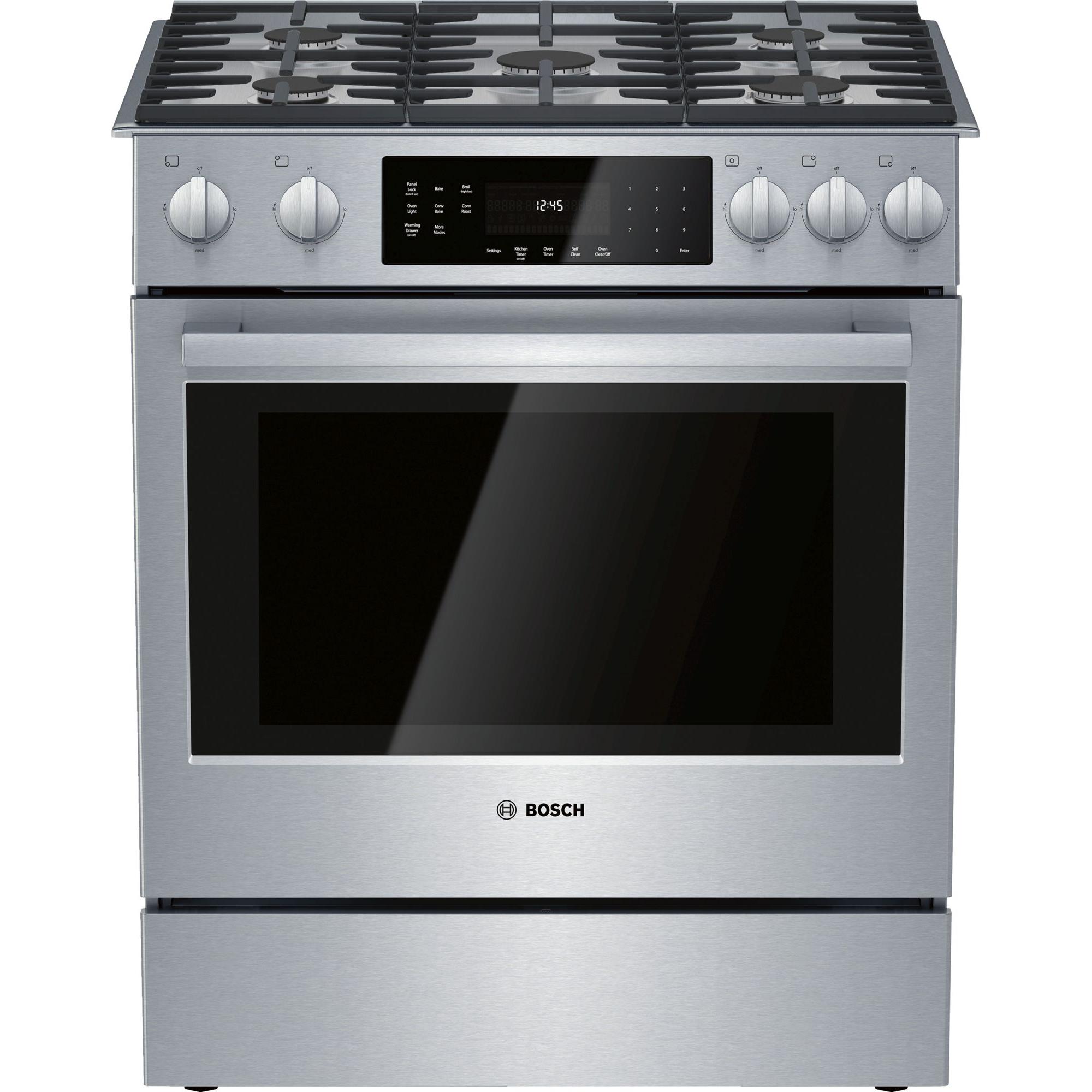

×Bosch 30" slide-in range 800 Series fits in any freestanding range cutout. This range features 5 sealed burners, a 4.8 cu.ft. convection oven, heavy-duty metal knobs and a powerful 18,000 BTU center burner. The Bosch warming drawer keeps your meals warm and is great for preheating plates.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Total Connection Rating (NG / LP) BTU: 53,000 / 46,500
• Front Left (NG / LP) BTU: 10,000 / 8,000
• Back Left (NG / LP) BTU: 5,000 / 5,000
• Center (NG / LP) BTU: 18,000 / 15,000
• Right Burner (NG / LP) BTU: 5,000 / 5,000
• Right Burner (NG / LP) BTU: 15,000 / 13,500
• Front Left (NG / LP) BTU: 10,000 / 8,000
• Back Left (NG / LP) BTU: 5,000 / 5,000
• Center (NG / LP) BTU: 18,000 / 15,000
• Right Burner (NG / LP) BTU: 5,000 / 5,000
• Right Burner (NG / LP) BTU: 15,000 / 13,500
Burners
Sealed
Oven
Capacity (cu. ft.)
4.8 cu.ft.
Number of Ovens
Single
Programs
• Bake
• Variable Broil (hi and low)
• Roast
• Warm
• Proof dough
• Convection Bake
• Convection Roast
• Convection Conversion
• Pizza
• Sabbath
• Variable Broil (hi and low)
• Roast
• Warm
• Proof dough
• Convection Bake
• Convection Roast
• Convection Conversion
• Pizza
• Sabbath
Features
Technologies
Convection Technology
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information
• Heavy-duty metal knobs for a premium look and feel
• Touch control for easier operation of the oven
• Low-profile design for an integrated appearance
• Stainless steel maintop
• 9 specialized cooking modes
• Standard convection
• Temperature conversion for convection cooking
• One oven light to better monitor cooking progress
• Kitchen timer
• Extra large door window for easy monitoring of cooking process
• Star-K certified. 100°-450° F
• Touch control for easier operation of the oven
• Low-profile design for an integrated appearance
• Stainless steel maintop
• 9 specialized cooking modes
• Standard convection
• Temperature conversion for convection cooking
• One oven light to better monitor cooking progress
• Kitchen timer
• Extra large door window for easy monitoring of cooking process
• Star-K certified. 100°-450° F
Drawer Features
Warming
Yes
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• Oven Rack / Upper
• Nozzle Set For Liquid Gas
• Cast Iron Pan Support
• Nozzle Set For Liquid Gas
• Cast Iron Pan Support
Optional
• Wok Ring: HEZ298102
• Griddle: HEZGR301
• 30" Telescopic Rack: HEZTR301
• 4" Low Backguard: HGZBS301
• Island Trim: HGZIT301
• Griddle: HEZGR301
• 30" Telescopic Rack: HEZTR301
• 4" Low Backguard: HGZBS301
• Island Trim: HGZIT301
Dimensions
Class Width
30"
Width
31.5 inch(es) / 80.01 cm
Height
36.5 inch(es) / 92.71 cm
Depth (Without Handles)
26.75 inch(es) / 67.95 cm
Depth (Including Handles)
29.17 inch(es) / 74.1 cm
Weight
228 lb(s) / 103.42 kg
Additional Dimensions
• Required Cutout Size (HxWxD): 35 1/2"–37" x 30" x 25 1/4"
• Oven Interior Dimensions (HxWxD): 17 13/16" x 24 1/8" x 18"
• Adjustable Range Height: 1 1/2"
• Oven Interior Dimensions (HxWxD): 17 13/16" x 24 1/8" x 18"
• Adjustable Range Height: 1 1/2"
Warranty
Warranty
Limited 1 Year Parts And Labor
UPC
UPC#
825225959724
