DESCRIPTION

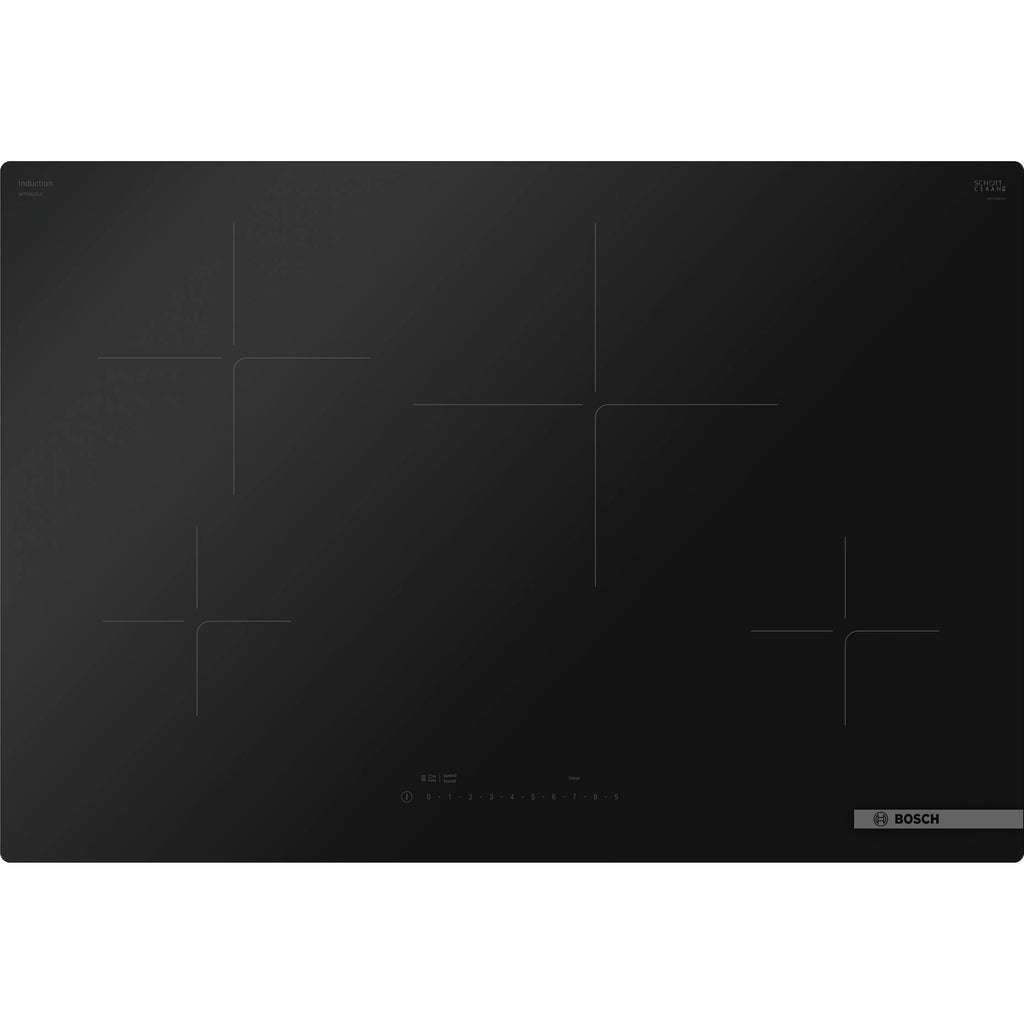

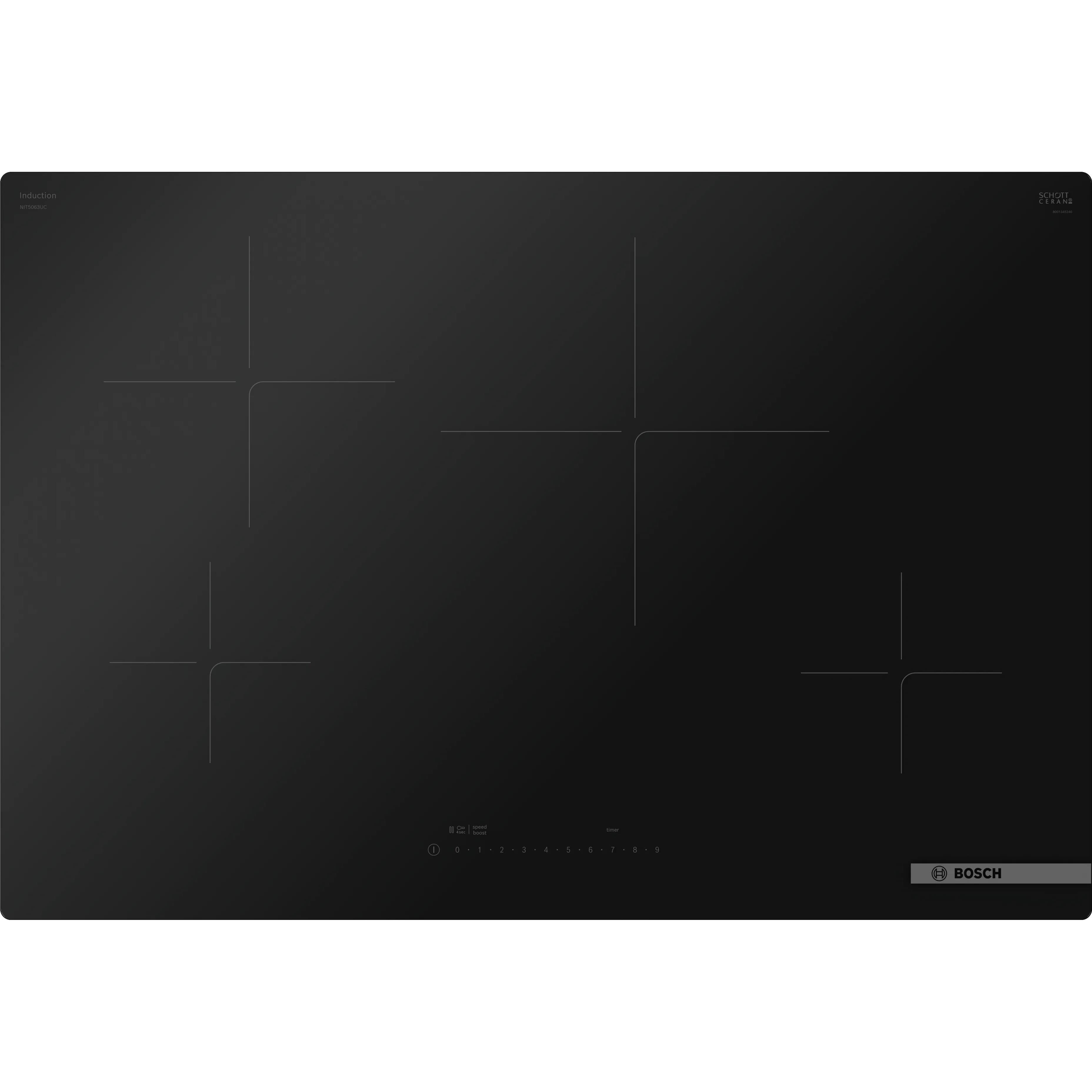

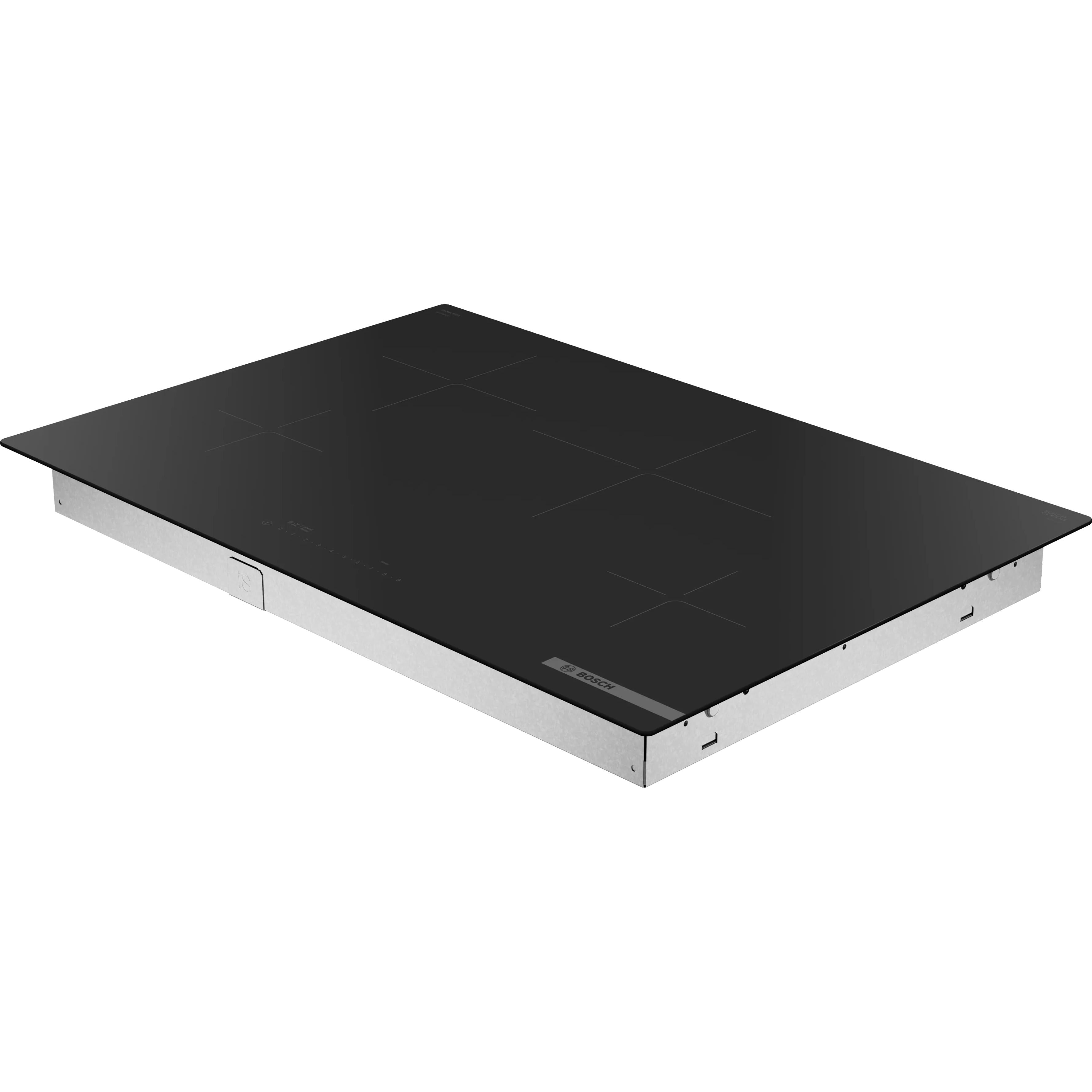

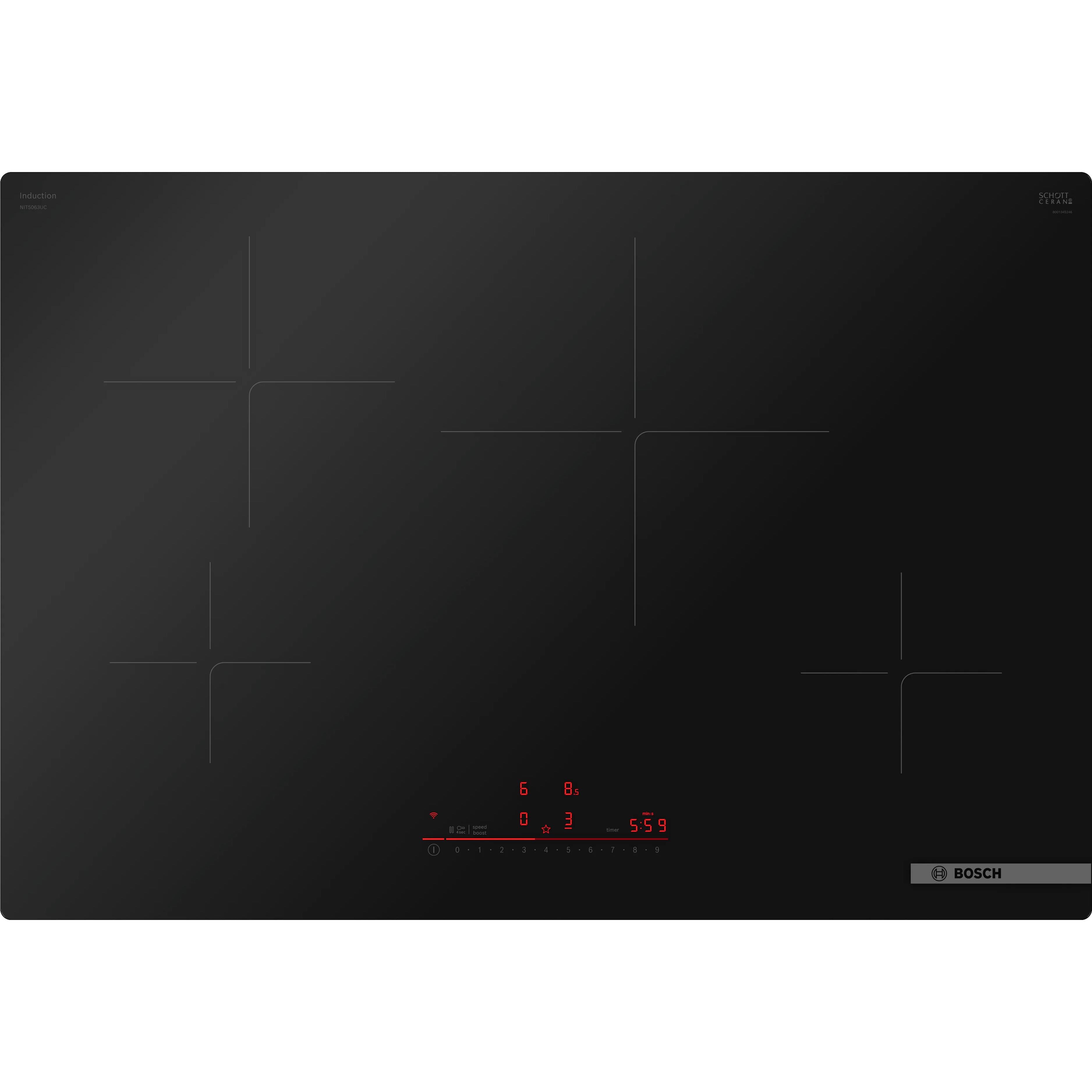

×This 30-inch Bosch 500 Series induction cooktop features SpeedBoost®, 4 elements, 17 power levels for each cooking zone, and is Wi-Fi Enabled. The 500 Series induction cooktop is sleek in design and offers quick and even cooking results.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
500 Series
Color
Black
Manufacturer Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
• Front Left: 1,400 W
• Front Left (in boost): 2,200 W
• Back Left: 2,200 W
• Back Left(in boost): 3,600 W
• Back Right: 2,600 W
• Back Right (in boost): 3,600 W
• Front Right: 1,400 W
• Front Right (in boost): 2,200 W
• Front Left (in boost): 2,200 W
• Back Left: 2,200 W
• Back Left(in boost): 3,600 W
• Back Right: 2,600 W
• Back Right (in boost): 3,600 W
• Front Right: 1,400 W
• Front Right (in boost): 2,200 W
Burner/Element Size
• Front Left: 6"
• Back Left: 9"
• Back Right: 11"
• Front Right: 6"
• Back Left: 9"
• Back Right: 11"
• Front Right: 6"
Elements
Smoothtop
Features
Technologies
• Induction Technology
• SpeedBoost®
• SpeedBoost®
Wi-Fi
Yes
Control Lock
Yes

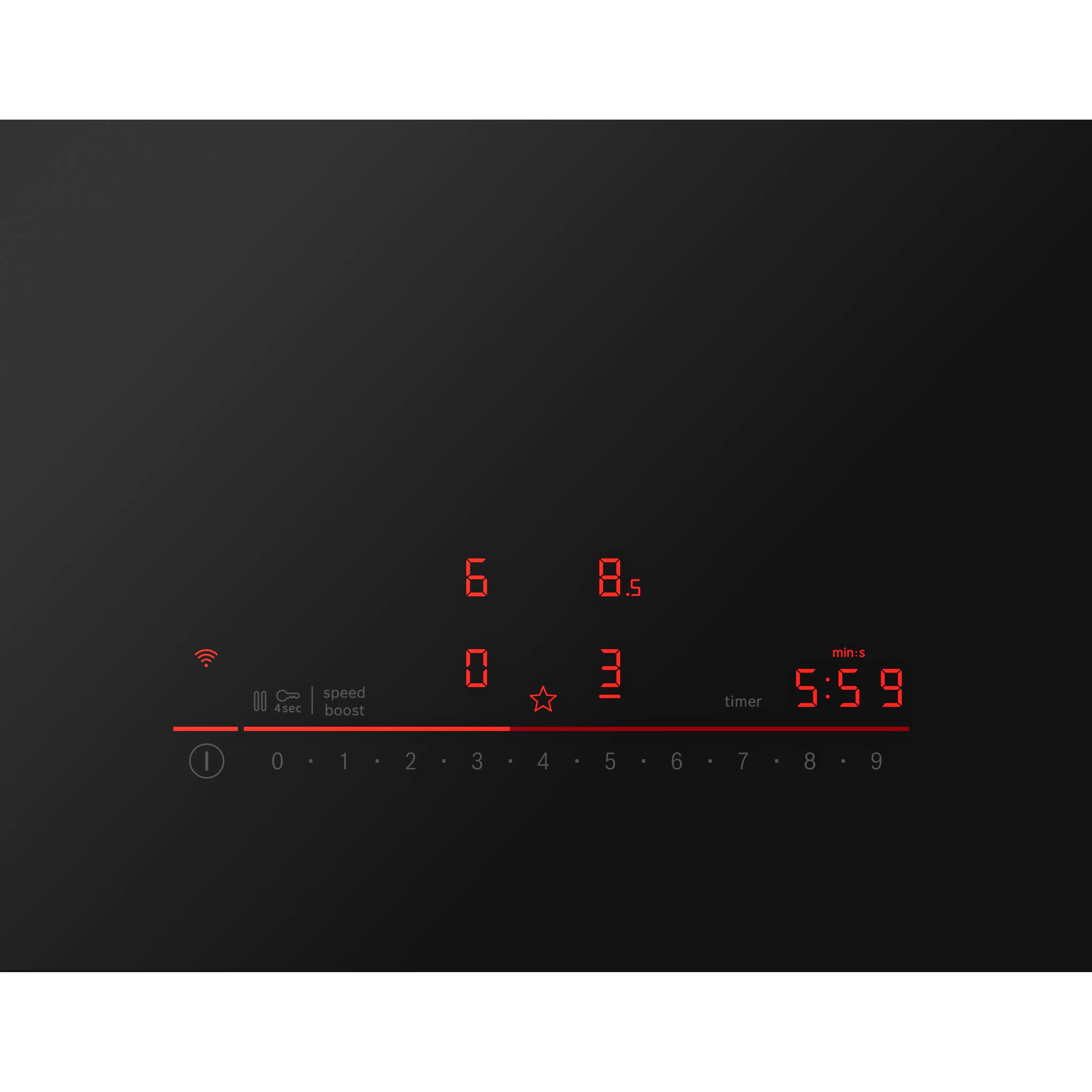

Digital Display
Yes
Additional Information
• 17 power levels for each cooking zone
• Large 11" cooking zone offers 3,700W of power for precise results
• SpeedBoost® - adds even more power to speed up the cooking process
• ReStart: if something boils over, the cooktop automatically turns itself off and saves the last selected setting
• Favorite button - one touch for your two most used cooking settings
• Automatic time limitation - will shut off your cooktop if the cooking zone has been in use for a long period of time without any changes
• Large 11" cooking zone offers 3,700W of power for precise results
• SpeedBoost® - adds even more power to speed up the cooking process
• ReStart: if something boils over, the cooktop automatically turns itself off and saves the last selected setting
• Favorite button - one touch for your two most used cooking settings
• Automatic time limitation - will shut off your cooktop if the cooking zone has been in use for a long period of time without any changes
Electrical Information
Information
• 6,240 / 7,200 W W
• 30 A
• 60 Hz
• 208 -240 V
• 30 A
• 60 Hz
• 208 -240 V
Certifications and Approvals
ADA Compliant
Yes
Information
Dekra US
Dimensions
Class Width
30"
Width
31 inch(es) / 78.74 cm
Height
4.25 inch(es) / 10.8 cm
Depth
21.25 inch(es) / 53.98 cm
Weight
36.99 lb(s) / 16.78 kg
Additional Dimensions
• Required cutout size (HxWxD): 4 1/8" x 28 7/8" x 20 1/4"
• Minimum distance from counter front: 2 1/4"
• Minimum distance from rear wall: 2"
• Minimum distance from counter front: 2 1/4"
• Minimum distance from rear wall: 2"
