DESCRIPTION

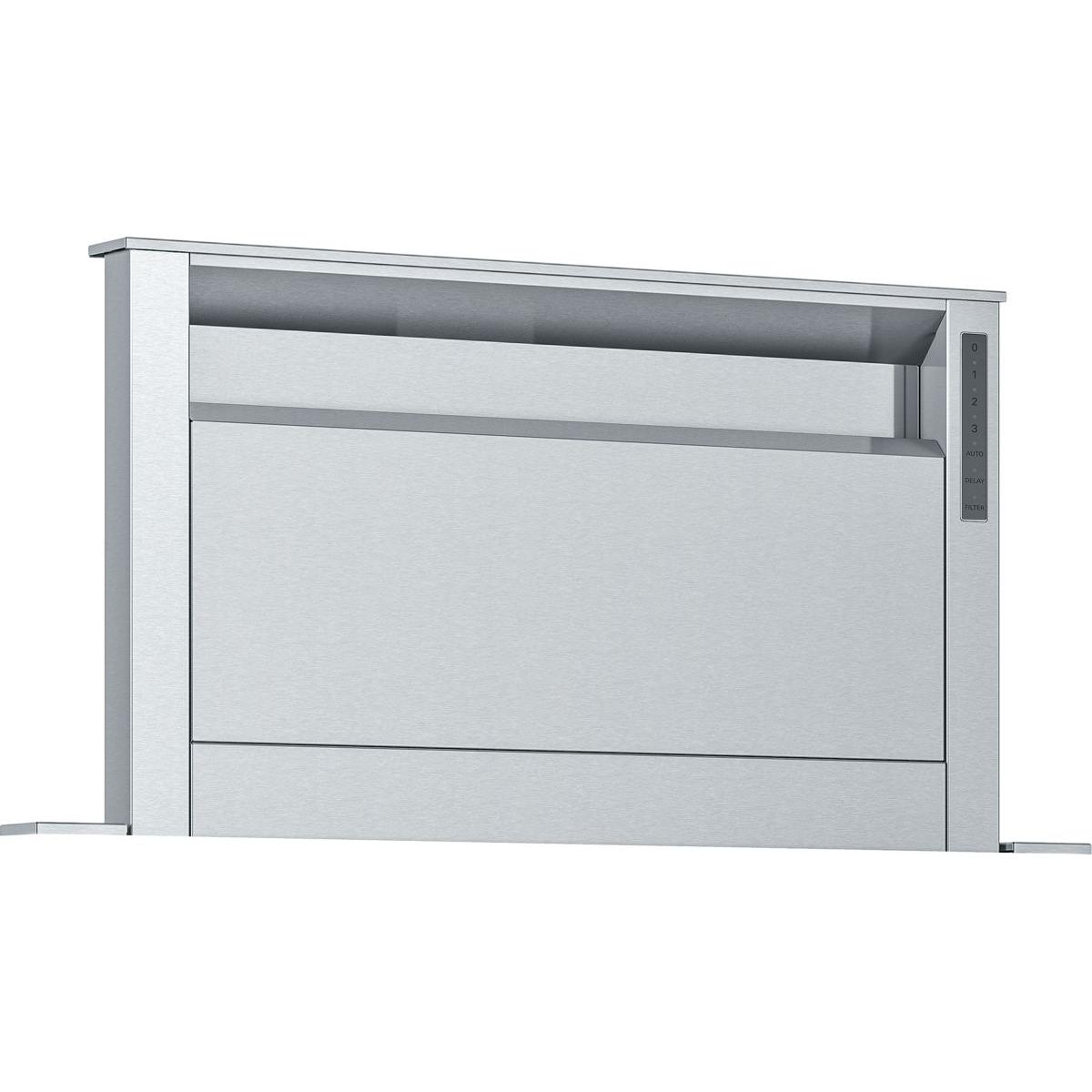

×Bosch 30-inch 800 Series Downdraft Ventilation. Sleek, built-in, and retracts out of sight. Bosch Downdraft’s flexible design seamlessly integrates into your kitchen. A sleek front panel protects your walls from splatters.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
800
Blower Included
No
Style
Downdraft
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Front, Left, Right, Rear, Down
Speeds
3-stage
Additional Information
• Operating mode Convertible: ducted / recirculating
• Motor location: External
• Grease filter material: Aluminum
• Grease filter type: Multilayer cassette
• Motor location: External
• Grease filter material: Aluminum
• Grease filter type: Multilayer cassette
Electrical Information
Information
• Volts: 120 V
• Frequency: 60 Hz
• Plug type: 120V-3 prong
• Frequency: 60 Hz
• Plug type: 120V-3 prong
Certifications and Approvals
Information
• cULus
• HVI-2100
• HVI-2100
Accessories
Optional
• 6" side / rear / downward transition: HDDSTRAN6
• 8" side / rear / downward transition: HDDSTRAN8
• 6" round front plate: HDDFTRAN6
• 8" round front plate: HDDFTRAN8
• Transition for rectangular duct: HDDSTRAN2
• 2' rectangular duct: HDD2RECTD
• 600 CFM flexible blower: DHG602DUC
• 600 CFM inline blower: DHI1FZUC
• 600 CFM remote blower: DHR1FZUC
• Recirculation kit (compatible with electric and induction cooktops only): HDDREC5UC
• Charcoal filter replacement for recirculation kit: HDDFILTUC
• 30" gas cooktop seal kit for downdraft (required for installation with gas cooktops): HDD0RSP
• Trim kit for 30" FlameSelect® gas cooktops: HDDTRIM30S
• 8" side / rear / downward transition: HDDSTRAN8
• 6" round front plate: HDDFTRAN6
• 8" round front plate: HDDFTRAN8
• Transition for rectangular duct: HDDSTRAN2
• 2' rectangular duct: HDD2RECTD
• 600 CFM flexible blower: DHG602DUC
• 600 CFM inline blower: DHI1FZUC
• 600 CFM remote blower: DHR1FZUC
• Recirculation kit (compatible with electric and induction cooktops only): HDDREC5UC
• Charcoal filter replacement for recirculation kit: HDDFILTUC
• 30" gas cooktop seal kit for downdraft (required for installation with gas cooktops): HDD0RSP
• Trim kit for 30" FlameSelect® gas cooktops: HDDTRIM30S
Dimensions
Class Width
31"
Width
31 inch(es) / 78.74 cm
Depth
2.75 inch(es) / 6.99 cm
Weight
36.99 lb(s) / 16.78 kg
Additional Dimensions
• Power cord length: 30"
• Height of the rise: 15"
• Overall height: 44 3/8"
• Diameter of air duct–internal: 8"
• Diameter of air duct–external: 6" or 8"
• Height of the rise: 15"
• Overall height: 44 3/8"
• Diameter of air duct–internal: 8"
• Diameter of air duct–external: 6" or 8"
Warranty
Warranty
1-Year parts and labor
