DESCRIPTION

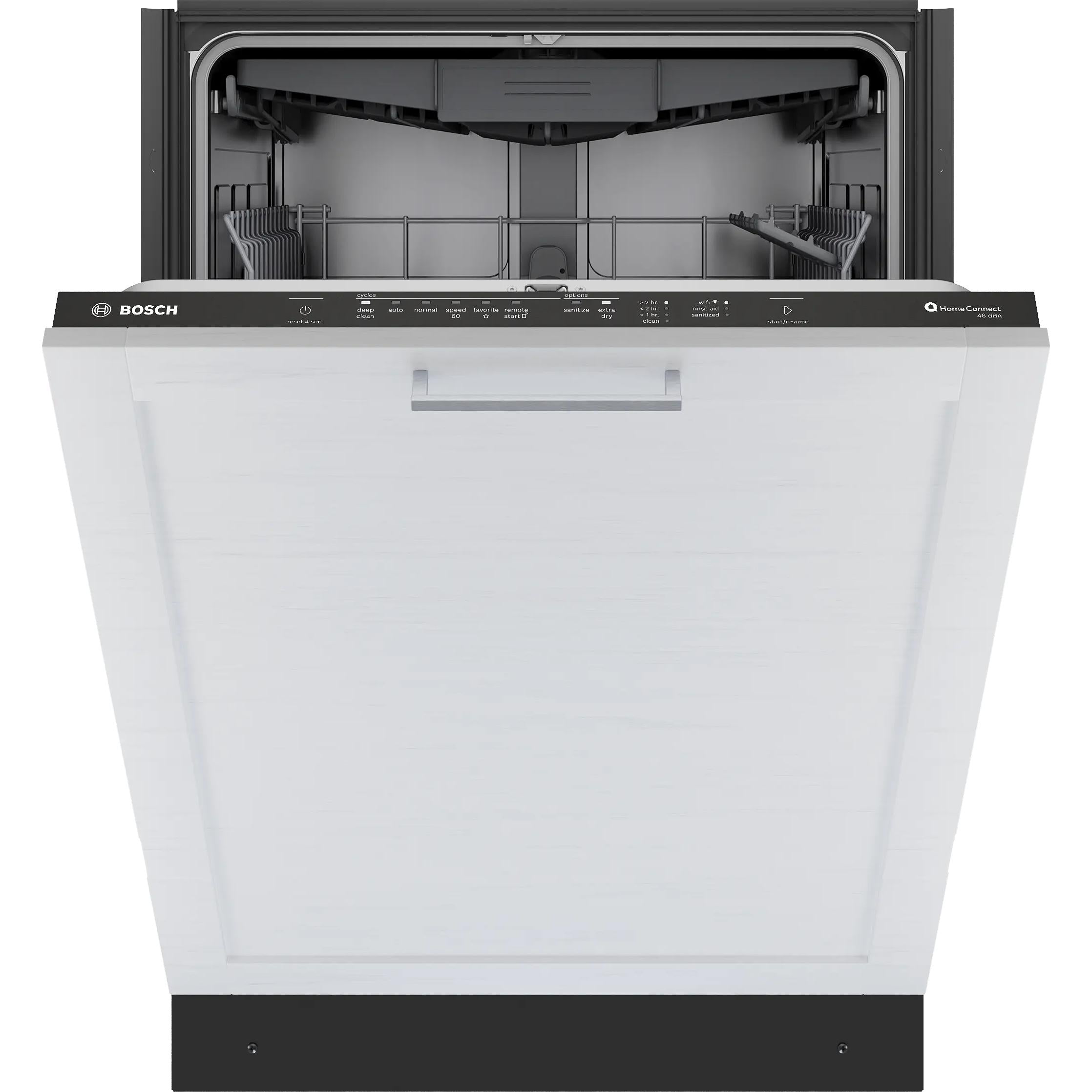

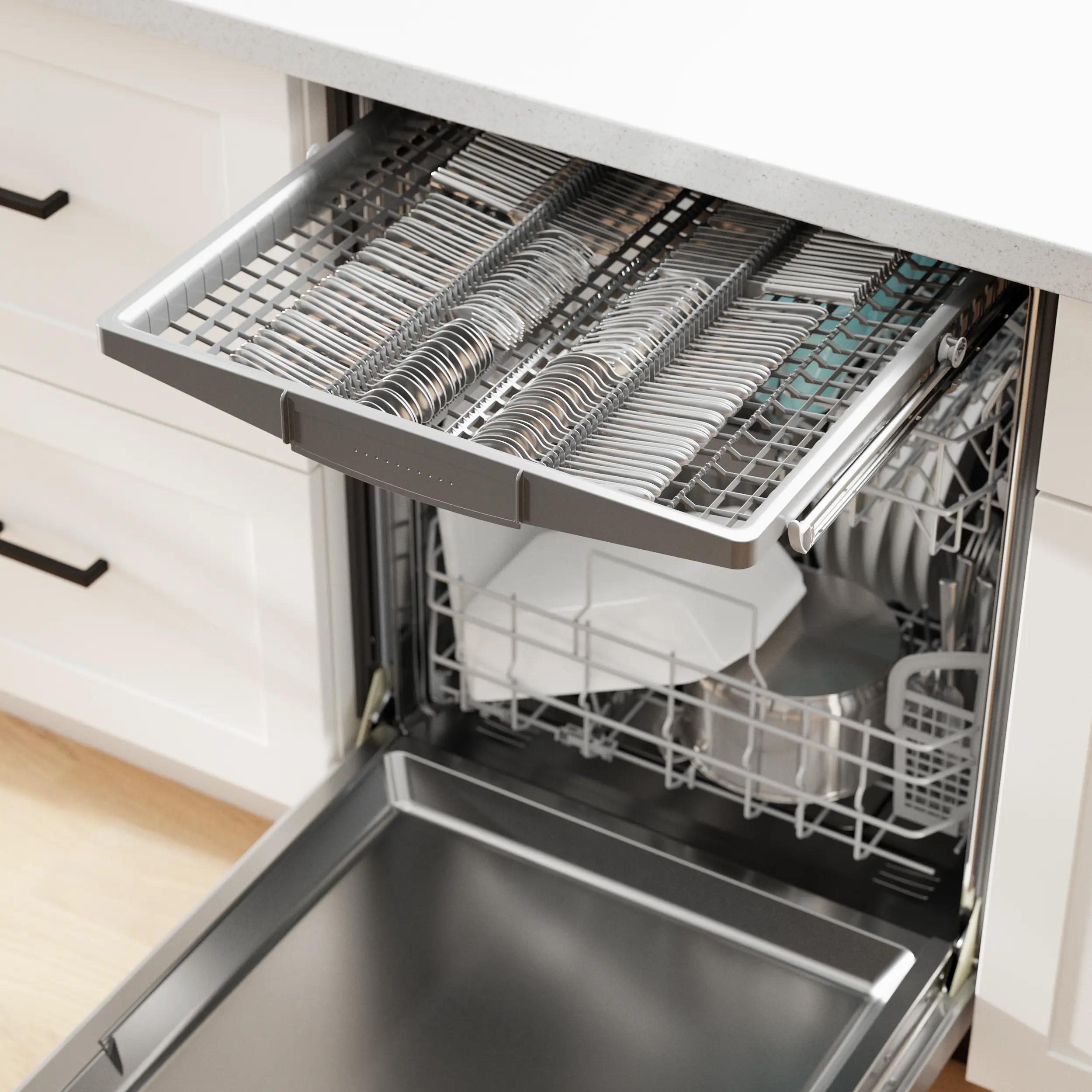

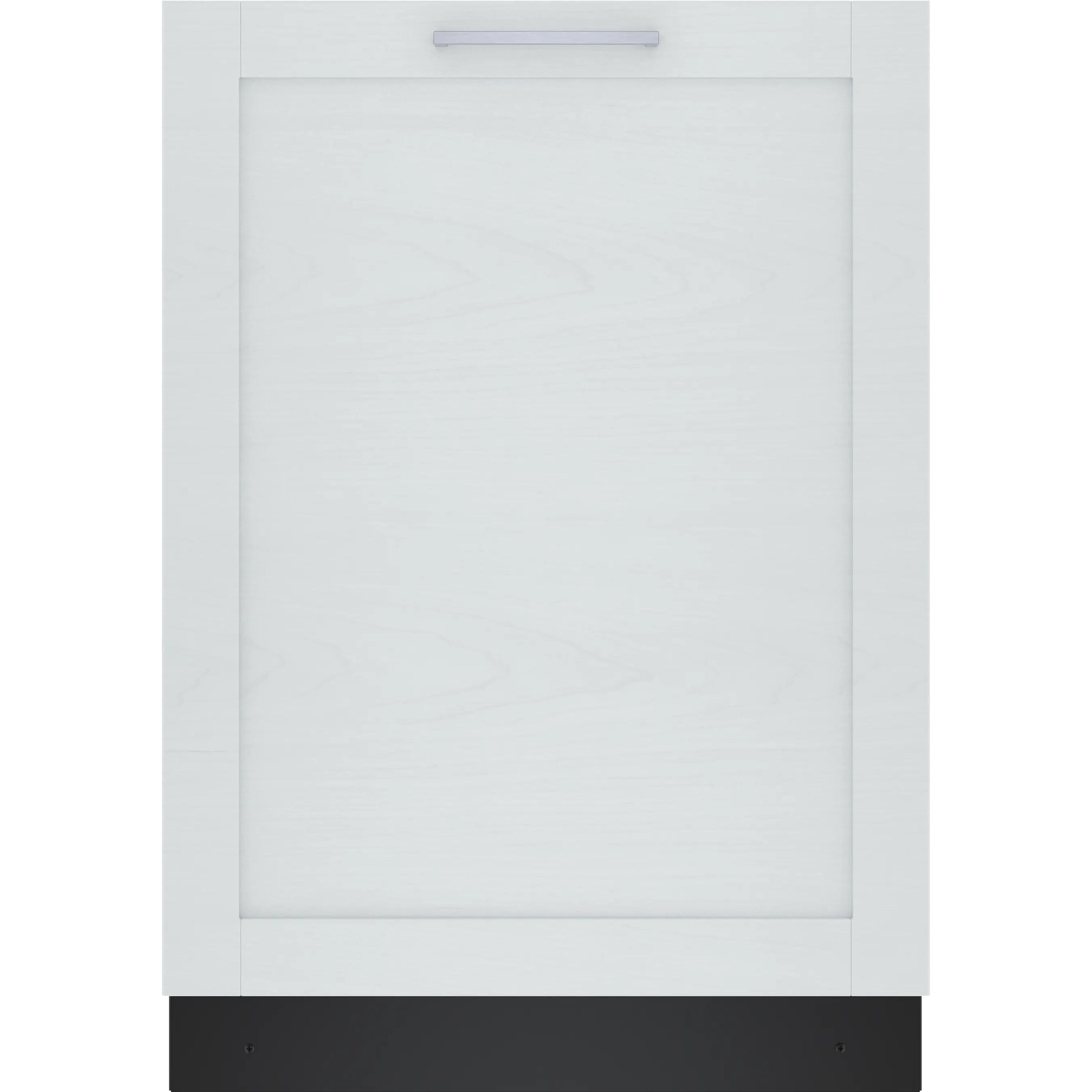

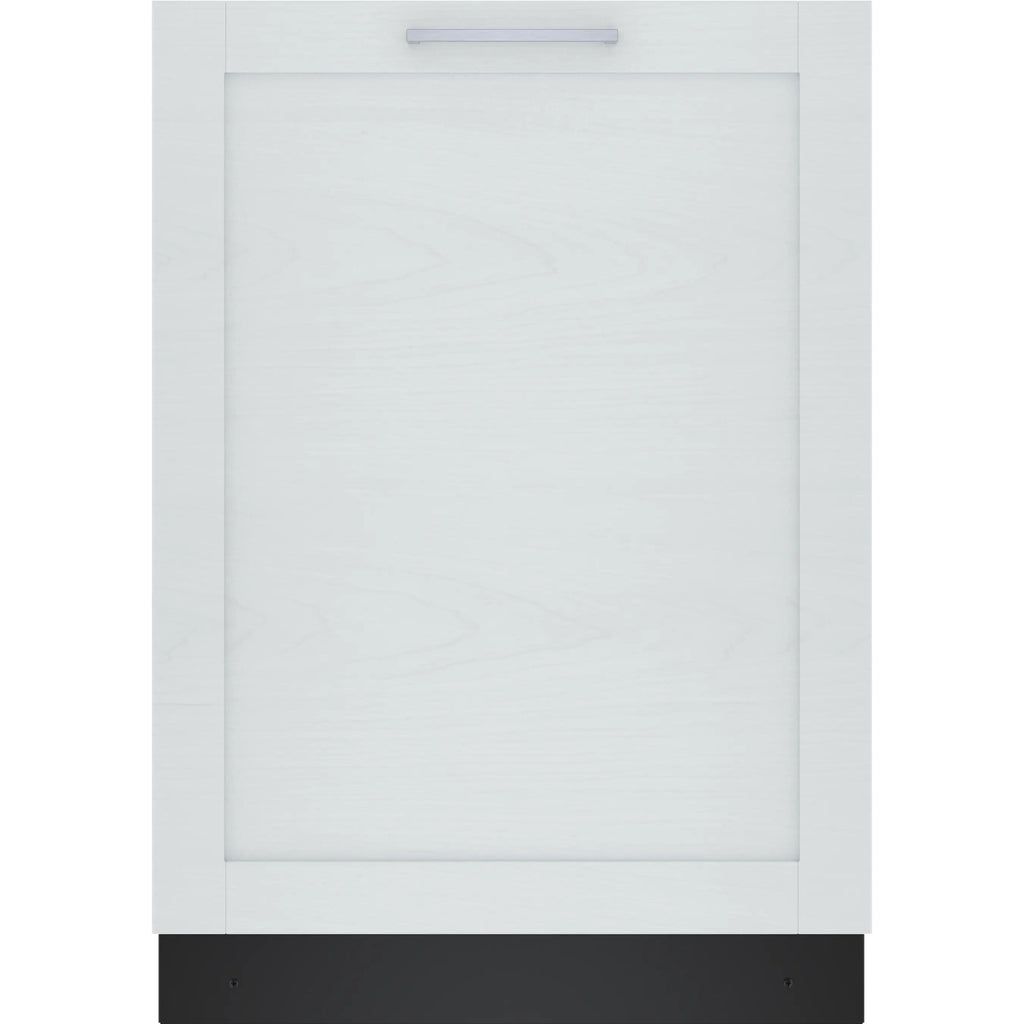

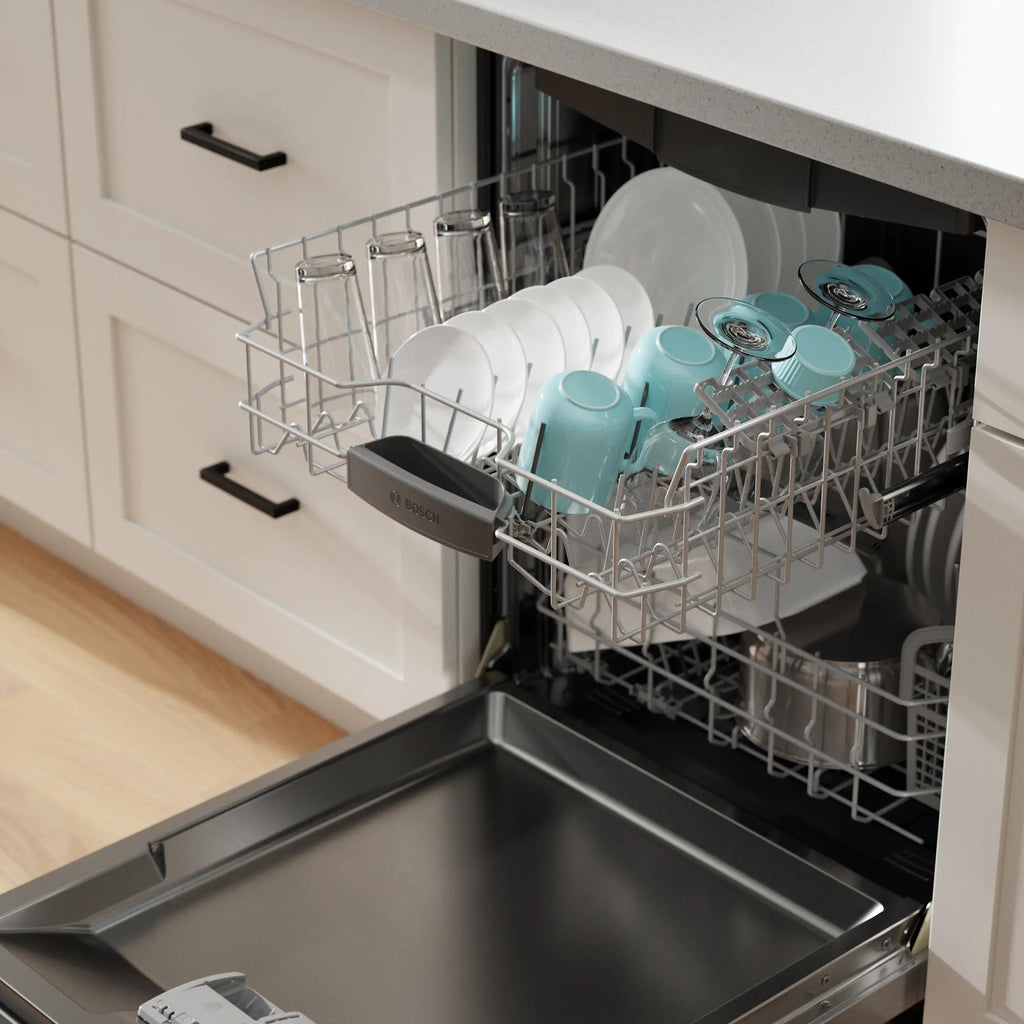

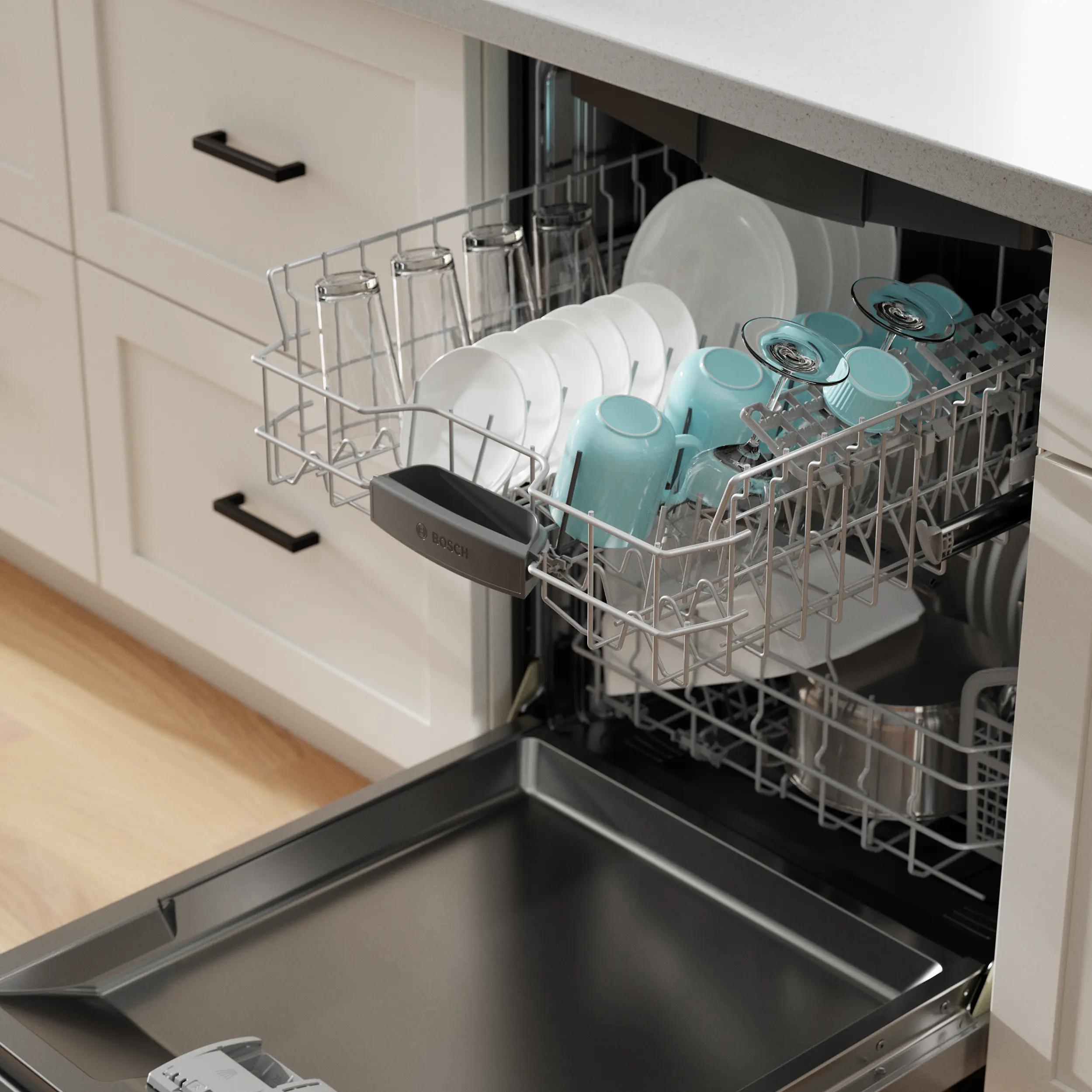

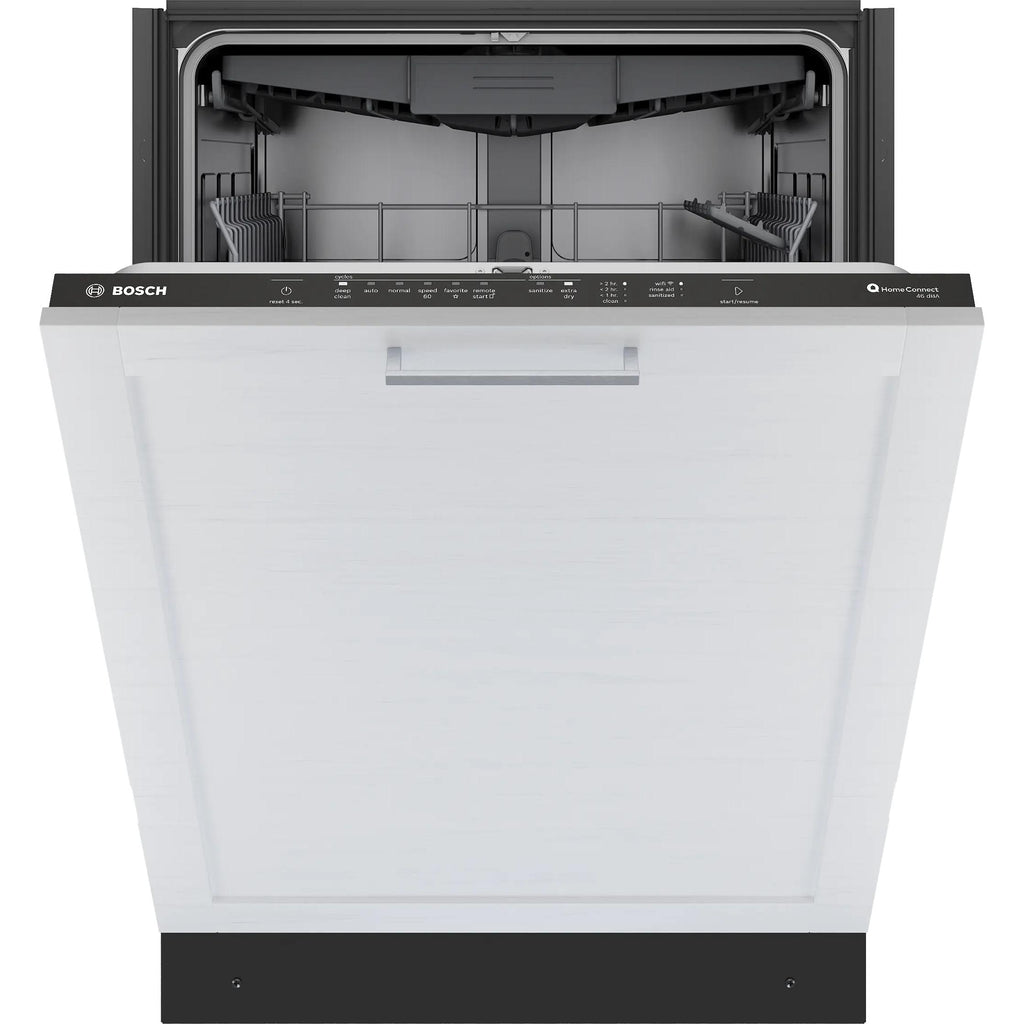

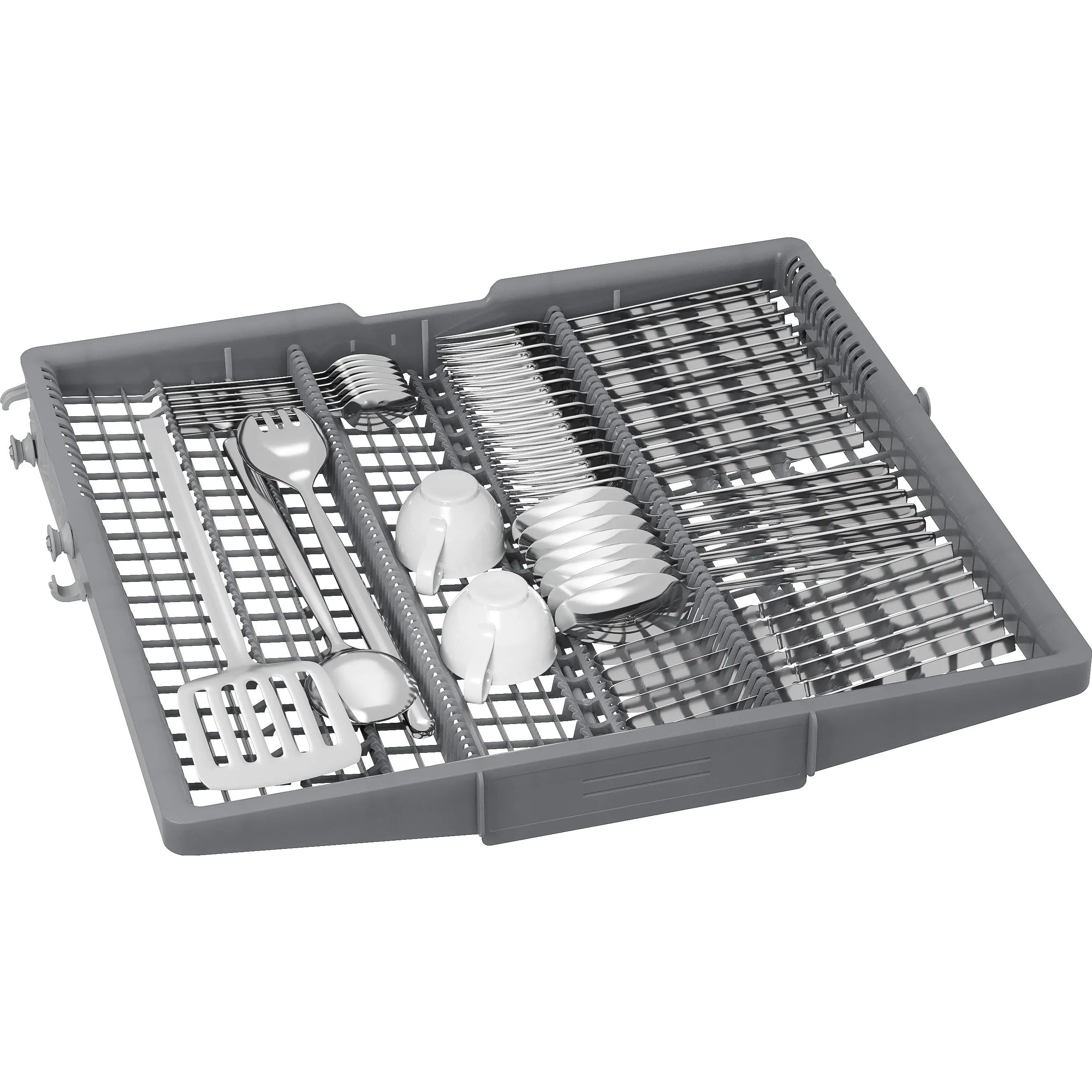

×Bosch 300 Series 24" Custom Panel Dishwasher. Zone Wash creates an intensive wash focus area, allowing you to wash your challenging dishes and pots with confidence. The 3rd rack provides the perfect space for silverware and large utensils while its V shape leaves room below for taller items.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
300 Series
Type
Built-In
Color
Panel Ready
Manufacturer Color
Custom Panel
Place Settings
15
Tub Material
Stainless Steel
Silence Rating
46 dB
Cycle Information
Number of Cycles
5
Wash Cycles
Deep Clean; Auto; Normal; Speed60 (1hr Wash); Favorite
Options
Sanitize; Remote Start; ExtraDry
Features
Technologies

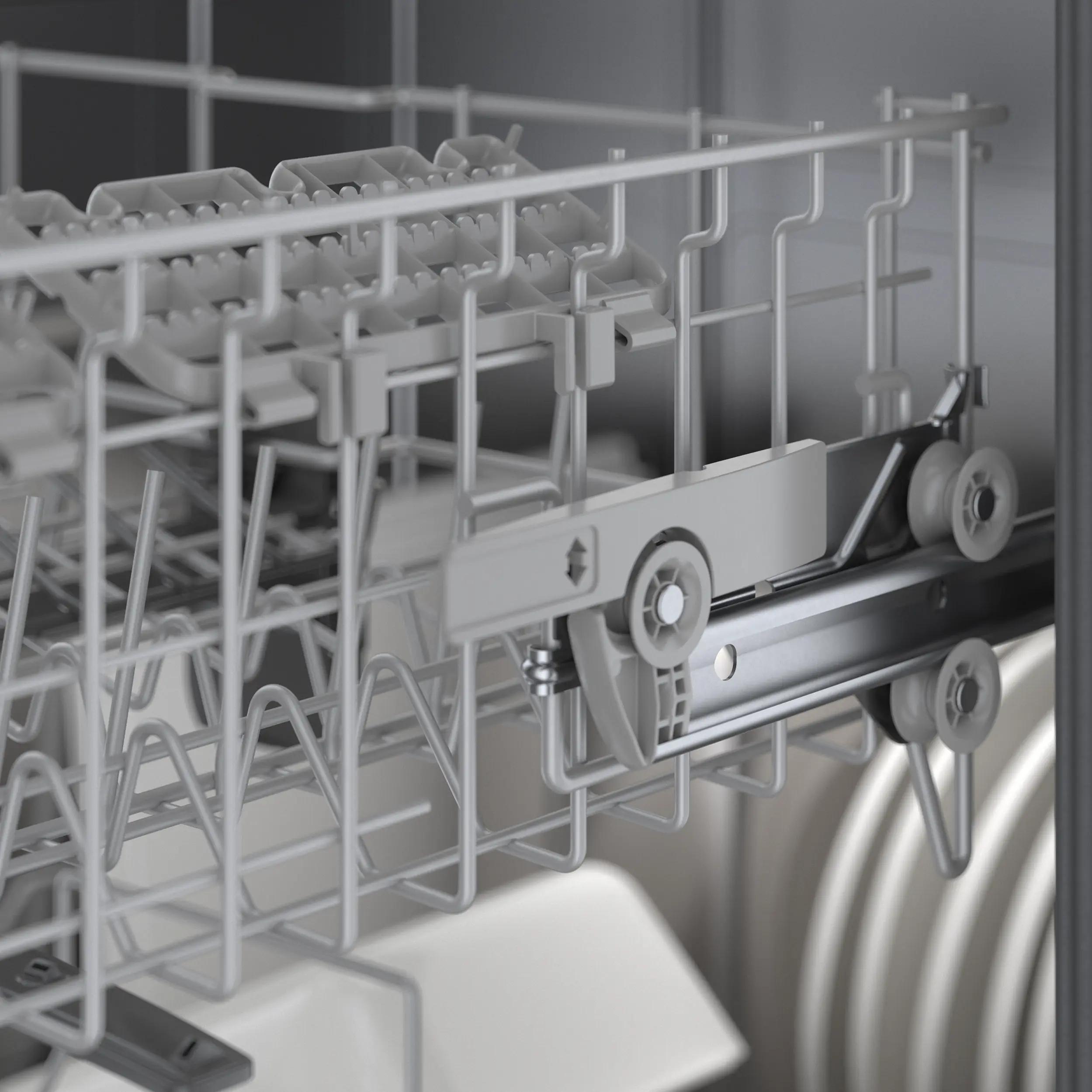

Zone Wash; PureDry®; Home Connect®; InfoLight®; EasyGlidePlus™; Rackmatic®; AquaStop®

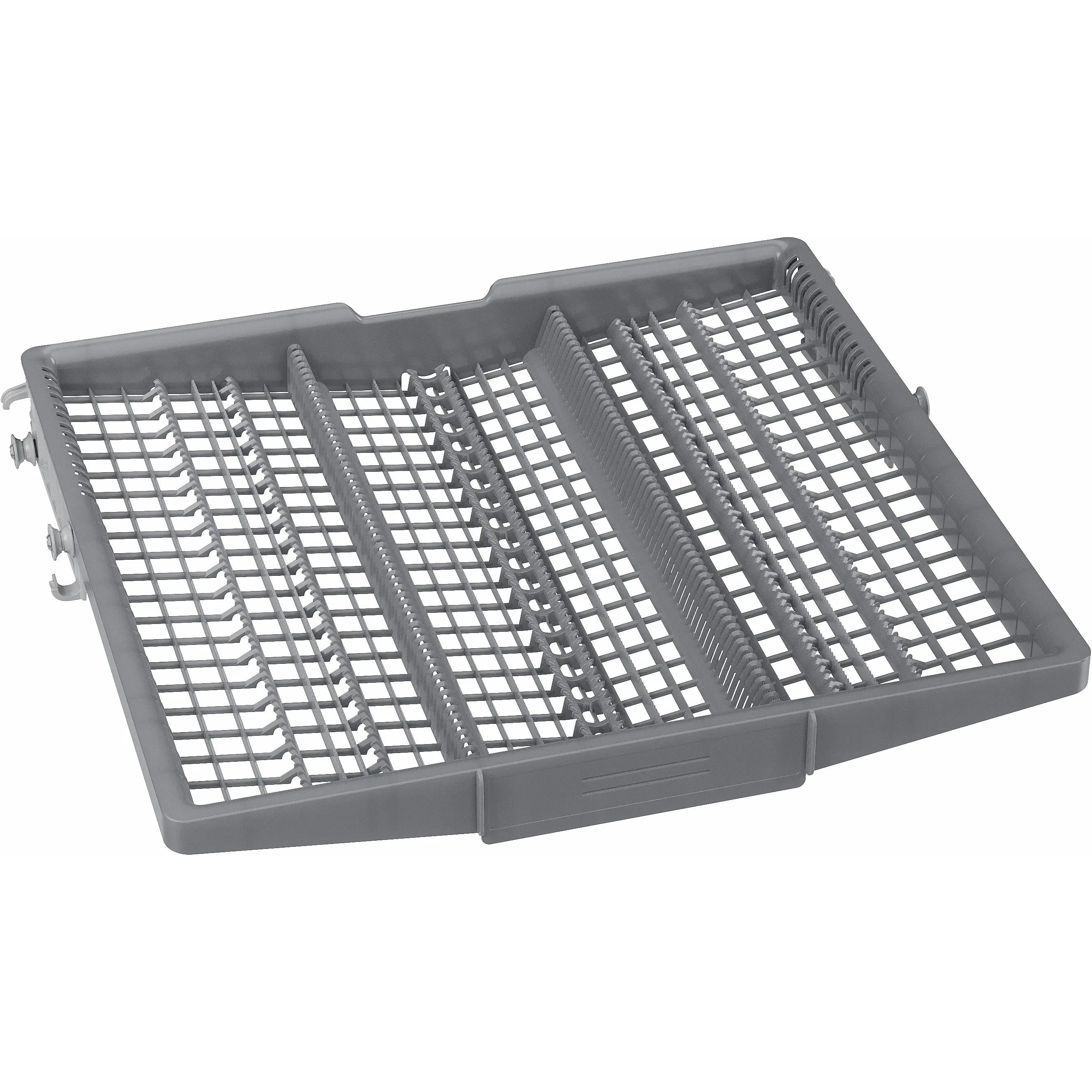

3rd Rack System
Yes
Filtration System
Yes

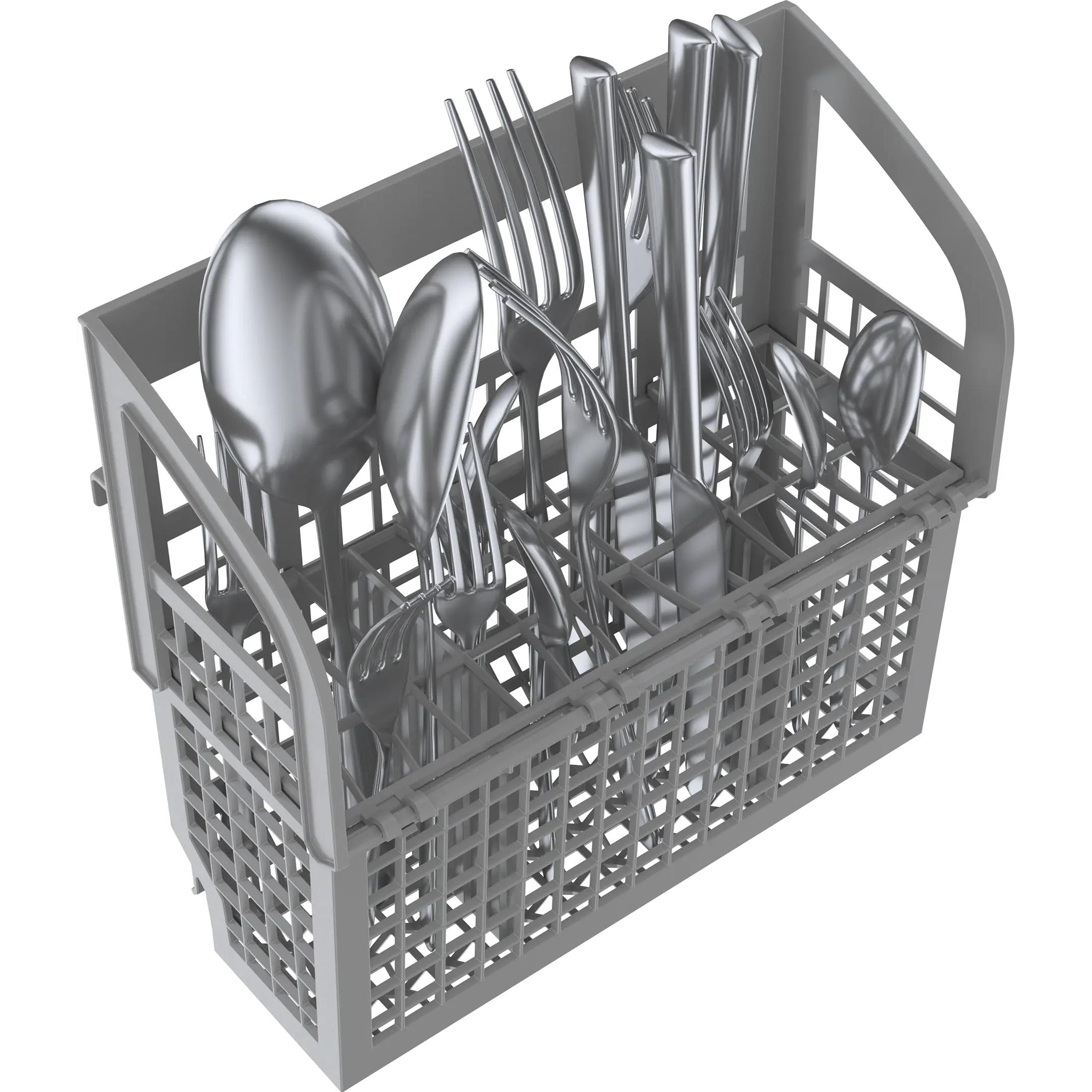

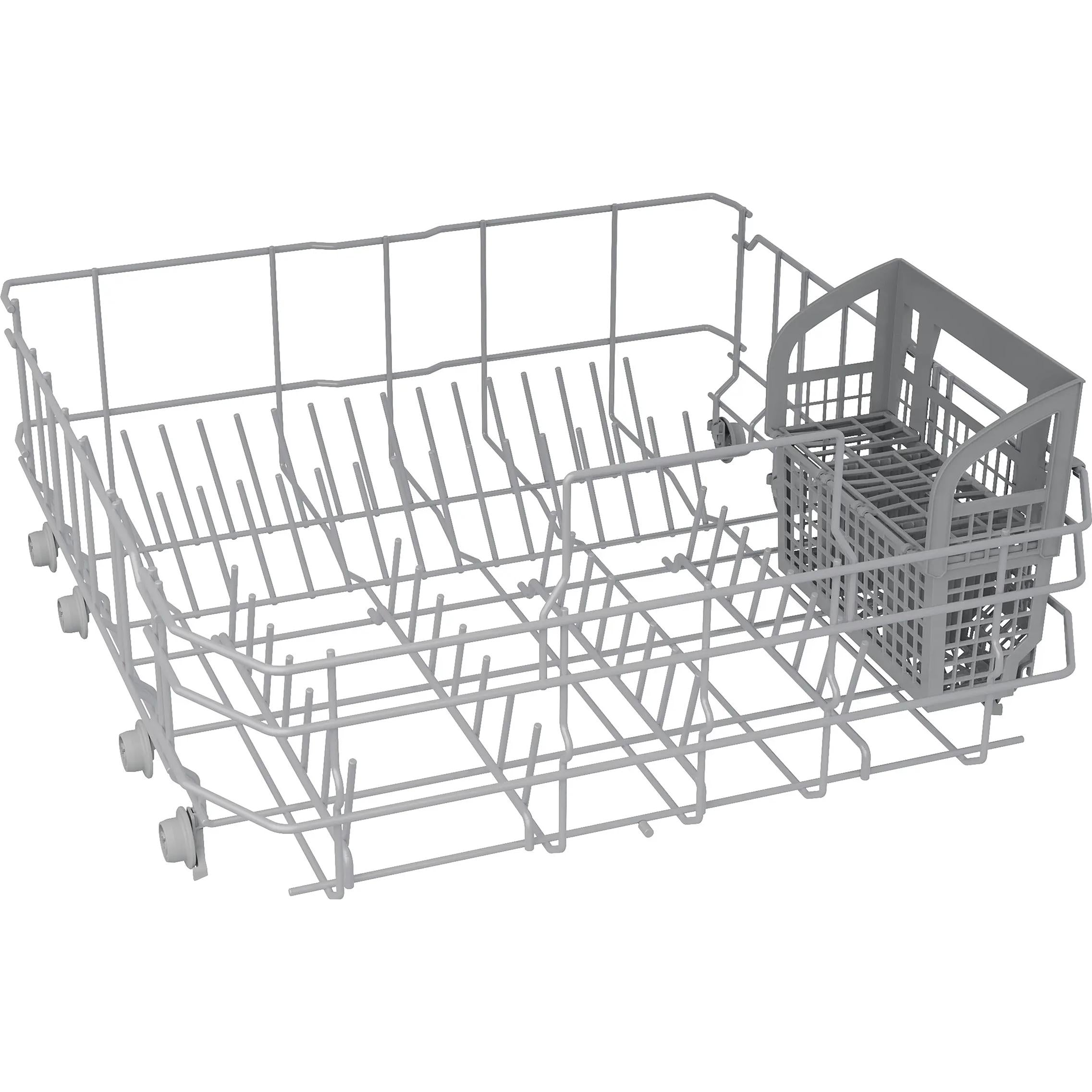

Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Smart Cycle Access via Home Connect®
• Half Load Option (via Home Connect®)
• SpeedPerfect Option
• ExtraScrub Option
• Eco Option
• Leak Protection: 24/7 AquaStop®
• Concealed Water Heating Element
• Minimum Water Pressure: 14 lb/sin
• Adjustable Feet
• Half Load Option (via Home Connect®)
• SpeedPerfect Option
• ExtraScrub Option
• Eco Option
• Leak Protection: 24/7 AquaStop®
• Concealed Water Heating Element
• Minimum Water Pressure: 14 lb/sin
• Adjustable Feet
Electrical Information
Information
• Watts: 1440 W
• Amps: 12 A
• Volts: 120 V
• Frequency: 60 Hz
• Additional Information: 240 kWh annual energy consumption
• Amps: 12 A
• Volts: 120 V
• Frequency: 60 Hz
• Additional Information: 240 kWh annual energy consumption
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Optional
Junction Box SMZPCJB1UC; Junction Box + Supply Hose Kit SMZ3IN1UC; Bosch Water Supply Hose SMZSH1ABUC; Drain Hose Extension Kit SGZ1010UC; Edge Protector + Power Cord Clip SMZEPCC1UC; Stainless Steel Bar Handle SMZ1008UC
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.84 cm
Height (Min.)
33.88 inch(es) / 86.06 cm
Depth (Without Handle)
23.06 inch(es) / 58.57 cm
Depth (Including Handle)
23.06 inch(es) / 58.57 cm
Weight
85.01 lb(s) / 38.56 kg
Additional Dimensions
• Power Cord Length: 67 in
• Installation Length (from edge, facing door): Left 45 in; Right 56 in
• Overall Dimensions (HxWxD): 33.88 in x 23.56 in x 23.06 in
• Cutout Size (HxWxD): 33.88 in x 24 in x 24 in
• Installation Length (from edge, facing door): Left 45 in; Right 56 in
• Overall Dimensions (HxWxD): 33.88 in x 23.56 in x 23.06 in
• Cutout Size (HxWxD): 33.88 in x 24 in x 24 in
Warranty
Warranty
1-Year parts and labor
