DESCRIPTION

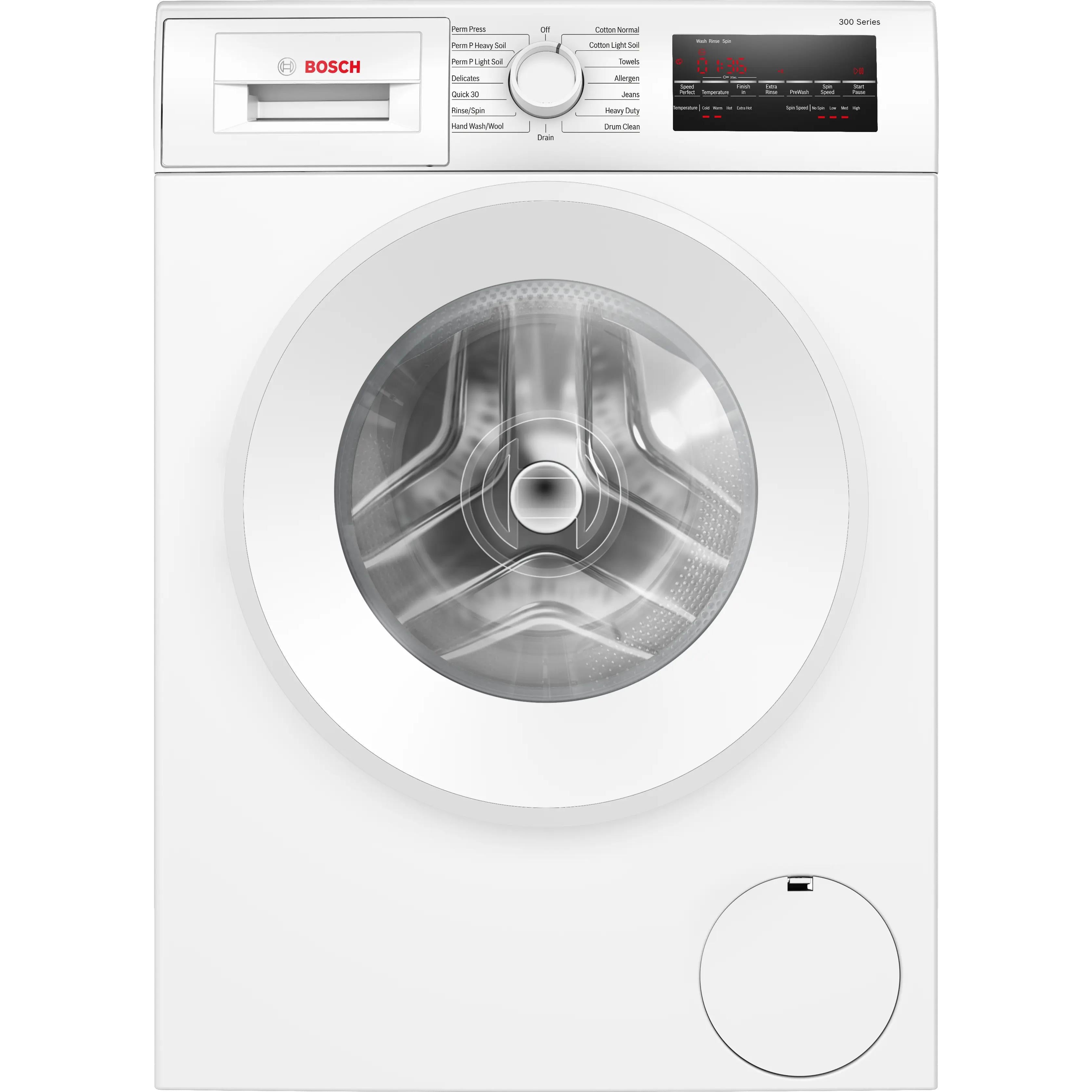

×This 24-inch compact washer features the SpeedPerfect® function and EcoSilence™ motor, delivering quiet, efficient, and long-lasting performance.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series
300 Series
Color
White
Manufacturer Color
White
Tub Material
Stainless Steel
Maximum Speed
1400 rpm
Capacity
Total Capacity IEC
2.2 cu. ft.
IEC (By Class)
3 cu.ft. and below
Cycle Information
Number of Cycles
15
Wash Cycles
Special Cycles: Allergen, Jeans, Heavy Duty
Options
• Number of options: 6
• Special Cycles: SpeedPerfect®, PreWash
• Special Cycles: SpeedPerfect®, PreWash
Features
Stackable
Yes
Reversible Door
No
Additional Information
• Leak protection systems: Reinforced Hose
• Internal water heater
• Silence level – washing: 52 dBA
• Silence level – spinning: 72 dBA
• Water consumption: 2,288 gal/yr
• Door hinge: Left Side
• Internal water heater
• Silence level – washing: 52 dBA
• Silence level – spinning: 72 dBA
• Water consumption: 2,288 gal/yr
• Door hinge: Left Side
Electrical Information
Information
• Energy consumption: 84 kWh/yr
• Watts: 2,520 W
• Circuit breaker: 15 A**
• Volts 208/220-240 V
• Current 10.5 A
• Frequency 60 Hz
• Power Cord (included): 240V; NEMA 6-15, 3-prong
**Stated circuit breaker size is if the appliance is plugged into an individual 240/208V, 15A minimum branch circuit
• Watts: 2,520 W
• Circuit breaker: 15 A**
• Volts 208/220-240 V
• Current 10.5 A
• Frequency 60 Hz
• Power Cord (included): 240V; NEMA 6-15, 3-prong
**Stated circuit breaker size is if the appliance is plugged into an individual 240/208V, 15A minimum branch circuit
Certifications and Approvals
Energy Star Certified
Yes
Information
• UL listed
• ADA compliant:
Meets ADA height and access requirements when installed on a pedestal
Meets ADA operable parts requirements for controls and detergent dispenser
• ADA compliant:
Meets ADA height and access requirements when installed on a pedestal
Meets ADA operable parts requirements for controls and detergent dispenser
Accessories
Optional
Power Adapters:
• WTZPA20UC: 4-Prong
• WTZPA30US: 3-Prong
Matching Bosch Dryers are supplied with WTZPA20UC adapter to fit a standard 4-Prong, 30A, Dryer receptacle (NEMA 14-30R) to power both Bosch Washers and Dryers.
• 3-Prong Adapter may be ordered directly from Bosch (not supplied with Washer or Dryer)
• Use of two individual NEMA 6-15R or 6-20R receptacles/circuits may be used as alternative means to power the Washer and Dryer
Dryer Stacking Kits:
• WTZ11400UC: Kit w/Shelf
• WTZ20410UC: Kit w/out Shelf
• WTZSB30UC: Kit w/Brackets
Necessary only when stacking a matching Bosch dryer on top of the washer.
• WMZPW20W: Washer Pedestal
• WTZPA20UC: 4-Prong
• WTZPA30US: 3-Prong
Matching Bosch Dryers are supplied with WTZPA20UC adapter to fit a standard 4-Prong, 30A, Dryer receptacle (NEMA 14-30R) to power both Bosch Washers and Dryers.
• 3-Prong Adapter may be ordered directly from Bosch (not supplied with Washer or Dryer)
• Use of two individual NEMA 6-15R or 6-20R receptacles/circuits may be used as alternative means to power the Washer and Dryer
Dryer Stacking Kits:
• WTZ11400UC: Kit w/Shelf
• WTZ20410UC: Kit w/out Shelf
• WTZSB30UC: Kit w/Brackets
Necessary only when stacking a matching Bosch dryer on top of the washer.
• WMZPW20W: Washer Pedestal
Dimensions
Class Width
25" And Under
Width
23.5 inch(es) / 59.69 cm
Height
33.25 inch(es) / 84.46 cm
Depth
24.25 inch(es) / 61.6 cm
Weight
163.01 lb(s) / 73.94 kg
Additional Dimensions
• Power cord length 63" (Full Length)
• Drain hose length 57" (Full Length)
• Inlet hose length 48" (Full Length)
• Drain hose length 57" (Full Length)
• Inlet hose length 48" (Full Length)
