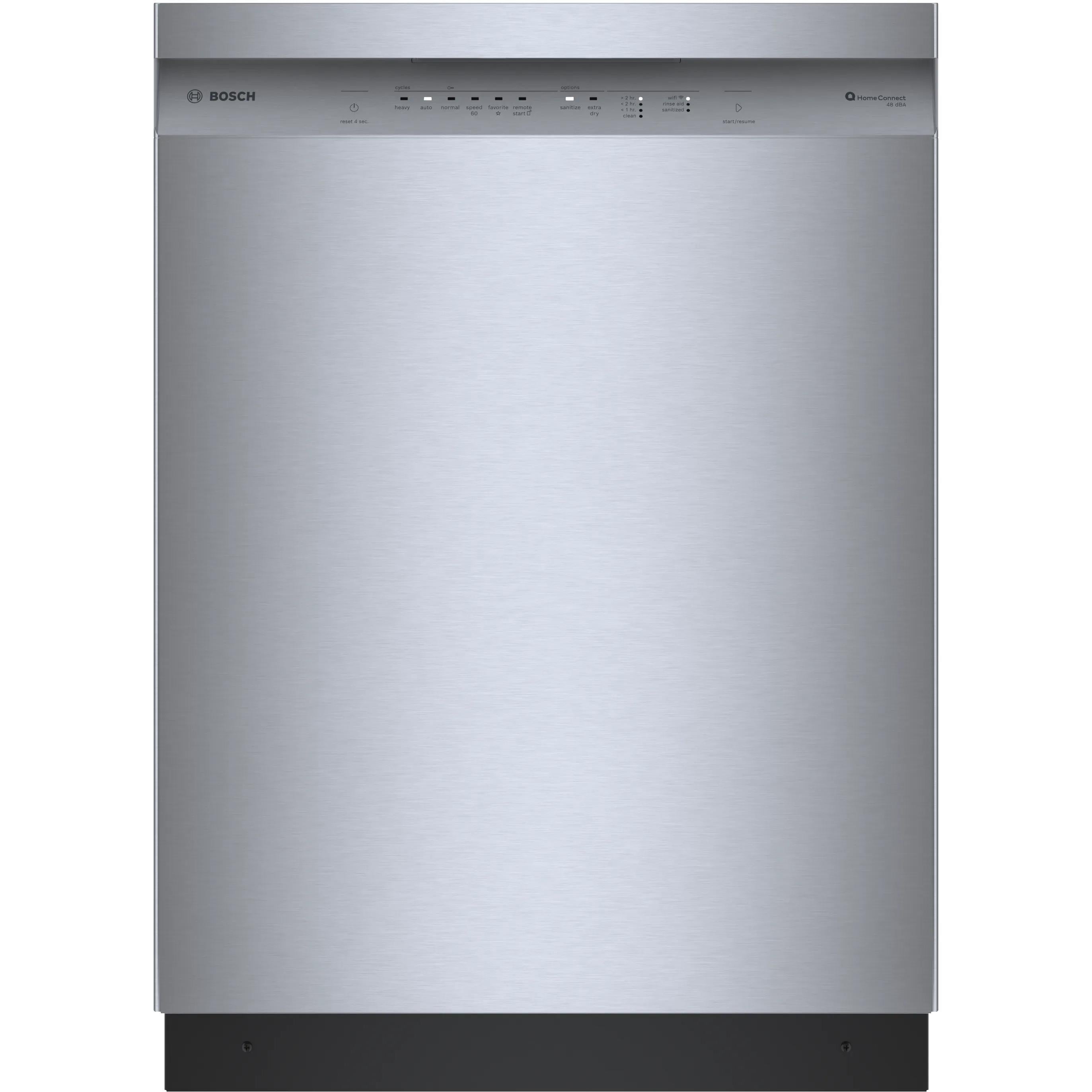

DESCRIPTION

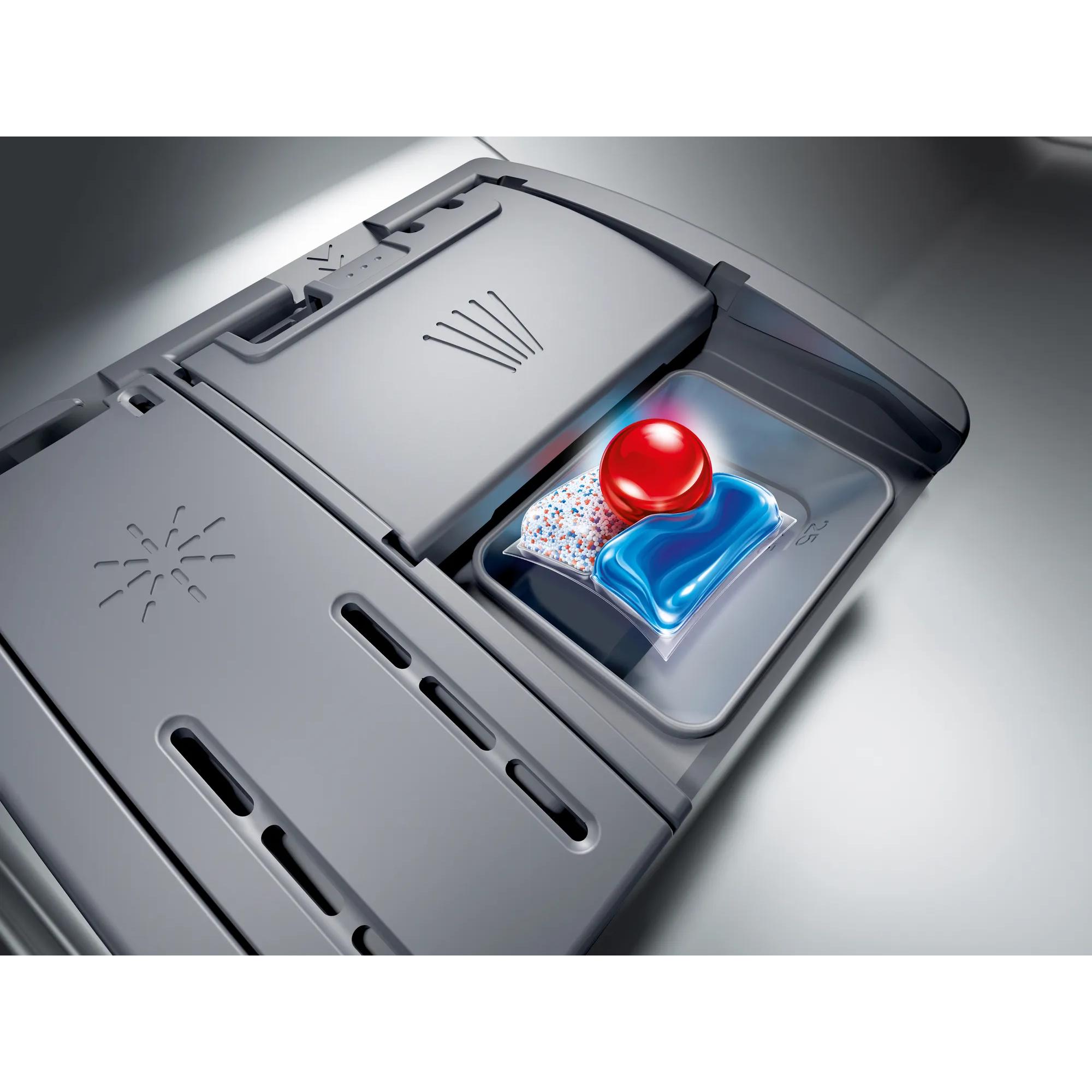

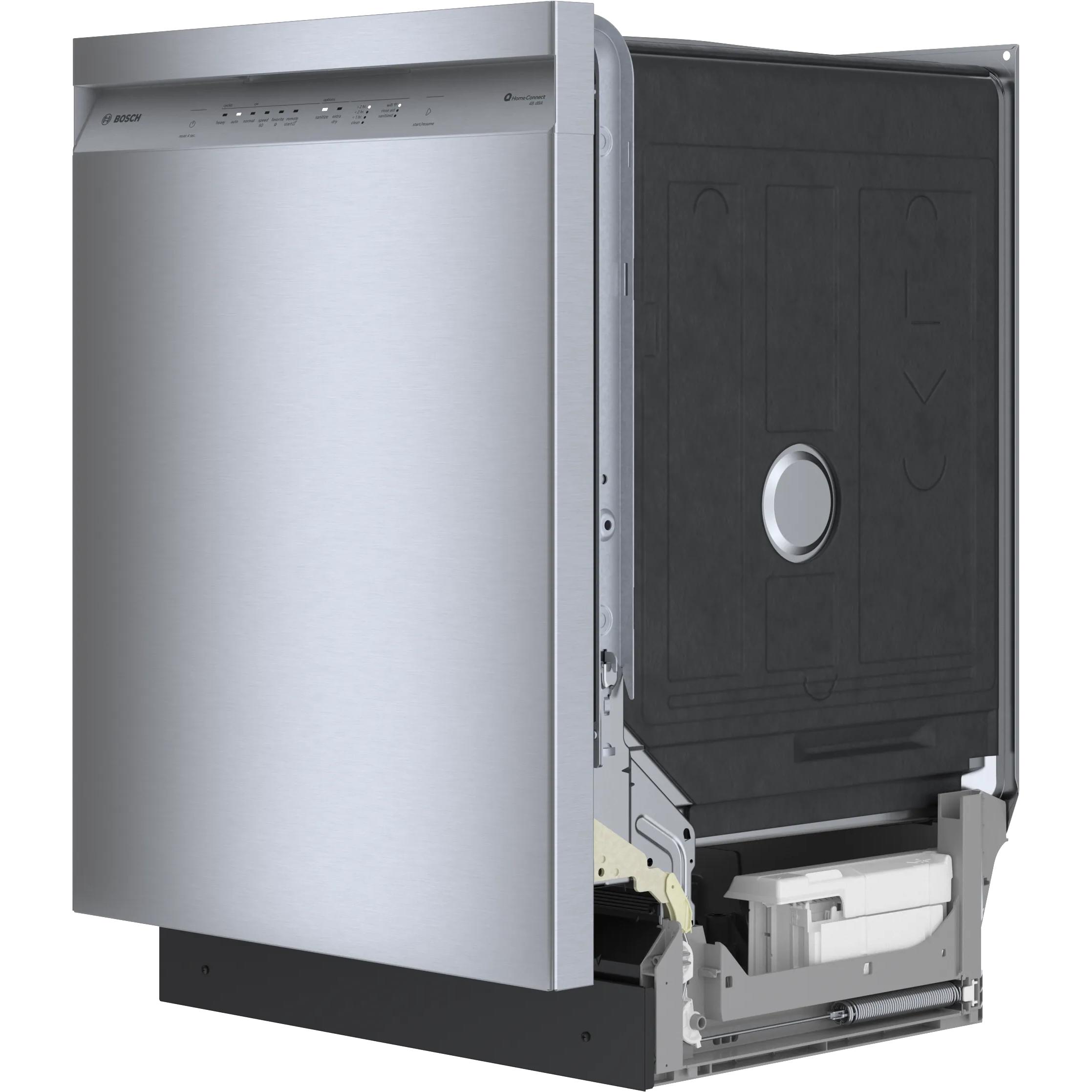

×The 100 Series 24'' Dishwasher in brushed steel with anti-fingerprint finish combines convenience and smart technology. With remote control and monitoring via the Home Connect app, you can manage your dishwasher anytime, anywhere. Features include a Tab Counter to track and notify you when dishwasher tablets run low, a Favorite Program function for one-touch customization, and smart recommendations for optimal cleaning performance. Stylish and efficient, it’s designed to simplify your routine.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
100 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
12
Tub Material
Stainless Steel
Silence Rating
48 dB
Cycle Information
Number of Cycles
5
Wash Cycles
Number of wash cycles 5 + 3 additional in Home Connect®
Options
• Number of options 3 + 2 additional in Home Connect®
• Extra Dry Option
• Extra Dry Option
Features
Technologies
• Home Connect® (Wi-Fi enabled)
• Wash system PrecisionWash®
• Drying system PureDry®
• 24/7 AquaStop® Leak protection system
• NSF®-certified* sanitize option
• Wash system PrecisionWash®
• Drying system PureDry®
• 24/7 AquaStop® Leak protection system
• NSF®-certified* sanitize option
Control Lock
Yes

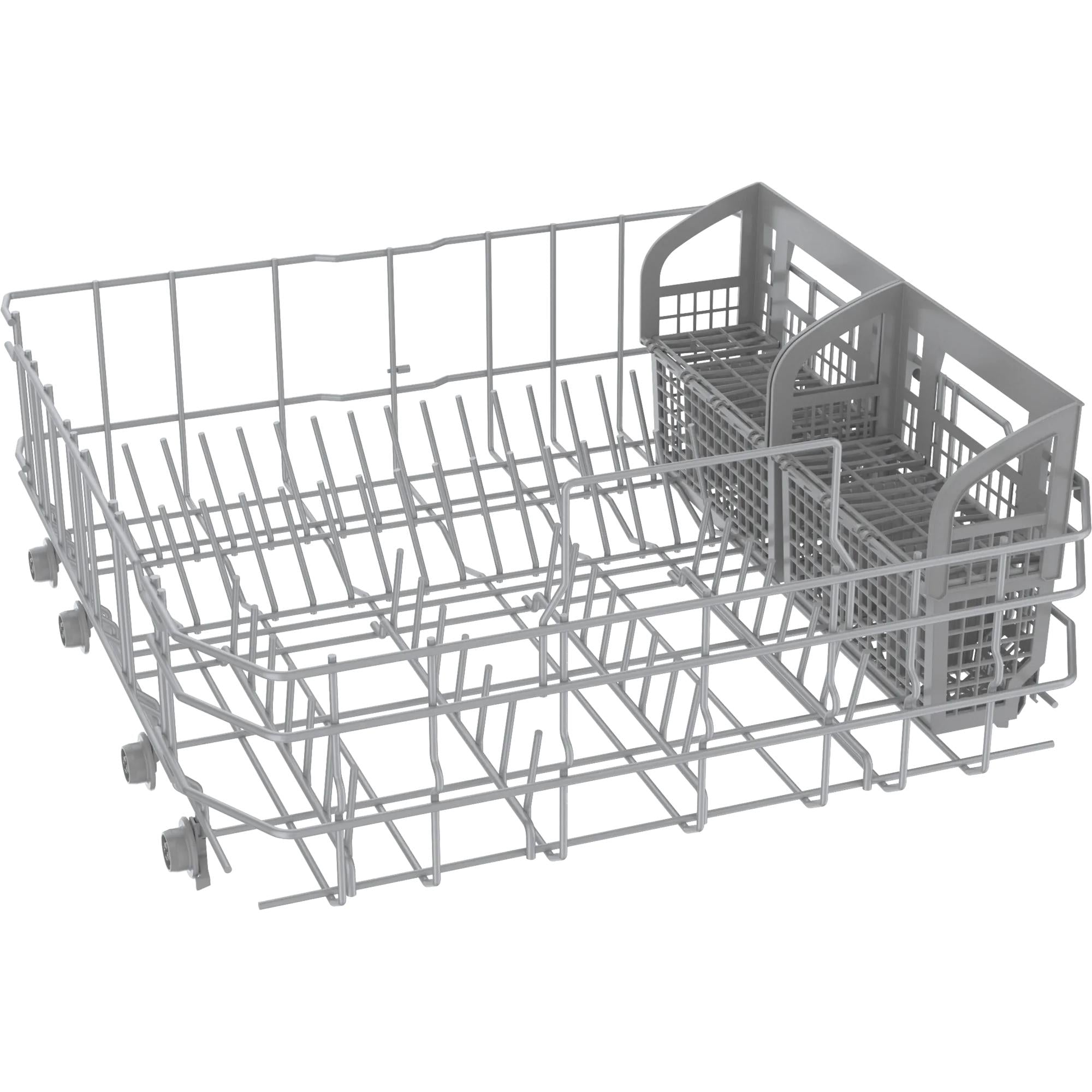

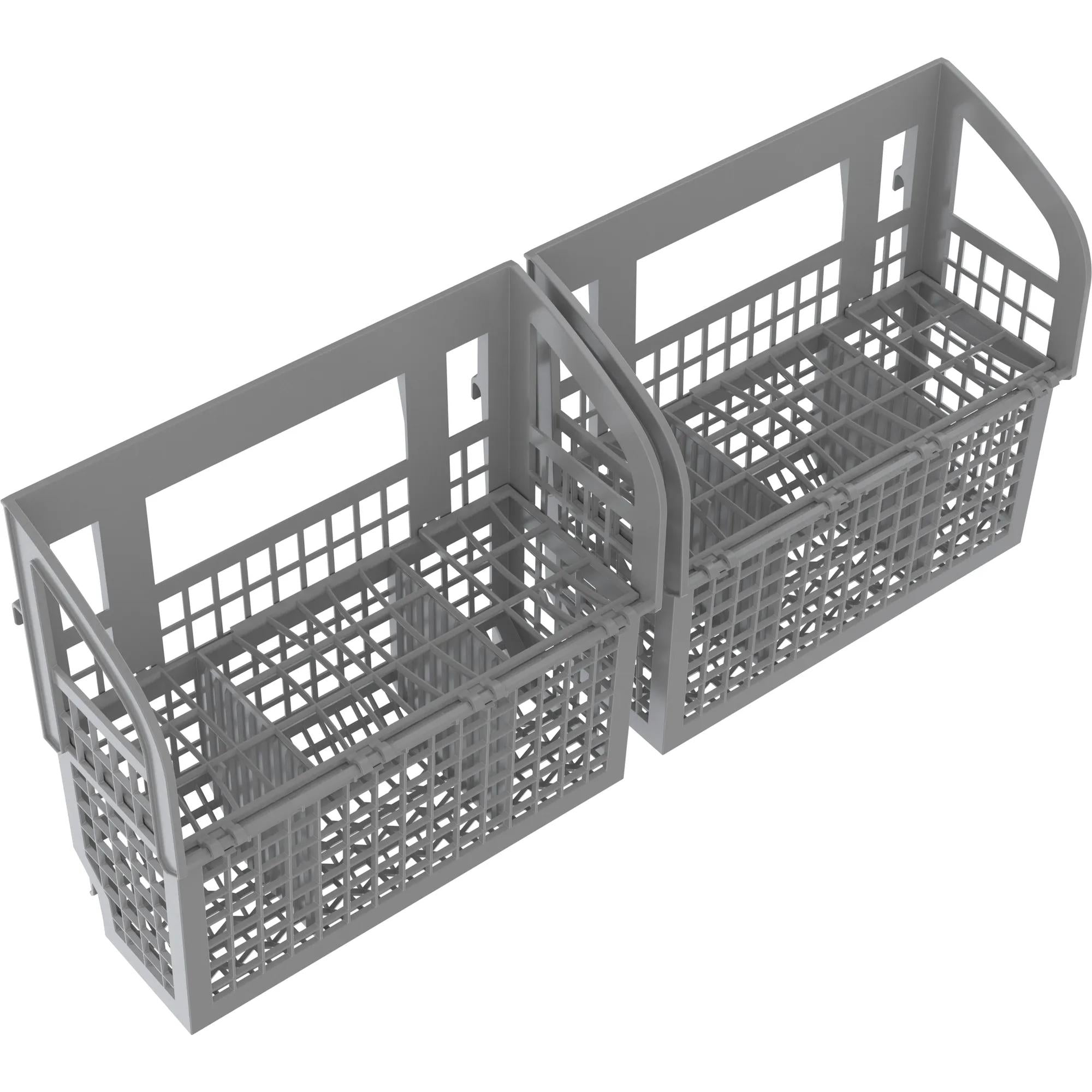

Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Control type Touch: Controls
• Concealed water heating element
• Five-level wash
• Child Lock button suspension
• Anti-Fingerprint Finish
• Water usage per cycle: 3.5 gal
• Adjustable feet
• Minimum water pressure: 14 lb/sin
• Concealed water heating element
• Five-level wash
• Child Lock button suspension
• Anti-Fingerprint Finish
• Water usage per cycle: 3.5 gal
• Adjustable feet
• Minimum water pressure: 14 lb/sin
Electrical Information
Information
• Watts: 1440 W
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Total annual energy consumption: 269 kWh
• Current: 12 Amps
• Volts: 120 V
• Frequency: 60 Hz
• Total annual energy consumption: 269 kWh
Certifications and Approvals
NSF® Certified
Yes
Accessories
Optional
• Junction Box: SMZPCJB1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Flexible Silverware Basket: SMZ4000UC
• Dishwasher Accessory Kit: SMZ5000
• Anti-Tarnish Silverware Cassette: SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
• Junction Box + Supply Hose Kit: SMZ3IN1UC
• Bosch Dishwasher Water Supply Hose: SMZSH1ABUC
• Drain Hose Extension Kit: SGZ1010UC
• Flexible Silverware Basket: SMZ4000UC
• Dishwasher Accessory Kit: SMZ5000
• Anti-Tarnish Silverware Cassette: SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit: SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.85 cm
Height (Min.)
33.87 inch(es) / 86.04 cm
Depth (Without Handle)
23.75 inch(es) / 60.33 cm
Depth (Including Handle)
23.75 inch(es) / 60.33 cm
Weight
85.01 lb(s) / 38.56 kg
Additional Dimensions
• Required cutout size (HxWxD): 33 7/8" x 24" x 24"
• Length outlet hose: 78 3/4"
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 45", Right – 56"
• Length outlet hose: 78 3/4"
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 45", Right – 56"
Warranty
Warranty
1-Year parts and labor
