DESCRIPTION
×Offering near-silent performance, the HBN5 series introduces two innovative technologies: the True iQ Blower System and SmartSense Pro, along with selectable color temperature lighting (CCT technology). In addition to its cutting-edge technology, it is equipped with Wi-Fi, Bluetooth, and voice activation capabilities, providing a smarter and more enjoyable cooking experience. From performance and design to installation and safety, this series offers an all-in-one ventilation solution.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
HBN5
Blower Included
Yes
Airflow
1240 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Bluetooth
Yes
Wi-Fi
Yes
Technologies
• Heat Sentry™
• Wi-Fi / Bluetooth Connectivity
• Voice Control
• SmartSense Pro
• Wi-Fi / Bluetooth Connectivity
• Voice Control
• SmartSense Pro
Ducting Information
• Duct Size: 8" or 3 1/4" x 10" (HBN53696SS), 10" (other models)
• Duct Direction: Vertical (round) or Horizontal (rectangular only)
• Duct Direction: Vertical (round) or Horizontal (rectangular only)
Speeds
8 Speeds
Additional Information
• Finish: Brushed Stainless Steel (Grade 430)
• Lighting Type: LED Modules (6W per module)
• Number of Modules: 2 (36" to 48" hoods), 4 (54" to 66" hoods)
• Light Modules Included
• Correlated Color: 8 color temperature options
• Temperature (CCT): from 2700K to 5000K (more options in the BEST Kitchen app)

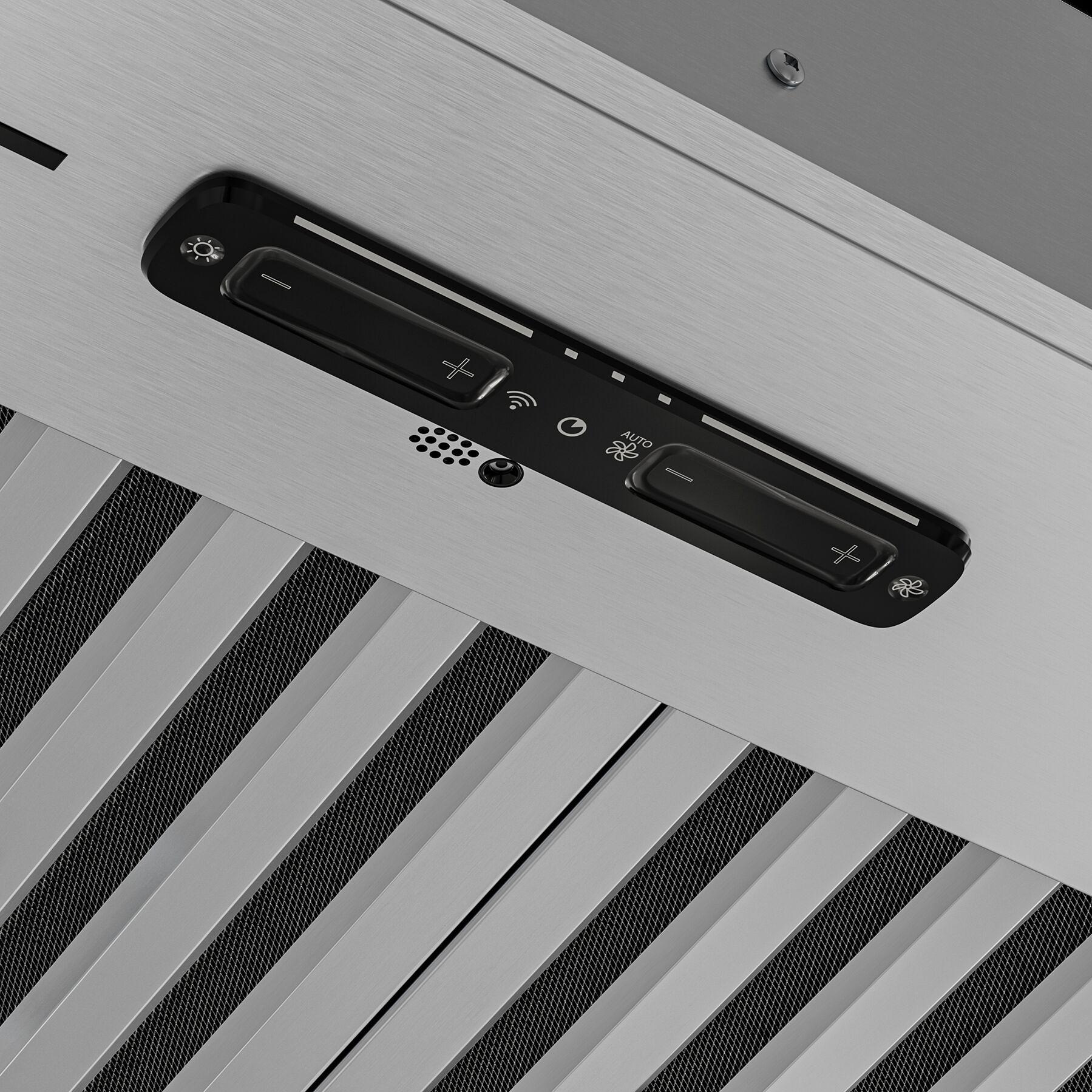

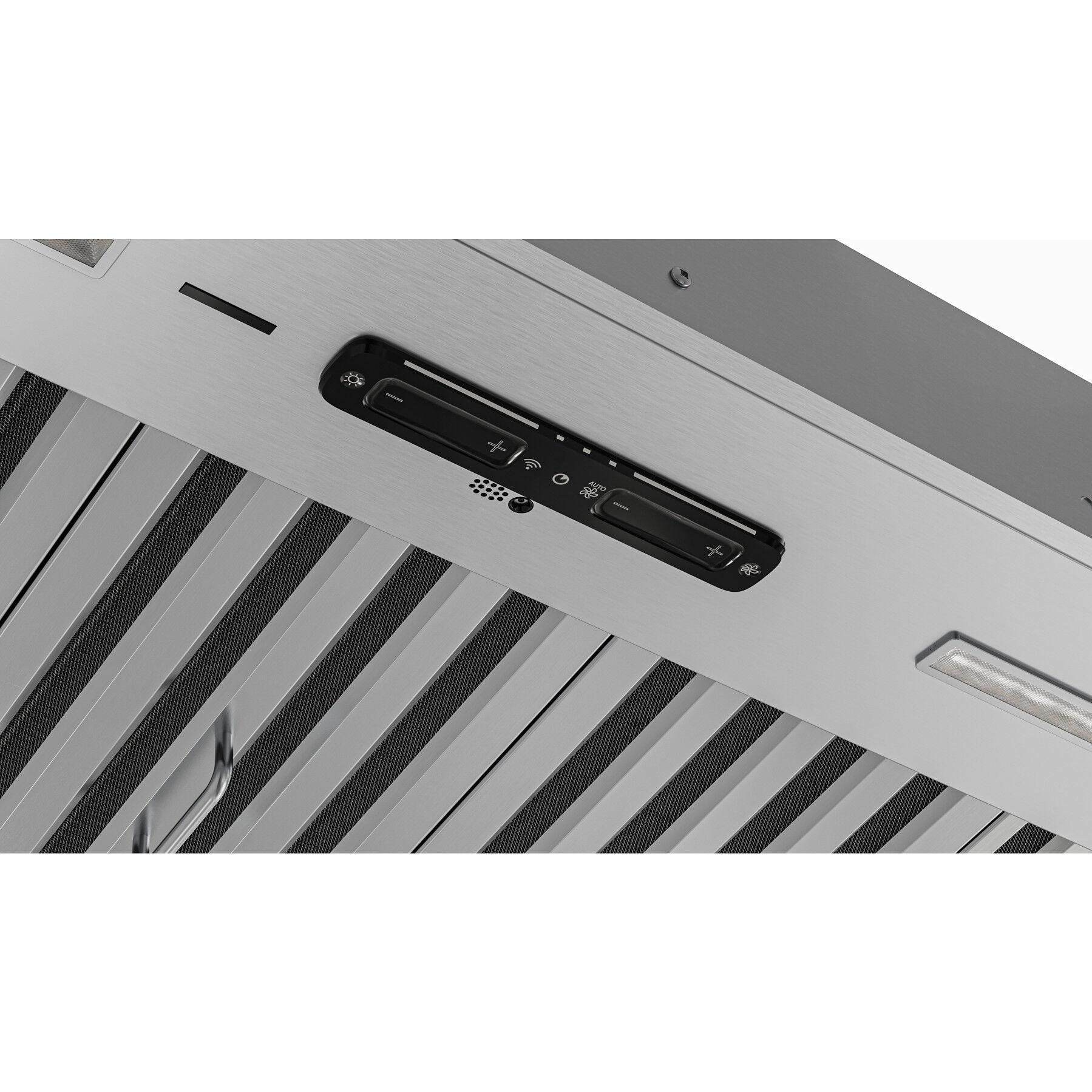

• Control: Touch Slide
• Filter Type: Hybrid Baffle
• Lighting Type: LED Modules (6W per module)
• Number of Modules: 2 (36" to 48" hoods), 4 (54" to 66" hoods)
• Light Modules Included
• Correlated Color: 8 color temperature options
• Temperature (CCT): from 2700K to 5000K (more options in the BEST Kitchen app)
• Control: Touch Slide
• Filter Type: Hybrid Baffle
Electrical Information
Information
• Amps @ 120V 5 (HBN53696SS), 7.5 (other models)
• Electrical Connection: Direct Wire
• Electrical Connection: Direct Wire
Certifications and Approvals
Energy Star Certified
Yes
Accessories
Included
Backdraft Damper
Optional
• ADA Kit: HAWRK5
• Universal MUA Damper: MD8TU or MD10TU
• Power Cord Kit: HCK44
• Universal MUA Damper: MD8TU or MD10TU
• Power Cord Kit: HCK44
Dimensions
Class Width
48"
Width
46.87 inch(es) / 119.06 cm
Height
14 inch(es) / 35.56 cm
Depth
23.5 inch(es) / 59.69 cm
Additional Dimensions
Cutout: 46 1/2" W x 22 7/8" D
Warranty
Warranty
5 Years Parts / 2 Years Labor
UPC
UPC#
772371160798
