DESCRIPTION

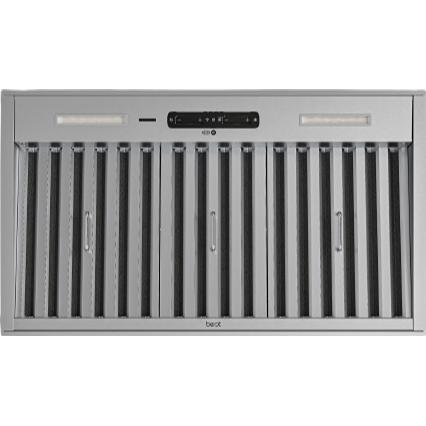

×Offering near-silent performance, the HBN5 series introduces two innovative technologies, the True iQ Blower System and SmartSense Pro, and features selectable color temperature lighting (CCT technology). In addition to cutting-edge technology, it is equipped with Wi-Fi, Bluetooth and voice activation capabilities to offer a smarter, more enjoyable cooking experience. From performance and design to installation and safety, this series is the all-in-one ventilation solution.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
HBN5
Blower Included
Yes
Airflow
1240 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Brushed Stainless Steel
Installation
Built-In
Features
Bluetooth
Yes
Wi-Fi
Yes
Technologies
• Heat Sentry™
• Wi-Fi/Bluetooth Connectivity
• Voice Control
• SmartSense Pro
• BEST Kitchen app
• Code Ready Technology
• EZ 1™
• True IQ Technology
• Wi-Fi/Bluetooth Connectivity
• Voice Control
• SmartSense Pro
• BEST Kitchen app
• Code Ready Technology
• EZ 1™
• True IQ Technology
Ducting Information
10"
Speeds
8-speed Capacitive Touch Slider
Additional Information
• Quietest Blower System: Experience near-silent operation with the True iQ Blower system, powered by TrueCFM technology, which guarantees performance with automatic, real-time calibration; 1240 TrueCFM, less than 0.3 sones at low speed
• Built-In Versatility: Offered in 23-1/2" depth with Correlated Color Temperature (CCT) lighting and smart connectivity, this insert will complement any kitchen design
• Perfectly Ventilated Experience: SmartSense Pro delivers an automated ventilation solution with smart algorithms detecting heat from the cooktop and automatically adjusting fan speed based on heat, humidity and VOC pollutants
• Our TrueCFM Promise: The range hood will always perform at the correct CFM, regardless of any unexpected blockages or restrictions
• Correlated Color Temperature (CCT) technology allows users to match range hood lighting with kitchen lighting from 2700K to 5000K; eight color temperature options via control panel, virtually limitless adjustability in the BEST Kitchen app
• Wi-Fi, Bluetooth and voice activation capabilities enable hands-free operation

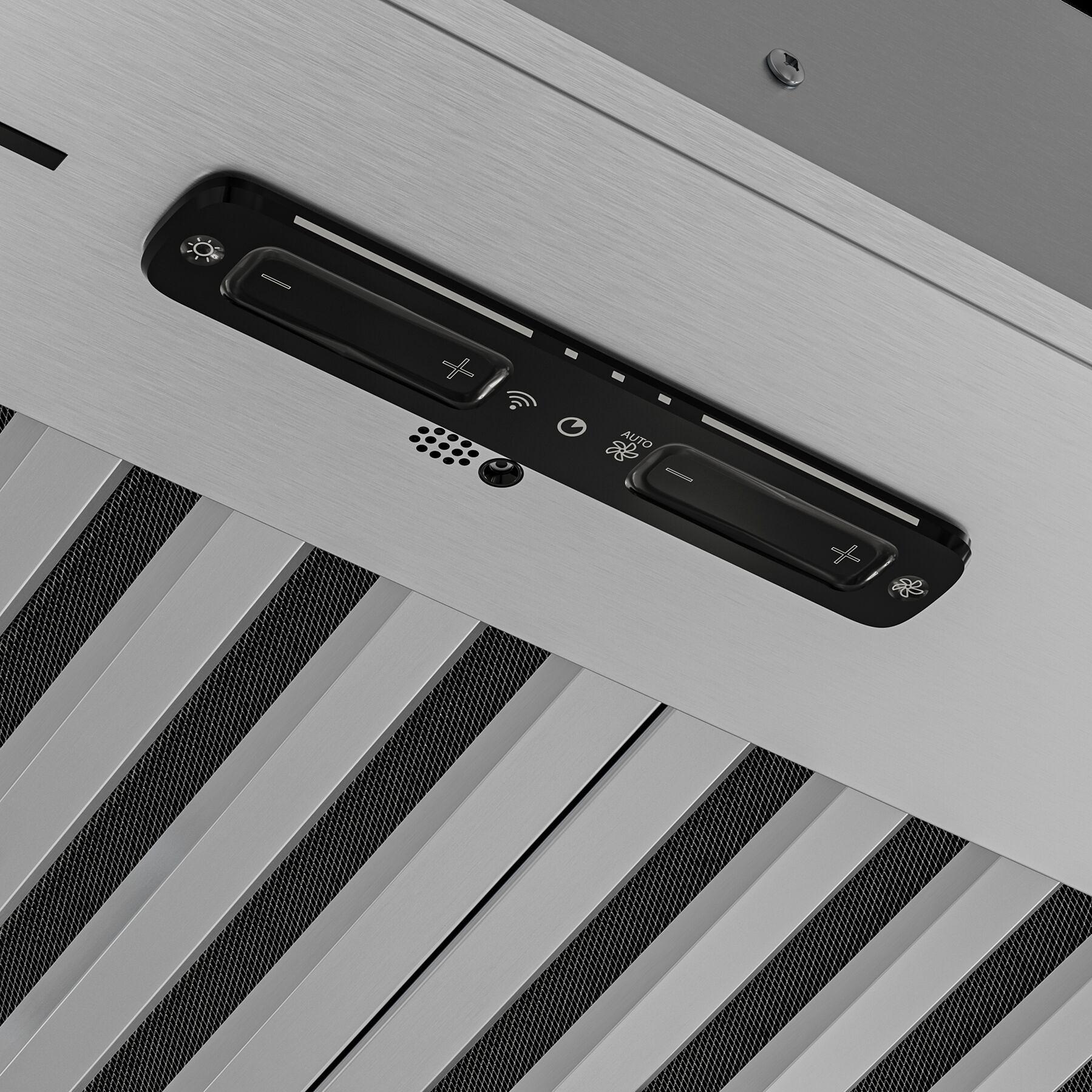

• Capacitive touch slider control offers eight fan speeds and eight LED lighting levels
• Hybrid Baffle™ filters provide full coverage to remove smoke, odors and pollutants
• Single-person installation with the EZ Install bracket system
• Code Ready Technology® (CRT) can limit airflow to 300, 400 or 600 CFM to comply with local make-up air code requirements
• The Heat Sentry® safety feature automatically adjusts blower speed if exhaust temperatures above 200°F are detected, protecting you and your home
• Capable installation with 10" vertical ducting
• Built-In Versatility: Offered in 23-1/2" depth with Correlated Color Temperature (CCT) lighting and smart connectivity, this insert will complement any kitchen design
• Perfectly Ventilated Experience: SmartSense Pro delivers an automated ventilation solution with smart algorithms detecting heat from the cooktop and automatically adjusting fan speed based on heat, humidity and VOC pollutants
• Our TrueCFM Promise: The range hood will always perform at the correct CFM, regardless of any unexpected blockages or restrictions
• Correlated Color Temperature (CCT) technology allows users to match range hood lighting with kitchen lighting from 2700K to 5000K; eight color temperature options via control panel, virtually limitless adjustability in the BEST Kitchen app
• Wi-Fi, Bluetooth and voice activation capabilities enable hands-free operation
• Capacitive touch slider control offers eight fan speeds and eight LED lighting levels
• Hybrid Baffle™ filters provide full coverage to remove smoke, odors and pollutants
• Single-person installation with the EZ Install bracket system
• Code Ready Technology® (CRT) can limit airflow to 300, 400 or 600 CFM to comply with local make-up air code requirements
• The Heat Sentry® safety feature automatically adjusts blower speed if exhaust temperatures above 200°F are detected, protecting you and your home
• Capable installation with 10" vertical ducting
Electrical Information
Information
120 V
Certifications and Approvals
Energy Star Certified
Yes
Accessories
Included
Backdraft Damper
Dimensions
Class Width
36"
Width
34.5 inch(es) / 87.63 cm
Height
14 inch(es) / 35.56 cm
Depth
22.87 inch(es) / 58.10 cm
Warranty
Warranty
5-Year Parts/2-Year Labor
