DESCRIPTION

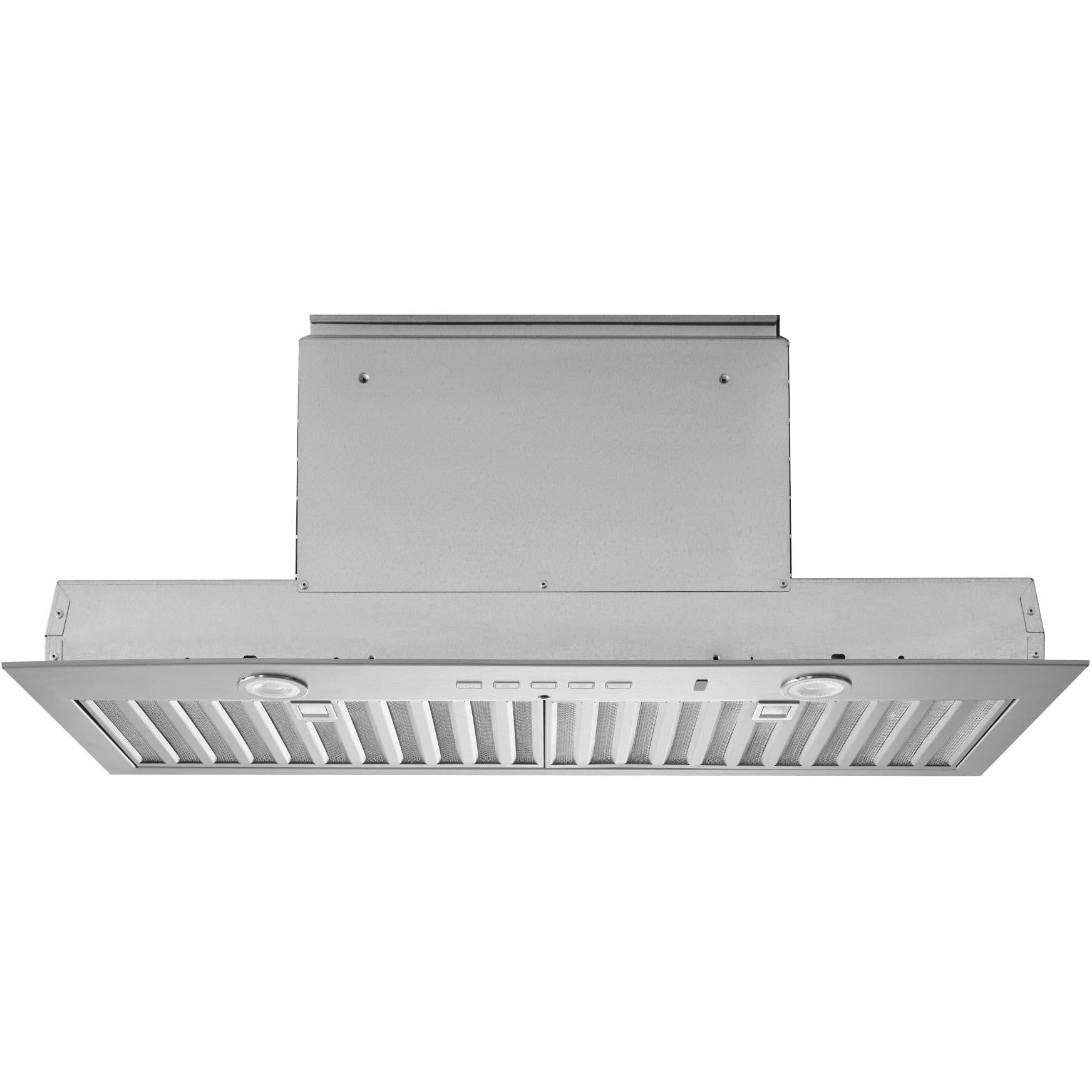

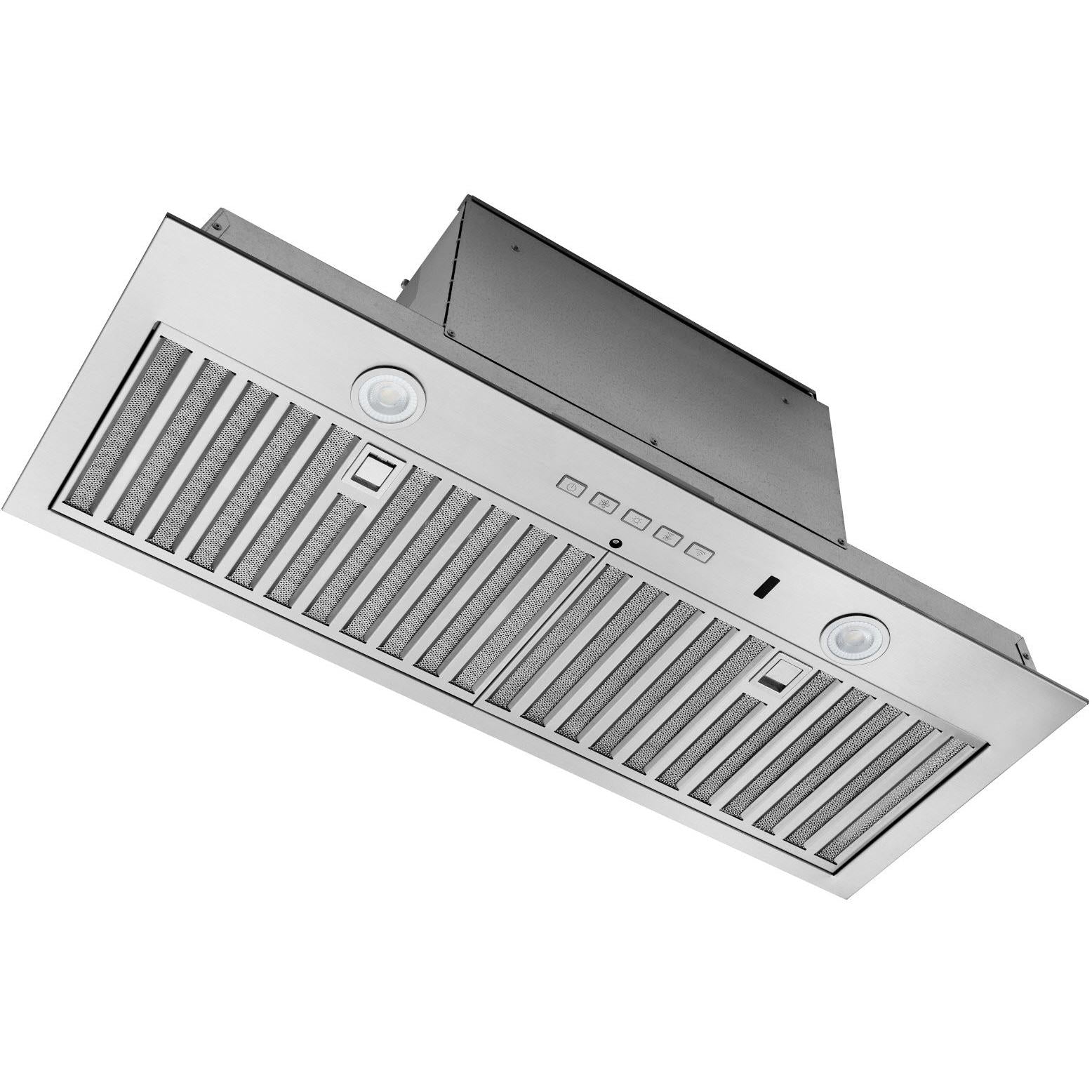

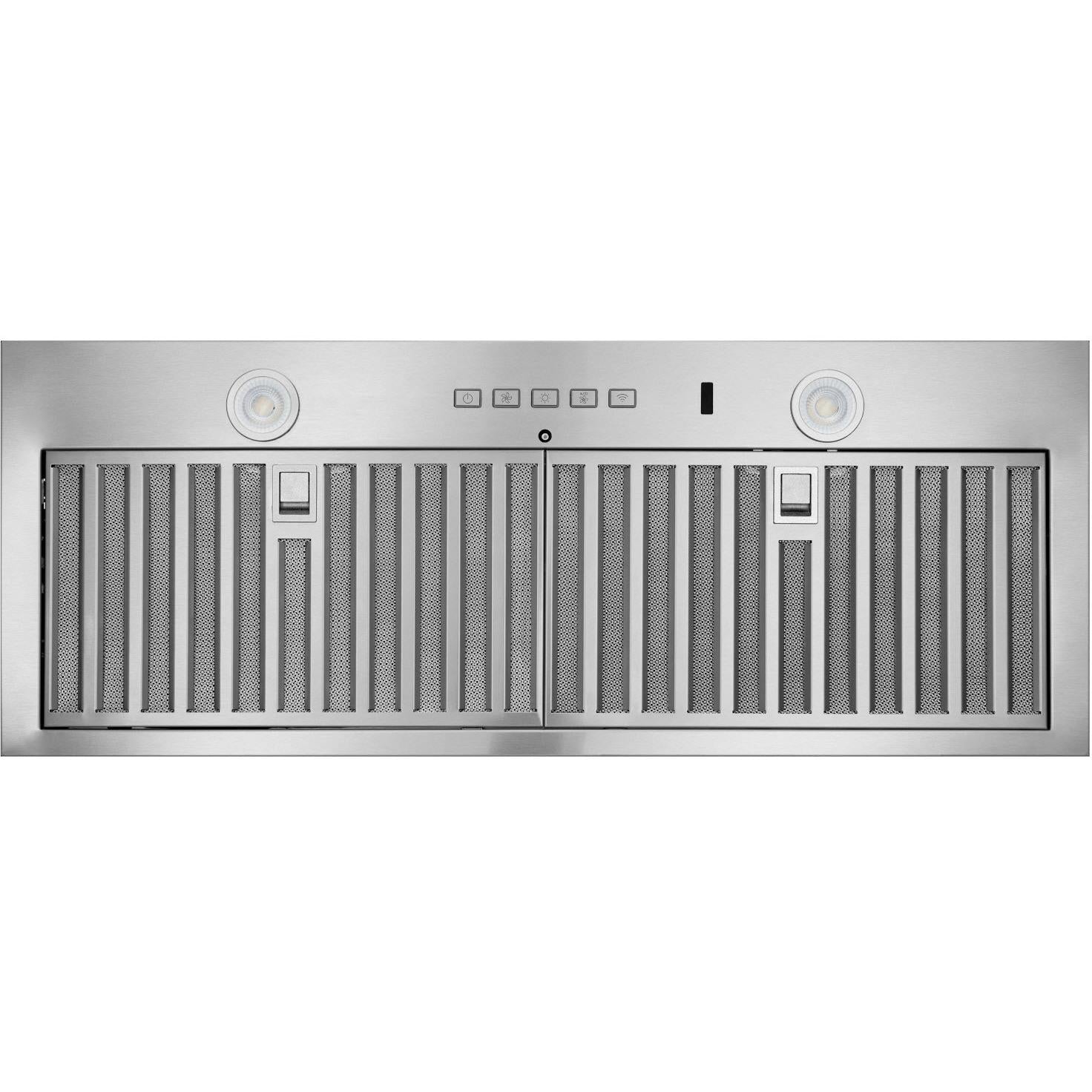

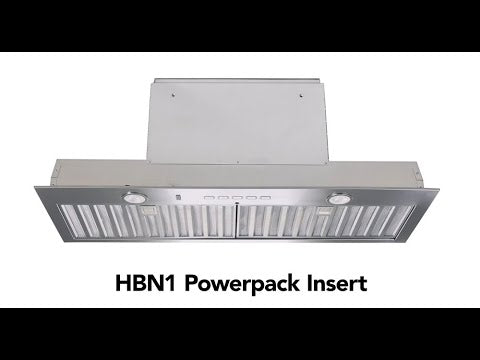

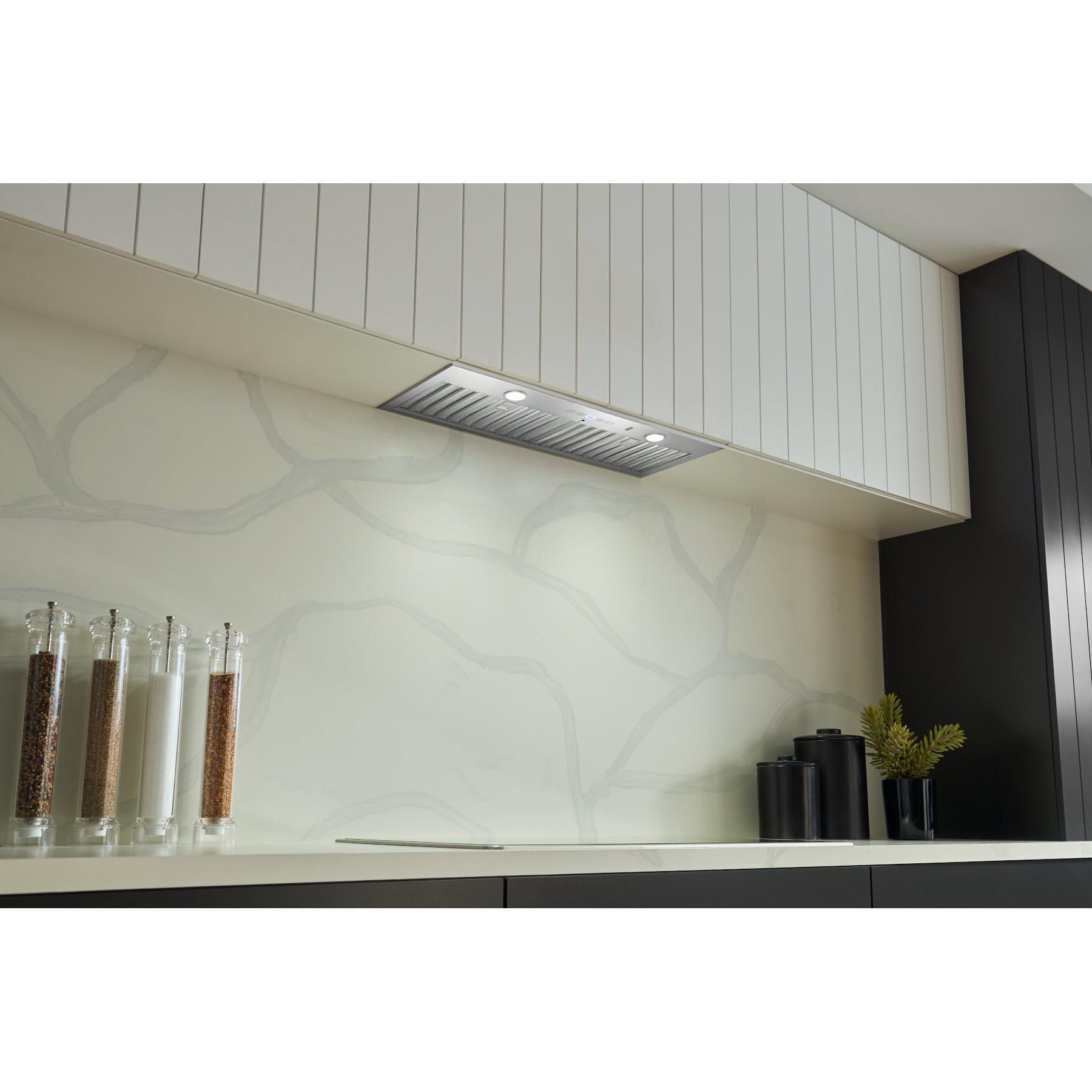

×Designed of brushed stainless steel, the HBN1 powerpack insert series has a clean, smooth look to achieve a built-in, custom appearance. Protect the full bottom of your cabinetry with depth adjustability up to 15” deep. It features a 4-speed electronic control with an automatic smart sensor, voice activation, and bright LED lighting illuminating the cooktop, and easy install clips for single-person installation. HBN1 series delivers unparalleled performance with a powerful 650 Max Blower CFM.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
HBN1
Blower Included
Yes
Airflow
650 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Bluetooth
Yes
Wi-Fi
Yes
Technologies
• Heat Sentry™
• Wi-Fi / Bluetooth Connectivity
• Voice Control
• SmartSense
• BEST Kitchen app
• Wi-Fi / Bluetooth Connectivity
• Voice Control
• SmartSense
• BEST Kitchen app
Ducting Information
• Duct Size: 6", 8" or 3 1/4" x 10"
• Duct Direction Vertical (round or rectangular) or Horizontal (rectangular only
• Duct Direction Vertical (round or rectangular) or Horizontal (rectangular only
Speeds
4 Speeds
Additional Information
• Finish Brushed Stainless Steel (Grade 430)
• Lighting Type: LED Bulbs
• 2 Lights
• Lighting Levels: 3
• Lighting Bulbs Included

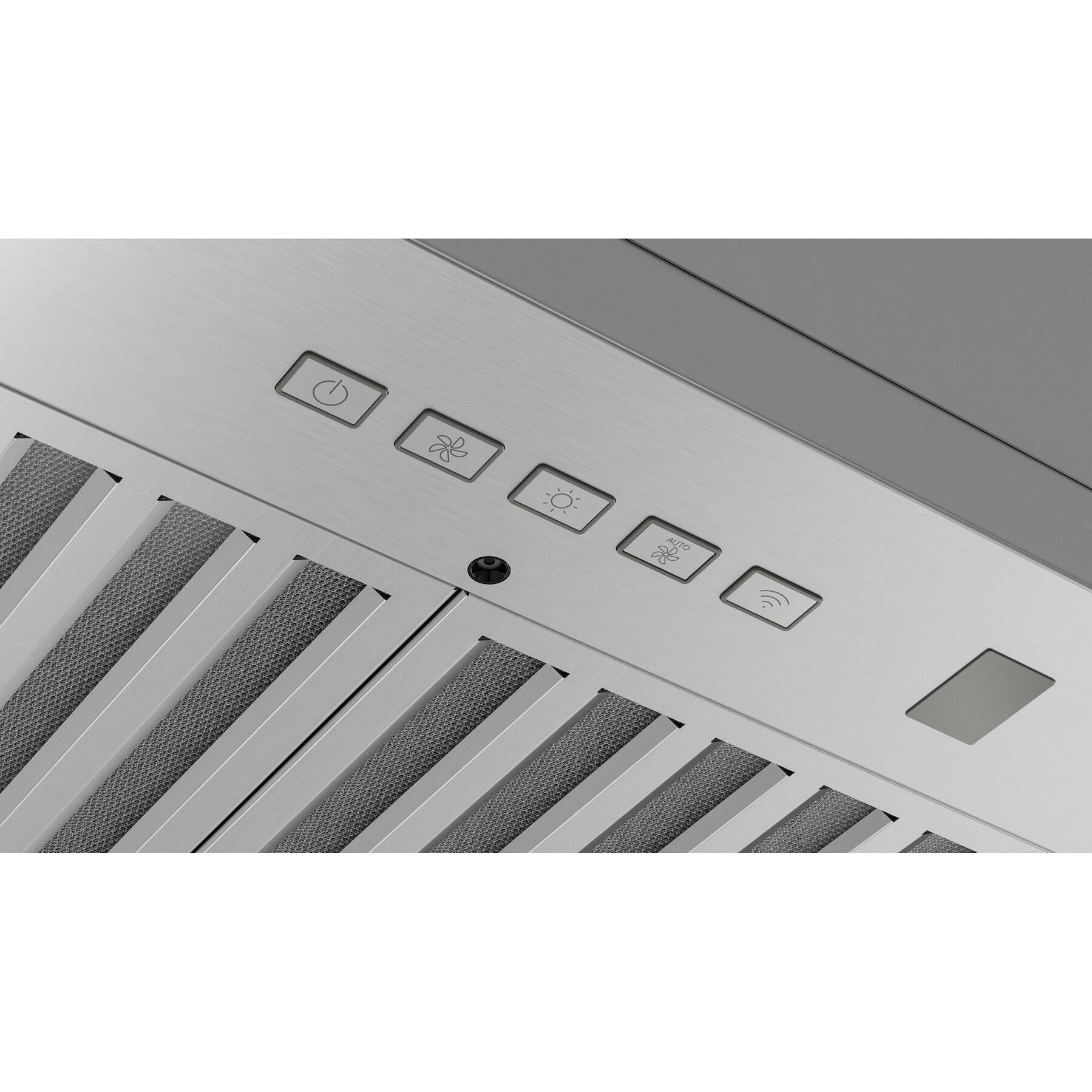

• Control Type: Electronic Soft Touch
• Delay-Off
• Filter Clean Reminder

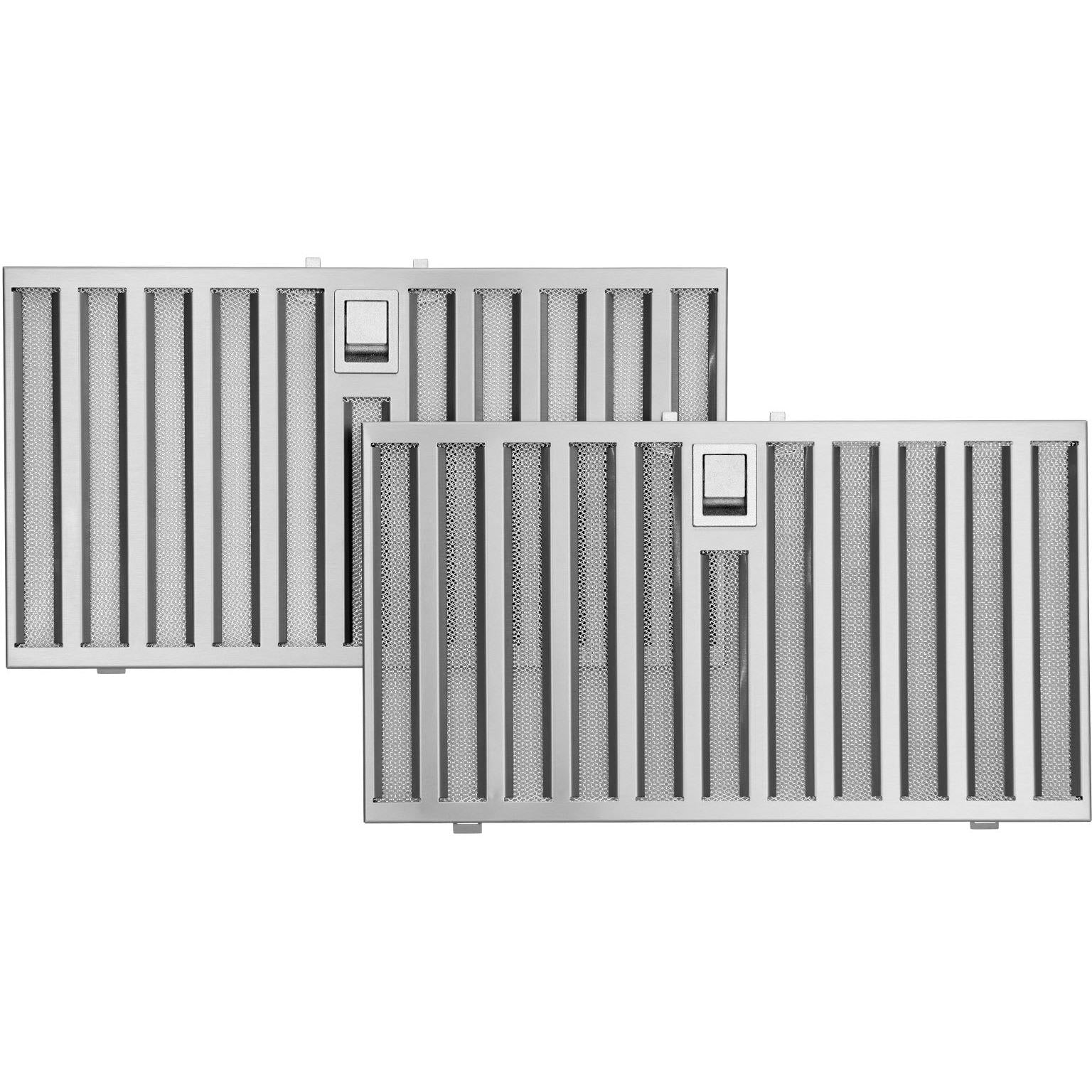

• Filter Type: Hybrid Baffle
• Lighting Type: LED Bulbs
• 2 Lights
• Lighting Levels: 3
• Lighting Bulbs Included
• Control Type: Electronic Soft Touch
• Delay-Off
• Filter Clean Reminder
• Filter Type: Hybrid Baffle
Electrical Information
Information
• Amps @ 120V: 4.0
• Electrical Connection: Direct Wire
• Electrical Connection: Direct Wire
Accessories
Included
Backdraft Damper
Optional
• ADA Kit: HAWRK5
• Fillers for Cabinet Depth: HADTBN24 (for HBN1246SS)
• Adjustment 11 7/16" - 15" HADTBN30 (for HBN1306SS), (set of 7) HADTBN36 (for HBN1366SS)
• Universal MUA Damper: MD6TU, MD8TU or MD10TU
• Power Cord Kit: HCK44
• Non-Duct Kit:
• HARKBN24 (for HBN1246SS)
• HARKBN30 (for HBN1306SS)
• HARKBN36 (for HBN1366SS)
• Charcoal Filters S99010464-124 (for HBN1246SS)
• S99010464-130 (for HBN1306SS)
• S99010464-136 (for HBN1366SS
• Fillers for Cabinet Depth: HADTBN24 (for HBN1246SS)
• Adjustment 11 7/16" - 15" HADTBN30 (for HBN1306SS), (set of 7) HADTBN36 (for HBN1366SS)
• Universal MUA Damper: MD6TU, MD8TU or MD10TU
• Power Cord Kit: HCK44
• Non-Duct Kit:
• HARKBN24 (for HBN1246SS)
• HARKBN30 (for HBN1306SS)
• HARKBN36 (for HBN1366SS)
• Charcoal Filters S99010464-124 (for HBN1246SS)
• S99010464-130 (for HBN1306SS)
• S99010464-136 (for HBN1366SS

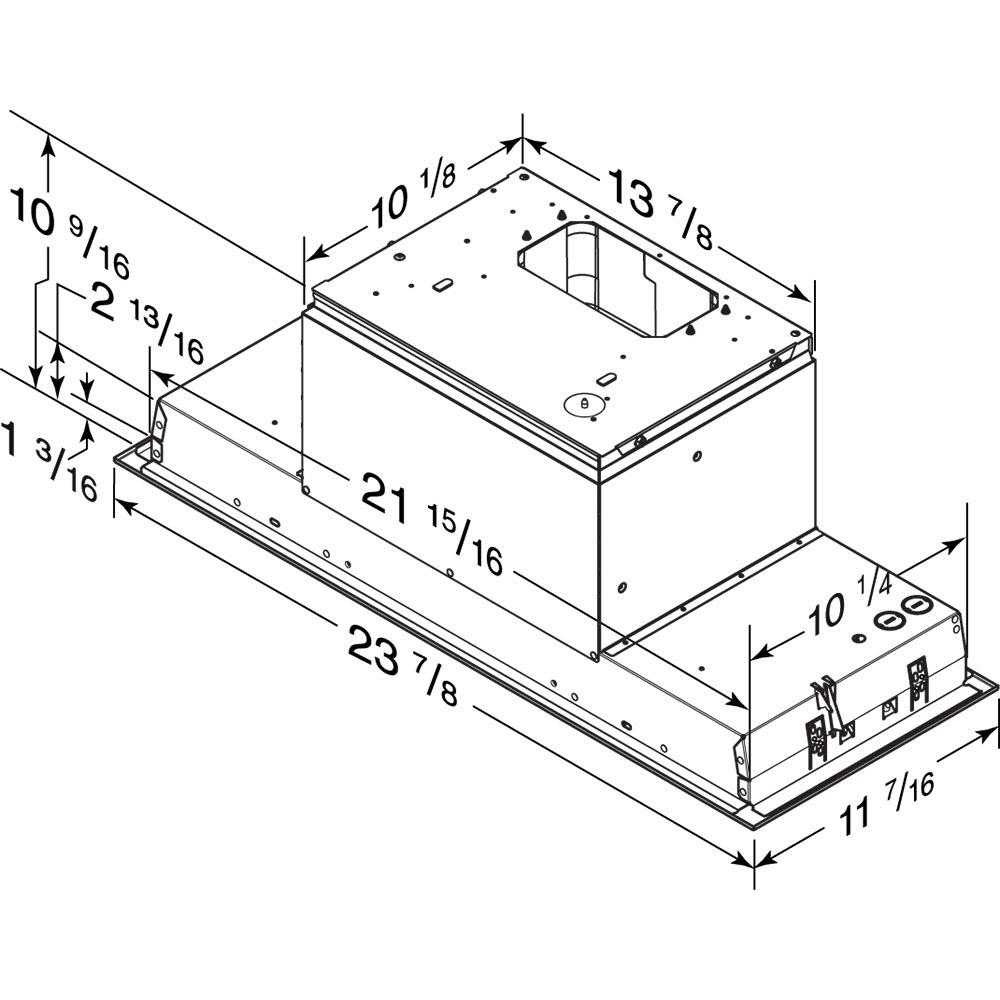

Dimensions
Class Width
24"
Width
23.87 inch(es) / 60.64 cm
Height
10.56 inch(es) / 26.83 cm
Depth
11.44 inch(es) / 29.05 cm
Warranty
Warranty
5 Years Parts / 2 Years Labor
