DESCRIPTION

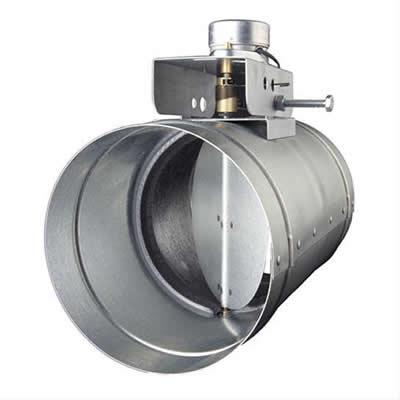

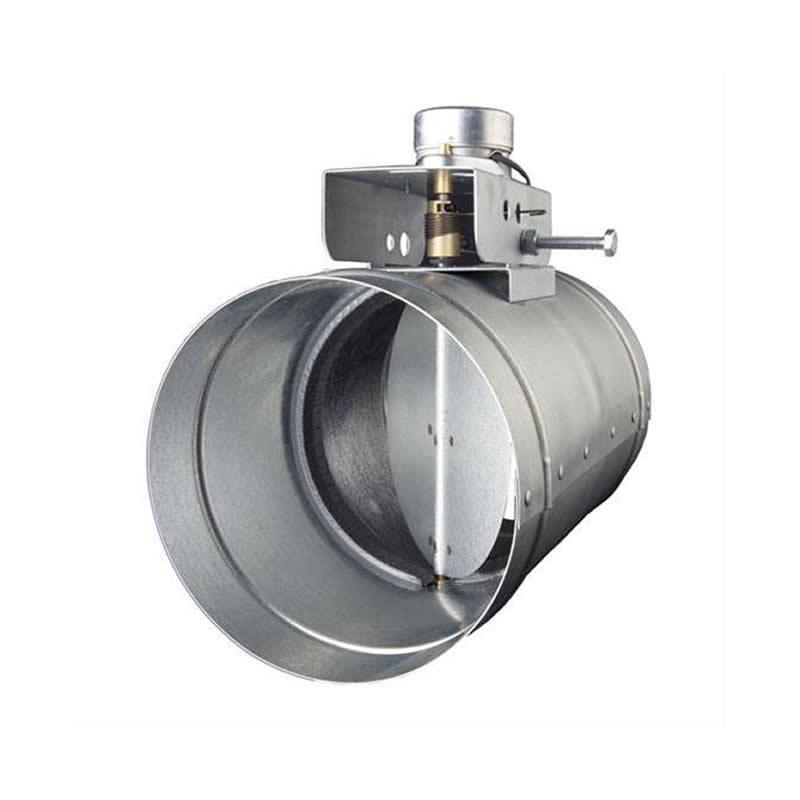

×8" automatic make-up air damper
SPECIFICATIONS
×
Specifications
General
Information
• BEST® interlocked make-up air dampers provide outside air when required to keep the air in the home fresher by allowing the range hood to operate at optimum levels
• Slave dampers are interlocked to the main automatic make-up air damper and open in unison for synchronized operation. They close, along with the main damper, as soon as the range hood is powered off. Slave dampers can be "ganged" together to provide a cost effective means to provide for higher volumes of make-up air
• Interlocked make-up air damper systems meet IRC Code requirements for make-up air with range hoods over 400 CFM
• Slave dampers are designed to work with all BEST® Automatic make-up air dampers including Direct Wire models MD6T/TR and MD8T/TR, LinkLogic controlled models SMD6 and SMD8 and Universal models MD6TU and MD8TU
• Fresh air wall caps are required for use with Make-Up Air Dampers
• Slave dampers are interlocked to the main automatic make-up air damper and open in unison for synchronized operation. They close, along with the main damper, as soon as the range hood is powered off. Slave dampers can be "ganged" together to provide a cost effective means to provide for higher volumes of make-up air
• Interlocked make-up air damper systems meet IRC Code requirements for make-up air with range hoods over 400 CFM
• Slave dampers are designed to work with all BEST® Automatic make-up air dampers including Direct Wire models MD6T/TR and MD8T/TR, LinkLogic controlled models SMD6 and SMD8 and Universal models MD6TU and MD8TU
• Fresh air wall caps are required for use with Make-Up Air Dampers
Warranty
Warranty
1 Year
UPC
UPC#
26715204199
