DESCRIPTION

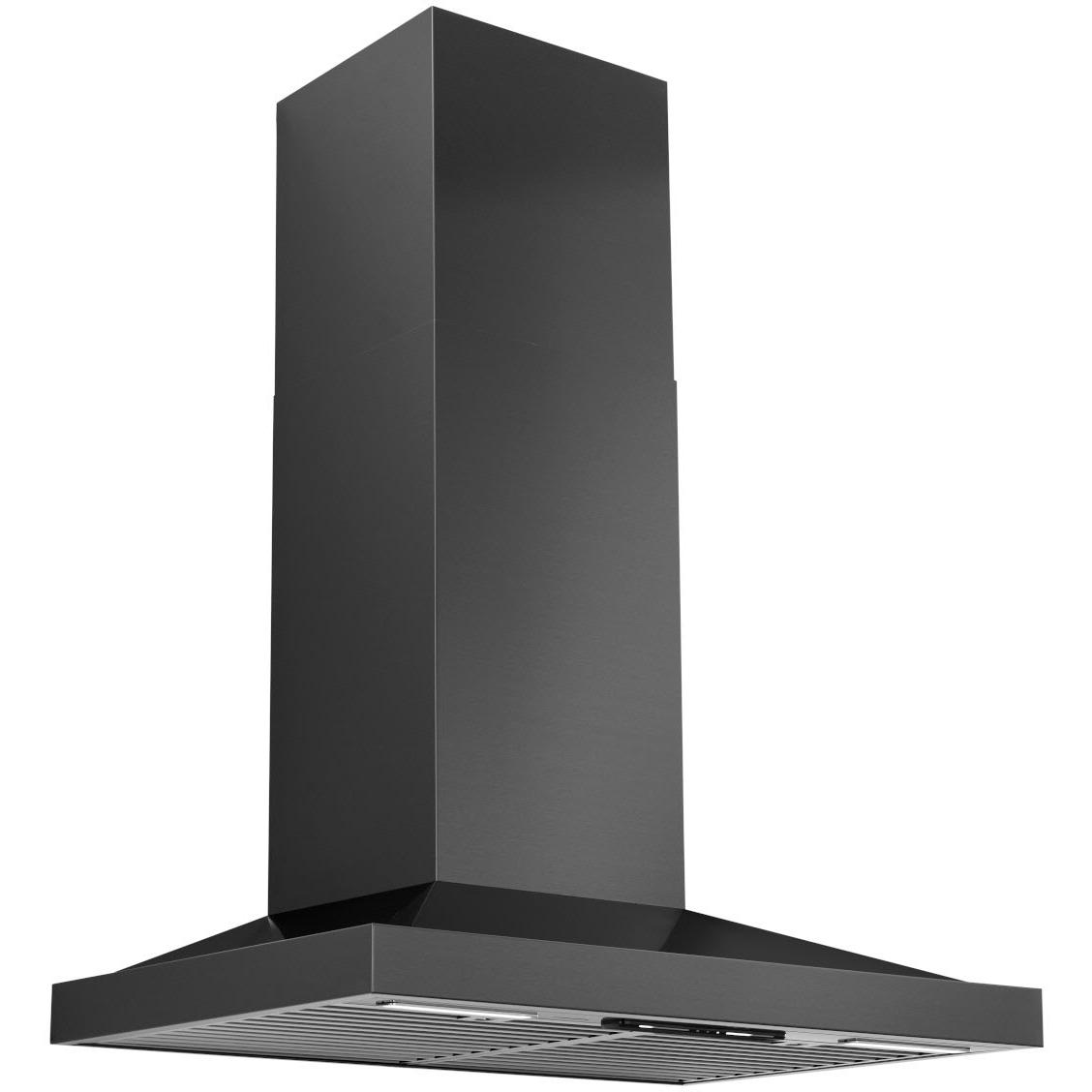

×This elegant low-profile pyramidal hood with powerful ventilation can meet the challenges of any home chef while featuring a traditional appearance that fits into practically any kitchen.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Series Name
WCS1
Blower Included
Yes
Airflow
650 CFM
Style
Chimney
Color
Black Stainless
Installation
Wall Mount
Features
Wi-Fi
Yes
Dishwasher-Proof Filters
Yes
Technologies
• Code Ready Technology
• Voice Control
• SmartSense®
• Heat Sentry™
• Wi-Fi Connect
• Voice Control
• SmartSense®
• Heat Sentry™
• Wi-Fi Connect
Ducting Information
• Duct Size: 3-1/4" x 10" - rectangular
• 6" - round
• 8" - round
• Duct Direction Vertical or horizontal
• 6" - round
• 8" - round
• Duct Direction Vertical or horizontal
Speeds

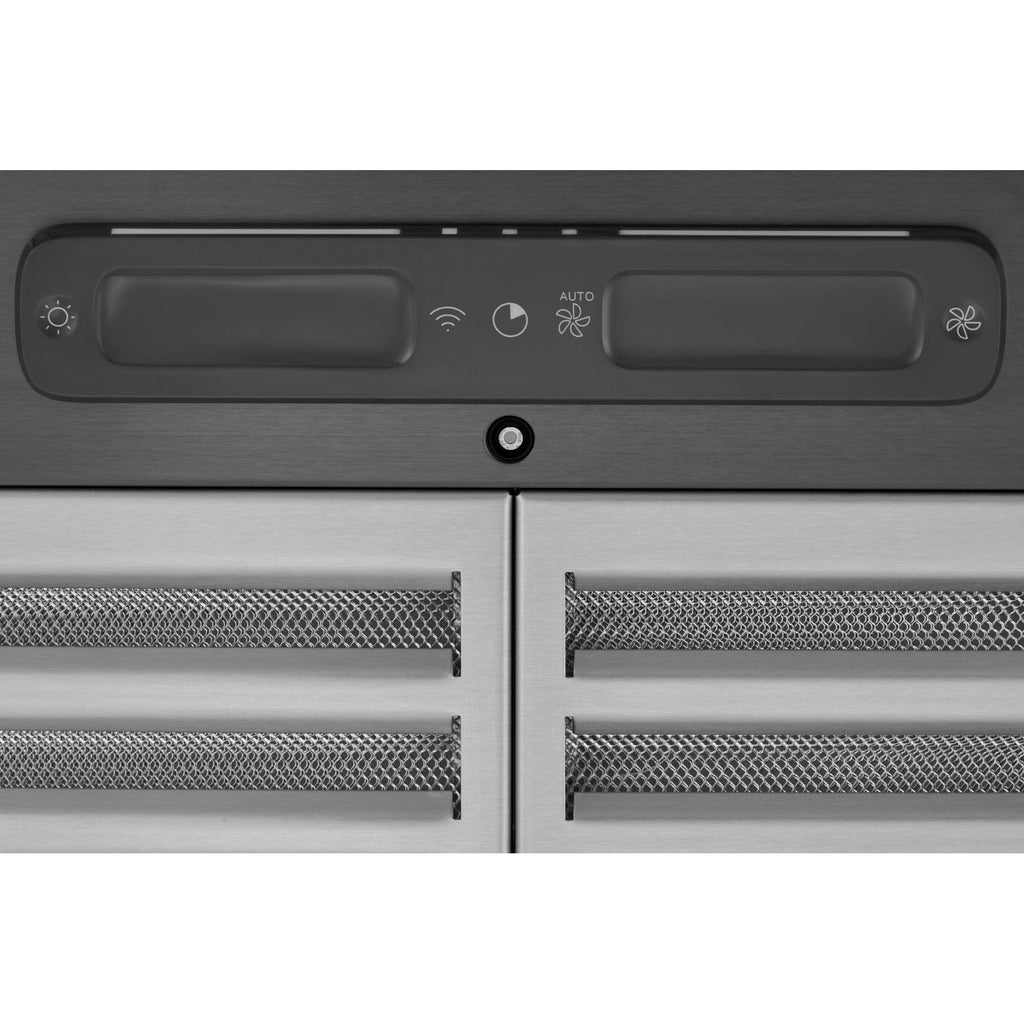

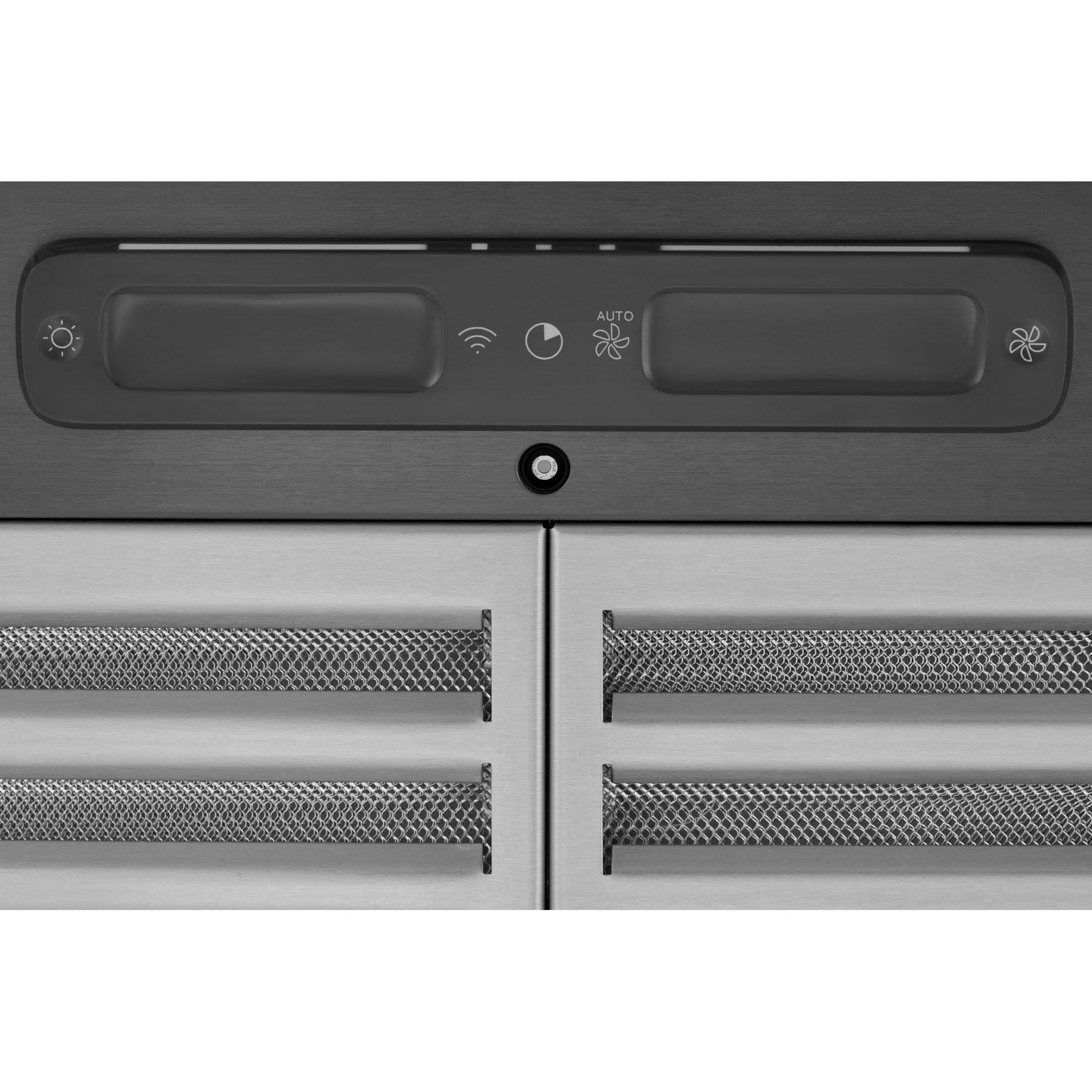

4-speed Capacitive Touch Slider
Additional Information
• Lighting Type LED Modules (6W per module, color temp 3000K)
• 4 Lighting Levels
• Lighting Modules Included
• Delay Off
• Filter Clean Reminder
• Hybrid Baffle Filters
• 4 Lighting Levels
• Lighting Modules Included
• Delay Off
• Filter Clean Reminder
• Hybrid Baffle Filters
Accessories
Included
Backdraft Damper
Optional
• ADA Kit HAWRK5
• Recirculation Kit ANKWCPST1
• Universal MUA Damper MD6TU, MD8TU, MD10TU (Requires Fresh Air Inlet)
• Fresh Air Inlet 641FA, 643FA, 610FA
• Recirculation Kit ANKWCPST1
• Universal MUA Damper MD6TU, MD8TU, MD10TU (Requires Fresh Air Inlet)
• Fresh Air Inlet 641FA, 643FA, 610FA

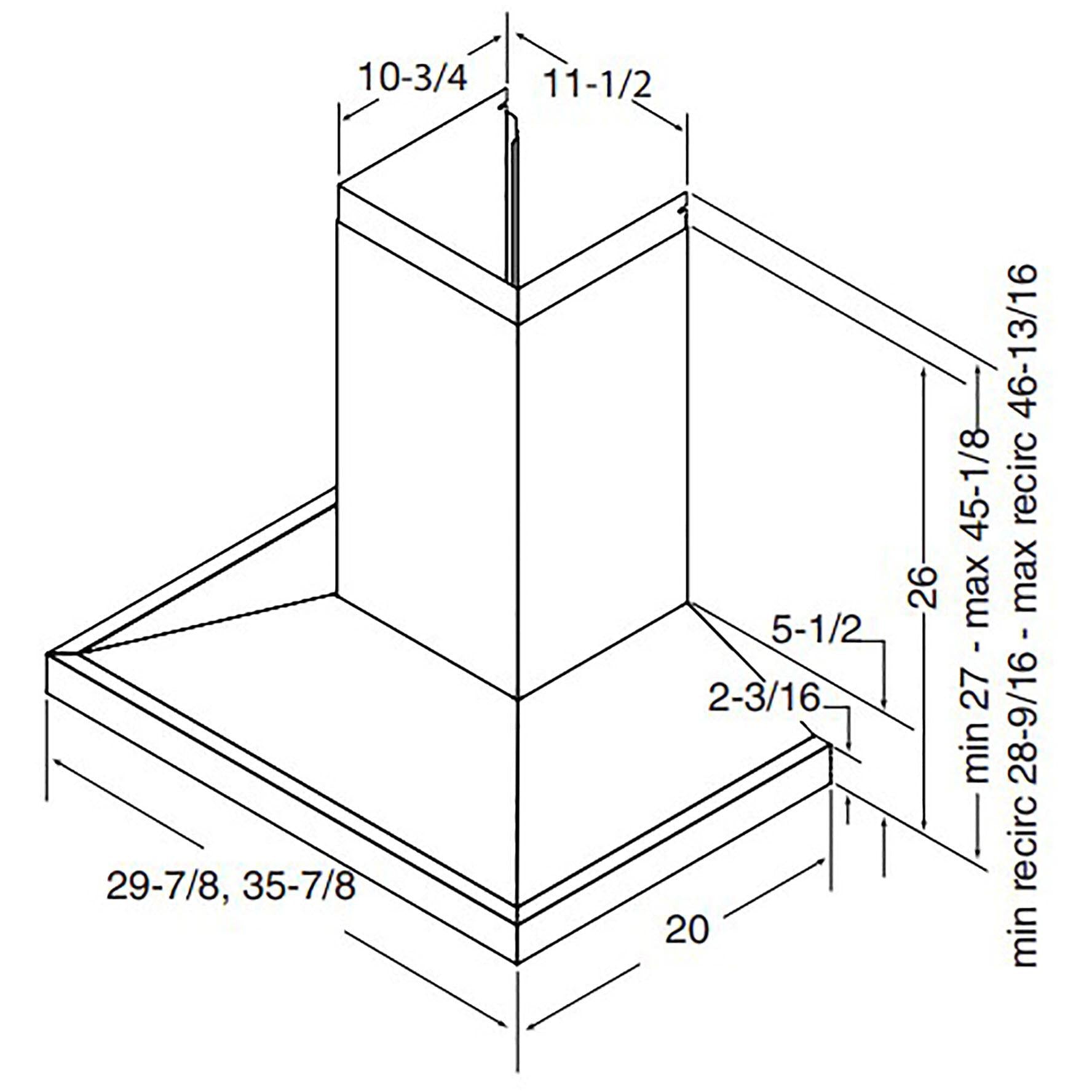

Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
26 inch(es) / 66.04 cm
Depth
20 inch(es) / 50.8 cm
Warranty
Warranty
5 Year Parts/2 Year Labor
DOCUMENTS
×
