DESCRIPTION

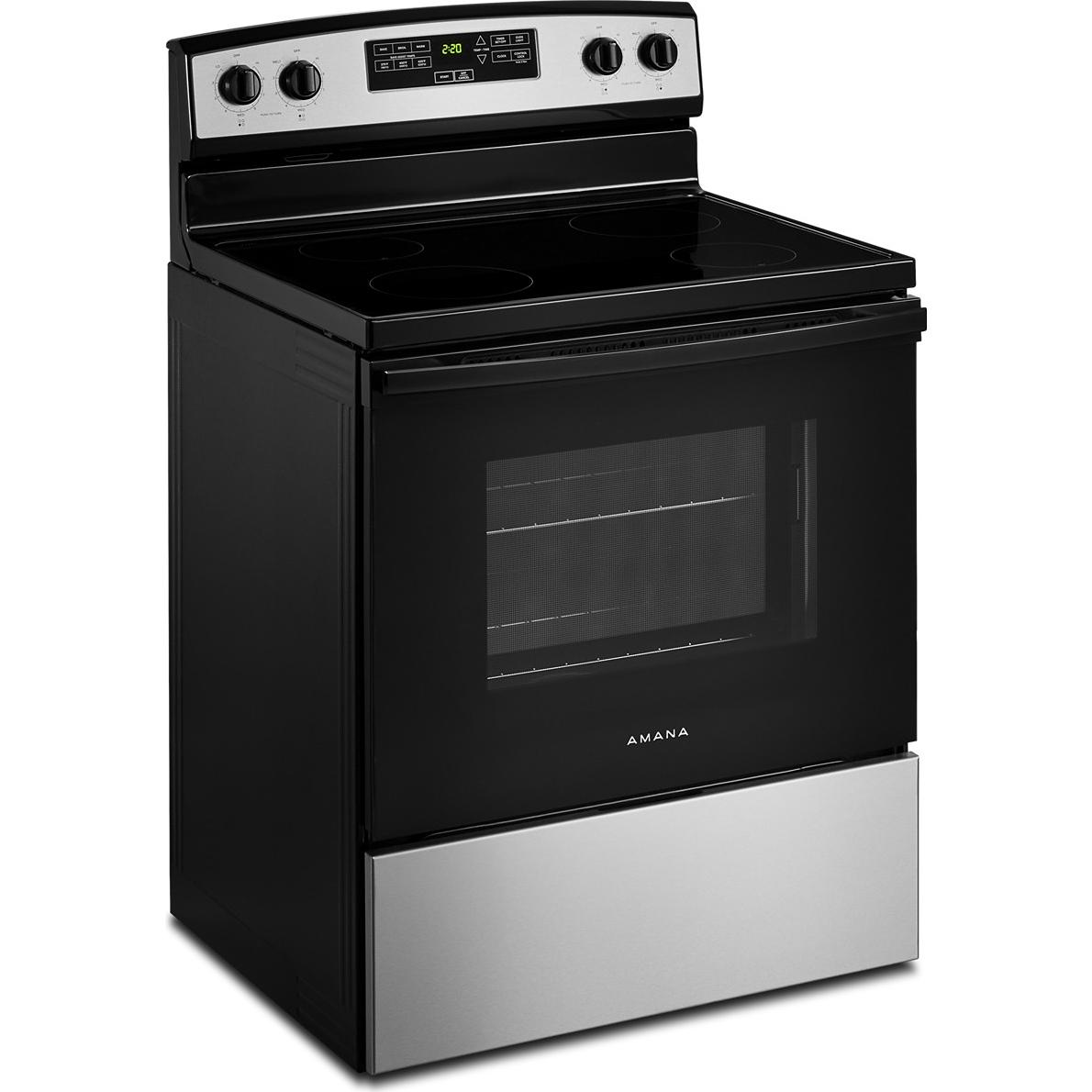

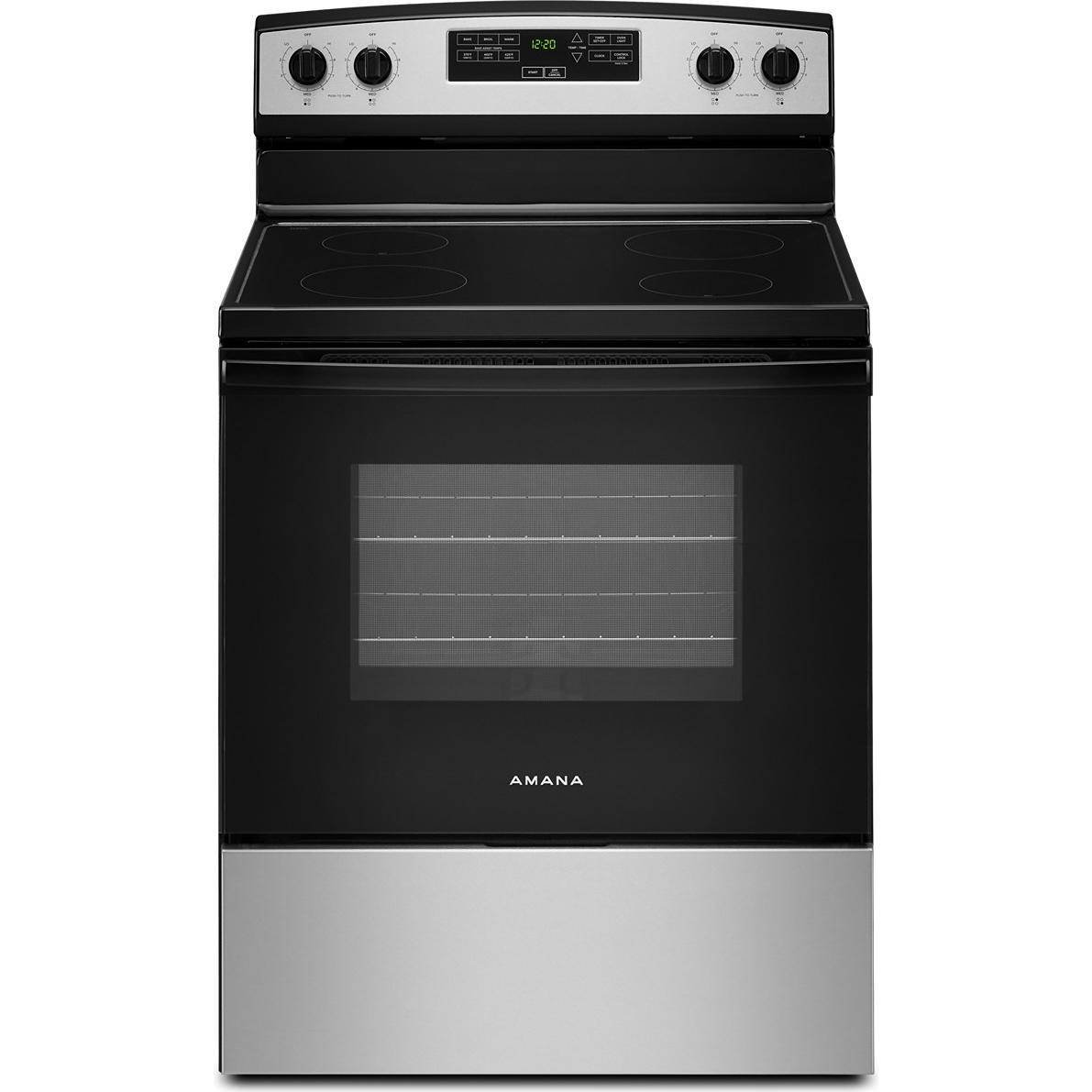

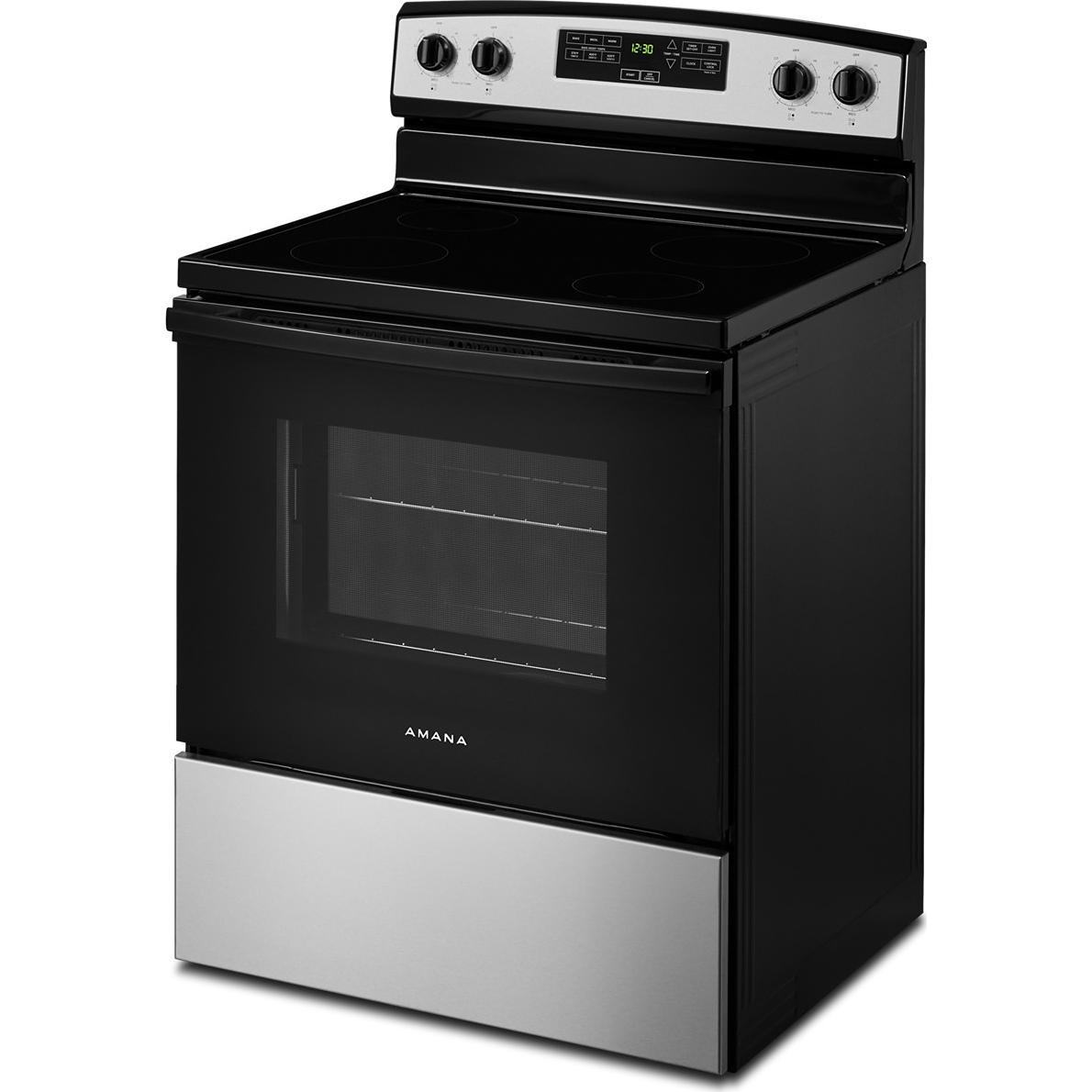

×This 30-inch Amana® Electric Range comes with Bake Assist Temps to help you get dinner going. Simply choose a preset temperature setting to get started. Or set your bake or broil temperatures with Easy Touch Electronic Controls Plus, which are extra-large and easy-to-read. And when you need to know how your dinner is doing without opening the oven door, the Extra-Large Oven Window lets you see and savour.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Oven Cleaning Type: Manual Clean

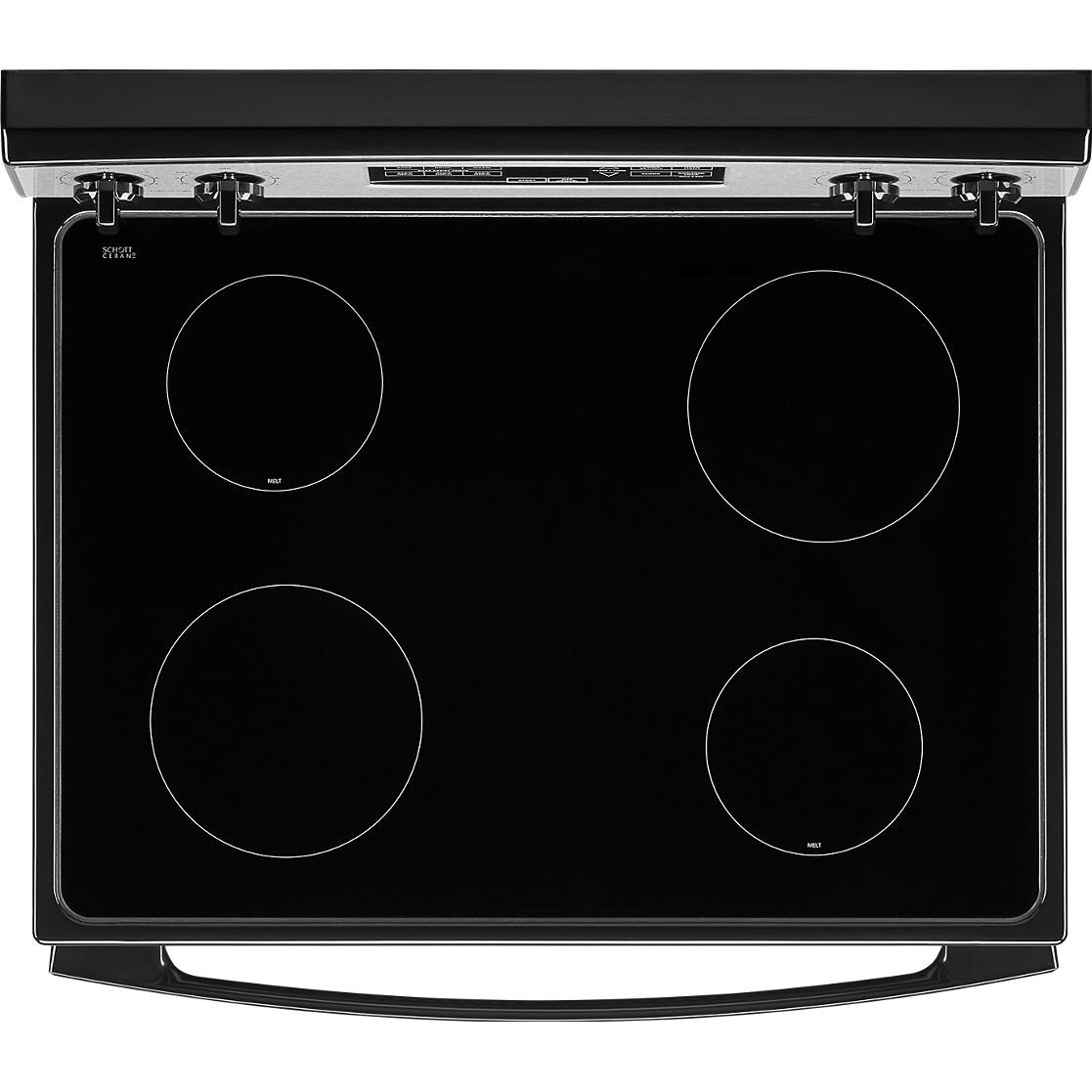

Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front Element Burner Power: 1800W
• Left Rear Element Burner Power: 1200W
• Right Front Element Burner Power: 1200W
• Right Rear Element Burner Power: 1800W
• Left Rear Element Burner Power: 1200W
• Right Front Element Burner Power: 1200W
• Right Rear Element Burner Power: 1800W
Burner/Element Size
• Left Rear Element Burner Size: 6in.
• Left Front Element Burner Size: 8in.
• Right Front Element Burner Size: 6in.
• Right Rear Element Burner Size: 8in.
• Left Front Element Burner Size: 8in.
• Right Front Element Burner Size: 6in.
• Right Rear Element Burner Size: 8in.

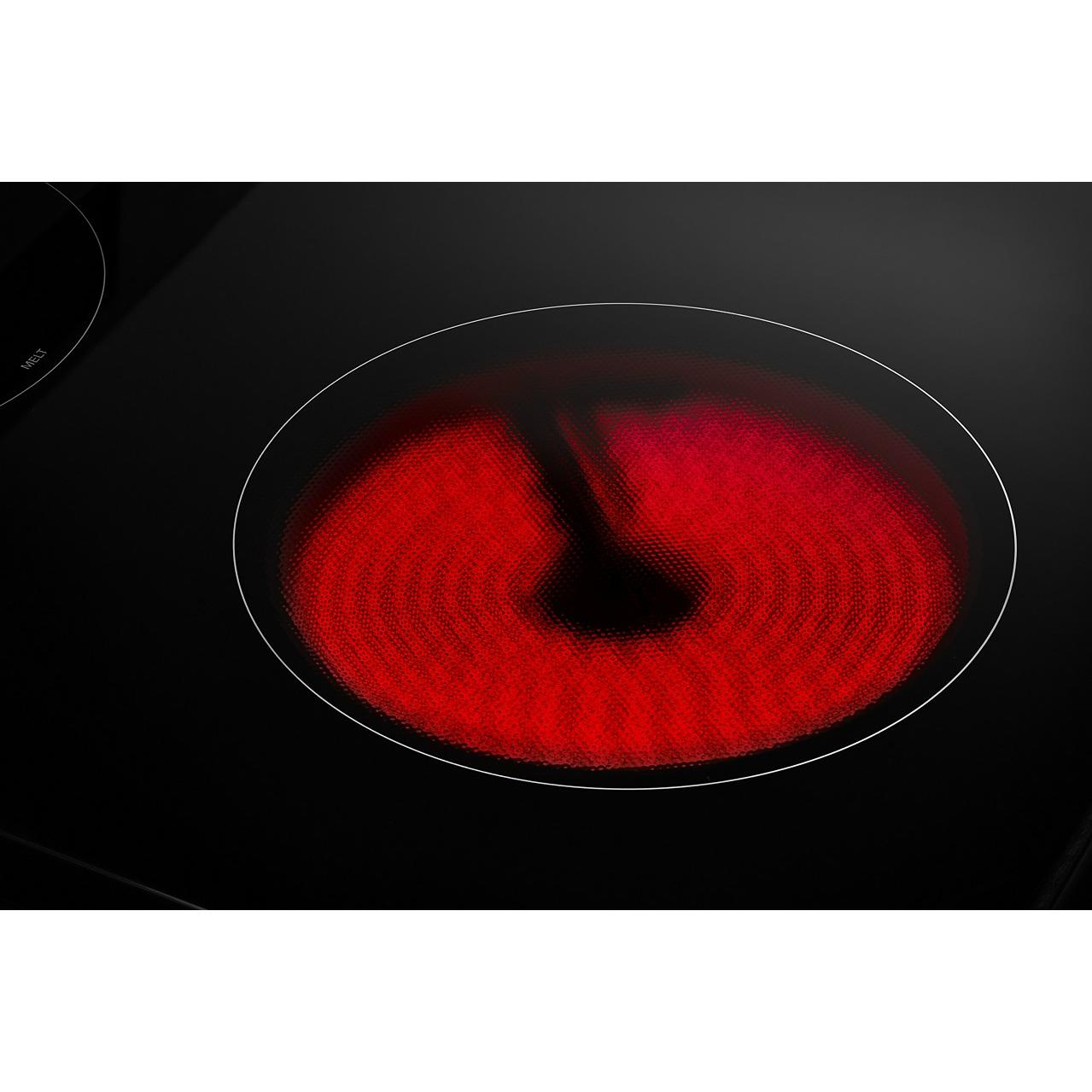

Elements
Smoothtop

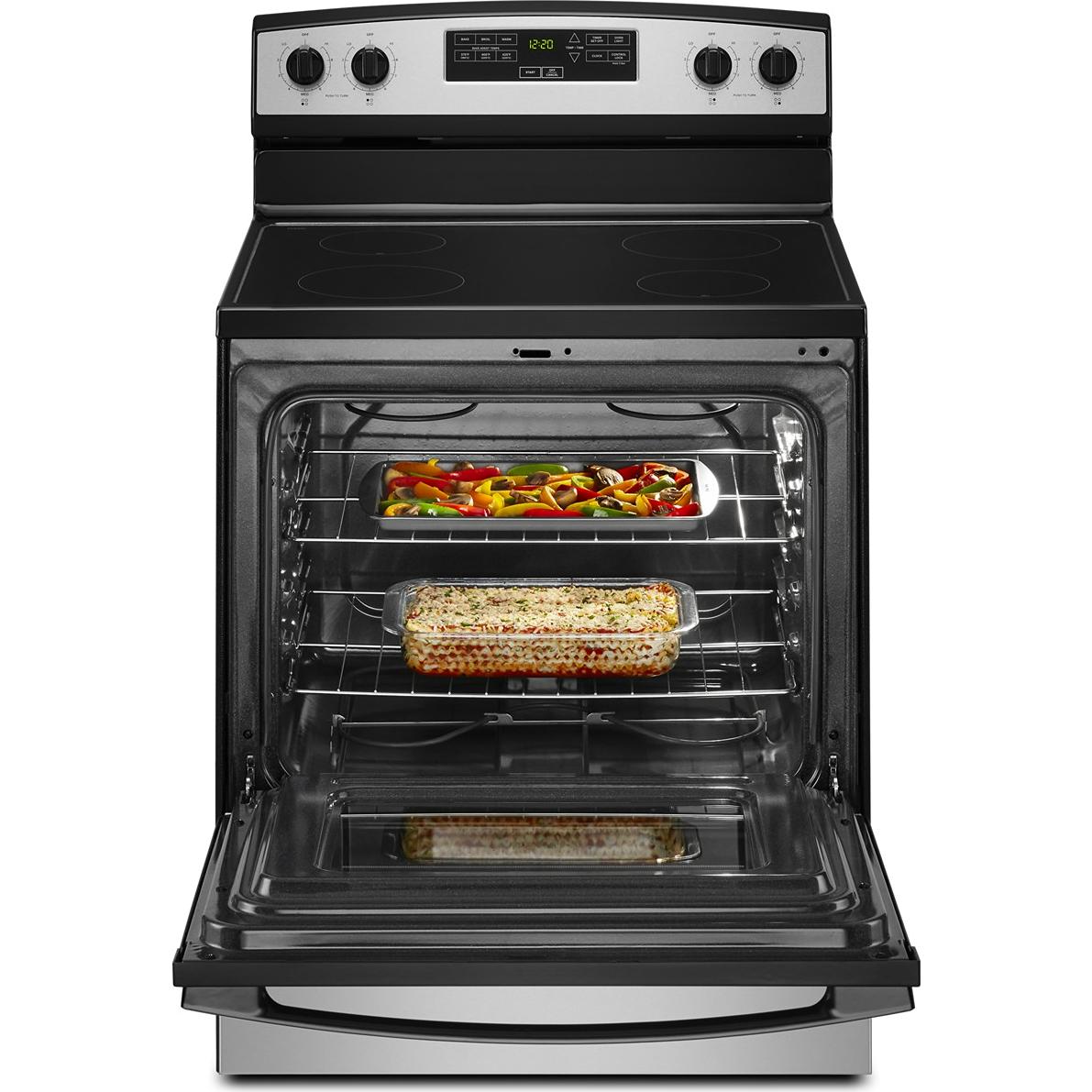

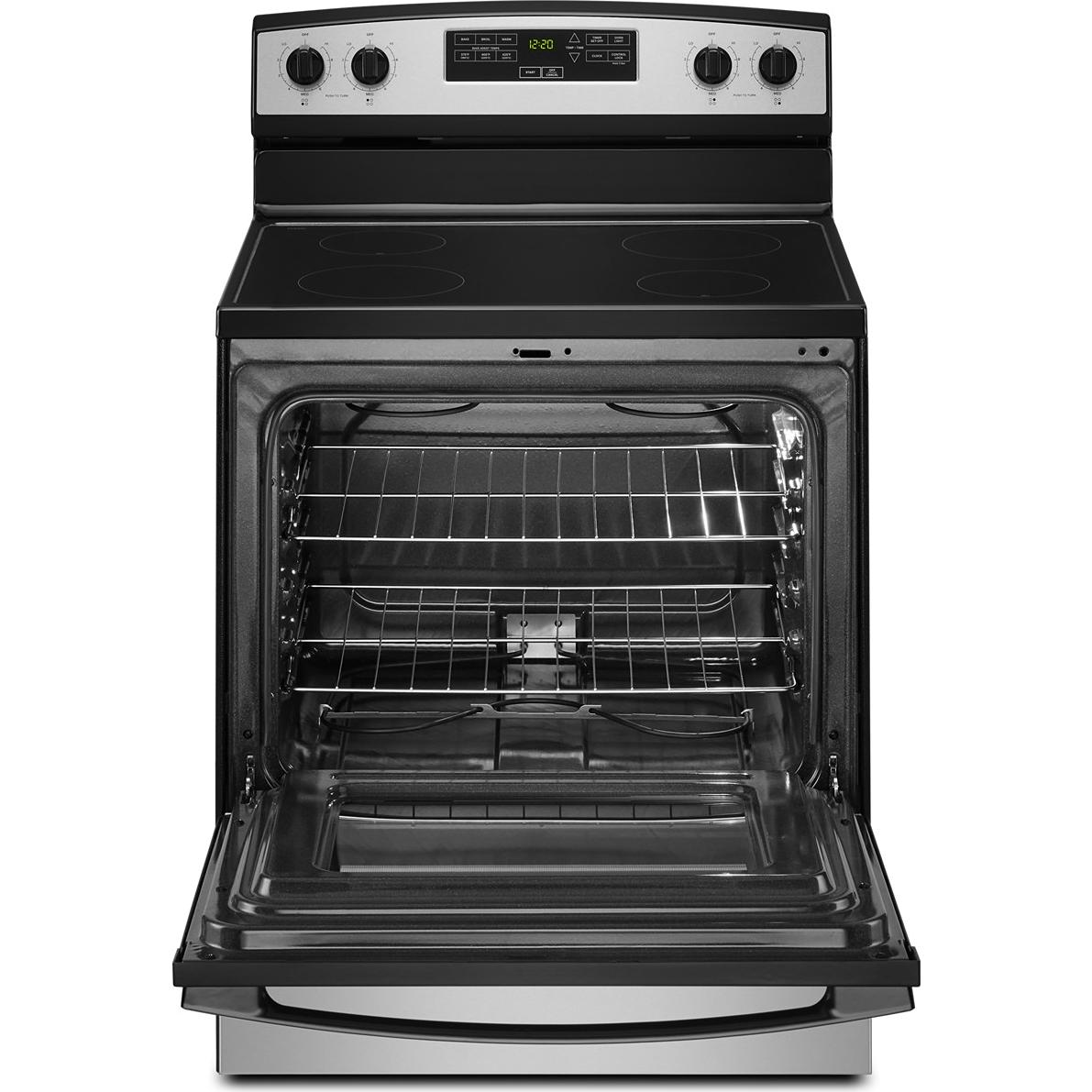

Oven
Capacity (cu. ft.)
4.8
Number of Ovens
Single
Features
Technologies
• Temp Assure™ Cooking System
• Bake Assist Temps
• Bake Assist Temps
Digital Temperature Display
Yes
Oven Light
Yes
Additional Information

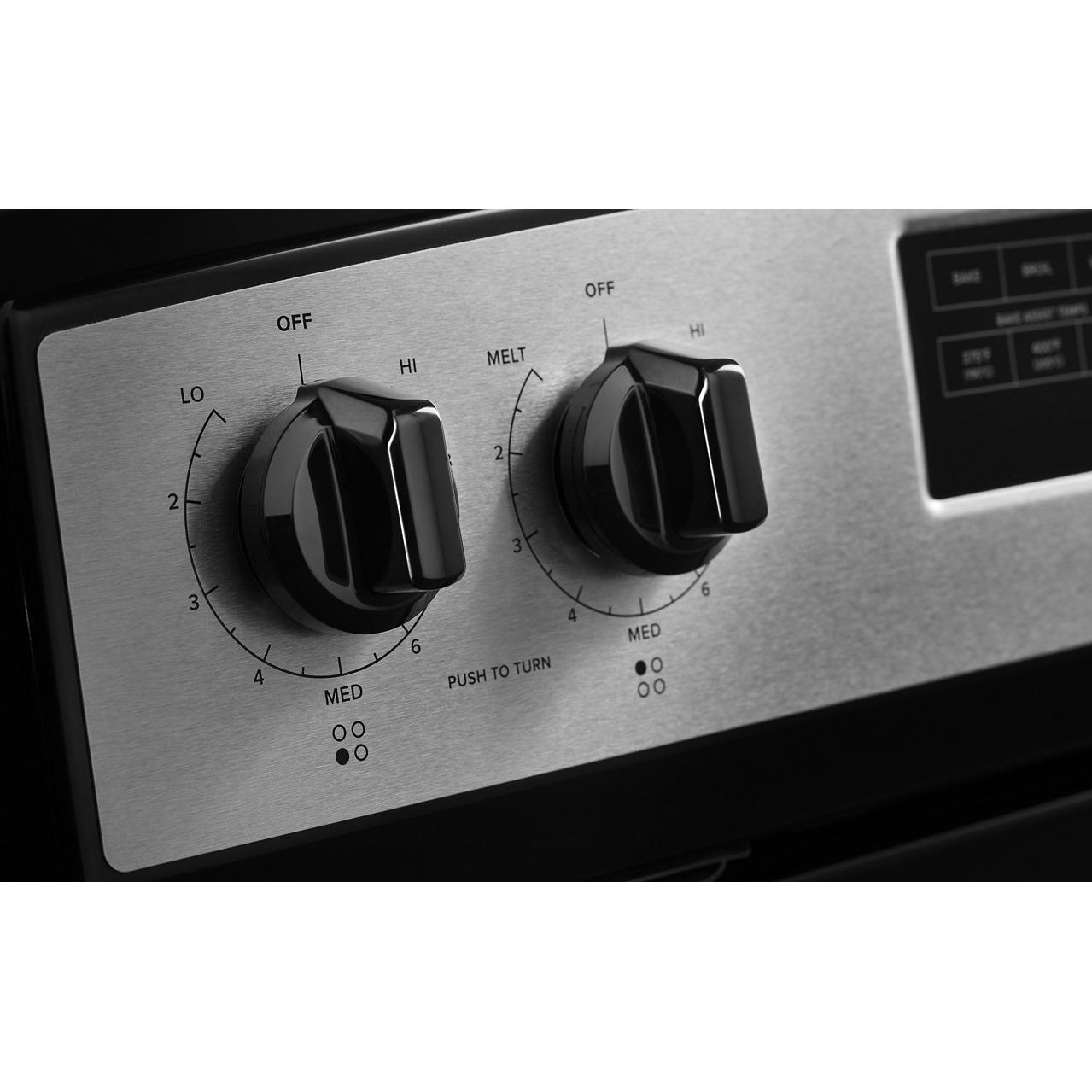

• Cooktop Control Type: Knobs
• Cooktop Element Style: Ceran
• Cooktop Surface Color: Black
• Cooktop Surface Material: Porcelain Coated Steel
• Interior Color: Grey
• Number Of Oven Lights: 1
• Number Of Oven Racks: 2
• Number Of Rack Guides: 5

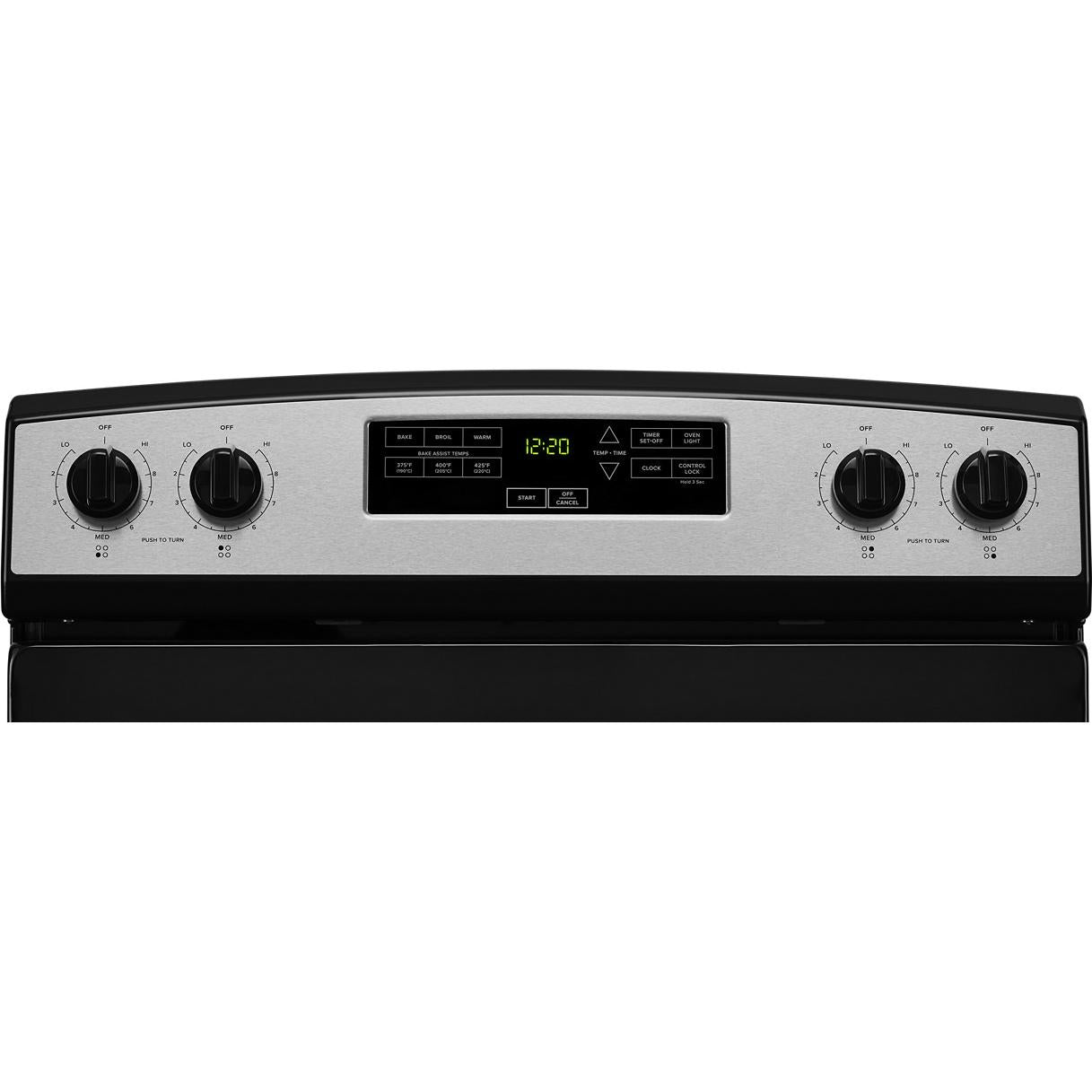

• Oven Control Location: Rear Control
• Oven Control Type: Electronic Touch
• Oven Cooking System: Thermal
• Oven Light Switch Location: Oven Control
• Oven Light Type: Incandescent
• Bake Element Power: 2400W
• Broiler Element Power: 3400W
• Broiler Location: Top of Oven
• Door Removable
• Drawer Type: Storage Drawer
• Handle Color: Black
• Handle Material: Plastic
• Handle Type: Reach-Through Handle
• Heating Element On Indicator Light
• Hot Surface Indicator Light
• Control Type: Knobs
• Knob Color: Black
• Knob Type: Plastic
• Cooktop Element Style: Ceran
• Cooktop Surface Color: Black
• Cooktop Surface Material: Porcelain Coated Steel
• Interior Color: Grey
• Number Of Oven Lights: 1
• Number Of Oven Racks: 2
• Number Of Rack Guides: 5
• Oven Control Location: Rear Control
• Oven Control Type: Electronic Touch
• Oven Cooking System: Thermal
• Oven Light Switch Location: Oven Control
• Oven Light Type: Incandescent
• Bake Element Power: 2400W
• Broiler Element Power: 3400W
• Broiler Location: Top of Oven
• Door Removable
• Drawer Type: Storage Drawer
• Handle Color: Black
• Handle Material: Plastic
• Handle Type: Reach-Through Handle
• Heating Element On Indicator Light
• Hot Surface Indicator Light
• Control Type: Knobs
• Knob Color: Black
• Knob Type: Plastic
Drawer Features
Storage
Yes
Electrical Information
Information
• Hz: 60
• Amps: 40
• Volts: 120
• Annual Energy Usage Kwh: 494
• Amps: 40
• Volts: 120
• Annual Energy Usage Kwh: 494
Certifications and Approvals
Information
• UL
• CUL
• CUL
Accessories
Included
Power Cord
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
46.88 inch(es) / 119.08 cm
Depth (Without Handles)
25.31 inch(es) / 64.29 cm
Depth (Including Handles)
27.75 inch(es) / 70.49 cm
Additional Dimensions
• Depth With Door Open 90 Degree: 46.69"
• Maximum Height: 47.88"
• Oven Interior Depth: 18.5"
• Oven Interior Width: 24.5"
• Maximum Height: 47.88"
• Oven Interior Depth: 18.5"
• Oven Interior Width: 24.5"
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
36 inch(es) / 91.44 cm
Depth
24 inch(es) / 60.96 cm
Weight
152.01 lb(s) / 68.95 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049938639
