DESCRIPTION

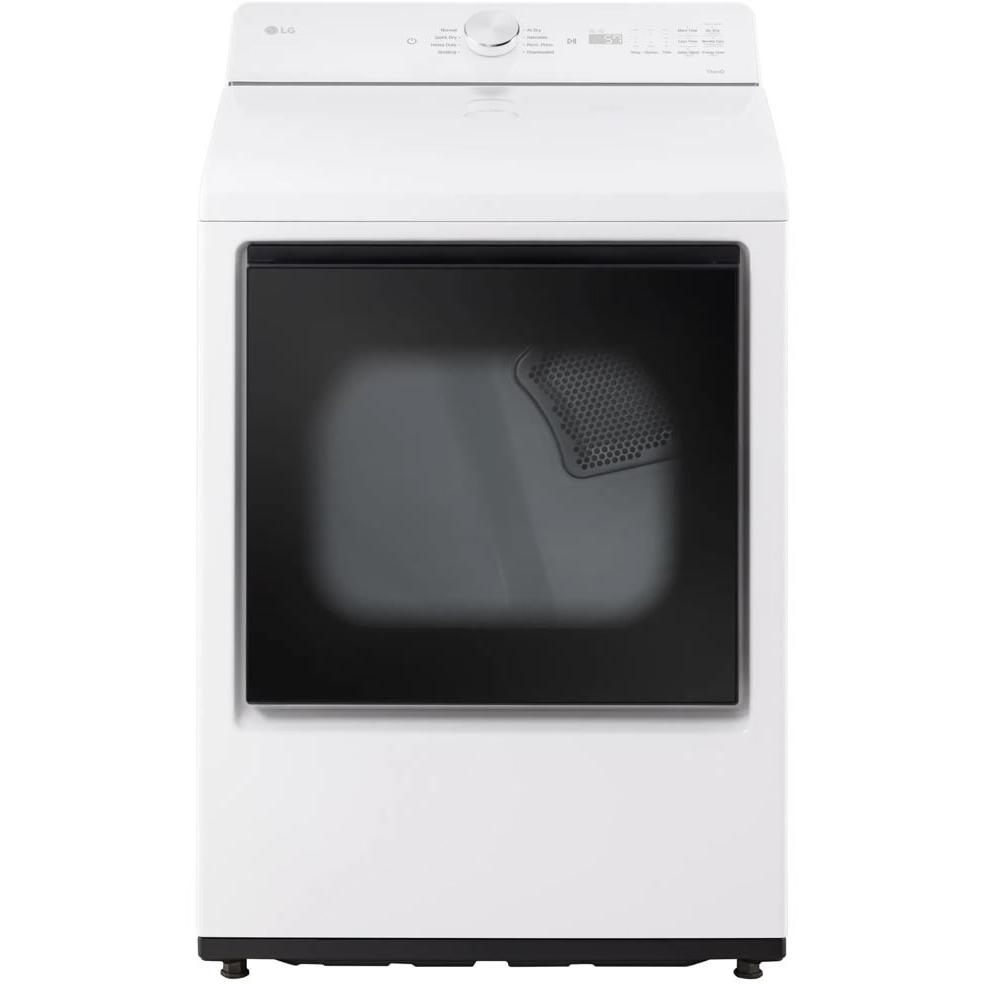

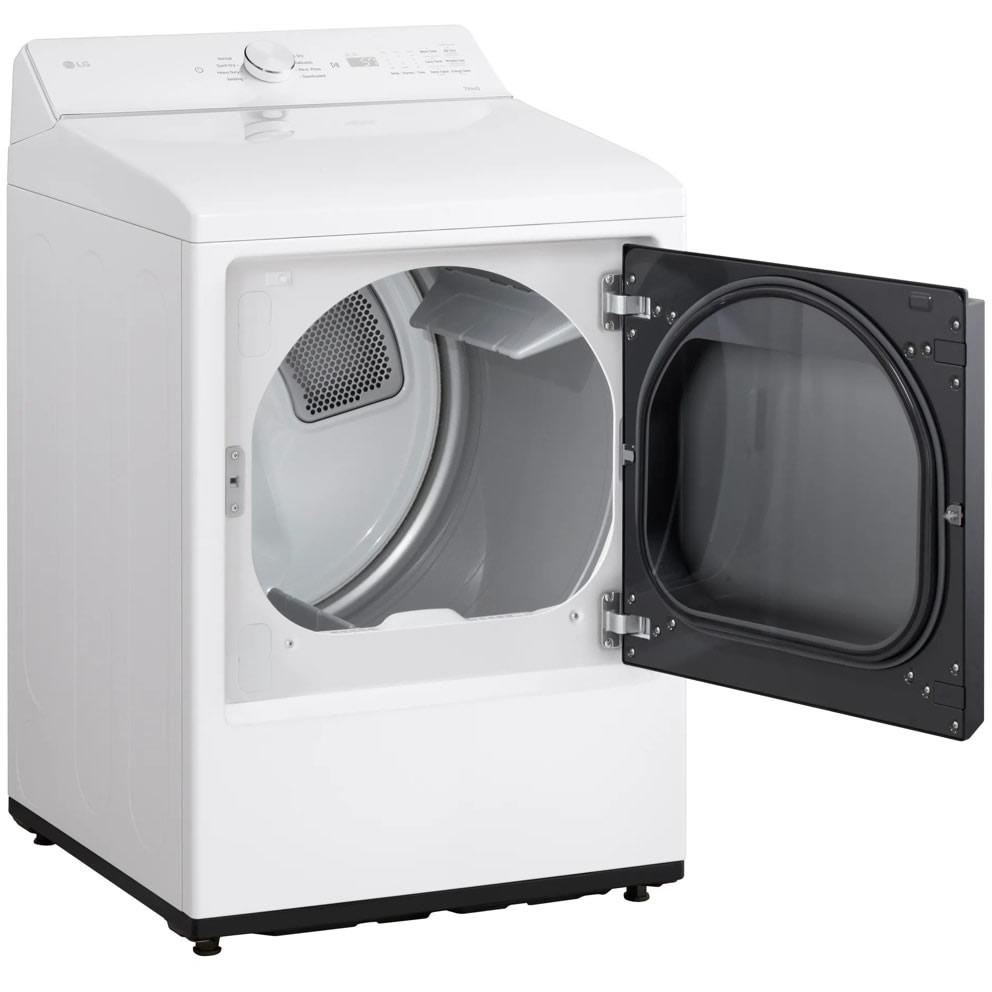

×This 7.3 cu.ft. dryer offers ultra large capacity letting you clean larger loads. The built-in intelligence takes out the guesswork. The FlowSense® Duct Clogging and Lint Filter Indicators help keep the dryer clean, efficient and safe.
FEATURES
×
Features
SPECIFICATIONS
×
Specifications
General
Type
Vented
Power Source
Electric
Color
White
Manufacturer Color
Alpine White
Tub Material
Aluminized Steel
Capacity
Capacity
7.3 cu. ft.
Cycle Information
Number of Cycles
8
Dry Cycles
• Normal
• AI Dry
• Bedding
• Delicates
• Quick Dry
• Timed Dry
• Heavy Duty
• Downloaded
• AI Dry
• Bedding
• Delicates
• Quick Dry
• Timed Dry
• Heavy Duty
• Downloaded
Options
• Temp.
• Dryness
• Time
• More Time
• Less time
• Damp Signal
• Air Dry
• Wrinkle Care
• Energy Saver
• Control Lock(3sec)
• Wi-Fi(3sec)
• Remote Start(3sec)
• Signal(3sec)
• Dryness
• Time
• More Time
• Less time
• Damp Signal
• Air Dry
• Wrinkle Care
• Energy Saver
• Control Lock(3sec)
• Wi-Fi(3sec)
• Remote Start(3sec)
• Signal(3sec)
Features
Technologies
• Built-In Intelligence: AI Sensor Dry™ / Smart Pairing™
• LoDecibel® Quiet Operation

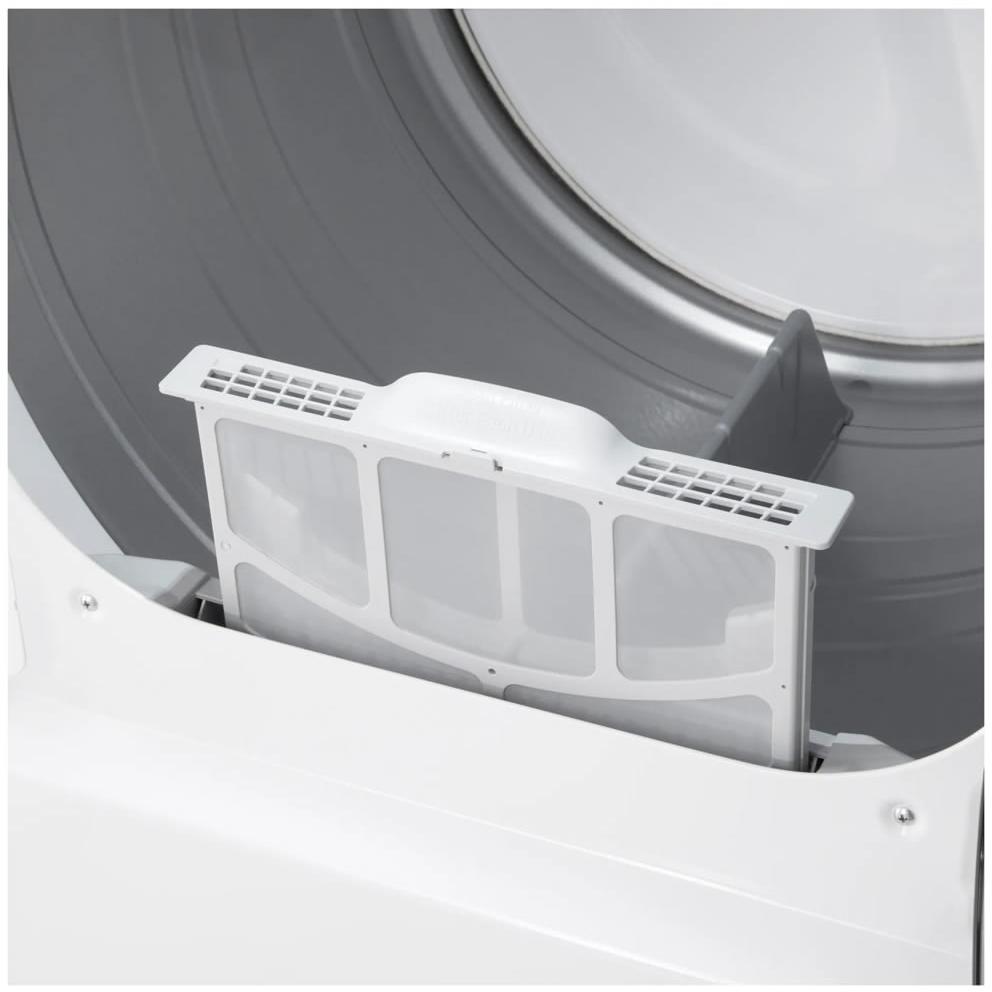

• FlowSense® Duct Clogging & Lint Filter Indicators
• ThinQ® Smart Technology / ThinQ UP™/ ThinQ Care™
• Smart Diagnosis (v3.0)
• Remote Start/Cycle Monitor
• Energy Monitoring
• Smart Pairing
• Dial-A-Cycle®
• LoDecibel® Quiet Operation
• FlowSense® Duct Clogging & Lint Filter Indicators
• ThinQ® Smart Technology / ThinQ UP™/ ThinQ Care™
• Smart Diagnosis (v3.0)
• Remote Start/Cycle Monitor
• Energy Monitoring
• Smart Pairing
• Dial-A-Cycle®
Dryness Levels
Damp/ Less/ Normal/ More/ Very
Temperature Settings
Low / Med. Low / Normal / Med. High / High
Number of Temperature Settings
5
Wi-Fi
Yes
Control Lock
Yes
Reversible Door
Yes
Sensor Dry
Yes
Additional Information
• Wrinkle Care Option

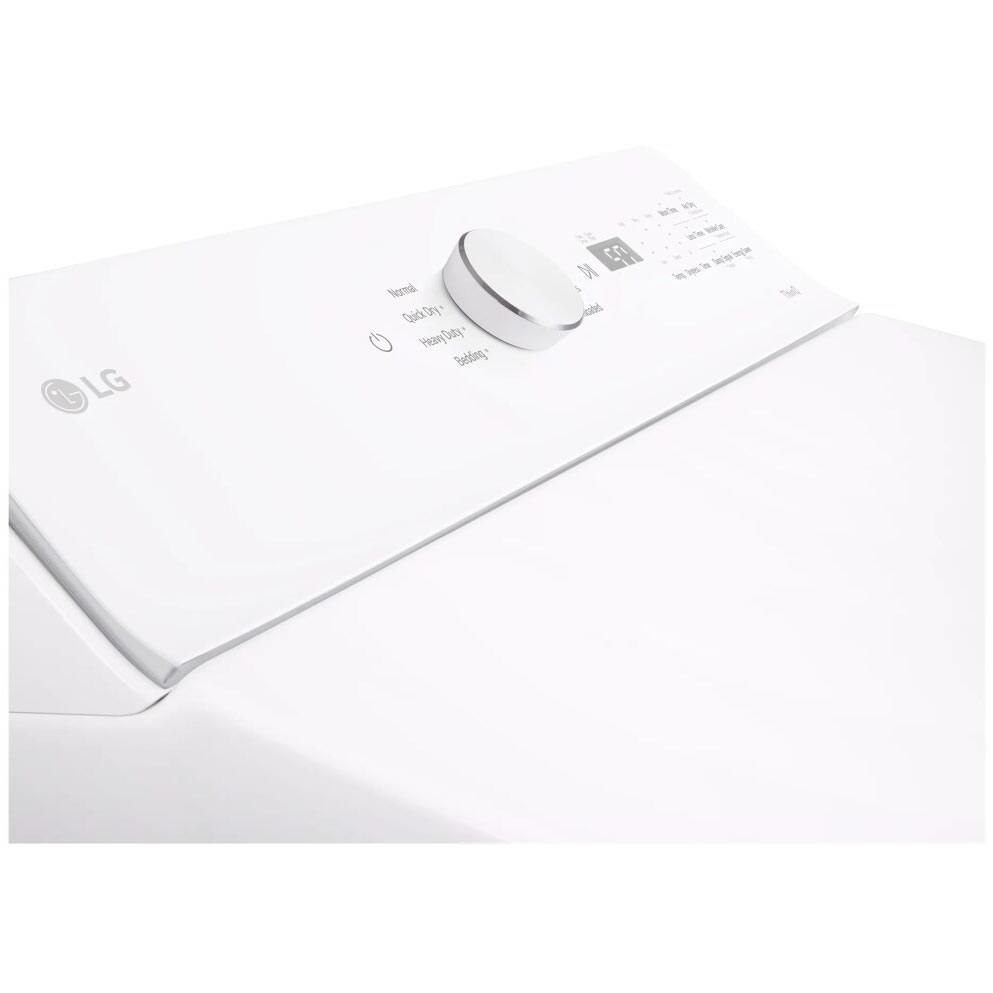

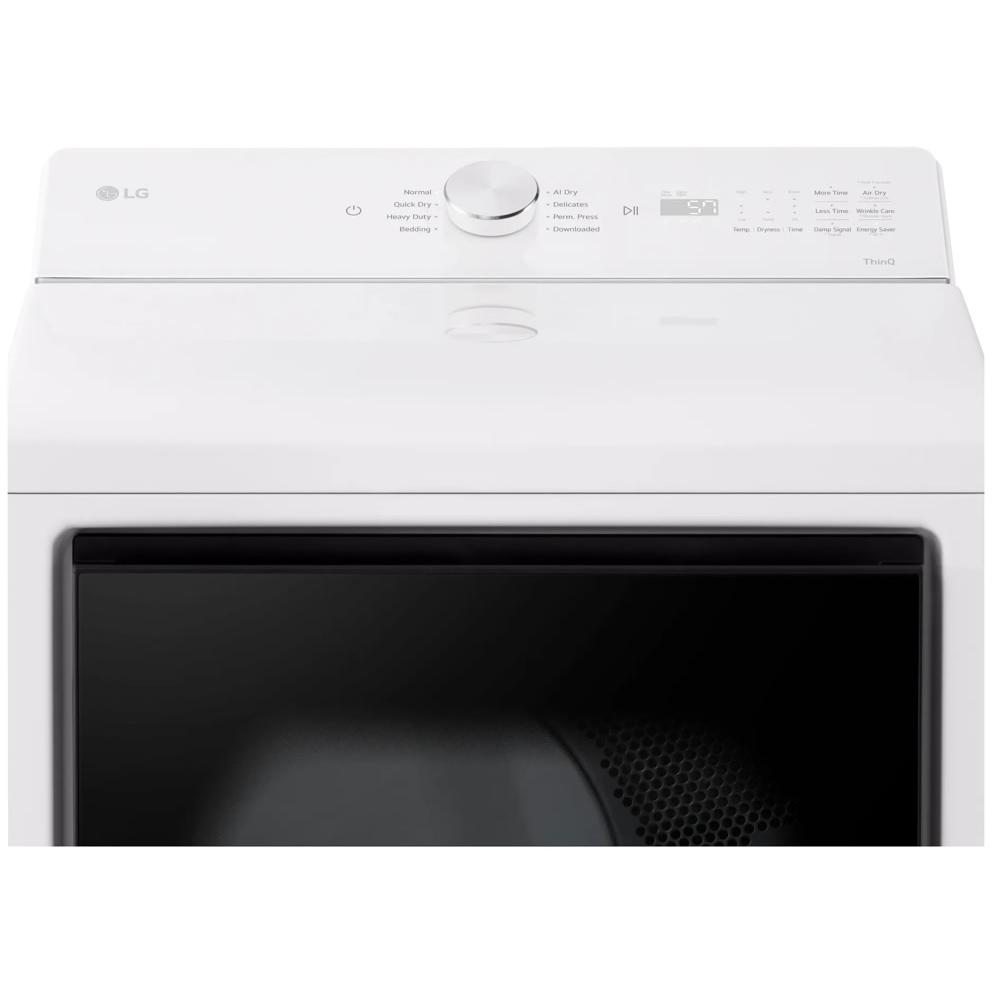

• Electronic Control Panel with LED Display
• Manual Dry Times: 20/30/40/50/60min
• Precise Temperature Control with Variable Heater
• 3-Minute Installation Check
• End of Cycle Signal

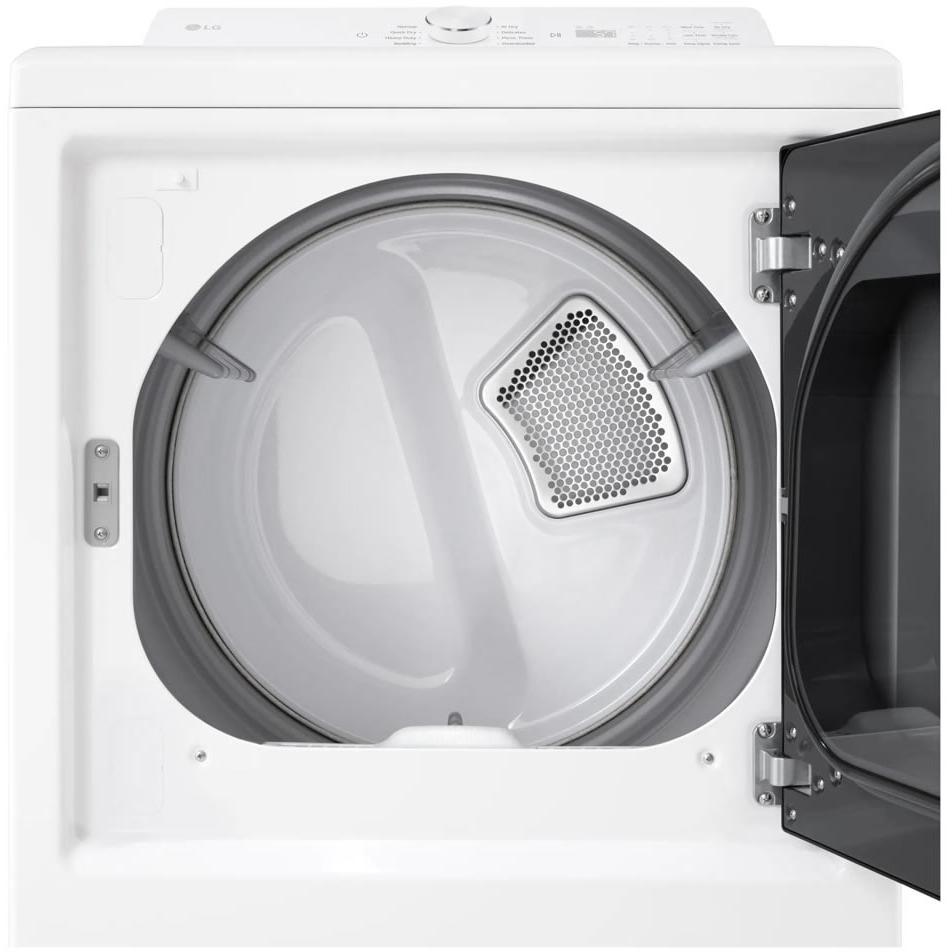

• Drum Light (Door open)
• Venting Option
• 4 Adjustable Legs
• Remaining Time Display/Status Indicator(s)

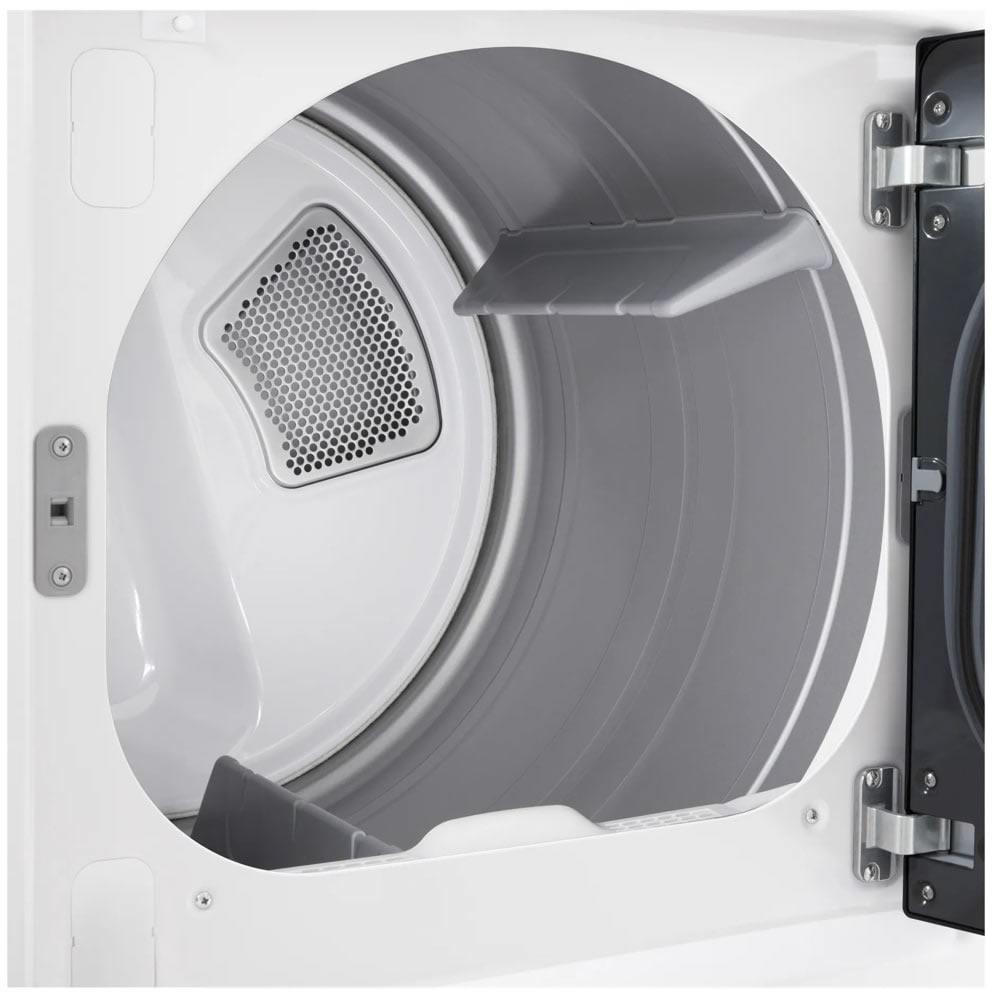

• Drum Rear: Stainless Steel
• Cabinet: Painted Steel
• Door / Trim: Glass / Black
• Electronic Control Panel with LED Display
• Manual Dry Times: 20/30/40/50/60min
• Precise Temperature Control with Variable Heater
• 3-Minute Installation Check
• End of Cycle Signal
• Drum Light (Door open)
• Venting Option
• 4 Adjustable Legs
• Remaining Time Display/Status Indicator(s)
• Drum Rear: Stainless Steel
• Cabinet: Painted Steel
• Door / Trim: Glass / Black
Electrical Information
Information
240V / 30 Amps
Certifications and Approvals
Energy Star Certified
Yes
Additional Information
CSA Listed
Accessories
Optional
• LP Conversion Kit: 383EEL3002R
• Side Venting Kit: 383EEL9001B
• Side Venting Kit: 383EEL9001B
Dimensions
Class Width
26" - 27"
Width
27 inch(es) / 68.58 cm
Height
42.75 inch(es) / 108.59 cm
Depth
29.25 inch(es) / 74.3 cm
Weight
116.8 lb(s) / 52.98 kg
Additional Dimensions
Power Cord Lengths: 66 7/8"
Shipping Dimensions
Width
29.13 inch(es) / 73.99 cm
Height
45.5 inch(es) / 115.57 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
123.5 lb(s) / 56.02 kg
Warranty
Warranty
Limited Warranty:
• Parts & Labor: 1 Year • Drum: 3 Years
• Parts & Labor: 1 Year • Drum: 3 Years
UPC
UPC#
195174089088
