DESCRIPTION

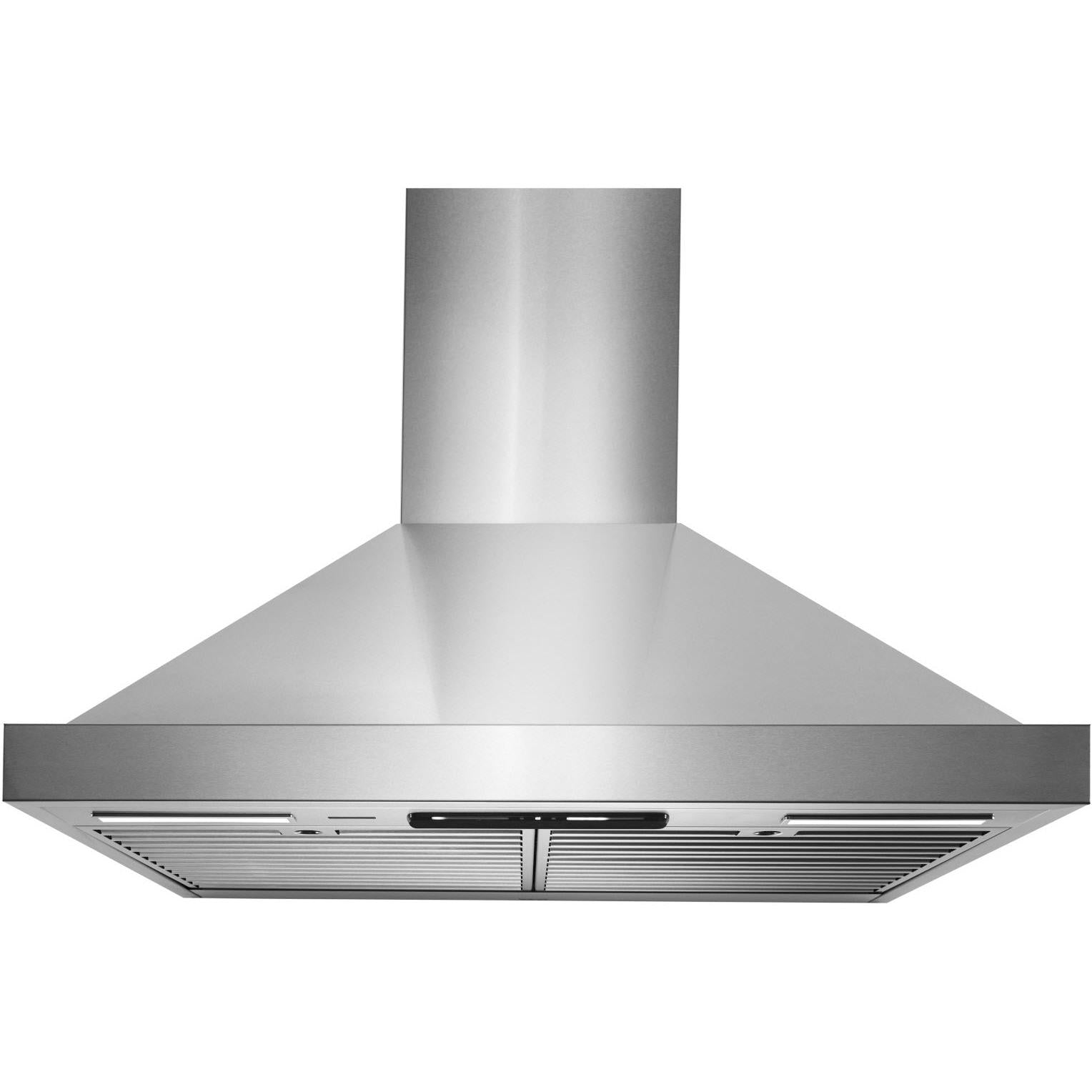

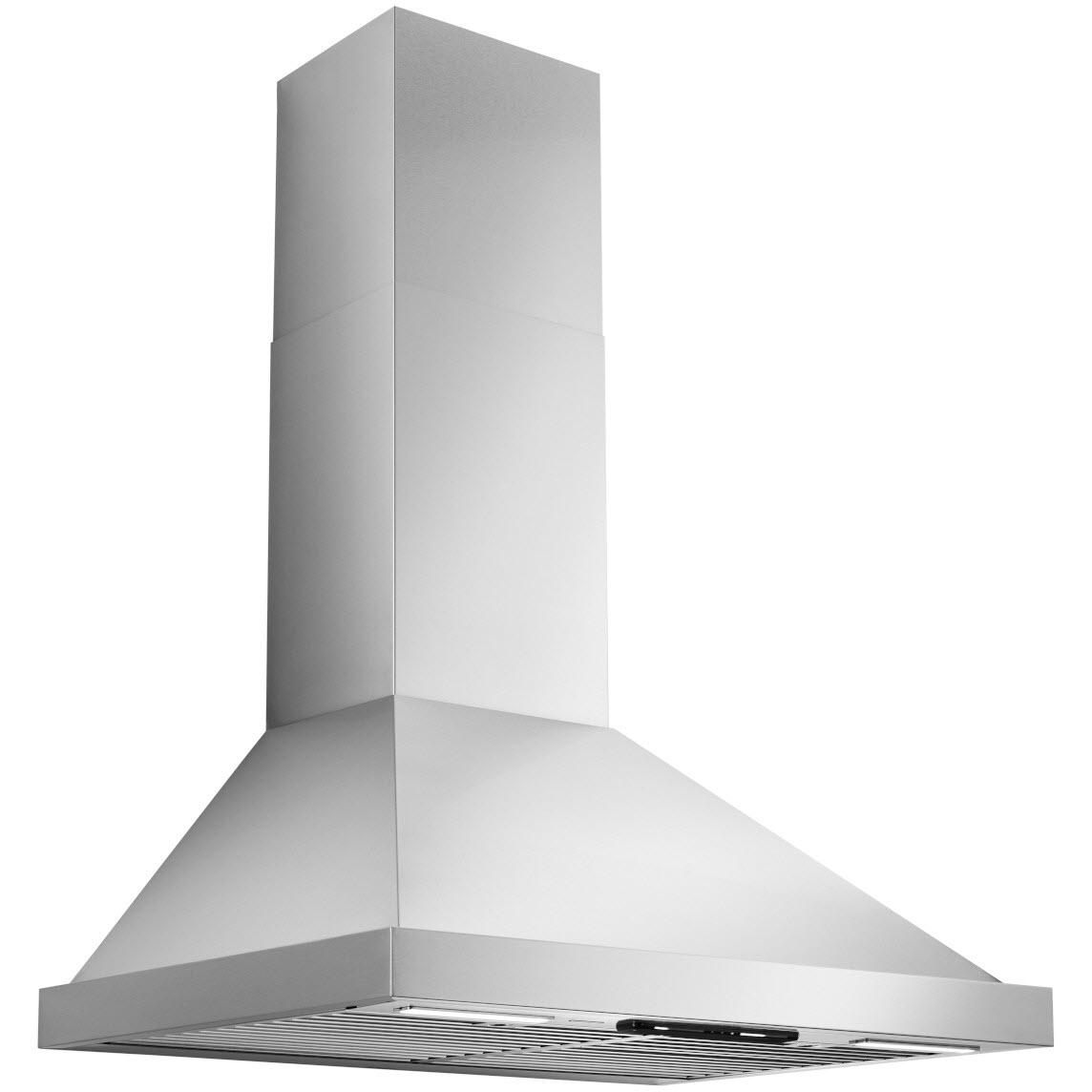

×This elegant high-profile pyramidal hood with powerful ventilation can meet the challenges of any home chef while featuring a traditional appearance that fits into practically any kitchen.
SPECIFICATIONS
×
Specifications
General
Series Name
WCP1
Blower Included
Yes
Airflow
650 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Brushed Stainless Steel (Grade 430)
Installation
Wall Mount
Features
Wi-Fi
Yes
Technologies
• Code Ready Technology (CRT)
• SmartSense®
• Voice activation
• Heat Sentry™
• SmartSense®
• Voice activation
• Heat Sentry™
Ducting Information
• Duct Size: 3-1/4" x 10" - rectangular (horizontal only)
• 6" - round
• 8" - round
• Duct Direction Vertical or horizontal
• 6" - round
• 8" - round
• Duct Direction Vertical or horizontal
Speeds

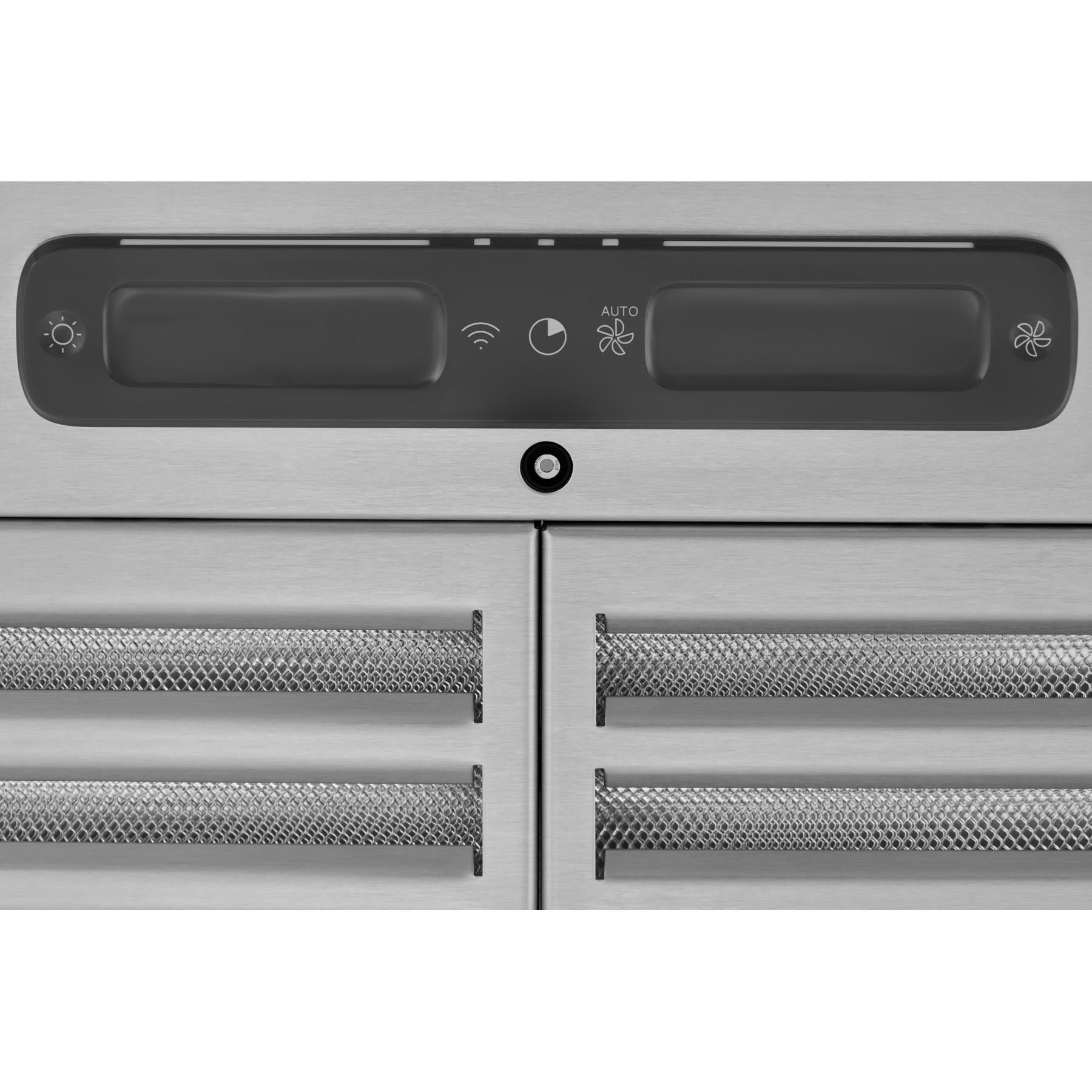

4-speed Capacitive Touch Slider
Additional Information
• Lighting Type LED Modules (6W per module, color temp 3000K)
• 4 Lighting Levels
• Delay Off
• Filter Clean Reminder

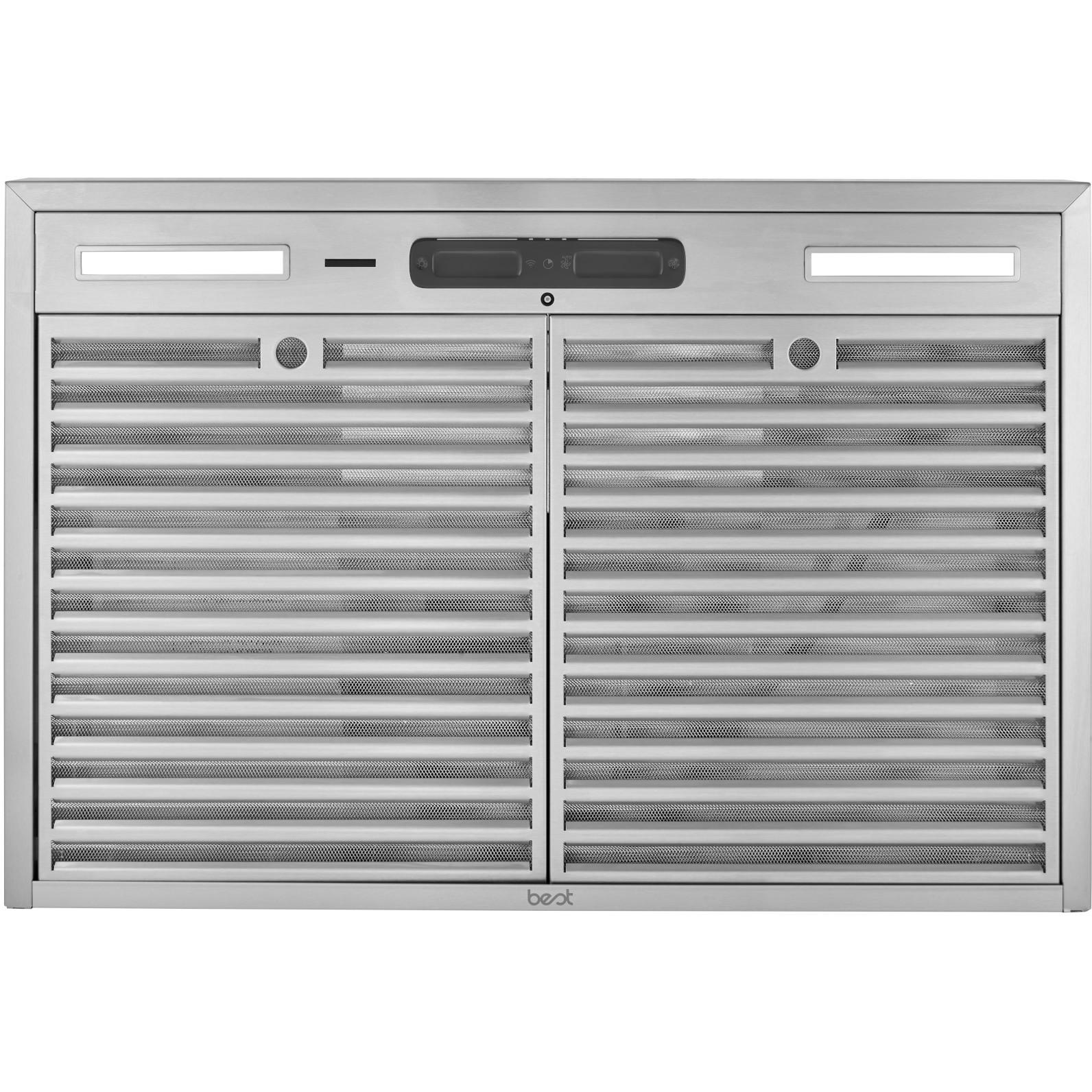

• Hybrid Baffle Filters
• Non-ducted Capability
• 4 Lighting Levels
• Delay Off
• Filter Clean Reminder
• Hybrid Baffle Filters
• Non-ducted Capability
Certifications and Approvals
Energy Star Certified
No
Accessories
Included
Backdraft Damper
Optional
• ADA Kit HAWRK5
• Flue extension AEWCP1SS (ceiling greater than 9') (ducted—non-ducted)
• Recirculation Kit ANKWCPST1
• Universal MUA Damper MD6TU, MD8TU, MD10TU (Requires Fresh Air Inlet)
• Fresh Air Inlet 641FA, 643FA, 610FA
• Flue extension AEWCP1SS (ceiling greater than 9') (ducted—non-ducted)
• Recirculation Kit ANKWCPST1
• Universal MUA Damper MD6TU, MD8TU, MD10TU (Requires Fresh Air Inlet)
• Fresh Air Inlet 641FA, 643FA, 610FA

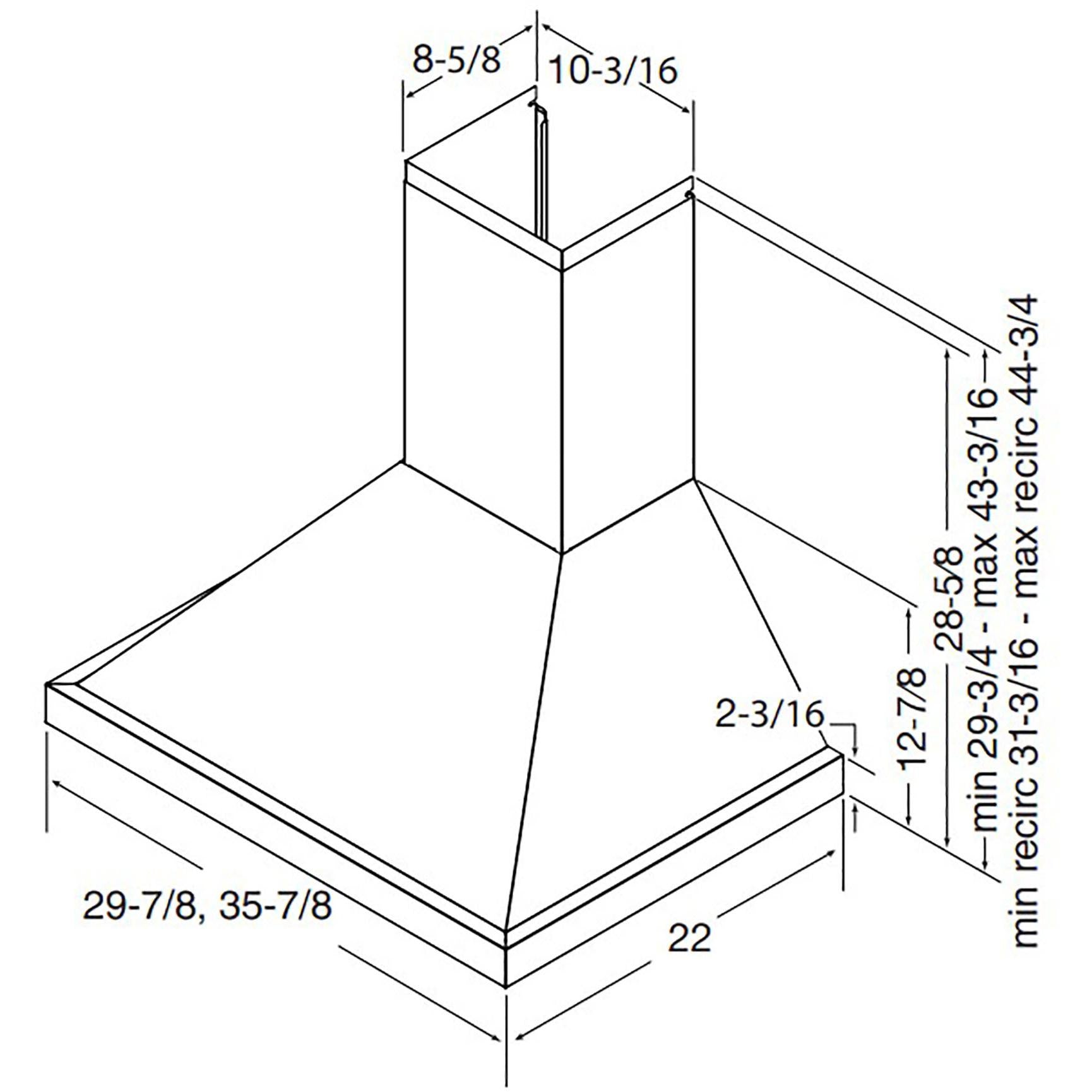

Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
12.87 inch(es) / 32.7 cm
Depth
22 inch(es) / 55.88 cm
Warranty
Warranty
5 Year Parts/2 Year Labor
